Medium-voltage reeling & shore power cablesIEC/ISO/IEEE 80005-1 · VDE 0250-8136/10 kV (12 kV max) · 70–185 mm²8×2.5C Pilots + 12 OM1 Fibres

(N)TSCGEW11Y 6/10 kV HVSC Shore Power Cable with FOIEC/ISO/IEEE 80005-1 & DIN VDE 0250-813 · 8×2.5C Pilots + 12 OM1 Fibres + 11Y TPU

IEC/ISO/IEEE 80005-1 and DIN VDE 0250-813 (N)TSCGEW11Y 6/10 kV (21 kV test) shore power reeling cable with 3 phase cores (70–185 mm²), 2 split earths, 8×2.5C pilots, 12 OM1 fibres and dual 11Y TPU sheaths.

EMC screen
Water-resistant
Outdoor & humid
Oil-resistant
Order designation
3×95 + 2×50/2 + 1×(8×2.5)C + FO
Phase size
95 mm²
Max. OD
71.0 mm
Tensile 25N/mm²
7,125 N
Mass ≈
7,440 kg/km
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
6/10 kV (12 kV)
21 kV AC routine test
Hybrid core set
3P+2E+8×2.5C+FO
12 × G62.5/125 OM1 fibres
Phase size range
70–185 mm²
4 HVSC configurations
Sheath & water
11Y TPU · AD8
Halogen-free · 10 bar water
Operating temp.
−30 to +90 °C
Fixed down to −40 °C
Max. tensile
25 N/mm² max
5,250 to 13,875 N pull

Application fit

Is (N)TSCGEW11Y 6/10 kV Shore Power Cable with FO right for your machine?

Medium-voltage (6/10 kV) quayside Shore-to-Ship (HVSC / AMP) flexible power + optical-fibre reeling cable to IEC 62610 / IEC 60092 for container, cruise and Ro-Ro berths.

Quayside shore-to-ship HVSC connection

Suitable

Primary duty — quayside HVSC dispenser reel and shipboard cable management systems under tidal heave.

Cylindrical / multi-layer drum

Suitable

Motorised shore-power drums in container terminals and mobile berth dispenser trailers.

Immersion & wet locations

Suitable

Hydrolysis- and seawater-resistant PUR outer sheath (11Y) withstands quayside washdown and splash.

Free-hanging vertical run

Suitable

Supports catenary and vertical fairlead drop from quay tower to vessel receiving socket.

Energy chain / drag chain

Not suitable

Large-OD MV + FO shore-power cable is not designed for tight machine drag chains.

Use (N)TSCGEWÖU MV Reel
Typical machinesContainer ship & cruise terminal HVSC berthsShipboard cold-ironing cable management reelsQuayside mobile shore-power dispenser towersRo-Ro, ferry & naval dockyard shore feedsPort crane & marine offshore MV hybrid reels

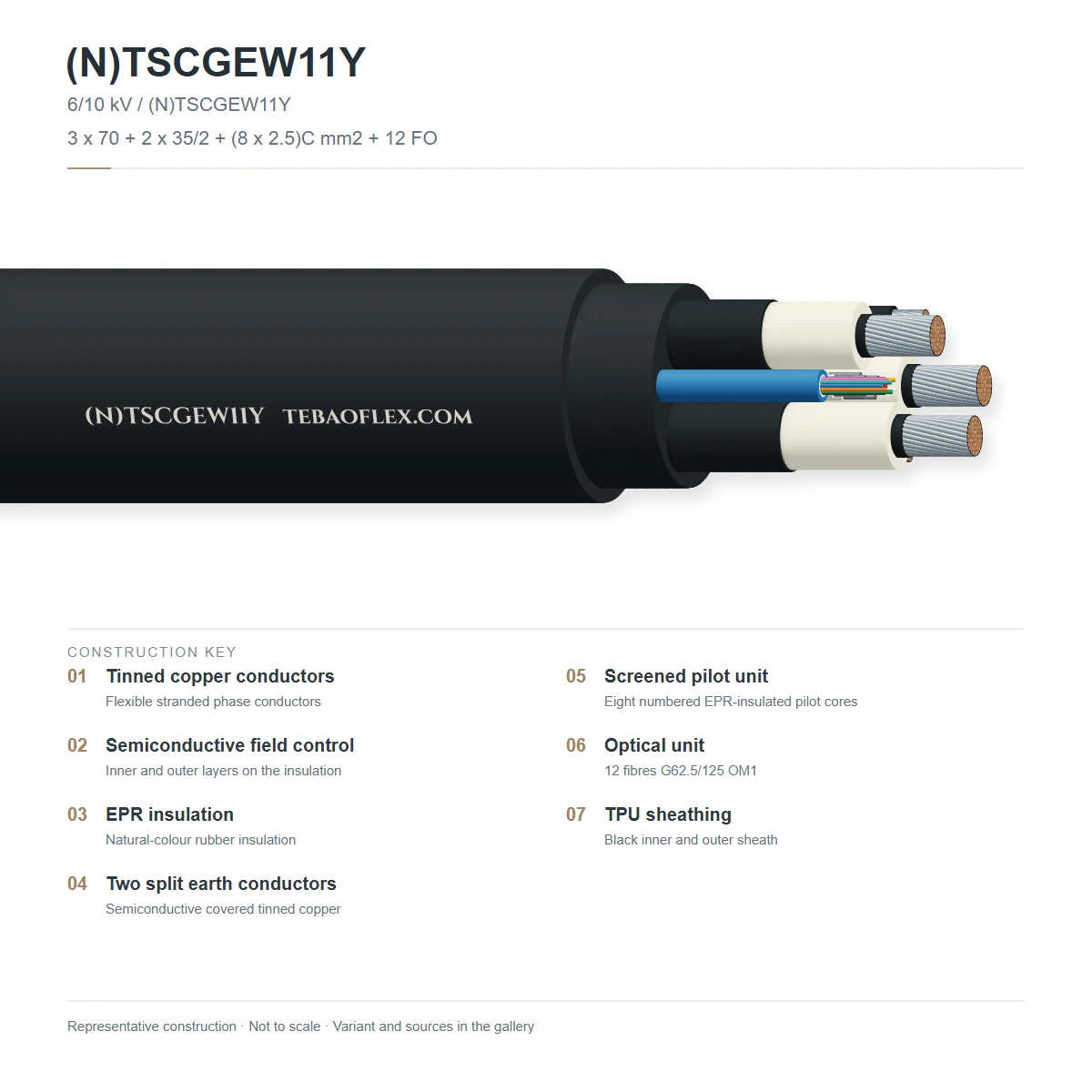

Construction

Layer by layer

Three Class 5 tinned copper phase conductors (70–185 mm²) insulated with triple-extruded EPR between inner and outer semiconductive layers are laid up with two semiconductive-covered split earth conductors (2×35/2 to 2×95/2 mm²), one overall-screened 8×2.5 mm² EPR control unit and one 12-fibre G62.5/125 µm (OM1) optical fibre element, enclosed by a halogen-free thermoplastic polyurethane (11Y) inner sheath, an anti-torsion textile reinforcing braid and a black 11Y TPU outer sheath.

12345678910
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Main phase conductorsThree Class 5 flexible tinned copper conductors (70, 95, 120 or 185 mm²)IEC 60228 · DIN VDE 0295
2Inner semiconductive layerTriple-extruded inner semiconductive elastomer stress-control screenDIN VDE 0250-813
3Core insulationTriple-extruded ethylene-propylene rubber (EPR) dielectric (6/10 kV, 21 kV AC test)DIN VDE 0207-20
4Outer semiconductive layerTriple-extruded outer semiconductive elastomer layer in contact with split ground conductorsDIN VDE 0250-813
5Split ground conductorsTwo Class 5 tinned copper ground conductors (2×35/2 to 2×95/2 mm²) with semiconductive coveringIEC/ISO/IEEE 80005-1
6Screened pilot bundle 1×(8×2.5)CEight 2.5 mm² tinned copper cores (white EPR with black numbers 1–8) under an overall tinned copper wire screenIEC/ISO/IEEE 80005-1
7Optical fibre unit (12 × OM1)12 graded-index multimode fibres G62.5/125 µm (IEC 60793-2-10) in protective buffer assemblyIEC 60793-2-10
8Inner sheath (11Y)Halogen-free thermoplastic polyurethane (TPU) inner bedding sheathDIN VDE 0250-813
9Anti-torsion reinforcing braidHigh-strength synthetic textile braid vulcanized between inner and outer TPU sheathsReeling reinforcement
10Outer sheath (11Y)Black halogen-free thermoplastic polyurethane (TPU), AD8 (10 bar) submersible, UV and oil resistantDIN VDE 0250-813 · AD8

3×70 & 3×95 mm² HVSC Umbilicals

3×70+2×35/2 or 3×95+2×50/2 + 1×(8×2.5)C + 12×OM1 FO · 66–71 mm OD · 6,505–7,440 kg/km

3×120 & 3×185 mm² High-Capacity HVSC Umbilicals

3×120+2×70/2 or 3×185+2×95/2 + 1×(8×2.5)C + 12×OM1 FO · 71–77 mm OD · 8,465–10,000 kg/km

Technical data

Ratings & operating limits

Electrical

Rated & max voltage
U0/U 6/10 kV · Max. operating voltage Umax 6.9/12 kV AC (suitable for 6.6 kV and 11 kV HVSC systems)
Routine AC test voltage
21 kV AC routine dielectric test (elevated above standard 17 kV VDE test for marine HVSC service)
Screened pilot bundle
1 × (8 × 2.5 mm²)C — eight Class 5 tinned copper EPR-insulated cores (white with black numbers) under overall tinned Cu screen

Thermal

Conductor temperature
+90 °C max continuous operation · +200 °C max short-circuit temperature
Ambient temperature range
Fixed −40 °C to +90 °C · Mobile and reeling operation −30 °C to +90 °C

Mechanical

Min. bending radius
6 × D fixed installation · 10 × D free movement · 12 × D motorized reeling
Max. permissible tensile load
25 N/mm² of main phase copper cross-section (5,250 N on 3×70 mm² up to 13,875 N on 3×185 mm²)

Optical

Fibre count & specification
12 × G62.5/125 µm (OM1) graded-index multimode fibres to IEC 60793-2-10 (core 62.5 ± 3 µm, cladding 125 ± 2 µm, coating 245 ± 10 µm)
Attenuation & bandwidth
850 nm: ≤ 3.2 dB/km & ≥ 200 MHz·km · 1300 nm: ≤ 0.9 dB/km & ≥ 500 MHz·km

Resistance

Submersion & halogen-free TPU
Permanent water immersion up to 10 bar (AD8) · Halogen-free dual TPU (11Y) inner and outer sheaths
Marine & dockside durability
Resistant to seawater, marine oils, UV radiation, ozone and concrete quayside abrasion

Reference standards

Applicable standards
IEC/ISO/IEEE 80005-1 (HVSC) · DIN VDE 0250-813 · DIN VDE 0298-3 · DIN VDE 0298-4
Conductor & earth construction
3 Class 5 tinned Cu phase cores (triple-extruded EPR) + 2 split semiconductive-covered tinned Cu ground conductors

Identification

Core & fibre identification
Pilot cores white EPR with black numbers 1–8 · Optical fibres individually colour-coded · Black 11Y TPU outer sheath
Designation code
(N)TSCGEW11Y — MV reeling cable with triple-extruded EPR cores, anti-torsion braid and 11Y thermoplastic polyurethane sheaths

Sizes

4 standard 6/10 kV (12 kV max) HVSC shore power configurations with 8×2.5C pilots & 12 OM1 fibres

All configurations include triple-extruded EPR phase cores, split semiconductive earths, screened 8×2.5 mm² pilot unit and 12-fibre OM1 optical module.

Dimensions & mechanical parameters
Designation
(N)TSCGEW11Y + FO
Phase
mm²
Split earth
mm²
Screened pilots
mm²
Fibre unit
IEC 60793-2-10
Min. OD
mm
Max. OD
mm
Tensile 25N/mm²
N
Mass ≈
kg/km
Enquiry
3×70 + 2×35/2 + 1×(8×2.5)C + FO702×35/28×2.5C12×OM166.069.05,2506,505
3×95 + 2×50/2 + 1×(8×2.5)C + FO952×50/28×2.5C12×OM168.071.07,1257,440
3×120 + 2×70/2 + 1×(8×2.5)C + FO1202×70/28×2.5C12×OM171.074.09,0008,465
3×185 + 2×95/2 + 1×(8×2.5)C + FO1852×95/28×2.5C12×OM174.077.013,87510,000
  • Max. tensile load is calculated at 25 N/mm² of the three main copper phase conductors (3 × phase mm² × 25 N/mm²).
  • Minimum bending radius: 6 × D fixed installation, 10 × D free movement, 12 × D reeling operation.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 1,704 mm
Minimum bending radius
852 mm
Min. drum core diameter
≈ 1,704 mm
Cable weight on drum
744.0 kg
Outer diameter
71.0 mm
Indicative only: based on the datasheet outer diameter and 12 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
21 kV AC HVSC dielectric withstand test21 kV AC applied to 6/10 kV (Umax 12 kV) triple-extruded EPR phase cores per IEC/ISO/IEEE 80005-1 and datasheetEvery shipping drum
OTDR optical attenuation & bandwidth verification≤ 3.2 dB/km at 850 nm and ≤ 0.9 dB/km at 1300 nm verified across all 12 G62.5/125 µm OM1 fibresEvery shipping drum
Sample tests
AD8 (10 bar) water immersion & halogen-free TPU sheath testPermanent water submersion up to 10 bar (AD8) plus oil, UV and abrasion testing on dual 11Y TPU sheathsProduction batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC/ISO/IEEE 80005-1 · VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · (N)TSCGEW11Y 6/10 kV · IEC 80005-1 · FO
Delivery form
Export marine wooden or steel reels sized to 12 × D reeling bend radius
Lengths
Custom shipboard or quayside HVSC dispenser reel lengths
Certificate
EN 10204 3.1 21 kV AC HV test + 12-fibre OTDR test report with every drum
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why is (N)TSCGEW11Y 6/10 kV tested at 21 kV AC instead of the standard 17 kV AC VDE test voltage?
IEC/ISO/IEEE 80005-1 High-Voltage Shore Connection (HVSC) systems operate at nominal 6.6 kV or 11 kV (up to Umax 12 kV AC) in wet marine berth environments. Applying a 21 kV AC routine dielectric test verifies extra insulation margin for 11 kV ship-to-shore cold-ironing service.
What is the purpose of combining an 8×2.5 mm² screened pilot bundle and a 12-fibre OM1 optical unit?
The overall-screened 8×2.5 mm² copper pilot bundle carries fail-safe safety interlock loops and emergency shore-breaker trip signals required by IEC/ISO/IEEE 80005-1, while the 12-fibre G62.5/125 µm (OM1) optical element handles EMI-immune voltage/frequency synchronization, protection relay interlocking and ship-to-shore SCADA data.
What does '11Y' mean in the (N)TSCGEW11Y designation?
In VDE cable coding, '11Y' specifies a thermoplastic polyurethane (TPU) sheath in place of the polychloroprene rubber ('ÖU') sheath on standard (N)TSCGEWÖU cables. The dual 11Y TPU inner and outer sheaths are halogen-free, highly resistant to concrete quay abrasion, and rated for permanent water immersion up to 10 bar (AD8).
Which bending radii apply to fixed routing versus motorized HVSC cable reels?
Maintain at least 6 × D for fixed routing, 10 × D for free movement/festooning, and 12 × D on motorized shipboard or quayside reeling drums.
