Product

Vertical spreader reeling cableAdapted to DIN VDE 0250U0/U 0.6/1 kV · 24 FO dataVertical reel · ≤ 240/300 m/min

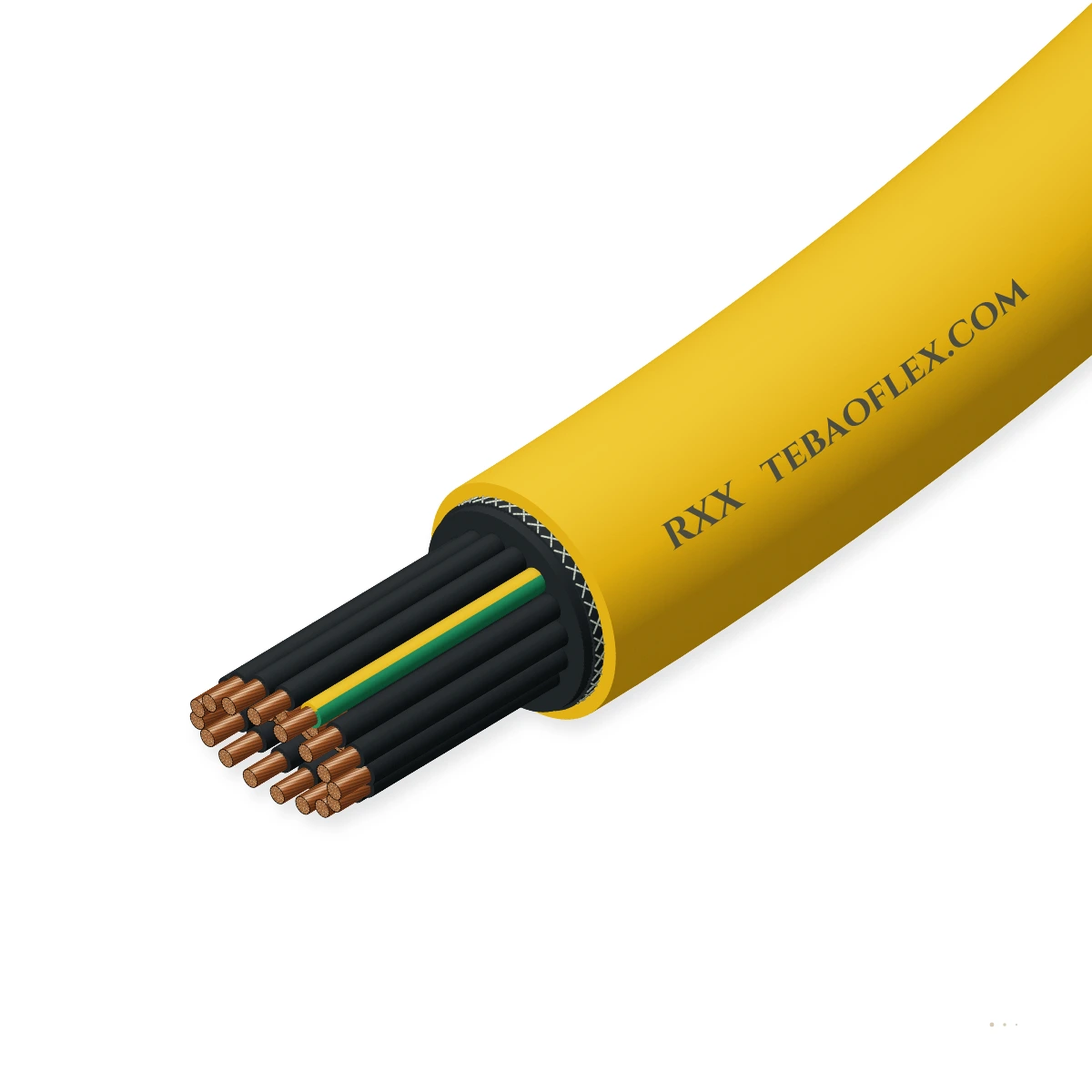

RXX / RXX-D Vertical Spreader Reeling CableExtra-heavy-duty 0.6/1 kV PCP vertical reeling & 24-fiber data cable up to 240/300 m/min

Extra-heavy-duty (N)SHTOEU-J vertical spreader reeling cable with central strain relief, short-lay cores and bonded yellow dual-PCP sheath with anti-torsion braid for container cranes and grab dredgers.

Oil-resistant
Flame-retardant
Outdoor & humid
Water-resistant
Order designation
RXX 30 G 2.5
Outer Ø max
32.4 mm
Net weight ≈
1,680 kg/km
Permitted pull
4,100 N
Reel R min (6×D)
194 mm
All sizes (7)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Max AC 0.7/1.2 kV · RXX-D optical
Reeling speed
≤ 240/300 m/min
240 m/min RXX · 300 m/min RXX-D
Tensile load
3.2–6.0 kN
30 N/mm² + central strain relief
Torsion rating
±50 °/m
Embedded braid between PCP sheaths
Bend radius
6 × D reel
7.5 × D rollers · 20 × D S-guide
Flexing temp.
−35…+80 °C
Fixed −50 °C · 50 m water immersion

Typical values for this cable type, based on DIN VDE 0250-814 — confirmed in the datasheet and quotation for your order.

Application fit

Is RXX / RXX-D right for your machine?

RXX and RXX-D are built for vertical motorized spreader reels and grab-dredger hoists combining high suspended tensile loads (3,200–6,000 N), rapid vertical acceleration (up to 240 m/min on RXX and 300 m/min on RXX-D), ±50 °/m twist and wet outdoor or submerged operation.

Vertical / spreader reel

Suitable

Primary duty: vertical motorized spreader reels up to 240 m/min (RXX) or 300 m/min (RXX-D) with central strain relief.

Immersion & wet locations

Suitable

Rated for temporary water submersion down to 50 m depth on grab dredgers and floating dredgers.

Motorised monospiral reel

Suitable

Suitable for high-speed horizontal and diversion-roller reeling with ±50 °/m twist tolerance.

Typical machinesShip-to-shore (STS) & RMG/RTG container crane vertical spreader reelsGrab dredgers & floating dredger vertical motorized hoists (to 50 m water)High-speed vertical material-handling & port automation reels (RXX-D 24 FO)Heavy-duty outdoor port & marine reeling installations (−35 to +80 °C)

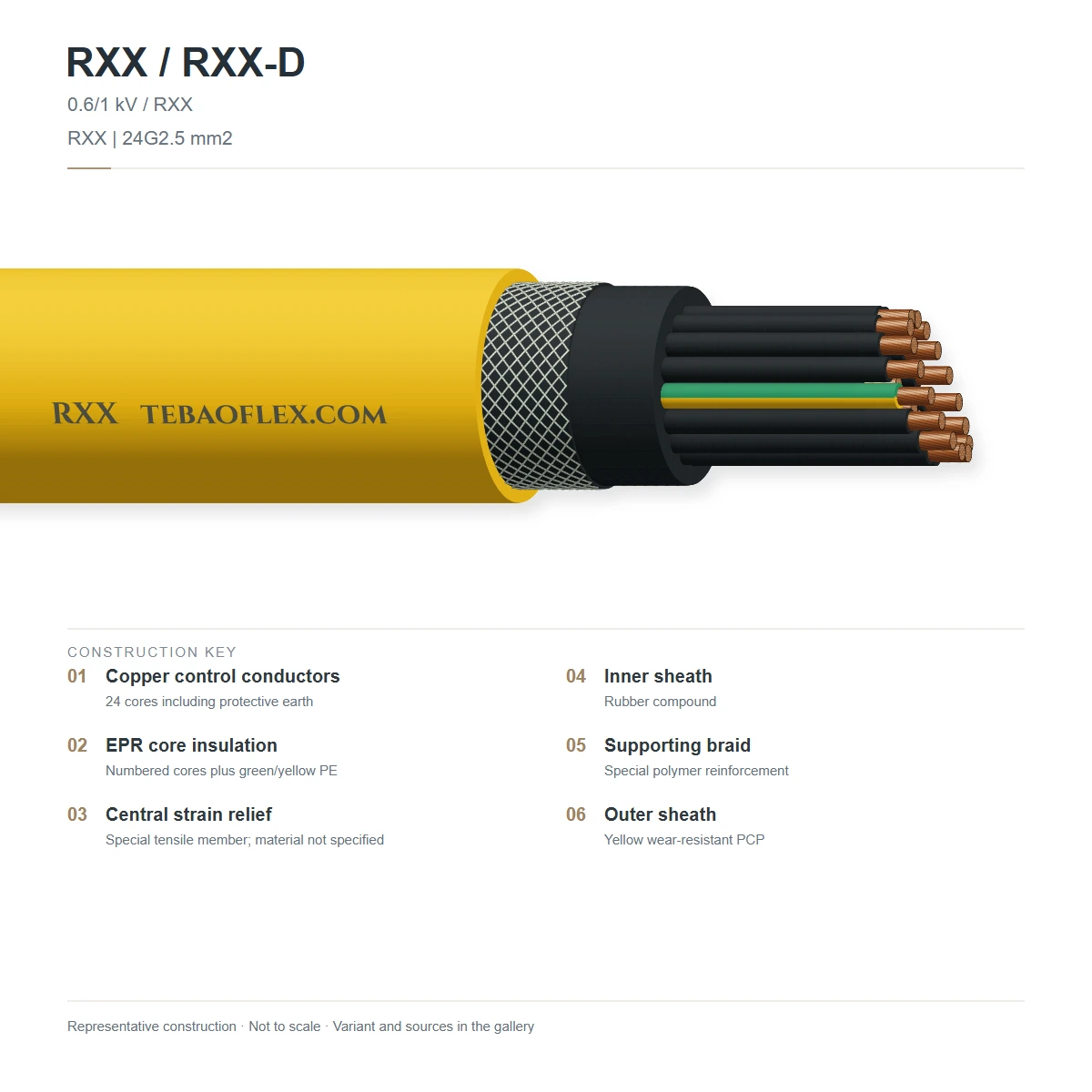

Construction

Layer by layer

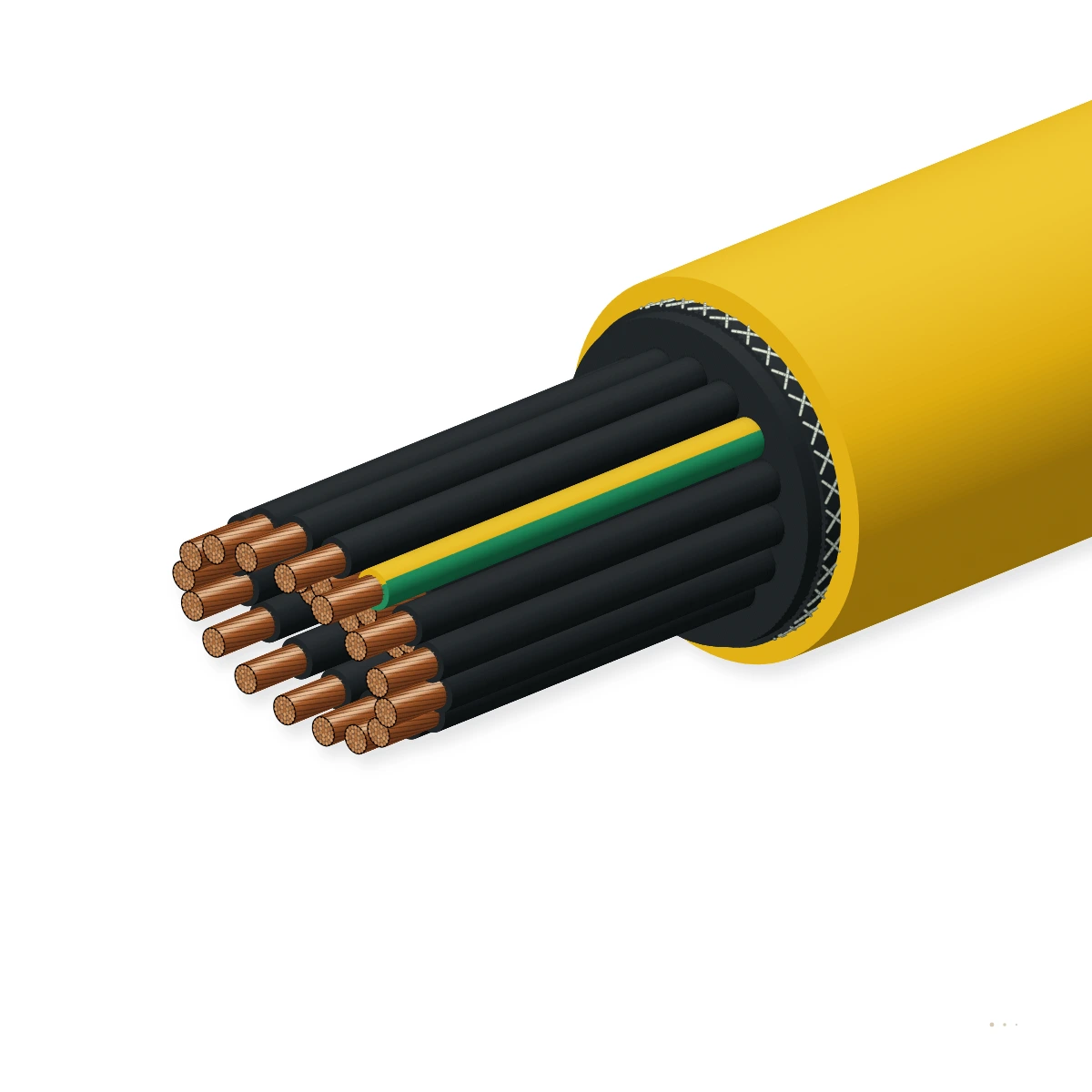

Shown: RXX (N)SHTOEU-J vertical spreader reeling construction with Class 5/FS bare copper conductors, mechanically stable core insulation, central strain-relief support core, PCP inner sheath, embedded synthetic anti-torsion braid and yellow wear-resistant PCP outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor / optical fibresBare electrolytic copper, very flexible Class 5 or Class FS per DIN VDE 0295 (RXX); 24 graded-index 50/125 or 62.5/125 µm multimode optical fibres (RXX-D)Short-lay stranding in max. 3 layers for axial and torsional stability
2Core insulation & codingMechanically stable thermoplastic or VDE 0207 EPR compound (RXX); buffered optical elements (RXX-D)DIN VDE 0293-308 black cores with white numbers + green/yellow protective earth (-J)
3Central strain-relief support elementHigh-tensile central strain-relief core arranged along the cable neutral axisCarries 3,200–6,000 N permitted vertical tensile load without stretching copper cores
4Inner sheathPolychloroprene (PCP) rubber compound per DIN VDE 0250Consolidates the short-lay core bundle into a pressure-resistant round core bed
5Anti-torsion support braidSpecial synthetic support braid vulcanized between inner and outer PCP sheathsAbsorbs ±50 °/m operational twist and prevents jacket slip over diversion rollers
6Outer sheathWear-resistant polychloroprene (PCP) rubber compound, high-visibility yellowInterlinked 2-layer sandwich structure · oil, UV, ozone, sulfur, urea & 50 m water resistant

RXX Control Cable · 0.6/1 kV (49 G 1 to 56 G 2.5)

49 × 1.0 mm² or 24, 30, 44, 56 × 2.5 mm² Class 5/FS bare copper cores + central strain relief + yellow braided dual-PCP sheath

RXX-D Optical Data Cable (24 G 50/125 & 24 G 62.5/125 SR)

24 graded-index multimode optical fibres (50/125 µm or 62.5/125 µm) + central strain relief (4,000 N) + yellow braided dual-PCP sheath

Types in this range

49 G 1 & 24–56 G 2.5 mm² · ≤ 240 m/min · 0.6/1 kVRXX · 0.6/1 kV Control Cable

49 G 1 and 24, 30, 44 or 56 G 2.5 mm² Class 5/FS copper control cables with central strain relief (3,200–6,000 N)

Vertical motorized spreader reels and grab-dredger hoists up to 240 m/min

Datasheet
24 G 50/125 & 62.5/125 SR · ≤ 300 m/min · Optical (non-electrical)RXX-D · 24-Fibre Optical Data Cable

24-fibre graded-index multimode (50/125 or 62.5/125 µm) vertical reeling data cable with 4,000 N tensile rating

High-speed optical data and video transmission on vertical spreader reels up to 300 m/min

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-814. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U (RXX)
600 / 1,000 V (0.6/1 kV); RXX-D is dielectric optical fibre
Max. operating voltage AC / DC
700 / 1,200 V AC · 900 / 1,800 V DC (RXX control cable)
AC test voltage
2.5 kV AC (RXX control cable)
Current-carrying capacity
Per DIN VDE 0298-4 with drum-layer (Table 27) and multicore grouping conversion factors

Thermal

Ambient temperature, flexing
−35 to +80 °C (special compound down to −45 °C on request)
Ambient temperature, fixed
−50 to +80 °C
Max. conductor temperature
+90 °C continuous · +200 °C short-circuit (RXX copper cores)

Mechanical

Max. vertical reeling speed
Up to 240 m/min (RXX control cable) · up to 300 m/min (RXX-D optical data cable)
Permitted tensile load
30 N/mm² + central strain relief: 3,200–6,000 N (RXX) · 4,000 N (RXX-D)
Min. bending radius (moving)
6 × D on reel · 7.5 × D on diversion rollers · 20 × D S-type guide distance
Permissible torsional stress
±50 °/m continuous operational twist

Resistance

Oil & flame behaviour
Oil-resistant (DIN VDE 0472-803) · flame-retardant per DIN VDE 0482-265-2-1 / IEC 60332-1
Water submersion
Temporary submersion in water up to 50 m depth (consult engineering for permanent immersion)
Chemical & environmental
Resistant to ozone, UV, humidity, sulfur and urea; LBS-free / silicone-free (contains halogens)

Reference standards

Design basis
(N)SHTOEU-J adapted to DIN VDE 0250-814
Conductor & core coding
DIN VDE 0295 Class 5 / Class FS · DIN VDE 0293-308 number coding with green/yellow earth
Routing & ampacity guides
DIN VDE 0298-3 (bending radii) · DIN VDE 0298-4 Tables 17 & 27 (reel & core derating)

Identification

Core / fibre identification
Black cores with white numbers + green/yellow PE (RXX); 24 coded multimode fibres (RXX-D)
Outer sheath colour
Yellow wear-resistant polychloroprene (PCP) rubber
Customs tariff (HS)
8544.49 (RXX copper <= 1,000 V) · 8544.70 (RXX-D optical fibre)

Sizes

7 vertical spreader reeling configurations (RXX control & RXX-D optical data)

Filter by RXX 0.6/1 kV copper control cables (49 G 1 to 56 G 2.5) or RXX-D 24-fibre multimode optical data cables (50/125 & 62.5/125 µm). Reeling bend radius r_reel = 6 × D_max; diversion-roller radius r_roll = 7.5 × D_max.

Configurations, dimensions & tensile loads
ConfigurationCores /
fibres		Cross-section /
fibre grade		Outer Ø min
mm		Outer Ø max
mm		Reel R min
mm (6×D)		Roller R min
mm (7.5×D)		Copper wt ≈
kg/km		Net weight ≈
kg/km		Permitted pull
N		Enquiry
RXX · 0.6/1 kV Control Cable
RXX 49 G 149 G 11.0 mm²26.629.61782225801,2603,200
RXX 24 G 2.524 G 2.52.5 mm²26.229.21752196721,3403,600
RXX 30 G 2.530 G 2.52.5 mm²29.432.41942438481,6804,100
RXX 44 G 2.544 G 2.52.5 mm²34.137.12232781,2432,2805,100
RXX 56 G 2.556 G 2.52.5 mm²40.143.12593231,5673,0306,000
RXX-D · 24-Fibre Optical Data Cable
RXX-D 24 G 50/125 SR24 FOG50/125 µm MM17.019.0114143—3504,000
RXX-D 24 G 62.5/125 SR24 FOG62.5/125 µm MM17.019.0114143—3504,000
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Permitted tensile load (3,200–6,000 N on RXX; 4,000 N on RXX-D) combines the 30 N/mm² conductor rating with the embedded central strain-relief support core.
  • Minimum bending radius is 6 × D on the reel, 7.5 × D over diversion rollers and 20 × D minimum distance between direction changes in S-type forced-guide pulleys.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test (RXX)2.5 kV ACEvery manufactured length
Sample tests
Flame retardancy & oil resistanceDIN VDE 0482-265-2-1 / IEC 60332-1 & DIN VDE 0472-803 oil testCompound & cable qualification
Water submersion & torsional enduranceTemporary water immersion to 50 m depth · ±50 °/m continuous torsionDesign qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Adapted to DIN VDE 0250CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RXX (N)SHTOEU-J [cores G section] 0.6/1 kV · [year] · [metre mark]
Delivery form
Custom spreader reel cut lengths or bulk drums
Packaging
Heat-treated seaworthy timber drums with waterproof end caps
Minimum order
300–500 m on non-stock items (24 G 2.5 and 44 G 2.5 standard program)

Technical documents

Downloads

PDFRXX / RXX-D Vertical Spreader Reeling Cable – technical datasheet7 sizes · construction, technical data, approvalsXLSXRXX / RXX-D spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Is RXX / RXX-D sheathed in polychloroprene (PCP) rubber or polyurethane (PUR)?
RXX / RXX-D uses a bonded double polychloroprene (PCP) rubber sandwich sheath per VDE code (N)SHTOEU-J (yellow outer jacket with embedded anti-torsion braid). Although the legacy PDF filename includes the word PUR, both the VDE designation (N)SHTOEU-J and the Materials specification confirm PCP inner and outer sheaths. For a yellow double-PUR vertical spreader reeling cable, select TRA-RF.
Why do the Design and Materials sections mention both thermoplastic and EPR core insulation?
The RXX performance specification covers extra-heavy-duty vertical spreader reeling constructions built to (N)SHTOEU-J / (N)3GRDG5G: high-core-count spreader builds use mechanically stiff thin-wall thermoplastic/TPE-E core insulation to minimize diameter and resist radial crushing on the drum, while VDE 0207 EPR core insulation is used on equivalent rubber builds. Both sit inside the same braided dual-PCP outer sheath.
What is the difference between RXX and RXX-D?
RXX is the 0.6/1 kV copper control cable series (49 G 1 and 24 G 2.5 through 56 G 2.5, rated up to 240 m/min vertical reeling and 3,200–6,000 N tensile load). RXX-D is the matching 17.0–19.0 mm optical data cable containing 24 graded-index multimode fibres (50/125 µm or 62.5/125 µm), rated up to 300 m/min vertical reeling and 4,000 N tensile load.
Can RXX be used underwater on grab dredgers and floating dredgers?
Yes. RXX / RXX-D is rated for temporary submersion in water down to 50 m depth and resists oil, ozone, UV, sulfur and urea, making it ideal for vertical motorized reels on grab dredgers and floating dredgers. For permanent subsea immersion, consult our engineering team.
