Product

Heavy-duty rubber cablesEN 50525-2-21U0/U 450/750 VHAR · CPR Eca

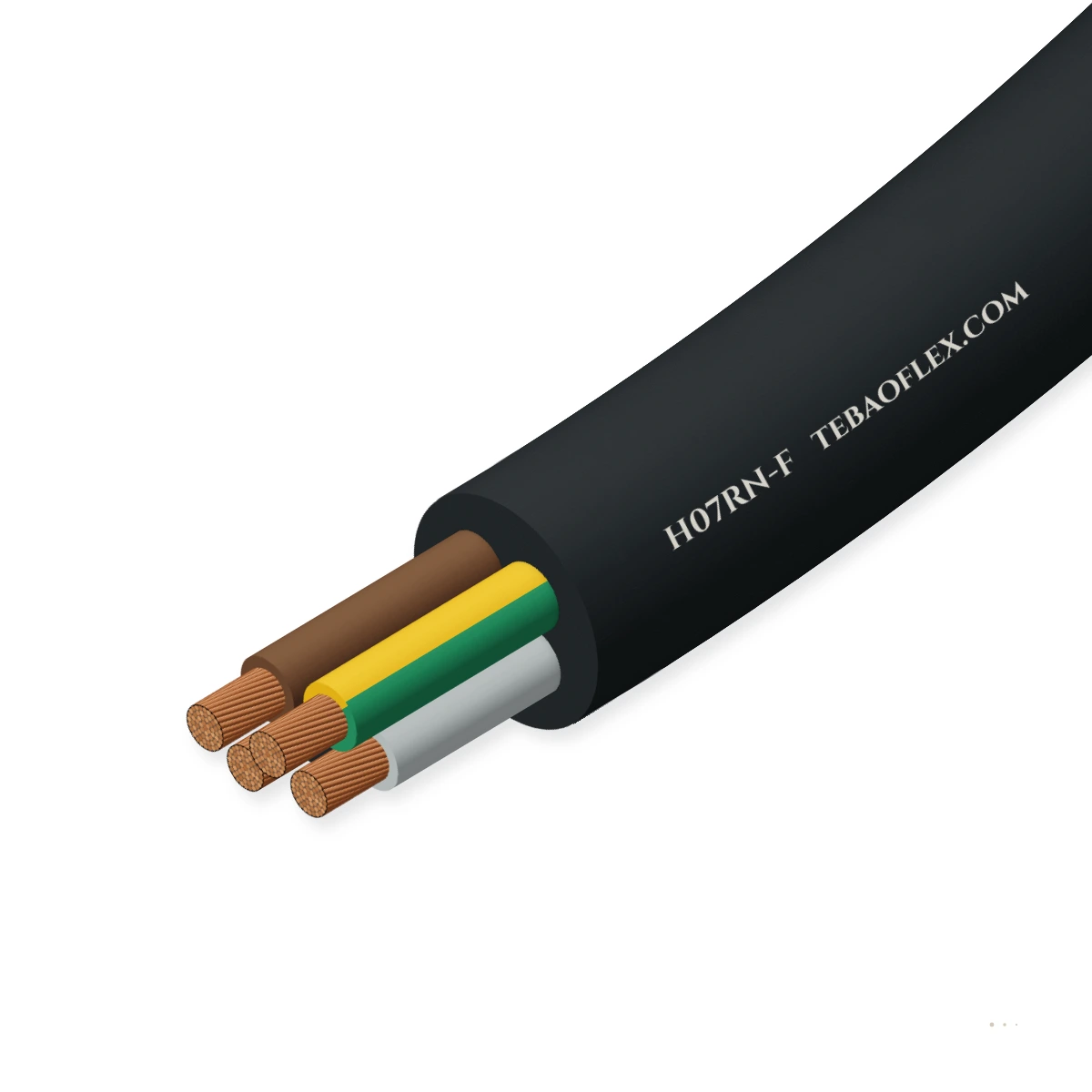

H07RN-F Heavy-Duty Flexible Rubber CableHarmonised 450/750 V EPR/PCP rubber power and control cable to EN 50525-2-21

Fine-stranded Class 5 bare copper cable with EI4 EPR insulation and heavy-duty EM2 polychloroprene outer sheath — built for mobile plant, construction site power distribution, stage rigging, port equipment and industrial tools indoors and outdoors.

Outdoor & humid

Oil-resistant

Flame-retardant

Ozone, UV & moisture

Cores × cross-section

Order designation: H07RN-F 4G6
Outer Ø min: 15.7 mm
Outer Ø max: 20.0 mm
Weight ≈: 540 kg/km
Min. bend R: 120 mm

Check against my drum All sizes (82)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450/750 V
Protected fixed: 0.6/1 kV
Bending radius: 4–6 × OD
Temperature: −25…+60 °C
Tensile load: 15 N/mm²
Sizes: 82

Typical values for this cable type, based on EN 50525-2-21 — confirmed in the datasheet and quotation for your order.

Application fit

Is H07RN-F right for your machine?

H07RN-F is the European harmonised workhorse for portable power and medium-to-heavy mechanical stress. For continuous submersible pump duty specify H07RN8-F; for high-speed motorized crane reeling specify NSHTÖU.

Trailing & towing

Suitable

Mobile site distribution boards, generators, welders, portable saws, drills and temporary event power.

Fixed installation

Suitable

Fixed installation on plaster, in temporary buildings, machinery frames and up to 0.6/1 kV inside enclosed conduit.

Festoon & line chain

With conditions

Light workshop hoists and short crane loops at ≥ 7.5 × OD over guide rollers; use NGFLGÖU for dedicated flat festoons.

Cylindrical / multi-layer drum

With conditions

Intermittent cable drums at ≥ 5 × OD within the 15 N/mm² pull limit; not for high-speed crane reeling.

Immersion & wet locations

Not suitable

Standard EN 50525-2-21 H07RN-F is rated for damp/wet locations; continuous submersible pump service requires AD8-tested H07RN8-F.

Use H07RN8-F submersible cable

Motorised monospiral reel

Not suitable

lacks an anti-torsion braid between inner and outer sheaths; high-cycle crane drums will corkscrew it.

Use NSHTÖU reeling cable

Typical machinesConstruction & temporary site powerStage, broadcast & event distributionIndustrial workshops & portable toolsAgricultural & horticultural plantPort, dockyard & marine shore leadsMobile generators & load banks

Construction

Layer by layer

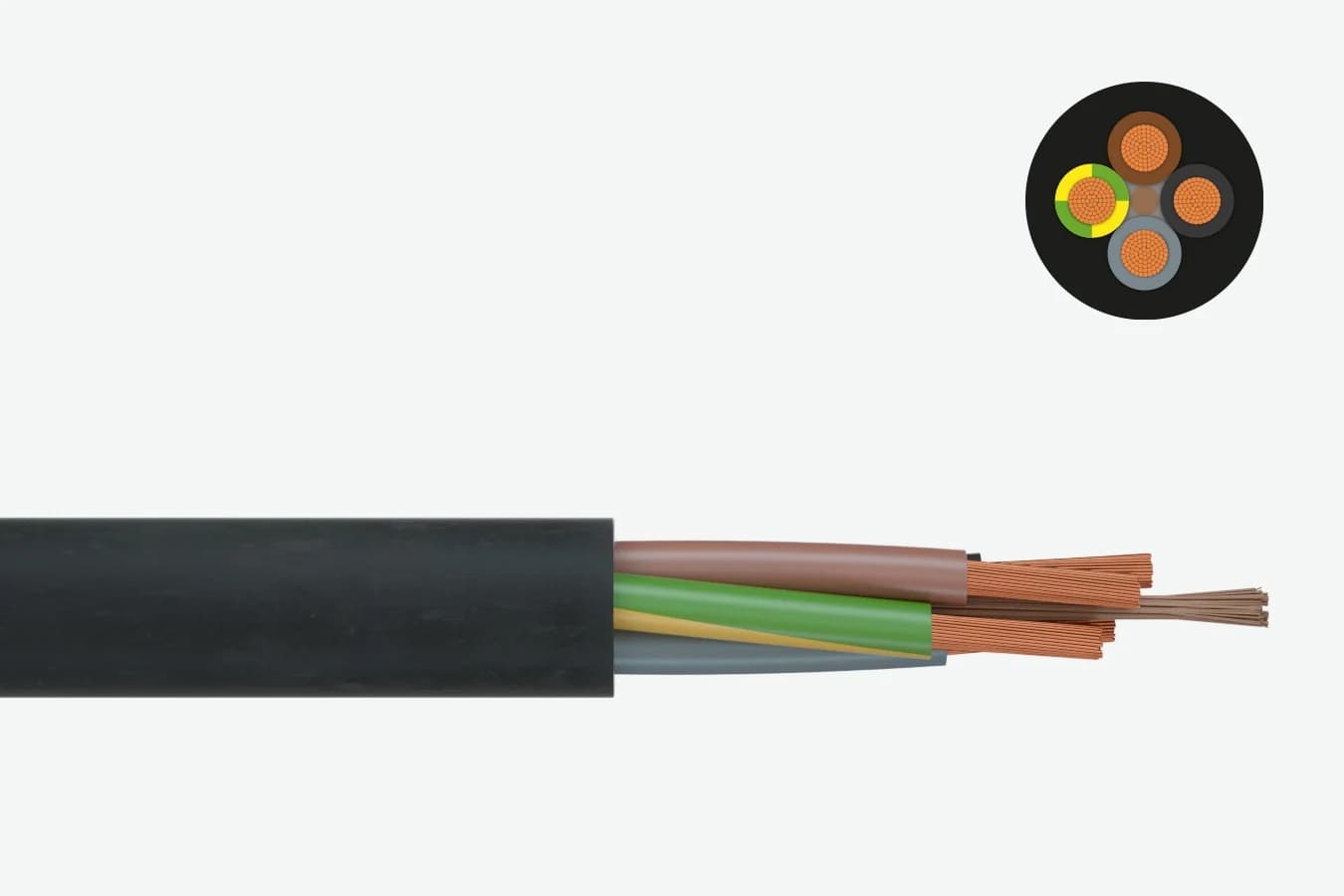

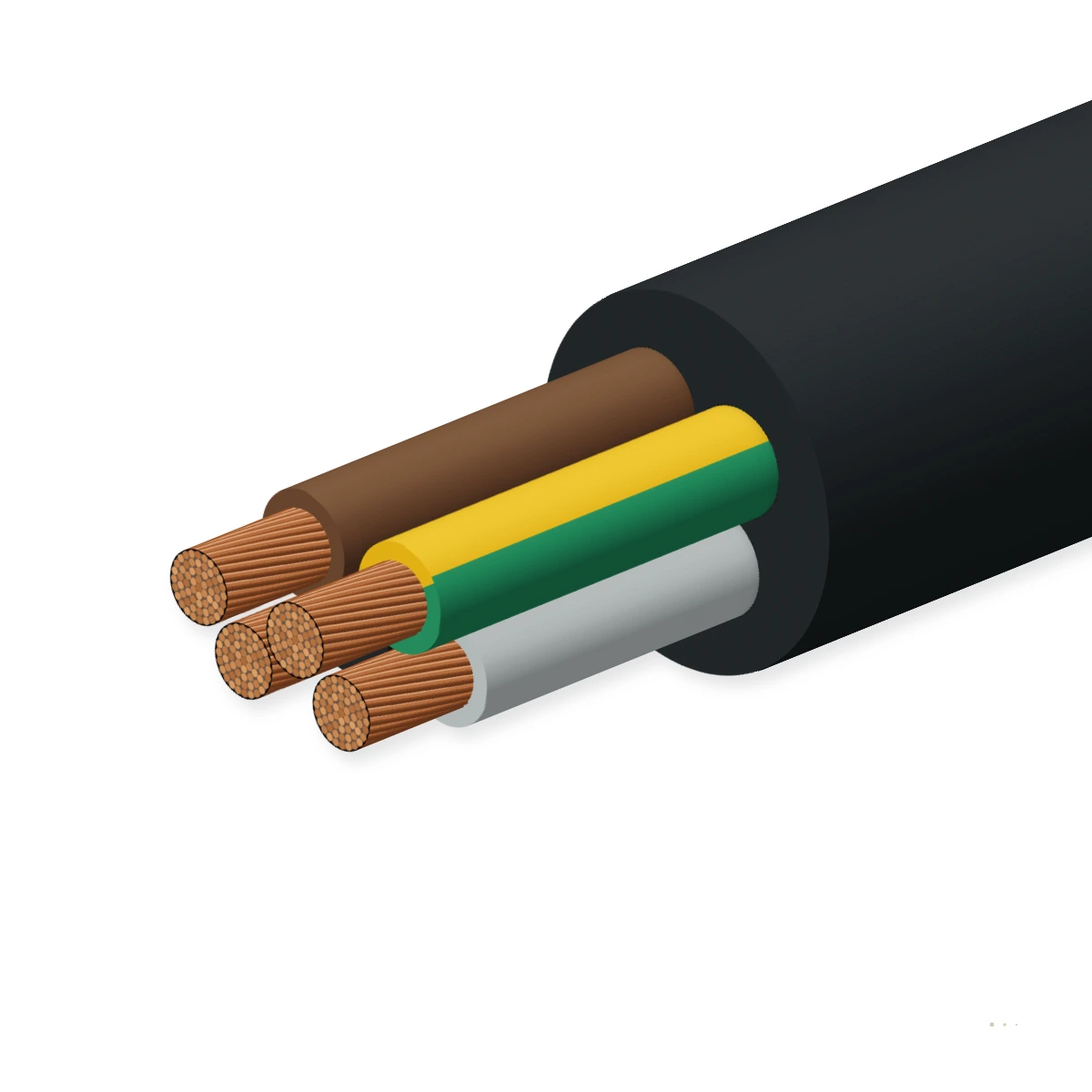

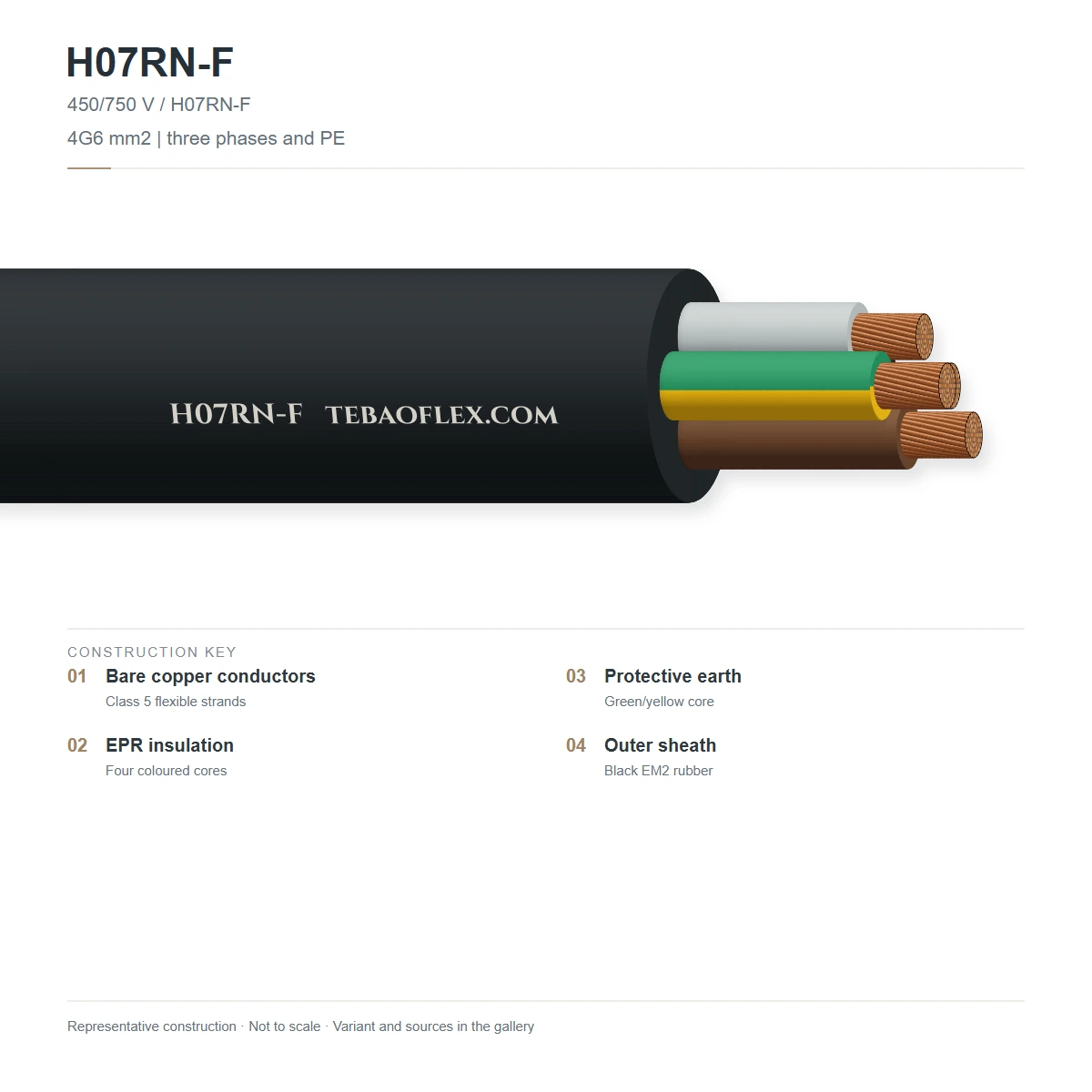

Shown: H07RN-F 4G6 — three phase cores and a green-yellow protective conductor with EI4 EPR insulation and an EM2 polychloroprene outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Bare copper, fine-stranded Class 5IEC 60228 / EN 60228 Class 5
2	Core insulation	EPR thermosetting rubber compound type EI4EN 50363-1 · Core identification HD 308 S2 / DIN VDE 0293-308
3	Core stranding	Cores stranded in concentric layers with optimal lay lengthsG = with green-yellow earth · X = without earth
4	Outer sheath	Polychloroprene (PCP) elastomer compound type EM2, blackEN 50363-2-1 · Oil-resistant EN 60811-404 · Flame-retardant IEC 60332-1-2

H07RN-F ..G..

3 to 5 cores with green-yellow protective conductor (HD 308 S2)

H07RN-F ..X..

2 to 5 cores without protective conductor

≥ 7 cores

Black cores with white numbers + green-yellow earth

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 450/750 V
Fixed protected voltage: 0.6/1 kV AC (up to 750 V DC to earth)
Max. operating voltage AC: 476/825 V (conductor/earth · conductor/conductor)
Max. operating voltage DC: 619/1238 V (conductor/earth · conductor/conductor)
AC test voltage: 2.5 kV

Thermal

Temperature, flexing: −25 to +60 °C
Temperature, fixed: −30 to +60 °C (down to −40 °C protected)
Max. conductor temperature: +60 °C (+85 °C fixed protected at 1 kV)
Short-circuit temperature: +200 °C

Mechanical

Min. bending radius, moving: 5 × OD (drums), 6 × OD (free flexing), 7.5 × OD (rollers)
Min. bending radius, fixed: 4 × OD
Max. tensile load: 15 N/mm² during installation and operation
Mechanical duty: Medium to heavy mechanical stress (EN 50565-2)

Resistance

Oil resistance: EN 60811-404
Flame retardance: IEC 60332-1-2 · CPR class Eca (EN 50575)
Weather & ozone: Ozone, UV, grease and weather resistant for outdoor duty
Locations: Dry, damp and wet rooms, agricultural premises and outdoors

Reference standards

Cable type: EN 50525-2-21 / DIN VDE 0285-525-2-21 (IEC 60245-4 type 66)
Conductor: IEC 60228 Class 5
Compounds: EI4 EPR insulation (EN 50363-1) · EM2 PCP sheath (EN 50363-2-1)
Core identification: HD 308 S2 / DIN VDE 0293-308

Identification

Sheath colour: Black
Cores 1–5: 1c black · 2c blue/brown · 3–5c colour-coded (G = with green-yellow)
Cores ≥ 7: Black cores with white numbers + green-yellow earth
Customs tariff (HS): 8544.49

Sizes

82 standard HAR sizes

Typical EN 50525-2-21 outer diameter limits and weights. Both G (with green-yellow earth) and X (without earth) versions are available.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Max. pull N
4-core (4G)
H07RN-F 4G1	4 × 1	18	9.2	11.9	38	150	71	60
H07RN-F 4G1.5	4 × 1.5	16	10.2	13.1	58	200	79	90
H07RN-F 4G2.5	4 × 2.5	14	12.1	15.5	96	290	93	150
H07RN-F 4G4	4 × 4	12	14.0	17.9	154	395	107	240
H07RN-F 4G6	4 × 6	10	15.7	20.0	230	540	120	360
H07RN-F 4G10	4 × 10	8	20.9	26.5	384	950	159	600
H07RN-F 4G16	4 × 16	6	23.8	30.1	614	1,260	181	960
H07RN-F 4G25	4 × 25	4	28.9	36.6	960	1,860	220	1,500
H07RN-F 4G35	4 × 35	2	32.5	41.1	1,344	2,380	247	2,100
H07RN-F 4G50	4 × 50	1	37.7	47.5	1,920	3,190	285	3,000
H07RN-F 4G70	4 × 70	2/0	42.7	54.0	2,688	4,260	324	4,200
H07RN-F 4G95	4 × 95	3/0	48.4	61.0	3,648	5,600	366	5,700
H07RN-F 4G120	4 × 120	4/0	53.0	66.0	4,608	6,830	396	7,200
H07RN-F 4G150	4 × 150	300 kcmil	58.0	73.0	5,760	8,320	438	9,000
H07RN-F 4G185	4 × 185	350 kcmil	64.0	80.0	7,104	9,800	480	11,100
H07RN-F 4G240	4 × 240	500 kcmil	72.0	91.0	9,216	12,100	546	14,400

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameter min/max limits conform to EN 50525-2-21. Minimum bending radius shown is 6 × max OD for free flexing (4 × max OD when fixed).

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core trefoil 30 °C, A	2-core in air 30 °C, A	3-core in air 30 °C, A	4G / 5G in air 30 °C, A	Used in
1	18	19.5	—	16	16	13.5	2× 3G 4G 5G
1.5	16	13.3	17.5	19.5	19.5	17.5	1× 2× 3G 4G 5G 7G–27G
2.5	14	7.98	20	25	25	20	1× 2× 3G 4G 5G 7G–27G
4	12	4.95	30	34	35	30	1× 2× 3G 4G 5G
6	10	3.3	38	43	44	37	1× 2× 3G 4G 5G
10	8	1.91	53	60	62	52	1× 2× 3G 4G 5G
16	6	1.21	71	79	82	69	1× 2× 3G 4G 5G
25	4	0.78	94	105	109	92	1× 2× 3G 4G 5G
35	2	0.554	117	—	135	114	1× 3G 4G 5G
50	1	0.386	148	—	169	143	1× 3G 4G 5G
70	2/0	0.272	185	—	211	178	1× 3G 4G 5G
95	3/0	0.206	222	—	250	210	1× 3G 4G 5G
120	4/0	0.161	260	—	292	246	1× 3G 4G
150	300 kcmil	0.129	300	—	335	282	1× 3G 4G
185	350 kcmil	0.106	341	—	378	319	1× 3G 4G
240	500 kcmil	0.08	407	—	430	377	1× 3G 4G
300	600 kcmil	0.064	468	—	497	—	1× 3G
400	750 kcmil	0.049	553	—	—	—	1×
500	1000 kcmil	0.038	634	—	—	—	1×

Current ratings at 30 °C ambient in free air (three single-core cables in trefoil, or one multicore cable). Apply EN 50565 / DIN VDE 0298-4 correction factors for elevated ambient temperatures or grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 240 mmBending radius OK (6 × OD 20.0 mm)

Minimum bending radius: 120 mm
Min. drum core diameter: ≈ 240 mm
Cable weight on drum: 27.0 kg
Copper content: 11.5 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV, 5 min	Every length
Conductor resistance	IEC 60228 Class 5	Every length
Sample tests
Flame propagation	IEC 60332-1-2 · CPR Eca (EN 50575)	Per batch
Oil resistance of EM2 sheath	EN 60811-404	Per compound batch
EI4 & EM2 elastomer compound properties	EN 50363-1 & EN 50363-2-1	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

HAR (EN 50525-2-21)CE · CPR Eca (EN 50575)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX <HAR> H07RN-F 4G6 450/750 V EN 50525-2-21 · CE · [year] · [metre mark]

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated timber drums with capped ends

Technical documents

Downloads

PDFH07RN-F Heavy-Duty Flexible Rubber Cable – technical datasheet82 sizes · construction, technical data, approvals XLSXH07RN-F spec data (Excel)All 82 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the harmonised designation H07RN-F stand for?

Under EN 50525-1, H denotes a CENELEC harmonised cable, 07 indicates the 450/750 V nominal voltage rating, R specifies ethylene-propylene rubber (EPR type EI4) core insulation, N specifies a polychloroprene (PCP type EM2) outer sheath, and -F denotes a flexible Class 5 finely stranded copper conductor.

When can H07RN-F be operated at 600/1000 V?

In accordance with EN 50565-2 and DIN VDE 0298, H07RN-F is rated 450/750 V for general mobile and portable service, but is permitted up to 600/1000 V AC (or up to 750 V DC to earth) when installed in fixed, mechanically protected conduit, trunking or enclosed switchgear.

What is the difference between H07RN-F and H07RN8-F?

Both cables are built to EN 50525-2-21 with EI4 EPR insulation and an EM2 polychloroprene sheath, but H07RN8-F uses a water-resistant sheath formulation tested for continuous AD8 submersion up to 10 m depth in water up to +40 °C for submersible pumps. Standard H07RN-F is intended for dry, damp, wet and outdoor industrial service.

Can H07RN-F be used on motorized crane cable reels?

H07RN-F can be wound on intermittent hand or storage drums at a minimum radius of 5 × OD provided conductor tensile stress stays below 15 N/mm². However, it has no anti-torsion braid; for continuous motorized crane drums or spring reels, specify NSHTÖU.

What is the difference between H07RN-F and 07RN-F sizes?

Sizes covered directly by the CENELEC harmonised tables of EN 50525-2-21 carry the <HAR> mark and the H07RN-F designation. Additional core counts or large multicore combinations outside the harmonised table (such as 37G2.5 or 5G120–5G240) are manufactured to the same construction under national designation 07RN-F.
