Product

Basket spreader cableBased on DIN VDE 0250U0/U 0.6/1 kVGravity basket · ≤ 160 m/min

3GSLTOE Screened Collector-Basket Spreader CableEMC-screened 0.6/1 kV EPR/PUR gravity-basket spreader cable with bus & FO options

Screened 0.6/1 kV spreader cable for gravity-fed collector baskets up to 160 m/min with Class FS copper cores, 3GI3 EPR insulation (−40 °C), tinned-copper EMC braids, lead/aramid suspension core and black PUR sheath.

EMC screen

Oil-resistant

Outdoor & humid

Water-resistant

Series & configuration

Order designation: 3GSLTOE-J 36 × 2.5
Outer Ø max: 37.5 mm
Weight ≈: 2,780 kg/km
Min. bend R: 188 mm
Current 30 °C: 30 A

All sizes (44)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Hoist speed: ≤ 160 m/min
Basket geometry: Ø ≥ 30 × D
Temperature: −40…+80 °C flex
EMC screen: ≥ 60% / ≥ 80% Cu
Sizes: 44

Typical values for this cable type, based on DIN VDE 0250 — confirmed in the datasheet and quotation for your order.

Application fit

Is 3GSLTOE right for your machine?

Engineered specifically for gravity-fed spreader collector baskets on STS and RTG container cranes, where the cable coils under its own weight without a motorised reel.

Spreader gravity collector basket

Suitable

Primary duty — core geometry and anti-torsion construction coil cleanly into conical spreader baskets at high hoist speeds.

Free-hanging vertical run

Suitable

Supports up to 60 m free-hanging drop between crane trolley bellmouth and spreader basket.

Vertical / spreader reel

Not suitable

Built for gravity basket coiling, not tensioned vertical spreader reels.

Use RXX / TRA-RF Spreader Reel

Motorised monospiral reel

Not suitable

Not designed for horizontal gantry travel monospiral or cylindrical drums.

Use (N)SHTÖU Reeling

Festoon & line chain

Not suitable

Round anti-torsion basket profile is unsuitable for tight C-rail festoon loops.

Use NGFLGÖU Flat Festoon

Typical machinesShip-to-shore (STS) container crane collector basketsRTG, RMG & automated stacking crane (ASC) spreadersInstrumented twin-lift & tandem-lift spreaders (ASI-Bus / Profibus / FO)Cold-climate marine terminals & bulk-handling grab cranes (to −40 °C)

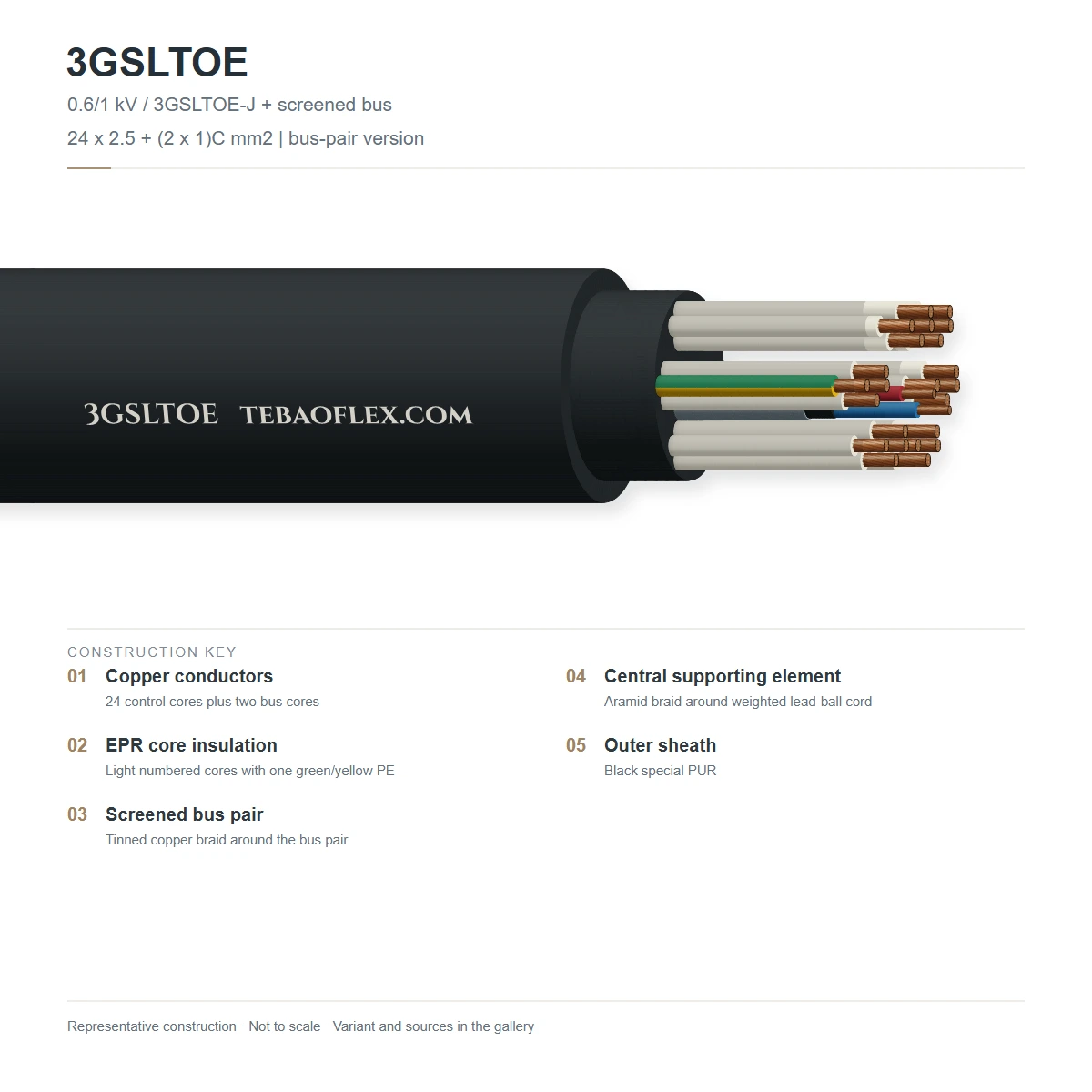

Construction

Layer by layer

Shown: 3GSLTOE multi-bundle basket spreader cable with central lead-weighted aramid suspension element, bundled Class FS extra-fine bare copper cores with 3GI3 EPR insulation, tinned-copper EMC braid screens ( plus optional bus pairs or optical fibres) and black special PUR outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Extra-fine flexible conductor	Bare electrolytic copper, extremely fine-stranded Class FSDIN VDE 0295 / IEC 60228 extra-fine stranding (1.0, 2.5, 3.5, 4.0 mm² or 12 AWG)
2	Core insulation	Special cold-resistant EPR compound based on type 3GI3DIN VDE 0207 · light-coloured with black printed numbers (+ green/yellow PE on -J), flexible down to −40 °C
3	EMC tinned copper braid screen	Tinned copper wire braid over shielded cores (≥ 60% optical coverage) and twisted pairs (≥ 80% coverage)Transfer impedance optimized at 30 MHz for VFD and fieldbus immunity
4	Central suspension & ballast element	Aramid threads woven around central lead ball cords (or aramid-reinforced rubber core on larger sizes)Carries vertical weight (safety factor 5 at 50 m suspension) and assists gravity coiling into the basket
5	Bundled core & data/FO lay-up	Cores stranded into sub-bundles and cabled around the central aramid/lead support elementIntegrates optional (2×1)C ASI-Bus/Profibus pairs or buffered G62.5/125, G50/125, E9/125 optical fibres
6	Outer sheath	Special heavy-duty polyurethane (PUR) compound, blackDIN EN 60811-404 oil resistant · UV, ozone, moisture and abrasion resistant

3GSLTOE-J Control (Metric)

7 × 4, 48 × 1, 24–54 × 2.5 and 24–42 × 3.5 mm² metric control builds with green/yellow PE core

3GSLTOE-J + Bus Element

24–42 × 2.5 mm² control cores + 1, 2 or 4 × (2 × 1)C individually braid-screened ASI-Bus / Profibus pairs

3GSLTOE-J + Integrated FO

24–50 × 2.5 or 42 × 3.5 mm² cores + 4, 6 or 12 optical fibre elements (G62.5/125, G50/125 or E9/125)

3GSLTOE-O AWG & AWG + FO

20–42 × 12 AWG control cables without PE (-O), with optional 4 or 6 multimode/single-mode optical fibre elements

Types in this range

Metric · 7 to 54 cores · 0.6/1 kV3GSLTOE-J Control

7 × 4, 48 × 1, 24–54 × 2.5 and 24–42 × 3.5 mm² metric control cables with green/yellow PE

Standard power and screened control feeder for gravity-fed spreader collector baskets

Datasheet

Control + (2×1)C Bus · 0.6/1 kV3GSLTOE-J + Bus Element

24, 36 or 42 × 2.5 mm² control cores + 1, 2 or 4 × (2 × 1 mm²)C screened fieldbus pairs

Spreaders using Profibus or ASI-Bus communication alongside 2.5 mm² control circuits

Datasheet

Control + G62.5 / G50 / E9 FO · 0.6/1 kV3GSLTOE-J + Integrated FO

24 to 50 × 2.5 mm² (or 42 × 3.5 mm²) + 4, 6 or 12 optical fibre units (1–3 fibres per unit)

High-speed optical telemetry, camera and PLC networks in container-spreader collector baskets

Datasheet

12 AWG · 20 to 42 cores · 0.6/1 kV3GSLTOE-O 12 AWG

20, 24, 30, 36 or 42 × 12 AWG control cores without green/yellow PE conductor

North American and AWG-specified container spreaders in gravity-fed basket service

Datasheet

12 AWG + Optical Fibre · 0.6/1 kV3GSLTOE-O 12 AWG + FO

20, 34, 36 or 38 × 12 AWG control cores + 2, 4 or 6 optical fibre units (1LWL, 3LWL, 1G62.5)

Hybrid 12 AWG + fibre-optic collector-basket spreader feeders

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (600/1000 V)
Max. operating voltage: 0.7/1.2 kV AC · 0.9/1.8 kV DC
AC test voltage: 3.5 kV AC for 5 minutes
EMC screening: Tinned Cu braid (≥ 60% on shielded cores, ≥ 80% on twisted pairs; Zt optimized at 30 MHz)
Data & optical elements: Screen-shielded bus pairs (2×1)C (ASI-Bus / Profibus) or G62.5/125, G50/125, E9/125 fibres

Thermal

Ambient temperature, flexing: −40 to +80 °C (fully flexible basket operation)
Ambient temperature, fixed: −50 to +80 °C
Max. conductor temperature: +90 °C continuous · +250 °C short-circuit

Mechanical

Central suspension element: Aramid threads woven around lead ball cords (safety factor 5 at 50 m vertical suspension)
Hoist travel speed: Up to 160 m/min in gravity-fed collector basket
Collector basket geometry: Min. basket diameter 30 × D · basket height approx. 45 × D · counter-clockwise lay
Min. bending radius (free moving): 101 to 256 mm (~5 × D per DIN VDE 0298-3)

Resistance

Oil resistance: DIN EN 60811-404 / DIN VDE 0473-811-404 para. 10
Weather, UV & ozone: Ozone, UV and moisture resistant for unrestricted outdoor port duty
Low-temperature flexibility: Cold-grade 3GI3 EPR and special PUR rated to −40 °C dynamic / −50 °C fixed

Reference standards

Cable design & operation: Based on DIN VDE 0250 · DIN VDE 0298-3 (bending) · DIN VDE 0298-4 (ampacity)
Conductor & compounds: Class FS extra-fine bare Cu · 3GI3 cold-grade EPR (−40 °C) · Black special PUR sheath

Identification

Core identification & lay-up: Light-coloured EPR with black numbers (+ green/yellow PE on -J); cores bundled around central support
Sheath colour: Black
Customs tariff (HS): 8544.49

Sizes

44 configurations across 5 collector-basket series

Filter by configuration family (-J Control, -J + Bus, -J + Integrated FO, -O 12 AWG, or -O 12 AWG + FO).

Configurations & electrical data
Model & configuration	Core & data schedule	Cond. Ø mm	OD min mm	OD max mm	Min. bend R mm (moving)	Weight ≈ kg/km	Max. R20 Ω/km	Current A (30 °C)	1 s Isc kA
3GSLTOE-J Control · Metric
3GSLTOE-J 48 × 1	48 × 1	1.3	31.1	34.1	171	2,340	19.50	18	0.14
3GSLTOE-J 24 × 2.5	24 × 2.5	2.0	29.1	32.1	161	1,780	7.98	30	0.36
3GSLTOE-J 30 × 2.5	30 × 2.5	2.0	31.1	34.1	171	2,260	7.98	30	0.36
3GSLTOE-J 36 × 2.5	36 × 2.5	2.0	34.5	37.5	188	2,780	7.98	30	0.36
3GSLTOE-J 42 × 2.5	42 × 2.5	2.0	36.8	39.8	199	3,490	7.98	30	0.36
3GSLTOE-J 48 × 2.5	48 × 2.5	2.0	41.3	44.3	222	4,040	7.98	30	0.36
3GSLTOE-J 54 × 2.5	54 × 2.5	2.0	45.5	48.5	243	3,890	7.98	30	0.36
3GSLTOE-J 24 × 3.5	24 × 3.5	2.4	32.0	35.0	175	2,350	5.55	39	0.50
3GSLTOE-J 30 × 3.5	30 × 3.5	2.4	34.3	37.3	187	2,970	5.55	39	0.50
3GSLTOE-J 36 × 3.5	36 × 3.5	2.4	37.9	40.9	205	3,750	5.55	39	0.50
3GSLTOE-J 42 × 3.5	42 × 3.5	2.4	42.4	45.4	227	4,510	5.55	39	0.50
3GSLTOE-J 7 × 4	7 × 4	3.0	18.1	20.1	101	670	4.95	41	0.57
3GSLTOE-J + Bus Element
3GSLTOE-J 24 × 2.5 + 1 × (2 × 1)C	24 × 2.5 + 1 × (2 × 1)C	2.0	31.1	34.1	171	2,200	7.98	30	0.36
3GSLTOE-J 24 × 2.5 + 4 × (2 × 1)C	24 × 2.5 + 4 × (2 × 1)C	2.0	41.2	44.2	221	3,600	7.98	30	0.36
3GSLTOE-J 36 × 2.5 + 2 × (2 × 1)C	36 × 2.5 + 2 × (2 × 1)C	2.0	41.3	44.3	222	3,830	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 2 × (2 × 1)C	42 × 2.5 + 2 × (2 × 1)C	2.0	43.5	46.5	233	3,600	7.98	30	0.36
3GSLTOE-J + Integrated FO
3GSLTOE-J 24 × 2.5 + 6 × (1G62.5)	24 × 2.5 + 6 × (1G62.5)	2.0	35.6	38.6	193	2,400	7.98	30	0.36
3GSLTOE-J 24 × 2.5 + 12 × (1G62.5)	24 × 2.5 + 12 × (1G62.5)	2.0	34.5	37.5	188	2,530	7.98	30	0.36
3GSLTOE-J 30 × 2.5 + 6 × (1G62.5)	30 × 2.5 + 6 × (1G62.5)	2.0	34.5	37.5	188	2,660	7.98	30	0.36
3GSLTOE-J 32 × 2.5 + 4 × (3E9)	32 × 2.5 + 4 × (3E9)	2.0	35.1	38.1	191	2,700	7.98	30	0.36
3GSLTOE-J 36 × 2.5 + 6 × (1G62.5)	36 × 2.5 + 6 × (1G62.5)	2.0	36.8	39.8	199	3,360	7.98	30	0.36
3GSLTOE-J 36 × 2.5 + 6 × (2G62.5)	36 × 2.5 + 6 × (2G62.5)	2.0	36.8	39.8	199	3,360	7.98	30	0.36
3GSLTOE-J 36 × 2.5 + 6 × (2G50)	36 × 2.5 + 6 × (2G50)	2.0	36.8	39.8	199	3,360	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 6 × (1G62.5)	42 × 2.5 + 6 × (1G62.5)	2.0	41.3	44.3	222	3,910	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 6 × (2G62.5)	42 × 2.5 + 6 × (2G62.5)	2.0	41.3	44.3	222	3,910	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 6 × (2G50)	42 × 2.5 + 6 × (2G50)	2.0	41.3	44.3	222	3,910	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 6 × (2E9)	42 × 2.5 + 6 × (2E9)	2.0	41.3	44.3	222	3,910	7.98	30	0.36
3GSLTOE-J 42 × 2.5 + 6 × (3E9)	42 × 2.5 + 6 × (3E9)	2.0	41.3	44.3	222	3,910	7.98	30	0.36
3GSLTOE-J 48 × 2.5 + 6 × (2G62.5)	48 × 2.5 + 6 × (2G62.5)	2.0	45.5	48.5	243	3,790	7.98	30	0.36
3GSLTOE-J 48 × 2.5 + 6 × (2G50)	48 × 2.5 + 6 × (2G50)	2.0	45.5	48.5	243	3,790	7.98	30	0.36
3GSLTOE-J 48 × 2.5 + 6 × (2E9)	48 × 2.5 + 6 × (2E9)	2.0	45.5	48.5	243	3,790	7.98	30	0.36
3GSLTOE-J 48 × 2.5 + 6 × (3G62.5)	48 × 2.5 + 6 × (3G62.5)	2.0	45.5	48.5	243	3,790	7.98	30	0.36
3GSLTOE-J 50 × 2.5 + 4 × (3G50)	50 × 2.5 + 4 × (3G50)	2.0	45.5	48.5	243	3,900	7.98	30	0.36
3GSLTOE-J 42 × 3.5 + 6 × (1G62.5)	42 × 3.5 + 6 × (1G62.5)	2.4	48.1	51.1	256	4,150	5.55	39	0.50
3GSLTOE-O · 12 AWG
3GSLTOE-O 20 × 12 AWG	20 × 12 AWG	2.4	30.2	33.3	167	1,910	5.75	39	0.43
3GSLTOE-O 24 × 12 AWG	24 × 12 AWG	2.4	31.6	34.6	173	2,360	5.75	39	0.43
3GSLTOE-O 30 × 12 AWG	30 × 12 AWG	2.4	34.4	37.4	187	2,770	5.75	39	0.43
3GSLTOE-O 36 × 12 AWG	36 × 12 AWG	2.4	38.1	41.1	206	3,730	5.75	39	0.43
3GSLTOE-O 42 × 12 AWG	42 × 12 AWG	2.4	42.4	45.4	227	4,500	5.75	39	0.43
3GSLTOE-O · 12 AWG + FO
3GSLTOE-O 20 × 12 AWG + 4 × 1LWL	20 × 12 AWG + 4 × 1LWL	2.4	32.0	35.0	175	2,330	5.75	39	0.43
3GSLTOE-O 34 × 12 AWG + 2 × 1LWL	34 × 12 AWG + 2 × 1LWL	2.4	38.9	41.9	210	3,740	5.75	39	0.43
3GSLTOE-O 36 × 12 AWG + 6 × 1LWL	36 × 12 AWG + 6 × 1LWL	2.4	43.4	46.4	232	4,740	5.75	39	0.43
3GSLTOE-O 38 × 12 AWG + 4 × (1G62.5)	38 × 12 AWG + 4 × (1G62.5)	2.4	42.4	45.4	227	4,370	5.75	39	0.43
3GSLTOE-O 38 × 12 AWG + 4 × 3LWL	38 × 12 AWG + 4 × 3LWL	2.4	42.4	45.4	227	4,370	5.75	39	0.43

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Current carrying capacity values (A) are nominal ratings for cables laid on a surface at 30 °C ambient temperature per DIN VDE 0298-4 Table 15; apply multicore grouping conversion factors according to the number of simultaneously loaded cores.
Optical fibre designations: 1G62.5 / 2G62.5 / 3G62.5 = 1, 2 or 3 graded-index multimode 62.5/125 µm fibres per element; 2G50 / 3G50 = 2 or 3 graded-index multimode 50/125 µm fibres per element; 2E9 / 3E9 = 2 or 3 single-mode 9/125 µm fibres per element.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
5-minute AC dielectric voltage test	3.5 kV AC for 5 minutes	Every manufactured length
Conductor DC resistance & optical attenuation check	19.5 Ω/km (1 mm²), 7.98 Ω/km (2.5 mm²), 5.55 Ω/km (3.5 mm²), 5.75 Ω/km (12 AWG) at 20 °C	Every manufactured length
Sample tests
PUR outer sheath mineral oil resistance	DIN EN 60811-404 / DIN VDE 0473-811-404 para. 10	Compound qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Based on DIN VDE 0250CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 3GSLTOE-J [or -O] [cores × cross-section] 0.6/1 kV · [year] · [metre mark]

Delivery form: Custom spreader cut lengths or bulk export reels
Packaging: Heat-treated seaworthy timber drums with sealed end caps

Technical documents

Downloads

PDF3GSLTOE Screened Collector-Basket Spreader Cable – technical datasheet44 sizes · construction, technical data, approvals XLSX3GSLTOE spec data (Excel)All 44 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does 3GSLTOE use aramid threads woven around lead ball cords at the centre?

In a gravity-fed collector basket on a container crane, the spreader cable is not pulled onto a motorized drum — it must fall cleanly into the basket under its own weight at hoist speeds up to 160 m/min while supporting up to 50 m of vertical hanging weight. The central lead ball cords add controlled linear mass along the neutral axis so the cable coils predictably in a counter-clockwise lay, while the woven aramid threads carry the vertical suspension load with a safety factor of 5 so zero tensile strain reaches the copper or optical cores.

What basket dimensions and laying direction are required for 3GSLTOE?

Always lay 3GSLTOE into the collector basket in a counter-clockwise direction to match the internal bundle lay. The collector basket diameter must be at least 30 × D (where D is the maximum cable outer diameter, e.g. ≥ 1,200 mm for a 40 mm cable) and the basket height approximately 45 × D, while all entry bells and deflectors must maintain at least the tabulated free-moving bend radius (101 to 256 mm).

How do I decode the bus and fibre-optic suffixes such as +2×(2×1)C or +6×(2G62.5)?

In bus variants such as 36×2.5 + 2×(2×1)C, the cable contains thirty-six 2.5 mm² cores plus two individually tinned-copper-braid-screened twisted pairs of 2 × 1.0 mm² for ASI-Bus or Profibus communication. In fibre-optic variants such as 42×2.5 + 6×(2G62.5), the cable contains forty-two 2.5 mm² cores plus six optical tube elements each containing 2 graded-index 62.5/125 µm multimode fibres (12 fibres total). Similarly, 2G50 / 3G50 denotes 50/125 µm multimode fibres and 2E9 / 3E9 denotes 9/125 µm single-mode fibres.

Why does 54×2.5 mm² weigh slightly less (3,890 kg/km) than 48×2.5 mm² (4,040 kg/km)?

On smaller and medium core counts (up to 48 × 2.5 mm²), the central support element incorporates dense lead ball cords wrapped with aramid threads to aid gravity coiling. On the largest cross-sections and core counts (such as 54 × 2.5 mm² and 48 × 2.5 + FO), the cable's copper mass is already sufficient for gravity coiling, so the central support element transitions to a lighter round rubber filler reinforced with aramid threads.

Request a quote

Get an engineering quote for 3GSLTOE

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

Screened Spreader Cable 3GSLTOE for Collector Baskets

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

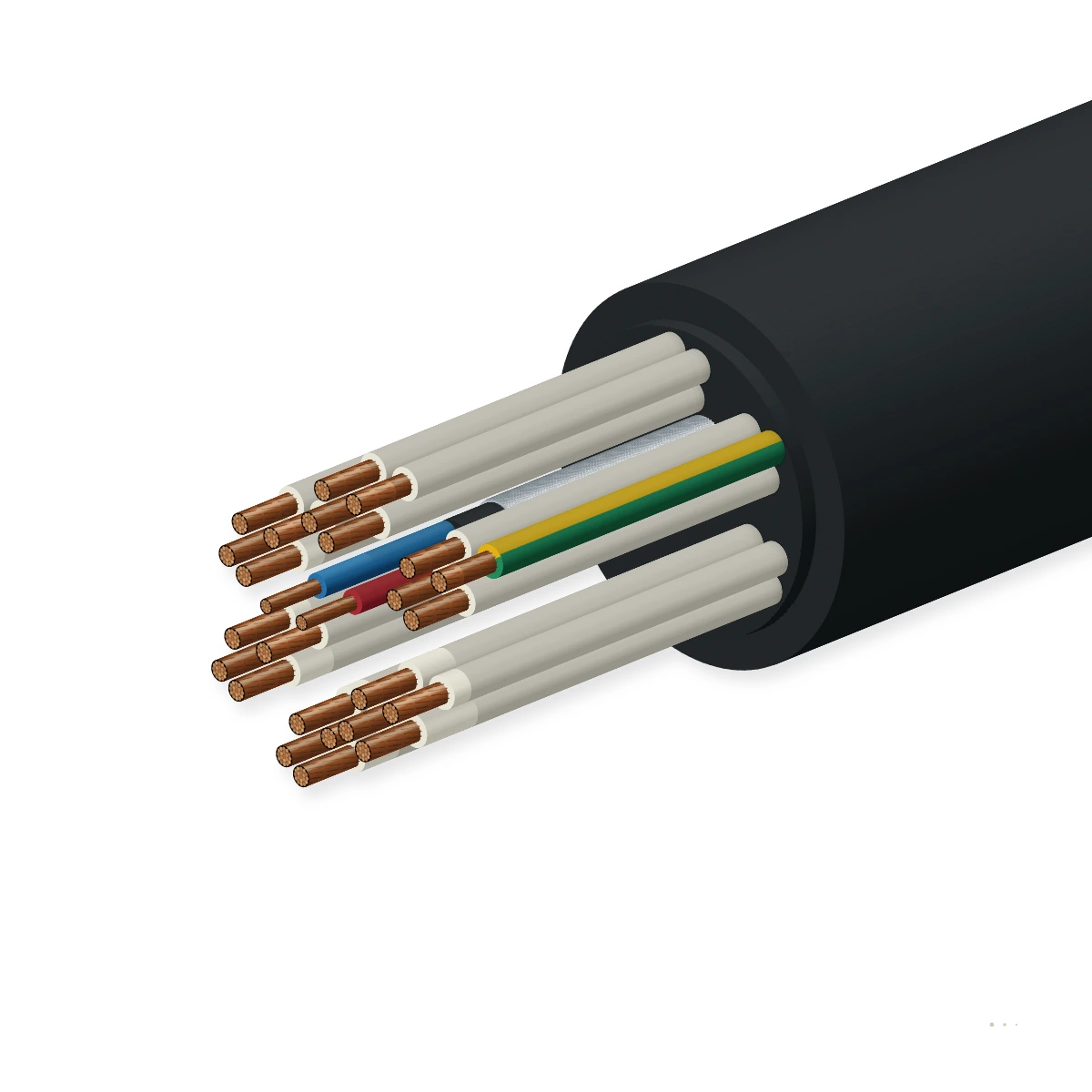

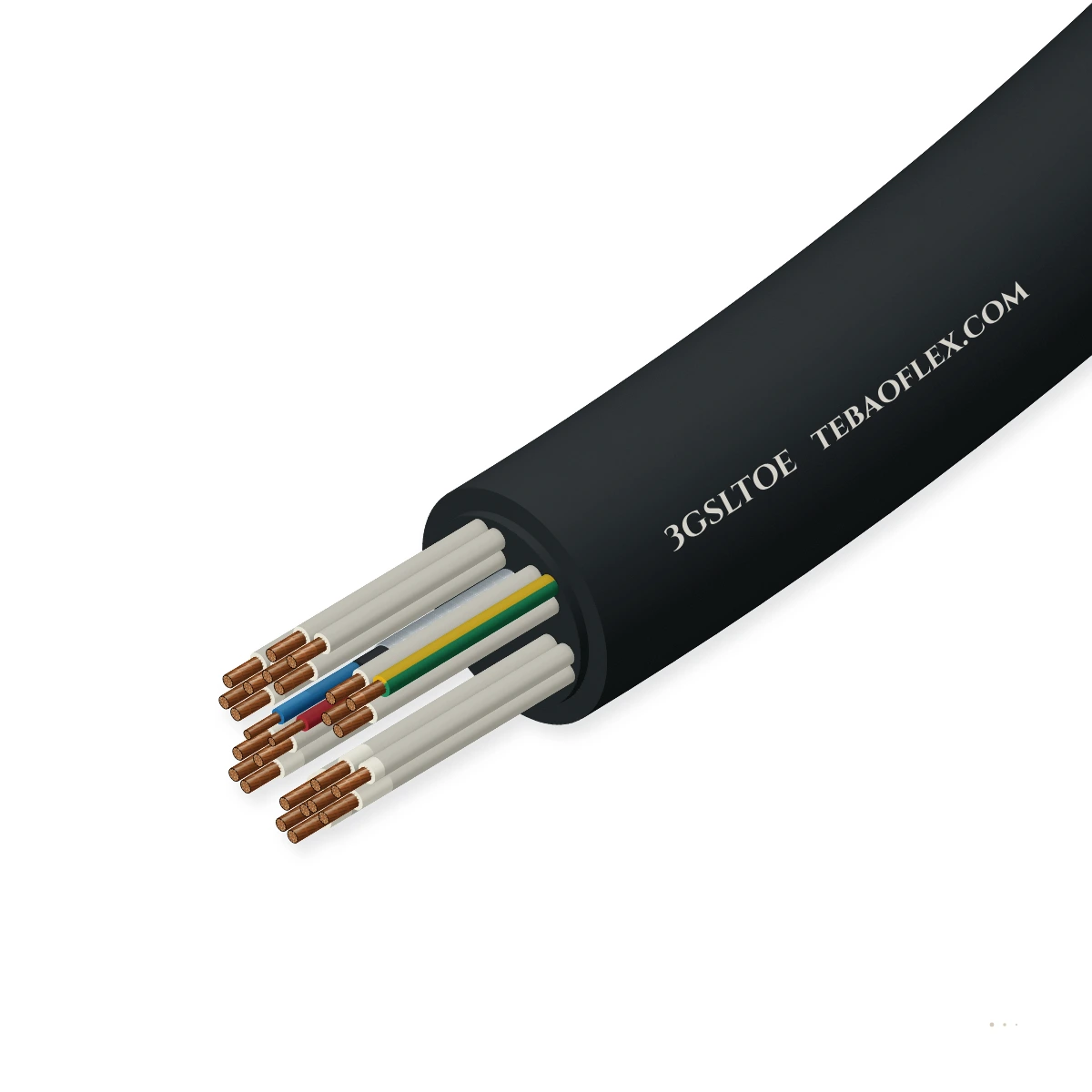

3GSLTOE Screened Collector-Basket Spreader CableEMC-screened 0.6/1 kV EPR/PUR gravity-basket spreader cable with bus & FO options

Spreader gravity collector basket

Free-hanging vertical run

Vertical / spreader reel

Motorised monospiral reel

Festoon & line chain

3GSLTOE-J Control (Metric)

3GSLTOE-J + Bus Element

3GSLTOE-J + Integrated FO

3GSLTOE-O AWG & AWG + FO

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

BSKT-XPRT / SYSLTÖ-FO

RXX / RXX-D

(N)GRDGCGOEU

Festoonflex C-PUR-HF
