Medium-voltage flat festoon & reeling cablesDIN VDE 0250-8133.6/6 & 6/10 kV · Flat ProfileUp to 120 m/min · −35 °C Flex

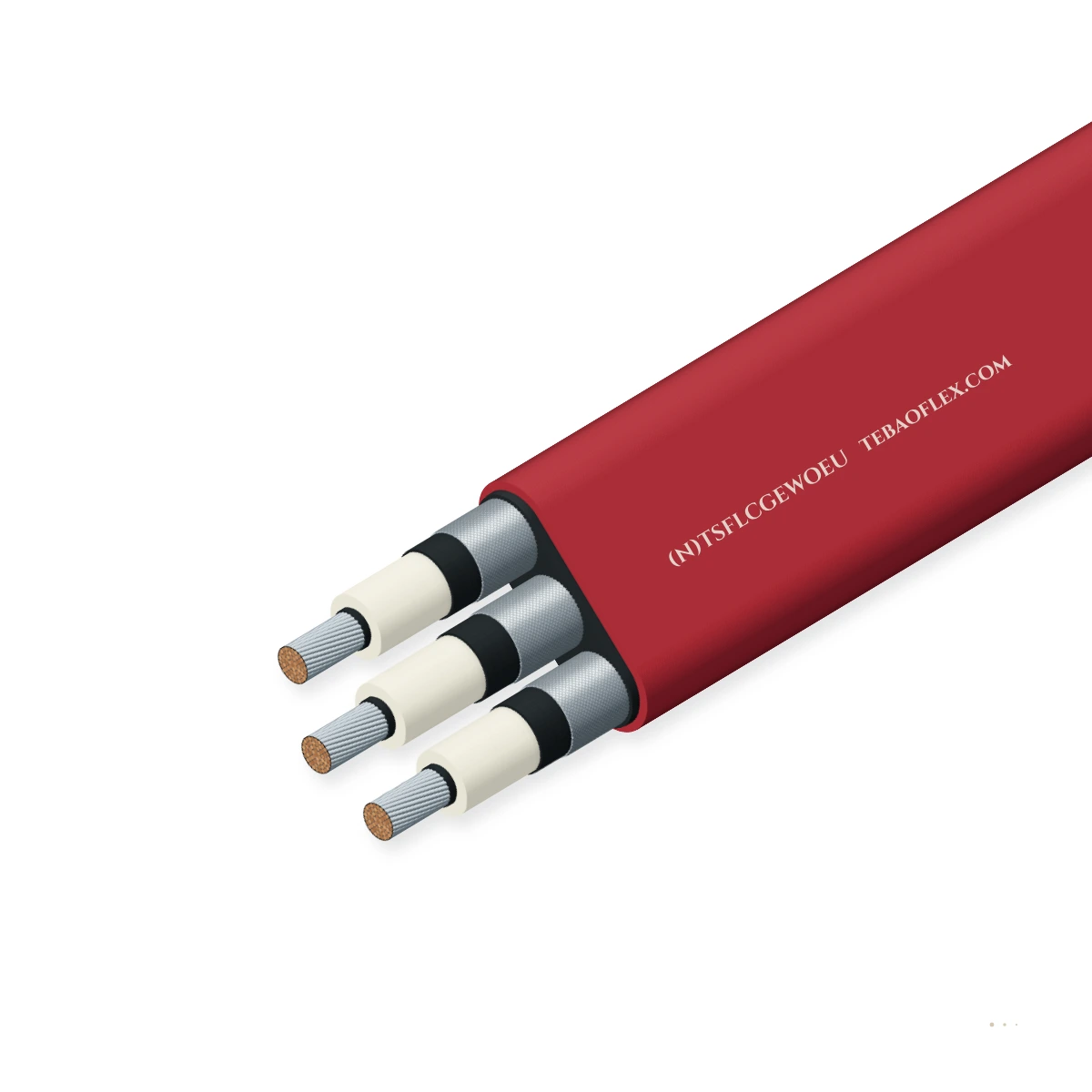

(N)TSFLCGEWÖU Medium-Voltage Flat Reeling Cable3.6/6 & 6/10 kV flat crane festoon & high-speed reeling cable (25–120 mm², 120 m/min)

DIN VDE 0250-813 (N)TSFLCGEWÖU medium-voltage flat reeling and festoon cable (3.6/6 and 6/10 kV, 3-core and 4-core, 25–120 mm²) for fast-moving STS container cranes and stacker-reclaimers up to 120 m/min.

EMC screen
Outdoor & humid
Ozone, UV & moisture
Oil-resistant
Order designation
6/10 kV · 3×50 + 3×25/3E
Phase size
50 mm²
Max. height
31.1 mm
Max. width
78.6 mm
Mass ≈
4,030 kg/km
Check against my drumAll sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6 & 6/10 kV
11 kV / 17 kV AC test
Core arrangement
3C or 4C Flat
Parallel cores + 3E/4E screens
Phase size range
25–120 mm²
14 flat configurations
Travel speed
Up to 120 m/min
Gantry & festoon service
Operating temp.
−35 to +80 °C
Fixed −50 to +80 °C
Max. tensile
15 N/mm² max
1,125 to 5,400 N pull

Application fit

Is (N)TSFLCGEWÖU MV Flat Reeling Cable (3.6/6 & 6/10 kV) right for your machine?

Engineered for high-speed ship-to-shore (STS) container cranes, RMG/RTG yard gantries, bucket-wheel excavators and heavy festoon systems where parallel flat core geometry permits tight single-axis bending radii (408–572 mm) and travel speeds up to 120 m/min without torsional twist.

Festoon & line chain

Suitable

Flat parallel core construction bends cleanly over crane festoon trolleys with a tighter minor-axis bend radius than round MV cables.

Motorised monospiral reel

Suitable

Rated for gantry reeling up to 120 m/min with 15 N/mm² tensile capacity and reversed bending over S-guide rollers (≥ 20 × D).

Vertical / spreader reel

Suitable

Stacks stably on vertically oriented monospiral crane reels where lateral wandering or axial twist is prevented.

Cylindrical / multi-layer drum

Not suitable

Flat profile must not be subjected to torsional stress on cylindrical multi-layer drums; use round (N)TSCGECWÖU for torsion.

(N)TSCGECWÖU Round Reeling Cable
Typical machinesShip-to-shore (STS) container crane festoonsRMG & automated stacking crane (ASC) reelsBucket-wheel excavators & stacker-reclaimersPort bulk unloaders & shipyard gantry cranesHigh-speed industrial MV monospiral reels

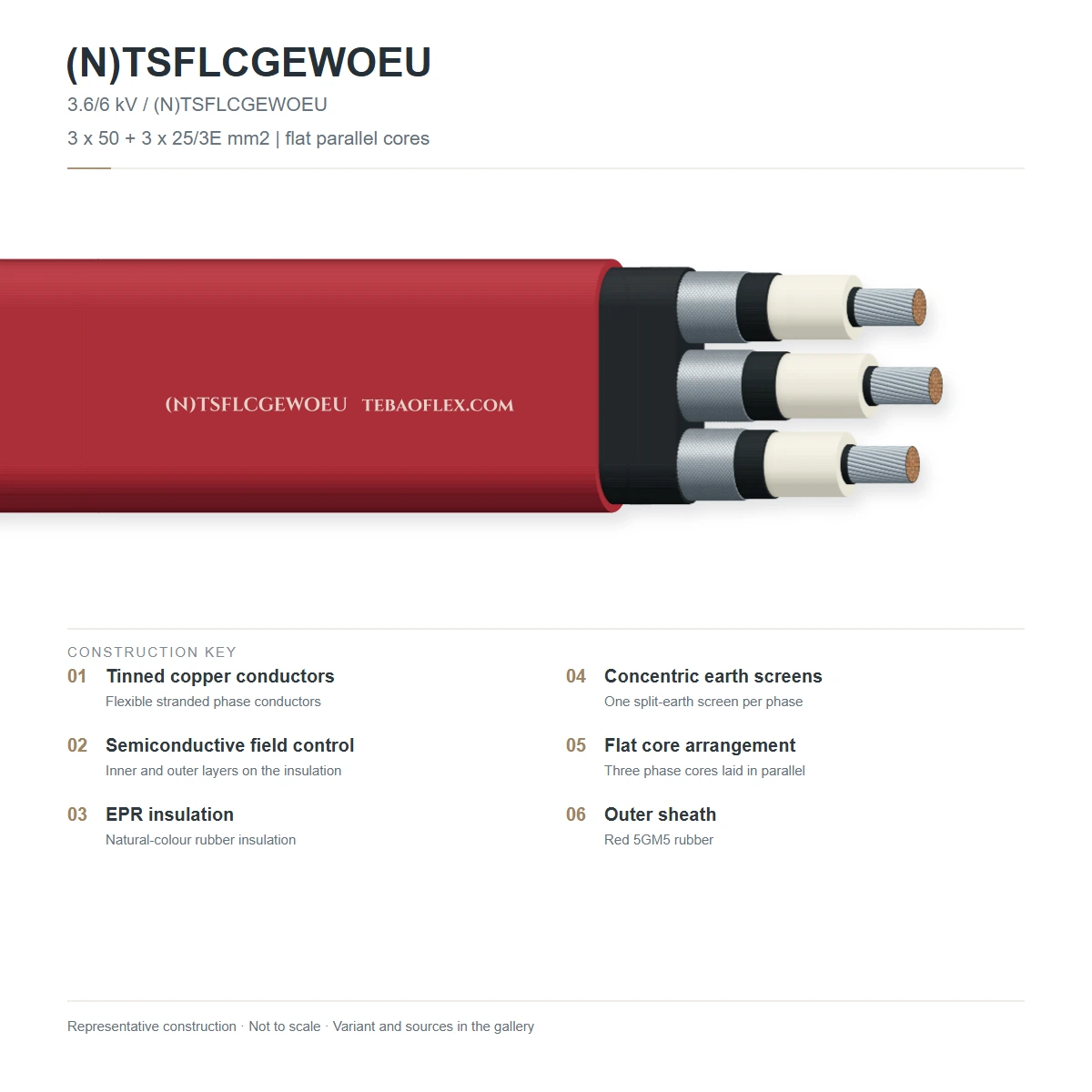

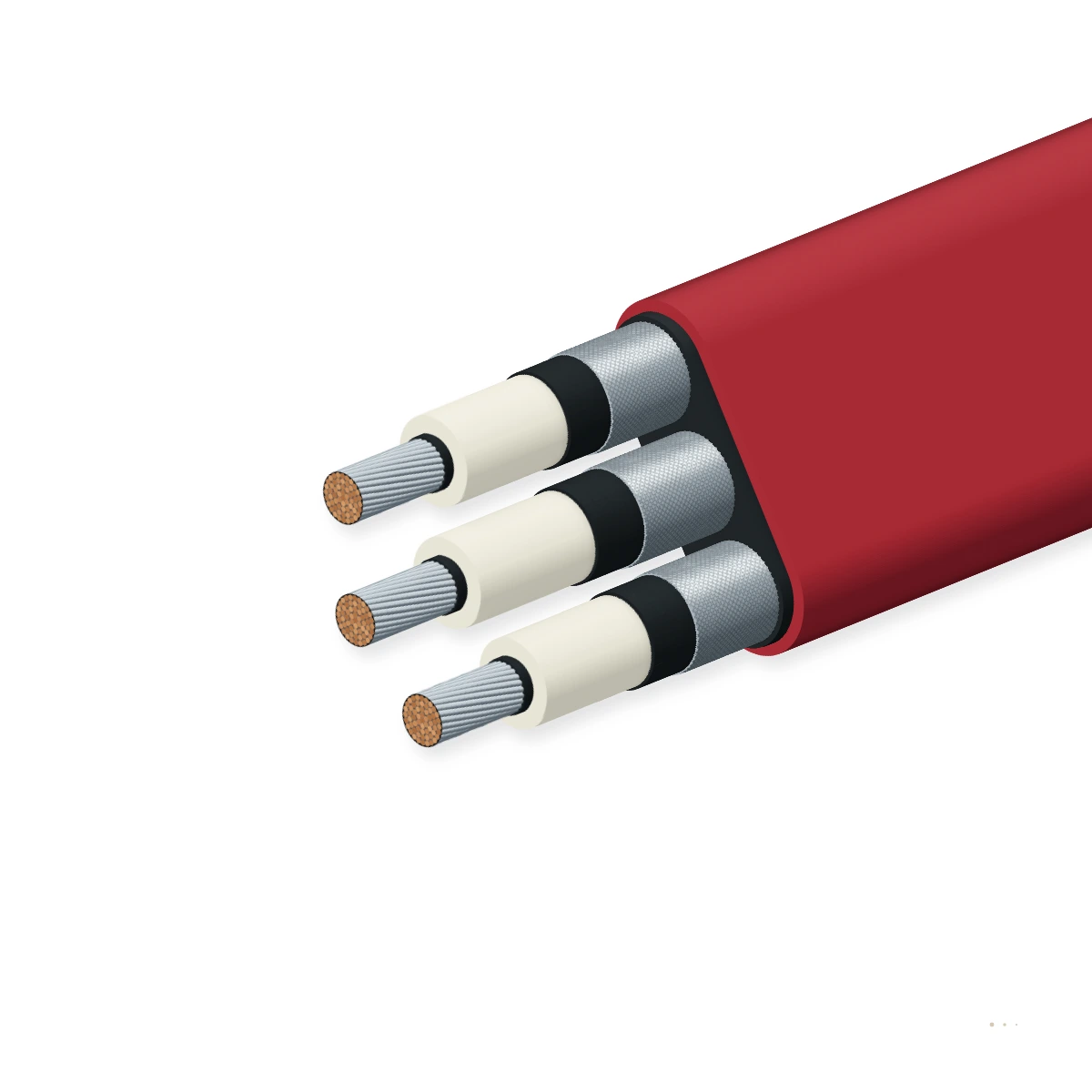

Construction

Layer by layer

Three (or four on 6/10 kV 4×35 and 4×70 mm² builds) finely stranded tinned copper conductors insulated with EPR between inner and outer semiconductive field-control layers and individually screened with a concentrically distributed split copper earth conductor (3E or 4E) are arranged side-by-side in a parallel flat plane and vulcanized inside a heavy-duty red polychloroprene (CR / Type 5GM5) outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase conductorFinely stranded tinned electrolytic copper conductor (25 to 120 mm²)DIN VDE 0295 · IEC 60228
2Inner semiconductive layerExtruded inner semiconductive rubber electrical field control layerDIN VDE 0250-813
3Core insulationHigh-grade EPR rubber compound (natural colour) rated 3.6/6 kV or 6/10 kVDIN VDE 0207-20
4Outer semiconductive layerExtruded black semiconductive rubber outer field control layerDIN VDE 0250-813
5Concentric split earth screen (3E / 4E)Split tinned copper earth conductor concentrically distributed around each parallel core (25/3E to 70/3E, or 25/4E to 35/4E)DIN VDE 0250-813
6Flat outer sheathHeavy-duty polychloroprene (CR / Type 5GM5) special elastomer compound, red, oil-, UV-, ozone- and moisture-resistantDIN VDE 0250-813

3.6/6 kV 3-Core Flat Series (25–120 mm²)

3×25+3×25/3E to 3×120+3×70/3E · 24.2–37.4 mm height × 64.3–97.3 mm width · 11 kV AC test

6/10 kV 3-Core & 4-Core Flat Series (25–120 mm²)

3×25 to 3×120 mm² plus 4-core builds 4×35+4×25/4E and 4×70+4×35/4E (for integrated fibre/control sub-core) · 17 kV AC test

Technical data

Ratings & operating limits

Electrical

Rated voltage U0/U
3.6/6 kV (Um 4.2/7.2 kV AC, 5.4/10.8 kV DC) · 6/10 kV (Um 6.9/12 kV AC, 9/18 kV DC)
Routine AC test voltage
11 kV AC for 3.6/6 kV series · 17 kV AC for 6/10 kV series
Current carrying capacity
105 A (25 mm²) to 282 A (120 mm²) according to DIN VDE 0298-4

Thermal

Conductor temperature
+90 °C max continuous operation · +250 °C max short-circuit (1 s)
Ambient temperature range
Fixed −50 °C to +80 °C · Fully flexible −35 °C to +80 °C

Mechanical

Min. bending radius & S-guide
408 to 572 mm (DIN VDE 0298-3, D_applied = 1.5 × flat cable height) · S-guide distance ≥ 20 × D
Tensile, travel speed & torsion
15 N/mm² max tensile load (1,125–5,400 N) · Up to 120 m/min gantry reeling speed · Torsion not permitted

Resistance

Sheath & environmental durability
Red polychloroprene (CR / Type 5GM5) outer sheath resistant to oil, ozone, UV, moisture and weather
Dynamic bend endurance
Type-tested under reversed bending and high-speed monospiral/festoon reeling cycles

Reference standards

Construction & application standards
Based on DIN VDE 0250-813 · DIN VDE 0298-3 · DIN VDE 0298-4 · IEC 60228
Parallel screen geometry
3 or 4 parallel EPR cores, each with concentrically distributed split copper earth screen (3E or 4E)

Identification

Core & sheath identification
Natural-coloured EPR insulation with black semiconductive layer · Red polychloroprene (CR) outer sheath
Designation code
(N)TSFLCGEWÖU — Medium-voltage flat ('FL') reeling & festoon cable with concentric per-core earth screens

Sizes

14 standard flat configurations across 3.6/6 kV and 6/10 kV (3-core & 4-core, 25 to 120 mm²)

Includes flat profile height and width ranges, minimum minor-axis bending radius, tensile force, DC resistance, current and 1 s short-circuit kA.

Dimensions & electrical parameters (3.6/6 & 6/10 kV)
Designation
(N)TSFLCGEWÖU		Voltage
kV		Phase
mm²		Concentric E
mm²		Cond. Ø
mm		Min. H
mm		Max. H
mm		Min. W
mm		Max. W
mm		Min. bend
mm		Mass ≈
kg/km		Max. pull
N		DC Res. 20°C
Ω/km		Current
A		1s Short-Cct
kA		Enquiry
3.6/6 kV · 3×25 + 3×25/3E3.6/6253×25/3E6.924.227.264.368.34082,7301,1250.801053.58
3.6/6 kV · 3×35 + 3×25/3E3.6/6353×25/3E8.324.727.765.869.84163,1201,5750.571305.01
3.6/6 kV · 3×50 + 3×25/3E3.6/6503×25/3E9.827.830.071.175.14503,8602,2500.391627.15
3.6/6 kV · 3×70 + 3×35/3E3.6/6703×35/3E11.428.931.976.880.84794,7303,1500.2820010.01
3.6/6 kV · 3×95 + 3×50/3E3.6/6953×50/3E13.329.230.975.579.54645,2804,2750.2124113.59
3.6/6 kV · 3×120 + 3×70/3E3.6/61203×70/3E15.135.437.492.397.35617,4005,4000.1628217.16
6/10 kV · 3×25 + 3×25/3E6/10253×25/3E6.925.027.566.769.74132,8601,1250.801053.58
6/10 kV · 3×35 + 3×25/3E6/10353×25/3E8.325.528.568.272.24283,2601,5750.571305.01
6/10 kV · 4×35 + 4×25/4E6/10354×25/4E8.325.528.586.791.74284,1102,1000.571305.01
6/10 kV · 3×50 + 3×25/3E6/10503×25/3E9.828.131.174.678.64674,0302,2500.391627.15
6/10 kV · 3×70 + 3×35/3E6/10703×35/3E11.429.732.779.283.24914,8503,1500.2820010.01
6/10 kV · 4×70 + 4×35/4E6/10704×35/4E11.429.532.5100.9105.94886,2404,2000.2820010.01
6/10 kV · 3×95 + 3×50/3E6/10953×50/3E13.331.734.784.789.75215,9204,2750.2124113.59
6/10 kV · 3×120 + 3×70/3E6/101203×70/3E15.135.138.192.997.95727,4205,4000.1628217.16
  • Per DIN VDE 0298-3, the effective applied diameter for flat cable bending calculations is D = 1.5 × flat cable height (Max. H), yielding the tabulated minimum bending radius of 15 × Max. H (408–572 mm).
  • On 3.6/6 kV 3×25+3×25/3E, minimum width is corrected to 64.3 mm (datasheet prints 46.3–68.3 mm, a digit transposition of 64.3 mm).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 934 mm
Minimum bending radius
467 mm
Min. drum core diameter
≈ 934 mm
Cable weight on drum
403.0 kg
Outer diameter
31.1 mm
Indicative only: based on the datasheet outer diameter and 15 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
11 kV / 17 kV AC dielectric withstand test11 kV AC (3.6/6 kV) or 17 kV AC (6/10 kV) applied to each EPR phase core and concentric earth screenEvery shipping drum
Sample tests
−35 °C cold flex & polychloroprene sheath oil/weather testVerified for −35 °C dynamic flexing, −50 °C fixed cold endurance, oil, ozone and UV resistanceProduction batch
Reversed bending & high-speed reeling endurance testDynamic reversed bending over guide rollers and monospiral/festoon reeling cycles up to 120 m/minType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · (N)TSFLCGEWÖU · VDE 0250-813
Delivery form
Export wooden reels wound flat without axial twist
Lengths
Custom crane boom festoon or monospiral reel lengths
Certificate
EN 10204 3.1 factory routine HV test report with every drum
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

PDF(N)TSFLCGEWÖU Medium-Voltage Flat Reeling Cable – technical datasheet14 sizes · construction, technical data, approvalsXLSX(N)TSFLCGEWÖU MV Flat Reeling Cable (3.6/6 & 6/10 kV) spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When is flat (N)TSFLCGEWÖU preferred over round medium-voltage reeling cables?
In high-speed ship-to-shore (STS) crane festoons and narrow monospiral reels, the parallel flat profile bends around its minor axis (height 24.2–38.1 mm), achieving a significantly smaller bending radius (408–572 mm) and eliminating core corkscrewing at travel speeds up to 120 m/min.
How is the minimum bending radius calculated for a flat MV cable under DIN VDE 0298-3?
DIN VDE 0298-3 defines an equivalent applied diameter D = 1.5 × flat cable height. Multiplying D by 10 for dynamic flexing/reeling gives a minimum bending radius equal to 15 × max cable height (for example, 27.2 mm × 15 = 408 mm on 3.6/6 kV 3×25 mm²).
Why are 4-core configurations (4×35+4×25/4E and 4×70+4×35/4E) offered in the 6/10 kV range?
The 4-core flat constructions allow crane designers to dedicate the fourth screened core position to an auxiliary power circuit, pilot/control bundle or fibre-optic sub-element while maintaining a symmetrical flat cross-section.
Can (N)TSFLCGEWÖU be used in applications with axial torsion?
No. Torsional stress is not permitted on flat medium-voltage cables. Where the cable path involves axial twisting or multi-layer cylindrical drum coiling, specify round (N)TSCGECWÖU or (N)TSCGECECWÖU rated for ±25 °/m torsion.
