Vertical spreader reeling cableIEC 60502-1 · VDE 0295 Cl. 5U0/U 0.6/1 kV · Halogen-freeSpreader reel · ≤ 200 m/min

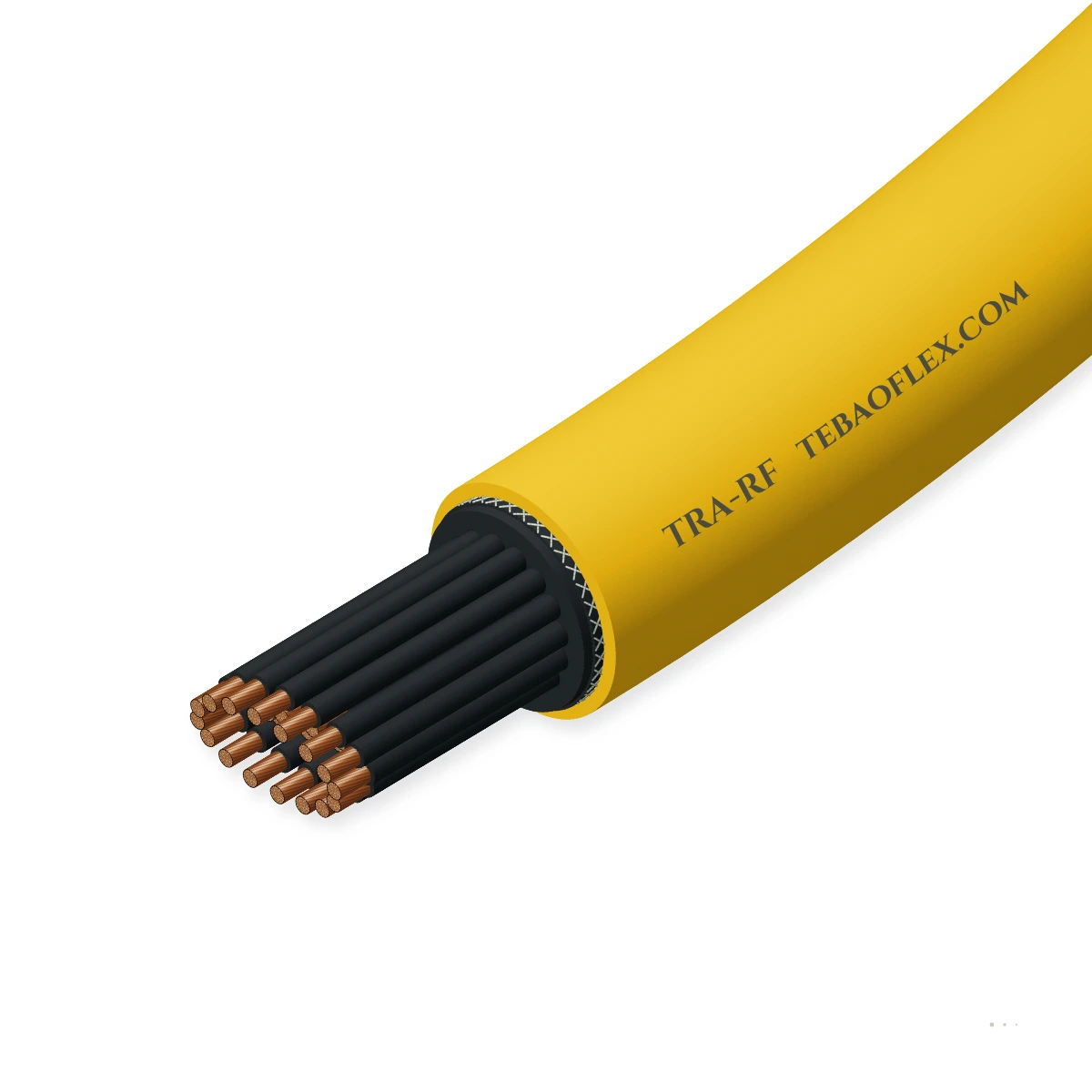

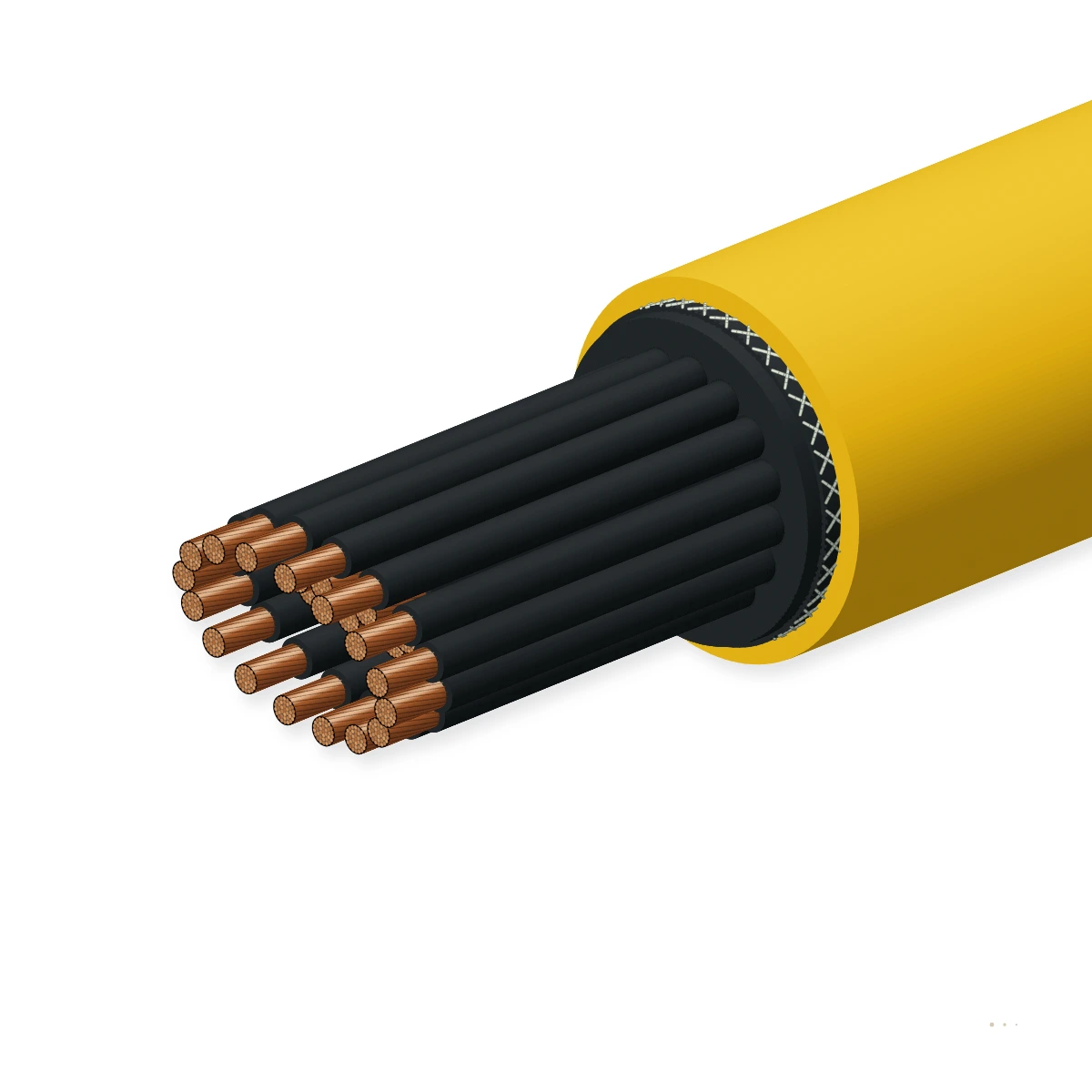

TRA-RF Reinforced PUR Spreader Vertical Reeling CableHalogen-free 0.6/1 kV double-PUR vertical & horizontal reeling cable with aramid core

Reinforced 0.6/1 kV double-PUR spreader reeling cable with central aramid-rope elastomer bearer, textile anti-twisting braid and RAL 1021 yellow jacket for portal-crane and spreader reels up to 200 m/min.

Oil-resistant
Flame-retardant
Outdoor & humid
Water-resistant
Order designation
TRA-RF 24 G 2.5
Outer Ø max
27.8 mm
Net weight ≈
1,100 kg/km
Permitted pull
1,800 N
Current (30 °C)
20 A
All sizes (2)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Max AC 0.7/1.2 kV · DC 0.9/1.8 kV
Reeling speed
≤ 200 m/min
Vertical & horizontal motorized reels
Tensile load
1.8 / 3.15 kN
30 N/mm² · central aramid bearer
Bend radius
6 × D spool
9 × D guide · 4 × D anti-tension drum
Flexing temp.
−25…+60 °C
Fixed −30…+60 °C · +80 °C cond.
Core sizes
24 & 42 G 2.5
2.5 mm² Class 5 · RAL 1021 PUR

Typical values for this cable type, based on IEC 60502-1 / VDE 0295 — confirmed in the datasheet and quotation for your order.

Application fit

Is TRA-RF right for your machine?

TRA-RF combines a central elastomer cord reinforced with aramid ropes (30 N/mm² specific tensile rating) and a halogen-free RAL 1021 yellow double-PUR sheath with embedded anti-twisting braid for continuous vertical and horizontal reeling on portal cranes and container spreaders up to 200 m/min.

Vertical / spreader reel

Suitable

Primary duty: vertical motorized spreader reels on portal and container cranes up to 200 m/min (1,800–3,150 N pull).

Motorised monospiral reel

Suitable

Rated for horizontal spring and motorized gantry reels up to 200 m/min with high dynamic acceleration.

Fixed installation

Suitable

Suitable for outdoor, dry, humid and wet crane approaches from −30 °C to +60 °C.

Typical machinesPortal crane & ship-to-shore (STS) vertical spreader reels (up to 200 m/min)RTG, RMG & intermodal gantry crane motorized power/control reelsHalogen-free port & terminal material-handling machineryOutdoor, humid and wet quay-side reeling installations

Construction

Layer by layer

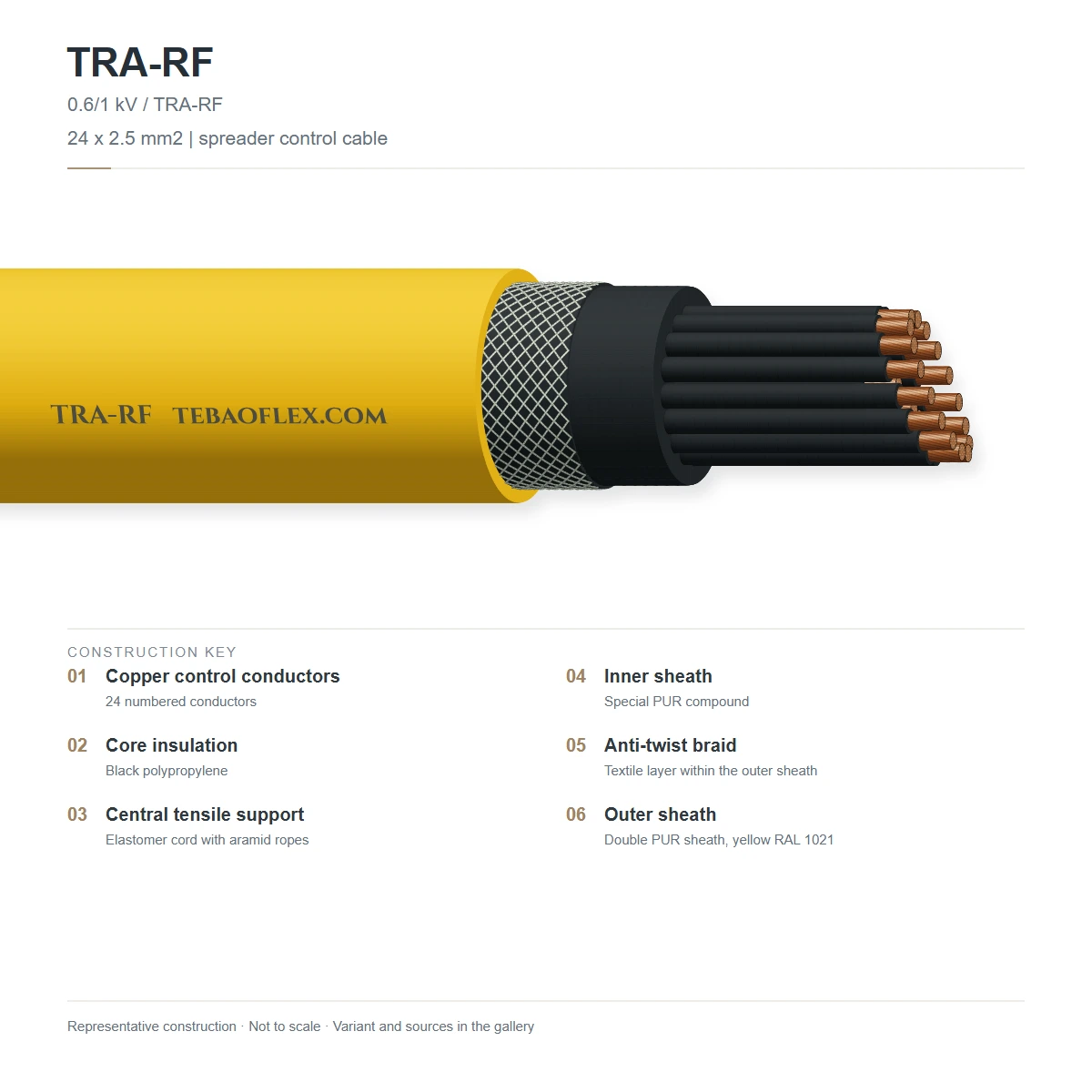

Shown: TRA-RF 0.6/1 kV reinforced vertical reeling construction with Class 5 bare copper conductors, thin-wall polyolefin core insulation, central elastomer cord with aramid ropes, PUR inner sheath, textile anti-twisting braid and RAL 1021 yellow PUR outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductorBare electrolytic copper, flexible Class 5 per IEC 60228 / DIN VDE 0295 / BS 6360 (2.5 mm²)Max. DC resistance R20 = 7.98 Ω/km · voltage drop 14.0 V/(A·km) at cos φ = 0.8
2Thin-wall polyolefin core insulationHigh-stiffness black polypropylene / polyolefin core insulation with printed white numbersReduces overall cable diameter (26.8–34.1 mm) and weight (1,100–1,620 kg/km) for compact drums
3Central aramid-reinforced elastomer elementExtruded elastomer cord with embedded high-modulus aramid ropes at the cable centreProvides 30 N/mm² tensile capacity (1,800 N on 24G2.5; 3,150 N on 42G2.5) for vertical suspension
4Inner sheathSpecial halogen-free polyurethane (PUR) compoundStabilizes core lay-up and forms the inner half of the interlinked double-PUR jacket
5Anti-twisting textile braidHigh-strength synthetic textile anti-twisting braid embedded between inner and outer PUR sheathsCounteracts drum and deflection-pulley torque to prevent corkscrewing in vertical service
6Outer sheathHighly abrasion-resistant polyurethane (PUR) compound, yellow RAL 1021Halogen-free, oil, UV, ozone, humidity and moisture resistant; low flammability per IEC 60332-1

TRA-RF 24 G 2.5 (0.6/1 kV · 1,800 N)

24 × 2.5 mm² Class 5 copper cores (incl. green/yellow PE) + central aramid elastomer cord + yellow RAL 1021 double-PUR sheath

TRA-RF 42 G 2.5 (0.6/1 kV · 3,150 N)

42 × 2.5 mm² Class 5 copper cores (incl. green/yellow PE) + central aramid elastomer cord + yellow RAL 1021 double-PUR sheath

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60502-1 / VDE 0295. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
600 / 1,000 V (0.6/1 kV)
Max. operating voltage AC / DC
700 / 1,200 V AC · 900 / 1,800 V DC
AC test voltage
3.5 kV AC per IEC 60502-1
Conductor resistance & voltage drop
Max. R20 = 7.98 Ω/km (2.5 mm²) · voltage drop 14.0 V/(A·km) at cos φ = 0.8, +90 °C
Current-carrying capacity (30 °C)
20 A (24 G 2.5) · 16 A (42 G 2.5) laid straight at +30 °C (apply drum-layer derating per DIN VDE 0298-4)

Thermal

Ambient temperature, flexing
−25 to +60 °C
Ambient temperature, fixed
−30 to +60 °C
Max. conductor temperature
+80 °C continuous · +200 °C short-circuit

Mechanical

Max. travel speed
Up to 200 m/min in horizontal and vertical reeling
Permitted tensile load
30 N/mm² specific load: 1,800 N (24 G 2.5) · 3,150 N (42 G 2.5) via central aramid-reinforced cord
Min. bending radius
6 × D on spool · 9 × D over guiding device / deflection pulley · 4 × D on anti-tension drum

Resistance

Halogen-free & flame behaviour
Halogen-free double-PUR construction · low flammability class C3 per IEC 60332-1
Oil & chemical resistance
Oil-resistant polyurethane outer and inner sheaths
Weather, UV & moisture
Resistant to ozone, UV radiation, humidity and moisture for outdoor, dry, humid and wet rooms

Reference standards

Conductor classification
IEC 60228 / DIN VDE 0295 / BS 6360 Class 5 flexible bare copper
Electrical & flame references
IEC 60502-1 (0.6/1 kV voltage test) · IEC 60332-1 (flame propagation)
Reel ampacity derating
DIN VDE 0298-4 Tables 17 & 27 (ambient and drum-layer conversion factors)

Identification

Core identification
Black insulation with printed white numbers + green/yellow earth core (G)
Outer jacket colour
Yellow RAL 1021 polyurethane (PUR)
Customs tariff (HS)
8544.49

Sizes

2 standard 0.6/1 kV reinforced PUR spreader reeling configurations

Both builds use 2.5 mm² Class 5 bare copper conductors (R20 = 7.98 Ω/km, voltage drop 14.0 V/A·km) around an extruded elastomer cord with aramid ropes inside a braided RAL 1021 yellow double-PUR sheath.

Dimensions, electrical data & tensile loads
ConfigurationCores
count		Conductor
mm²		Outer Ø min
mm		Outer Ø max
mm		Spool R min
mm (6×D)		Guide R min
mm (9×D)		Copper wt ≈
kg/km		Net weight ≈
kg/km		Permitted pull
N		Current max
A (30 °C)		R20 max
Ω/km		Enquiry
TRA-RF 24 G 2.5242.526.827.81672505761,1001,800207.98
TRA-RF 42 G 2.5422.532.534.12053071,0081,6203,150167.98
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Net cable weight is 1,100 kg/km (1.10 kg/m) for 24 G 2.5 and 1,620 kg/km (1.62 kg/m) for 42 G 2.5.
  • Current carrying capacity (20 A for 24 G 2.5; 16 A for 42 G 2.5) applies to cable laid straight at +30 °C; apply drum-layer derating factors per DIN VDE 0298-4 Table 27 (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric testPer IEC 60502-1 (0.6/1 kV class)Every manufactured length
Conductor DC resistance at 20 °CR20 ≤ 7.98 Ω/km (2.5 mm² Class 5)Every manufactured length
Sample tests
Flame propagation behaviourLow flammability class C3 per IEC 60332-1Design reference

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60502-1 · VDE 0295 Cl. 5CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX TRA-RF [cores G 2.5] mm² 0.6/1 KV ww-yyyy · [metre mark]
Delivery form
Custom reel cut lengths or bulk drums
Packaging
Heat-treated seaworthy timber drums with waterproof end caps
Minimum order
20 m on 42 G 2.5; 300–500 m on 24 G 2.5 non-stock runs

Technical documents

Downloads

PDFTRA-RF Reinforced PUR Spreader Vertical Reeling Cable – technical datasheet2 sizes · construction, technical data, approvalsXLSXTRA-RF spec data (Excel)All 2 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does TRA-RF differ from the standard TRA PUR reeling cable?
The -RF suffix denotes the reinforced vertical-reeling build: TRA-RF adds an extruded central elastomer cord reinforced with high-modulus aramid ropes alongside the embedded textile anti-twisting braid and double polyurethane sheath. That central strength member raises specific tensile capacity to 30 N/mm² (1,800 N on 24 G 2.5 and 3,150 N on 42 G 2.5) so the copper conductors are isolated from vertical spreader pull.
When should I choose TRA-RF (double PUR) versus RXX (double PCP rubber)?
Choose TRA-RF when your portal-crane or spreader reel operates within −25 °C to +60 °C at up to 200 m/min and benefits from a compact, halogen-free, cut- and notch-resistant RAL 1021 yellow double-PUR jacket (1,100–1,620 kg/km). Choose RXX / RXX-D when the vertical reel requires higher speed (up to 240/300 m/min), a wider flexing temperature window (−35 °C to +80 °C), higher tensile loads (up to 6,000 N), or temporary water submersion to 50 m depth.
How are the three bending-radius figures (6 × D, 9 × D and 4 × D) applied on a reel system?
Each multiplier applies to a specific component along the cable path: 6 × D is the minimum drum barrel radius on the motorized spool (167 mm for 24 G 2.5; 205 mm for 42 G 2.5), 9 × D is the minimum radius over guiding devices and deflection pulleys (250 mm and 307 mm), and 4 × D applies only to the dead-turn anti-tension drum at the reel anchor point.
Why do the current ratings (20 A for 24 G 2.5 and 16 A for 42 G 2.5) differ from single-core free-air tables?
Unlike single-circuit base tables that quote 30 A for one loaded 2.5 mm² pair in free air, the TRA-RF electrical table already incorporates multicore grouping for 24 and 42 cores laid straight at +30 °C (20 A and 16 A respectively, at R20 = 7.98 Ω/km and 14.0 V/A·km voltage drop). When the cable operates wound in layers on a drum, multiply by the DIN VDE 0298-4 Table 27 drum-layer factor (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).
