instrumentation cable seriesPinpoint ±1 m LocationFast Dry-Out & ResetUnderfloor & Overhead Pipe

TraceTek TT1000 / TT1100-OHP Conductive-Polymer Water Leak4-wire conductive-polymer fluoropolymer water leak detection & location cable

TraceTek TT1000 and TT1100-OHP Conductive-Polymer Water Leak Detection Sensing Cable featuring two carbon-loaded conductive-polymer sensing electrodes, two fluoropolymer-insulated continuity/reference wires helically wound around a.

Water & Coolant Leak Locate
UL 910 / NFPA 262 Plenum
Fluoropolymer Non-Stick
NFPA 75 / CE / RoHS
Order designation
TraceTek TT1000 (Bulk)
Outer Ø
6.0 mm
Weight ≈
34.0 kg/km
Sensor resistance
20.0 Ω/m
Min. wetted length
50 mm
All sizes (4)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Architecture
4-Wire Locating
2 sense + 2 signal/loop wires
Sensor resistance
≈ 20.0 Ω/m
Precision linear ohm/m gradient
Location accuracy
± 0.5 % of lengt
Typically ±0.5 m to ±1.0 m
Outer diameter
6.0 mm (TT1000)
7.5 mm (TT1100-OHP braided)
Plenum flame
NFPA 262 / UL 91
Safe in air-handling plenums
Reset time
Wipes dry in sec
Hydrophobic fluoropolymer core

Typical values for this cable type, based on UL 719 / NFPA 75 / EN 50174-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is TraceTek TT1000 / TT1100-OHP right for your machine?

Detects and pinpoints the exact metre of water, chilled-water or condensate leaks beneath data-centre raised floors, around CRAC/CDU liquid-cooling manifolds, and along suspended overhead piping.

Fixed installation

Suitable

TT1000 lays flat under raised access floors, in drip trays and around AI server liquid-cooling CDUs.

Free-hanging vertical run

Suitable

TT1100-OHP adds a capillary wicking polyester braid that wraps directly under horizontal/vertical overhead chilled-water pipes.

Immersion & wet locations

Suitable

Non-hygroscopic fluoropolymer core sheds water and resets immediately after wiping dry.

Energy chain / drag chain

Not suitable

Static building/facility leak sensing cable; not for moving machinery drag chains.

Use PUR-HF Drag-Chain Cable
Typical machinesHyperscale Data Centres & AI Liquid-Cooling CDUsSemiconductor Cleanroom Sub-Fab Utility PipingCommercial Building HVAC & Overhead Chilled WaterTelecom Switching Rooms & UPS Battery FloorsMuseum, Archive & Hospital Critical Infrastructure

Construction

Layer by layer

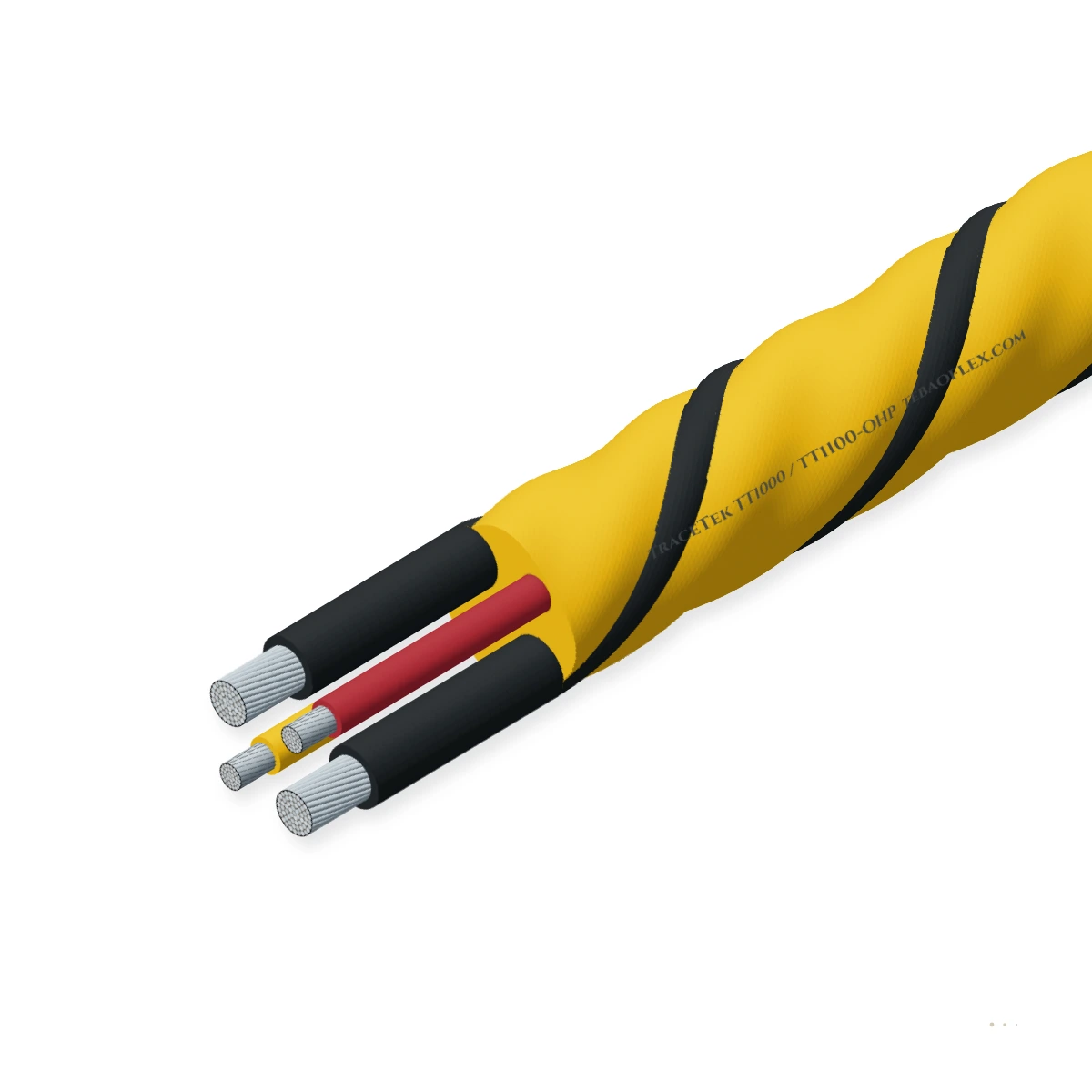

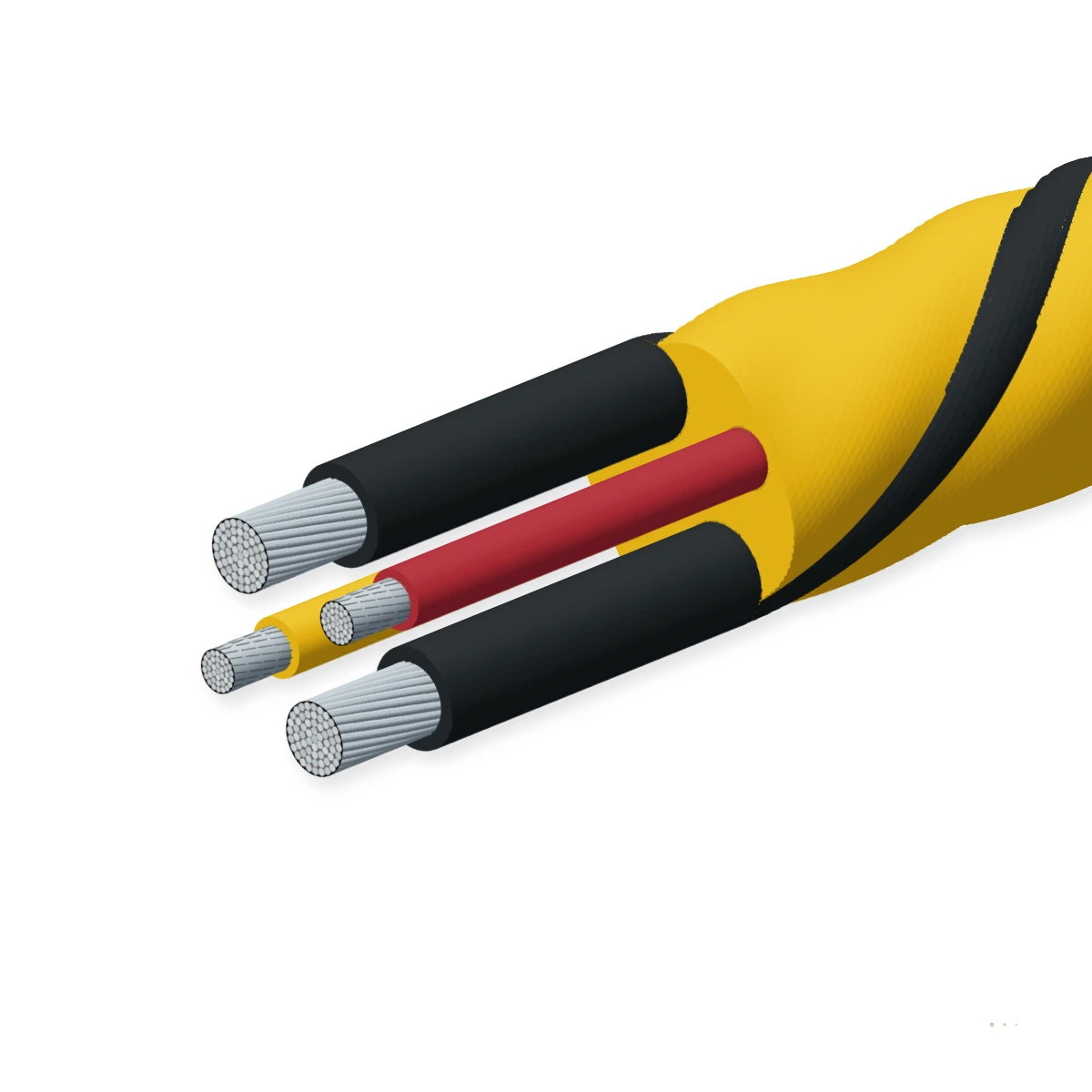

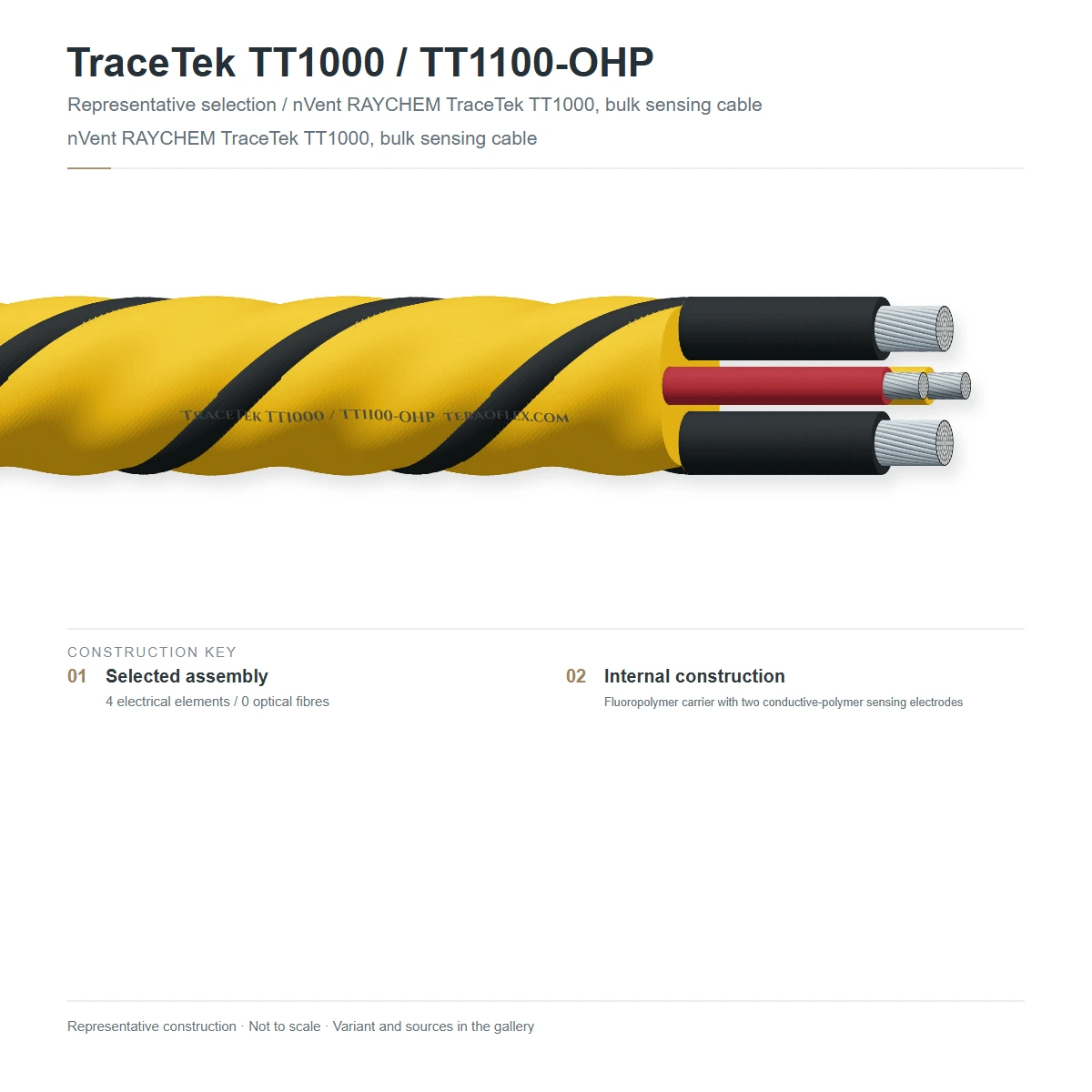

TraceTek TT1000 / TT1100-OHP showing fluted yellow fluoropolymer support core, 2 helically recessed carbon-filled conductive polymer sensing wires (Black), 2 colour-coded fluoropolymer-insulated reference/continuity wires (Red/Green/White), and capillary wicking braid (on TT1100-OHP).

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
12 × insulated copper reference & loop-continuity wires2 × 26 AWG stranded tinned copper conductors insulated with colour-coded fluoropolymer (Red & Green/White)Provides continuous end-of-line break supervision and voltage-divider return
2Fluted non-conductive fluoropolymer central carrier coreHigh-visibility Yellow (TT1000) fluted fluoropolymer central profile locking the 4 helical wires at fixed spacingPrevents false alarms against flat metal floors or pipes
32 × conductive-polymer jacketed sensing electrodes2 × nickel/tinned copper resistance wires jacketed with calibrated carbon-loaded conductive fluoropolymer (~20 Ω/m)Water bridges the two black sensing wires to trigger alarm & distance calculation
4Capillary wicking polyester overbraid (TT1100-OHP only)Hydrophilic woven polymer outer braid on TT1100-OHP (omitted on smooth TT1000)Captures slow condensation drips along the underside of overhead pipes

TraceTek TT1000 (6.0 mm Underfloor)

Smooth high-visibility Yellow 4-wire conductive-polymer water sensing cable for raised floors & drip pans

TraceTek TT1100-OHP (7.5 mm Overhead Pipe)

Wicking-braided 4-wire water sensing cable for strapping under overhead chilled-water & domestic water pipes

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 719 / NFPA 75 / EN 50174-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Sensing wire linear R
≈ 20.0 Ω/m (±2 % per metre for accurate distance readout)
Continuity wire DC R
≈ 0.14 Ω/m (26 AWG stranded tinned copper)
Dry insulation resistance
≥ 100 MΩ per 30 m sensing circuit
Max. sensing circuit length
Up to 150 m per TTSIM / TTDM-128 sensor interface module

Thermal

Continuous operating temp.
-20 °C to +75 °C (TT1000) · 0 °C to +75 °C (TT1100-OHP)
Storage temperature
-40 °C to +85 °C
Plenum fire rating
UL 910 / NFPA 262 plenum flame & low smoke qualified (TT1000)

Mechanical

Outer diameter
6.0 mm / 0.24 in (TT1000) · 7.5 mm / 0.30 in (TT1100-OHP)
Min. bend radius
25 mm (4 × OD)
Crush resistance
> 180 kg on 12 mm flat plate without shorting

Resistance

Detected liquids
Potable water, chilled water, condensate, glycol/water mixes
Dry-out & reset
TT1000 resets within seconds of wiping dry; zero water absorption
Dust & metal floor immunity
Recessed flutes prevent contact with flat metal subfloors

Reference standards

Data-centre protection
NFPA 75 & EN 50600-2-2 / EN 50174-2
Plenum cable listing
NFPA 262 (UL 910) & UL 61010-1 system interface
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Core / braid colour
TT1000: Yellow core / Black sense wires · TT1100-OHP: White/Grey wicking braid
Customs tariff (HS)
8544.4290
Modular connectivity
Supplied as bulk reel or pre-terminated modular lengths (1.5 m to 30 m)

Sizes

4 standard TraceTek TT1000 & TT1100-OHP configurations

Dimensions, weight, wetted alarm bridge length and compatible alarm modules.

Dimensions & sensing performance
Order designationInstallation environmentOuter Ø
mm		Weight ≈
kg/km		Sense R
Ω/m		Wetted alarm
mm		Enquiry
4-Wire Conductive-Polymer Water Leak Sensing Cables
TraceTek TT1000 (Bulk)Raised Floor, Drip Pan & Plenum Subfloor6.034.020.050
TraceTek TT1000-PC (Modular)Pre-Terminated 3 m / 7.5 m / 15 m / 30 m Plug-and-Play6.034.020.050
TraceTek TT1100-OHP (Bulk)Overhead Pipe Under-Insulation / Belly Strap7.542.020.020
TraceTek TT1100-OHP-PCPre-Terminated Overhead Pipe Modular Assemblies7.542.020.020
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Directly compatible with 4-wire locating controllers (TTDM-128, TTSIM-1/2, and standard 20 Ω/m Modbus/BACnet leak transmitters).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % linear resistance gradient (Ω/m) & continuity test20.0 Ω/m ± 2 % across entire length for sub-metre location accuracyEvery manufactured reel / assembly
Dry insulation resistance & tap-water response time testDry IR ≥ 100 MΩ and alarm response < 5 s upon 50 mm water bridgeEvery production lot
Sample tests
NFPA 262 (UL 910) Steiner tunnel plenum flame & smoke testMax flame spread ≤ 1.5 m, peak optical smoke density ≤ 0.50Qualification test

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NFPA 262 / UL 910 PlenumNFPA 75 Data-Centre CompliantCE, RoHS 2 & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

Tag & connector print: TEBAOFLEX TRACETEK TT1000 / TT1100-OHP
Delivery form
Fumigated wooden drums, steel reels or precision spools
Standard lengths
500 m · 1000 m (or custom cut/spooled lengths)
MOQ
100 m (standard) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTraceTek TT1000 / TT1100-OHP Conductive-Polymer Water Leak – technical datasheet4 sizes · construction, technical data, approvalsXLSXTraceTek TT1000 / TT1100-OHP spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does a 4-wire conductive-polymer leak detection cable calculate the exact distance to a water leak?
The cable contains two insulated copper loop wires and two black conductive-polymer sensing wires with a calibrated resistance of ~20 Ω/m. When conductive water bridges the two black sensing wires at distance L, it forms a precision Wheatstone / voltage-divider circuit. The controller measures the resistance ratio to compute L within ±0.5 % of total cable length while supervising all four wires for breaks.
Why should we use TT1100-OHP instead of TT1000 on overhead chilled-water pipes?
Smooth TT1000 is hydrophobic so it dries instantly on floors, but a tiny slow drip running along the underside of an overhead pipe might bead past a smooth cable. TT1100-OHP adds a capillary wicking polyester overbraid that absorbs and spreads even a single drop across the sensing wires.
Will TT1000 corrode or leave green copper residue after repeated water leaks?
No. Unlike bare exposed stainless-steel or copper wire-rope sensors that suffer galvanic corrosion and trap lint, TT1000 encapsulates its metallic conductors inside smooth, chemically inert carbon-fluoropolymer jackets.
Which TraceTek cable should we use for acids, alkalis or diesel fuel instead of water?
Use TT3000 for indoor acids, bases and semiconductor chemicals; TT7000-HUV for outdoor concentrated fuming acids; TT5000 for diesel/jet fuel and hydrocarbon oils; or TT5001 for fast-response organic solvents.
