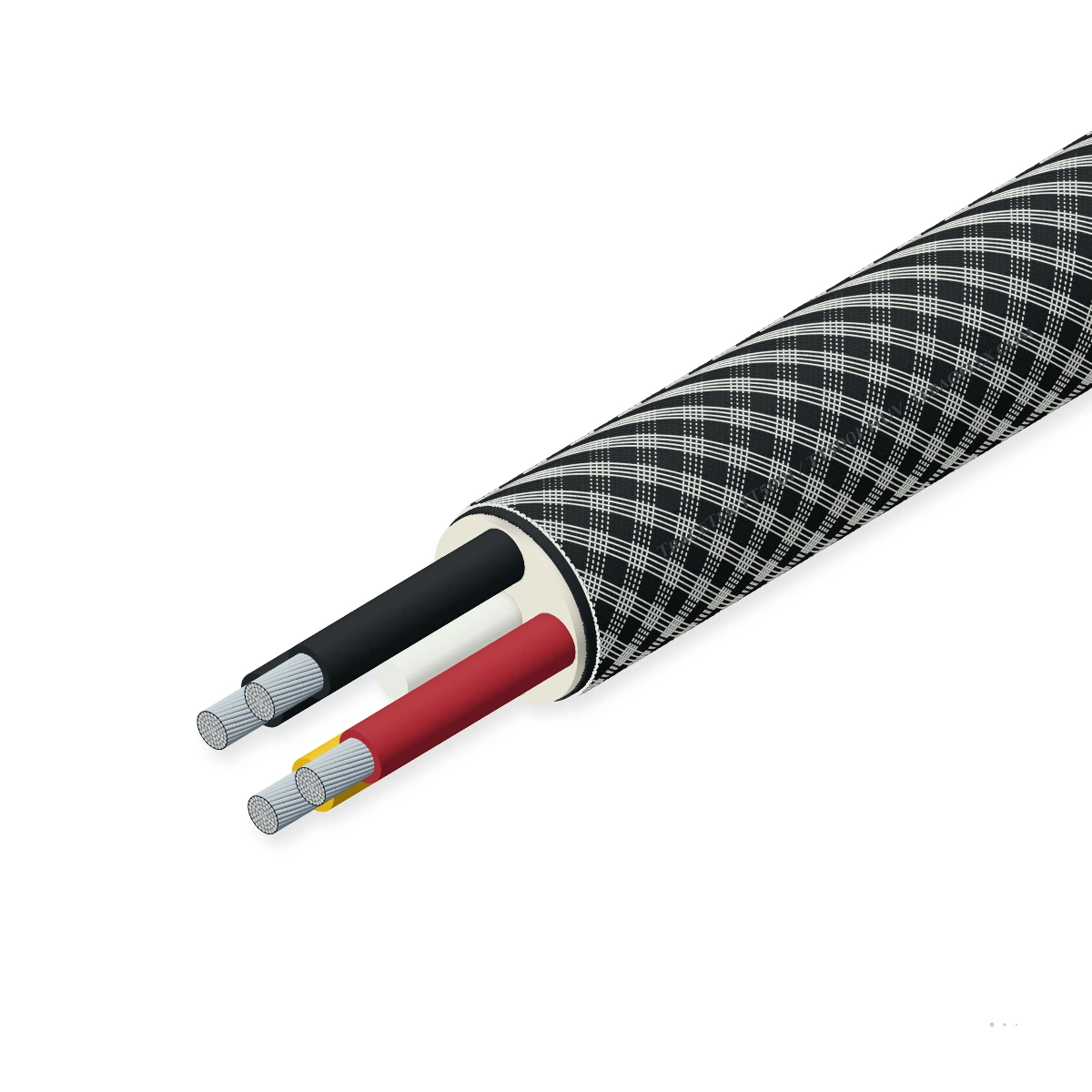

TraceTek TT5001 / TT5001-HUV Fast-Response Organic Solvent LeakFast-response water-immune organic solvent leak sensing cable (TT5001 & UV TT5001-HUV)

TraceTek TT5001 and TT5001-HUV Fast-Response Organic Solvent Leak Sensing Cable engineered with a fast-diffusing swelling-elastomer actuator that detects low-molecular-weight organic solvents (MEK, acetone, toluene, xylene, benzene,.

Fast Organic Solvent Sense

100 % Immune to Water

HUV Solar UV Stabilized

Ex ia IIC / SEMI S2

TraceTek TT5001 variant

Order designation: TraceTek TT5001-HUV-PC
Cable body Ø: 6.5 mm
Weight ≈: 54 kg/km
MEK/Toluene resp.: 45 sec
Gasoline response: 90 sec

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Target fluids: Organic solvents
Response time: 30 to 180 sec
Water immunity: 100 % water immu
Outer diameter: 6.5 mm (0.26 in)
UV rating (HUV): Outdoor sunlight
Ex rating: Ex ia IIC T4 Ga

Typical values for this cable type, based on UL 913 / IEC 60079-11 / SEMI S2 — confirmed in the datasheet and quotation for your order.

Application fit

Is TraceTek TT5001 / TT5001-HUV right for your machine?

Engineered for pharmaceutical API synthesis, semiconductor photoresist/solvent distribution, lithium-battery NMP/carbonate solvent lines and outdoor petrochemical pipe racks where volatile solvents evaporate before heavier fuel cables can respond.

Fixed installation

Suitable

TT5001 installs in indoor solvent cabinets, sub-fab double-containment lines and laboratory floor trenches.

Fixed installation

Suitable

TT5001-HUV adds a carbon-black UV-stabilized fluoropolymer/PEEK outer braid for uncovered outdoor chemical pipe racks.

Immersion & wet locations

Suitable

Ignores rain, washdown water and groundwater condensation while alarming rapidly on non-polar and polar organic solvents.

Energy chain / drag chain

Not suitable

Static solvent leak detection cable; not for moving machinery drag chains.

Use PUR-HF Drag-Chain Cable

Typical machinesPharmaceutical API & Solvent Recovery PipingSemiconductor Photoresist & Solvent Sub-FabsOutdoor Petrochemical Aromatics (BTX) Pipe RacksLithium-Ion Battery Slurry (NMP / DMC / EMC) LinesSpecialty Paint, Coating & Adhesive Manufacturing

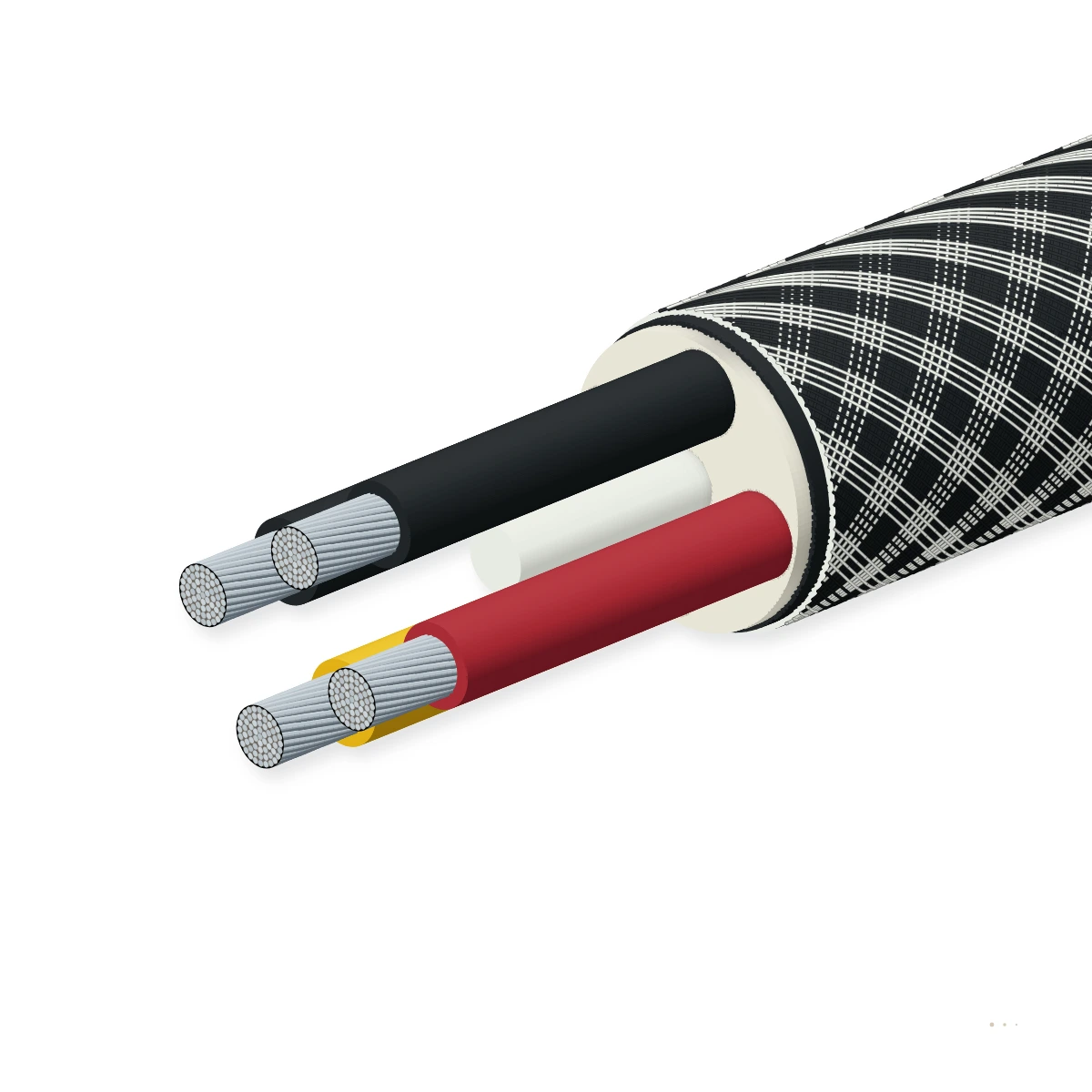

Construction

Layer by layer

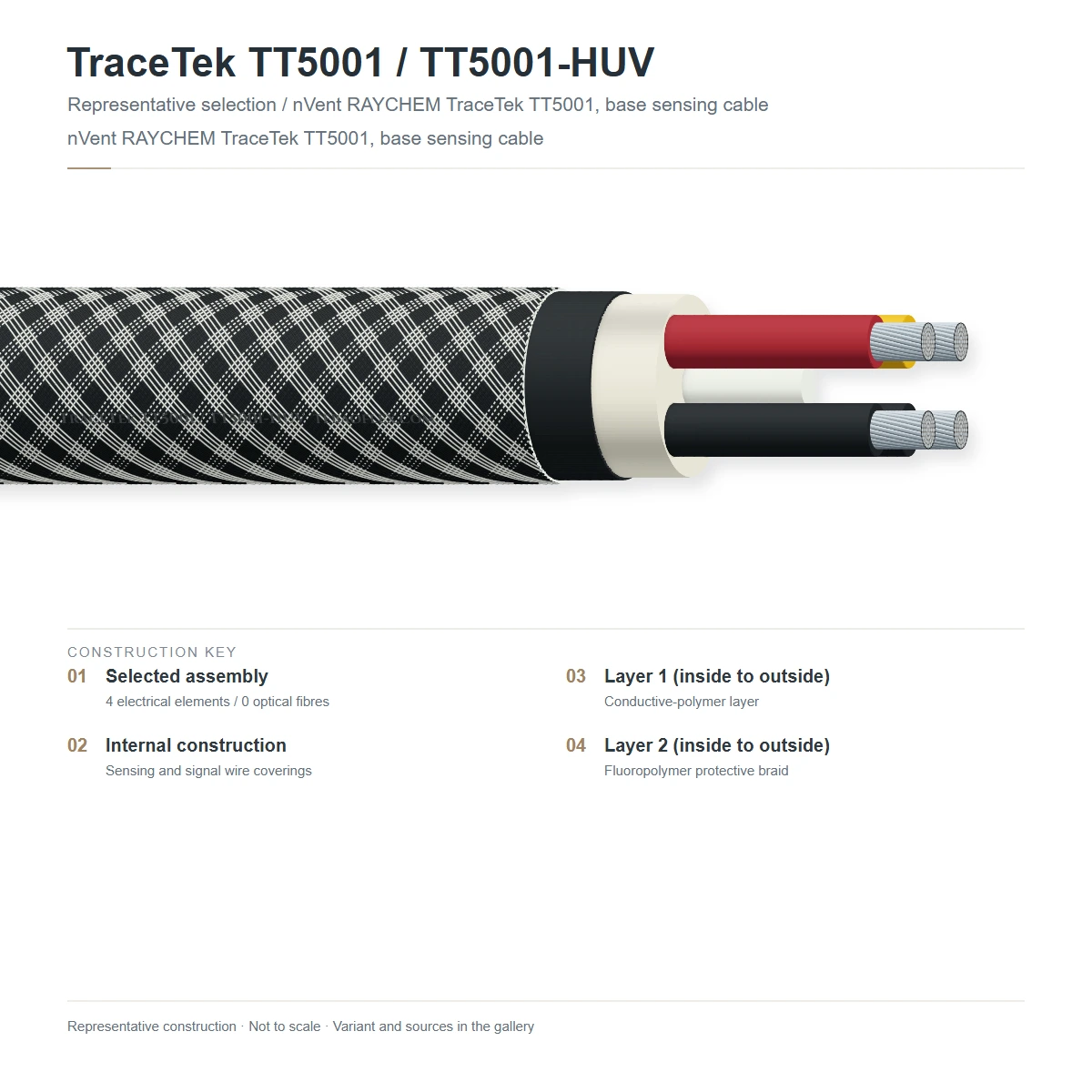

TraceTek TT5001 / TT5001-HUV showing central support core, 2 fluoropolymer-insulated continuity wires, 2 concentric conductive-polymer sensing wires (~20 Ω/m), thin-wall fast-diffusing solvent-swelling elastomer, and protective polymer braid (Black UV-stabilized on TT5001-HUV).

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	2 × fluoropolymer-insulated copper continuity wires	2 × 26 AWG stranded tinned copper conductors with solvent-impervious fluoropolymer primary insulationProvides 4-wire loop continuity supervision and voltage-divider reference
2	Concentric 20 Ω/m conductive-polymer sensing pair	Inner and outer carbon-loaded conductive-polymer electrodes held apart by an internal radial clearanceRequires mechanical swelling pressure to close the 20 Ω/m locating circuit
3	Thin-wall fast-response solvent-swelling elastomer	Low-crosslink-density organosilicone copolymer tailored for rapid permeation by ketones, aromatics and estersPinches sensing electrodes together in < 1–3 minutes before volatile solvents evaporate
4	Open-weave protective braid (UV Black on TT5001-HUV)	High-tenacity chemical-resistant polymer braid (TT5001: Gold/Black · TT5001-HUV: 100 % Carbon-Black UV-stabilized)Withstands > 10 years direct solar UV exposure on outdoor racks (HUV)

TraceTek TT5001 (Indoor Fast Solvent)

6.5 mm OD fast-response organic solvent sensing cable for indoor valve boxes, trenches and sub-fabs

TraceTek TT5001-HUV (Outdoor UV Stabilized)

6.5 mm OD carbon-black UV-stabilized fast solvent sensing cable for outdoor above-ground pipe racks

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 913 / IEC 60079-11 / SEMI S2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Sensing wire linear R: ≈ 20.0 Ω/m (±2 % linearity — compatible with all TraceTek panels)
Dry / water-immersed IR: ≥ 100 MΩ in dry air or clean water
Location accuracy: ± 0.5 % of total sensing circuit length
Hazardous area rating: Ex ia IIC T4 Ga Simple Apparatus (with zener barrier)

Thermal

Continuous operating temp.: -20 °C to +60 °C
Response time (Toluene/MEK): 30 to 90 seconds @ 20 °C
Response time (Gasoline/Jet): 1 to 3 minutes @ 20 °C

Mechanical

Nominal outer diameter: 6.5 mm (0.26 in) cable body
Min. bend radius: 35 mm (5.5 × OD)
Max. pulling tension: 160 N (35 lbf)

Resistance

Detected organic solvents: MEK, Acetone, Toluene, Xylene, Benzene, THF, Hexane, Ethyl Acetate
Water & humidity immunity: Zero false alarm in outdoor rain, snowmelt or washdown water
Reset after evaporation: Automatically resets to > 100 MΩ once clean volatile solvent evaporates

Reference standards

Explosion protection: IEC 60079-11 / UL 913 Intrinsically Safe Simple Apparatus
Semiconductor / pharma: SEMI S2 & EPA RCRA secondary containment compliant
RoHS & REACH: 2011/65/EU & EC 1907/2006 compliant

Identification

Visual identification: TT5001: Black/Gold braid · TT5001-HUV: Solid UV-Black braid
Customs tariff (HS): 8544.4290
Supply formats: Bulk reels or pre-terminated modular lengths (-PC / -MC)

Sizes

4 standard TraceTek TT5001 & TT5001-HUV configurations

Dimensions, UV rating and typical response time for MEK/toluene and light fuels.

Dimensions & solvent response time
Order designation	Environment & connectors	Body Ø mm	Weight ≈ kg/km	MEK/Toluene sec	Gasoline sec
Fast-Response Organic Solvent Leak Sensing Cables
TraceTek TT5001 (Bulk)	Indoor Solvent Containment Pipes & Trenches	6.5	52	45	90
TraceTek TT5001-PC	Indoor Modular Lengths with Plastic Connectors	6.5	52	45	90
TraceTek TT5001-HUV (Bulk)	Outdoor UV-Stabilized Pipe Racks & Tank Dikes	6.5	54	45	90
TraceTek TT5001-HUV-PC	Outdoor UV Modular Lengths (1.5 m to 15 m)	6.5	54	45	90

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
TT5001 resets automatically once clean volatile solvents (such as acetone, MEK or toluene) evaporate from the cable.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
100 % linear sensing resistance (20.0 Ω/m) & dry IR check	20.0 Ω/m ± 2 % and dry open-circuit IR ≥ 100 MΩ	Every manufactured reel / assembly
Sample tests
Toluene / MEK sub-minute actuation & evaporation reset test	Alarms in ≤ 90 s in toluene and resets to ≥ 100 MΩ after air drying	Per production lot
ASTM G154 / ISO 4892 Xenon-arc UV weathering test (TT5001-HUV)	No braid embrittlement or false alarm after 3,000 h UV exposure	Qualification test

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Ex ia IIC Simple ApparatusSEMI S2 CompliantCE, RoHS 2 & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

Tag & connector print: TEBAOFLEX TRACETEK TT5001 / TT5001-HUV

Delivery form: Fumigated wooden drums, steel reels or precision spools
Standard lengths: 500 m · 1000 m (or custom cut/spooled lengths)
MOQ: 100 m (standard) · 500 m (custom)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTraceTek TT5001 / TT5001-HUV Fast-Response Organic Solvent Leak – technical datasheet4 sizes · construction, technical data, approvals XLSXTraceTek TT5001 / TT5001-HUV spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
