Low-voltage polyurethane (PUR) reeling cables0.6/1 kV200 m/min · 30 N/mm²RAL 6032 Green PUR

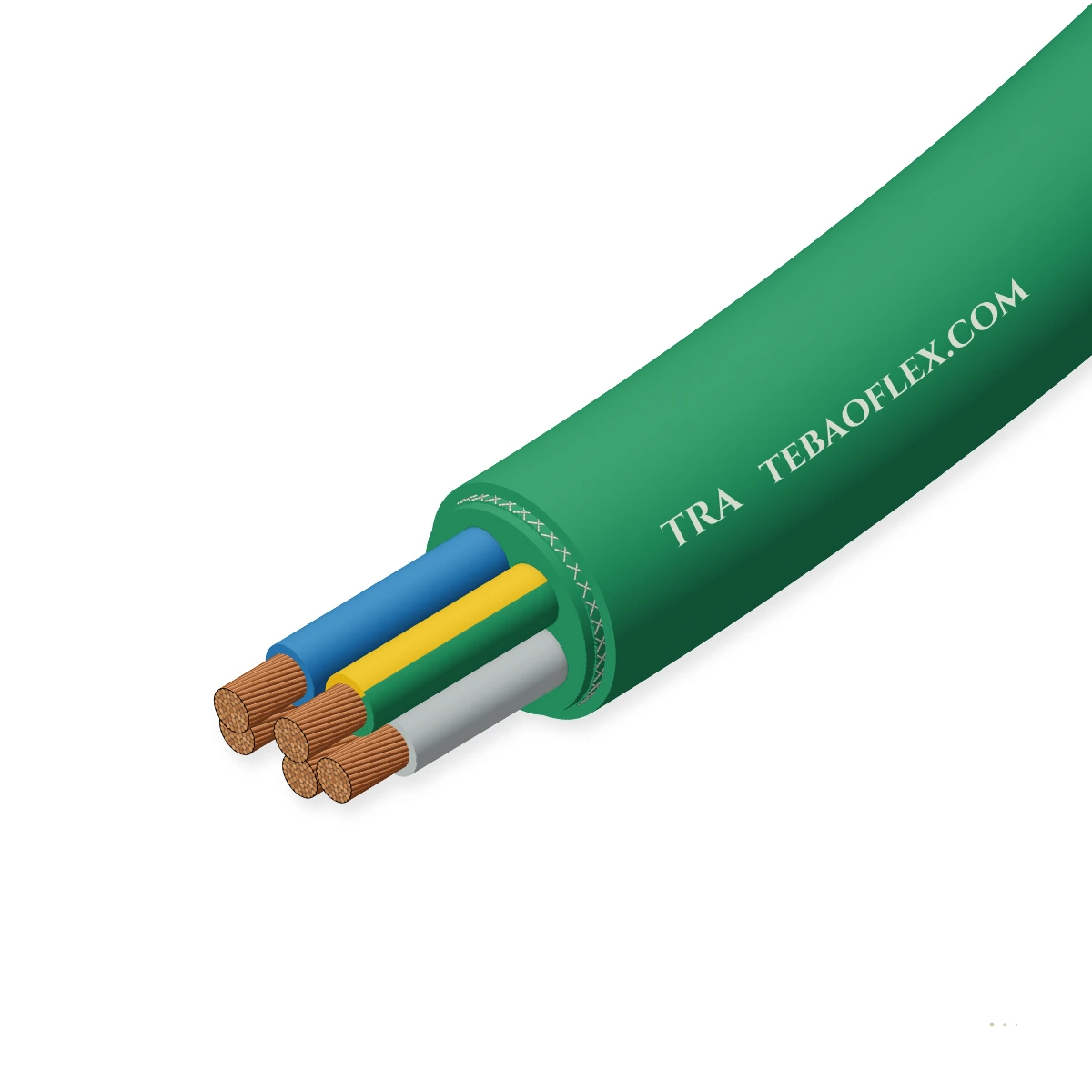

TRA High-Speed PUR Reeling Cable for Portal Cranes (0.6/1 kV)Signal-green RAL 6032 double-PUR reeling cable with aramid core for 200 m/min reels

High-speed 0.6/1 kV halogen-free PUR reeling cable (RAL 6032 signal green) with Class 5 copper cores, polypropylene (PP) insulation, central polyaramid support, and double-PUR sheath with anti-torsion braid for reels up to 200 m/min and 30 N/mm².

Anti-torsion braid
Oil-resistant
Flame-retardant
Ozone, UV & moisture
Order designation
TRA 24 G 2.5
Outer Ø max
26.8 mm
Weight ≈
1,000 kg/km
Permitted pull
1,800 N
Reel R min (6×D)
161 mm
Check against my drumAll sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U (Um 0.7/1.2 kV AC)
Reeling speed
200 m/min
max. horizontal & vertical
Min. bend radius
6 × D
6 × D spool · 4 × D anchor drum
Flexing temp.
−25…+60 °C
fixed −30…+60 °C · cond. +80 °C
Tensile rating
30 N/mm²
525–4,050 N across 10 sizes
Configurations
10 configs
7 ctrl (2.5 mm²) + 3 pwr (10–25)

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is TRA 0.6/1 kV PUR right for your machine?

TRA is engineered for high-speed motorized and spring-driven monospiral, level-wind, and random-winding reels operating at up to 200 m/min horizontally and vertically on portal cranes, shiploaders, and stacker/reclaimers.

Motorised monospiral reel

Suitable

Primary duty: horizontal monospiral and level-wind crane reels up to 200 m/min with 30 N/mm² tensile capacity.

Vertical / spreader reel

Suitable

Slim, aramid-reinforced construction supports vertical reeling up to 200 m/min; for yellow spreader reels see TRA-RF.

Cylindrical / multi-layer drum

Suitable

Minimum bending radius 6 × D on the reel spool and 4 × D on the dead-turn anchor drum.

Typical machinesPortal & Harbour CranesShiploaders & Bulk TerminalsStacker / ReclaimersHigh-Speed Industrial Reels

Construction

Layer by layer

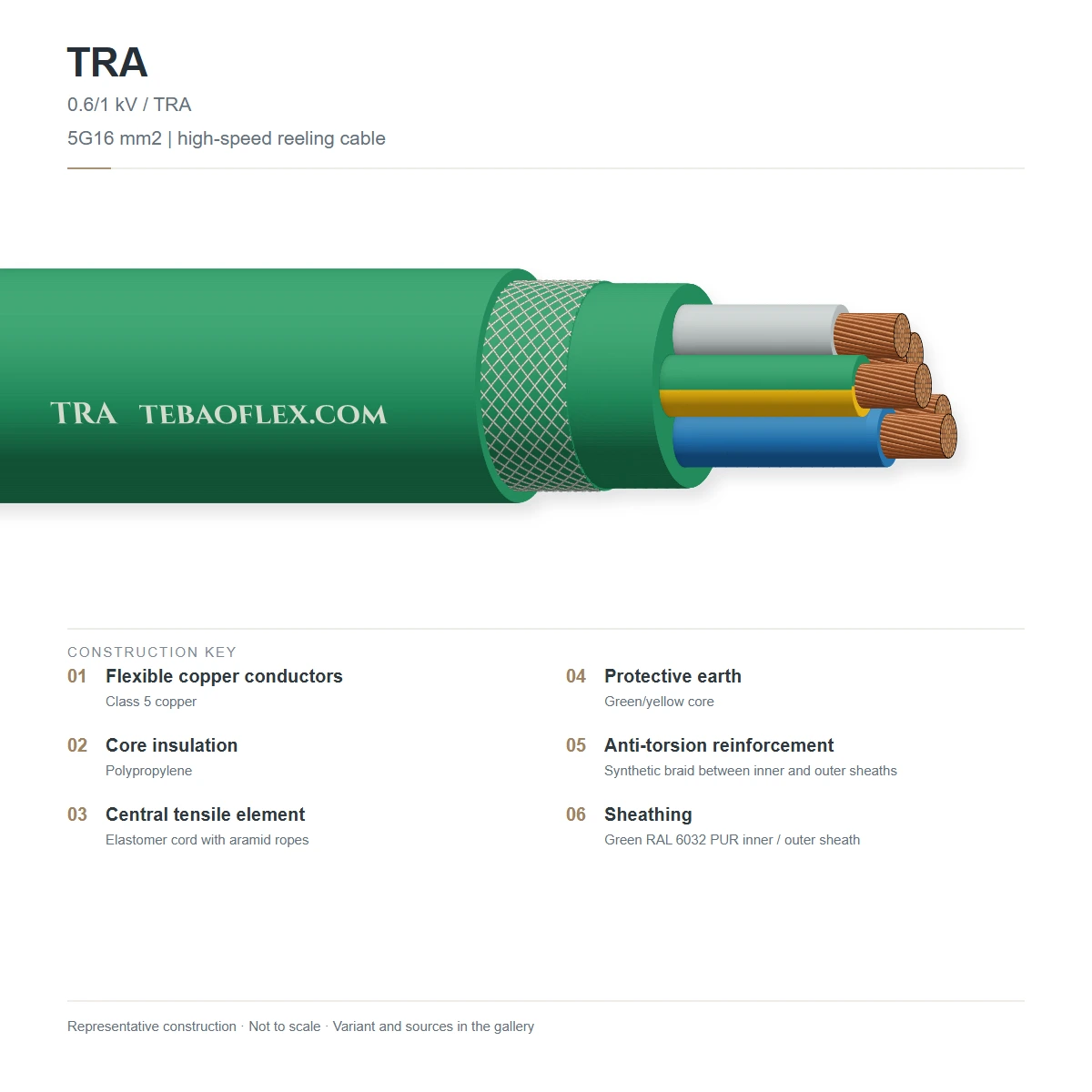

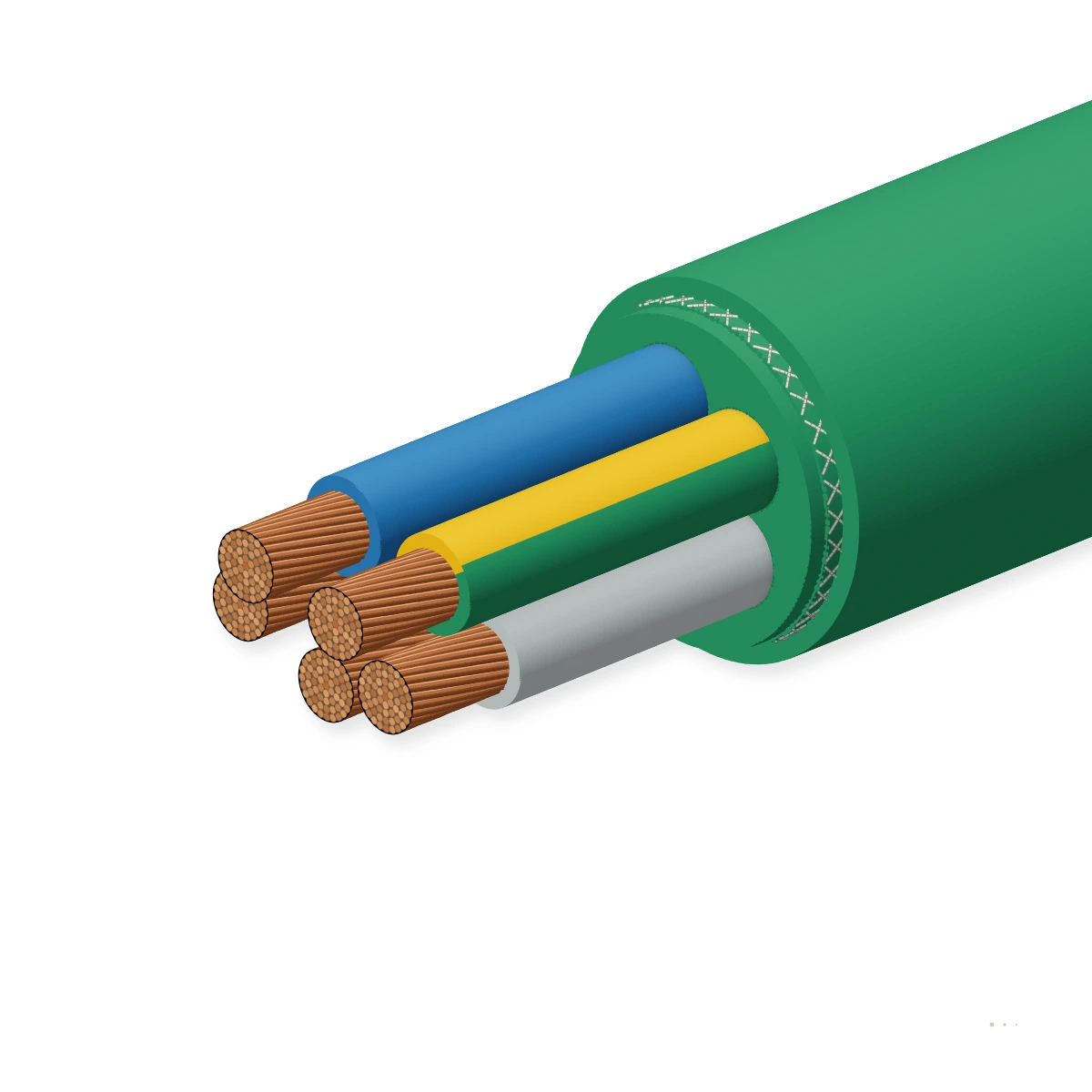

Shown: TRA 0.6/1 kV high-speed reeling construction with Class 5 plain copper conductors, polypropylene (PP) core insulation, central polyaramid strain-relief element, PUR inner sheath, embedded textile anti-torsion braid, and signal-green (RAL 6032) PUR outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible plain copper conductorPlain electrolytic copper, finely stranded Class 5 per IEC 60228 / DIN VDE 0295 / BS 6360High-flexibility Class 5 stranding for 200 m/min reeling acceleration
2Polypropylene (PP) core insulationHigh-modulus halogen-free polypropylene (PP) insulation5 G: GNYE, blue, brown, black, grey; multi-core control: GNYE + black cores with printed numbers
3Central polyaramid strain-relief coreExtruded elastomer cord with polyaramid yarns (5 G power) or reinforced polyaramid filler (control)Delivers 30 N/mm² tensile capacity (525–4,050 N) for horizontal and vertical reeling
4Inner sheathSpecial halogen-free polyurethane (PUR) inner compoundLocks core lay geometry under high axial tension
5Embedded anti-twisting braidHigh-tenacity textile anti-torsion braid bonded between inner and outer PUR sheathsPrevents cable twist during 200 m/min monospiral, random, and level-wind reeling
6Outer sheath (RAL 6032 Signal Green)Highly abrasion-resistant halogen-free polyurethane (PUR), signal green RAL 6032Oil, UV, ozone, humidity & moisture resistant · flame-retardant per IEC 60332-1

TRA Multi-Core Control · 0.6/1 kV (7 sizes, 2.5 mm²)

7 G 2.5, 12 G 2.5, 20 G 2.5, 24 G 2.5, 28 G 2.5, 42 G 2.5, and 54 G 2.5 with reinforced polyaramid filler and RAL 6032 green double-PUR jacket

TRA 5-Core Power · 0.6/1 kV (3 sizes, 10–25 mm²)

5 G 10, 5 G 16, and 5 G 25 with central extruded elastomer/polyaramid support cord and RAL 6032 green double-PUR jacket

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV
Max. operating voltage AC
0.7/1.2 kV
Max. operating voltage DC
0.9/1.8 kV
AC test voltage
3.5 kV AC per IEC 60502-1
Current rating & voltage drop
9–20 A (7G2.5 to 54G2.5) and 75–127 A (5G10 to 5G25) laid straight on ground at +30 °C; apply VDE 0298-4 reel layer factors

Thermal

Temperature, flexing
−25 °C to +60 °C
Temperature, fixed installation
−30 °C to +60 °C
Max. conductor temperature
+80 °C
Short-circuit temperature
+200 °C

Mechanical

Max. travel speed
Up to 200 m/min horizontal & vertical reeling
Max. tensile load (dynamic)
30 N/mm² across all 10 table sizes (525–4,050 N; overview text notes 25 N/mm²)
Min. bending radius
6 × D on spool · 4 × D on anti-tension drum · 9 × D on guiding device (pulleys not recommended)

Resistance

Halogen-free construction
Halogen-free polypropylene (PP) core insulation and double polyurethane (PUR) sheaths
Oil, UV & ozone resistance
Oil, ozone, UV, humidity and moisture resistant
Flame retardance
Low flammability per IEC 60332-1-2 / DIN VDE 0482-265-2-1

Reference standards

Cable design & test standard
TRA series high-speed PUR reeling cable; voltage test per IEC 60502-1
Conductor standard
Flexible plain copper, Class 5 per IEC 60228 / DIN VDE 0295 / BS 6360
Core identification
5 G: GNYE, blue, brown, black, grey; multi-core control: GNYE + black cores with printed numbers

Sizes

10 high-speed reeling configurations (TRA 2.5 mm² Control & 10–25 mm² Power)

Filter by TRA 2.5 mm² multi-core control cables (7 G 2.5 to 54 G 2.5) or TRA 5-core power cables (5 G 10, 5 G 16, 5 G 25). Reeling bend radius r_reel = 6 × D_max.

Dimensions & mechanical loads
DesignationCores × mm²Outer Ø minOuter Ø maxCu numberWeight ≈Permitted pullReel R min (6×D)Enquiry
TRA Control Cable (7 G 2.5 – 54 G 2.5)
TRA 7 G 2.57 G 2.513.314.715630052588
TRA 12 G 2.512 G 2.520.522.6268650900136
TRA 20 G 2.520 G 2.52123.14488001,500139
TRA 24 G 2.524 G 2.524.326.85331,0001,800161
TRA 28 G 2.528 G 2.52628.46721,1502,100170
TRA 42 G 2.542 G 2.53033.19471,6003,150199
TRA 54 G 2.554 G 2.533.236.71,3122,0004,050220
TRA Power Cable (5 G 10 – 5 G 25)
TRA 5 G 105 G 1019.520.54807001,500123
TRA 5 G 165 G 1623247681,0052,400144
TRA 5 G 255 G 2527.5281,2001,6003,750168
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All 10 configurations verified against the reference reeling cable catalog.
  • Cable weights are expressed in kg/km (300 to 2,000 kg/km); the source catalog column header '[kg/m]' with German thousands separator (1.000 to 2.000) means kg/km.
  • Permitted dynamic tensile loads [N] in the table correspond to 30 N/mm² of total copper cross-section (525 N on 7 G 2.5 up to 4,050 N on 54 G 2.5).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 400 mm ≥ 322 mmBending radius OK (6 × OD 26.8 mm)
150 m/min ≤ 200 m/minWithin the rated travel speed
Minimum bending radius
161 mm
Min. drum core diameter
≈ 322 mm
Cable weight on drum
120.0 kg
Copper content
64.0 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test3.5 kV AC per IEC 60502-1Every manufactured length
Sample tests
Vertical flame propagationSelf-extinguishing per IEC 60332-1-2 / DIN VDE 0482-265-2-1Type qualification
Oil, UV & ozone resistanceHalogen-free RAL 6032 polyurethane jacket resistant to oil, UV, ozone, and humidityType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX TRA [cores G section] mm² 0.6/1 kV [ww-yyyy]
Delivery form
Custom reel cut lengths or bulk drums (RAL 6032 signal-green PUR outer sheath)
Minimum order
20 m on all 2.5 mm² control sizes (7 G 2.5 to 54 G 2.5); 500 m on 5 G 10–25 mm² power sizes
Customs HS code
8544.49

Technical documents

Downloads

PDFTRA High-Speed PUR Reeling Cable for Portal Cranes (0.6/1 kV) – technical datasheet10 sizes · construction, technical data, approvalsXLSXTRA 0.6/1 kV PUR spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does TRA differ from TRA-RF and RXP / RXP-D polyurethane reeling cables?
TRA is a signal-green (RAL 6032) halogen-free PP/double-PUR cable with polyaramid reinforcement designed for horizontal and vertical crane reels up to 200 m/min and 30 N/mm² across 10 control (7 G 2.5–54 G 2.5) and power (5 G 10–25) sizes. TRA-RF is the dedicated yellow vertical spreader reeling variant (24 G 2.5 & 42 G 2.5, +80 °C ambient), while RXP / RXP-D uses 12YH polyester insulation for −40 °C cold flexing and roller routing.
Why does the legacy PDF list 7.98 Ω/km DC resistance for 5 G 10, 5 G 16, and 5 G 25?
In the source catalog table (p. 47), the 2.5 mm² conductor resistance value (7.98 Ω/km) was inadvertently copied into the 5 G 10, 5 G 16, and 5 G 25 power cable sub-table, even though the voltage-drop row directly above it (3.36, 2.15, and 1.42 V/(A·km)) reflects the true cross-sections. Per IEC 60228 Table 3, the maximum DC resistances at 20 °C are 1.91 Ω/km (10 mm²), 1.21 Ω/km (16 mm²), and 0.780 Ω/km (25 mm²).
Can TRA cables be routed over deflection pulleys?
TRA is optimized for direct spooling (minimum 6 × D on the reel spool, 4 × D on the dead-turn anti-tension drum, and 9 × D on the reel guiding device). Because its high-modulus polypropylene (PP) core insulation is stiffer than TPE-E or EPR, deflection pulleys are not recommended without prior engineering review; for multi-roller S-curve paths, select RXP / RXP-D or RXG / RXG-D.
What is the permitted dynamic tensile load of TRA cables?
Every size in the TRA order table is rated at 30 N/mm² of total copper cross-section—from 525 N on 7 G 2.5 (17.5 mm²) up to 4,050 N on 54 G 2.5 (135 mm²) and 3,750 N on 5 G 25 (125 mm²)—supported by a central extruded elastomer/polyaramid cord on 5 G power cables and a reinforced polyaramid filler on multi-core control cables.
