Parallel-core rubber flat cable to DIN VDE 0250-809 for single-plane bending on C-rail and I-beam festoon systems, overhead cranes, hoists and transfer lines — indoors and outdoors down to −35 °C in motion.
Typical values for this cable type, based on DIN VDE 0250-809 — confirmed in the datasheet and quotation for your order.
Application fit
Flat cables bend cleanly in one plane around their thin axis (height H), allowing tighter loop radii and stacked multi-cable saddles on festoon trolleys — but they cannot absorb torsion or multi-plane deflection.
Primary duty: C-rail, I-beam and wire-rope festoon trolleys up to 180 m/min (up to 250 m/min on straight tracks).
Suitable for single-plane carrier chains and handling gantries where cores bend only across the flat height.
Festoon loops and hoist drops within the 15 N/mm² conductor tensile limit; avoid twist along the suspended loop.
Single-plane winding on mono-spiral drums at ≥ 5 × H bending radius without lateral deflection.
Long-travel motorized gantry reeling with guide rollers and side fleet requires a round reeling cable.
Use NSHTÖU round reeling cableConstruction

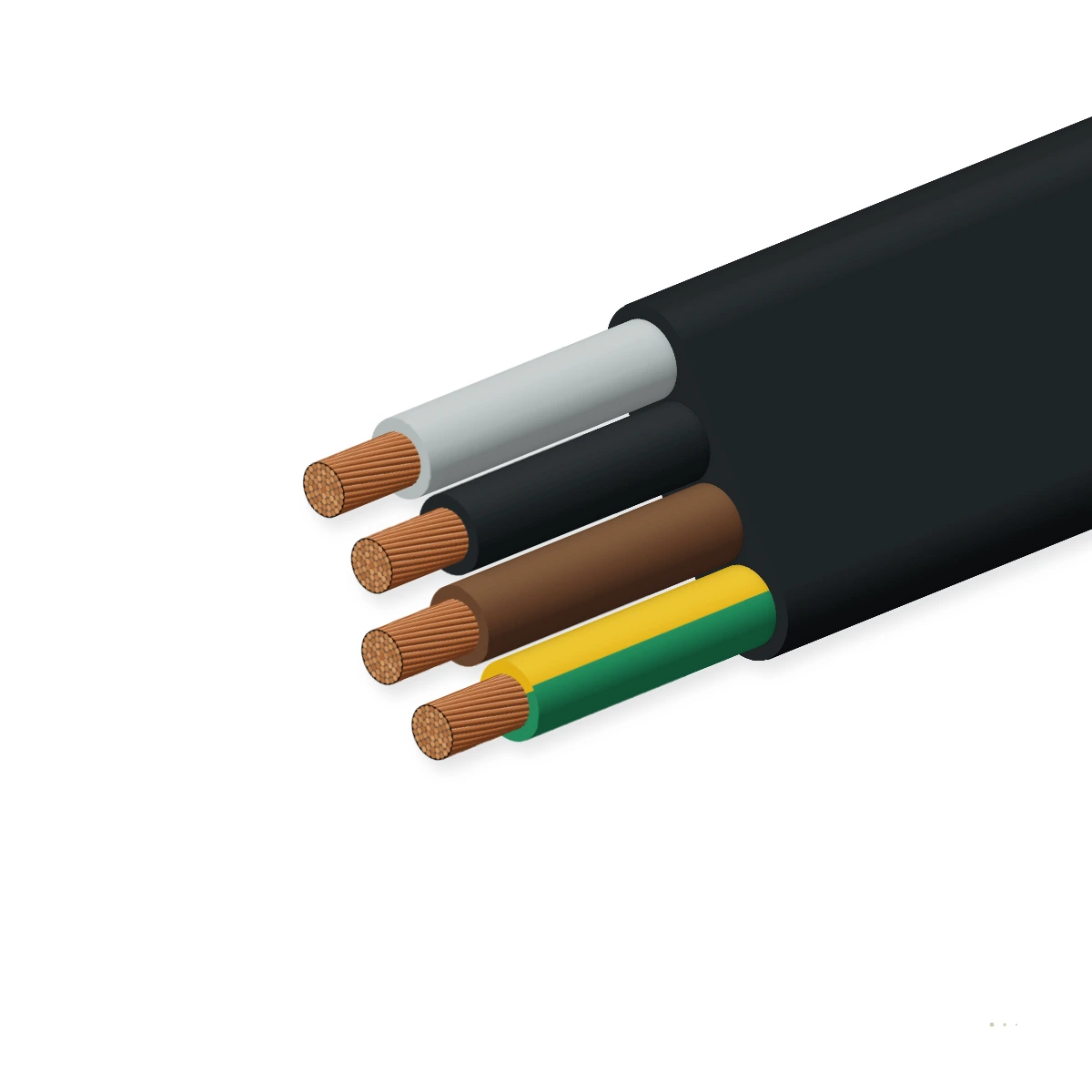

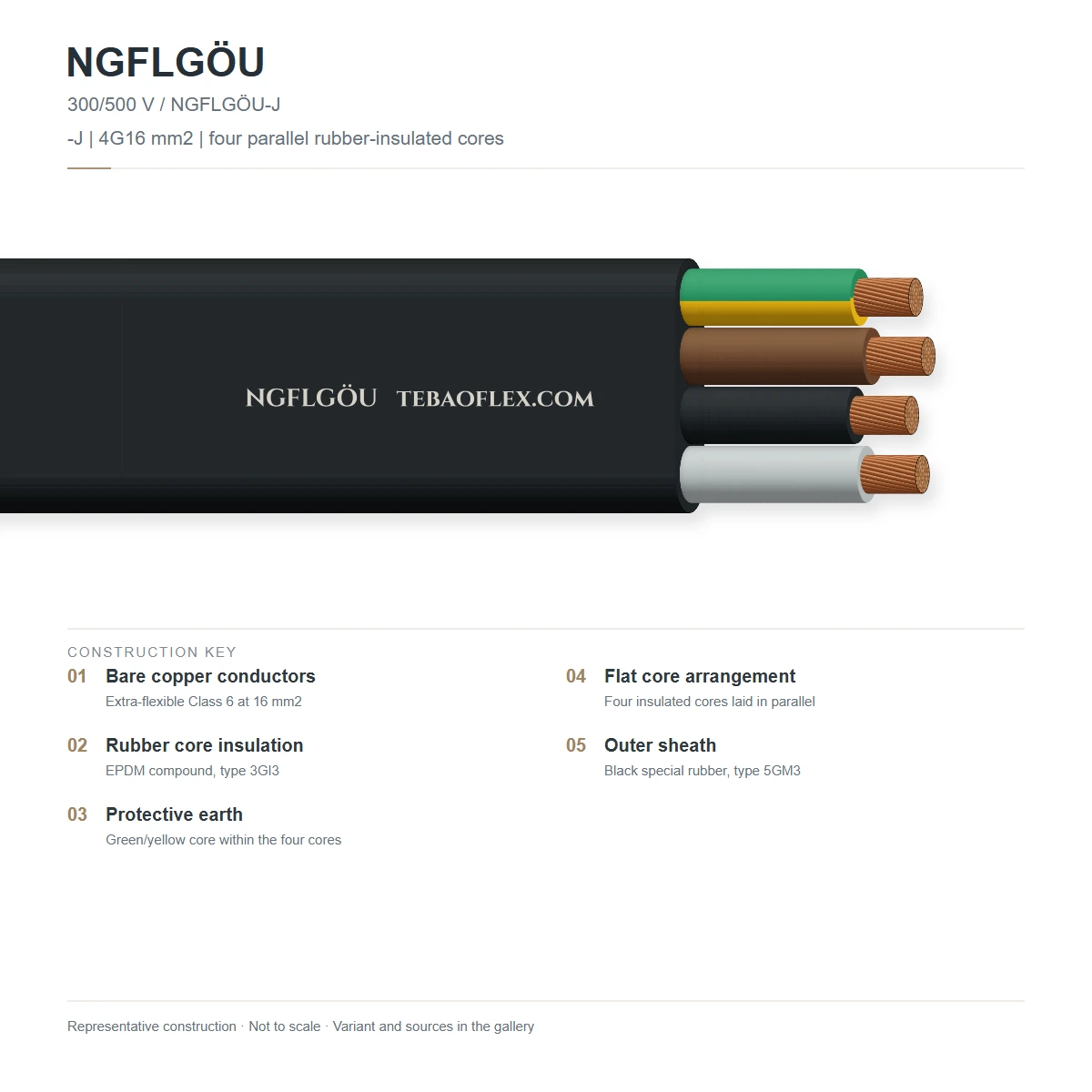

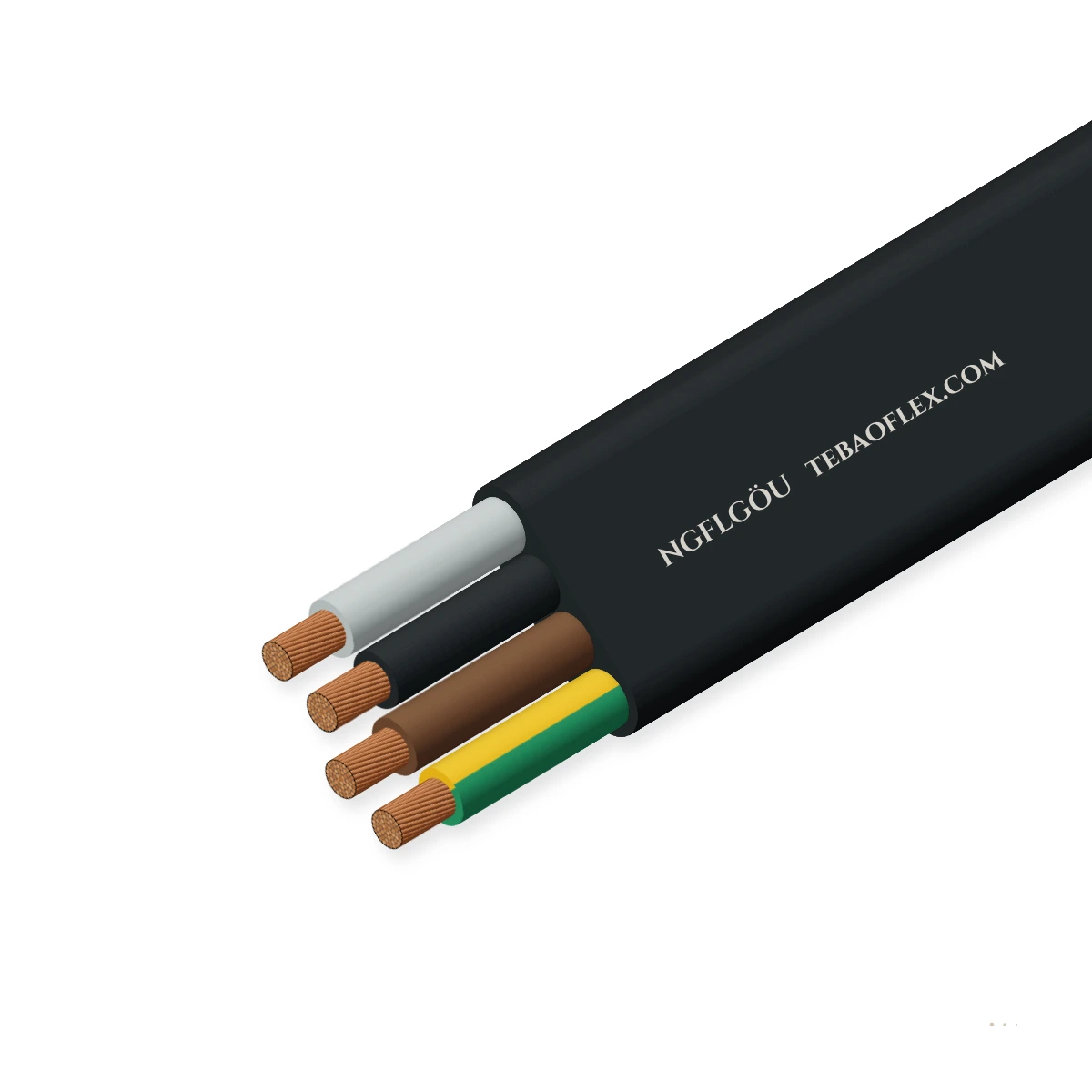

Shown: NGFLGÖU-J 4G16 — four parallel bare copper cores with 3GI3 EPR insulation in a 5GM3 polychloroprene flat outer sheath.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Conductor | Bare copper, extra-fine Class 6 (≤ 25 mm²) / fine Class 5 (≥ 35 mm²)IEC 60228 / DIN VDE 0295 |
| 2 | Core insulation | EPR / EPDM rubber compound 3GI3DIN VDE 0207-20 · Core identification DIN VDE 0293-308 |
| 3 | Core arrangement | Cores laid parallel in one flat plane (≥ 24 cores in parallel bundles)Single-plane bending geometry |
| 4 | Outer sheath | Polychloroprene rubber compound 5GM3, blackDIN VDE 0207-21 · Oil-resistant EN 60811-404 · Flame-retardant IEC 60332-1-2 |
With green-yellow protective conductor
Without protective conductor
Black cores with white numbers (+ green-yellow in -J)
Technical data
Sizes
Typical values per DIN VDE 0250-809. Screened version (NGFLCGÖU) is listed on its dedicated product page.
| Order designation | Cores × mm² | AWG ≈ | Height max mm | Width max mm | Copper kg/km | Weight ≈ kg/km | Min. bend R mm | Max. pull N | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 mm² control | |||||||||
| NGFLGÖU-J 3G1.5 | 3 × 1.5 | 16 | 6.2 | 12.5 | 43 | 130 | 19 | 68 | |
| NGFLGÖU-J 4G1.5 | 4 × 1.5 | 16 | 6.2 | 15.8 | 58 | 170 | 19 | 90 | |
| NGFLGÖU-J 5G1.5 | 5 × 1.5 | 16 | 6.0 | 20.1 | 72 | 210 | 18 | 113 | |
| NGFLGÖU-J 7G1.5 | 7 × 1.5 | 16 | 6.0 | 26.8 | 101 | 280 | 18 | 158 | |
| NGFLGÖU-J 8G1.5 | 8 × 1.5 | 16 | 6.0 | 29.3 | 115 | 310 | 18 | 180 | |
| NGFLGÖU-J 10G1.5 | 10 × 1.5 | 16 | 6.7 | 37.0 | 144 | 440 | 20 | 225 | |
| NGFLGÖU-J 12G1.5 | 12 × 1.5 | 16 | 6.8 | 43.5 | 173 | 530 | 20 | 270 | |
| NGFLGÖU-J 24G1.5 | 24 × 1.5 | 16 | 12.3 | 53.2 | 346 | 1,040 | 62 | 540 | |
| NGFLGÖU-J 42G1.5 | 42 × 1.5 | 16 | 16.1 | 72.3 | 605 | 1,920 | 81 | 945 | |
| 2.5 mm² & bundled control | |||||||||
| NGFLGÖU-J 4G2.5 | 4 × 2.5 | 14 | 7.3 | 19.5 | 96 | 260 | 22 | 150 | |
| NGFLGÖU-J 5G2.5 | 5 × 2.5 | 14 | 7.4 | 24.6 | 120 | 320 | 22 | 188 | |
| NGFLGÖU-J 7G2.5 | 7 × 2.5 | 14 | 7.4 | 32.8 | 168 | 440 | 22 | 263 | |
| NGFLGÖU-J 8G2.5 | 8 × 2.5 | 14 | 7.4 | 35.9 | 192 | 490 | 22 | 300 | |
| NGFLGÖU-J 10G2.5 | 10 × 2.5 | 14 | 8.0 | 45.3 | 240 | 660 | 24 | 375 | |
| NGFLGÖU-J 12G2.5 | 12 × 2.5 | 14 | 8.0 | 53.5 | 288 | 780 | 24 | 450 | |
| NGFLGÖU-J 24G2.5 | 24 × 2.5 | 14 | 15.6 | 68.0 | 576 | 1,690 | 78 | 900 | |
| NGFLGÖU-J 7×(3×1) | 7 × (3 × 1) | 18 | 10.3 | 51.8 | 202 | 770 | 41 | 315 | |
| 4-core power | |||||||||
| NGFLGÖU-J 4G4 | 4 × 4 | 12 | 8.9 | 23.5 | 154 | 390 | 36 | 240 | |
| NGFLGÖU-J 4G6 | 4 × 6 | 10 | 9.5 | 26.9 | 230 | 500 | 38 | 360 | |
| NGFLGÖU-J 4G10 | 4 × 10 | 8 | 11.0 | 32.6 | 384 | 750 | 44 | 600 | |
| NGFLGÖU-J 4G16 | 4 × 16 | 6 | 12.9 | 37.5 | 614 | 1,060 | 65 | 960 | |
| NGFLGÖU-J 4G25 | 4 × 25 | 4 | 14.4 | 43.4 | 960 | 1,500 | 72 | 1,500 | |
| NGFLGÖU-J 4G35 | 4 × 35 | 2 | 16.7 | 49.9 | 1,344 | 2,040 | 84 | 2,100 | |
| NGFLGÖU-J 4G50 | 4 × 50 | 1 | 19.0 | 58.0 | 1,920 | 2,830 | 95 | 3,000 | |
| NGFLGÖU-J 4G70 | 4 × 70 | 2/0 | 21.3 | 65.2 | 2,688 | 3,820 | 107 | 4,200 | |
| NGFLGÖU-J 4G95 | 4 × 95 | 3/0 | 24.1 | 74.6 | 3,648 | 4,930 | 121 | 5,700 | |
| NGFLGÖU-J 4G120 | 4 × 120 | 4/0 | 27.2 | 83.2 | 4,608 | 6,220 | 136 | 7,200 | |
| NGFLGÖU-J 4G150 | 4 × 150 | 300 kcmil | 27.9 | 88.0 | 5,760 | 7,175 | 140 | 9,000 | |
| NGFLGÖU-J 4G185 | 4 × 185 | 350 kcmil | 31.1 | 99.1 | 7,104 | 8,778 | 156 | 11,100 | |
| NGFLGÖU-J 4G240 | 4 × 240 | 500 kcmil | 34.0 | 107.7 | 9,216 | 11,220 | 170 | 14,400 | |
| 5-core & 7-core power | |||||||||
| NGFLGÖU-J 5G4 | 5 × 4 | 12 | 9.0 | 31.2 | 192 | 510 | 36 | 300 | |
| NGFLGÖU-J 5G6 | 5 × 6 | 10 | 9.6 | 34.1 | 288 | 640 | 38 | 450 | |
| NGFLGÖU-J 5G10 | 5 × 10 | 8 | 11.3 | 41.6 | 480 | 960 | 45 | 750 | |
| NGFLGÖU-J 5G16 | 5 × 16 | 6 | 12.7 | 47.6 | 768 | 1,360 | 64 | 1,200 | |
| NGFLGÖU-J 7G4 | 7 × 4 | 12 | 9.0 | 40.9 | 269 | 690 | 36 | 420 | |
| NGFLGÖU-J 7G6 | 7 × 6 | 10 | 9.6 | 45.3 | 403 | 870 | 38 | 630 | |
| NGFLGÖU-J 7G10 | 7 × 10 | 8 | 11.3 | 55.9 | 672 | 1,320 | 45 | 1,050 | |
| NGFLGÖU-J 7G16 | 7 × 16 | 6 | 13.4 | 63.9 | 1,075 | 1,990 | 67 | 1,680 | |
| NGFLGÖU-J 7G25 | 7 × 25 | 4 | 15.6 | 75.9 | 1,680 | 2,820 | 78 | 2,625 | |
| NGFLGÖU-J 7G35 | 7 × 35 | 2 | 17.4 | 87.0 | 2,352 | 3,820 | 87 | 3,675 | |
| Cross-section mm² | AWG ≈ | Stranding IEC 60228 | Max. conductor resistance 20 °C, Ω/km | Current rating in air 30 °C, A | Short-circuit 1 s kA | Used in |
|---|---|---|---|---|---|---|
| 1 | 18 | Class 6 | 19.5 | 19 | 0.14 | 7×(3×1) |
| 1.5 | 16 | Class 6 | 13.3 | 24 | 0.21 | 3× 4× 5× 7× 8× 10× 12× 24× 42× |
| 2.5 | 14 | Class 6 | 7.98 | 32 | 0.36 | 4× 5× 7× 8× 10× 12× 24× |
| 4 | 12 | Class 6 | 4.95 | 43 | 0.57 | 4× 5× 7× |
| 6 | 10 | Class 6 | 3.3 | 56 | 0.86 | 4× 5× 7× |
| 10 | 8 | Class 6 | 1.91 | 78 | 1.43 | 4× 5× 7× |
| 16 | 6 | Class 6 | 1.21 | 104 | 2.29 | 4× 5× 7× |
| 25 | 4 | Class 6 | 0.78 | 138 | 3.58 | 4× 7× |
| 35 | 2 | Class 5 | 0.55 | 170 | 5.01 | 4× 7× |
| 50 | 1 | Class 5 | 0.39 | 212 | 7.15 | 4× |
| 70 | 2/0 | Class 5 | 0.27 | 263 | 10.01 | 4× |
| 95 | 3/0 | Class 5 | 0.21 | 316 | 13.59 | 4× |
| 120 | 4/0 | Class 5 | 0.16 | 370 | 17.16 | 4× |
| 150 | 300 kcmil | Class 5 | 0.129 | 424 | 21.45 | 4× |
| 185 | 350 kcmil | Class 5 | 0.106 | 482 | 26.46 | 4× |
| 240 | 500 kcmil | Class 5 | 0.08 | 565 | 34.32 | 4× |
Reel check
A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.
