Low-voltage polyurethane (PUR) reeling cables0.6/1 kV12YHRDT11YH180 m/min · −40 °C

RXP / RXP-D Heavy-Duty PUR Reeling Cable (0.6/1 kV)Heavy-duty −40 °C halogen-free double-PUR reeling cable up to 180 m/min and 25 N/mm²

Heavy-duty 0.6/1 kV halogen-free PUR reeling cable (12YHRDT11YH / 12HRDTC11YH) with Class 5 copper cores, 12YH insulation, central textile strain relief, and black double-PUR sandwich sheath with anti-torsion braid across 50 power, control, and data sizes.

Anti-torsion braid

Water-resistant

Oil-resistant

Flame-retardant

Series & configuration

Order designation: RXP 4 G 16
Outer Ø max: 22.1 mm
Weight ≈: 924 kg/km
Permitted pull: 1,600 N
Reel R min (6×D): 133 mm

Check against my drum All sizes (50)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Reeling speed: 180 m/min
Min. bend radius: 6 × D
Flexing temp.: −40…+80 °C
Tensile rating: 25 N/mm²
Configurations: 50 configs

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is RXP / RXP-D 12YHRDT11YH right for your machine?

RXP and RXP-D are engineered for heavy-duty motorized cable reels operating at speeds up to 180 m/min and cold ambient temperatures down to −40 °C on transfer cars, lifting equipment, bulk material handling cranes, and space-constrained automated parking systems.

Motorised monospiral reel

Suitable

Heavy-duty horizontal motorized monospiral and level-wind reels up to 180 m/min with 25 N/mm² tensile capacity.

Vertical / spreader reel

Suitable

Suitable for vertical lifting gear and high-acceleration hoists with central textile strain-relief core.

Cylindrical / multi-layer drum

Suitable

Compact thin-wall 12YH/11YH construction minimizes drum diameter (6 × D) where installation space is restricted.

Festoon & line chain

Suitable

Continuous routing over diversion rollers (min. 7.5 × D) and S-curves (min. 20 × D between direction changes).

Immersion & wet locations

Suitable

Approved for temporary water submersion up to 50 m depth; consult engineering for permanent submerged duty.

Spreader gravity collector basket

Not suitable

Built for tensioned motorised reels; for free-coiling gravity baskets use a dedicated basket cable.

Use 3GSLTÖ Spreader Basket

Typical machinesTransfer Cars & Automated ParkingBulk Material HandlingIndustrial Hoists & CranesCold-Store & Outdoor Port Machinery

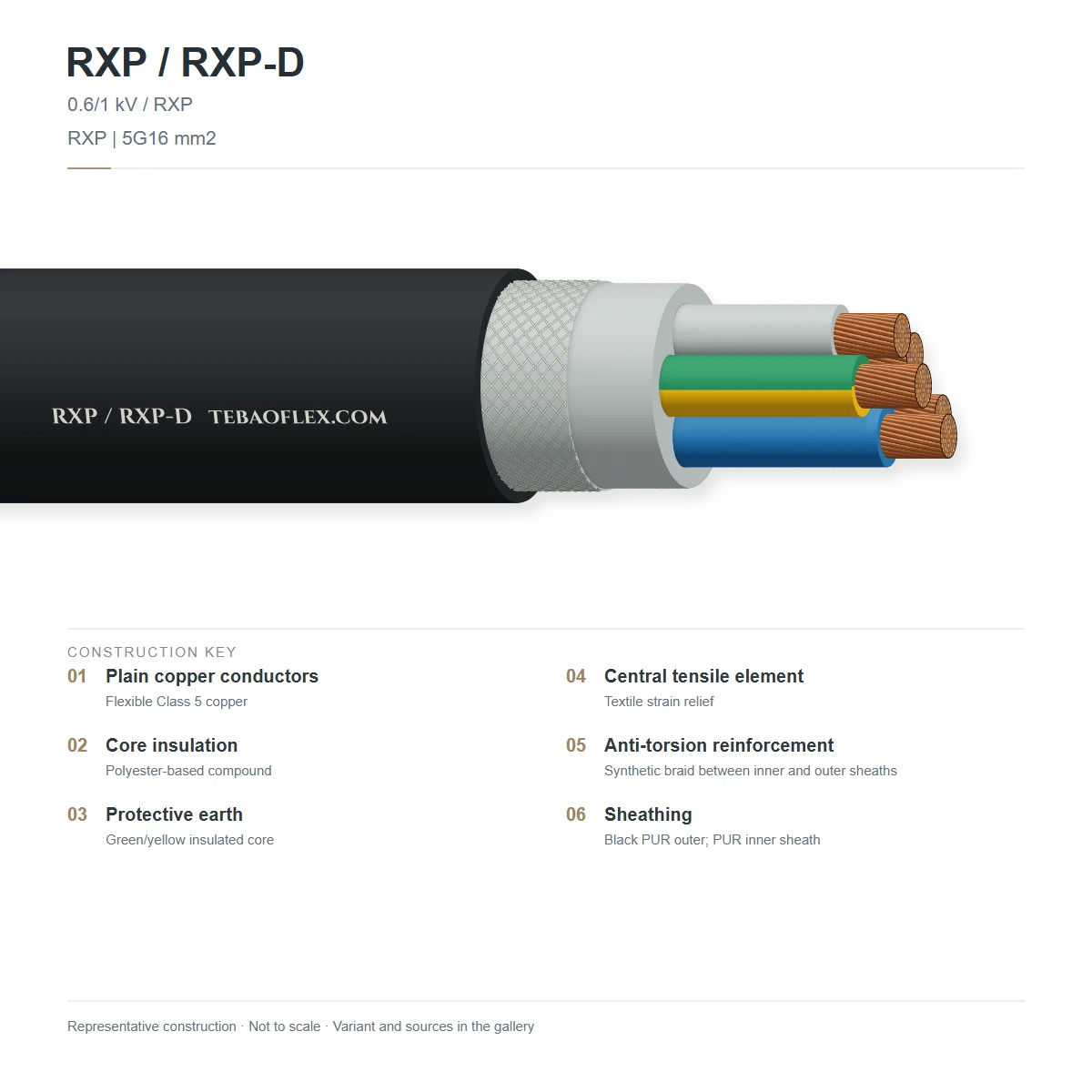

Construction

Layer by layer

Shown: RXP / RXP-D (12YHRDT11YH / 12HRDTC11YH) heavy-duty reeling construction with Class 5 bare copper conductors, halogen-free 12YH polyester core insulation, central textile strain-relief core, PUR inner sheath, embedded anti-torsion braid, and black wear-resistant PUR outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible bare copper conductor / optical fibres	Bare electrolytic copper, finely stranded Class 5 per DIN VDE 0295 / IEC 60228; 62.5/125 µm multimode fibres in RXP-D FOShort lay length in maximum 3 layers for dynamic flexural and axial stability
2	Halogen-free core insulation (12YH)	Halogen-free polyester elastomer (12YH) or comparable high-strength thermoplasticDIN VDE 0293-308 colour code ≤ 5 cores; > 5 cores white with black numbers (or vice versa) + GNYE
3	Screened data, CAN-Bus or FO elements (RXP-D)	Copper-braid-screened pairs/quads ('C'), 2 × 2 × 0.25 mm² CAN-Bus, or 12 optical fibresIntegrates EMI-shielded encoder, bus, or optical channels in RXP-D hybrid cables
4	Central textile strain-relief core	High-tenacity textile support element embedded in the cable centerCarries 25 N/mm² dynamic tensile load (up to 3,500 N) during high-acceleration reeling
5	Inner sheath (11YH)	Halogen-free polyurethane (PUR, 11YH) inner compoundForms an interlinked sandwich structure with the outer PUR jacket
6	Embedded anti-torsion braid (RDT)	High-strength synthetic braid vulcanized between inner and outer PUR sheathsCounteracts severe torsional forces through S-bend guide rollers and monospiral reels
7	Outer sheath (11YH)	Wear-resistant halogen-free polyurethane (PUR, 11YH), black (yellow on 42 G 1.5 and 7 G 6)Cold-flexible to −40 °C · oil, UV, ozone & 50 m water resistant · IEC 60332-1 flame-retardant

RXP Control & Power · 0.6/1 kV (29 sizes)

4 G 1.5 to 42 G 1.5 and 4 G 2.5 to 30 G 2.5 control cables, plus 4 G 4 to 5 G 25, 14 G 4, 20 G 4 and 7 G 6 power cables

RXP-D Data, CAN-Bus, Control+Data & Power+FO · 0.6/1 kV (21 sizes)

Screened-pair and 12 FO data cables, 48-core + CAN-Bus spreader control cable, and 4 G 6 to 5 G 35 power cables with screened pairs or 12 FO

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (RXP-D 12 G 62.5/125 µm is dielectric optical fibre)
Max. operating voltage AC: 0.7/1.2 kV
Max. operating voltage DC: 0.9/1.8 kV
AC test voltage: 3.5 kV AC
Current rating (DIN VDE 0298-4): Per DIN VDE 0298-4 at 30 °C ambient (reel layer factors: 0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers)

Thermal

Temperature, flexing: −40 °C to +80 °C (consult below −30 °C)
Temperature, fixed installation: −50 °C to +80 °C (technical table lists up to +90 °C)
Max. conductor temperature: +90 °C
Short-circuit temperature: +200 °C

Mechanical

Max. travel speed: Up to 180 m/min horizontal reeling
Max. tensile load (dynamic): 25 N/mm² (150–3,500 N across 50 sizes with central textile strain relief)
Min. bending radius, moving: 6 × D (reeling) · 7.5 × D (fixed diversion rollers / assemblies)
S-bend distance: ≥ 20 × D minimum distance between two changes of bending direction

Resistance

Halogen-free & silicone-free: Halogen-free polyester (12YH) insulation and double PUR (11YH) sheaths; LBS-free / silicone-free
Oil, water, UV & chemical resistance: Oil, ozone, UV and humidity resistant; temporary water use up to 50 m depth; not resistant to urea
Flame retardance: Low flammability per IEC 60332-1-2

Reference standards

Design codes: Design codes 12YHRDT11YH / 12HRDTC11YH (halogen-free polyester core insulation, double PUR sheath, anti-torsion braid)
Conductor standard: Bare electrolytic copper, finely stranded Class 5 per DIN VDE 0295 / IEC 60228
Core identification: DIN VDE 0293-308 (≤ 5 cores colour-coded; > 5 cores white with black numbers or black with white numbers + GNYE)

Sizes

50 configurations (RXP Control, RXP Power & RXP-D Screened Data / CAN / FO)

Filter across 4 sub-series: RXP Control (15 sizes), RXP Power (14 sizes), RXP-D Data & Control+Data/CAN (6 sizes), and RXP-D Power + Screened Data / 12 FO (15 sizes). Reeling bend radius r_reel = 6 × D_max.

Dimensions & mechanical loads
Designation	Configuration	Outer Ø min	Outer Ø max	Cu number	Weight ≈	Permitted pull	Reel R min (6×D)
RXP Control (1.5 – 2.5 mm²)
RXP 4 G 1.5	4 G 1.5	10	11.2	61	155	150	67
RXP 5 G 1.5	5 G 1.5	10.6	11.8	81	178	188	71
RXP 7 G 1.5	7 G 1.5	12.1	13.5	115	218	263	81
RXP 12 G 1.5	12 G 1.5	15.4	17	196	363	450	102
RXP 18 G 1.5	18 G 1.5	16.3	18.1	271	459	675	109
RXP 24 G 1.5	24 G 1.5	18.7	20.9	392	590	900	125
RXP 30 G 1.5	30 G 1.5	21.6	24	450	720	1,125	144
RXP 42 G 1.5 (yellow sheath)	42 G 1.5	28.5	30.5	624	1,192	2,200	183
RXP 4 G 2.5	4 G 2.5	11.1	12.3	99	208	250	74
RXP 5 G 2.5	5 G 2.5	11.8	13	125	230	313	78
RXP 7 G 2.5	7 G 2.5	13.3	14.7	180	315	438	88
RXP 12 G 2.5	12 G 2.5	18.5	20.5	308	485	750	123
RXP 18 G 2.5	18 G 2.5	18.5	20.5	451	679	1,125	123
RXP 24 G 2.5	24 G 2.5	21.2	23.6	616	860	1,500	142
RXP 30 G 2.5	30 G 2.5	25.4	28.2	771	1,080	1,875	169
RXP Power (4 – 35 mm²)
RXP 4 G 4	4 G 4	12.2	13.6	160	281	400	82
RXP 4 G 6	4 G 6	13.3	14.9	241	372	600	89
RXP 4 G 10	4 G 10	17.1	18.9	404	615	1,000	113
RXP 4 G 16	4 G 16	19.9	22.1	645	924	1,600	133
RXP 4 G 25	4 G 25	22.9	25.5	1,005	1,270	2,500	153
RXP 4 G 35	4 G 35	27.2	30	1,417	1,778	3,500	180
RXP 5 G 4	5 G 4	13.1	14.5	200	318	500	87
RXP 5 G 6	5 G 6	14.5	16.1	317	435	750	97
RXP 5 G 10	5 G 10	18.5	20.5	528	704	1,250	123
RXP 5 G 16	5 G 16	21.8	24.2	816	1,067	2,000	145
RXP 5 G 25	5 G 25	27.5	30.5	1,428	1,590	3,125	183
RXP 14 G 4	14 G 4	22.7	25.3	616	819	1,400	152
RXP 20 G 4	20 G 4	24.3	25.9	768	1,100	1,600	155
RXP 7 G 6 (yellow sheath)	7 G 6	20	21.4	429	715	1,050	128
RXP-D Data & Control+Data/CAN
RXP-D 4 × (2 × 1) C	4 × (2 × 1) C	14.4	15	111	253	200	90
RXP-D 6 × (2 × 1) C	6 × (2 × 1) C	21	23	265	597	300	138
RXP-D 4 × 2 × AWG22	4 × 2 × AWG22	12.6	13.6	58.6	164	300	82
RXP-D 12 G 62.5/125 µm	12 G 62.5/125 µm	13	15	0	170	200	90
RXP-D 19 G 2.5 + 5 × 1.5 C	19 G 2.5 + 5 × 1.5 C	21.2	23.8	563	850	1,188	143
RXP-D 12 × 4 G 2.5 + 2 × 2 × 0.25 CAN	12 × 4 G 2.5 + 2 × 2 × 0.25 CAN	39	41	1,420	2,298	3,000	246
RXP-D Power + Data / 12 FO
RXP-D 4 G 6 + 4 × (2 × 1.5) C	4 G 6 + 4 × (2 × 1.5) C	22.3	24.3	525	851	600	146
RXP-D 4 G 16 + 2 × (4 × 1.5) C	4 G 16 + 2 × (4 × 1.5) C	24	25.6	840	1,184	1,600	154
RXP-D 4 G 35 + 2 × (4 × 1.5) C	4 G 35 + 2 × (4 × 1.5) C	33.5	36.5	1,635	2,380	3,500	219
RXP-D 13 G 4 + 2 × (2 × 1) C	13 G 4 + 2 × (2 × 1) C	24.3	26.9	575	943	1,500	161
RXP-D 17 G 4 + 2 × (2 × 1) C	17 G 4 + 2 × (2 × 1) C	26.7	29.5	701	1,127	1,500	177
RXP-D 25 G 4 + 2 × (2 × 1) C	25 G 4 + 2 × (2 × 1) C	32.6	36.2	1,020	1,637	2,250	217
RXP-D 5 G 6 + 2 × (2 × 1) C	5 G 6 + 2 × (2 × 1) C	19.3	21.3	345	670	750	128
RXP-D 13 G 6 + 2 × (2 × 1) C	13 G 6 + 2 × (2 × 1) C	28.4	31.4	838	1,266	1,500	188
RXP-D 17 G 6 + 2 × (2 × 1) C	17 G 6 + 2 × (2 × 1) C	30.3	33.5	1,070	1,556	2,250	201
RXP-D 25 G 6 + 2 × (2 × 1) C	25 G 6 + 2 × (2 × 1) C	38.1	42.2	1,500	2,270	2,500	253
RXP-D 5 G 16 + 4 × (2 × 0.75) C	5 G 16 + 4 × (2 × 0.75) C	29	30.5	889	1,468	1,600	183
RXP-D 5 G 6 + 12 FO	5 G 6 + 12 FO	19	21	288	500	600	126
RXP-D 5 G 16 + 12 FO	5 G 16 + 12 FO	25	28	768	1,100	1,600	168
RXP-D 5 G 25 + 12 FO	5 G 25 + 12 FO	30	33	1,200	1,600	2,500	198
RXP-D 5 G 35 + 12 FO	5 G 35 + 12 FO	33	36	1,680	2,100	3,500	216

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
All 50 configurations verified against the reference reeling cable catalog.
Row 12 G 62.5/125 µm is an all-dielectric optical cable (Cu weight = 0 kg/km, cable weight = 170 kg/km, permitted pull = 200 N), correcting the left-shifted columns in the legacy PDF.
Row 4 × 2 × AWG22 Cu weight corrected from 586 to 58.6 kg/km (total cable weight is 164 kg/km); 42 G 1.5 and 7 G 6 are supplied with a yellow outer sheath.

Electrical reference data
Designation	Rated U0/U	Max. DC R (20 °C)	Ref. Ampacity (30 °C)	AC Test Voltage
RXP Control (1.5 – 2.5 mm²)
RXP 4 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 5 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 7 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 12 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 18 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 24 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 30 G 1.5	0.6/1 kV	19.5	18	3.5 kV AC
RXP 42 G 1.5 (yellow sheath)	0.6/1 kV	19.5	18	3.5 kV AC
RXP 4 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 5 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 7 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 12 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 18 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 24 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP 30 G 2.5	0.6/1 kV	7.98	26	3.5 kV AC
RXP Power (4 – 35 mm²)
RXP 4 G 4	0.6/1 kV	4.95	34	3.5 kV AC
RXP 4 G 6	0.6/1 kV	3.30	44	3.5 kV AC
RXP 4 G 10	0.6/1 kV	1.91	61	3.5 kV AC
RXP 4 G 16	0.6/1 kV	1.21	82	3.5 kV AC
RXP 4 G 25	0.6/1 kV	0.780	108	3.5 kV AC
RXP 4 G 35	0.6/1 kV	0.554	135	3.5 kV AC
RXP 5 G 4	0.6/1 kV	4.95	34	3.5 kV AC
RXP 5 G 6	0.6/1 kV	3.30	44	3.5 kV AC
RXP 5 G 10	0.6/1 kV	1.91	61	3.5 kV AC
RXP 5 G 16	0.6/1 kV	1.21	82	3.5 kV AC
RXP 5 G 25	0.6/1 kV	0.780	108	3.5 kV AC
RXP 14 G 4	0.6/1 kV	4.95	34	3.5 kV AC
RXP 20 G 4	0.6/1 kV	4.95	34	3.5 kV AC
RXP 7 G 6 (yellow sheath)	0.6/1 kV	3.30	44	3.5 kV AC
RXP-D Data & Control+Data/CAN
RXP-D 4 × (2 × 1) C	0.6/1 kV	19.5	15	3.5 kV AC
RXP-D 6 × (2 × 1) C	0.6/1 kV	19.5	15	3.5 kV AC
RXP-D 4 × 2 × AWG22	0.6/1 kV	55.0	—	3.5 kV AC
RXP-D 12 G 62.5/125 µm	Dielectric FO	—	—	—
RXP-D 19 G 2.5 + 5 × 1.5 C	0.6/1 kV	7.98 / 19.5	26 / 18	3.5 kV AC
RXP-D 12 × 4 G 2.5 + 2 × 2 × 0.25 CAN	0.6/1 kV	7.98 / 79.0	26 / —	3.5 kV AC
RXP-D Power + Data / 12 FO
RXP-D 4 G 6 + 4 × (2 × 1.5) C	0.6/1 kV	3.30 / 19.5	44 / 18	3.5 kV AC
RXP-D 4 G 16 + 2 × (4 × 1.5) C	0.6/1 kV	1.21 / 19.5	82 / 18	3.5 kV AC
RXP-D 4 G 35 + 2 × (4 × 1.5) C	0.6/1 kV	0.554 / 19.5	135 / 18	3.5 kV AC
RXP-D 13 G 4 + 2 × (2 × 1) C	0.6/1 kV	4.95 / 19.5	34 / 15	3.5 kV AC
RXP-D 17 G 4 + 2 × (2 × 1) C	0.6/1 kV	4.95 / 19.5	34 / 15	3.5 kV AC
RXP-D 25 G 4 + 2 × (2 × 1) C	0.6/1 kV	4.95 / 19.5	34 / 15	3.5 kV AC
RXP-D 5 G 6 + 2 × (2 × 1) C	0.6/1 kV	3.30 / 19.5	44 / 15	3.5 kV AC
RXP-D 13 G 6 + 2 × (2 × 1) C	0.6/1 kV	3.30 / 19.5	44 / 15	3.5 kV AC
RXP-D 17 G 6 + 2 × (2 × 1) C	0.6/1 kV	3.30 / 19.5	44 / 15	3.5 kV AC
RXP-D 25 G 6 + 2 × (2 × 1) C	0.6/1 kV	3.30 / 19.5	44 / 15	3.5 kV AC
RXP-D 5 G 16 + 4 × (2 × 0.75) C	0.6/1 kV	1.21 / 26.0	82 / 12	3.5 kV AC
RXP-D 5 G 6 + 12 FO	0.6/1 kV	3.30	44	3.5 kV AC
RXP-D 5 G 16 + 12 FO	0.6/1 kV	1.21	82	3.5 kV AC
RXP-D 5 G 25 + 12 FO	0.6/1 kV	0.780	108	3.5 kV AC
RXP-D 5 G 35 + 12 FO	0.6/1 kV	0.554	135	3.5 kV AC

Maximum DC conductor resistance at 20 °C per IEC 60228 Table 3 for Class 5 bare copper conductors.
Free-air reference ampacity at 30 °C ambient per DIN VDE 0298-4; multiply by reel layer factor (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 400 mm ≥ 266 mmBending radius OK (6 × OD 22.1 mm)

120 m/min ≤ 180 m/minWithin the rated travel speed

Minimum bending radius: 133 mm
Min. drum core diameter: ≈ 266 mm
Cable weight on drum: 92.4 kg
Copper content: 64.5 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC dielectric voltage test	3.5 kV AC on all 0.6/1 kV insulated cores	Every manufactured length
Sample tests
Vertical flame propagation	Self-extinguishing per IEC 60332-1-2	Type qualification
Cold flex (−40 °C), oil & 50 m water immersion	Halogen-free 11YH PUR outer jacket rated for −40 °C flexing and temporary water depth to 50 m	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

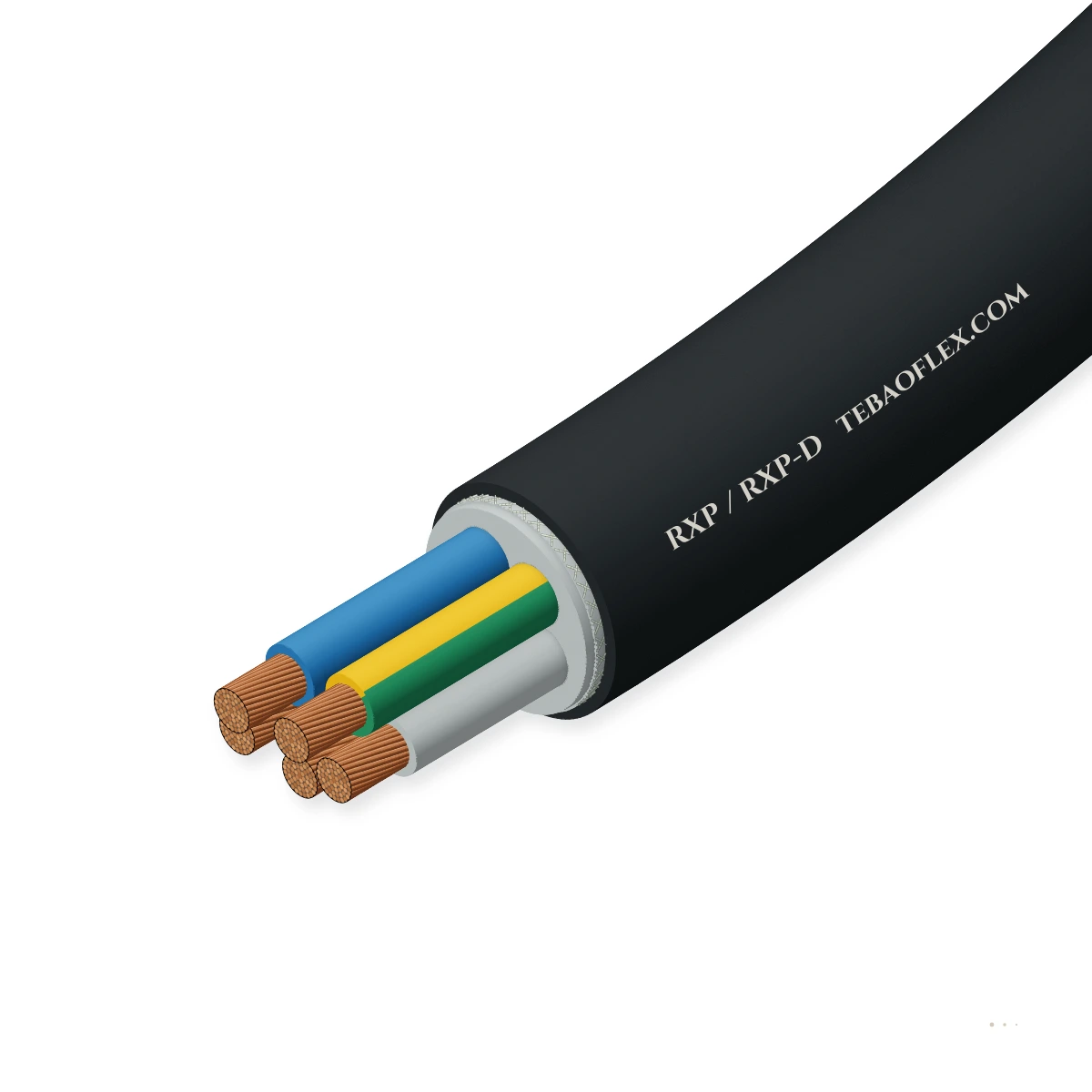

TEBAOFLEX RXP / RXP-D 12YHRDT11YH [configuration] 0.6/1 kV · [year] · [metre mark]

Delivery form: Custom reel cut lengths or bulk drums (black PUR jacket; yellow on 42 G 1.5 and 7 G 6)
Minimum order: 300–500 m on marked non-stock items; standard control and power sizes from stock
Customs HS code: 8544.49

Technical documents

Downloads

PDFRXP / RXP-D Heavy-Duty PUR Reeling Cable (0.6/1 kV) – technical datasheet50 sizes · construction, technical data, approvals XLSXRXP / RXP-D 12YHRDT11YH spec data (Excel)All 50 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What mechanical upgrades distinguish RXP / RXP-D from standard RP / RP-D PUR reeling cables?

RXP / RXP-D adds a central high-tenacity textile strain-relief element inside the core bundle and a sandwich double-PUR sheath with anti-torsion braid. This increases specific tensile capacity from 15 N/mm² to 25 N/mm², raises horizontal reeling speed from 80 m/min to 180 m/min, tightens the minimum reeling bend radius from 8 × D to 6 × D, extends cold flexing from −20 °C to −40 °C, and permits temporary water immersion up to 50 m.

What hybrid power, data, CAN-Bus, and fibre-optic configurations are offered in RXP-D?

RXP-D includes 21 hybrid and data designs: screened-pair data cables (4 × 2 × 1 C, 6 × 2 × 1 C, 4 × 2 × AWG22), a 12-fibre 62.5/125 µm optical cable, 19 G 2.5 + 5 × 1.5 C and 12 × 4 G 2.5 + 2 × 2 × 0.25 CAN control+bus cables, 11 power + screened-pair cables (4 G 6 to 25 G 6 and 5 G 16), and 4 power + 12 FO optical hybrid cables (5 G 6 to 5 G 35 + 12 FO).

Can RXP / RXP-D be used in urea or chemical fertilizer bulk handling plants?

No. While RXP / RXP-D is halogen-free and highly resistant to mineral oils, UV, ozone, humidity, and temporary water submersion up to 50 m, the technical specification explicitly notes that its polyester/PUR compound is not resistant to urea. For urea and sulfur bulk handling plants, specify polychloroprene-sheathed RG / RG-D or RXG / RXG-D ((N)SHTOEU-J) cables.

Which RXP configurations are supplied with a yellow outer jacket instead of black?

All standard RXP and RXP-D configurations feature a black wear-resistant polyurethane outer sheath except for two high-visibility sizes—RXP 42 G 1.5 and RXP 7 G 6—which are manufactured with a yellow PUR outer sheath as standard.

Request a quote

Get an engineering quote for RXP / RXP-D 12YHRDT11YH

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

PUR Reeling Cable for Motorized Reels RXP / RXP-D

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

RXP / RXP-D Heavy-Duty PUR Reeling Cable (0.6/1 kV)Heavy-duty −40 °C halogen-free double-PUR reeling cable up to 180 m/min and 25 N/mm²

Motorised monospiral reel

Vertical / spreader reel

Cylindrical / multi-layer drum

Festoon & line chain

Immersion & wet locations

Spreader gravity collector basket

RXP Control & Power · 0.6/1 kV (29 sizes)

RXP-D Data, CAN-Bus, Control+Data & Power+FO · 0.6/1 kV (21 sizes)

Electrical

Thermal

Mechanical

Resistance

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

TRA

RP / RP-D

RXG / RXG-D

TRA-RF
