Low-voltage rubber reeling cables (DIN VDE 0250-814)0.6/1 kV(N)SHTOEU-J240 m/min · 30 N/mm²

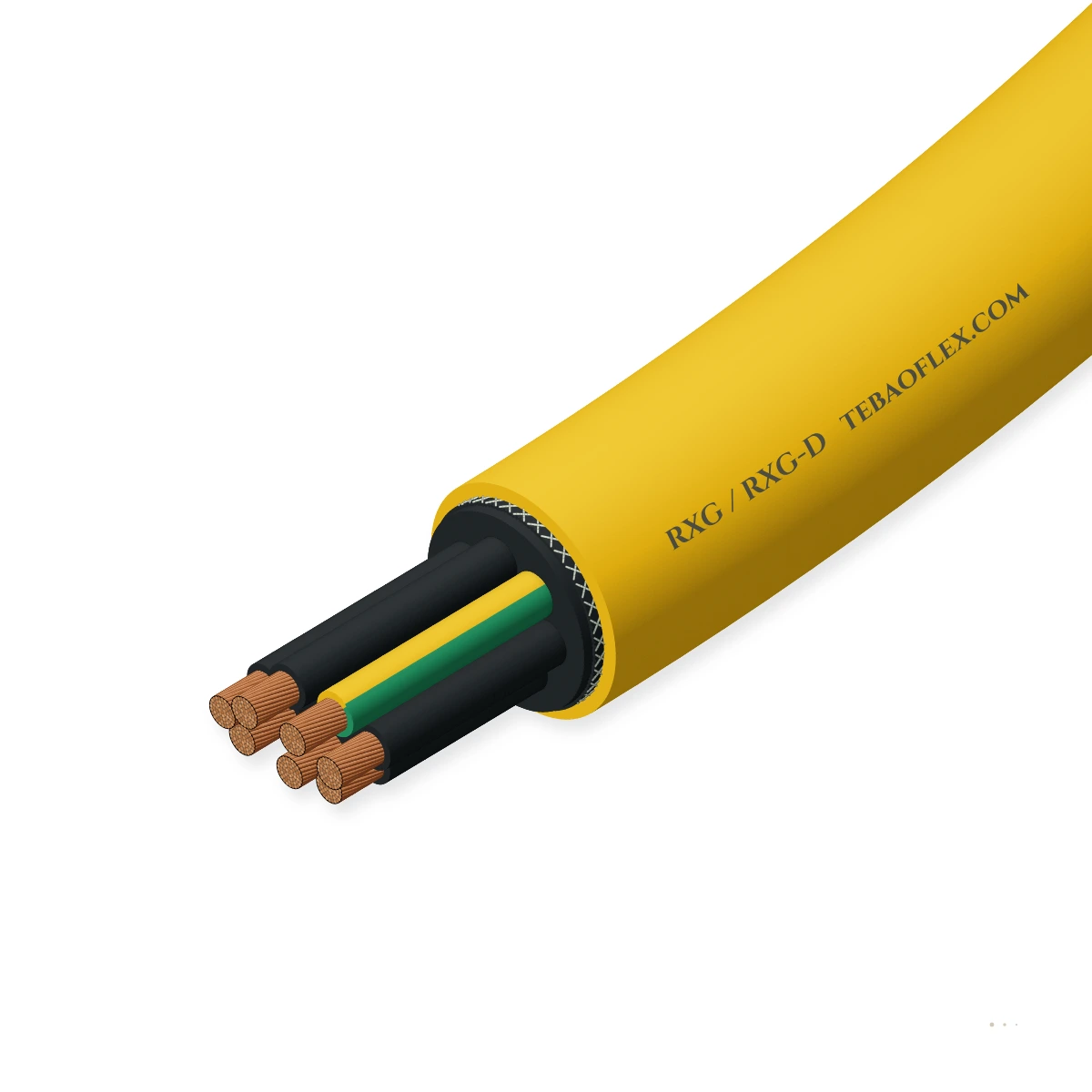

RXG / RXG-D Heavy-Duty PCP Reeling Cable (N)SHTOEU-J (0.6/1 kV)Heavy-duty 30 N/mm² PCP reeling cable for horizontal (240 m/min) & vertical reels

Extra-heavy-duty 0.6/1 kV (N)SHTOEU-J reeling cable with Class 5/FS copper cores, central strain-relief core, and yellow or black PCP sandwich sheath with anti-torsion braid across 70 power, control, −50 °C low-temp, screened data, and FO sizes.

Anti-torsion braid
Water-resistant
Oil-resistant
Flame-retardant
Order designation
RXG 3 × 50 + 3 × 25/3
Outer Ø max
37.4 mm
Weight ≈
2,850 kg/km
Permitted pull
4,500 N
Reel R min (6×D)
224 mm
Check against my drumAll sizes (70)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U (Um 0.7/1.2 kV AC)
Reeling speed
240 m/min
horiz. · 120 m/min vert. (180+ req.)
Min. bend radius
6 × D
6 × D reeling · 7.5 × D rollers
Flexing temp.
−35…+80 °C
fixed −50…+80 °C (LT −50 °C flex)
Tensile rating
30 N/mm²
225 N to 21.6 kN across 70 sizes
Configurations
70 configs
43 RXG power/ctrl + 27 RXG-D hybrid

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is RXG / RXG-D (N)SHTOEU-J right for your machine?

RXG and RXG-D are engineered for heavy-duty motorized cable reels operating at horizontal speeds above 120 m/min (up to 240 m/min), high-acceleration vertical spreader reels, port STS/RTG cranes, and floating grab dredgers with temporary water submersion down to 50 m.

Motorised monospiral reel

Suitable

Heavy-duty horizontal monospiral and level-wind reels up to 240 m/min with 30 N/mm² specific pulling force.

Vertical / spreader reel

Suitable

Vertical motorized reeling up to 120 m/min standard (> 180 m/min on request); for higher vertical pull up to 6 kN see RXX.

Cylindrical / multi-layer drum

Suitable

Multi-layer cylindrical reeling drums with DIN VDE 0298-4 layer derating (0.80 for 1 layer, 0.61 for 2 layers).

Festoon & line chain

Suitable

Diversion roller assemblies (min. 7.5 × D) and S-shaped track curves (min. 20 × D between changes of direction).

Immersion & wet locations

Suitable

Approved for temporary water submersion up to 50 m depth (e.g. floating grab dredgers); consult for permanent immersion.

Spreader gravity collector basket

Not suitable

Built for tensioned motorised reels; for free-coiling gravity baskets use a dedicated basket cable.

Use 3GSLTÖ Spreader Basket
Typical machinesContainer Ports & STS/RTG CranesBulk Material HandlingFloating Grab DredgersArctic & Cold-Climate Mining

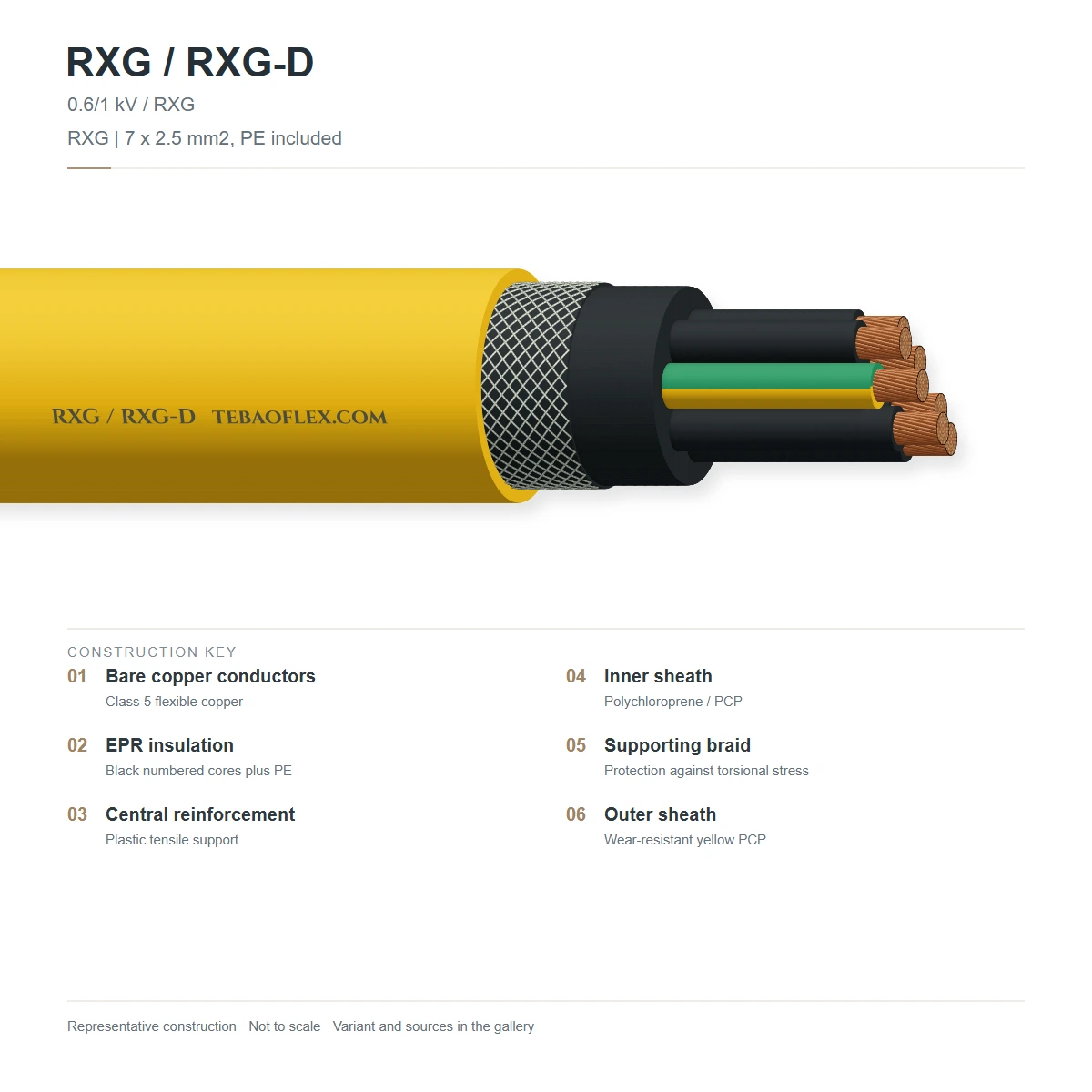

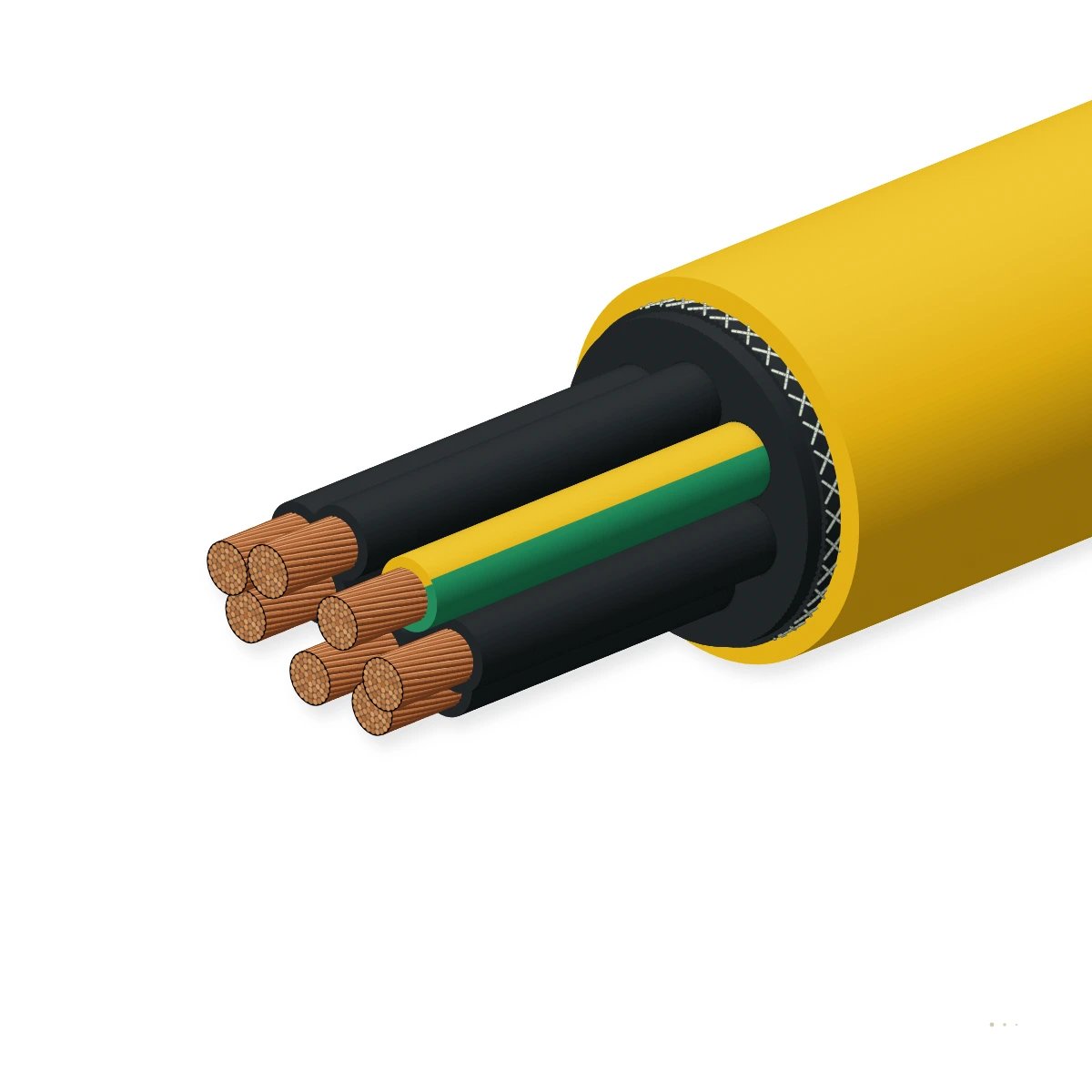

Construction

Layer by layer

Shown: RXG / RXG-D (N)SHTOEU-J heavy-duty reeling construction with Class 5/FS bare copper conductors, EPR core insulation, central plastic strain-relief core, PCP inner sheath, embedded anti-torsion braid, and yellow or black wear-resistant PCP outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor / optical fibresBare electrolytic copper, particularly flexible Class 5 or Class FS per DIN VDE 0295 / IEC 60228; graded-index 50/125, 62.5/125 or singlemode 9/125 µm fibres in RXG-D FOVery short stranding lay in layers for high axial and dynamic flexural stability
2Core insulation & codingEthylene-propylene rubber (EPR, 3GI3) compound per DIN VDE 0207DIN VDE 0293-308 colour code up to 5 cores; ≥ 6 cores black with white numbers + GNYE
3Screened data & optical elements (RXG-D)Copper-screened 1.0 mm² cores (CE) or pairs (C), and/or 12–24 loose-tube optical fibresIsolated EMI-protected data channels integrated into RXG-D composite builds
4Central plastic reinforcementHigh-strength central plastic strain-relief core along the cable neutral axisSupports 30 N/mm² dynamic tensile stress (up to 21,600 N on 3 × 240 + 3 × 120/3)
5Inner sheathPolychloroprene (PCP, 5GM3) rubber compound per DIN VDE 0250Interlinked with outer jacket into a two-layer pressure-tight sandwich structure
6Anti-torsion support braidProtective synthetic textile braid vulcanized between inner and outer PCP sheathsAbsorbs severe torsional forces over diversion sheaves and vertical spreader reels
7Outer sheathWear-resistant polychloroprene (PCP, 5GM3) rubber compound, yellow or blackOil, UV, ozone, humidity & 50 m water-resistant · low flammability per IEC 60332-1

RXG Control & Power · 0.6/1 kV (43 sizes incl. −50 °C Low-Temp)

5 × 1.5 to 56 × 2.5 mm² control cables and 4 × 4 to 3 × 240 + 3 × 120/3 mm² power cables (standard −35 °C and Arctic −50 °C flexing series)

RXG-D Data, Control+Data & Power+FO · 0.6/1 kV (27 sizes)

Screened-pair data cables, 12–24 FO optical cables, Control + CE/C/FO hybrids, 3 × 25 to 3 × 240 + 12 FO power-optical cables, and 5 × 25 + 12 × 1.5 power+control

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (RXG-D all-optical variants are dielectric)
Max. operating voltage AC
0.7/1.2 kV
Max. operating voltage DC
0.9/1.8 kV
AC test voltage
2.5 kV AC
Current rating (DIN VDE 0298-4)
Per DIN VDE 0298-4 at 30 °C ambient (apply reel layer and multi-core grouping conversion factors)

Thermal

Temperature, flexing
−35 °C to +80 °C (Low-Temp power series down to −50 °C)
Temperature, fixed installation
−50 °C to +80 °C
Max. conductor temperature
+90 °C
Short-circuit temperature
+250 °C

Mechanical

Max. travel speed
Up to 240 m/min horizontal reeling · up to 120 m/min vertical reeling (> 180 m/min on request)
Max. tensile load (dynamic)
30 N/mm² standard (20 N/mm² on Low-Temp & Power+FO series; 225–21,600 N across 70 sizes)
Min. bending radius, moving
6 × D (reeling) · 7.5 × D (diversion rollers) · 20 × D (S-shaped track curves)
S-bend distance
≥ 20 × D minimum distance between two changes of bending direction

Resistance

Oil resistance
Oil-resistant outer sheath per DIN VDE 0472-803 / EN 60811-404
Flame retardance
Flame-retardant per IEC 60332-1-2 / DIN VDE 0472-804
Water, UV & ozone resistance
Temporary water submersion up to 50 m depth; ozone, UV and humidity resistant; LBS-free / silicone-free

Reference standards

Cable standard & designation
(N)SHTOEU-J adapted to DIN VDE 0250-814
Conductor standard
Bare electrolytic copper, Class 5 or extra-fine Class FS per DIN VDE 0295 / IEC 60228
Core identification
DIN VDE 0293-308 (≥ 6 cores black with white numbers + green/yellow earth)

Sizes

70 configurations (RXG Control, Power, −50 °C Low-Temp & RXG-D Hybrid Data/FO)

Filter across 6 sub-series: RXG Control (19 sizes), RXG Power (17 sizes), RXG −50 °C Low-Temp Power (7 sizes), RXG-D Data/FO (7 sizes), RXG-D Control+Data/FO (10 sizes), and RXG-D Power+FO/Control (10 sizes).

Dimensions & mechanical loads
DesignationConfigurationOuter Ø minOuter Ø maxCu numberWeight ≈Permitted pullReel R min (6×D)Enquiry
RXG Power (4 – 240 mm²)
RXG 4 × 4.04 × 4.01618161455480108
RXG 4 × 6.04 × 6.017.419.4242575720116
RXG 4 × 10.04 × 10.021.623.64249051,200142
RXG 4 × 16.04 × 16.023.726.76451,2401,920160
RXG 4 × 25.04 × 25.028.531.51,0201,8503,000189
RXG 5 × 45 × 417.419.4201430600116
RXG 5 × 65 × 61921302690900126
RXG 5 × 105 × 1023.425.45031,0801,500152
RXG 5 × 165 × 1626.129.18051,5002,400175
RXG 3 × 35 + 3 × 16/33 × 35 + 3 × 16/328.531.51,2202,1603,150189
RXG 3 × 50 + 3 × 25/33 × 50 + 3 × 25/334.437.41,7642,8504,500224
RXG 3 × 70 + 3 × 35/33 × 70 + 3 × 35/339.742.72,4703,9206,300256
RXG 3 × 95 + 3 × 50/33 × 95 + 3 × 50/344.347.33,3775,0208,550284
RXG 3 × 120 + 3 × 70/33 × 120 + 3 × 70/351554,3346,63010,800330
RXG 3 × 150 + 3 × 70/33 × 150 + 3 × 70/353.957.95,2427,69013,500347
RXG 3 × 185 + 3 × 95/33 × 185 + 3 × 95/358.962.96,5529,31016,650377
RXG 3 × 240 + 3 × 120/33 × 240 + 3 × 120/367.471.48,87012,20021,600428
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All 70 configurations verified against the reference reeling cable catalog, including the RXG-D 5 × 25 + 12 × 1.5 Power+Control build omitted from the summary PDF.
  • Permitted dynamic tensile load is 30 N/mm² on standard RXG Control/Power and RXG-D Control+FO series, and 20 N/mm² on the −50 °C Low-Temperature Power and RXG-D Power+12 FO series.
  • Row 22 × 2.5 + 18 FO tensile load corrected from the source typographical print '16.050' (16,050 N) to 1,650 N (22 × 2.5 mm² × 30 N/mm² = 1,650 N).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 630 mm ≥ 448 mmBending radius OK (6 × OD 37.4 mm)
160 m/min ≤ 240 m/minWithin the rated travel speed
Minimum bending radius
224 mm
Min. drum core diameter
≈ 448 mm
Cable weight on drum
427.5 kg
Copper content
264.6 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.5 kV AC on all 0.6/1 kV power and control coresEvery manufactured length
Sample tests
Vertical flame propagationSelf-extinguishing per IEC 60332-1-2 / DIN VDE 0472-804Type qualification
Oil resistance & 50 m water immersionDIN VDE 0472-803 oil resistance; temporary water submersion to 50 m depthType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RXG / RXG-D (N)SHTOEU-J [configuration] 0.6/1 kV · [year] · [metre mark]
Delivery form
Custom crane reel cut lengths or bulk drums (yellow or black PCP outer jacket)
Minimum order
300–600 m on non-stock items; standard control and power sizes from stock
Customs HS code
8544.49

Technical documents

Downloads

PDFRXG / RXG-D Heavy-Duty PCP Reeling Cable (N)SHTOEU-J (0.6/1 kV) – technical datasheet70 sizes · construction, technical data, approvalsXLSXRXG / RXG-D (N)SHTOEU-J spec data (Excel)All 70 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does RXG / RXG-D differ from standard RG / RG-D (N)SHTOEU-J reeling cables?
While both are 0.6/1 kV EPR/PCP reeling cables with an embedded anti-torsion braid, RXG / RXG-D adds a central plastic strain-relief core and very short stranding lay to double the specific tensile rating from 15 N/mm² to 30 N/mm², double horizontal reeling speed from 120 m/min to 240 m/min (plus 120 m/min vertical reeling), extend cold flexing to −35 °C (−50 °C on RXG-LT), and support temporary water immersion up to 50 m.
What composite data and optical fibre configurations are available in RXG-D?
RXG-D covers four hybrid families: screened copper pair data cables (6 × 2 × 1 C and 9 × 2 × 1 C), all-dielectric 12- and 24-fibre optical cables (G62.5/125, G50/125, E9/125), control + data hybrids combining 1.5–2.5 mm² cores with individually screened CE cores, screened C pairs, or 12–24 optical fibres, and 3 × 25 to 3 × 240 mm² three-phase power cables with 2 split earths and 12 optical fibres.
What is the RXG Low-Temperature (−50 °C) power cable series?
For Arctic ports, cold-climate open-pit mines, and sub-zero bulk terminals, RXG offers a dedicated 7-size Low-Temperature power series (3 × 50 + 3 × 25/3 up to 3 × 240 + 3 × 120/3 mm²) formulated with a cold-flexible elastomer jacket rated down to −50 °C in dynamic flexing service and 20 N/mm² tensile load capacity.
What is the correct permitted tensile load for RXG-D 22 × 2.5 + 18 FO?
The RXG-D Control + FO series is rated at 30 N/mm² on the active 2.5 mm² copper conductors. For 22 × 2.5 + 18 FO (55 mm² total copper cross-section), the permitted dynamic pulling force is 1,650 N (55 mm² × 30 N/mm²). The figure '16.050' (16,050 N) printed in the legacy table is a digit-insertion typographical error.
