Product

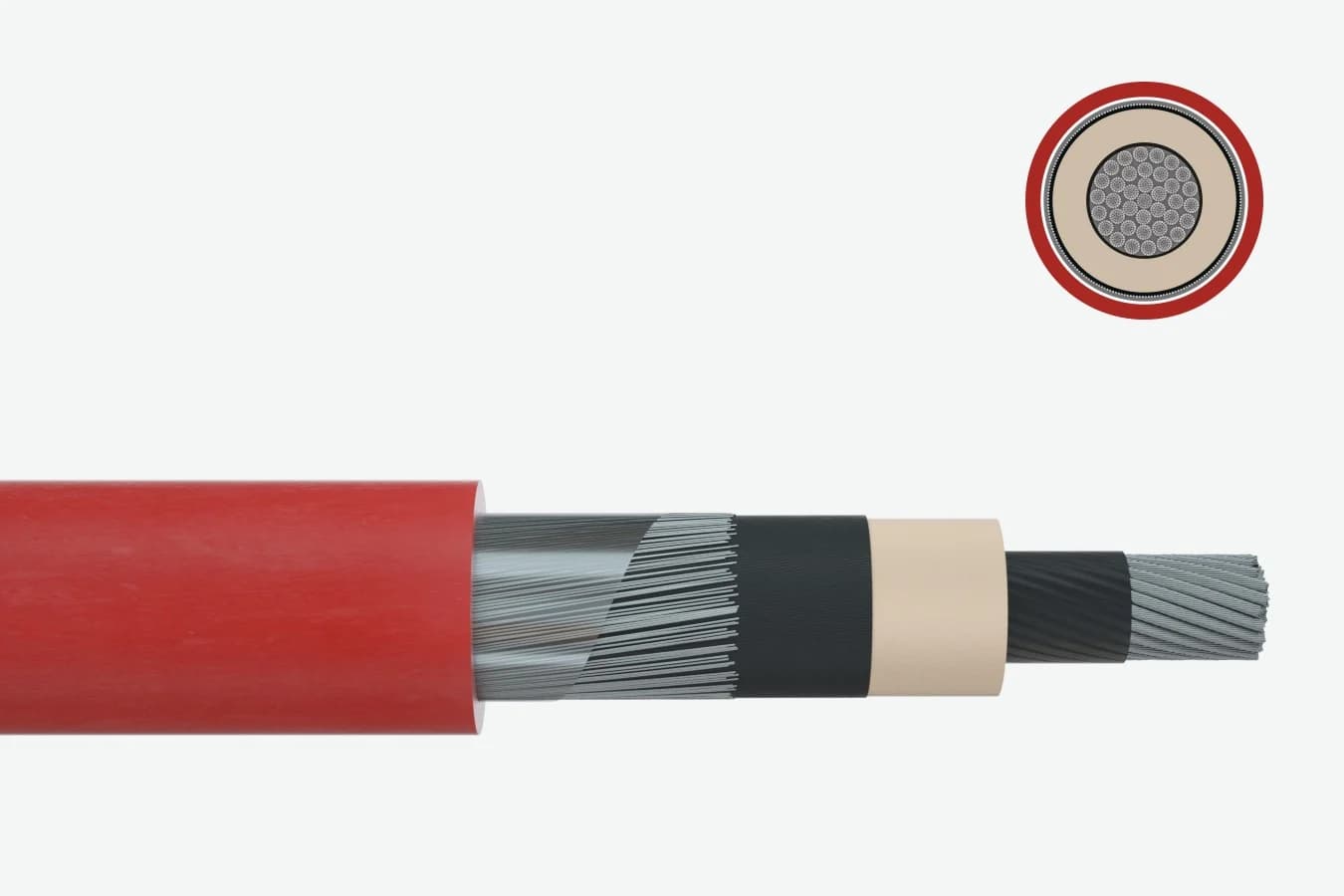

MV single-core rubber cableDIN VDE 0250-813U0/U 3.6/6–18/30 kV1C + concentric Cu screen

NTMCGCWÖU Flexible MV Single-Core CableScreened single-core MV rubber cable for switchgear, transformers and mobile substations

Flexible single-core medium-voltage rubber cable to DIN VDE 0250-813 (3.6/6 kV to 18/30 kV) with Class 5 tinned copper conductor, 3GI3 EPR insulation, concentric copper wire screen and heavy-duty red 5GM3/5GM5 sheath.

EMC screen

Outdoor & humid

Oil-resistant

Flame-retardant

Voltage grade & cross-section

Order designation: NTMCGCWÖU 1 × 95 / 16 mm² · 6/10 kV
Outer Ø ≈: 29.5 mm
Weight ≈: 1,686 kg/km
Min. bend R: 177 mm
Current 30 °C: 430 A

All sizes (38)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 3.6/6–18/30 kV
Construction: 1C + Cu screen
Bending radius: 6–10 × OD
Temperature: −25…+60 °C
Conductor max.: +90 °C / 250 °C
Sizes: 38

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is NTMCGCWÖU right for your machine?

Flexible screened single-core medium-voltage rubber cable (3.6/6 kV to 18/30 kV) for mobile substations, crane HV cubicles, test bays and motor/transformer leads.

Motor stator, traction & converter leads

Suitable

Primary duty — flexible MV stator, transformer and drive cubicle terminations requiring tight bend radii.

Switchgear & control cabinet wiring

Suitable

Screened single-core phase jumpers inside containerized substations, wind nacelles and crane HV rooms.

Fixed installation

Suitable

Trefoil or flat cleated MV feeder runs on trays, bridges and temporary power skids.

Festoon & line chain

With conditions

Permissible in gentle single-loop jumper transitions between coupled gantry modules.

Motorised monospiral reel

Not suitable

Single-core cable cannot be wound as a three-phase travelling crane reel cable.

Use (N)TSCGEWÖU MV Reel

Typical machinesMV switchgear cubicles & busbar transitionsMobile transformer substations & switch stations Mining & tunnelling power distributionLarge industrial MV variable-speed drivesRailway rolling stock & traction substations

Construction

Layer by layer

Shown: NTMCGCWÖU 1 × phase conductor with inner/outer semi-conductive field-control layers, 3GI3 EPR insulation, concentric tinned-copper wire screen and red 5GM3 outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase conductor	Annealed flexible stranded tinned copper, Class 5IEC 60228 Class 5 / HD 383 / DIN VDE 0295
2	Inner conductor screen	Semi-conductive tape + extruded semi-conductive rubber layerControls electric field at the stranded conductor surface
3	Core insulation	Ethylene-propylene rubber (EPR) compound type 3GI3DIN VDE 0207-20 · 3.4 mm (3.6–10 kV), 5.5 mm (12/20 kV), 8.0 mm (18/30 kV)
4	Outer insulation screen	Extruded semi-conductive rubber layer over the 3GI3 insulationDIN VDE 0250-813 radial field control
5	Concentric copper screen	Helical warp or braid of tinned copper wires (16 mm² or 25 mm²)Provides metallic screening and protective-earth fault path
6	Separator tape	Synthetic non-woven separating tape wrap over copper screenPrevents sheath adhesion to screen wires
7	Outer sheath	Heavy-duty thermosetting elastomer compound type 5GM3 or 5GM5, redDIN VDE 0207-21 · oil, UV, ozone, moisture & flame resistant

1 × 16/16 to 1 × 120/16

Single phase conductor (16–120 mm²) with 16 mm² concentric tinned-copper screen

1 × 150/25 to 1 × 240/25

Single phase conductor (150–240 mm²) with 25 mm² concentric tinned-copper screen

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 3.6/6, 6/10, 12/20, 18/30 kV (8.7/15 kV on request)
Max. operating voltage AC: 4.2/7.2 · 6.9/12 · 13.9/24 · 20.8/36 kV
AC test voltage: 11 kV (3.6/6) · 17 kV (6/10) · 29 kV (12/20) · 43 kV (18/30)
Concentric screen: 16 mm² (up to 120 mm²) · 25 mm² (150–240 mm²) tinned Cu
Current rating: 141 to 698 A at 30 °C in air (DIN VDE 0298-4)

Thermal

Ambient temperature, flexing: −25 to +60 °C (conductor +90 °C)
Ambient temperature, fixed: −40 to +80 °C (conductor +90 °C)
Max. conductor temperature: +90 °C continuous · +250 °C short-circuit

Mechanical

Min. bending radius, fixed: 6 × OD
Min. bending radius, flexing: 10 × OD (12 × OD forced guidance)
Max. tensile load: 15 N/mm² of copper conductor cross-section

Resistance

Oil, UV & ozone: Oil, UV, sunlight, ozone and moisture resistant
Flame retardance: Flame retardant (IEC 60332-1-2)

Reference standards

Cable type: DIN VDE 0250-813
Conductor: IEC 60228 Class 5 / HD 383 / DIN VDE 0295
Compounds: 3GI3 EPR (VDE 0207-20) · 5GM3/5GM5 sheath (VDE 0207-21)

Identification

Sheath colour: Red (other colours on request)
Size notation: 1 × phase conductor / concentric screen mm² (e.g. 1×150/25)
Customs tariff (HS): 8544.60

Sizes

38 standard sizes across 4 voltage grades

Filter by rated voltage (3.6/6 kV, 6/10 kV, 12/20 kV, 18/30 kV). Size notation shows 1 × phase conductor / concentric copper screen in mm².

Dimensions, ampacity & mechanical
Designation · grade	U0/U kV	Phase / Screen mm²	Insulation mm	Sheath mm	Outer Ø ≈ mm	Weight ≈ kg/km	Min. bend R (fixed) mm	Max. pull N	Current 30 °C A (in air)
3.6/6 kV
NTMCGCWÖU 1 × 16 / 16 mm² · 3.6/6 kV	3.6/6	1 × 16 / 16	3.4	2.2	20.3	720	122	240	141
NTMCGCWÖU 1 × 25 / 16 mm² · 3.6/6 kV	3.6/6	1 × 25 / 16	3.4	2.2	21.5	828	129	375	187
NTMCGCWÖU 1 × 35 / 16 mm² · 3.6/6 kV	3.6/6	1 × 35 / 16	3.4	2.2	22.2	933	133	525	231
NTMCGCWÖU 1 × 50 / 16 mm² · 3.6/6 kV	3.6/6	1 × 50 / 16	3.4	2.2	24.2	1,119	145	750	288
NTMCGCWÖU 1 × 70 / 16 mm² · 3.6/6 kV	3.6/6	1 × 70 / 16	3.4	2.5	26.6	1,384	160	1,050	357
NTMCGCWÖU 1 × 95 / 16 mm² · 3.6/6 kV	3.6/6	1 × 95 / 16	3.4	2.5	28.7	1,637	172	1,425	430
NTMCGCWÖU 1 × 120 / 16 mm² · 3.6/6 kV	3.6/6	1 × 120 / 16	3.4	2.5	29.8	1,888	179	1,800	503
NTMCGCWÖU 1 × 150 / 25 mm² · 3.6/6 kV	3.6/6	1 × 150 / 25	3.4	3.0	32.7	2,382	196	2,250	577
NTMCGCWÖU 1 × 185 / 25 mm² · 3.6/6 kV	3.6/6	1 × 185 / 25	3.4	3.0	34.9	2,725	209	2,775	658
6/10 kV
NTMCGCWÖU 1 × 16 / 16 mm² · 6/10 kV	6/10	1 × 16 / 16	3.4	2.2	21.1	755	127	240	141
NTMCGCWÖU 1 × 25 / 16 mm² · 6/10 kV	6/10	1 × 25 / 16	3.4	2.2	22.3	864	134	375	187
NTMCGCWÖU 1 × 35 / 16 mm² · 6/10 kV	6/10	1 × 35 / 16	3.4	2.2	23.0	970	138	525	231
NTMCGCWÖU 1 × 50 / 16 mm² · 6/10 kV	6/10	1 × 50 / 16	3.4	2.5	25.6	1,197	154	750	289
NTMCGCWÖU 1 × 70 / 16 mm² · 6/10 kV	6/10	1 × 70 / 16	3.4	2.5	27.4	1,429	164	1,050	356
NTMCGCWÖU 1 × 95 / 16 mm² · 6/10 kV	6/10	1 × 95 / 16	3.4	2.5	29.5	1,686	177	1,425	430
NTMCGCWÖU 1 × 120 / 16 mm² · 6/10 kV	6/10	1 × 120 / 16	3.4	3.0	31.6	2,016	190	1,800	503
NTMCGCWÖU 1 × 150 / 25 mm² · 6/10 kV	6/10	1 × 150 / 25	3.4	3.0	33.5	2,438	201	2,250	577
NTMCGCWÖU 1 × 185 / 25 mm² · 6/10 kV	6/10	1 × 185 / 25	3.4	3.5	35.7	2,785	214	2,775	658
NTMCGCWÖU 1 × 240 / 25 mm² · 6/10 kV	6/10	1 × 240 / 25	3.4	3.5	41.6	3,460	250	3,600	—
12/20 kV
NTMCGCWÖU 1 × 16 / 16 mm² · 12/20 kV	12/20	1 × 16 / 16	5.5	2.5	25.9	994	155	240	150
NTMCGCWÖU 1 × 25 / 16 mm² · 12/20 kV	12/20	1 × 25 / 16	5.5	2.5	27.1	1,116	163	375	198
NTMCGCWÖU 1 × 35 / 16 mm² · 12/20 kV	12/20	1 × 35 / 16	5.5	2.5	27.8	1,230	167	525	245
NTMCGCWÖU 1 × 50 / 16 mm² · 12/20 kV	12/20	1 × 50 / 16	5.5	2.5	29.8	1,440	179	750	307
NTMCGCWÖU 1 × 70 / 16 mm² · 12/20 kV	12/20	1 × 70 / 16	5.5	3.0	32.6	1,767	196	1,050	379
NTMCGCWÖU 1 × 95 / 16 mm² · 12/20 kV	12/20	1 × 95 / 16	5.5	3.0	34.7	2,048	208	1,425	456
NTMCGCWÖU 1 × 120 / 16 mm² · 12/20 kV	12/20	1 × 120 / 16	5.5	3.0	35.8	2,312	215	1,800	531
NTMCGCWÖU 1 × 150 / 25 mm² · 12/20 kV	12/20	1 × 150 / 25	5.5	3.5	38.7	2,846	232	2,250	611
NTMCGCWÖU 1 × 185 / 25 mm² · 12/20 kV	12/20	1 × 185 / 25	5.5	3.5	40.9	3,218	245	2,775	698
18/30 kV
NTMCGCWÖU 1 × 16 / 16 mm² · 18/30 kV	18/30	1 × 16 / 16	8.0	3.0	31.9	1,368	191	240	150
NTMCGCWÖU 1 × 25 / 16 mm² · 18/30 kV	18/30	1 × 25 / 16	8.0	3.0	33.1	1,505	199	375	198
NTMCGCWÖU 1 × 35 / 16 mm² · 18/30 kV	18/30	1 × 35 / 16	8.0	3.0	33.8	1,629	203	525	245
NTMCGCWÖU 1 × 50 / 16 mm² · 18/30 kV	18/30	1 × 50 / 16	8.0	3.0	35.8	1,866	215	750	307
NTMCGCWÖU 1 × 70 / 16 mm² · 18/30 kV	18/30	1 × 70 / 16	8.0	3.5	38.6	2,230	232	1,050	379
NTMCGCWÖU 1 × 95 / 16 mm² · 18/30 kV	18/30	1 × 95 / 16	8.0	3.5	40.7	2,539	244	1,425	456
NTMCGCWÖU 1 × 120 / 16 mm² · 18/30 kV	18/30	1 × 120 / 16	8.0	3.5	41.8	2,818	251	1,800	531
NTMCGCWÖU 1 × 150 / 25 mm² · 18/30 kV	18/30	1 × 150 / 25	8.0	3.5	43.7	3,284	262	2,250	611
NTMCGCWÖU 1 × 185 / 25 mm² · 18/30 kV	18/30	1 × 185 / 25	8.0	3.5	45.9	3,680	275	2,775	698
NTMCGCWÖU 1 × 240 / 25 mm² · 18/30 kV	18/30	1 × 240 / 25	8.0	3.5	51.8	4,485	311	3,600	—

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Current ratings in air at 30 °C ambient (DIN VDE 0298-4). For a three-phase circuit using three single-core cables, apply grouping and trefoil/flat spacing factors per DIN VDE 0298-4.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC high-voltage test between conductor and concentric screen	11 kV (3.6/6) · 17 kV (6/10) · 29 kV (12/20) · 43 kV (18/30)	Every manufactured length (DIN VDE 0250-813)
Conductor & concentric screen DC resistance	IEC 60228 Class 5	Every length
Sample tests
3GI3 insulation & 5GM3 sheath mechanical & oil ageing	DIN VDE 0207-20 & 0207-21	Per compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)TMCGCWÖU 1x95/16 6/10 kV DIN VDE 0250-813 · [year] · [metre mark]

Delivery form: 1000 m standard drums or custom cut-to-length phase sets
Packaging: Heat-treated timber export drums, lagged and end-sealed

Technical documents

Downloads

PDFNTMCGCWÖU Flexible MV Single-Core Cable – technical datasheet38 sizes · construction, technical data, approvals XLSXNTMCGCWÖU spec data (Excel)All 38 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do I read a size notation such as 1×150/25 mm² on NTMCGCWÖU?

In the notation 1×150/25 mm², the first number (1×150 mm²) is the cross-sectional area of the single Class 5 tinned-copper phase conductor, and the second number (25 mm²) is the cross-sectional area of the concentric tinned-copper wire screen surrounding the insulated core. Standard sizes from 16 mm² to 120 mm² carry a 16 mm² concentric copper screen, while 150 mm², 185 mm² and 240 mm² carry a 25 mm² concentric copper screen.

Does 'GC' in NTMCGCWÖU mean the cable has a separate ground-check core?

No. Under DIN VDE 0250-813 German cable nomenclature, 'NTMCGCWÖU' denotes a flexible single-core medium-voltage rubber cable ('NTM') with semi-conductive field-control layers ('C'), EPR insulation ('G'), a concentric copper wire screen ('C') and an oil/weather/flame-resistant heavy-duty elastomer sheath ('WÖU'). It contains a single phase conductor and one concentric screen — there is no auxiliary ground-check or pilot conductor.

Where is single-core NTMCGCWÖU used instead of 3-core NTSCGEWÖU?

NTMCGCWÖU is designed for short, space-constrained medium-voltage connections where routing three separate single-core cables (minimum fixed bending radius 6 × OD, e.g. 130–275 mm) is much easier than bending a large 3-core cable (OD 45–100 mm). Typical duties include internal links between switchgear cubicles, connections to mobile transformer substations, transformer-house droppers, traction equipment and large medium-voltage drives.

How should single-core NTMCGCWÖU cables be arranged and bonded in a 3-phase circuit?

A three-phase circuit uses three separate NTMCGCWÖU cables (one per phase), laid in trefoil or flat formation with non-magnetic cleats to withstand short-circuit electrodynamic forces. At terminations, each cable requires a screened medium-voltage stress-control kit matched to the insulation diameter (which increases from 3.4 mm wall at 3.6/6–6/10 kV to 5.5 mm at 12/20 kV and 8.0 mm at 18/30 kV), with the concentric copper screen earthed according to the substation's single-point or both-ends bonding scheme.

Request a quote

Get an engineering quote for NTMCGCWÖU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

NTMCGCWÖU Flexible Medium-Voltage Single-Core Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

NTMCGCWÖU Flexible MV Single-Core CableScreened single-core MV rubber cable for switchgear, transformers and mobile substations

Motor stator, traction & converter leads

Switchgear & control cabinet wiring

Fixed installation

Festoon & line chain

Motorised monospiral reel

1 × 16/16 to 1 × 120/16

1 × 150/25 to 1 × 240/25

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

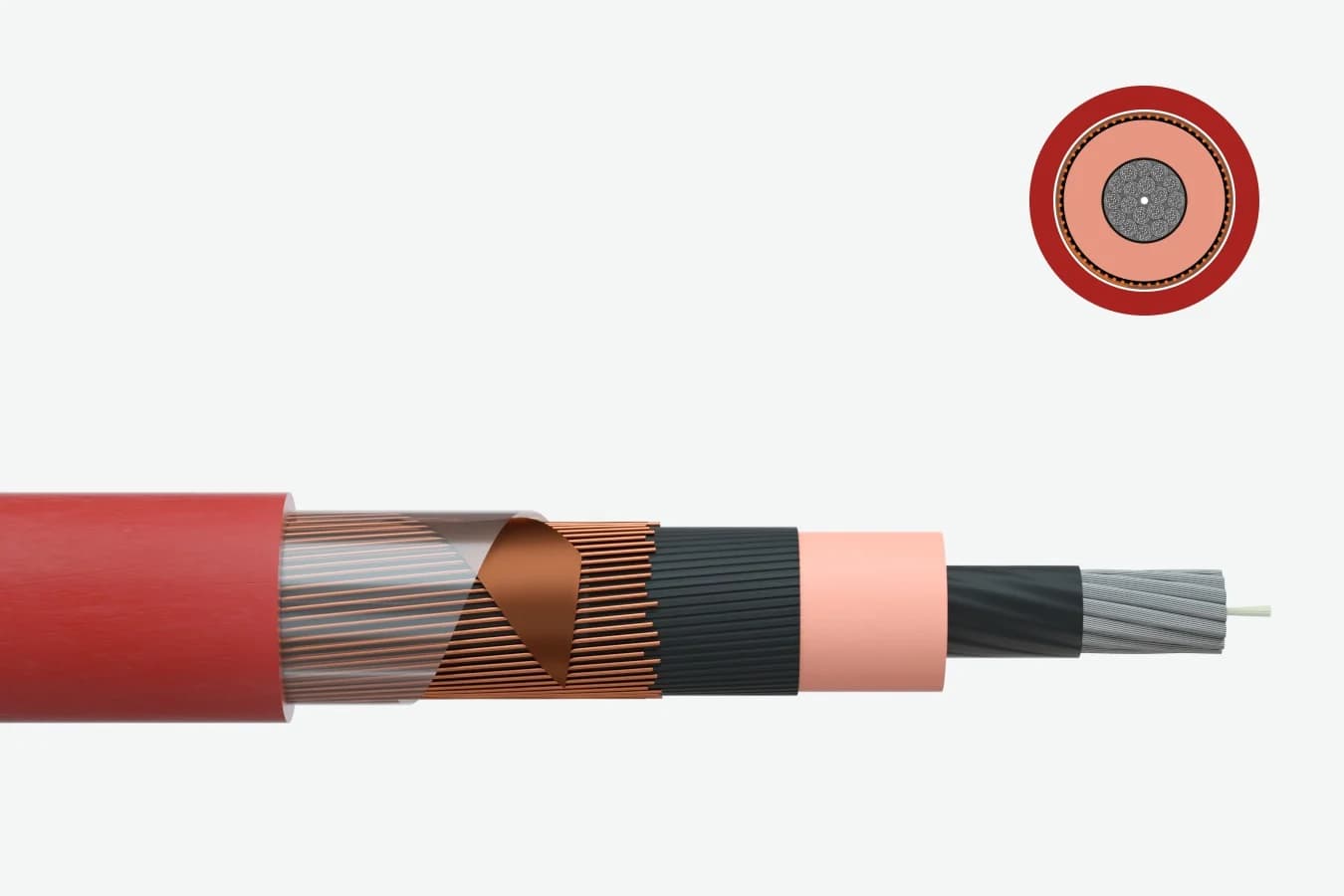

NTSCGEWÖU
