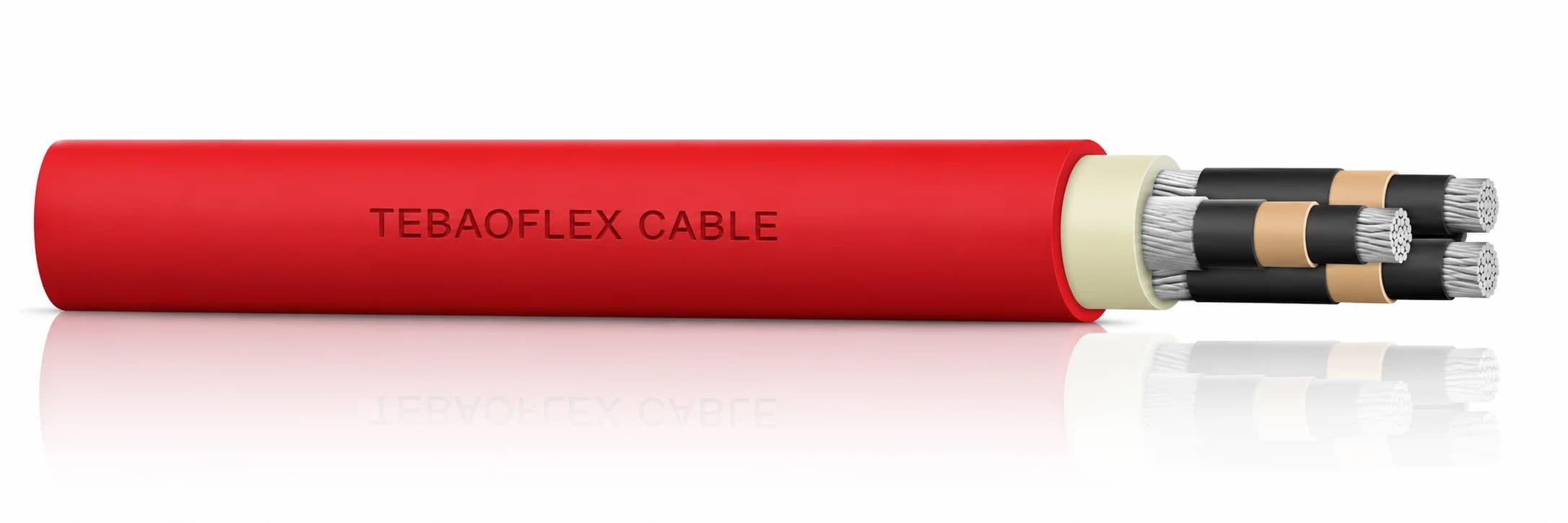

NTSCGEWÖU Medium-Voltage Reeling Cable

Application fit

Is NTSCGEWÖU right for your machine?

Select by reeling geometry and voltage grade. NTSCGEWÖU is built for monospiral and cylindrical drums, festoons and sheave guidance on medium-voltage mobile machinery.

Motorised monospiral reel

Suitable

Motorised monospiral and cylindrical drums on gantry cranes and stacker-reclaimers up to 120 m/min.

Cylindrical / multi-layer drum

Suitable

Heavy reeling with dynamic acceleration pull up to 25–30 N/mm² and ±100 °/m torsion resistance.

Festoon & line chain

Suitable

Suitable for heavy-duty MV festoon and roller-guided trolley systems with S-bend spacing ≥ 20 × OD.

Trailing & towing

Suitable

Trailing supply to excavators, mobile crushers and open-cast mining equipment.

Vertical / spreader reel

Not suitable

Vertical spreader baskets and high-speed gravity drop duties require a dedicated vertical basket cable.

Use HVR / HVR-D or Spreader Cable

Typical machinesShip-to-shore & RMG port cranesBucket-wheel excavators & stacker-reclaimersOpen-cast & underground mining plantMobile crushers & draglinesBulk material handling terminals

Construction

Layer by layer

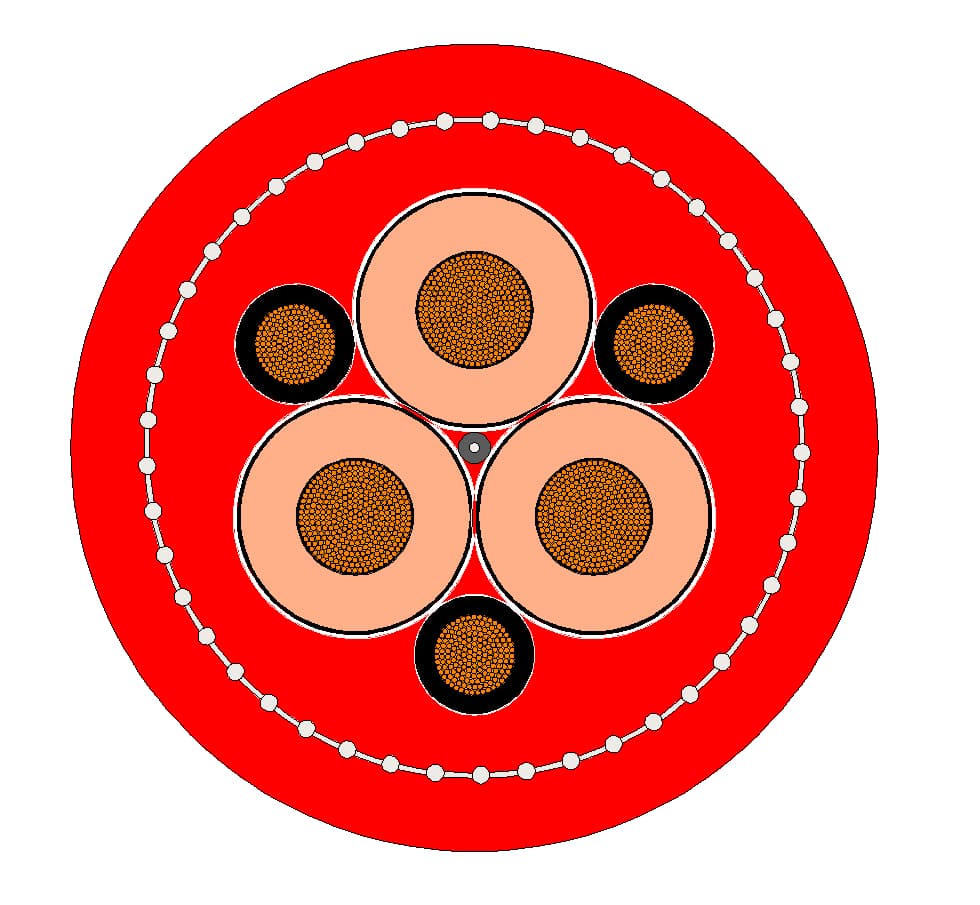

Shown: (N)TSCGEWÖU 3 × phase + 3 split interstitial earth conductors with dual elastomeric sheath and vulcanised anti-torsion braid.

Schematic, not to scale — generated from the layer data

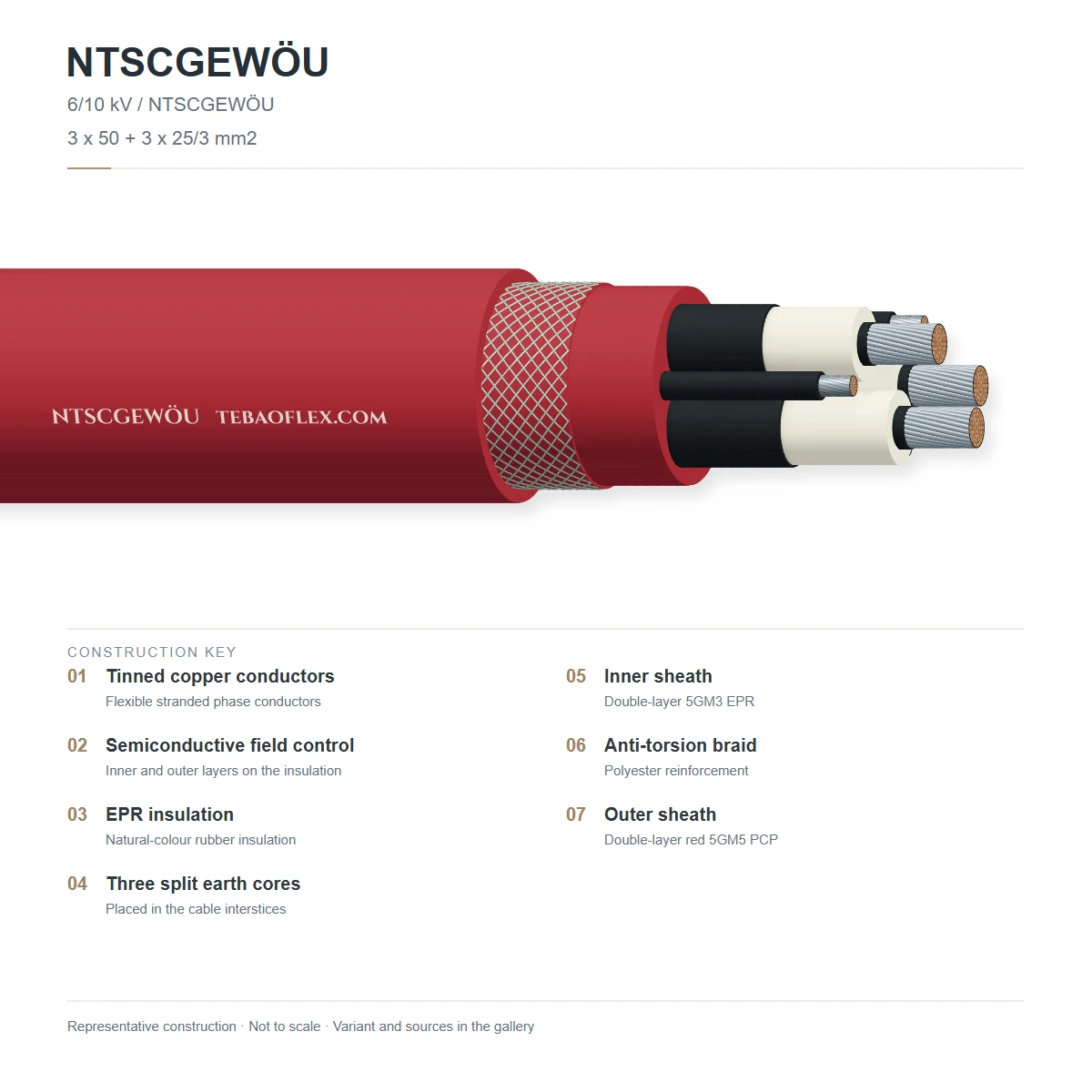

#	Layer	Material & reference
1	Phase & earth conductors	Electrolytic tinned copper, very finely stranded Class 5IEC 60228 Class 5 / DIN VDE 0295
2	Inner conductor screen	Extruded semi-conductive EPR layer over phase conductorDIN VDE 0250-813 field control
3	Core insulation	High-grade EPR compound type 3GI3 (natural colour)DIN VDE 0207-20 · 90 °C continuous / 250 °C short-circuit
4	Outer core screen	Cold-strippable semi-conductive NBR/EPR layer (≤ 200 Ω·m)Easy-strip field control layer, black
5	Split protective earth (3 parts)	Three tinned copper Class 5 earth conductors in the core intersticesSymmetrical 3-core + 3G lay-up (lay length ~ 7 × core Ø)
6	Inner sheath	EPR/elastomeric compound type 5GM3, red (water barrier)DIN VDE 0207-21
7	Anti-torsion reinforcement	High-tenacity polyester/polyamide braid vulcanised between sheathsLocks inner and outer sheaths against corkscrewing (±100 °/m)
8	Outer sheath	Heavy-duty chloroprene (PCP) sandwich compound type 5GM5, bright redDIN VDE 0207-21 · tear resistance ≥ 30 N/mm · oil & UV resistant

(N)TSCGEWÖU

3 phase cores + 3 split interstitial earth conductors (1.8/3 to 18/30 kV)

R-(N)TSCGEWÖU

Heavy mining reeling execution up to 20/35 kV with ±100 °/m torsion rating

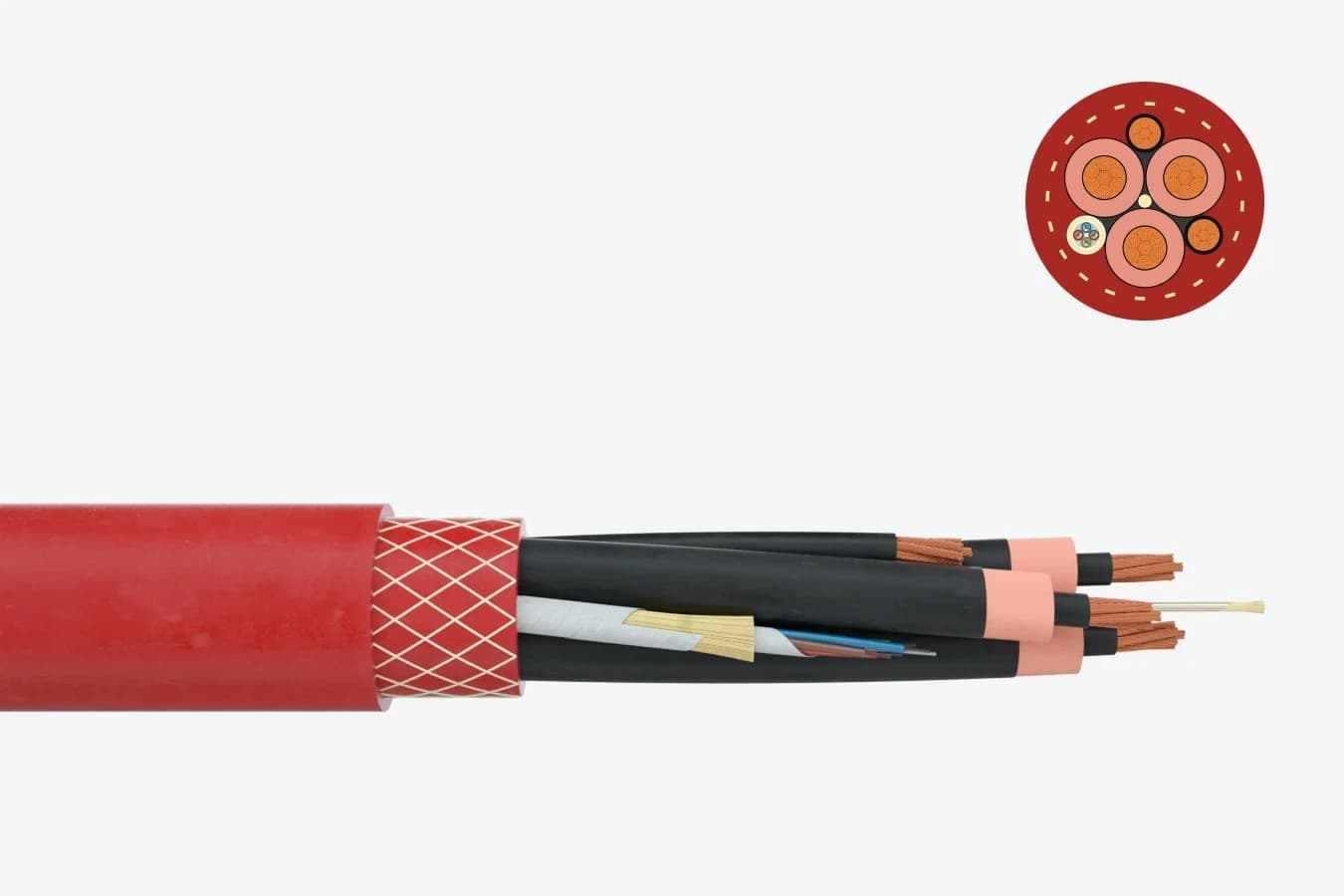

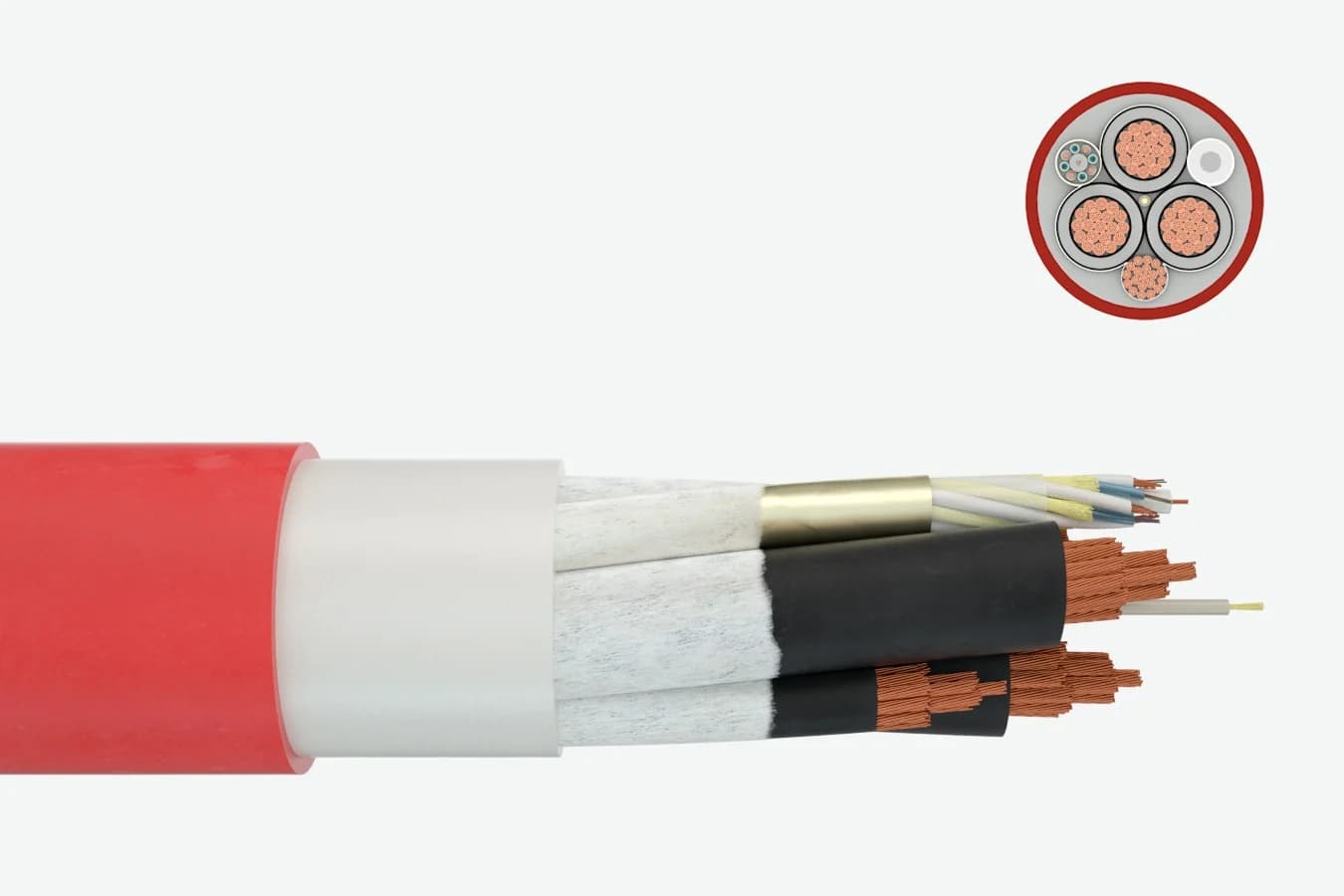

(N)TSKCGEWÖU

Integrated optical fibres (FO) or control/bus elements in the interstices

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 1.8/3 to 18/30 kV (7 grades)
Max. operating voltage AC: 2.1/3.6 to 20.8/36 kV (by grade)
Max. operating voltage DC: 2.7/5.4 to 27/54 kV (by grade)
AC test voltage: 6 to 43 kV (by grade, see table)
Partial discharge: ≤ 40 pC (DIN VDE 0250-813)
Current rating: DIN VDE 0298-4 (30 °C in air)
Screen / Field control: Inner & outer semicon layers + 3 split earths

Thermal

Temperature, flexing: −35 to +90 °C
Temperature, fixed: −40 to +90 °C
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Min. bending radius, moving: 10 × OD free · 12 × OD reeling · 15 × OD sheaves
Min. bending radius, fixed: 6 × OD
Max. travel speed: 120 m/min reeling (up to 240 m/min SMK)
Max. tensile load: 20 N/mm² perm. · 25–30 N/mm² dynamic
Torsional stress: ± 100 °/m (± 25 °/m on SMK)
S-bend distance: ≥ 20 × OD

Resistance

Oil resistance: EN 60811-404
Flame retardance: IEC 60332-1-2
UV & ozone: Ozone, UV and moisture resistant
Water: HD 22.16 / EN 50525-2-21 water resistant
Abrasion: Abrasion and tear-proof 5GM5 sandwich sheath

Reference standards

Cable type: DIN VDE 0250-813
Conductor: IEC 60228 Class 5 / DIN VDE 0295
Compounds: 3GI3 EPR · 5GM3 inner · 5GM5 outer (VDE 0207)
Installation guide: DIN VDE 0298-3 & DIN VDE 0298-4

Identification

Sheath colour: Red (other colours on request)
Core identification: Natural EPR insulation with black semicon layer
Earth arrangement: Protective earth split into 3 interstitial parts
Customs tariff (HS): 8544.60

Sizes

77 standard sizes across 8 voltage grades

Typical values per voltage grade (1.8/3 kV to 20/35 kV). Filter by rated voltage; fibre-optic (LWL) and custom earth splits on request.

Dimensions & mechanical
Designation · grade	U0/U kV	Cores × mm²	Cond. Ø mm	Outer Ø min mm	Outer Ø max mm	Weight ≈ kg/km	Min. bend R mm	Perm. pull N	Current 30 °C A
6/10 kV
(N)TSCGEWÖU 3 × 25 + 3 × 25/3 · 6/10 kV	6/10	3 × 25 + 3 × 25/3	7.1	37.8	40.8	2,400	408	1,500	131
(N)TSCGEWÖU 3 × 35 + 3 × 25/3 · 6/10 kV	6/10	3 × 35 + 3 × 25/3	8.3	40.2	43.2	2,830	432	2,100	162
(N)TSCGEWÖU 3 × 50 + 3 × 25/3 · 6/10 kV	6/10	3 × 50 + 3 × 25/3	9.9	43.7	46.7	3,570	467	3,000	202
(N)TSCGEWÖU 3 × 70 + 3 × 35/3 · 6/10 kV	6/10	3 × 70 + 3 × 35/3	11.8	47.7	50.7	4,570	507	4,200	250
(N)TSCGEWÖU 3 × 95 + 3 × 50/3 · 6/10 kV	6/10	3 × 95 + 3 × 50/3	13.8	52.8	56.8	5,710	568	5,700	301
(N)TSCGEWÖU 3 × 120 + 3 × 70/3 · 6/10 kV	6/10	3 × 120 + 3 × 70/3	15.4	56.2	60.2	6,840	602	7,200	352
(N)TSCGEWÖU 3 × 150 + 3 × 70/3 · 6/10 kV	6/10	3 × 150 + 3 × 70/3	17.2	61.5	65.5	8,200	655	9,000	404
(N)TSCGEWÖU 3 × 185 + 3 × 95/3 · 6/10 kV	6/10	3 × 185 + 3 × 95/3	19.0	65.3	69.3	9,690	693	11,100	461
(N)TSCGEWÖU 3 × 240 + 3 × 120/3 · 6/10 kV	6/10	3 × 240 + 3 × 120/3	21.8	73.8	77.8	12,310	778	14,400	540
(N)TSCGEWÖU 3 × 300 + 3 × 150/3 · 6/10 kV	6/10	3 × 300 + 3 × 150/3	24.4	79.5	83.5	14,780	835	18,000	620

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.

Electrical & tensile by cross-section
Cross-section mm²	Phase cond. Ø mm	Max. R20 Ω/km	Ampacity 1.8/3–6/10 kV A (30 °C)	Ampacity 8.7/15–20/35 kV A (30 °C)	1 s short-circuit kA	Perm. pull (20 N/mm²) N	Dynamic pull (30 N/mm²) N
3 × 25 + 3 × 25/3	7.1	0.784	131	139	3.58	1,500	2,250
3 × 35 + 3 × 25/3	8.3	0.554	162	172	5.01	2,100	3,150
3 × 50 + 3 × 25/3	9.9	0.386	202	215	7.15	3,000	4,500
3 × 70 + 3 × 35/3	11.8	0.272	250	265	10.01	4,200	6,300
3 × 95 + 3 × 50/3	13.8	0.206	301	319	13.59	5,700	8,550
3 × 120 + 3 × 70/3	15.4	0.161	352	371	17.16	7,200	10,800
3 × 150 + 3 × 70/3	17.2	0.129	404	428	21.45	9,000	13,500
3 × 185 + 3 × 95/3	19.0	0.106	461	488	26.46	11,100	16,650
3 × 240 + 3 × 120/3	21.8	0.080	540	574	34.32	14,400	21,600
3 × 300 + 3 × 150/3	24.4	0.064	620	660	42.90	18,000	27,000

Nominal current-carrying capacity for rubber cables laid on a surface at 30 °C ambient (DIN VDE 0298-4 Table 15). Apply derating factors for multi-layer drum reeling and higher ambient temperatures.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

mm

Travel speed (m/min)

m/min

Cable length on drum (m)

m

Drum core 1,200 mm ≥ 1,120 mmBending radius OK (12 × OD 46.7 mm)

90 m/min ≤ 120 m/minWithin the rated travel speed

Minimum bending radius: 560 mm
Min. drum core diameter: ≈ 1,120 mm
Cable weight on drum: 892.5 kg
Outer diameter: 46.7 mm

Indicative only: based on the datasheet outer diameter and 12 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test on main cores	6 kV (1.8/3 kV) to 43 kV (18/30 kV) · 50 kV (20/35 kV)	Every manufactured length
Partial discharge test	≤ 40 pC at test voltage	Every manufactured length (DIN VDE 0250-813)
Conductor DC resistance & semicon screen resistivity	IEC 60228 Class 5 · semicon ≤ 200 Ω·m	Every length
Sample tests
Sheath tear resistance & mechanical ageing	Outer 5GM5 tear ≥ 30 N/mm · TS ≥ 15 N/mm² · EB ≥ 300 %	Per batch (DIN VDE 0207-21)
Oil immersion & flame propagation	EN 60811-404 (100 °C, 24 h) · IEC 60332-1-2	Per batch
Reversed bending & torsional stress type test	DIN VDE 0250-813 reeling flex & torsion endurance	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)TSCGEWÖU 3x50+3x25/3 6/10 kV DIN VDE 0250-813 · [year] · [serial / metre mark]

Delivery form: Heavy export timber or steel drums, cut-to-length
Packaging: ISPM-15 heat-treated lagged drums with sealed moisture-proof ends

Technical documents

Downloads

PDFNTSCGEWÖU Medium-Voltage Reeling Cable – technical datasheet77 sizes · construction, technical data, approvals XLSXNTSCGEWÖU spec data (Excel)All 77 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
