Screened MV flexible & reeling cableDIN VDE 0250-813U0/U 1.8/3–12/20 kVIndividual Cu phase screens

(N)TSCGECEWÖU Individually Screened MV Cable3-phase copper-screened MV rubber cable for distribution, reeling and submersible duty

Built to DIN VDE 0250-813 with individual copper wire braid screens over each EPR-insulated phase core — supplied in four executions: F-E distribution (red), -ATB reeling (yellow), -GCC ground-check (yellow) and 300 m submersible (black).

EMC screen
Anti-torsion braid
Water-resistant
Flame-retardant
Order designation
(N)TSCGECEWÖU 6/10 kV · 3 × 50 mm²
Outer Ø max
50.9 mm
Weight ≈
3,900 kg/km
Min. bend R
305 mm
Max. pull
2,250 N
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.8/3–12/20 kV
U0/U · 3.6/6–12/20 kV (1.8/3 on -GCC)
Phase screen
3 × Cu braid
individual copper braid per phase
Bending radius
6–10 × OD
6 × OD fixed · 10 × OD flexing
Temperature
−40…+80 °C
fixed; −25…+80 °C flexing (90 °C cond.)
Tensile load
15 N/mm²
of total phase-conductor area
Sizes
111
across 4 series · 25 to 185 mm²

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)TSCGECEWÖU right for your machine?

Match the variant suffix to your mechanical and environmental duty — F-E red sheath is for fixed/semi-flexible distribution, -ATB and -GCC yellow sheaths are for trailing and drum reeling, and Submersible black sheath is for permanent water immersion up to 300 m.

Fixed installation

Suitable

F-E red-sheath variant for fixed and semi-flexible MV distribution in mines and alongside conveyors (6 × OD bend radius).

Trailing & towing

Suitable

-ATB and -GCC variants supply draglines, mining shovels, drills and mobile crushers under severe abrasion.

Motorised monospiral reel

Suitable

-ATB and -GCC variants include a polyester anti-torsion braid between sheaths for reeling duty (10–12 × OD).

Immersion & wet locations

Suitable

Submersible variant with waterproof EPR/CM sheaths rated for permanent immersion in salt or brackish water to 300 m.

Vertical / spreader reel

Not suitable

Vertical spreader baskets and high-speed container cranes require a high-speed reeling cable.

Use NTSCGEWÖU or HVR / HVR-D
Typical machinesOpen-cast & underground mine distributionDraglines, mining shovels & blast-hole drillsSubmersible mine dewatering pumps (to 300 m)Dredgers & floating docksConveyors & mobile crushing plant

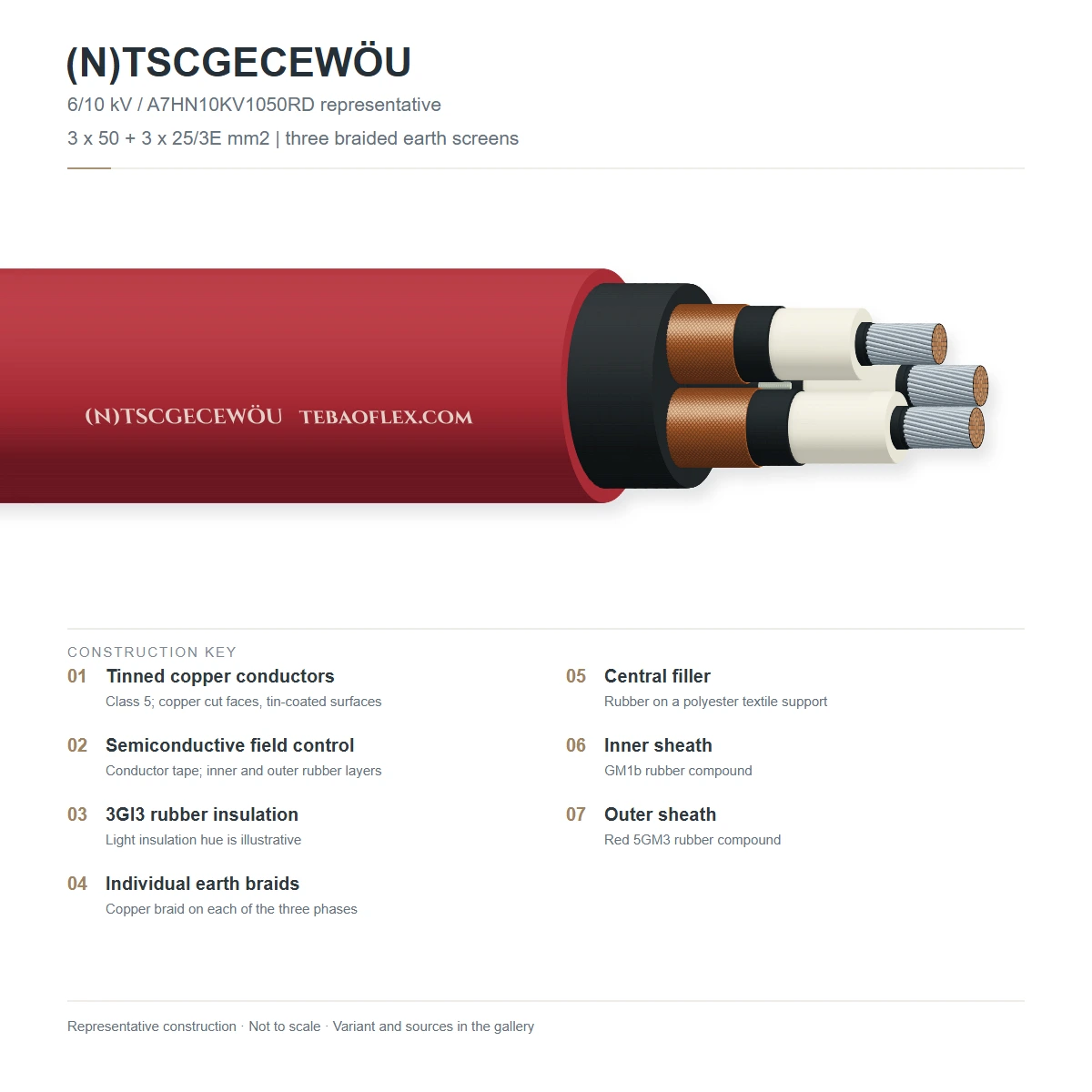

Construction

Layer by layer

Shown: (N)TSCGECEWÖU 3 × phase cores around a central rubber/polyester support, each phase core surrounded by triple-extruded EPR + semicon layers and an individual copper wire braid protective-earth screen.

123456789
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase conductorElectrolytic tinned copper, flexible stranded Class 5IEC/EN 60228 Class 5 · DIN VDE 0295
2Inner conductor screenSemi-conductive tape + extruded semi-conductive rubber layerSmooths electric-field gradient at conductor surface
3Core insulationHigh-grade EPR compound type 3GI3DIN VDE 0207-20 · 90 °C continuous / 250 °C short-circuit
4Outer insulation screenExtruded semi-conductive rubber layer over each coreDIN VDE 0250-813 field control
5Individual copper phase screen (3E)Individual copper wire braid around each phase core (or 2 earths + 10 mm² GC on -GCC)Acts as metallic phase screen and protective-earth fault path
6Central support fillerElastomeric rubber compound on a textile polyester central supportStabilises the 3-core lay-up geometry
7Inner sheathRubber compound GM1b / 5GM3 (waterproof EPR on Submersible)DIN VDE 0207-21
8Anti-torsion braid (-ATB & -GCC)Polyester anti-torsion braid between inner and outer sheathsFitted on -ATB and -GCC reeling/trailing executions
9Outer sheathHeavy-duty rubber 5GM3/5GM5 (Red on F-E, Yellow on -ATB/-GCC) or waterproof CM (Black on Submersible)IEC 60332-1-2 flame-retardant · abrasion, oil & UV resistant

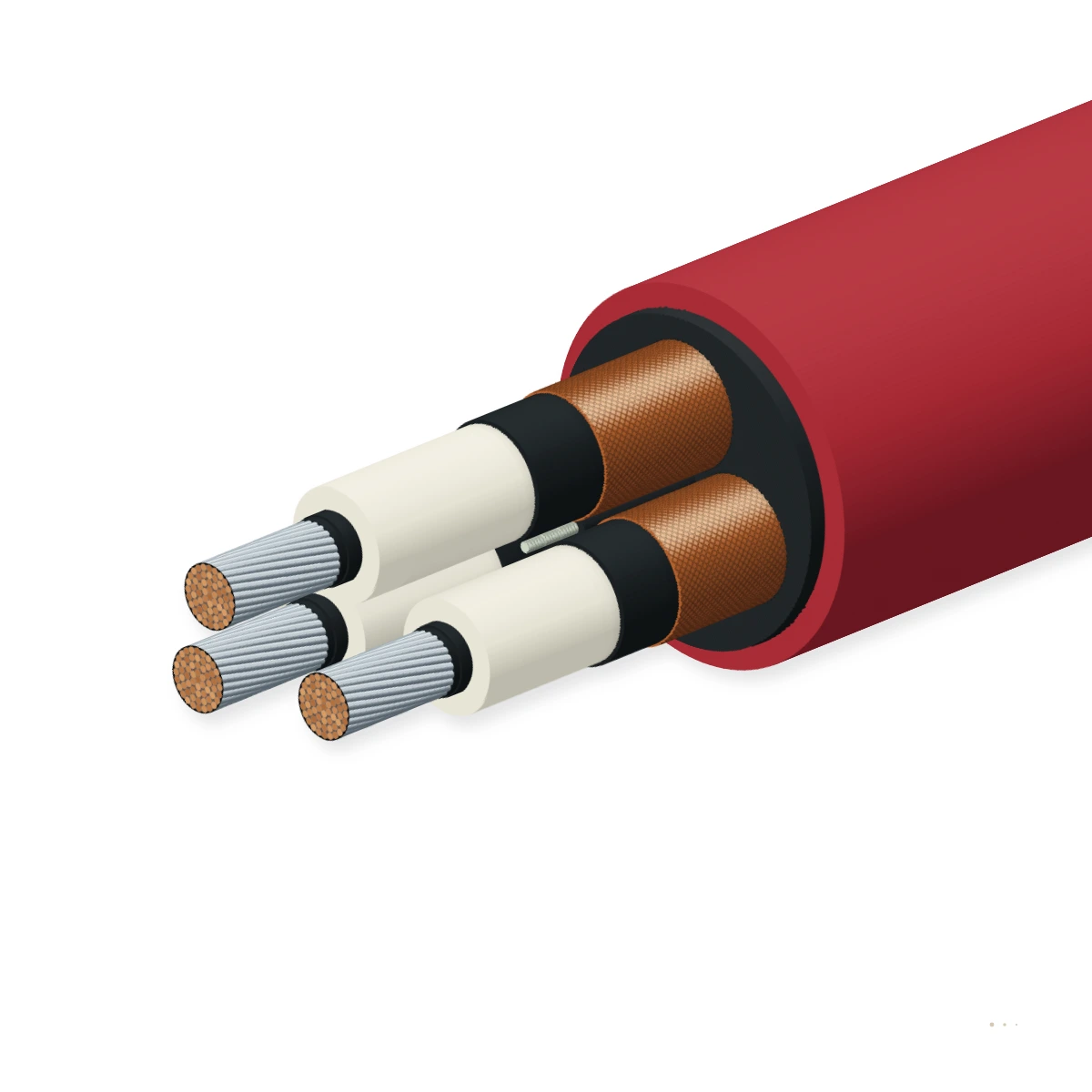

F-E Distribution (Red)

3 phase + 3 individual braided earths · GM1b/5GM3 sheaths · fixed/semi-flexible mine distribution

-ATB Reeling (Yellow)

Adds polyester anti-torsion braid between abrasion-resistant sheaths for trailing & drum reeling

-GCC Ground-Check (Yellow)

3 phase + 2 braided earths + 1 × 10 mm² ground-check pilot + anti-torsion braid (1.8/3–12/20 kV)

Submersible 300 m (Black)

Waterproof EPR inner + waterproof CM outer sheath for permanent immersion in salt/brackish water to 300 m

Types in this range

Red sheath · 3+3 · 3.6/6–12/20 kV(N)TSCGECEWÖU (F-E)

3 phase cores + 3 individual copper braid screens · GM1b inner / 5GM3 red outer sheath

Fixed and semi-flexible MV energy distribution in mines and alongside conveyors

Datasheet
Yellow sheath · 3+3 + ATB · 3.6/6–12/20 kV(N)TSCGECEWÖU-ATB

3 phase cores + 3 copper braid screens · polyester anti-torsion braid between sheaths

Trailing and drum reeling on draglines, mining shovels, dredgers and drills

Datasheet
Yellow sheath · 3+2+1 + ATB · 1.8/3–12/20 kV(N)TSCGECEWÖU-GCC

3 phase cores + 2 copper earths + 1 × 10 mm² ground-check pilot · anti-torsion braid

Reeling and trailing mining machinery requiring continuous earth-check pilot monitoring

Datasheet
Black CM sheath · 300 m · 3.6/6–12/20 kV(N)TSCGECEWÖU Submersible

3 phase cores + 3 copper braid screens · waterproof EPR inner & waterproof CM outer sheath

Permanent immersion up to 300 m in salty/brackish water for pumps, dredgers and floating docks

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
3.6/6, 6/10, 8.7/15, 12/20 kV (1.8/3 kV on -GCC)
AC test voltage
6 kV (1.8/3) · 11 kV (3.6/6) · 17 kV (6/10) · 24 kV (8.7/15) · 29 kV (12/20)
Phase screening & earth
Individual copper wire braid over each phase core
Ground-check pilot (-GCC)
1 × 10 mm² copper ground-check conductor (3+2+1 layout)
Current rating
DIN VDE 0298-4 (30 °C floor, free air & 1–7 reel layers)

Thermal

Ambient temperature, fixed
−40 to +80 °C (conductor +90 °C)
Ambient temperature, flexing
−25 to +80 °C (conductor +90 °C)
Max. conductor temperature
+90 °C
Short-circuit temperature
+250 °C

Mechanical

Min. bending radius, fixed
6 × OD
Min. bending radius, flexing
10 × OD (12 × OD reeling)
Max. tensile load
15 N/mm² of total phase cross-section
Anti-torsion reinforcement
Polyester braid between inner & outer sheaths (-ATB & -GCC)

Resistance

Flame retardance
IEC/EN 60332-1-2
Submersible rating (Submersible variant)
Permanent immersion up to 300 m in salt/brackish water (≤ +40 °C)
Oil, ozone & abrasion
Oil-, ozone-, UV- and abrasion-resistant 5GM3/5GM5/CM rubber

Reference standards

Cable type
DIN VDE 0250-813 & HD 22.16
Conductor
IEC/EN 60228 Class 5 / DIN VDE 0295
Compounds
3GI3 EPR insulation · GM1b/EPR inner · 5GM3/5GM5/CM outer

Identification

Sheath colour by variant
Red (F-E distribution) · Yellow (-ATB & -GCC) · Black (Submersible)
Core arrangement
3 screened phase cores around rubber/polyester central support
Customs tariff (HS)
8544.60

Sizes

111 sizes across 4 duty variants

Filter by construction variant (F-E Distribution, -ATB Anti-Torsion Reeling, -GCC Ground-Check, or 300 m Submersible) and voltage grade.

Sizes & dimensions
Variant · grade · sizeU0/U
kV
Phase + Earth (+ GC)
mm²
Cond. Ø
mm
Outer Ø min
mm
Outer Ø max
mm
Weight ≈
kg/km
Min. bend R
mm
Max. pull
N
Enquiry
F-E Distribution · 3.6/6–12/20 kV
(N)TSCGECEWÖU 3.6/6 kV · 3 × 25 mm²3.6/63 × 25 + 3 × 25/3E6.843.945.62,8702741,125
(N)TSCGECEWÖU 3.6/6 kV · 3 × 35 mm²3.6/63 × 35 + 3 × 25/3E7.845.447.13,2302831,575
(N)TSCGECEWÖU 3.6/6 kV · 3 × 50 mm²3.6/63 × 50 + 3 × 25/3E9.448.550.33,8603022,250
(N)TSCGECEWÖU 3.6/6 kV · 3 × 70 mm²3.6/63 × 70 + 3 × 35/3E11.254.155.95,0103353,150
(N)TSCGECEWÖU 3.6/6 kV · 3 × 95 mm²3.6/63 × 95 + 3 × 50/3E12.758.460.26,1503614,275
(N)TSCGECEWÖU 3.6/6 kV · 3 × 120 mm²3.6/63 × 120 + 3 × 70/3E14.462.564.87,4503895,400
(N)TSCGECEWÖU 3.6/6 kV · 3 × 150 mm²3.6/63 × 150 + 3 × 70/3E16.368.971.38,9804286,750
(N)TSCGECEWÖU 3.6/6 kV · 3 × 185 mm²3.6/63 × 185 + 3 × 90/3E17.671.974.310,2904468,325
(N)TSCGECEWÖU 6/10 kV · 3 × 25 mm²6/103 × 25 + 3 × 25/3E6.843.946.22,9102771,125
(N)TSCGECEWÖU 6/10 kV · 3 × 35 mm²6/103 × 35 + 3 × 25/3E7.845.447.73,2702861,575
(N)TSCGECEWÖU 6/10 kV · 3 × 50 mm²6/103 × 50 + 3 × 25/3E9.448.550.93,9003052,250
(N)TSCGECEWÖU 6/10 kV · 3 × 70 mm²6/103 × 70 + 3 × 35/3E11.254.156.55,0503393,150
(N)TSCGECEWÖU 6/10 kV · 3 × 95 mm²6/103 × 95 + 3 × 50/3E12.758.460.86,1903654,275
(N)TSCGECEWÖU 6/10 kV · 3 × 120 mm²6/103 × 120 + 3 × 70/3E14.462.565.57,4903935,400
(N)TSCGECEWÖU 6/10 kV · 3 × 150 mm²6/103 × 150 + 3 × 70/3E16.368.972.09,0204326,750
(N)TSCGECEWÖU 6/10 kV · 3 × 185 mm²6/103 × 185 + 3 × 90/3E17.671.975.010,3304508,325
(N)TSCGECEWÖU 8.7/15 kV · 3 × 25 mm²8.7/153 × 25 + 3 × 25/3E6.847.349.03,2002941,125
(N)TSCGECEWÖU 8.7/15 kV · 3 × 35 mm²8.7/153 × 35 + 3 × 25/3E7.848.850.63,5703041,575
(N)TSCGECEWÖU 8.7/15 kV · 3 × 50 mm²8.7/153 × 50 + 3 × 25/3E9.453.755.54,4403332,250
(N)TSCGECEWÖU 8.7/15 kV · 3 × 70 mm²8.7/153 × 70 + 3 × 35/3E11.257.559.35,4103563,150
(N)TSCGECEWÖU 8.7/15 kV · 3 × 95 mm²8.7/153 × 95 + 3 × 50/3E12.760.863.16,4803794,275
(N)TSCGECEWÖU 8.7/15 kV · 3 × 120 mm²8.7/153 × 120 + 3 × 70/3E14.466.869.18,0604155,400
(N)TSCGECEWÖU 8.7/15 kV · 3 × 150 mm²8.7/153 × 150 + 3 × 70/3E16.371.573.99,3704436,750
(N)TSCGECEWÖU 12/20 kV · 3 × 25 mm²12/203 × 25 + 3 × 25/3E6.849.851.63,4503101,125
(N)TSCGECEWÖU 12/20 kV · 3 × 35 mm²12/203 × 35 + 3 × 25/3E7.851.353.13,8103191,575
(N)TSCGECEWÖU 12/20 kV · 3 × 50 mm²12/203 × 50 + 3 × 25/3E9.456.358.14,7403492,250
(N)TSCGECEWÖU 12/20 kV · 3 × 70 mm²12/203 × 70 + 3 × 35/3E11.260.161.95,7303713,150
(N)TSCGECEWÖU 12/20 kV · 3 × 95 mm²12/203 × 95 + 3 × 50/3E12.763.365.66,8103944,275
(N)TSCGECEWÖU 12/20 kV · 3 × 120 mm²12/203 × 120 + 3 × 70/3E14.469.371.78,4204305,400
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 1,000 mm is below 1,018 mmUse a larger drum core or a smaller cable size
45 m/min ≤ 60 m/minWithin the rated travel speed
Minimum bending radius
509 mm
Min. drum core diameter
≈ 1,018 mm
Cable weight on drum
780.0 kg
Outer diameter
50.9 mm
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage proof test6 kV (1.8/3) · 11 kV (3.6/6) · 17 kV (6/10) · 24 kV (8.7/15) · 29 kV (12/20)Every manufactured length
Conductor DC resistance & individual screen continuityIEC/EN 60228 Class 5 · 100 % phase braid & GC continuityEvery length
Sample tests
Flame propagation testIEC/EN 60332-1-2 vertical flame testPer production batch
Hydrostatic water immersion (Submersible variant)Permanent immersion up to 300 m depth in salt/brackish water at ≤ +40 °CSubmersible variant qualification (HD 22.16)

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)TSCGECEWÖU 3x50+3x25/3E 6/10 kV DIN VDE 0250-813 · [year] · [metre mark]
Delivery form
Export timber or steel drums, cut-to-length
Packaging
Heat-treated lagged seaworthy drums with sealed ends

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does (N)TSCGECEWÖU differ from standard NTSCGEWÖU?
The extra 'CE' in (N)TSCGECEWÖU denotes an individual metallic copper wire braid screen ('C') over each EPR-insulated phase core ('E'), in addition to the inner and outer semi-conductive rubber field-control layers. Whereas NTSCGEWÖU places three unscreened split earth conductors in the interstices between the semi-conductive cores, (N)TSCGECEWÖU surrounds every phase core with its own concentric copper wire braid that acts simultaneously as radial electrical screen and protective-earth fault path.
Which of the four (N)TSCGECEWÖU variants should I specify for my application?
Choose by mechanical movement and environment: (1) Base F-E (red sheath, 3+3) is designed for fixed or semi-flexible mine distribution alongside conveyors and switchgear; (2) -ATB (yellow sheath, 3+3) adds a vulcanised polyester anti-torsion braid between sheaths for trailing and drum reeling on draglines, shovels and drills; (3) -GCC (yellow sheath, 3+2+1) adds a 10 mm² copper ground-check conductor for pilot earth-continuity relays; and (4) Submersible (black waterproof CM sheath) is built for permanent immersion up to 300 m in salty or brackish water.
Does the standard 3+3 (N)TSCGECEWÖU include a ground-check pilot conductor?
No. Standard F-E, -ATB and Submersible (N)TSCGECEWÖU cables have a 3+3 geometry (three phase cores, each surrounded by its own copper wire braid protective-earth screen, laid up around a central rubber/polyester filler) without an auxiliary pilot core. When your mining switchgear requires a dedicated pilot loop for earth-continuity monitoring, specify the (N)TSCGECEWÖU-GCC variant, which provides a 3+2+1 configuration with a 10 mm² copper ground-check conductor.
How much must current capacity be derated when reeling (N)TSCGECEWÖU-ATB or -GCC on a drum?
When wound in multiple layers on a cylindrical drum, heat dissipation drops sharply. Based on the 30 °C floor ampacity, apply the standard VDE multi-layer derating factors: 0.80 for 1 wound layer, 0.61 for 2 layers, 0.49 for 3 layers, 0.42 for 4 layers, 0.38 for 5 layers, 0.27 for 6 layers, and 0.22 for 7 layers. For example, a 50 mm² cable rated at 202 A on the floor (3.6/6–6/10 kV) carries 162 A with 1 layer on the drum and 99 A with 3 layers.
How should the individual copper wire braid screens be terminated at medium-voltage switchgear?
At each cable end, the copper wire braid around each phase core must be unbraided, gathered and bonded to the earth terminal using a compatible medium-voltage stress-control termination kit. Never cut off the copper braid or treat it as mechanical armour — it carries capacitive charging currents and phase-to-earth fault currents, and preserves the smooth transition over the semi-conductive insulation screen.
