DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-8133.6/6 to 12/20 kVCCW Double Screen & SWA

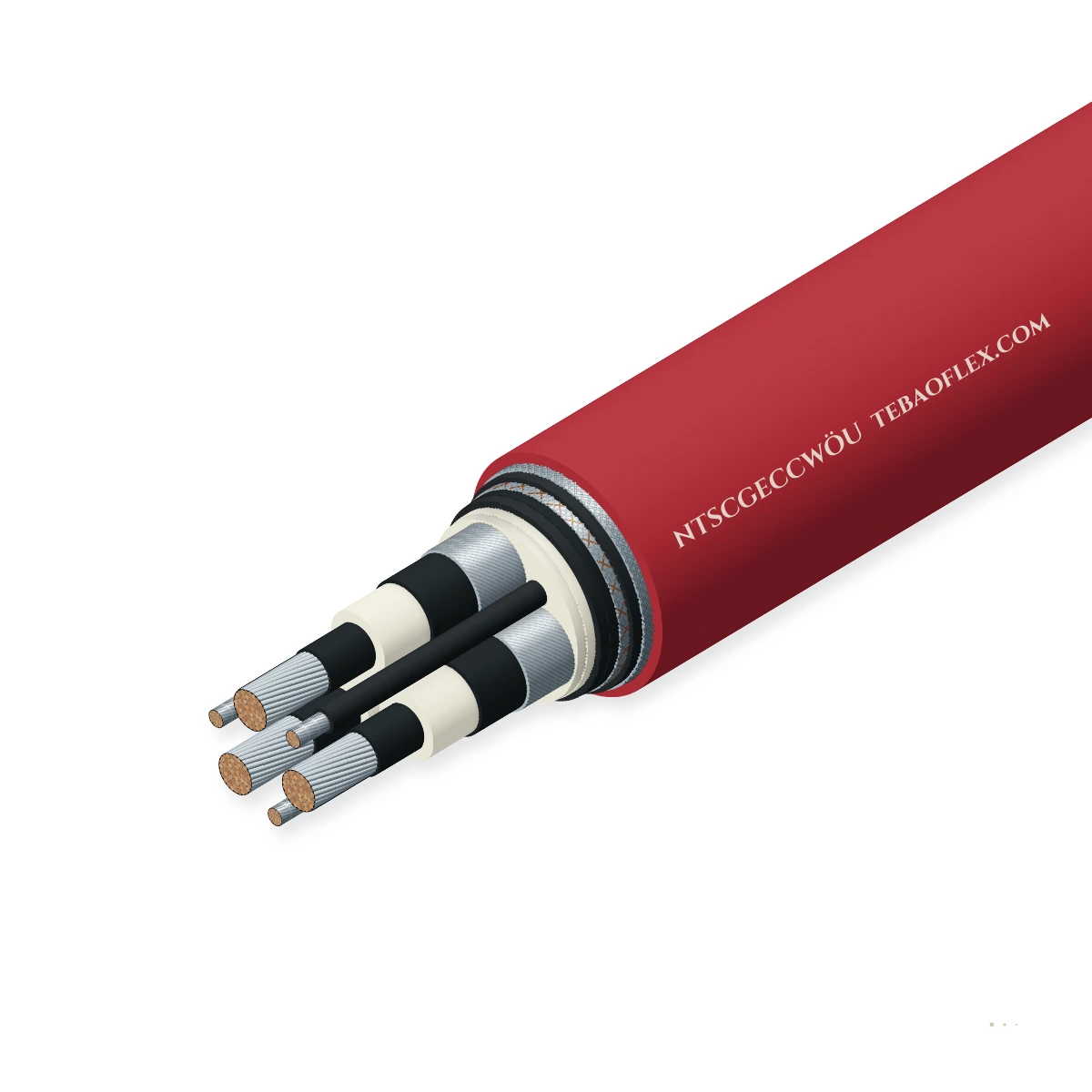

NTSCGECCWÖU Steel-Wire Armoured MV Trailing CableDIN VDE 0250-813 3.6/6 kV to 12/20 kV double-screened & wave-armoured (CCW) MV trailing

NTSCGECCWÖU is a medium-voltage (3.6/6 kV, 6/10 kV, and 12/20 kV) steel-wire armoured mining trailing cable per DIN VDE 0250-813 featuring individual CGE phase screens plus an overall wave-laid copper/galvanized-steel armour screen (CCW) and a 5GM5

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
NTSCGECCWÖU 3×70+35CW 3.6/6 kV
Outer Ø ≈
57.2 mm
Copper weight
2,530 kg/km
Total weight ≈
5,490 kg/km
Min. bend R (fixed)
343 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6–12/20 kV
Umax 7.2 kV / 12 kV / 24 kV
Screen & armour
CGE + CCW
Core screen + wave Cu/steel armour
Conductor
Class 5 Tinned
DIN EN 60228 tinned copper
Insulation
3GI3 MV EPR
Triple-extruded +90 °C EPR
Outer sheath
5GM5 PCP
Heavy-duty flame/oil rubber
Min. bend radius
8×D / 12×D
Fixed 8×D · trailing 12×D

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is NTSCGECCWÖU right for your machine?

Designed for heavy open-cast and underground medium-voltage mobile substations, tunnel boring feeders, and quarry excavators requiring both individual phase screening and overall wave-laid steel

Trailing & towing

Suitable

CCW wave-laid steel/copper wire armour resists rock crushing and crawler-track pinch forces.

Mine roadway & tunnel wall hangers

Suitable

Dual C + CW screens guarantee immediate earth-fault relay clearance in wet mine galleries.

TBM gantry & advancing tunnel reel

Suitable

High-voltage feeder security for main tunnel boring machines and shaft power drops.

Fixed installation

Suitable

Suitable for semi-fixed open-pit bench feeders and inclined drift installations.

Motorised monospiral reel

With conditions

For high-speed motorized crane/reclaimer drums specify unarmoured NTSCGEWÖU.

NTSCGEWÖU 3.6/6–18/30 kV
Typical machinesOpen-cast & underground miningMedium-voltage mobile substationsTunnel boring machine (TBM) feedersQuarry crushers & draglines

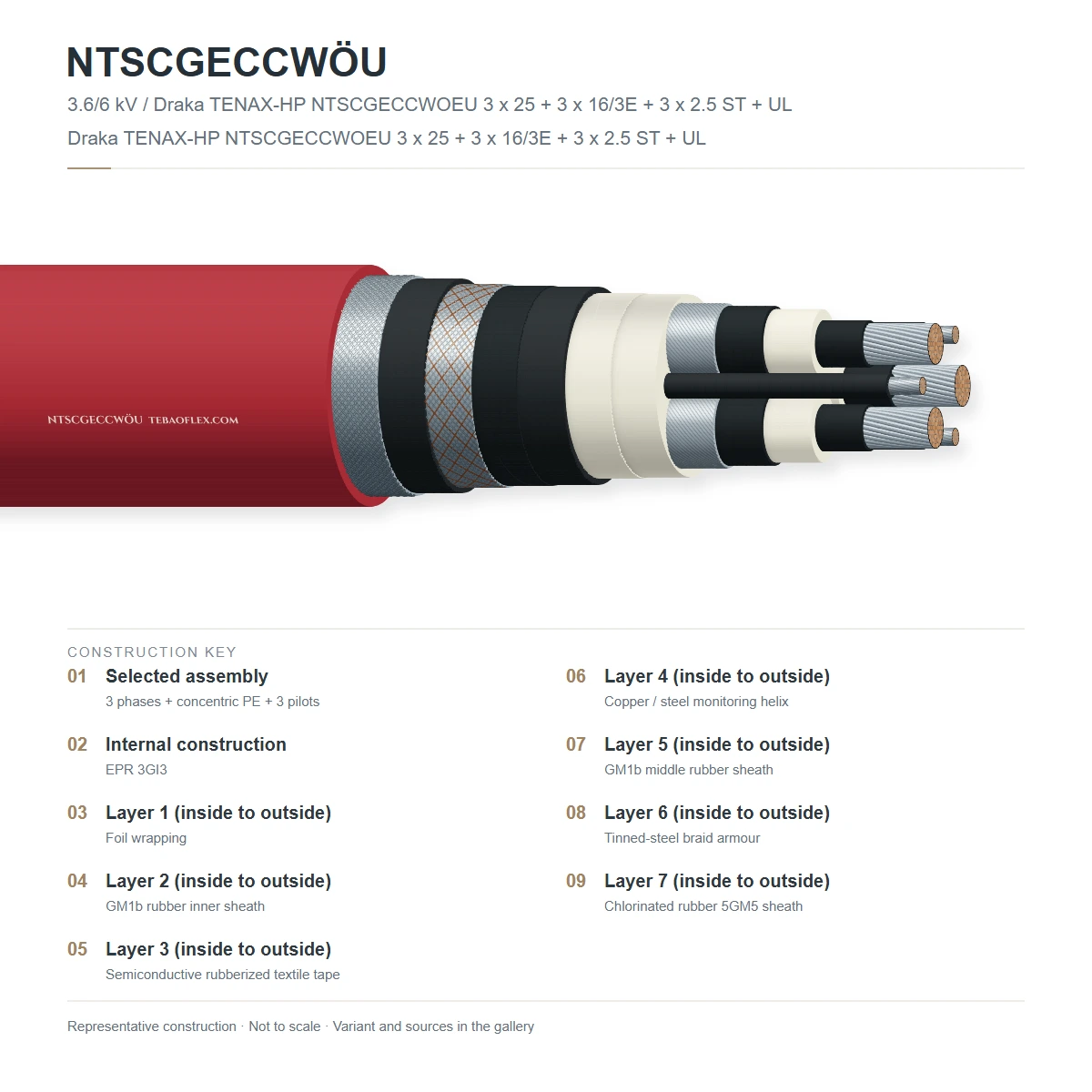

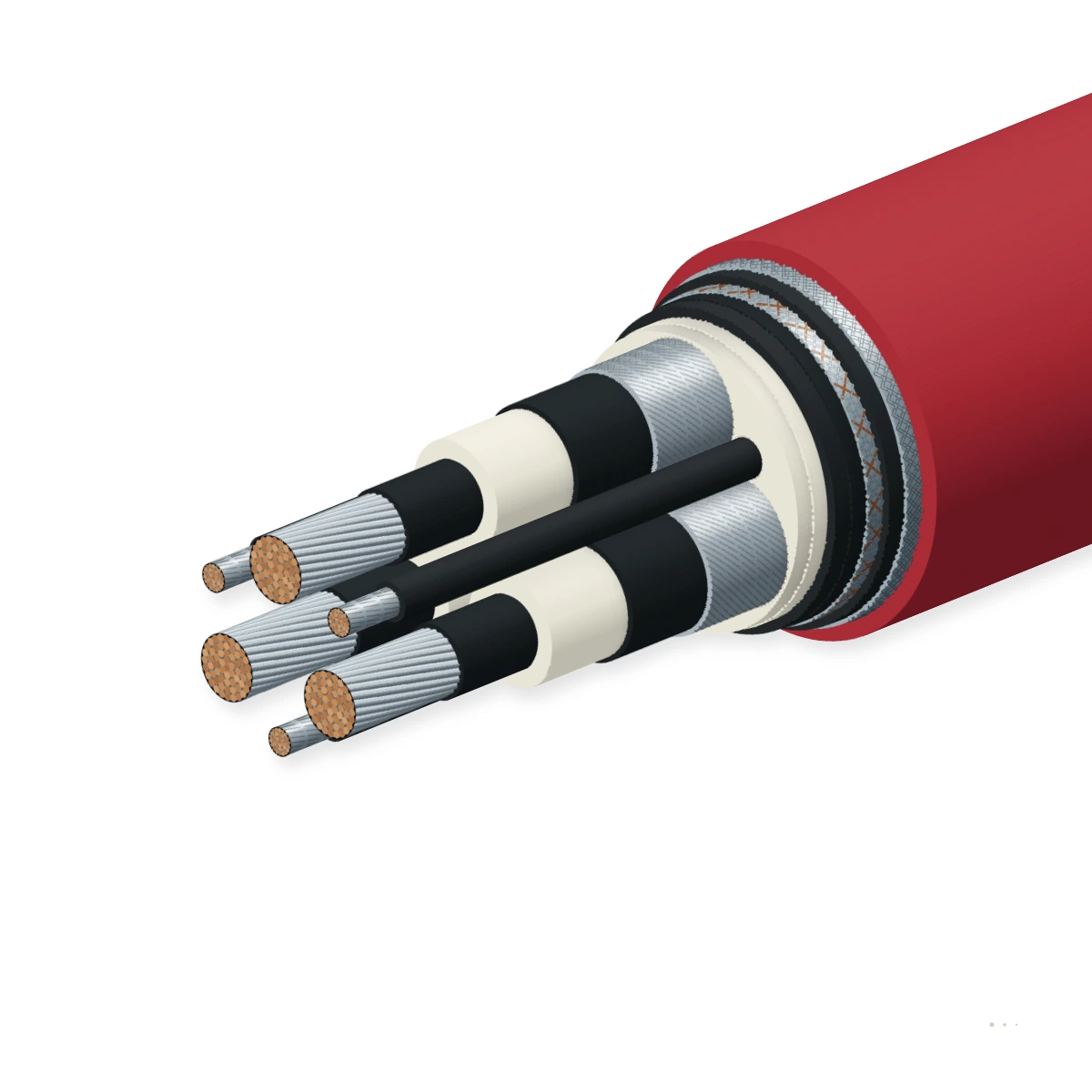

Construction

Layer by layer

Three Class 5 tinned copper phase cores with triple-extruded 3GI3 EPR and CGE copper/semicon screens, interstitial earth/pilot core, inner

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase conductorsFinely stranded tinned copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Inner & outer semicon (GE)Triple-extruded semi-conductive elastomeric stress control layersDIN VDE 0250-813
3MV EPR insulation (3GI3)Cross-linked ethylene propylene rubber compound 3GI3DIN VDE 0207-20
4Individual phase screen (C)Tinned copper wire/braid screen over each phase coreDIN VDE 0250-813
5Inner sheathHeavy-duty elastomer inner sheath compound GM1b / 5GM3DIN VDE 0250-813
6Wave-laid Cu/steel armour (CW)Corrugated wave-laid galvanized steel and tinned copper wires with counter-tapeDIN VDE 0250-813
7Outer sheath (5GM5)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

NTSCGECCWÖU 3.6/6 kV

3.6/6 kV (Umax 7.2 kV) double-screened & CW armoured MV trailing cable.

NTSCGECCWÖU 6/10 kV & 12/20 kV

6/10 kV and 12/20 kV MV trailing feeder for open-pit and deep mine distribution.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
3.6/6 kV · 6/10 kV · 12/20 kV
AC routine test voltage
11 kV (3.6/6 kV) · 17 kV (6/10 kV) · 29 kV
Partial discharge level
≤ 20 pC at 2 U0
Dual metallic screening
Individual phase screen (C) + overall wave

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (trailing)
-25 °C to +60 °C
Ambient temperature (fixed)
-40 °C to +80 °C

Mechanical

Armour system
Wave-laid galvanized steel + copper wires
Min. bending radius (fixed
8 × D fixed · 12 × D trailing
Max. tensile load
20 N/mm² of copper cross-section

Resistance

Oil & chemical resistance
DIN EN 60811-404 (5GM5 compound)
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Weather & UV resistance
Suitable for permanent outdoor open-cast

Reference standards

Primary specification
DIN VDE 0250-813
Conductor standard
DIN EN 60228 Class 5 tinned copper
Compound standard
DIN VDE 0207-20 (3GI3) & 0207-21 (5GM5)

Identification

Core identification
Numbered phase cores 1, 2, 3 +
Outer sheath colour
Red or Yellow with vulcanised legend

Sizes

10 standard configurations (NTSCGECCWÖU)

Nominal dimensions, copper weights and electrical parameters for NTSCGECCWÖU per DIN VDE 0250-813.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard NTSCGECCWÖU configurations
NTSCGECCWÖU 3×25+25CW 3.6/6 kV3×25 + 25CW (3.6/6 kV)2545.01,1203,180270
NTSCGECCWÖU 3×35+25CW 3.6/6 kV3×35 + 25CW (3.6/6 kV)3548.21,4103,690289
NTSCGECCWÖU 3×50+25CW 3.6/6 kV3×50 + 25CW (3.6/6 kV)5052.51,8504,480315
NTSCGECCWÖU 3×70+35CW 3.6/6 kV3×70 + 35CW (3.6/6 kV)7057.22,5305,490343
NTSCGECCWÖU 3×95+50CW 3.6/6 kV3×95 + 50CW (3.6/6 kV)9562.53,4506,810375
NTSCGECCWÖU 3×120+70CW 3.6/6 kV3×120 + 70CW (3.6/6 kV)12067.24,3908,150403
NTSCGECCWÖU 3×35+25CW 6/10 kV3×35 + 25CW (6/10 kV)3551.51,4454,120309
NTSCGECCWÖU 3×50+25CW 6/10 kV3×50 + 25CW (6/10 kV)5055.81,8854,940335
NTSCGECCWÖU 3×70+35CW 6/10 kV3×70 + 35CW (6/10 kV)7060.52,5706,010363
NTSCGECCWÖU 3×50+25CW 12/20 kV3×50 + 25CW (12/20 kV)5063.01,9506,120378
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-813.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
MV AC voltage withstand11 kV (3.6/6 kV), 17 kV (6/10 kV), or 29 kV (12/20 kV) / 5 min100 % of drums
Partial discharge test≤ 20 pC at 2 U0 per DIN VDE 0250-813100 % of drums
Sample tests
CCW armour impact & bend testDIN VDE 0250-813 mechanical compliancePer production batch
Flame & oil resistanceDIN EN 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813DIN EN 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NTSCGECCWÖU 3.6/6–12/20 kV VDE
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNTSCGECCWÖU Steel-Wire Armoured MV Trailing Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXNTSCGECCWÖU spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the double 'CCW' designation mean in NTSCGECCWÖU?
The first 'C' indicates individual concentric copper screening over each triple-extruded phase core (CGE), while the second 'CW' denotes an overall wave-laid concentric screen and galvanized steel wire armour applied over the inner sheath for heavy mechanical crush and cut protection. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How does NTSCGECCWÖU differ from NTSKCGECWÖU?
NTSCGECCWÖU features dual metallic screens (individual phase screens C plus overall wave armour/screen CW) without the dedicated coal-cutter 'K' control bundle, making it the preferred heavy-duty 3.6/6 kV to 12/20 kV trailing feeder for mobile substations, open-pit excavators, and TBM power lines. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Why are the outer armour wires applied in a wave-form (CW) rather than a straight helix?
A conventional helical steel wire armour locks up or birdcages when a trailing cable is bent repeatedly across uneven mine benches. The sinusoidal wave-laid (CW) wire geometry allows individual armour wires to shift elastically during bending without kinking. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
What voltage classes are available for NTSCGECCWÖU?
We manufacture NTSCGECCWÖU in 3.6/6 kV (Umax 7.2 kV), 6/10 kV (Umax 12 kV), 8.7/15 kV (Umax 17.5 kV), and 12/20 kV (Umax 24 kV) to match standard European and international mine distribution voltages. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
