Medium-voltage rubber reeling cables (DIN VDE 0250-813)6/10–12/20 kV(N)TSKCGEWOEU-FO240 m/min · 20 N/mm²

WXG / WXG-D Extra-Heavy-Duty MV Reeling Cable (6/10–12/20 kV)Bright-red 3-layer sandwich PCP MV reeling cable up to 240 m/min with optional 6/12/18 FO

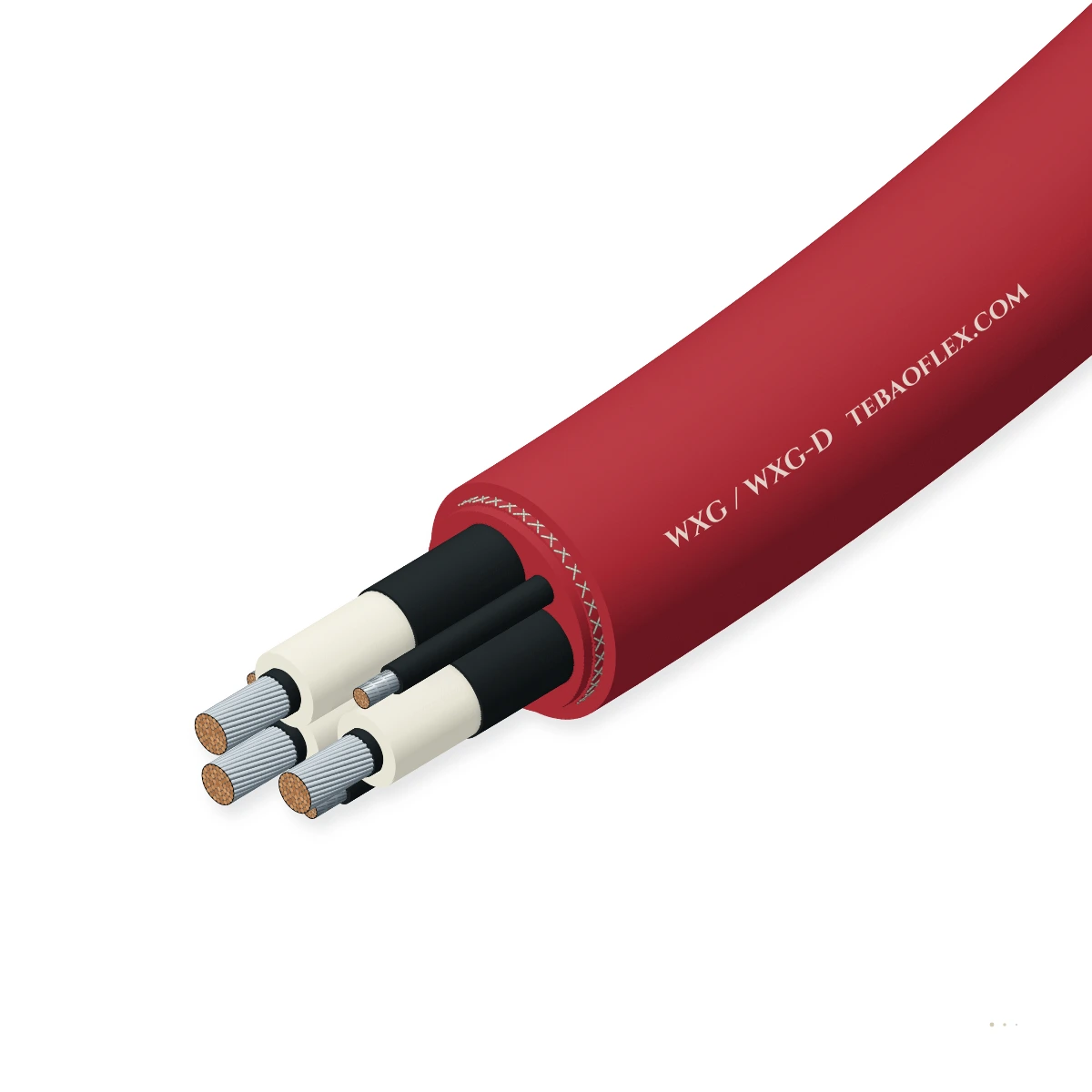

Extra-heavy-duty MV reeling cable (6/10–12/20 kV) per DIN VDE 0250-813 (R-(N)TSCGEWOEU / (N)TSKCGEWOEU-FO) with 7×D short-lay tinned copper cores, cold-strip EPR/NBR field control, 5GM3 inner sheath, anti-torsion braid, and red 5GM5 PCP sheath up to 240 m/min.

Anti-torsion braid

EMC screen

Oil-resistant

Flame-retardant

Voltage & configuration

Order designation: WXG 6/10 kV · 3 × 50 + 3 G 25/3
Outer Ø max: 47.4 mm
Weight ≈: 3,480 kg/km
Permitted pull: 3,000 N
Reel R min (12×D): 569 mm

Check against my drum All sizes (42)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 6/10–12/20 kV
Reeling speed: 240 m/min
Min. bend radius: 12 × D
Flexing temp.: −35…+80 °C
Tensile rating: 20 N/mm²
Configurations: 42 configs

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is WXG / WXG-D R-(N)TSCGEWOEU right for your machine?

WXG and WXG-D are the flagship extra-heavy-duty medium-voltage PCP reeling cables for high-speed automated container cranes (up to 240 m/min, > 240 m/min on request), multi-sheave deflection assemblies, ship unloaders, stacker/reclaimers, and surface mining equipment where maximum equipment availability is critical.

Motorised monospiral reel

Suitable

Primary duty: high-speed motorized horizontal crane reels up to 240 m/min (> 240 m/min on request) under continuous high dynamic loads.

Cylindrical / multi-layer drum

Suitable

Cylindrical and monospiral MV reeling drums (≥ 12 × D on reel, ≥ 15 × D at deflection pulley, ≥ 20 × D S-type directional changes).

Festoon & line chain

Suitable

Specifically engineered with 7 × D short core lay and central rubber cross K to operate through multiple diversion roller assemblies.

Trailing & towing

Suitable

Submersible 5GM3 EPR inner sheath and double bright-red 5GM5 PCP outer sheaths with vulcanized polyester braid withstand ±25 °/m torsion.

Vertical / spreader reel

Suitable

High-resilience 3-sheath sandwich construction and 20 N/mm² tensile capacity (up to 9,000 N) support demanding multi-sheave reeling.

Energy chain / drag chain

Not suitable

Medium-voltage anti-torsion reeling construction is not designed for tight horizontal drag chains.

Use (N)GRDGCGÖU Chain

Typical machinesHigh-Speed STS & RMG Container CranesShip Unloaders & Automated Port TerminalsStacker / Reclaimers & Bulk HandlingHeavy Open-Pit Mining Excavators

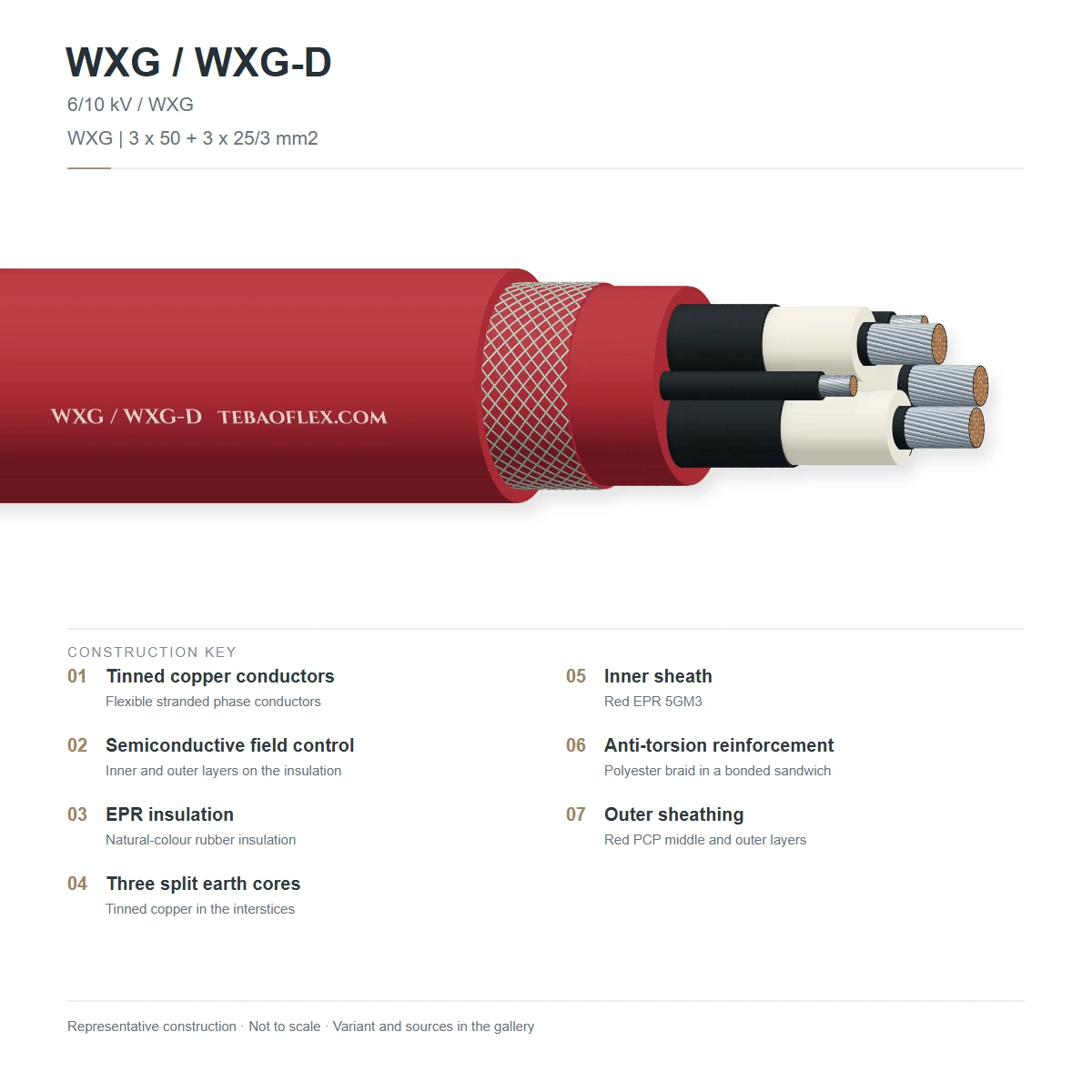

Construction

Layer by layer

Shown: WXG / WXG-D R-(N)TSCGEWOEU / (N)TSKCGEWOEU-FO extra-heavy-duty medium-voltage reeling cable with extra-fine tinned copper conductors, 3GI3 HV-EPR insulation with semiconducting EPR inner screen and cold-strippable semiconducting NBR outer screen, ultra-short 7 × D core lay around a central rubber cross (K), split interstitial earths (and 6/12/18 FO unit in WXG-D), submersible red 5GM3 EPR inner sheath, vulcanized polyester anti-torsion braid, and bright-red 5GM5 PCP middle and outer sheaths.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Extra-flexible tinned copper conductor	Finely stranded tin-plated electrolytic copper exceeding DIN VDE 0295 / IEC 60228 Class 5Three phase conductors (25–150 mm²) stranded with ultra-short 7 × D core lay pitch
2	Semiconductive EPR inner & cold-strip NBR outer screens (CGE)	Inner semiconducting EPR conductor screen + outer semiconducting NBR insulation screen (cold-strippable without heat or special tools)Sandwich dielectric process ensures void-free HV field control across 6/10, 8.7/15, and 12/20 kV
3	High-voltage 3GI3 EPR core insulation	High-voltage ethylene-propylene rubber (EPR, min. 3GI3 per DIN VDE 0207-20)Black outer screen with white printed phase numbers (1, 2, 3)
4	Central rubber cross (K), split earth & optical unit (WXG-D)	Profiled rubber cross (K) in cable center; earth split in 3 interstices (WXG: 3 G S/3) or halved in 2 interstices + 6-FO core (WXG-D: 2 × S/2 + 6 FO; 12/18+ FO on request)Cradles cores under multi-roller S-bends and high reel tension up to 9,000 N
5	Submersible red 5GM3 EPR inner sheath	Inner sheath of red submersible EPR compound (type 5GM3) extruded over the core bundleLocks short-lay 7 × D core geometry and provides water/moisture barrier
6	Vulcanized polyester anti-torsion braid	High-tenacity polyester reinforcing braid vulcanized between inner 5GM3 EPR and outer 5GM5 PCP sheaths in a sandwich structureLimits operational torsion to ±25 °/m and supports 20 N/mm² reeling tension at 240 m/min
7	Middle & outer sheaths (5GM5 Bright Red PCP)	Abrasion- and tear-resistant polychloroprene (PCP, type 5GM5) middle and outer sheaths, bright redUnlimited atmospheric corrosion resistance; oil, UV, ozone & flame retardant (IEC 60332-1-2)

WXG R-(N)TSCGEWOEU · 6/10, 8.7/15 & 12/20 kV (21 configs)

3 × 25 + 3 G 25/3 to 3 × 150 + 3 G 70/3 mm² across 6/10 kV (7), 8.7/15 kV (7), and 12/20 kV (7) with 3-part interstitial earth

WXG-D (N)TSKCGEWOEU-FO · 6/10, 8.7/15 & 12/20 kV (21 configs)

3 × 25 + 2 × 25/2 + 6 FO to 3 × 150 + 2 × 70/2 + 6 FO across 6/10 kV (7), 8.7/15 kV (7), and 12/20 kV (7) with 6 optical fibres (12/18+ FO on request)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 6.0/10.0 kV, 8.7/15.0 kV, and 12.0/20.0 kV
Max. operating voltage AC: 7.0/12.0 kV (6/10 kV) · 10.2/18.0 kV (8.7/15 kV) · 14.0/24.0 kV (12/20 kV)
Max. operating voltage DC: 9.0/18.0 kV (6/10 kV) · 13.0/26.0 kV (8.7/15 kV) · 18.0/36.0 kV (12/20 kV)
AC test voltage (DIN VDE 0250-813): 17 kV (6/10 kV) · 24 kV (8.7/15 kV) · 29 kV (12/20 kV) per DIN VDE 0250-813
Current rating (DIN VDE 0298-4): According to DIN VDE 0298-4 at 30 °C ambient (apply reel layer derating factors: 0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers)

Thermal

Temperature, flexing: −35 °C to +80 °C (−25 °C to +80 °C in standard table; down to −35 °C per overview specification)
Temperature, fixed installation: −50 °C to +80 °C (−40 °C to +80 °C in standard table)
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C per DIN VDE 0250-813 (200 °C conservative catalog rating)

Mechanical

Max. travel speed: Up to 240 m/min (> 240 m/min on request) through multiple diversion roller assemblies
Max. tensile load (dynamic): 20 N/mm² of phase conductor cross-section during dynamic reeling (1,500–9,000 N across 25–150 mm²)
Min. bending radius, moving: 12 × D on the reel · 15 × D at deflection pulley · 20 × D minimum distance at S-type directional changes
Permissible torsional stress: ±25 °/m permissible operational torsion

Optical

Fibre count & types (WXG-D): WXG-D: 6 optical fibres in standard tables (12, 18 or more fibres on request) in E9/125 SM, 50/125 MM, or 62.5/125 MM per DIN VDE 0888 / IEC 9314-3
Optical attenuation (850 / 1300 / 1550 nm): E9/125 SM: 0.4 dB/km (1300 nm), 0.3 dB/km (1550 nm) · 50/125 MM: 2.8 dB/km (850 nm), 0.8 dB/km (1300 nm) · 62.5/125 MM: 3.3 dB/km (850 nm), 0.9 dB/km (1300 nm)

Resistance

Oil, UV, ozone & water resistance: Unlimited resistance to atmospheric corrosion; oil, ozone, UV, and humidity resistant; suitable for limited use in water (5GM3/5GM5); CFC-free, LBS-free / silicone-free
Flame retardance: Flame-retardant and self-extinguishing per IEC 60332-1-2 / DIN VDE 0482-265-2-1

Reference standards

Cable standard & designation: R-(N)TSCGEWOEU / (N)TSKCGEWOEU-FO adapted to DIN VDE 0250-813 (VDE Reg.-No. 9809)
Conductor & lay standard: Finely stranded tin-plated electrolytic copper exceeding DIN VDE 0295 / IEC 60228 Class 5; short core lay 7 × D
Core, earth & centre cradle coding: Black core insulation with white numbers; earth split into 3 interstices (WXG) or halved in 2 interstices + 6-FO unit (WXG-D) around central rubber cross K

Sizes

42 extra-heavy-duty MV configurations (21 WXG Power & 21 WXG-D Power + 6 FO)

Complete dimensional and mechanical dataset across 6/10 kV, 8.7/15 kV, and 12/20 kV from 3 × 25 mm² up to 3 × 150 mm². Reel bend radius r_reel = 12 × D_max (15 × D_max at deflection pulley).

Dimensions & mechanical loads (42 configs)
Designation	Configuration	Outer Ø min	Outer Ø max	Cu number	Weight ≈	Permitted pull	Reel R min (12×D)
WXG Power · 6/10 kV (7 sizes)
WXG 6/10 kV · 3 × 25 + 3 G 25/3	3 × 25 + 3 G 25/3	38.4	41.4	1,008	2,380	1,500	497
WXG 6/10 kV · 3 × 35 + 3 G 25/3	3 × 35 + 3 G 25/3	40.9	43.9	1,411	2,880	2,100	527
WXG 6/10 kV · 3 × 50 + 3 G 25/3	3 × 50 + 3 G 25/3	44.4	47.4	1,764	3,480	3,000	569
WXG 6/10 kV · 3 × 70 + 3 G 35/3	3 × 70 + 3 G 35/3	49.4	53.4	2,621	4,590	4,200	641
WXG 6/10 kV · 3 × 95 + 3 G 50/3	3 × 95 + 3 G 50/3	53.7	57.7	3,377	5,660	5,700	692
WXG 6/10 kV · 3 × 120 + 3 G 70/3	3 × 120 + 3 G 70/3	57.2	61.2	4,334	6,830	7,200	734
WXG 6/10 kV · 3 × 150 + 3 G 70/3	3 × 150 + 3 G 70/3	62.5	66.5	5,242	8,180	9,000	798
WXG Power · 8.7/15 kV (7 sizes)
WXG 8.7/15 kV · 3 × 25 + 3 G 25/3	3 × 25 + 3 G 25/3	41.8	44.8	1,008	2,670	1,500	538
WXG 8.7/15 kV · 3 × 35 + 3 G 25/3	3 × 35 + 3 G 25/3	44.4	47.4	1,411	3,130	2,100	569
WXG 8.7/15 kV · 3 × 50 + 3 G 25/3	3 × 50 + 3 G 25/3	47.9	50.9	1,764	3,810	3,000	611
WXG 8.7/15 kV · 3 × 70 + 3 G 35/3	3 × 70 + 3 G 35/3	52.9	56.9	2,621	4,960	4,200	683
WXG 8.7/15 kV · 3 × 95 + 3 G 50/3	3 × 95 + 3 G 50/3	57.2	61.2	3,377	6,070	5,700	734
WXG 8.7/15 kV · 3 × 120 + 3 G 70/3	3 × 120 + 3 G 70/3	62.1	66.1	4,334	7,480	7,200	793
WXG 8.7/15 kV · 3 × 150 + 3 G 70/3	3 × 150 + 3 G 70/3	65.9	69.9	5,242	8,630	9,000	839
WXG Power · 12/20 kV (7 sizes)
WXG 12/20 kV · 3 × 25 + 3 G 25/3	3 × 25 + 3 G 25/3	44.8	47.8	1,008	2,940	1,500	574
WXG 12/20 kV · 3 × 35 + 3 G 25/3	3 × 35 + 3 G 25/3	47.4	50.4	1,411	3,420	2,100	605
WXG 12/20 kV · 3 × 50 + 3 G 25/3	3 × 50 + 3 G 25/3	51.8	55.8	1,764	4,300	3,000	670
WXG 12/20 kV · 3 × 70 + 3 G 35/3	3 × 70 + 3 G 35/3	55.9	59.9	2,621	5,300	4,200	719
WXG 12/20 kV · 3 × 95 + 3 G 50/3	3 × 95 + 3 G 50/3	61.9	65.6	3,377	6,660	5,700	787
WXG 12/20 kV · 3 × 120 + 3 G 70/3	3 × 120 + 3 G 70/3	65.1	69.1	4,334	7,800	7,200	829
WXG 12/20 kV · 3 × 150 + 3 G 70/3	3 × 150 + 3 G 70/3	69	73	5,242	9,060	9,000	876
WXG-D Power + 6 FO · 6/10 kV (7 sizes)
WXG-D 6/10 kV · 3 × 25 + 2 × 25/2 + 6 FO	3 × 25 + 2 × 25/2 + 6 FO	40.7	43.7	1,008	2,610	1,500	524
WXG-D 6/10 kV · 3 × 35 + 2 × 25/2 + 6 FO	3 × 35 + 2 × 25/2 + 6 FO	42.7	45.7	1,411	3,010	2,100	548
WXG-D 6/10 kV · 3 × 50 + 2 × 25/2 + 6 FO	3 × 50 + 2 × 25/2 + 6 FO	46.1	49.1	1,764	3,680	3,000	589
WXG-D 6/10 kV · 3 × 70 + 2 × 35/2 + 6 FO	3 × 70 + 2 × 35/2 + 6 FO	51.1	55.1	2,621	4,810	4,200	661
WXG-D 6/10 kV · 3 × 95 + 2 × 50/2 + 6 FO	3 × 95 + 2 × 50/2 + 6 FO	56.1	60.1	3,377	6,000	5,700	721
WXG-D 6/10 kV · 3 × 120 + 2 × 70/2 + 6 FO	3 × 120 + 2 × 70/2 + 6 FO	60.9	64.9	4,334	7,410	7,200	779
WXG-D 6/10 kV · 3 × 150 + 2 × 70/2 + 6 FO	3 × 150 + 2 × 70/2 + 6 FO	64.8	68.8	5,242	8,750	9,000	826
WXG-D Power + 6 FO · 8.7/15 kV (7 sizes)
WXG-D 8.7/15 kV · 3 × 25 + 2 × 25/2 + 6 FO	3 × 25 + 2 × 25/2 + 6 FO	43.5	46.5	1,008	2,860	1,500	558
WXG-D 8.7/15 kV · 3 × 35 + 2 × 25/2 + 6 FO	3 × 35 + 2 × 25/2 + 6 FO	46.1	49.1	1,411	3,330	2,100	589
WXG-D 8.7/15 kV · 3 × 50 + 2 × 25/2 + 6 FO	3 × 50 + 2 × 25/2 + 6 FO	50.5	54.5	1,764	4,210	3,000	654
WXG-D 8.7/15 kV · 3 × 70 + 2 × 35/2 + 6 FO	3 × 70 + 2 × 35/2 + 6 FO	55.2	59.2	2,621	5,270	4,200	710
WXG-D 8.7/15 kV · 3 × 95 + 2 × 50/2 + 6 FO	3 × 95 + 2 × 50/2 + 6 FO	60.9	64.9	3,377	6,640	5,700	779
WXG-D 8.7/15 kV · 3 × 120 + 2 × 70/2 + 6 FO	3 × 120 + 2 × 70/2 + 6 FO	64.4	68.4	4,334	7,870	7,200	821
WXG-D 8.7/15 kV · 3 × 150 + 2 × 70/2 + 6 FO	3 × 150 + 2 × 70/2 + 6 FO	68.8	72.8	5,242	9,130	9,000	874
WXG-D Power + 6 FO · 12/20 kV (7 sizes)
WXG-D 12/20 kV · 3 × 25 + 2 × 25/2 + 6 FO	3 × 25 + 2 × 25/2 + 6 FO	46.6	49.6	1,008	3,150	1,500	595
WXG-D 12/20 kV · 3 × 35 + 2 × 25/2 + 6 FO	3 × 35 + 2 × 25/2 + 6 FO	50.1	54.1	1,411	3,810	2,100	649
WXG-D 12/20 kV · 3 × 50 + 2 × 25/2 + 6 FO	3 × 50 + 2 × 25/2 + 6 FO	54.1	58.1	1,764	4,610	3,000	697
WXG-D 12/20 kV · 3 × 70 + 2 × 35/2 + 6 FO	3 × 70 + 2 × 35/2 + 6 FO	58.2	62.2	2,621	5,640	4,200	746
WXG-D 12/20 kV · 3 × 95 + 2 × 50/2 + 6 FO	3 × 95 + 2 × 50/2 + 6 FO	64	68	3,377	7,050	5,700	816
WXG-D 12/20 kV · 3 × 120 + 2 × 70/2 + 6 FO	3 × 120 + 2 × 70/2 + 6 FO	68	72	4,334	8,360	7,200	864
WXG-D 12/20 kV · 3 × 150 + 2 × 70/2 + 6 FO	3 × 150 + 2 × 70/2 + 6 FO	73.3	77.3	5,242	9,840	9,000	928

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Permitted dynamic tensile load equals 20 N/mm² of total phase conductor cross-section (1,500 N for 3 × 25 mm² up to 9,000 N for 3 × 150 mm²).
On WXG 8.7/15 kV 3 × 70 + 3 G 35/3 and WXG 12/20 kV 3 × 70 + 3 G 35/3, the legacy catalog table prints '4.220 N' and '5.250 N'; both are normalized to the true 20 N/mm² rating of 4,200 N (matching WXG 6/10 kV and all three WXG-D 3 × 70 rows).
WXG-D standard tables integrate 6 optical fibres; 12, 18, or more fibres in E9/125, 50/125, or 62.5/125 µm are available on request.

Electrical reference data
Designation	Rated U0/U	Max. DC R (20 °C)	Ref. Ampacity (30 °C)	AC Test Voltage
WXG Power · 6/10 kV (7 sizes)
WXG 6/10 kV · 3 × 25 + 3 G 25/3	6/10 kV	0.795	131	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 35 + 3 G 25/3	6/10 kV	0.565	162	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 50 + 3 G 25/3	6/10 kV	0.393	202	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 70 + 3 G 35/3	6/10 kV	0.277	250	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 95 + 3 G 50/3	6/10 kV	0.210	301	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 120 + 3 G 70/3	6/10 kV	0.164	352	17 kV AC (DIN VDE 0250-813)
WXG 6/10 kV · 3 × 150 + 3 G 70/3	6/10 kV	0.132	404	17 kV AC (DIN VDE 0250-813)
WXG Power · 8.7/15 kV (7 sizes)
WXG 8.7/15 kV · 3 × 25 + 3 G 25/3	8.7/15 kV	0.795	131	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 35 + 3 G 25/3	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 50 + 3 G 25/3	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 70 + 3 G 35/3	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 95 + 3 G 50/3	8.7/15 kV	0.210	301	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 120 + 3 G 70/3	8.7/15 kV	0.164	352	24 kV AC (DIN VDE 0250-813)
WXG 8.7/15 kV · 3 × 150 + 3 G 70/3	8.7/15 kV	0.132	404	24 kV AC (DIN VDE 0250-813)
WXG Power · 12/20 kV (7 sizes)
WXG 12/20 kV · 3 × 25 + 3 G 25/3	12/20 kV	0.795	131	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 35 + 3 G 25/3	12/20 kV	0.565	162	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 50 + 3 G 25/3	12/20 kV	0.393	202	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 70 + 3 G 35/3	12/20 kV	0.277	250	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 95 + 3 G 50/3	12/20 kV	0.210	301	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 120 + 3 G 70/3	12/20 kV	0.164	352	29 kV AC (DIN VDE 0250-813)
WXG 12/20 kV · 3 × 150 + 3 G 70/3	12/20 kV	0.132	404	29 kV AC (DIN VDE 0250-813)
WXG-D Power + 6 FO · 6/10 kV (7 sizes)
WXG-D 6/10 kV · 3 × 25 + 2 × 25/2 + 6 FO	6/10 kV	0.795	131	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 35 + 2 × 25/2 + 6 FO	6/10 kV	0.565	162	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 50 + 2 × 25/2 + 6 FO	6/10 kV	0.393	202	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 70 + 2 × 35/2 + 6 FO	6/10 kV	0.277	250	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 95 + 2 × 50/2 + 6 FO	6/10 kV	0.210	301	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 120 + 2 × 70/2 + 6 FO	6/10 kV	0.164	352	17 kV AC (DIN VDE 0250-813)
WXG-D 6/10 kV · 3 × 150 + 2 × 70/2 + 6 FO	6/10 kV	0.132	404	17 kV AC (DIN VDE 0250-813)
WXG-D Power + 6 FO · 8.7/15 kV (7 sizes)
WXG-D 8.7/15 kV · 3 × 25 + 2 × 25/2 + 6 FO	8.7/15 kV	0.795	131	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 35 + 2 × 25/2 + 6 FO	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 50 + 2 × 25/2 + 6 FO	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 70 + 2 × 35/2 + 6 FO	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 95 + 2 × 50/2 + 6 FO	8.7/15 kV	0.210	301	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 120 + 2 × 70/2 + 6 FO	8.7/15 kV	0.164	352	24 kV AC (DIN VDE 0250-813)
WXG-D 8.7/15 kV · 3 × 150 + 2 × 70/2 + 6 FO	8.7/15 kV	0.132	404	24 kV AC (DIN VDE 0250-813)
WXG-D Power + 6 FO · 12/20 kV (7 sizes)
WXG-D 12/20 kV · 3 × 25 + 2 × 25/2 + 6 FO	12/20 kV	0.795	131	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 35 + 2 × 25/2 + 6 FO	12/20 kV	0.565	162	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 50 + 2 × 25/2 + 6 FO	12/20 kV	0.393	202	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 70 + 2 × 35/2 + 6 FO	12/20 kV	0.277	250	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 95 + 2 × 50/2 + 6 FO	12/20 kV	0.210	301	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 120 + 2 × 70/2 + 6 FO	12/20 kV	0.164	352	29 kV AC (DIN VDE 0250-813)
WXG-D 12/20 kV · 3 × 150 + 2 × 70/2 + 6 FO	12/20 kV	0.132	404	29 kV AC (DIN VDE 0250-813)

Maximum DC conductor resistance at 20 °C per IEC 60228 Table 3 for Class 5 tinned copper conductors.
Free-air reference ampacity at 30 °C ambient per DIN VDE 0298-4; apply reel layer derating factors (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 900 mm is below 1,138 mmUse a larger drum core or a smaller cable size

180 m/min ≤ 240 m/minWithin the rated travel speed

Minimum bending radius: 569 mm
Min. drum core diameter: ≈ 1,138 mm
Cable weight on drum: 870.0 kg
Copper content: 441.0 kg

Indicative only: based on the datasheet outer diameter and 12 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Medium-voltage AC dielectric test	17 kV (6/10 kV), 24 kV (8.7/15 kV), 29 kV (12/20 kV) per DIN VDE 0250-813	Every manufactured length
OTDR optical attenuation verification (WXG-D)	E9/125: ≤ 0.4 dB/km (1300 nm), ≤ 0.3 dB/km (1550 nm) · 50/125: ≤ 2.8 dB/km (850 nm), ≤ 0.8 dB/km (1300 nm) · 62.5/125: ≤ 3.3 dB/km (850 nm), ≤ 0.9 dB/km (1300 nm)	Every WXG-D optical hybrid cable length
Sample tests
Vertical flame propagation	Flame-retardant and self-extinguishing per IEC 60332-1-2 / DIN VDE 0482-265-2-1	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

6/10–12/20 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX WXG / WXG-D R-(N)TSCGEWOEU [size] mm² [U0/U] kV

Delivery form: Custom crane reel cut lengths on heavy-duty timber drums (bright-red 5GM5 PCP sandwich sheath; 6, 12, 18+ FO options)
Minimum order: 300 m to 500 m depending on cross-section (selected 6/10 kV 25–35 mm² sizes without MOQ)
Customs HS code: 8544.60

Technical documents

Downloads

PDFWXG / WXG-D Extra-Heavy-Duty MV Reeling Cable (6/10–12/20 kV) – technical datasheet42 sizes · construction, technical data, approvals XLSXWXG / WXG-D R-(N)TSCGEWOEU spec data (Excel)All 42 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What construction features allow WXG / WXG-D to operate at 240 m/min through multiple diversion roller assemblies?

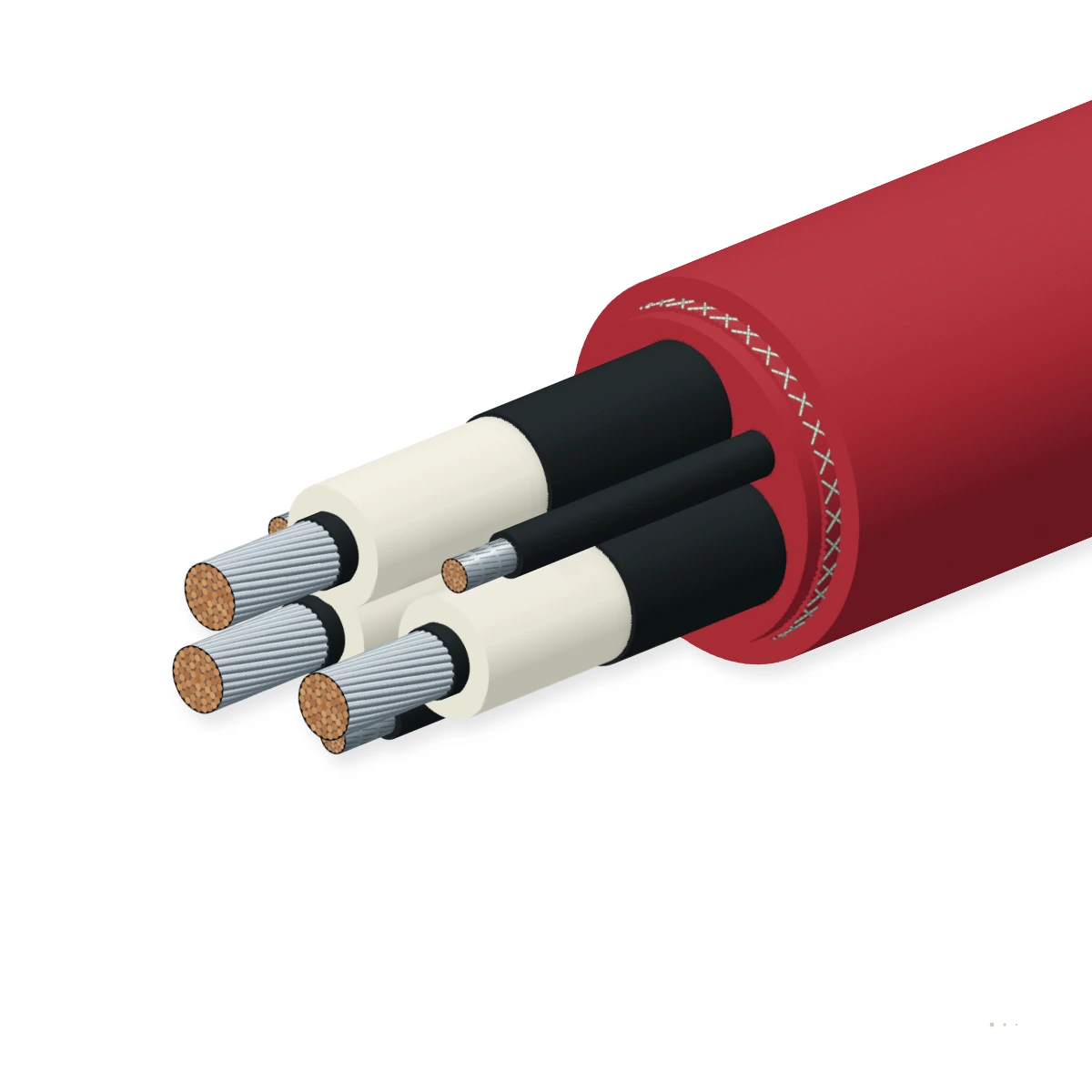

WXG / WXG-D combines an ultra-short 7 × D core stranding lay around a central profiled rubber cross (K, designation (N)TSKCGEWOEU-FO) with a 3-layer vulcanized sandwich sheathing system: a submersible red 5GM3 EPR inner sheath, a vulcanized polyester anti-torsion braid, and bright-red 5GM5 PCP middle and outer sheaths. This prevents internal core migration and corkscrewing under rapid S-bend reversals.

How does the cold-strippable semiconductive field control layer simplify medium-voltage terminations?

Each phase core uses a semiconducting EPR inner conductor screen and a semiconducting NBR outer insulation screen over the 3GI3 HV-EPR dielectric. The NBR outer screen is formulated to strip cleanly while cold without heat guns or solvent wipes, preventing nicking of the HV-EPR insulation during MV termination preparation.

What is the minimum ambient temperature rating for WXG / WXG-D in dynamic reeling service?

The series overview specifies −35 °C to +80 °C for flexing and −50 °C to +80 °C for fixed installation (explicitly noting suitability down to −35 °C), while the back-page parameter summary lists a conservative −25 °C to +80 °C flexing and −40 °C to +80 °C fixed range.

Why do the WXG 8.7/15 kV and 12/20 kV 3 × 70 mm² rows print 4,220 N and 5,250 N in the legacy table?

Every WXG and WXG-D configuration is rated at 20 N/mm² of total phase conductor cross-section (3 × 70 mm² × 20 N/mm² = 4,200 N, as printed on WXG 6/10 kV 3 × 70 and all three WXG-D 3 × 70 rows). The legacy table entries '4.220' and '5.250' on WXG 8.7/15 kV and 12/20 kV are typographical outliers and are normalized to 4,200 N.

Request a quote

Get an engineering quote for WXG / WXG-D R-(N)TSCGEWOEU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

Heavy-Duty Medium-Voltage Reeling Cable WXG / WXG-D

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

WXG / WXG-D Extra-Heavy-Duty MV Reeling Cable (6/10–12/20 kV)Bright-red 3-layer sandwich PCP MV reeling cable up to 240 m/min with optional 6/12/18 FO

Motorised monospiral reel

Cylindrical / multi-layer drum

Festoon & line chain

Trailing & towing

Vertical / spreader reel

Energy chain / drag chain

WXG R-(N)TSCGEWOEU · 6/10, 8.7/15 & 12/20 kV (21 configs)

WXG-D (N)TSKCGEWOEU-FO · 6/10, 8.7/15 & 12/20 kV (21 configs)

Electrical

Thermal

Mechanical

Optical

Resistance

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

HVR / HVR-D

WG / WG-D

WGF / WGF-D

NTSCGEWÖU
