Reeling cableDIN VDE 0250-814U0/U 0.6/1 kV

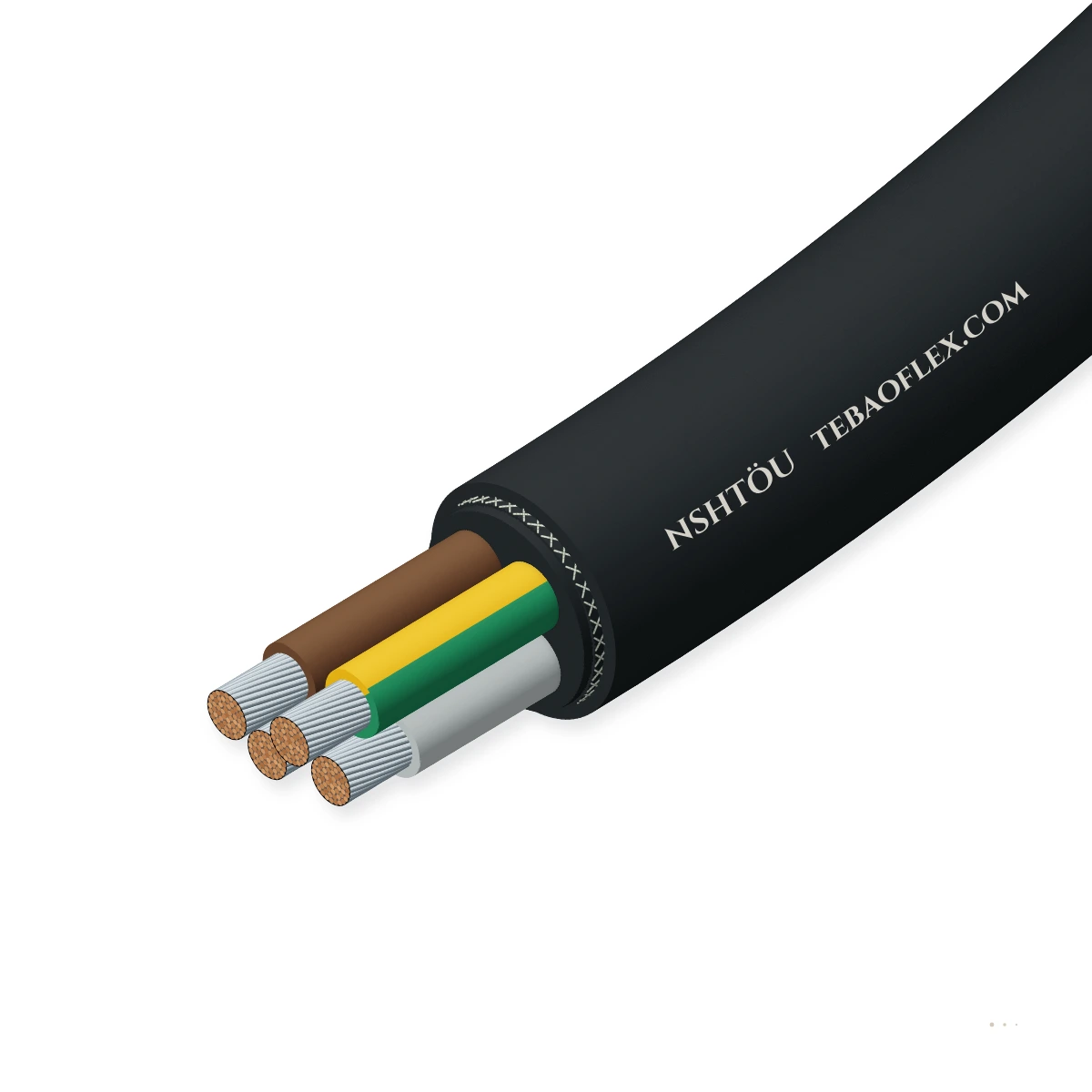

NSHTÖU Rubber Reeling CableLV power and control cable for drums, line chains and moving machinery

Built for frequent winding under tensile load, torsion and forced bending — on cranes, conveyors and mobile equipment, indoors and outdoors.

Anti-torsion braid

Outdoor & humid

Oil-resistant

Flame-retardant

Cores × cross-section

Versions

Order designation: NSHTÖU-J 4G25
Outer Ø max: 35.5 mm
Weight ≈: 2,000 kg/km
Min. bend R: 213 mm
Max. pull: 1,500 N

Check against my drum All sizes (34)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Travel speed: 120 m/min
Bending radius: 6 × OD
Temperature: −25…+80 °C
Tensile load: 15 N/mm²
Sizes: 34

Typical values for this cable type, based on DIN VDE 0250-814 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSHTÖU right for your machine?

Choose by movement, not by industry. NSHTÖU is a horizontal reeling cable; vertical and free-hanging duty need a cable with a strain member.

Motorised monospiral reel

Suitable

Cranes, stackers and transfer cars travelling horizontally, up to 120 m/min.

Cylindrical / multi-layer drum

Suitable

Multi-layer winding on hoists and mobile machines; derate current for wound layers.

Festoon & line chain

Suitable

Round cable on line chains and trolley systems.

Trailing & towing

Suitable

Supply cable for mobile transport equipment and construction machinery.

Vertical / spreader reel

Not suitable

Rated for horizontal reeling; sustained hanging load needs a strain member.

Use RXX / RXX-D

Free-hanging vertical run

Not suitable

Long suspended lengths overload the conductors without a support element.

Ask for a supported design

Typical machinesPort & gantry cranesOverhead cranes & hoistsConveyors & stackersTransfer carsConstruction machinerySelected mining plant

Construction

Layer by layer

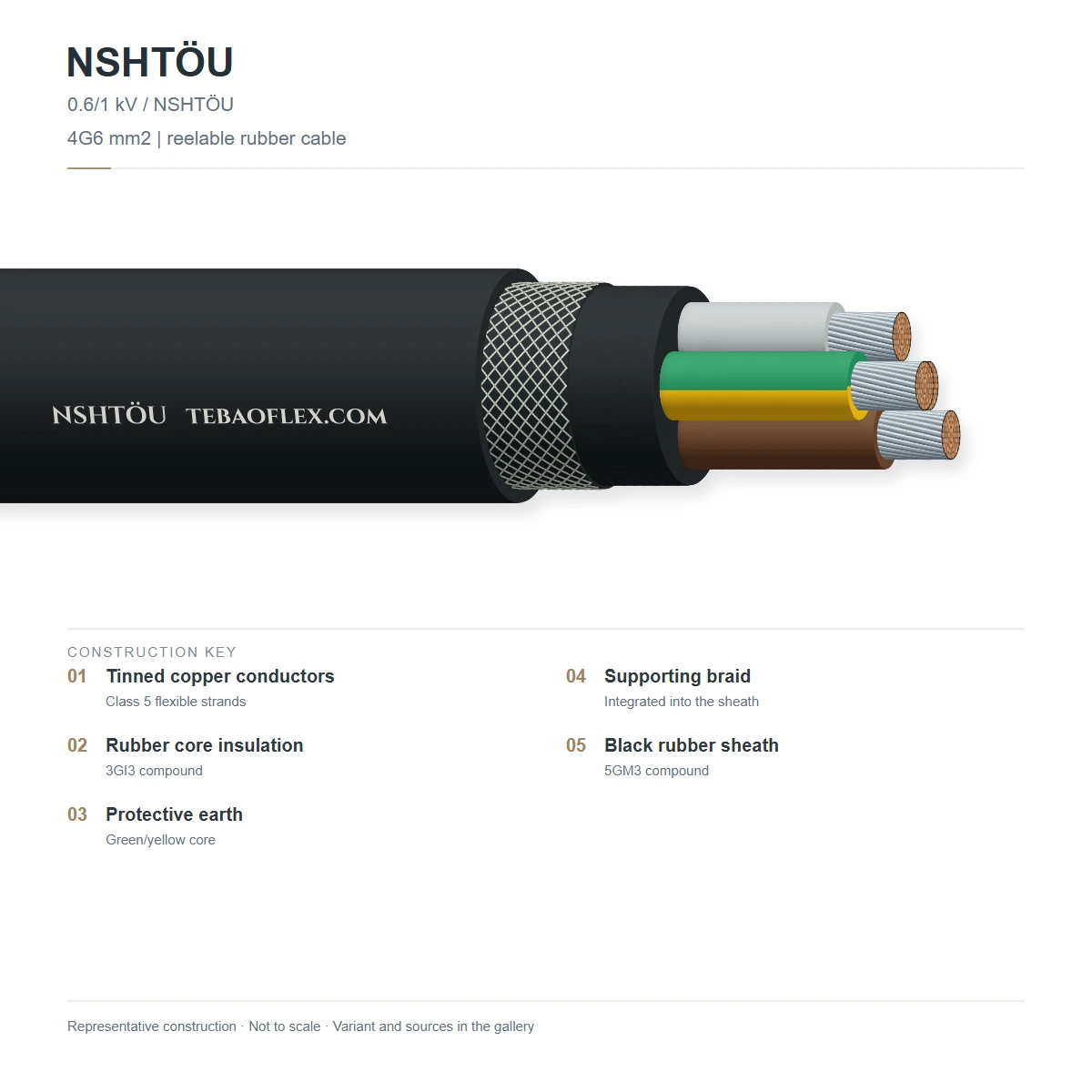

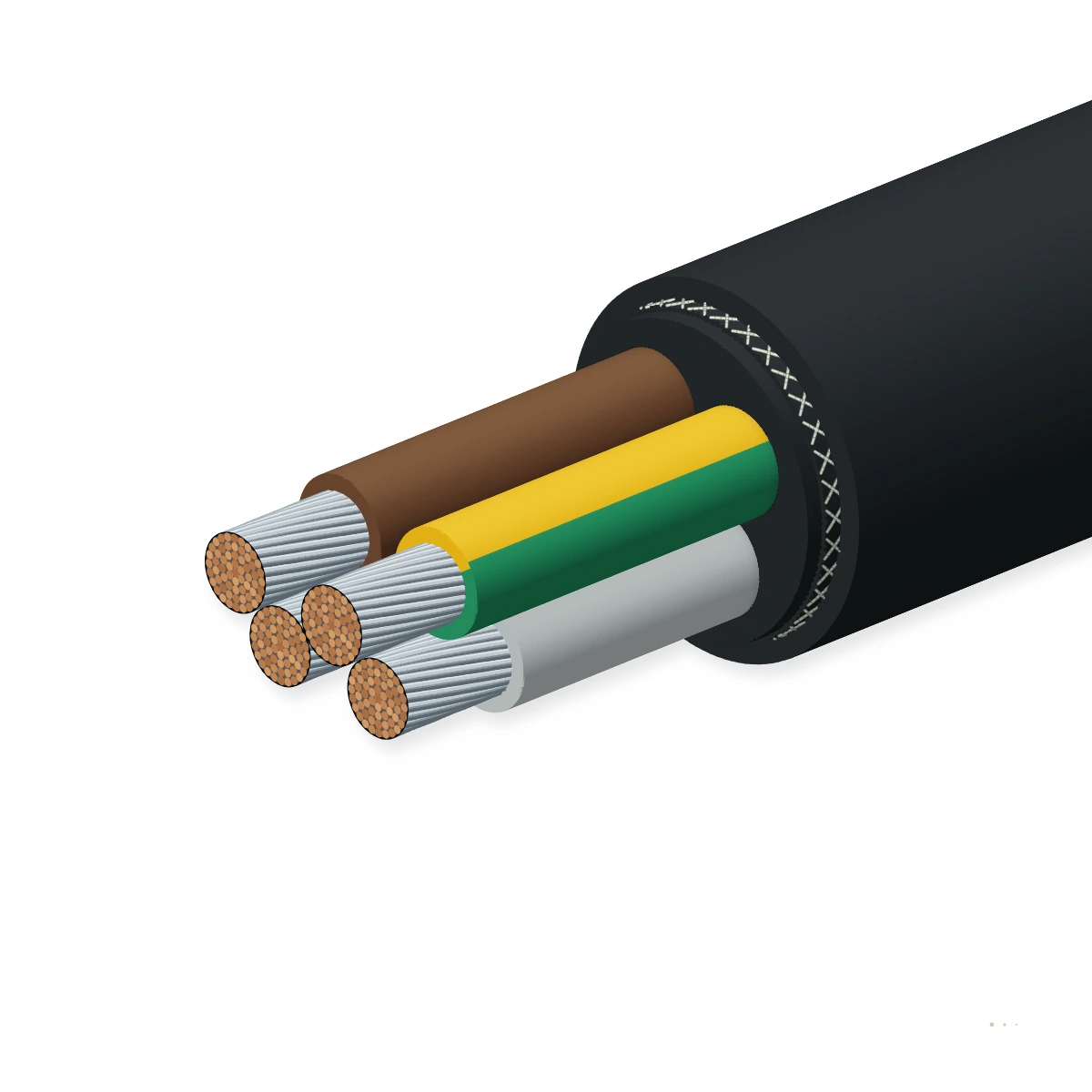

Shown: NSHTÖU-J 4G — three phase cores and a green-yellow protective conductor.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Tinned copper, fine-strandedIEC 60228 Class 5
2	Core insulation	Rubber compound 3GI3 (EPR)Core identification DIN VDE 0293-308
3	Inner sheath	Rubber compoundConsolidates the core assembly
4	Anti-torsion braid	Polyester threads between the sheathsMechanical reinforcement, not a screen
5	Outer sheath	Rubber compound 5GM3, blackOil-resistant EN 60811-404 · flame-retardant IEC 60332-1-2

NSHTÖU-J (G)

With green-yellow protective conductor

NSHTÖU-O (X)

Without protective conductor

> 5 cores

Black cores with white numbers

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-814. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV
Max. operating voltage AC: 0.7/1.2 kV
Max. operating voltage DC: 0.9/1.8 kV
AC test voltage: 2.5 kV
Current rating: DIN VDE 0298-4
Screen: Unscreened

Thermal

Temperature, flexing: −25 to +80 °C
Temperature, fixed: −40 to +80 °C
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Min. bending radius, moving: 5 × OD (≤ 20 mm), 6 × OD (> 20 mm)
Min. bending radius, fixed: 4 × OD
Max. travel speed: 120 m/min
Max. acceleration: 0.4 m/s²
Max. tensile load: 15 N/mm² of conductor cross-section
Torsional stress: ± 50 °/m

Resistance

Oil resistance: EN 60811-404
Flame retardance: IEC 60332-1-2
UV & ozone: Ozone, UV and moisture resistant
Water: Water-resistant
Locations: Dry, damp and wet rooms; outdoors

Reference standards

Cable type: DIN VDE 0250-814
Conductor: IEC 60228 Class 5
Compounds: 3GI3 insulation · 5GM3 sheath
Core identification: DIN VDE 0293-308

Identification

Sheath colour: Black
Cores ≤ 5: Colour-coded, green-yellow earth
Cores > 5: Black with white numbers + green-yellow
Customs tariff (HS): 8544.49

Sizes

34 standard sizes

Typical values. Other core counts and cross-sections on request.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Max. pull N
1.5 mm² control
NSHTÖU-J 3G1.5	3 × 1.5	16	14.8	43	236	74	68
NSHTÖU-J 4G1.5	4 × 1.5	16	15.6	58	274	78	90
NSHTÖU-J 5G1.5	5 × 1.5	16	16.5	72	316	82	112
NSHTÖU-J 7G1.5	7 × 1.5	16	19.0	101	440	95	158
NSHTÖU-J 12G1.5	12 × 1.5	16	21.9	173	606	131	270
NSHTÖU-J 16G1.5	16 × 1.5	16	23.1	230	696	139	360
NSHTÖU-J 18G1.5	18 × 1.5	16	25.0	260	750	150	405
NSHTÖU-J 24G1.5	24 × 1.5	16	28.6	346	1,150	172	540
NSHTÖU-J 30G1.5	30 × 1.5	16	29.6	432	1,325	178	675
2.5 mm² control
NSHTÖU-J 3G2.5	3 × 2.5	14	16.3	72	305	82	112
NSHTÖU-J 4G2.5	4 × 2.5	14	17.7	96	350	88	150
NSHTÖU-J 5G2.5	5 × 2.5	14	18.8	120	465	94	188
NSHTÖU-J 7G2.5	7 × 2.5	14	21.1	168	576	127	262
NSHTÖU-J 12G2.5	12 × 2.5	14	25.1	288	850	151	450
NSHTÖU-J 18G2.5	18 × 2.5	14	28.7	432	1,181	172	675
NSHTÖU-J 24G2.5	24 × 2.5	14	33.2	576	1,550	199	900
NSHTÖU-J 30G2.5	30 × 2.5	14	34.4	720	1,810	206	1,125
NSHTÖU-J 40G2.5	40 × 2.5	14	39.4	960	3,110	236	1,500
NSHTÖU-J 50G2.5	50 × 2.5	14	45.6	1,200	3,200	274	1,875
4-core power
NSHTÖU-J 4G4	4 × 4	12	19.2	154	510	96	240
NSHTÖU-J 4G6	4 × 6	10	20.6	230	650	124	360
NSHTÖU-J 4G10	4 × 10	8	24.9	384	1,010	149	600
NSHTÖU-J 4G16	4 × 16	6	29.1	614	1,300	175	960
NSHTÖU-J 4G25	4 × 25	4	35.5	960	2,000	213	1,500
NSHTÖU-J 4G35	4 × 35	2	38.3	1,344	2,610	230	2,100
NSHTÖU-J 4G50	4 × 50	1	43.6	1,920	3,500	262	3,000
NSHTÖU-J 4G70	4 × 70	2/0	48.7	2,688	4,600	292	4,200
NSHTÖU-J 4G95	4 × 95	3/0	57.3	3,648	6,100	344	5,700
NSHTÖU-J 4G120	4 × 120	4/0	62.0	4,860	7,200	372	7,200
5-core power
NSHTÖU-J 5G4	5 × 4	12	20.4	192	635	122	300
NSHTÖU-J 5G6	5 × 6	10	23.2	288	800	139	450
NSHTÖU-J 5G10	5 × 10	8	26.7	480	1,200	160	750
NSHTÖU-J 5G16	5 × 16	6	31.4	768	1,700	188	1,200
NSHTÖU-J 5G35	5 × 35	2	38.3	1,750	2,950	230	2,625

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameter is the maximum of the typical range; use it for drum and guide design.
G = with green-yellow protective conductor (-J), X = without (-O).

Electrical data
Cross-section mm²	AWG ≈	Max. conductor resistance 20 °C, Ω/km	Current rating, in air 30 °C, A	Used in
1.5	16	13.7	23	3× 4× 5× 7× 12× 16× 18× 24× 30×
2.5	14	8.21	30	3× 4× 5× 7× 12× 18× 24× 30× 40× 50×
4	12	5.09	41	4× 5×
6	10	3.39	53	4× 5×
10	8	1.95	74	4× 5×
16	6	1.24	99	4× 5×
25	4	0.795	131	4×
35	2	0.565	162	4× 5×
50	1	0.393	202	4×
70	2/0	0.277	250	4×
95	3/0	0.21	301	4×
120	4/0	0.164	352	4×

Current ratings per DIN VDE 0298-4 for one cable in air at 30 °C; apply reduction factors for wound layers, ambient temperature and grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 630 mm ≥ 426 mmBending radius OK (6 × OD 35.5 mm)

90 m/min ≤ 120 m/minWithin the rated travel speed

Minimum bending radius: 213 mm
Min. drum core diameter: ≈ 426 mm
Cable weight on drum: 240.0 kg
Copper content: 115.2 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Spark test of insulated cores	In-line	100 % of length
AC voltage test	2.5 kV	Every length
Conductor resistance	IEC 60228	Every length
Sample tests
Flame propagation	IEC 60332-1-2	Per batch
Oil resistance of sheath	EN 60811-404	Per compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-814CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSHTÖU-J 4G25 0.6/1 kV DIN VDE 0250-814 · [year] · [metre mark]

Delivery form: Export drums, cut-to-length
Packaging: Heat-treated timber drums, lagged, sealed ends

Technical documents

Downloads

PDFNSHTÖU Rubber Reeling Cable – technical datasheet34 sizes · construction, technical data, approvals XLSXNSHTÖU spec data (Excel)All 34 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between NSHTÖU-J and NSHTÖU-O?

-J (marked “G”, e.g. 4G25) includes a green-yellow protective conductor; -O (marked “X”) does not. Match the version to the earthing scheme of your machine — a power or control core must never replace the protective conductor.

How do I check the bending radius on my drum?

Typical NSHTÖU allows 5 × the outer diameter in motion up to 20 mm OD and 6 × OD above, so the drum core should be at least twice that. Outer diameter changes with every size — use the reel check on this page, then confirm guide rollers and the cable entry with our engineers.

Can NSHTÖU be used on a vertical spreader reel?

No. NSHTÖU is rated for horizontal reeling, line chains and trailing. Vertical reels and long free-hanging runs need a cable with a central strain member, such as RXX / RXX-D.

Is the anti-torsion braid a screen?

No. The plaiting is mechanical reinforcement that prevents corkscrewing. Standard NSHTÖU is unscreened; for encoder, bus or other sensitive signals, ask for a screened design.

How fast can NSHTÖU reel, and how much pull can it take?
