Armoured & cradle coal cutter cables (DIN VDE 0250-812)DIN VDE 0250-812K Cradle · 45 kN Braid40 / 15 N/mm² · 0.6/1 kV

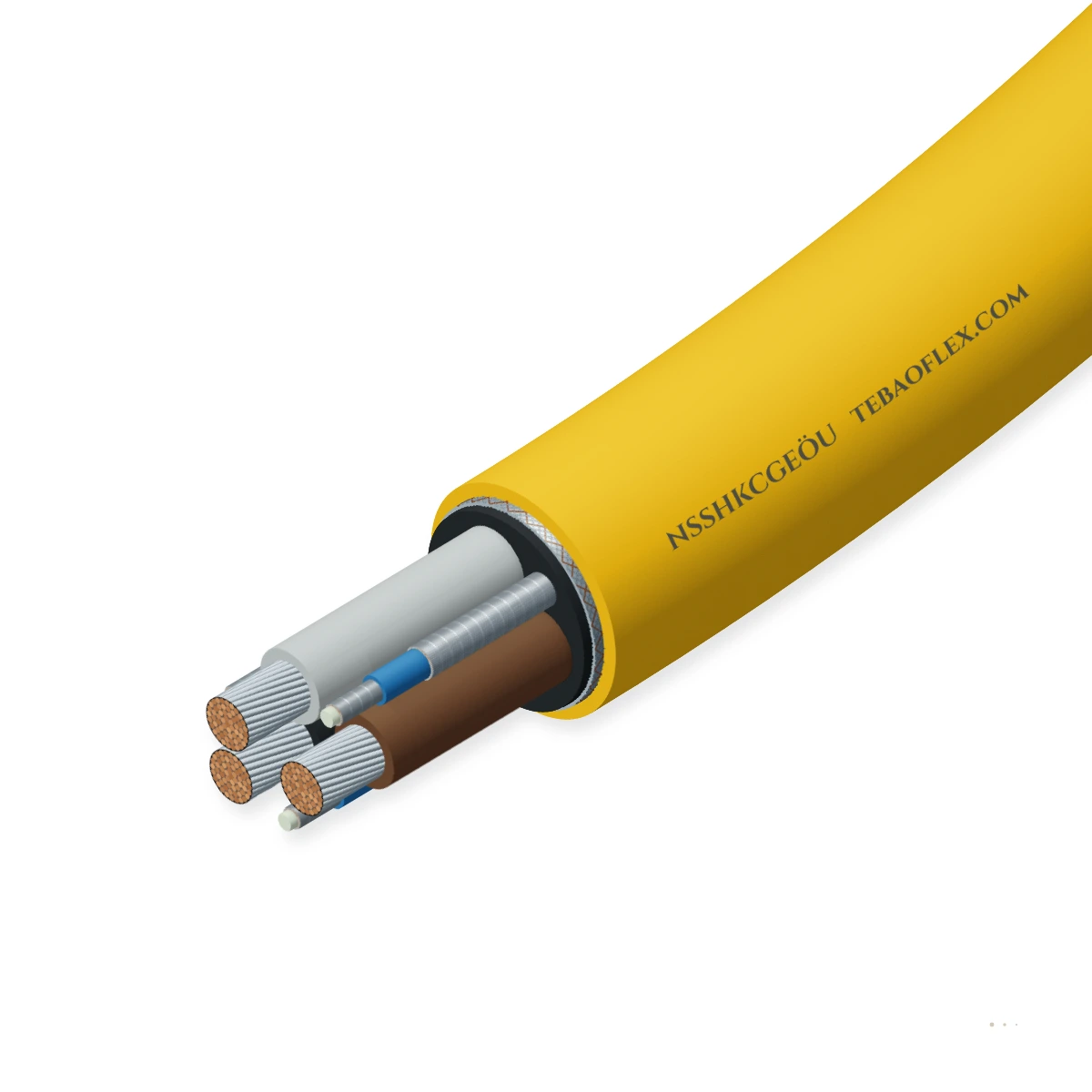

NSSHKCGEÖU 0.6/1 kV Armoured & Cradle Coal Cutter Trailing CableSemiconductive cradle K & 45 kN steel-braid armoured shearer cable — DIN VDE 0250-812

Heavy-duty 0.6/1 kV coal cutter trailing cable to DIN VDE 0250-812 with Class FS tinned Cu cores, 3GI3 EPR insulation, semiconductive cradle (K) and core screens, ST/ÜL/KON control units, GM1b inner sheath, 45 kN steel/Cu braid armour, and yellow 5GM5 jacket.

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
NSSHKCGEÖU-Z 3×95 + 3×(1.5STKON+50/3KON)
Outer Ø max
60.8 mm
Weight ≈
6,700 kg/km
Max. pull
11,400 N
Current 30 °C
301 A
All sizes (24)
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U 0.6/1 kV · max 0.7/1.2 kV AC
Core & armour
K Cradle + 45 kN
semicon cradle K + steel/Cu braid
Tensile rating
40 / 15 N/mm²
40 N/mm² free-trail · 15 N/mm² chain
Min. bend radius
2.3–5 × D
2.3 × D at ≤5 N/mm² · 5 × D dynamic
Flexing temp.
−20…+60 °C
−40…+80 °C fixed (90 °C cond.)
Range
24 configs
3×16/16CON to 3×300+3×150/3KON mm²

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSSHKCGEÖU right for your machine?

VDE 0250-812 0.6/1 kV mining trailing cable with integrated pilot/monitoring cores and individual phase screens for longwall shearers and face conveyors.

Longwall shearer & Bretby handler

Suitable

Primary duty — longwall shearer and AFC drives requiring continuous earth-continuity pilot monitoring.

Trailing & towing

Suitable

Heavy underground and open-cast trailing under rock impact, oil and mine water.

Mine roadway & tunnel wall hangers

Suitable

Movable gate-road feeder loops between gate-end boxes and advancing face equipment.

Motorised monospiral reel

With conditions

Low-speed gathering reels on shuttle cars and LHD loaders.

Typical machinesFree-Trailing Longwall Coal Shearers & RoadheadersChain-Guided Underground Coal Cutters (2.3 × D Bend)Tunnel Boring Machines (TBMs) & Continuous MinersUnderground LHD Scoops & Heavy Drilling Rigs

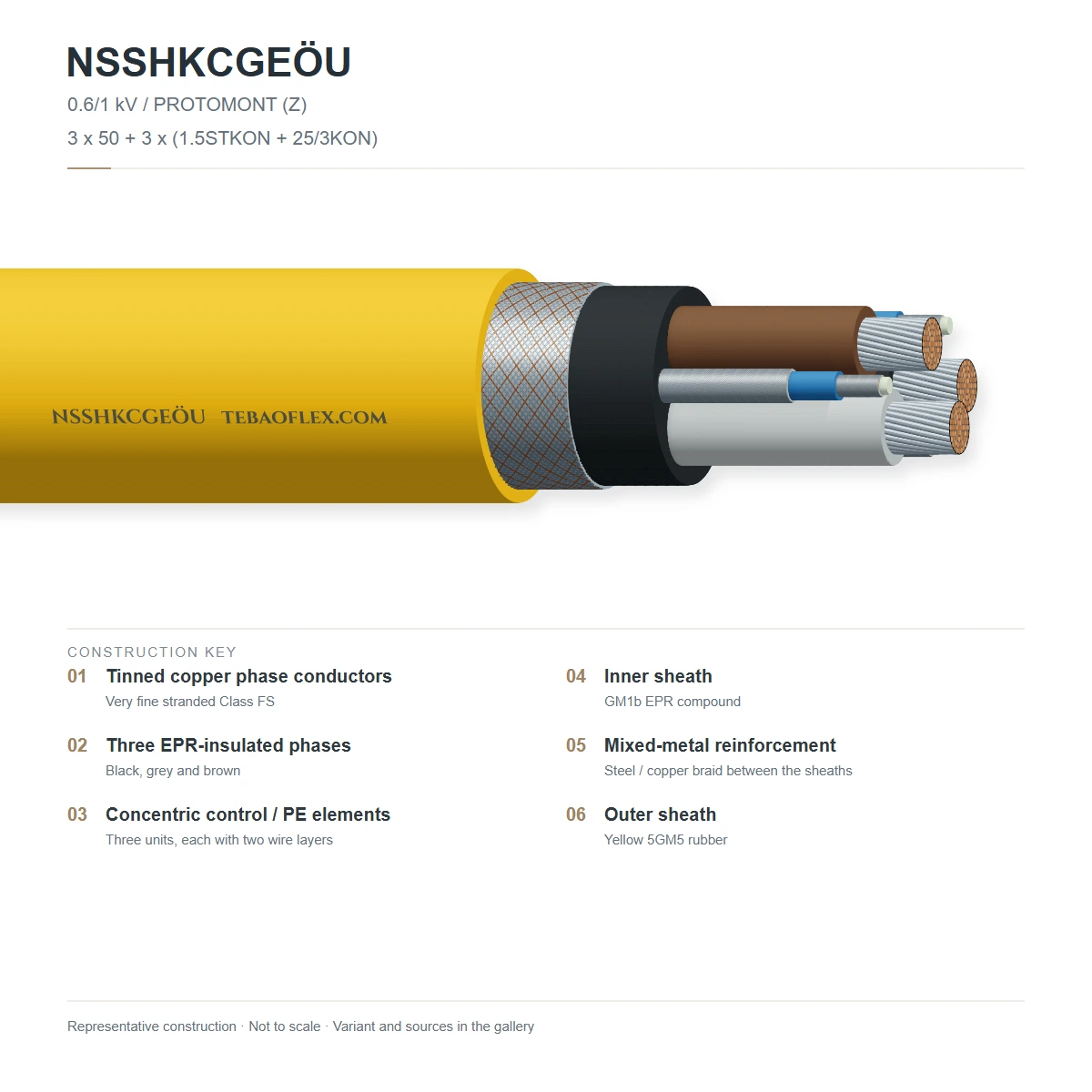

Construction

Layer by layer

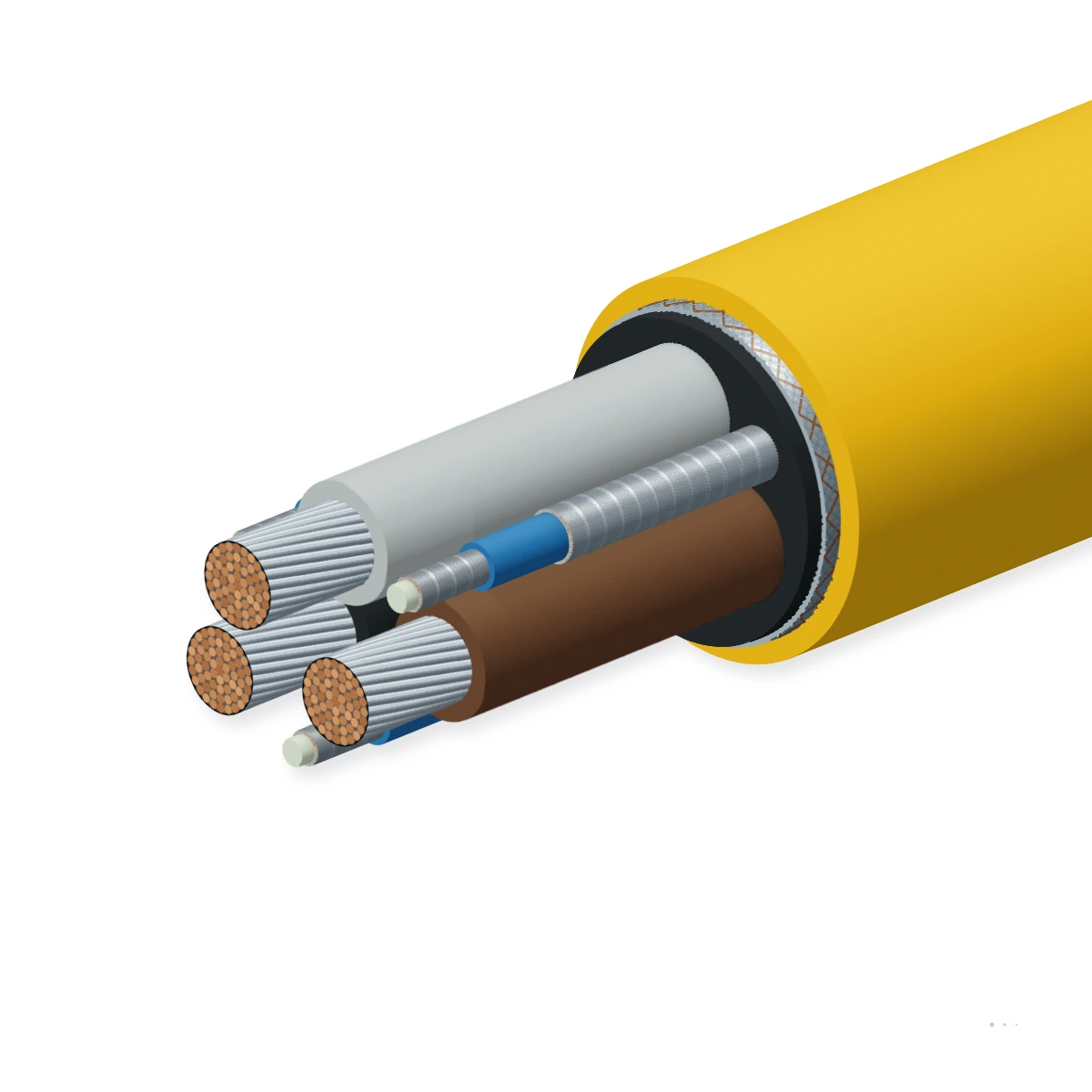

Shown: NSSHKCGEÖU 0.6/1 kV armoured coal cutter cable with extra-fine Class FS tinned copper phase conductors, 3GI3 EPR core insulation, central semiconductive rubber profile cradle ('K') separating the main cores, outer interstitial control/earth/monitoring units (ST / ÜL / KON), vulcanized GM1b / semiconductive rubber inner sheath, 45 kN galvanized steel / tinned copper pliable braid armour (or polyester anti-torsion braid on CTE-series), and yellow 5GM5 synthetic elastomer outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Extra-flexible Class FS tinned copper conductorVery finely stranded tin-plated electrolytic copper (0.3 mm wires, Class FS / Class 5 per DIN VDE 0295 / IEC 60228)Three main phase cores (16–300 mm²) plus extensible copper/steel pilot (ST) and monitoring (ÜL/UEL) conductors
2Core insulation (3GI3 EPR)Heat-resistant cross-linked ethylene-propylene elastomer (EPR) compound type 3GI3DIN VDE 0207-20 · main cores black, grey, brown; control cores blue (rated +90 °C / +250 °C short-circuit)
3Central semiconductive cradle separator (K) & core screens (E)Profiled central semiconductive elastomer cradle (K) plus semiconductive layers over phase cores and control unitsPrevents core-to-core contact under rockfall impact and ensures immediate earth-fault detection
4Interstitial control, earth & monitoring units (ST / ÜL / KON)Three pre-laid control units in outer interstices: double-concentric 1.5STKON + 16/3KON–150/3KON or 2 × 1.5ST + 1.5ÜL per intersticeCopper/steel extensible pilot conductors resist conductor breakage under repeated bending and pulling
5Inner sheath (GM1b / semiconductive elastomer)Vulcanized EPR / semiconductive rubber inner sheath compound type GM1bDIN VDE 0207-21 · bonds the core and cradle assembly into a crush-resistant circular profile
6Pliable steel/copper braid armour (C) or anti-torsion braidZ/V-series: galvanized steel and tinned copper pliable braid vulcanized between inner & outer sheath (≥ 45 kN breaking load); CTE-series: polyester anti-torsion braidProvides 40 N/mm² free-trailing tensile capacity and cut-through protection
7Outer sheath (5GM5 yellow CM/CR rubber)Heavy-duty cross-linked synthetic elastomer (CM / CR) compound type 5GM5, yellowDIN VDE 0207-21 · tear, impact, oil (IEC 60811-404) & flame (IEC 60332-1-2 / MSHA P-189-4) resistant

Z-Series NSSHKCGEÖU · Free-Trailing 45 kN Steel Braid (10 configs)

3×25+3×(1.5STKON+16/3KON) to 3×300+3×(1.5STKON+150/3KON) with vulcanized steel braid (45 kN breaking load, 40 N/mm², 150 m/min)

V-Series NSSHKCGEÖU · Pliable Steel/Cu Braid + 2ST+ÜL (7 configs)

3×16/16CON + 2×2.5ST + 2.5ÜL and 3×25/16CON to 3×120/70CON + 3×(2×1.5ST+1.5ÜL) with combined galvanized steel & tinned Cu armour

CTE-Series NSSHKCGEÖU · Chain-Operation Semiconductive Cradle (7 configs)

3×25+3×(1.5ST+16/3) to 3×150+3×(1.5ST+70/3) cabled around semiconductive cradle K with polyester anti-torsion braid (2.3 × D / 5 × D, 15 N/mm²)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
U0/U = 0.6/1 kV (600/1000 V AC)
Max. operating voltage
0.7/1.2 kV AC · 0.9/1.8 kV DC (DIN VDE 0298-3)
AC test voltage
3.0 kV AC on main phase cores · 2.0 kV AC on control (ST) and monitoring (ÜL/UEL) cores
Cradle, screening & armour
Central semiconductive rubber cradle separator (K) + semiconductive core/inner layers + double-concentric PE/control (STKON) & steel/Cu pliable braid armour (C)
Current rating (30 °C)
99 A (16 mm²) to 620 A (300 mm²) laid on floor at 30 °C ambient (DIN VDE 0298-4 Table 15)

Thermal

Ambient temperature, flexing
−20 °C to +60 °C in fully flexible operation
Ambient temperature, fixed
−40 °C to +80 °C
Max. conductor & short-circuit temp.
+90 °C continuous · +250 °C short-circuit (5 s)

Mechanical

Max. permissible tensile load
40 N/mm² in free-trailing operation (Z-series, 3,000 N to 36,000 N) · 15 N/mm² in cable protection chains (CTE-series, 1,125 N to 6,750 N)
Steel braid breaking load (Z-series)
≥ 45 kN minimum breaking load of vulcanized steel strand braid armour (Z-series)
Minimum bending radius
2.3 × D at ≤ 5 N/mm² · 5 × D at 15 N/mm² (chain operation) · per DIN VDE 0298-3 (free trailing)
Max. travel speed & torsion
Up to 150 m/min travel speed · ±10 °/m torsional stress rating (Z-series)

Resistance

Oil, ozone & impact resistance
Oil-resistant per IEC 60811-404; resistant to ozone, moisture & severe underground rock abrasion
Flame retardance
Flame-retardant per IEC 60332-1-2 / DIN EN 60332-1-2

Reference standards

Design & material standards
DIN VDE 0250-812 & DIN VDE 0207-20 / -21 (3GI3 EPR, GM1b inner sheath, 5GM5 yellow outer sheath)
Conductor stranding
Extra-fine stranded tinned copper (0.3 mm wires / Class FS / Class 5 per DIN VDE 0295 / IEC 60228)
Mining approvals
MSHA P-189-4 · EAC Certificate · TR-Certificate · BAS Bosnia-Herzegovina

Sizes

24 armoured free-trailing & cradle-separated coal cutter configurations

Complete dimensional, copper-weight, mechanical, and electrical dataset across Z-series free-trailing armoured cables (40 N/mm², 45 kN steel braid), V-series pliable steel/Cu braided cables, and CTE-series semiconductive-cradle chain cables (15 N/mm²).

Dimensions, Cu weight & mechanical loads (24 configs)
DesignationMain CoresPhase / EarthCond. ØOuter Ø minOuter Ø maxCu weightWeight ≈Max. pullMin. bend RCurrent 30 °CEnquiry
Z-Series Free-Trailing · 40 N/mm² & 45 kN Braid (10)
NSSHKCGEÖU-Z 3×25 + 3×(1.5STKON+16/3KON)325 + 3×16/3KON7.139.242.21,0502,7003,000211131
NSSHKCGEÖU-Z 3×35 + 3×(1.5STKON+16/3KON)335 + 3×16/3KON8.440.843.81,3503,1004,200219162
NSSHKCGEÖU-Z 3×50 + 3×(1.5STKON+25/3KON)350 + 3×25/3KON10.146.249.21,8704,0006,000246202
NSSHKCGEÖU-Z 3×70 + 3×(1.5STKON+35/3KON)370 + 3×35/3KON11.949.653.62,5505,1008,400268250
NSSHKCGEÖU-Z 3×95 + 3×(1.5STKON+50/3KON)395 + 3×50/3KON1456.860.83,4106,70011,400304301
NSSHKCGEÖU-Z 3×120 + 3×(1.5STKON+70/3KON)3120 + 3×70/3KON15.560.664.64,3308,00014,400323352
NSSHKCGEÖU-Z 3×150 + 3×(1.5STKON+70/3KON)3150 + 3×70/3KON17.667715,1809,62018,000355404
NSSHKCGEÖU-Z 3×185 + 3×(1.5STKON+95/3KON)3185 + 3×95/3KON19.172766,48011,50022,200380461
NSSHKCGEÖU-Z 3×240 + 3×(1.5STKON+120/3KON)3240 + 3×120/3KON2280.485.48,35014,60028,800427540
NSSHKCGEÖU-Z 3×300 + 3×(1.5STKON+150/3KON)3300 + 3×150/3KON24.889.194.110,42018,70036,000470620
V-Series Pliable Steel/Cu Armoured · 2ST+ÜL (7)
NSSHKCGEÖU-V 3×16/16CON + 2×2.5ST + 2.5ÜL316 / 16CON5.833386902,00072015299
NSSHKCGEÖU-V 3×25/16CON + 3×(2×1.5ST+1.5ÜL)325 / 16CON7.141461,0503,0001,125184131
NSSHKCGEÖU-V 3×35/16CON + 3×(2×1.5ST+1.5ÜL)335 / 16CON8.441461,3503,2001,575184162
NSSHKCGEÖU-V 3×50/25CON + 3×(2×1.5ST+1.5ÜL)350 / 25CON10.146511,8704,2002,250204202
NSSHKCGEÖU-V 3×70/35CON + 3×(2×1.5ST+1.5ÜL)370 / 35CON11.950552,5505,4003,150220250
NSSHKCGEÖU-V 3×95/50CON + 3×(2×1.5ST+1.5ÜL)395 / 50CON1457623,4106,9004,275248301
NSSHKCGEÖU-V 3×120/70CON + 3×(2×1.5ST+1.5ÜL)3120 / 70CON15.562674,3308,6005,400268352
CTE-Series Chain Cradle K · 15 N/mm² (7)
NSSHKCGEÖU-CTE 3×25 + 3×(1.5ST+16/3)325 + 3×16/3736401,0502,7901,12592131
NSSHKCGEÖU-CTE 3×35 + 3×(1.5ST+16/3)335 + 3×16/38.238421,3502,6201,57597162
NSSHKCGEÖU-CTE 3×50 + 3×(1.5ST+25/3)350 + 3×25/310.243481,8703,6002,250110202
NSSHKCGEÖU-CTE 3×70 + 3×(1.5ST+35/3)370 + 3×35/312.244492,5504,1803,150113250
NSSHKCGEÖU-CTE 3×95 + 3×(1.5ST+50/3)395 + 3×50/313.253573,4105,4904,275131301
NSSHKCGEÖU-CTE 3×120 + 3×(1.5ST+70/3)3120 + 3×70/315.258634,3308,3005,400145352
NSSHKCGEÖU-CTE 3×150 + 3×(1.5ST+70/3)3150 + 3×70/317.162685,1809,3006,750156404
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Z-series free-trailing coal cutter cables feature a vulcanized steel strand braid with a minimum breaking load of 45 kN and a permissible dynamic conductor tensile stress of 40 N/mm² (up to 36,000 N on 3 × 300 mm²).
  • CTE-series chain-handler coal cutter cables use a semiconductive rubber cradle (K) and polyester anti-torsion braid with a minimum bend radius of 2.3 × D_max at ≤ 5 N/mm² (5 × D_max at 15 N/mm²).
  • V-series pliable steel/copper braided cables integrate three pre-laid control units in the outer interstices, each consisting of two 1.5 mm² control cores (ST) and one 1.5 mm² monitoring core (ÜL).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test on main & control/monitoring cores3.0 kV AC on main phase cores · 2.0 kV AC on pilot (ST) and monitoring (ÜL) coresEvery manufactured length (DIN VDE 0250-812)
Sample tests
Steel braid armour breaking load & tensile test (Z-series)Minimum breaking load of vulcanized steel braid ≥ 45 kN · max conductor tensile stress 40 N/mm²Sample qualification
Oil immersion & vertical flame retardanceIEC 60811-404 oil resistance & IEC 60332-1-2 / MSHA P-189-4 flame retardanceType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSSHKCGEÖU [size] 0.6/1 kV DIN VDE 0250-812 · [year] · [metre mark]
Delivery form
Custom coal-face shearer, roadheader, or TBM cut lengths on heavy-duty export wooden drums (yellow 5GM5 outer sheath)
Armour & cradle options
Specify Z-series (45 kN steel braid, 40 N/mm² free-trailing), V-series (steel/Cu braid + 2ST+ÜL), or CTE-series (semiconductive cradle K + anti-torsion braid, 15 N/mm² chain)
Customs HS code
8544.49

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the letter 'K' signify in NSSHKCGEÖU compared with NSSHCGEÖU?
Under DIN VDE 0250-812, the letter 'K' designates a central profiled semiconductive elastomer cradle (K-cradle) around which the three main phase cores and interstitial control units are cabled. This semiconductive rubber cradle physically separates the phase cores so they cannot crush against one another under rockfall or heavy machine run-over, and ensures immediate phase-to-earth fault detection if internal deformation occurs.
What is the difference between Z-series (free-trailing) and CTE-series (chain-operation) NSSHKCGEÖU?
Z-series NSSHKCGEÖU is built for free-trailing coal shearers, roadheaders, TBMs, and LHD scoops where the cable is dragged directly behind the machine without a protection chain: it incorporates a vulcanized steel strand braid between the inner and outer sheaths with a minimum breaking load of 45 kN, allowing a 40 N/mm² conductor tensile load (up to 36,000 N on 3 × 300 mm²) and travel speeds up to 150 m/min. CTE-series NSSHKCGEÖU is built for cable handler chains that absorb pulling forces: it uses a polyester anti-torsion braid and semiconductive inner sheath to achieve an ultra-tight 2.3 × D minimum bend radius at ≤ 5 N/mm² (5 × D at 15 N/mm²).
How are the pilot (ST) and monitoring (ÜL) cores arranged in the V-series 3 × (2 × 1.5 ST + 1.5 ÜL) construction?
In the V-series pliable steel/copper armoured construction (3 × 25/16 CON to 3 × 120/70 CON), each of the three outer interstices contains a pre-laid control unit made up of two 1.5 mm² EPR-insulated control cores (ST) and one 1.5 mm² semiconductive-screened monitoring core (ÜL/UEL), providing 6 pilot cores and 3 monitoring cores in total across the cable cross-section.
Why does the TEBAOFLEX PDF show 41–46 mm outer diameter for both 3 × 25/16 CON and 3 × 35/16 CON?
In the V-series table on page 2 of datasheet_2c5d8a3975.pdf, the nominal outer diameter bracket for 3 × 25/16 CON and 3 × 35/16 CON is rounded to the same 41–46 mm envelope (with weights of 3,000 and 3,200 kg/km). In precision manufacturer tables (Z-series and CTE-series), 3 × 25 mm² measures 39.2–42.2 mm (Z) / 36–40 mm (CTE) while 3 × 35 mm² measures 40.8–43.8 mm (Z) / 38–42 mm (CTE).
