DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-8120.6/1 kV · 1.8/3 kVRL Armour · CGE + K

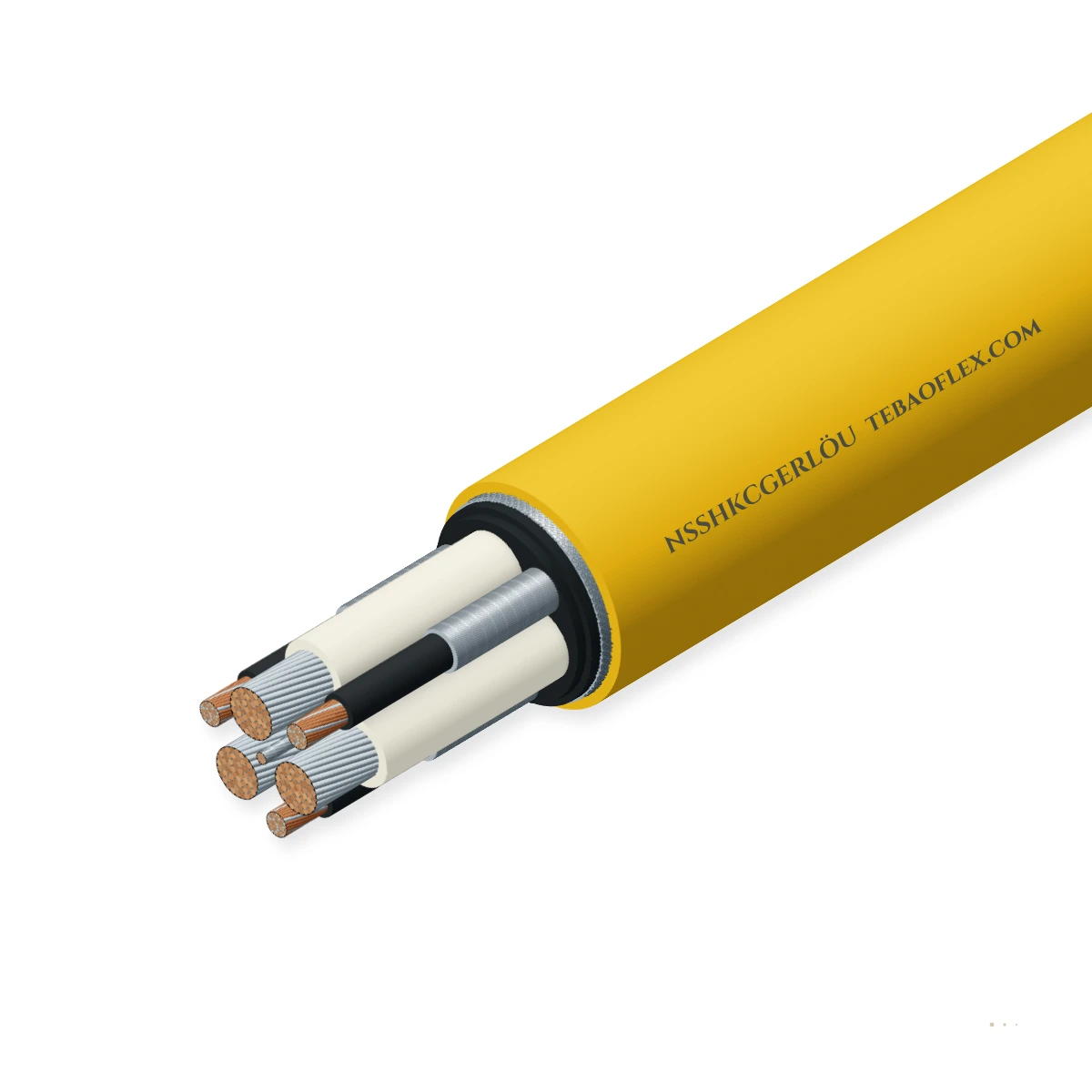

NSSHKCGERLÖU Armoured Coal-Cutter CableDIN VDE 0250-812 0.6/1 kV & 1.8/3 kV steel-strand armoured (RL) coal-cutter trailing cable

NSSHKCGERLÖU is a DIN VDE 0250-812 0.6/1 kV and 1.8/3 kV armoured underground coal-cutter trailing cable combining a heavy-duty NSSH rubber core structure, K pilot/control bundle, semi-conductive and copper screening (CGE), and flexible galvanized steel

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
NSSHKCGERLÖU 3×70+4×4K+35E 0.6/1 kV
Outer Ø ≈
53.6 mm
Copper weight
2,580 kg/km
Total weight ≈
5,020 kg/km
Min. bend R (fixed)
322 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1–1.8/3 kV
Umax 1.2 kV / 3.6 kV AC
Armouring
RL Steel Strand
Galvanized steel wire strand armour
Screen & pilot
CGE + K Pack
Semicon + Cu screen + pilot cores
Insulation
3GI3 EPR
+90 °C cross-linked EPR
Outer sheath
5GM5 PCP
Extra-heavy polychloroprene
Min. bend radius
6×D / 10×D
Fixed 6×D · flexing 10×D

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSSHKCGERLÖU right for your machine?

Engineered for low- and intermediate-voltage (1000 V and 3000 V) underground coal shearers, plough systems, and roadheaders exposed to severe roof falls and scraper-chain impact.

Mine roadway & tunnel wall hangers

Suitable

RL galvanized steel strand armour shields live cores against falling roof stone and coal.

Longwall shearer & Bretby handler

Suitable

Stranded RL armour bends smoothly inside longwall Bretby cable handler chains.

Trailing & towing

Suitable

5GM5 outer sheath and RL armour resist high drawbar pull behind advancing roadheaders.

Fixed installation

Suitable

Approved for inclined gallery feeders and armoured face conveyor connections.

Motorised monospiral reel

With conditions

Suitable for low-speed take-up winches; for crane drum reeling use NSHTÖU.

NSHTÖU 0.6/1 kV
Typical machinesUnderground longwall coal faces1000 V / 3300 V shearers & roadheadersArmoured face conveyor feedersPotash & hard-salt underground mining

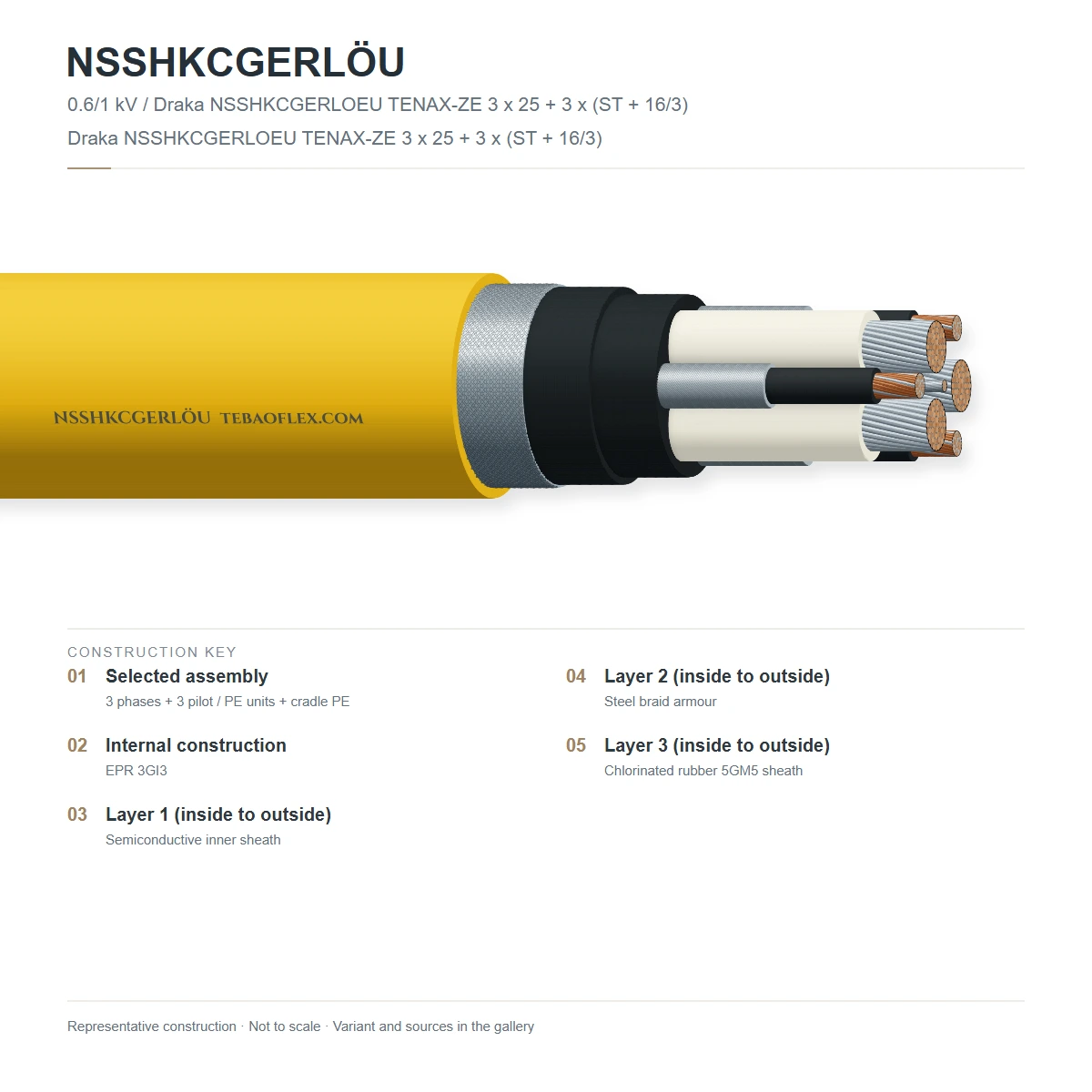

Construction

Layer by layer

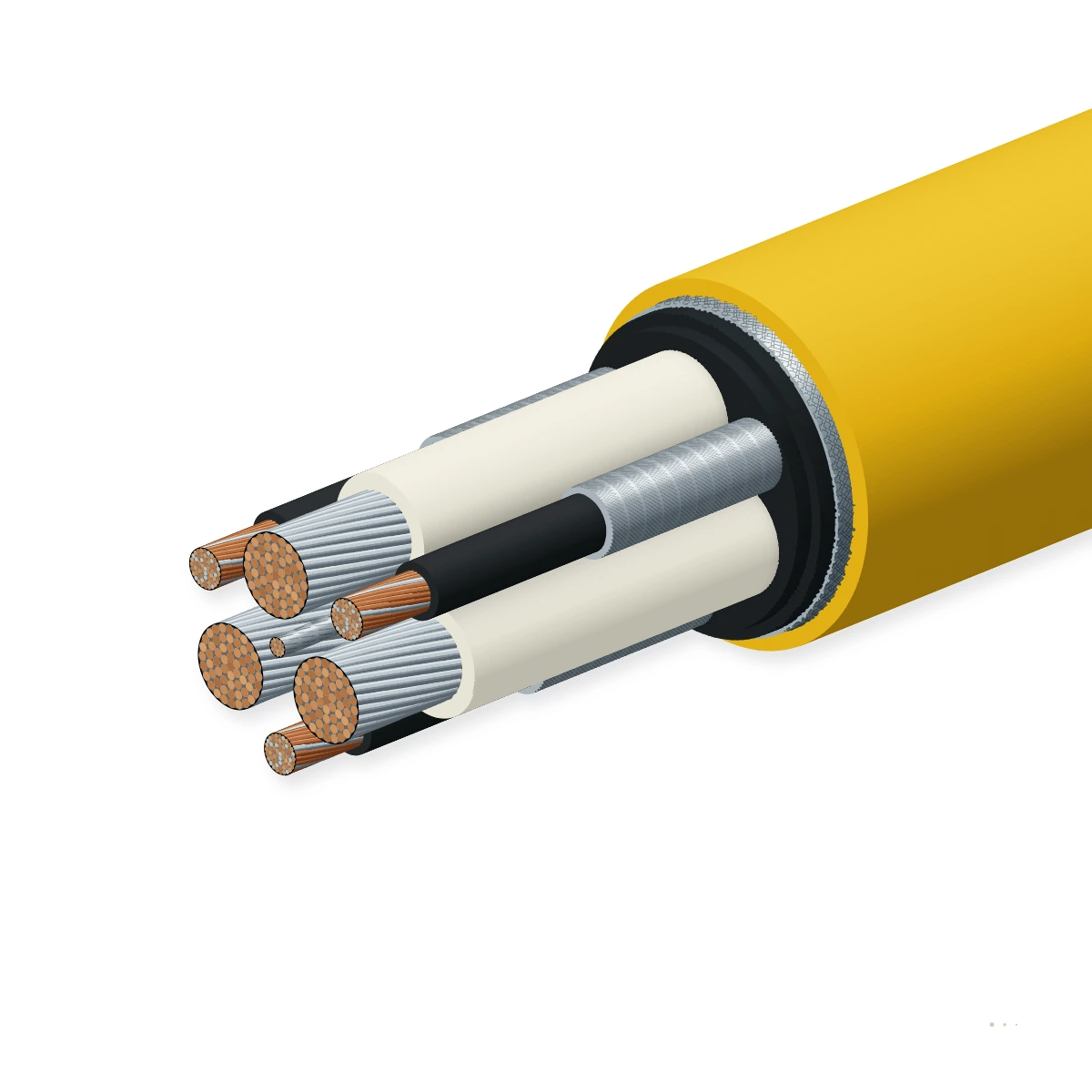

Three Class 5 tinned copper phase cores (3GI3 EPR + CGE screen), K pilot/control sub-assembly, elastomer inner sheath, flexible galvanized

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & K control conductorsTinned finely stranded copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Core insulation (3GI3)Cross-linked ethylene propylene rubber compound 3GI3DIN VDE 0207-20
3Semicon & copper screen (CGE)Semi-conductive elastomer layer + tinned copper screen over phase coresDIN VDE 0250-812
4Core & K pilot lay-up3 screened phase cores + K pilot/control bundle laid up in short pitchDIN VDE 0250-812
5Inner sheathHeavy-duty polychloroprene/elastomer bedding compound 5GM3DIN VDE 0207-21
6Steel strand armour (RL)Helical layer of flexible galvanized steel wire strands (Runddraht-Litzen)DIN VDE 0250-812
7Outer sheath (5GM5)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

NSSHKCGERLÖU 0.6/1 kV

0.6/1 kV (Umax 1.2 kV) RL armoured coal-cutter & roadheader cable.

NSSHKCGERLÖU 1.8/3 kV

1.8/3 kV (Umax 3.6 kV) RL armoured 3.3 kV coal-face shearer cable.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (Umax 1.2 kV) · 1.8/3 kV (Umax 3.6
AC routine test voltage
3.0 kV rms (0.6/1 kV) · 6.5 kV rms (1.8/3
Control/pilot bundle rating
230/400 V or 0.6/1 kV (2.0 kV AC test)
Insulation resistance @ 20 °C
≥ 100 MΩ·km

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (flexing)
-25 °C to +60 °C
Ambient temperature (fixed)
-40 °C to +80 °C

Mechanical

Armour type
Flexible galvanized steel wire strands (RL)
Max. tensile load
Up to 30 N/mm² including RL steel strand
Min. bending radius (fixed
6 × D fixed · 10 × D flexing

Resistance

Oil & hydraulic emulsion
DIN EN 60811-404 resistant
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Abrasion & crush resistance
5GM5 outer jacket + RL steel strand armour

Reference standards

Primary specification
DIN VDE 0250-812
Conductor standard
DIN EN 60228 Class 5 tinned copper
Compound standard
DIN VDE 0207-20 (3GI3) & 0207-21 (5GM5)

Identification

Core coding
3 phase cores + numbered K control/pilot
Outer sheath colour
Yellow or Black with embossed designation

Sizes

10 standard configurations (NSSHKCGERLÖU)

Nominal dimensions, copper weights and electrical parameters for NSSHKCGERLÖU per DIN VDE 0250-812.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard NSSHKCGERLÖU configurations
NSSHKCGERLÖU 3×25+4×2.5K+16E 0.6/1 kV3×25 + 4×2.5K + 16E (0.6/1 kV)2541.01,0202,740246
NSSHKCGERLÖU 3×35+4×2.5K+16E 0.6/1 kV3×35 + 4×2.5K + 16E (0.6/1 kV)3544.21,3103,240265
NSSHKCGERLÖU 3×50+4×4K+25E 0.6/1 kV3×50 + 4×4K + 25E (0.6/1 kV)5048.81,8904,050293
NSSHKCGERLÖU 3×70+4×4K+35E 0.6/1 kV3×70 + 4×4K + 35E (0.6/1 kV)7053.62,5805,020322
NSSHKCGERLÖU 3×95+4×4K+50E 0.6/1 kV3×95 + 4×4K + 50E (0.6/1 kV)9559.03,5106,290354
NSSHKCGERLÖU 3×120+4×4K+70E 0.6/1 kV3×120 + 4×4K + 70E (0.6/1 kV)12063.84,4507,560383
NSSHKCGERLÖU 3×35+4×4K+16E 1.8/3 kV3×35 + 4×4K + 16E (1.8/3 kV)3546.81,3653,590281
NSSHKCGERLÖU 3×50+4×4K+25E 1.8/3 kV3×50 + 4×4K + 25E (1.8/3 kV)5051.41,9154,420308
NSSHKCGERLÖU 3×70+4×4K+35E 1.8/3 kV3×70 + 4×4K + 35E (1.8/3 kV)7056.22,6055,440337
NSSHKCGERLÖU 3×95+4×4K+50E 1.8/3 kV3×95 + 4×4K + 50E (1.8/3 kV)9561.53,5356,750369
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-812.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.0 kV (0.6/1 kV) or 6.5 kV (1.8/3 kV) for 5 min100 % of drums
CGE screen & RL armour continuityContinuity and insulation check per DIN VDE 0250-812100 % of drums
Sample tests
Impact crush & cyclic bendingNo core damage or strand protrusion after flexingPer production batch
Flame & oil resistanceDIN EN 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812DIN EN 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSSHKCGERLÖU 0.6/1 kV / 1.8/3 kV
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNSSHKCGERLÖU Armoured Coal-Cutter Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXNSSHKCGERLÖU spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How is NSSHKCGERLÖU constructed for 1000 V and 3300 V coal-cutter duty?
NSSHKCGERLÖU combines three Class 5 tinned copper power cores insulated with 3GI3 EPR and screened by semi-conductive elastomer plus copper (CGE), an integrated K pilot/control bundle, an inner elastomer sheath, a helical layer of flexible galvanized steel wire strands (RL), and a 5GM5 outer sheath.
Why choose NSSHKCGERLÖU over unarmoured NSHCGEÖU?
Where longwall faces experience heavy roof spalling, scraper-chain pinch hazards, or steep seam gradients, the RL galvanized steel strand armour provides mechanical crush protection and axial tensile reinforcement that unarmoured NSHCGEÖU cannot match. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Is the 1.8/3 kV version compatible with 3.3 kV underground mining switchgear?
Yes. Under DIN VDE 0250-812, the 1.8/3 kV rating carries a maximum system operating voltage Umax of 3.6 kV AC, fully covering standard 3.3 kV underground longwall coal-shearer and roadheader power supplies. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Does the RL steel strand armour restrict use in Bretby cable handlers?
No. Because RL armour is wound from multi-wire fine galvanized steel strands rather than rigid single wires, the cable retains a 10×D dynamic bending radius suitable for standard longwall Bretby cable handling chains. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
