Product

DIN VDE 0250-602 / 606 short-circuit-proof single-core wires1.8/3 kV & 3.6/6 kVHalogen-Free LSZH (HM3)DIN VDE 0250-606

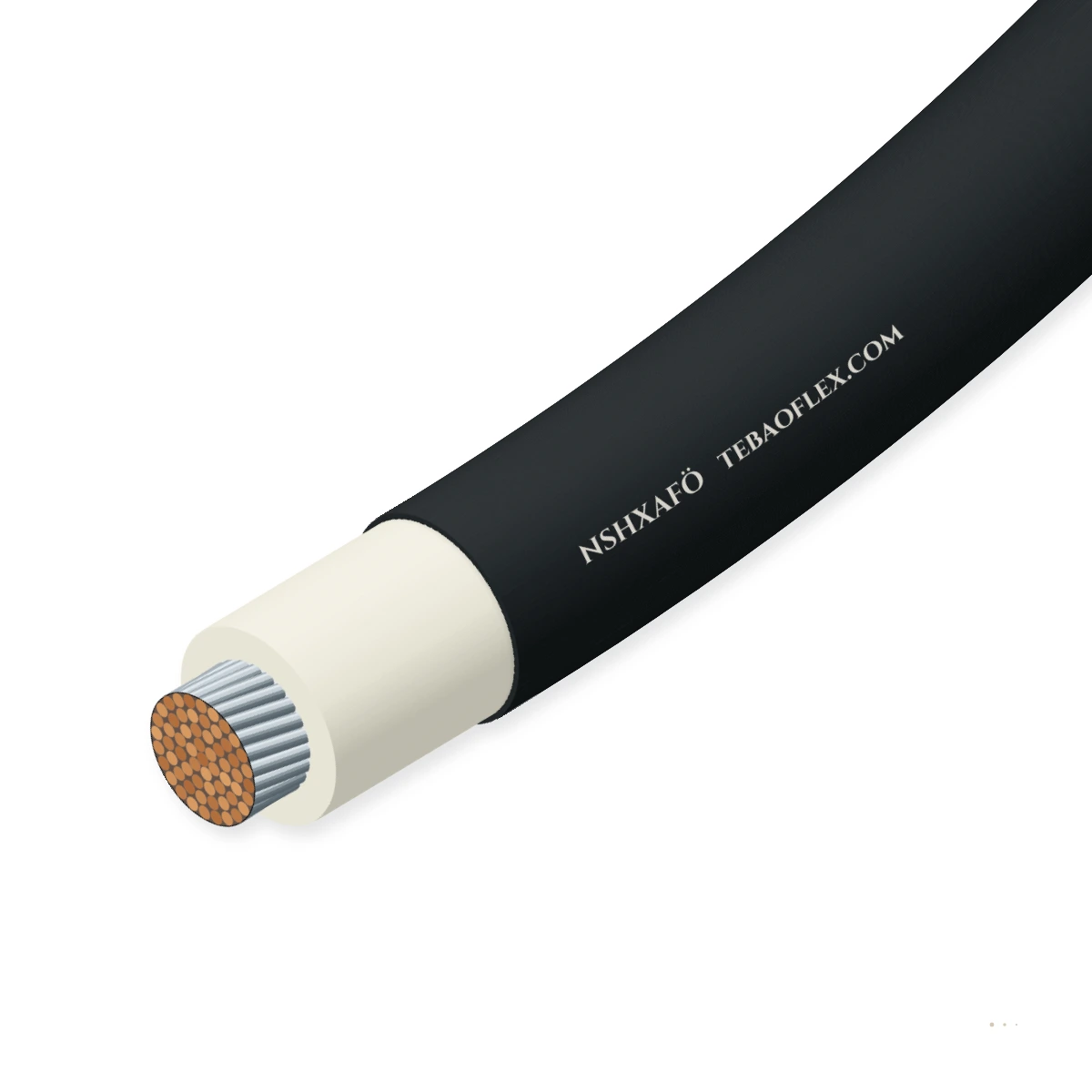

NSHXAFÖ 1.8/3 kV Halogen-Free Short-Circuit-Proof Single-Core WireDIN VDE 0250-606 LSZH / FRNC single-core wire (3GI3 EPR + HM3) for rail & switchgear

Halogen-free, low-smoke 1.8/3 kV (and 3.6/6 kV) single-core rubber wire (NSHXAFÖ) to DIN VDE 0250-606 with Class 5 tinned copper core, 3GI3 EPR insulation and HM3 FRNC sheath — short-circuit and earth-fault proof in switchgear and rail up to 1,000 V.

Flame-retardant

Oil-resistant

Approved

Cross-section

Order designation: NSHXAFÖ 1 × 70
OD min: 16.6 mm
OD max: 20.5 mm
Weight ≈: 780 kg/km
Ampacity (air): 347 A

Check against my drum All sizes (18)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 1.8/3 & 3.6/6 kV
Halogen-free: IEC 60754/61034
Core / sheath: 3GI3 EPR / HM3
Short-circuit duty: Up to 1,000 V
Operating temp.: -25 to +70 °C
Test voltage: 6 kV AC

Typical values for this cable type, based on DIN VDE 0250-606 / VDE 0250-602 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSHXAFÖ 1.8/3 kV right for your machine?

Halogen-free (LSZH) VDE 0250-602 1.8/3 kV single-core flexible power wire for enclosed rail coaches, marine switchboards and public-building switchgear.

Switchgear & control cabinet wiring

Suitable

Primary duty — halogen-free, earth-fault-proof single-core bus and breaker wiring inside switchgear and rail cubicles.

Motor stator, traction & converter leads

Suitable

Low-smoke converter, traction motor and auxiliary inverter jumpers in passenger rail and tunnels.

Fixed installation

Suitable

Fixed routing in closed ducts, trays and machine frames where low smoke/zero halogen is mandatory.

Immersion & wet locations

Not suitable

LSZH compound is for dry/damp indoor or enclosed vehicle use, not permanent water immersion.

Use H07RN8-F Submersible

Motorised monospiral reel

Not suitable

Single-core installation wire — never wind on dynamic crane or mining reels.

Use (N)SHTÖU Reeling

Typical machinesPassenger trains, metro & underground coachesElectric buses, trams & traction convertersHalogen-free LV/MV switchgear & busbar risersSubway stations, tunnels & public buildingsMarine, offshore & data-centre UPS switchboardsShort-circuit-proof rectifier & inverter links

Construction

Layer by layer

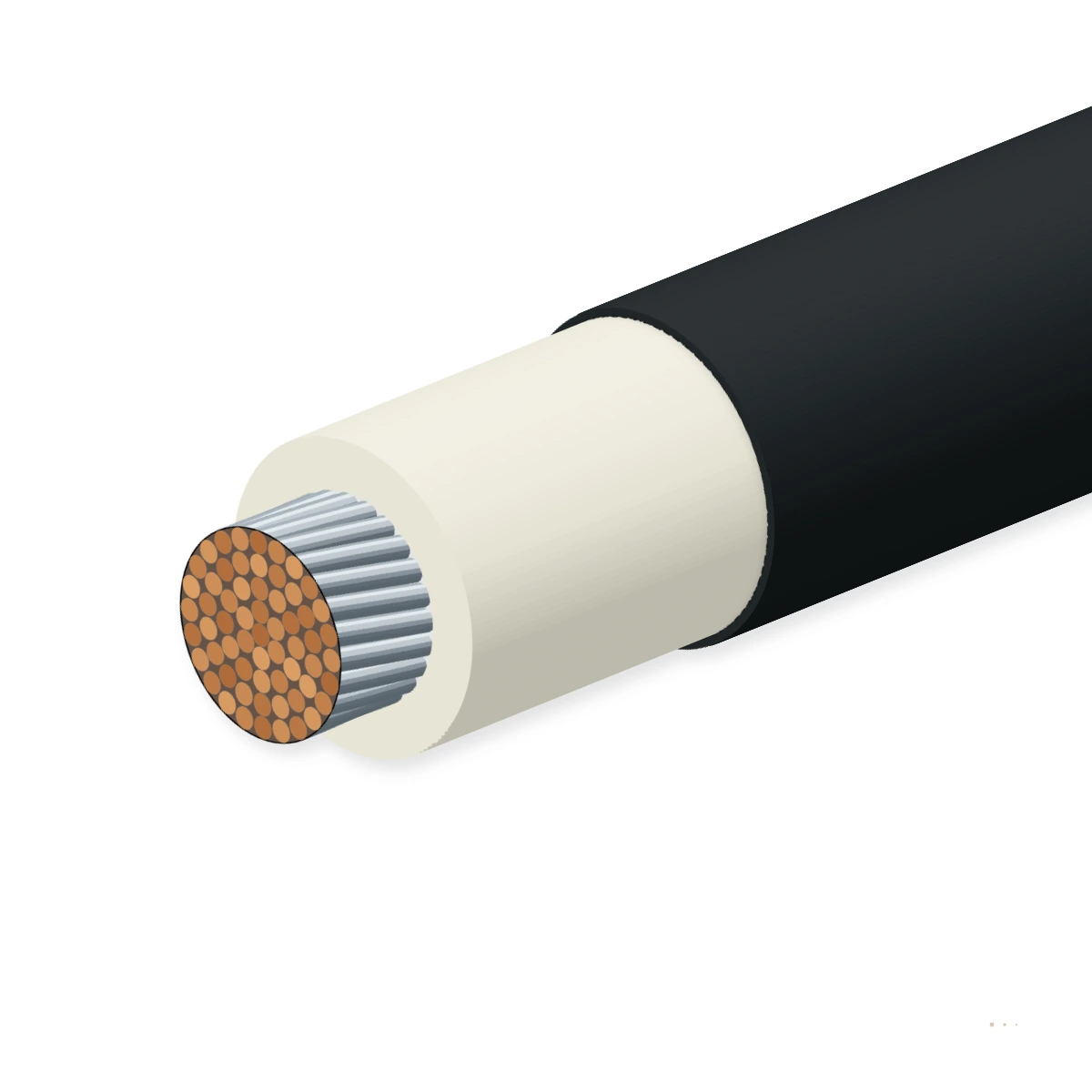

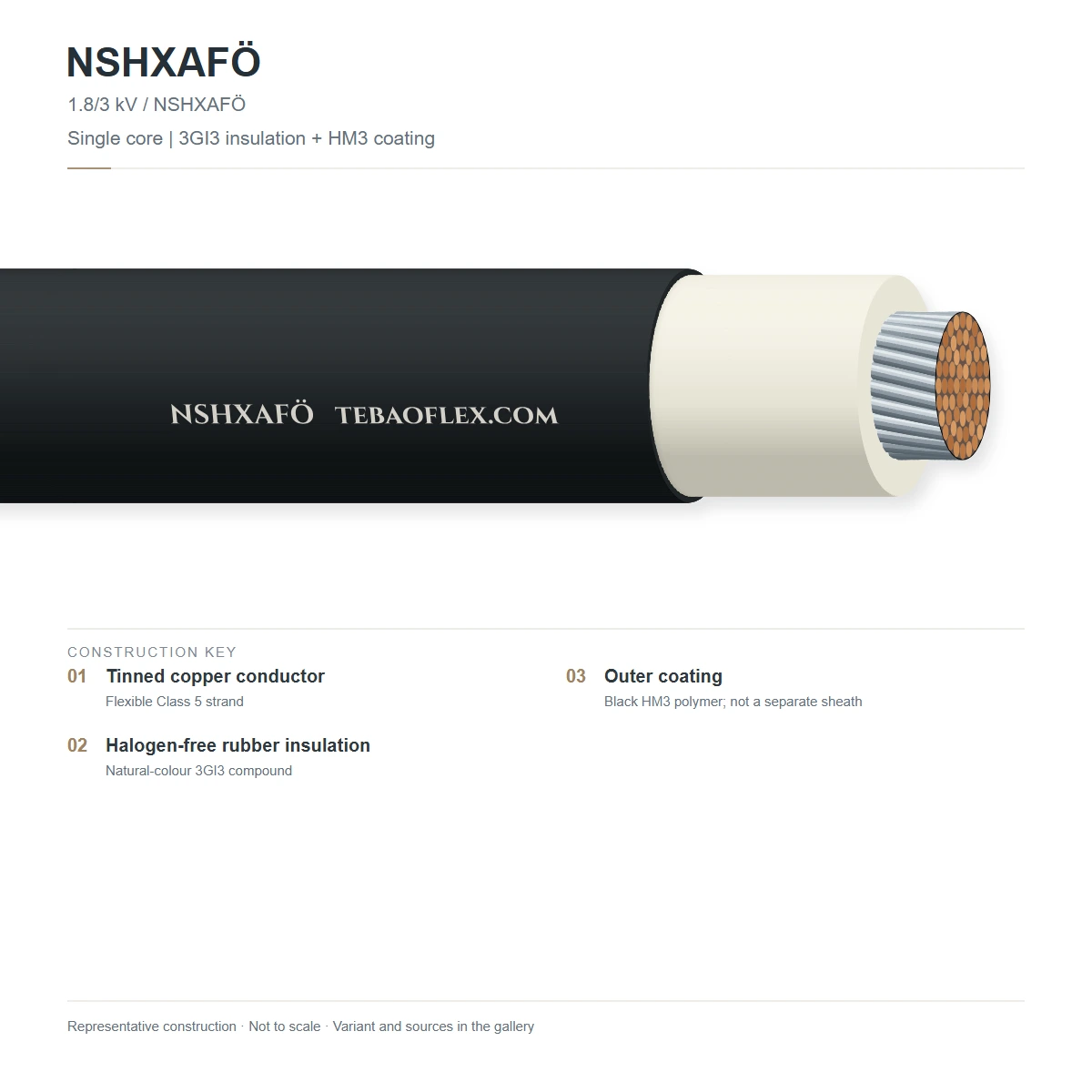

Shown: NSHXAFÖ 1 × 70 mm² 1.8/3 kV — fine-stranded Class 5 tinned copper conductor, halogen-free 3GI3 ethylene-propylene rubber (EPR) insulation and black halogen-free FRNC compound HM3 outer sheath (3.6/6 kV version adds an inner semi-conductive layer).

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Fine-stranded tinned annealed copper, Class 5 per DIN EN IEC 60228 (VDE 0295)1.5 mm² to 500 mm² single-core flexible conductor
2	Core insulation (3GI3)	Halogen-free ethylene-propylene rubber (EPR) compound type 3GI3 (3.6/6 kV series includes inner semi-conductive layer)1.8/3 kV or 3.6/6 kV · +90 °C continuous / +250 °C short-circuit
3	Outer sheath (HM3)	Halogen-free, low-smoke flame-retardant cross-linked polymer compound type HM3, blackDIN VDE 0250-606 · IEC 60754 halogen-free · IEC 61034 low smoke · IEC 60332-1-2 · EN 60811-404 oil-resistant

NSHXAFÖ 1.8/3 kV (1×1.5 – 1×500 mm²)

Standard 1.8/3 kV halogen-free single-core switchgear and rail vehicle wire (6 kV AC test)

NSHXAFÖ 3.6/6 kV (1×1.5 – 1×185 mm²)

Medium-voltage 3.6/6 kV halogen-free single-core wire with inner semi-conductive conductor screen

NSHXAFCMÖ 3.6/6 kV (1×185 mm²)

Screened 3.6/6 kV halogen-free single-core wire with concentric tinned copper wire screen (38.5 mm OD)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-606 / VDE 0250-602. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U (max DC): 1.8/3 kV AC standard (max. 2.7/5.4 kV DC) · 3.6/6 kV AC series also available
Routine test voltage & short-circuit proof: 6.0 kV AC test (1.8/3 kV) · Inherently short-circuit & earth-fault proof up to 1,000 V

Thermal

Ambient temperature — moved / fixed: -25 to +70 °C moved · -40 to +70 °C fixed (conductor up to +90 °C)
Max. short-circuit temperature: +250 °C (1 s adiabatic short-circuit rating 0.21 kA on 1.5 mm² to 71.5 kA on 500 mm²)

Mechanical

Min. bending radius: 6 × D fixed installation · 10 × D moving application (4 × D / 5 × D in dry cabinet wiring)
Permissible tensile load: 15 N/mm² of copper cross-section (21 N on 1.5 mm² up to 7,500 N on 500 mm²)

Reference standards

Reference standards: DIN VDE 0250-606 (halogen-free NSHXAFÖ) & DIN VDE 0250-602 · DIN EN IEC 60228 (VDE 0295) Class 5
Halogen-free, smoke, flame & oil performance: Halogen-free IEC 60754 (EN 50267) · Low smoke IEC 61034 · Flame-retardant IEC 60332-1-2 · Oil-resistant EN 60811-404 · CPR Eca

Sizes

Dimensions, weights, short-circuit ratings & 3.6/6 kV series

18 sizes in 1.8/3 kV (1.5–500 mm²) plus 14 sizes in 3.6/6 kV (1.5–185 mm²)

1.8/3 kV dimensions & weights
Order designation	Cross-section mm²	OD min mm	OD approx mm	OD max mm	Cu weight kg/km	Total weight ≈ kg/km	Max. pull N	Ampacity (air) A
All 1.8/3 kV sizes
1.5 – 16 mm²
NSHXAFÖ 1 × 1.5	1 × 1.5	5.7	6.0	7.0	14	50	21	30
NSHXAFÖ 1 × 2.5	1 × 2.5	6.0	6.5	7.5	24	60	41	41
NSHXAFÖ 1 × 4	1 × 4	6.8	7.0	9.0	38	80	60	55
NSHXAFÖ 1 × 6	1 × 6	7.3	7.5	9.5	58	100	90	70
NSHXAFÖ 1 × 10	1 × 10	8.7	9.0	11.0	96	160	150	98
NSHXAFÖ 1 × 16	1 × 16	10.0	10.5	13.0	154	230	240	132
25 – 120 mm²
NSHXAFÖ 1 × 25	1 × 25	12.4	12.5	15.0	240	340	375	176
NSHXAFÖ 1 × 35	1 × 35	13.4	13.5	16.5	336	430	525	219
NSHXAFÖ 1 × 50	1 × 50	14.9	15.5	18.0	480	580	750	276
NSHXAFÖ 1 × 70	1 × 70	16.6	17.5	20.5	672	780	1,050	347
NSHXAFÖ 1 × 95	1 × 95	19.3	20.5	24.0	912	1,030	1,425	416
NSHXAFÖ 1 × 120	1 × 120	20.8	21.5	26.0	1,152	1,270	1,800	488
150 – 500 mm²
NSHXAFÖ 1 × 150	1 × 150	23.0	23.5	28.0	1,440	1,570	2,250	566
NSHXAFÖ 1 × 185	1 × 185	25.2	25.5	31.0	1,776	1,900	2,775	644
NSHXAFÖ 1 × 240	1 × 240	28.1	28.0	34.5	2,304	2,500	3,600	775
NSHXAFÖ 1 × 300	1 × 300	30.8	31.5	38.0	2,890	3,000	4,500	898
NSHXAFÖ 1 × 400	1 × 400	34.6	37.3	40.0	3,840	4,000	6,000	1,060
NSHXAFÖ 1 × 500	1 × 500	39.0	43.5	45.0	4,800	5,860	7,500	1,250

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
1×400 mm² min/max OD corrected from transposed 40.0/34.6 mm in the PDF table to 34.6–40.0 mm.

Resistance & 1 s short-circuit current
Cross-section mm²	Max. DC resistance at 20 °C Ω/km	Current in air (30 °C) A	1 s short-circuit current Ik kA	Max. pulling force N
1 × 1.5	13.700	30	0.21	21
1 × 2.5	8.210	41	0.35	41
1 × 4	5.090	55	0.57	60
1 × 6	3.390	70	0.85	90
1 × 10	1.950	98	1.43	150
1 × 16	1.240	132	2.28	240
1 × 25	0.795	176	3.57	375
1 × 35	0.565	219	5.00	525
1 × 50	0.393	276	7.15	750
1 × 70	0.277	347	10.01	1,050
1 × 95	0.210	416	13.58	1,425
1 × 120	0.164	488	17.16	1,800
1 × 150	0.132	566	21.45	2,250
1 × 185	0.108	644	26.45	2,775
1 × 240	0.082	775	34.32	3,600
1 × 300	0.065	898	42.90	4,500
1 × 400	0.049	1,060	57.20	6,000
1 × 500	0.039	1,250	71.50	7,500

Adiabatic 1 s short-circuit current Ik is calculated for 90 °C initial to 250 °C final conductor temperature.

3.6/6 kV series dimensions
Cross-section (3.6/6 kV)	OD min mm	OD max mm	Nominal weight ≈ kg/km
1 × 1.5 (3.6/6 kV)	8.3	9.5	135
1 × 2.5 (3.6/6 kV)	8.6	10.5	150
1 × 4 (3.6/6 kV)	9.4	12.0	170
1 × 6 (3.6/6 kV)	9.9	13.0	200
1 × 10 (3.6/6 kV)	10.9	14.5	250
1 × 16 (3.6/6 kV)	12.6	15.5	350
1 × 25 (3.6/6 kV)	14.5	17.5	480
1 × 35 (3.6/6 kV)	15.6	19.0	600
1 × 50 (3.6/6 kV)	17.1	21.0	760
1 × 70 (3.6/6 kV)	18.8	23.0	960
1 × 95 (3.6/6 kV)	21.3	26.5	1,240
1 × 120 (3.6/6 kV)	23.2	28.5	1,530
1 × 150 (3.6/6 kV)	25.0	30.5	1,790
1 × 185 (3.6/6 kV)	26.8	33.0	2,130

3.6/6 kV sizes include an inner semi-conductive conductor screen; screened NSHXAFCMÖ 1×185 mm² (3.6/6 kV) has 38.5 mm nominal OD and 3,060 kg/km weight.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Expected tensile force (N)

Cable length on drum (m)

Drum core 220 mm is below 246 mmUse a larger drum core or a smaller cable size

15 m/min ≤ 30 m/minWithin the rated travel speed

500 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension

Minimum bending radius: 123 mm
Min. drum core diameter: ≈ 246 mm
Cable weight on drum: 19.5 kg
Copper content: 16.8 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC spark / dielectric voltage test	6.0 kV AC (1.8/3 kV series)	Every production length
Conductor DC resistance at 20 °C	DIN EN IEC 60228 (VDE 0295) Class 5	Every production length
Sample tests
Halogen-free & acid gas emission test	DIN EN 50267 / IEC 60754	Per compound batch
Smoke density & vertical flame propagation	IEC 61034 · IEC 60332-1-2	Per production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

1.8/3 kV & 3.6/6 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSHXAFÖ 1.8/3 kV [1×mm²] · DIN VDE 0250-606 · FRNC / LSZH · CE · [year] · [metre mark]

Standard packing: Coils or wooden drums; available in 1.8/3 kV, 3.6/6 kV and screened NSHXAFCMÖ
HS code: 8544.60

Technical documents

Downloads

PDFNSHXAFÖ 1.8/3 kV Halogen-Free Short-Circuit-Proof Single-Core Wire – technical datasheet18 sizes · construction, technical data, approvals XLSXNSHXAFÖ 1.8/3 kV spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Which VDE standard governs NSHXAFÖ versus NSGAFÖU?

NSGAFÖU with a chlorinated 5GM3 rubber jacket is standardized under DIN VDE 0250-602. NSHXAFÖ with a halogen-free, low-smoke FRNC outer jacket (compound type HM3) is standardized under DIN VDE 0250-606, while retaining the same 1.8/3 kV voltage class, 3GI3 EPR core insulation and short-circuit-proof rating up to 1,000 V.

What does the 'HX' in NSHXAFÖ denote?

In VDE cable nomenclature, 'HX' denotes a cross-linked halogen-free polymer compound (HM3), verifying that the cable meets DIN EN 50267 / IEC 60754 for zero halogen acid gas and DIN EN 61034 / IEC 61034 for low smoke density in fire conditions.

Is NSHXAFÖ available in 3.6/6 kV or with a metallic screen?

Yes. Alongside the standard 1.8/3 kV series (1.5 to 500 mm²), NSHXAFÖ is manufactured in a 3.6/6 kV series with an inner semi-conductive conductor layer (1.5 to 185 mm²), and as NSHXAFCMÖ with a concentric tinned copper wire screen.

Why is the 1×400 mm² outer diameter listed as 34.6–40.0 mm?

In the original PDF table for 1.8/3 kV, the Min. OD (40.0 mm) and Max. OD (34.6 mm) columns for 1×400 mm² were accidentally transposed. The physical minimum-to-maximum diameter tolerance is 34.6 mm to 40.0 mm.
