Product

Halogen-free armoured MV mining & tunnel feeder cableBased on DIN VDE 0250-605U0/U 3.6/6–12/20 kVDouble screen + steel braid + LSZH

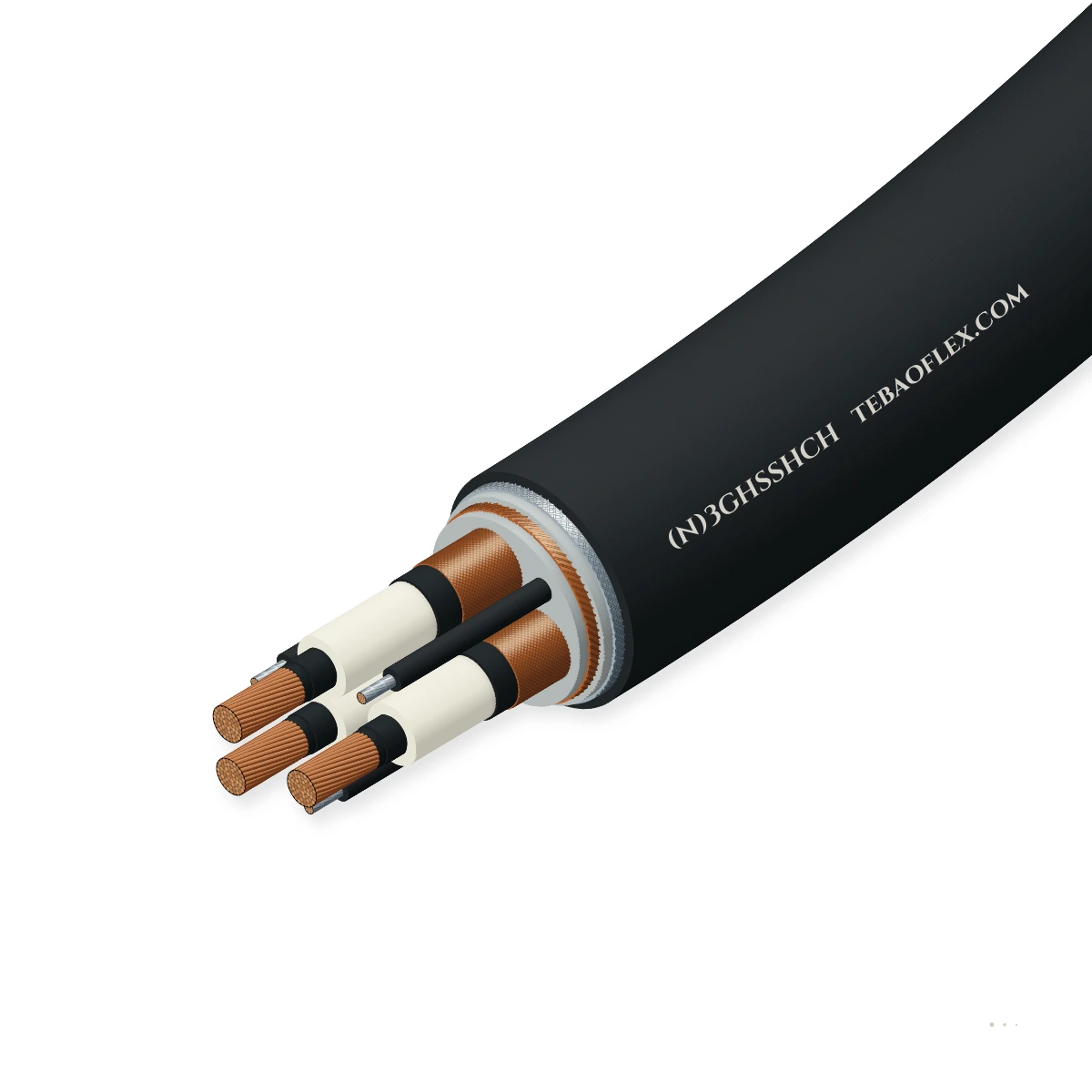

(N)3GHSSHCH 3.6/6–12/20 kV Halogen-Free Armoured MV CableLSZH double-screened & steel-wire-braid armoured MV cable for tunnels & underground mines

Halogen-free medium-voltage feeder cable to DIN VDE 0250-605 (3.6/6–12/20 kV) with Class 5 copper conductors, 3GI3 EPR insulation, /3E phase copper screens, overall ÜL monitoring screen, galvanized steel wire braid armour and HM4 LSZH sheaths.

EMC screen

Flame-retardant

Water-resistant

Outdoor & humid

Voltage & cross-section

Order designation: 6kv_3x50
Outer Ø max: 52.5 mm
Weight ≈: 4,508 kg/km
Min. bend R: 525 mm
Current 30 °C: 202 A

All sizes (31)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 3.6/6–12/20 kV
Cross-section: 3×25–3×150 mm²
Conductor max: +90 °C (250 °C)
Ambient temp.: -40 to +80 °C
Min. bend radius: 6×D / 10×D
Pulling load: 15 N/mm²

Typical values for this cable type, based on DIN VDE 0250-605 — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)3GHSSHCH right for your machine?

Halogen-free VDE 0250-605 medium-voltage (3.6/6 kV to 12/20 kV) pliable wire-armoured mining and tunnel feeder cable with concentric screen.

Mine roadway & tunnel wall hangers

Suitable

Primary duty — halogen-free MV feeder hung along underground mine roadways and metro tunnels.

Fixed installation

Suitable

Fixed trays, tunnel brackets and shaft entries where low smoke and crush armour are mandatory.

Trailing & towing

With conditions

Semi-mobile repositioning with advancing tunnel substations when bend radius is respected.

Motorised monospiral reel

Not suitable

Galvanized steel wire armour cannot be wound onto dynamic reeling drums.

Use (N)TSCGEWÖU MV Reel

Festoon & line chain

Not suitable

Heavy armoured MV construction is unsuitable for festoon trolleys.

Use (N)TSFLCGEWÖU MV Flat

Typical machinesTBM & conventional tunnel constructionUnderground hard-rock & potash miningShiftable flameproof MV substations & transformersSubsurface cavern, hydro & metro power distribution

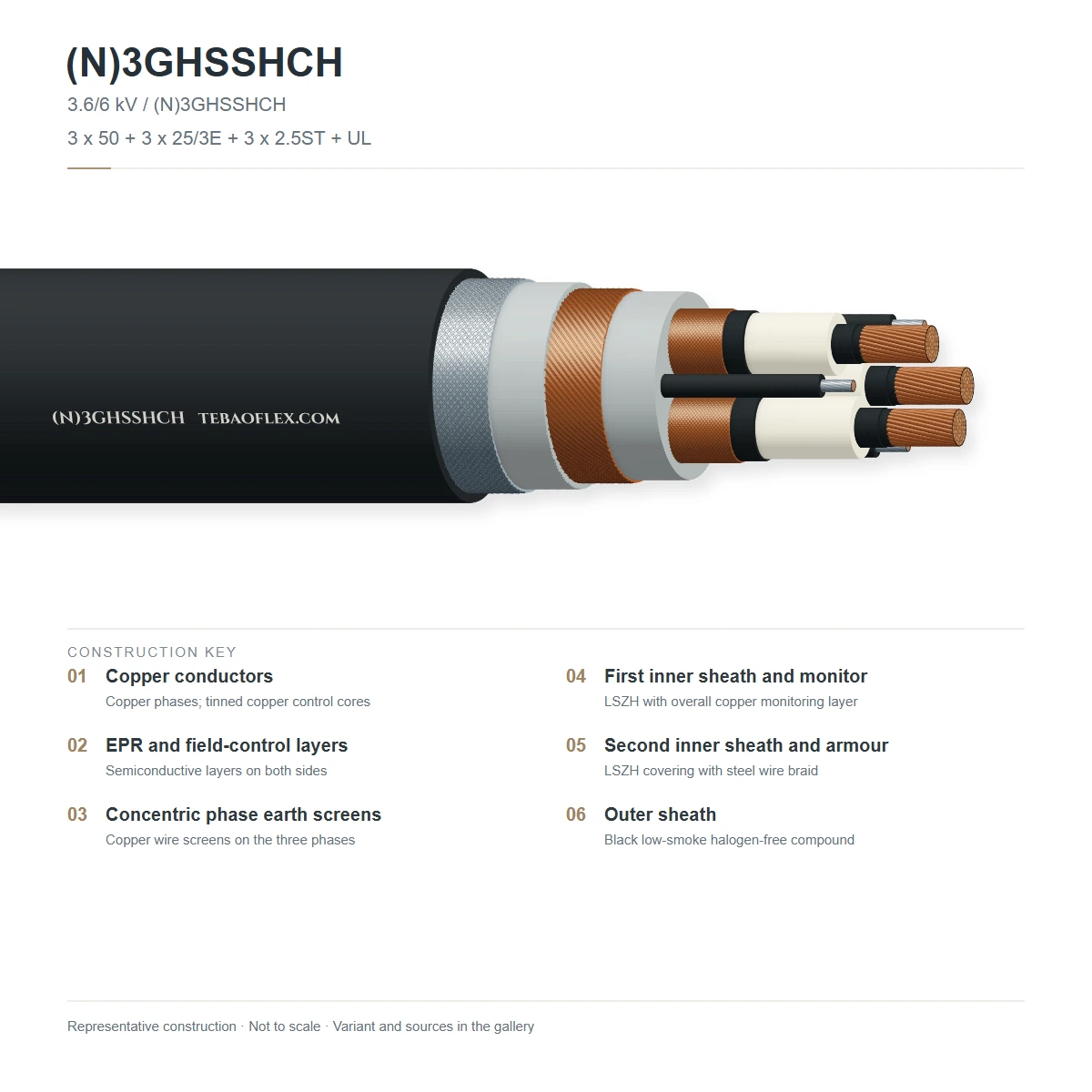

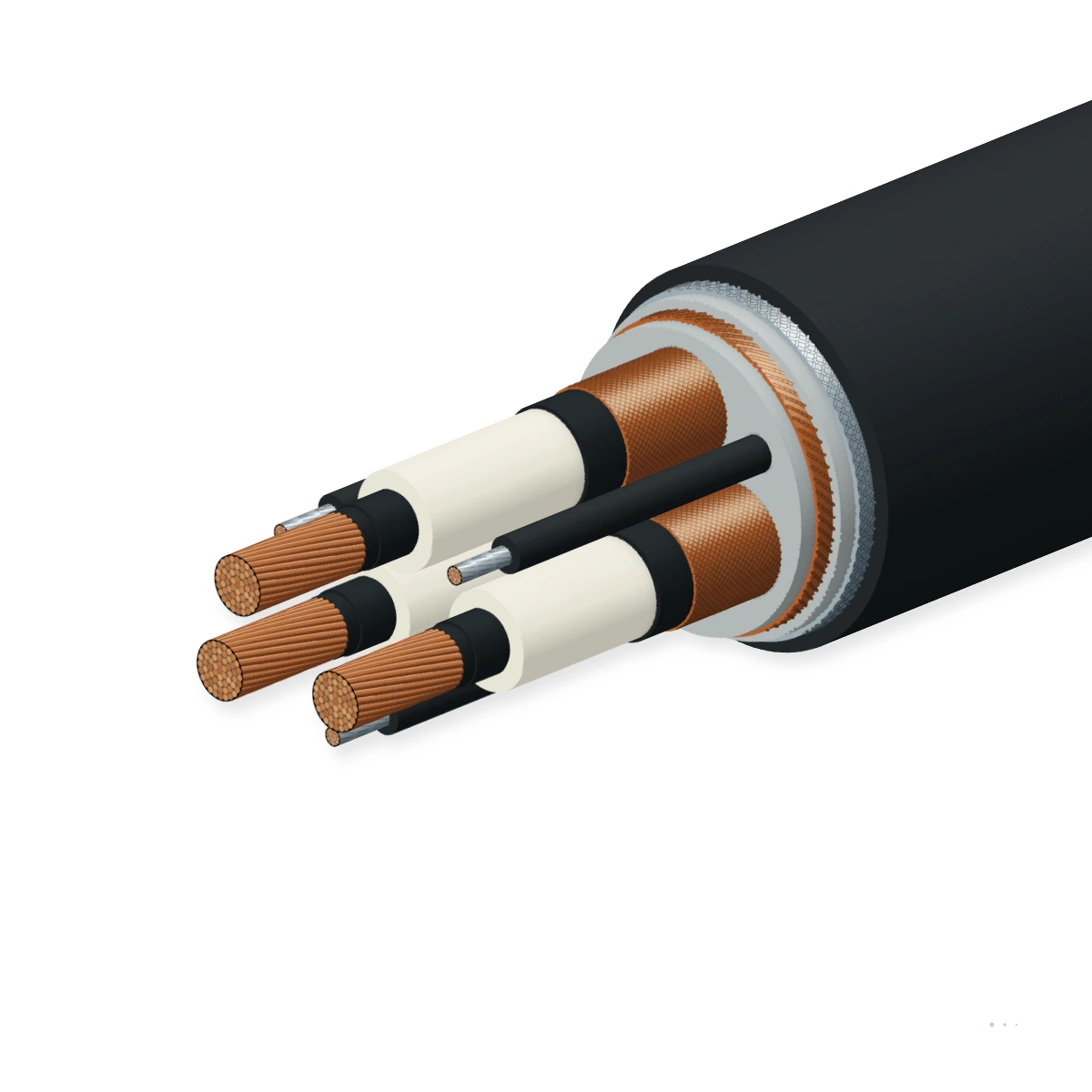

Construction

Layer by layer

Double-screened MV core with individual /3E phase copper screens, overall ÜL monitoring conductor, galvanized steel wire braid armour and triple HM4 LSZH sheaths based on DIN VDE 0250-605.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase & control conductors	Finely stranded Class 5 bare copper phase conductors (IEC 60228 / DIN VDE 0295); Class 5 tinned or bare copper interstitial control cores (3 × 2.5 mm² ST)IEC 60228 / DIN VDE 0295 Class 5
2	Electrical field control	Inner and outer extruded semiconductive elastomer layers over the phase insulation (3.6/6 kV also manufactured with outer semiconductive layer over semiconductive conductor tape)DIN VDE 0250-605
3	Phase core insulation	Cross-linked EPR rubber compound, high-grade 3GI3 (DIN VDE 0207-20)DIN VDE 0207-20 (3GI3)
4	Individual phase earth screens (/3E)	Concentric copper wire screen helically applied around each of the three MV phase cores (16/3E to 95/3E)DIN VDE 0250-605 (/3E)
5	First inner sheath	Halogen-free low-smoke thermoplastic compound HM4 over laid-up phase and control coresDIN VDE 0250-605 (HM4)
6	Monitoring conductor (ÜL)	Conductive tape plus overall concentric copper wire spinning over the first inner sheath for radial earth-fault/crush monitoringDIN VDE 0250-605 (ÜL)
7	Second (intermediate) sheath	Halogen-free low-smoke thermoplastic compound HM4 separating the ÜL monitoring screen from the steel armourDIN VDE 0250-605 (HM4)
8	Mechanical armour (C)	Galvanized steel wire braid applied over the second inner sheath for rockfall, crush and rodent protectionDIN VDE 0250-605 (C)
9	Outer sheath (H)	Flame-retardant, halogen-free low-smoke thermoplastic compound HM4 (red or black outer jacket)DIN VDE 0250-605 (HM4)

Types in this range

3.6/6 kV (Um 7.2 kV)

9 configurations from 3×25 to 3×150 mm² · AC test 11 kV · OD 42.7–73.7 mm

Datasheet

6/10 kV (Um 12 kV)

9 configurations from 3×25 to 3×150 mm² · AC test 17 kV · OD 44.7–74.4 mm

Datasheet

8.7/15 kV (Um 18 kV)

6 configurations from 3×25 to 3×120 mm² · AC test 24 kV · OD 49.1–71.0 mm

Datasheet

12/20 kV (Um 24 kV)

7 configurations from 3×25 to 3×150 mm² · AC test 29 kV · OD 52.6–80.5 mm

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-605. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 3.6/6 kV · 6/10 kV · 8.7/15 kV · 12/20 kV
Max. operating voltage AC (Um): 4.2/7.2 kV · 6.9/12 kV · 10.4/18 kV · 13.9/24 kV
Max. operating voltage DC: 5.4/10.8 kV · 9/18 kV · 13.5/27 kV · 18/36 kV
AC test voltage (5 min, main / control): 11 kV · 17 kV · 24 kV · 29 kV (control cores: 2 kV)

Thermal

Max. conductor operating temperature: +90 °C
Max. short-circuit temperature (1 s): +250 °C
Ambient temperature (fixed installation): -40 °C to +80 °C
Ambient temperature (flexed / shifting): +5 °C to +80 °C (+60 °C continuous)

Mechanical

Max. permissible tensile load: 15 N/mm² on phase conductors (1,125–6,750 N)
Minimum bending radius (fixed): 6 × cable overall diameter
Minimum bending radius (flexed / shifting): 10 × cable overall diameter
Mechanical impact protection: Galvanized steel wire braid armour over 2nd inner sheath

Resistance

Flame retardancy: IEC 60332-1-2 / DIN EN 60332-1-2
Halogen-free & corrosive gas emission: IEC 60754-1 / IEC 60754-2 (EN 60754-1/2)
Weather, ozone & mine environment: Ozone- and moisture-resistant; underground mine duty per DIN VDE 0118

Reference standards

Design standard: Based on DIN VDE 0250-605
Application & installation guide: DIN VDE 0298-3 · DIN VDE 0298-4 · DIN VDE 0118
Customs HS code: 8544.60

Identification

Main & control core identification: Main cores: natural insulation with black semicon layer · Control cores: black with white digits
Outer sheath colour: Red (HM4) or Black (LSZH)

Sizes

Dimensions & electrical parameters (3.6/6–12/20 kV)

31 configurations across four MV voltage classes based on DIN VDE 0250-605

Dimensions & electrical data (3.6/6–12/20 kV)
Construction (Phase + Earth + Control + ÜL)	U0/U	Cond. Ø max	Outer Ø min	Outer Ø max	Weight ≈	Max tensile	R20 max	Capacitance	Inductance	Ampacity 30 °C	Isc (1 s)	Min. bend R
3.6/6 kV (Um 7.2 kV)
3×25 + 3×16/3E + 3×2.5ST + ÜL	3.6/6	6.4	42.7	45.7	3,178	1,125	0.780	0.36	0.32	131	3.58	457
3×25 + 3×25/3E + 3×2.5ST + ÜL	3.6/6	6.1	47.2	52.1	4,120	1,125	0.780	—	—	131	3.58	521
3×35 + 3×16/3E + 3×2.5ST + ÜL	3.6/6	7.6	45.3	48.3	3,696	1,575	0.554	0.41	0.30	162	5.01	483
3×35 + 3×25/3E + 3×2.5ST + ÜL	3.6/6	7.2	49.0	54.0	4,570	1,575	0.554	—	—	162	5.01	540
3×50 + 3×25/3E + 3×2.5ST + ÜL	3.6/6	9.1	48.5	52.5	4,508	2,250	0.386	0.47	0.29	202	7.15	525
3×70 + 3×35/3E + 3×2.5ST + ÜL	3.6/6	10.8	52.1	56.1	5,437	3,150	0.272	0.53	0.28	250	10.01	561
3×95 + 3×50/3E + 3×2.5ST + ÜL	3.6/6	12.7	56.6	60.6	6,638	4,275	0.206	0.61	0.27	301	13.59	606
3×120 + 3×70/3E + 3×2.5ST + ÜL	3.6/6	14.3	60.5	64.5	7,953	5,400	0.161	0.67	0.26	352	17.16	645
3×150 + 3×70/3E + 3×2.5ST + ÜL	3.6/6	16.1	65.0	71.0	9,150	6,750	0.129	0.74	0.25	404	21.45	710
6/10 kV (Um 12 kV)
3×25 + 3×16/3E + 3×2.5ST + ÜL	6/10	6.4	44.7	48.7	3,586	1,125	0.780	0.32	0.33	131	3.58	487
3×25 + 3×25/3E + 3×2.5ST + ÜL	6/10	6.1	47.2	52.7	4,160	1,125	0.780	—	—	131	3.58	527
3×35 + 3×16/3E + 3×2.5ST + ÜL	6/10	7.6	48.7	51.7	4,020	1,575	0.554	0.36	0.31	162	5.01	517
3×35 + 3×25/3E + 3×2.5ST + ÜL	6/10	7.2	49.0	54.6	4,610	1,575	0.554	—	—	162	5.01	546
3×50 + 3×25/3E + 3×2.5ST + ÜL	6/10	9.1	50.7	54.7	4,840	2,250	0.386	0.42	0.30	202	7.15	547
3×70 + 3×35/3E + 3×2.5ST + ÜL	6/10	10.8	55.1	59.1	5,680	3,150	0.272	0.47	0.28	250	10.01	591
3×95 + 3×50/3E + 3×2.5ST + ÜL	6/10	12.7	59.5	63.5	7,090	4,275	0.206	0.54	0.27	301	13.59	635
3×120 + 3×70/3E + 3×2.5ST + ÜL	6/10	14.3	63.9	67.9	8,460	5,400	0.161	0.59	0.26	352	17.16	679
3×150 + 3×70/3E + 3×2.5ST + ÜL	6/10	15.5	67.2	74.4	10,170	6,750	0.129	—	—	404	21.45	744
8.7/15 kV (Um 18 kV)
3×25 + 3×16/3E + 3×2.5ST + ÜL	8.7/15	6.4	49.1	53.1	3,985	1,125	0.780	0.26	0.35	139	3.58	531
3×35 + 3×16/3E + 3×2.5ST + ÜL	8.7/15	7.6	52.1	56.1	4,636	1,575	0.554	0.29	0.33	172	5.01	561
3×50 + 3×25/3E + 3×2.5ST + ÜL	8.7/15	9.1	53.9	57.9	5,410	2,250	0.386	0.33	0.31	215	7.15	579
3×70 + 3×35/3E + 3×2.5ST + ÜL	8.7/15	10.8	57.6	61.6	6,200	3,150	0.272	0.38	0.30	265	10.01	616
3×95 + 3×95/3E + 3×2.5ST + ÜL	8.7/15	12.7	63.6	67.6	7,660	4,275	0.206	0.43	0.29	319	13.59	676
3×120 + 3×70/3E + 3×2.5ST + ÜL	8.7/15	14.3	67.0	71.0	8,991	5,400	0.161	0.47	0.28	371	17.16	710
12/20 kV (Um 24 kV)
3×25 + 3×25/3E + 3×2.5ST + ÜL	12/20	6.4	52.6	56.6	4,501	1,125	0.780	0.22	0.37	139	3.58	566
3×35 + 3×16/3E + 3×2.5ST + ÜL	12/20	7.6	53.6	57.6	4,850	1,575	0.554	0.25	0.35	172	5.01	576
3×50 + 3×25/3E + 3×2.5ST + ÜL	12/20	9.1	56.8	60.8	5,630	2,250	0.385	0.28	0.33	215	7.15	608
3×70 + 3×35/3E + 3×2.5ST + ÜL	12/20	10.8	61.0	65.0	6,740	3,150	0.272	0.32	0.31	265	10.01	650
3×95 + 3×50/3E + 3×2.5ST + ÜL	12/20	12.7	66.0	70.0	8,150	4,275	0.206	0.36	0.30	319	13.59	700
3×120 + 3×70/3E + 3×2.5ST + ÜL	12/20	14.3	70.5	74.5	9,502	5,400	0.161	0.39	0.29	371	17.16	745
3×150 + 3×70/3E + 3×2.5ST + ÜL	12/20	16.5	76.5	80.5	10,900	6,750	0.129	0.44	0.28	428	21.45	805

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Ampacity for cables laid on the floor at 30 °C ambient temperature (DIN VDE 0298-4 Table 15). Free in air ratings are approximately 5 % higher (e.g. 138 A for 25 mm², 212 A for 50 mm², 424 A for 150 mm² up to 6/10 kV).
Ambient temperature derating factors (DIN VDE 0298-4, 90 °C conductor): 10 °C: 1.15 · 20 °C: 1.08 · 30 °C: 1.00 · 40 °C: 0.91 · 50 °C: 0.82 · 60 °C: 0.71 · 70 °C: 0.58 · 80 °C: 0.41.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC high-voltage dielectric test on main & control cores	11 kV (3.6/6 kV) · 17 kV (6/10 kV) · 24 kV (8.7/15 kV) · 29 kV (12/20 kV) for 5 min; control cores 2 kV	Every manufactured length (DIN VDE 0250-605)
Conductor DC resistance & screen/monitoring continuity	IEC 60228 Class 5 bare/tinned copper limits; 3E phase screens and ÜL screen verified continuous	Every manufactured length
Sample tests
Halogen-free acid gas emission & vertical flame test	IEC 60754-1/2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm) & IEC 60332-1-2 flame propagation	Type qualification on HM4 LSZH sheath system

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Based on DIN VDE 0250-605CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)3GHSSHCH [size] [U0/U kV] VDE 0250-605 · [year] · [metre mark]

Delivery form: Standard wooden drums or custom project cut lengths
Outer jacket colour options: Red (standard mine visibility HM4) or Black (tunnel LSZH)

Technical documents

Downloads

PDF(N)3GHSSHCH 3.6/6–12/20 kV Halogen-Free Armoured MV Cable – technical datasheet31 sizes · construction, technical data, approvals XLSX(N)3GHSSHCH spec data (Excel)All 31 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the designation (N)3GHSSHCH stand for under DIN VDE 0250-605?

(N) indicates a cable designed in accordance with German national standard DIN VDE 0250-605; 3G denotes cross-linked EPR rubber phase insulation (compound 3GI3); H (first) denotes semiconductive field-control layers; S (first) denotes the individual concentric copper phase earth screens (/3E); S (second) denotes the overall concentric copper monitoring conductor (ÜL) applied over the first inner sheath; H (second) denotes the halogen-free HM4 inner/intermediate sheaths; C denotes the galvanized steel wire braid armour; and H (final) denotes the halogen-free low-smoke HM4 outer sheath.

How does (N)3GHSSHCH differ from (N)3GHSSYCY?

Both cables share the same double-screened MV electrical core, overall ÜL monitoring conductor and galvanized steel wire braid armour based on DIN VDE 0250-605. The difference is the triple sheath compound: (N)3GHSSYCY uses PVC (YM5 / DMV6) for the first inner sheath, intermediate sheath and outer sheath, whereas (N)3GHSSHCH replaces all three sheaths with halogen-free, low-smoke thermoplastic compound HM4 (IEC 60754-1/2) for confined tunnels and underground workings with strict smoke and acid-gas limits.

Why does (N)3GHSSHCH have both individual phase screens (/3E) and an overall monitoring conductor (ÜL)?

This double-screen architecture provides two independent layers of electrical safety in underground mining and tunnelling. Each 3GI3 EPR phase core is enclosed by its own concentric copper wire screen (/3E) to confine the radial electric field and carry earth-fault currents. Separated by the first HM4 inner sheath, an overall concentric copper wire screen (ÜL, Überwachungsleiter) surrounds the entire core assembly beneath the second inner sheath and steel wire braid armour — enabling earth-leakage and pilot interlock relays to trip the MV breaker immediately if rockfall or crushing penetrates the armour.

Are both 16/3E and 25/3E earth screen cross-sections available on 25 mm² and 35 mm² (N)3GHSSHCH cables?

Yes. Standard German mine executions to DIN VDE 0250-605 pair 3×25 mm² and 3×35 mm² phase conductors with a 3×16/3E split concentric copper screen (OD 42.7–48.3 mm at 3.6/6 kV), whereas UK/international tunnel specifications often specify an enlarged 3×25/3E screen on 25 mm² and 35 mm² sizes (OD 47.2–54.0 mm at 3.6/6 kV). Both configurations are listed in the specification table.
