Vertical spreader reeling cableDIN VDE 0250-814 (ref.)U0/U 0.6/1 kV + CAN-BUS90 m vertical · ≤ 160 m/min

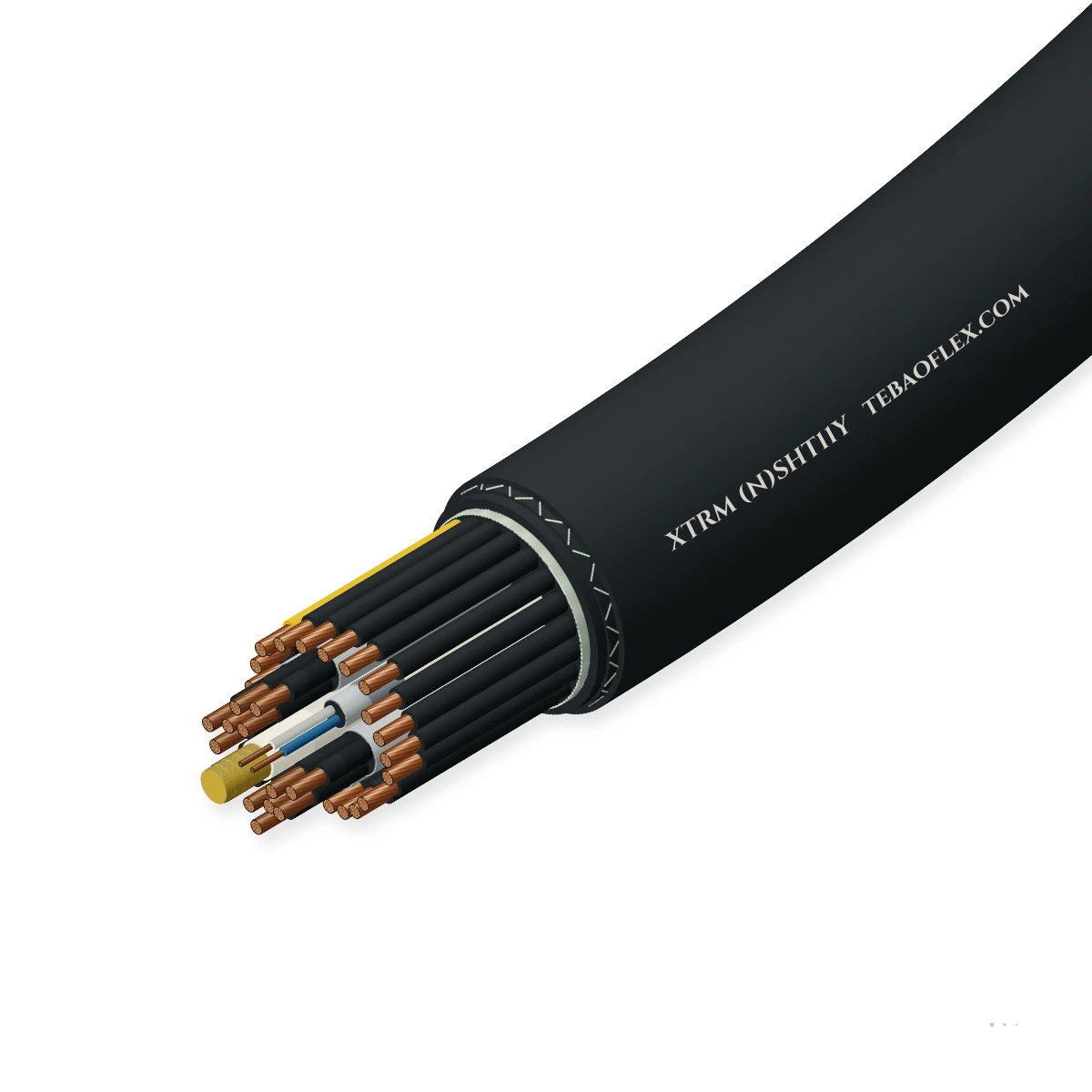

XTRM (N)SHT11Y Self-Supporting Spreader Reeling CableSelf-supporting 0.6/1 kV ETFE/PUR mobile harbour crane spreader cable with CAN-BUS (90 m)

Self-supporting 0.6/1 kV vertical spreader reeling cable for mobile harbour cranes: 37 × 2.5 mm² Class FS ETFE cores + screened CAN-BUS (2 × 0.24 mm²), 20 kN aramid bearer, 90 m suspension, 160 m/min, black dual-PUR jacket.

EMC screen
Oil-resistant
Outdoor & humid
Water-resistant
Order designation
XTRM (N)SHT11Y 37×2.5 + 1×CAN-BUS BK
Outer Ø nom
28.7 mm
Net weight
1,575 kg/km
Dynamic pull
4,500 N
Breaking load
20 kN
All sizes (1)
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Max AC 1.2 kV · 3.5 kV AC test
Suspension
≤ 90 m
Up to 130 m total reel length
Tensile / break
4.5 / 20 kN
4,500 N dynamic · > 20 kN break
Reeling speed
≤ 160 m/min
Vertical MHC spreader reeling
Bend & torsion
5 × D · ±50 °/m
4 × D single · 20 × D S-guide
Flexing temp.
−35…+80 °C
Fixed −50…+80 °C · +90 °C cond.

Typical values for this cable type, based on DIN VDE 0250-814 — confirmed in the datasheet and quotation for your order.

Application fit

Is XTRM (N)SHT11Y right for your machine?

XTRM (N)SHT11Y is engineered specifically for extreme vertical spreader reeling on mobile harbour cranes (MHC), combining a 20 kN self-supporting aramid core for 90 m vertical drops, 37 × 2.5 mm² thin-wall ETFE power/control cores and an EMC-screened CAN-BUS data pair (2 × 0.24 mm²) inside a black braided dual-PUR jacket.

Vertical / spreader reel

Suitable

Purpose-built for vertical spreader reeling on mobile harbour cranes up to 90 m suspension and 160 m/min.

Fixed installation

Suitable

Rated down to −50 °C in fixed boom routing and −35 °C in dynamic vertical spreader reeling.

Typical machinesMobile harbour cranes (MHC) vertical spreader reels (up to 90 m drop / 130 m total length)Twin-lift & telespreader power, PLC control and CAN-BUS telemetry in one cableHigh-lift port, quayside and bulk-handling cranes with S-curve boom sheavesCold-climate and marine harbour terminals (−35 to +80 °C flexing, −50 °C fixed)

Construction

Layer by layer

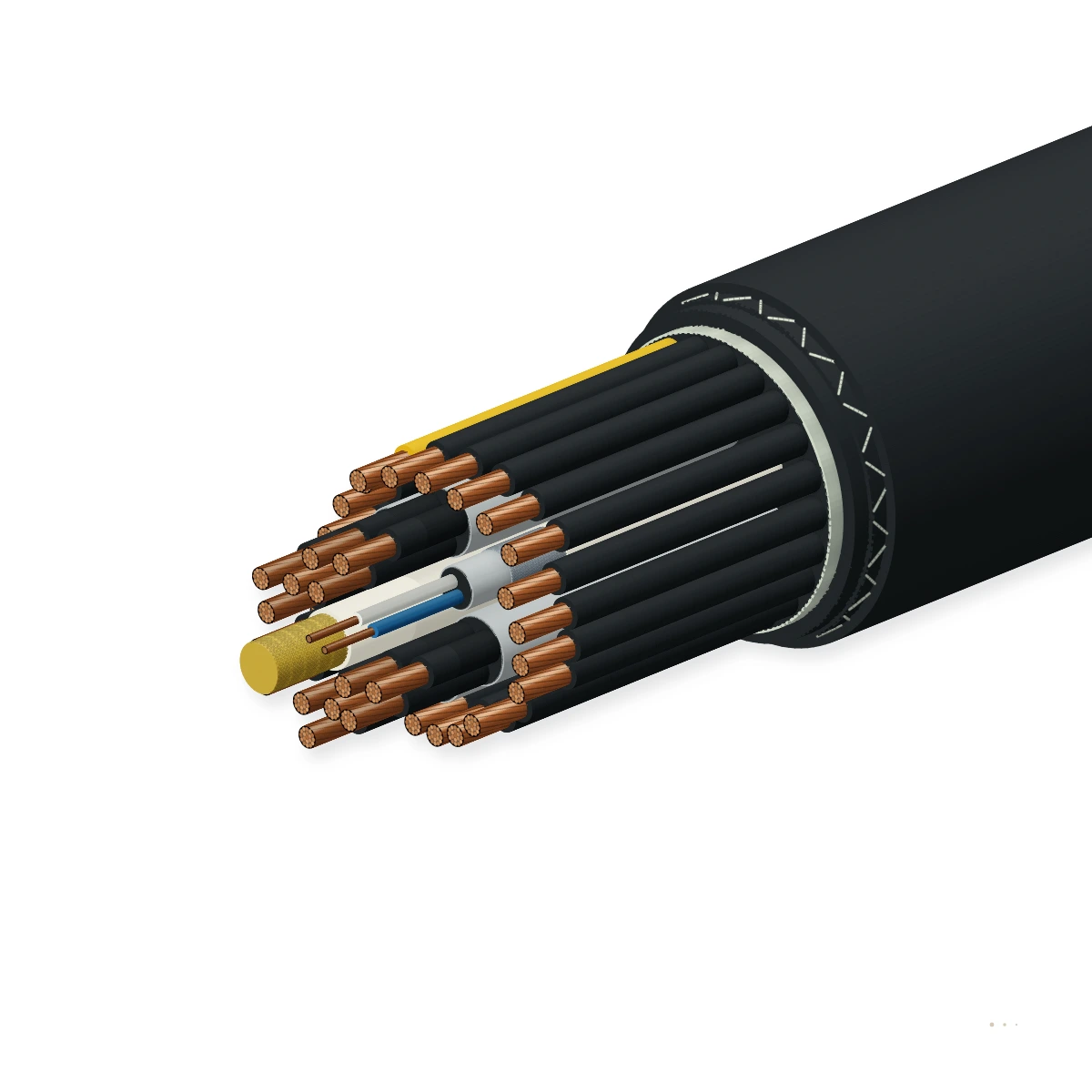

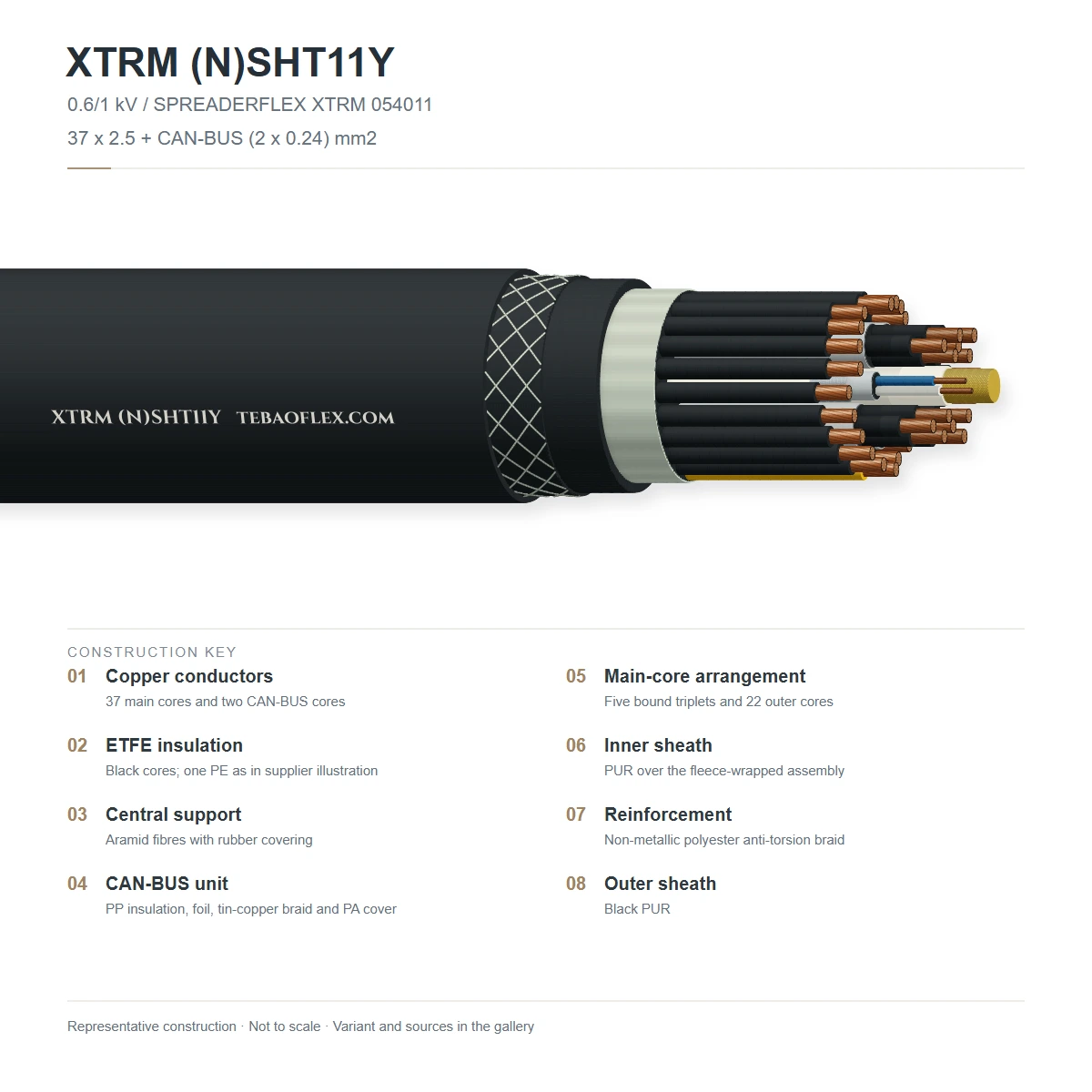

Shown: XTRM (N)SHT11Y 2-layer hybrid construction — central rubber-sheathed aramid bearer (20 kN break), inner layer of 5 × 3 × 2.5 mm² ETFE power bundles + 1 × screened CAN-BUS (2 × 0.24 mm²), outer layer of 22 × 2.5 mm² ETFE power cores (total 37 × 2.5 mm²), black PUR inner sheath, polyester/synthetic anti-torsion braid and black PUR outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Extra-fine Class FS power conductorsBare electrolytic copper, exceptionally finely stranded Class FS per DIN VDE 0295 (37 × 2.5 mm² total: 5 × 3 × 2.5 mm² in inner layer + 22 × 2.5 mm² in outer layer)Max. DC resistance R20 = 7.98 Ω/km · nominal current rating 30 A at 30 °C
2Thin-wall ETFE power-core insulationHigh-strength fluoropolymer (ETFE) core insulation, black with printed white numbersMinimizes outer diameter (28.7 ± 1.0 mm) and net weight (1,575 kg/km) while resisting +90 °C/+250 °C thermal stress
3Integrated EMC-screened CAN-BUS data pair1 × (2 × 0.24 mm²) Class 5 bare copper twisted pair with foam-skin PP insulation, Al/PET foil + tinned copper braid screen and polyamide sub-jacketProvides controlled-impedance, EMI-shielded CAN-BUS spreader telemetry inside the inner core layer
4Central self-supporting aramid elementHigh-modulus aramid fibre core with elastomeric rubber covering at the cable neutral axisCarries 4,500 N dynamic working tension (> 20 kN breaking load) for up to 90 m vertical suspension
5Inner sheathHeavy-duty polyurethane (PUR), black, over non-woven fleece tapingConsolidates the two-layer core assembly and isolates cores from outer torsional shear
6Polyester & synthetic anti-torsion braidReinforced polyester braid and synthetic torsion-protection braid between inner and outer PUR sheathsAbsorbs ±50 °/m operational twist and stabilizes the cable across 20 × D S-type boom sheaves
7Outer sheathAbrasion-, tear- and weather-resistant polyurethane (PUR, VDE 11Y), blackUV-, oil-, ozone- and water-resistant for exposed marine and mobile harbour crane service

XTRM (N)SHT11Y 37 × 2.5 + 1 × CAN-BUS (2 × 0.24 mm²)

1st layer: 5 × 3 × 2.5 mm² ETFE + 1 × (2 × 0.24 mm²) screened CAN-BUS · 2nd layer: 22 × 2.5 mm² ETFE · 20 kN aramid core · black dual-PUR jacket

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-814. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6 / 1 kV
Max. AC operating voltage
1.2 kV AC in three-phase systems
AC test voltage
3.5 kV AC
Power conductor resistance & ampacity
Max. R20 = 7.98 Ω/km (2.5 mm² Class FS) · 30 A in air at 30 °C (apply DIN VDE 0298-4 grouping & reel derating)
Integrated CAN-BUS data element
1 × (2 × 0.24 mm²) Class 5 bare Cu pair, foam-skin PP insulation, Al/PET foil + tinned Cu braid screen, polyamide jacket

Thermal

Ambient temperature, moving
−35 to +80 °C
Ambient temperature, fixed
−50 to +80 °C
Max. conductor temperature
+90 °C continuous · +250 °C short-circuit (ETFE power cores)

Mechanical

Vertical suspension & total length
Up to 90 m free vertical suspension height (with up to 130 m total cable length on the crane)
Tensile & breaking load
4,500 N (> 4.5 kN) dynamic working tensile load · > 20 kN (20,000 N) breaking load via central aramid core
Max. operating speed & torsion
Up to 160 m/min vertical reeling speed · ±50 °/m permissible torsional stress
Min. bending radius & S-guide
4 × D single bend (≈ 115–120 mm) · 5 × D moving reeling (≈ 144–150 mm) · 20 × D S-type directional change distance

Resistance

Weather, UV & ozone resistance
UV-, ozone- and water-resistant black PUR outer sheath for exposed marine harbour service
Oil & abrasion resistance
Oil-resistant and highly abrasion/tear-resistant double polyurethane (11Y) sheath system
Halogen content
Contains halogens (ETFE fluoropolymer core insulation); not a halogen-free LSZH cable

Reference standards

Design basis
(N)SHT11Y with reference to DIN VDE 0250-814
Conductor stranding
DIN VDE 0295 Class FS (exceptionally fine stranded bare copper power cores) & Class 5 (CAN-BUS pair)
Bending & ampacity guides
DIN VDE 0298-3 (bending radii) · DIN VDE 0298-4 (current-carrying capacity & drum derating)

Identification

Core identification
Black ETFE power cores with printed white numbers (15 inner in 5×3 bundles + 22 outer) + 1 screened CAN-BUS pair
Outer jacket colour
Black polyurethane (PUR)
Customs tariff (HS)
8544.49

Sizes

Documented XTRM (N)SHT11Y mobile harbour crane configuration

Combines 37 × 2.5 mm² Class FS ETFE-insulated cores (arranged as 5 × 3 × 2.5 mm² in the inner layer plus 22 × 2.5 mm² in the outer layer) and 1 × (2 × 0.24 mm²) foil- and braid-screened CAN-BUS pair around a 20 kN aramid support core.

Configuration, electrical & mechanical parameters
ConfigurationPower cores
n × mm²
CAN-BUS pair
screened
Outer Ø nom
mm (±1.0)
Outer Ø max
mm
Moving R
mm (5×D)
R20 max
Ω/km
Current
A (30 °C)
Dynamic pull
N
Breaking load
kN
Copper wt
kg/km
Net weight
kg/km
Enquiry
XTRM (N)SHT11Y 37×2.5 + 1×CAN-BUS BK37 × 2.5 (5×3 + 22)1 × (2 × 0.24 mm²) C28.7301507.98304,500201,0451,575
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Nominal outer diameter is 28.7 ± 1.0 mm (27.7–29.7 mm; rounded to 30 mm for gland and sheave clearance calculations).
  • Inner core layer comprises 5 × 3 × 2.5 mm² (15 cores) plus 1 × (2 × 0.24 mm²) foil- and tinned-copper-braid-screened CAN-BUS pair; outer core layer comprises 22 × 2.5 mm² cores (total 37 × 2.5 mm²).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test3.5 kV ACEvery manufactured length
Conductor DC resistance & CAN-BUS continuityR20 ≤ 7.98 Ω/km (2.5 mm² Class FS) + CAN-BUS pair continuity & insulation checkEvery manufactured length
Sample tests
Aramid core tensile & breaking strength4,500 N dynamic working load · > 20 kN breaking load (90 m suspension)Design qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-814 (ref.)CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX XTRM (N)SHT11Y 37x2.5 + 1x(2x0.24)C CAN-BUS 0.6/1 kV · [year] · [metre mark]
Delivery form
Custom mobile harbour crane cut lengths (e.g. 130 m for 90 m vertical lift) or bulk drums
Packaging
Heat-treated seaworthy timber drums with waterproof end caps

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does the datasheet mention both '5x3x2.5 mm² + CAN-BUS' and '37x2.5 + 1x CAN-BUS'?
Both refer to the same two-layer core geometry: the inner layer stranded around the rubber-sheathed aramid support element contains five 3-core bundles (5 × 3 × 2.5 mm² = 15 power cores) plus the 1 × (2 × 0.24 mm²) CAN-BUS pair, while the outer layer contains 22 × 2.5 mm² power cores. Together they provide 15 + 22 = 37 × 2.5 mm² power/control cores plus 1 × CAN-BUS pair.
Is the integrated CAN-BUS pair electrically screened?
Yes. While the 37 × 2.5 mm² ETFE power/control cores are unscreened, the integrated 1 × (2 × 0.24 mm²) CAN-BUS twisted pair (foam-skin polypropylene insulation) is individually screened with an aluminium-laminated foil plus a tinned copper wire braid under its own protective polyamide sub-jacket, ensuring clean spreader telemetry alongside switching power cores.
How does XTRM (N)SHT11Y achieve a 90 m vertical suspension height at only 28.7 mm diameter?
Using thin-wall ETFE fluoropolymer insulation on the 37 × 2.5 mm² Class FS conductors trims the outer diameter to 28.7 ± 1.0 mm (≈ 30 mm) and net weight to 1,575 kg/km (1.58 kg/m). At the centre, a rubber-cushioned aramid strength member provides a 4,500 N dynamic tensile rating and > 20 kN breaking load, supporting a 90 m vertical drop (130 m total cable length) with a > 4.4× breaking safety margin.
What is the permitted ambient temperature range in moving and fixed operation?
Permitted outer cable ambient temperature is −35 °C to +80 °C in moving reeling service and −50 °C to +80 °C in fixed installation, while the ETFE-insulated conductors are rated for +90 °C continuous operating temperature and +250 °C under short-circuit conditions.
