Flat festoon cablesDIN VDE 0250-809U0/U 300/500 VEMC screened

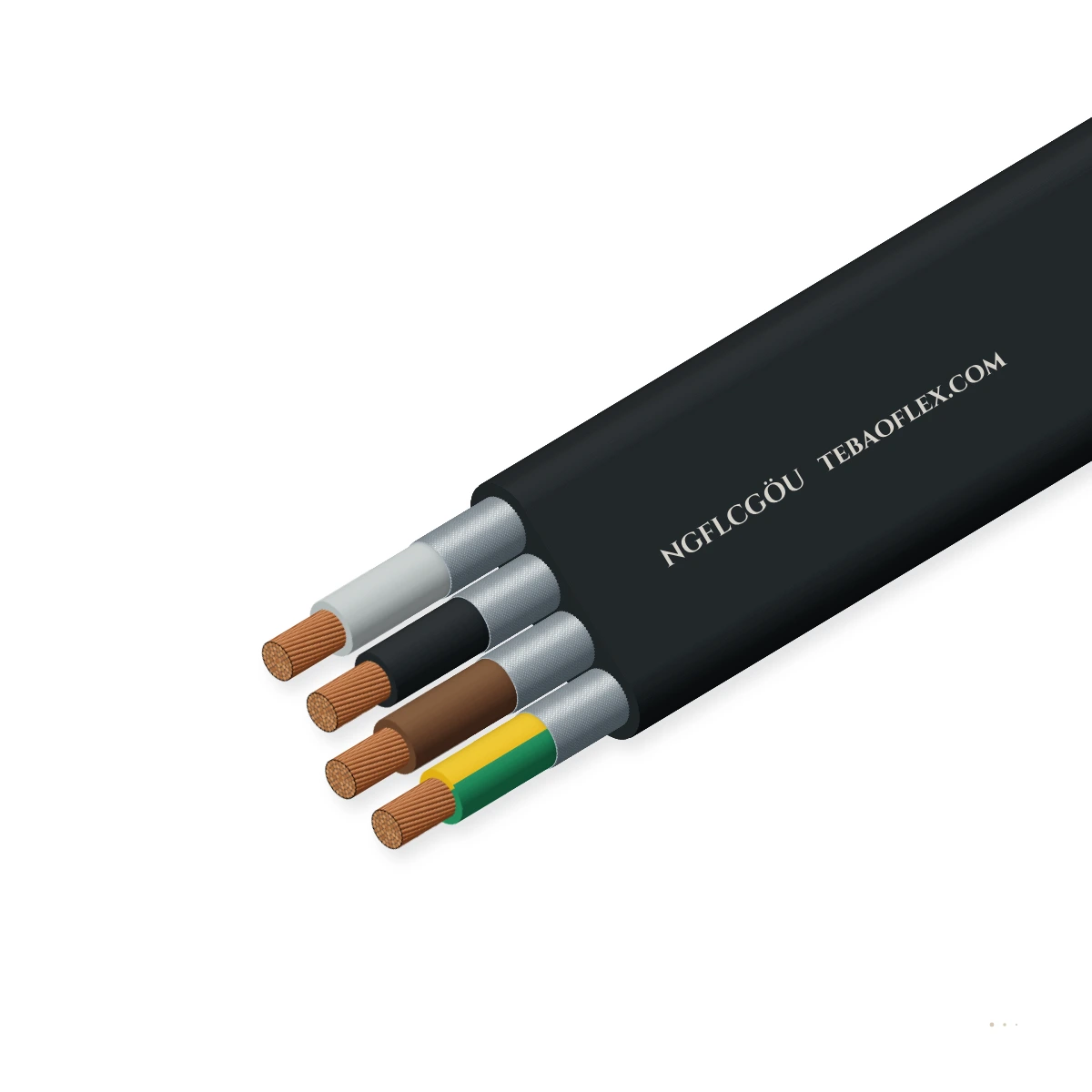

NGFLCGÖU Screened Flat Rubber Festoon CableEMC-screened 300/500 V flat cable for VFD crane drives, encoders and bus festoons

Flat rubber festoon cable to DIN VDE 0250-809 with individually braided tinned copper screens on cores or twisted pairs — engineered to suppress PWM inverter noise and protect encoder, sensor and fieldbus signals on crane festoons.

Low-EMC design

EMC screen

Outdoor & humid

Oil-resistant

Cores × cross-section

Versions

Order designation: NGFLCGÖU-J 4G6(C)
Height max: 11.1 mm
Width max: 31.8 mm
Weight ≈: 665 kg/km
Min. bend R: 44 mm

Check against my drum All sizes (19)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Screen coverage: 60–80 % Cu
Travel speed: 180 m/min
Temperature: −35…+80 °C
Tensile load: 15 N/mm²
Sizes: 19

Typical values for this cable type, based on DIN VDE 0250-809 — confirmed in the datasheet and quotation for your order.

Application fit

Is NGFLCGÖU right for your machine?

NGFLCGÖU combines single-plane flat festoon geometry with individual tinned copper braid screens around cores or twisted pairs so VFD power and low-level control signals can share the same crane trolley pack.

Festoon & line chain

Suitable

Primary duty: C-rail, I-beam and wire-rope festoons for VFD crane drives, encoders and bus signals up to 180 m/min.

Energy chain / drag chain

Suitable

Suitable for single-plane carrier chains where bending stays strictly across the flat height H.

Free-hanging vertical run

With conditions

Festoon loops within the 15 N/mm² conductor pull limit; terminate screen braids with 360° EMC clamps at both ends.

Cylindrical / multi-layer drum

With conditions

Single-plane mono-spiral drum winding at ≥ 5 × H radius without lateral fleet angle.

Motorised monospiral reel

Not suitable

Multi-plane motorized crane reeling requires a round screened cable rather than a flat profile.

Use round reeling cable

Typical machinesVFD-driven bridge & gantry cranesShip-to-shore & RMG container cranesAutomated stacker & hoist trolleysSteelworks & rolling mill cranesPlating, anodising & dip linesEncoder, resolver & fieldbus loops

Construction

Layer by layer

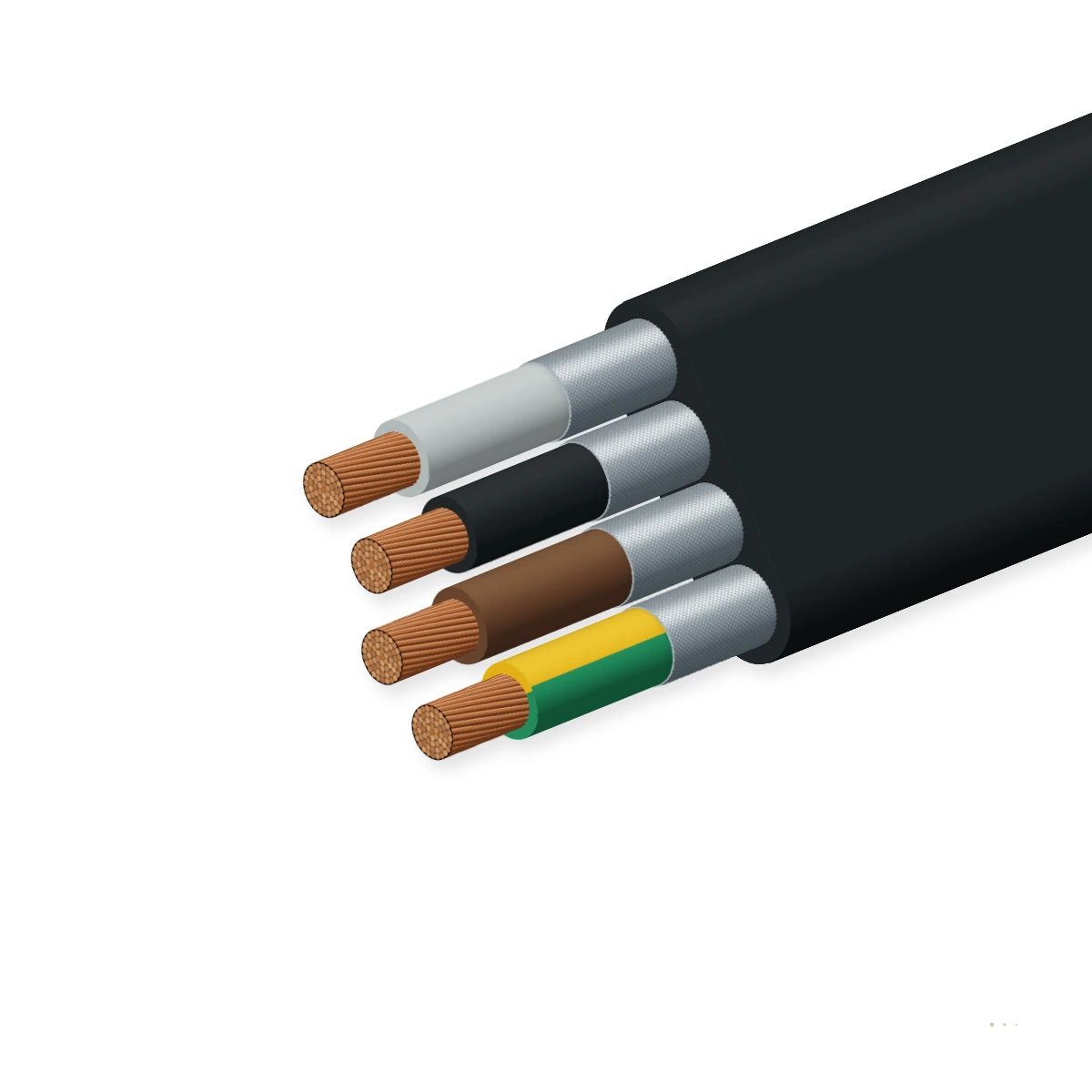

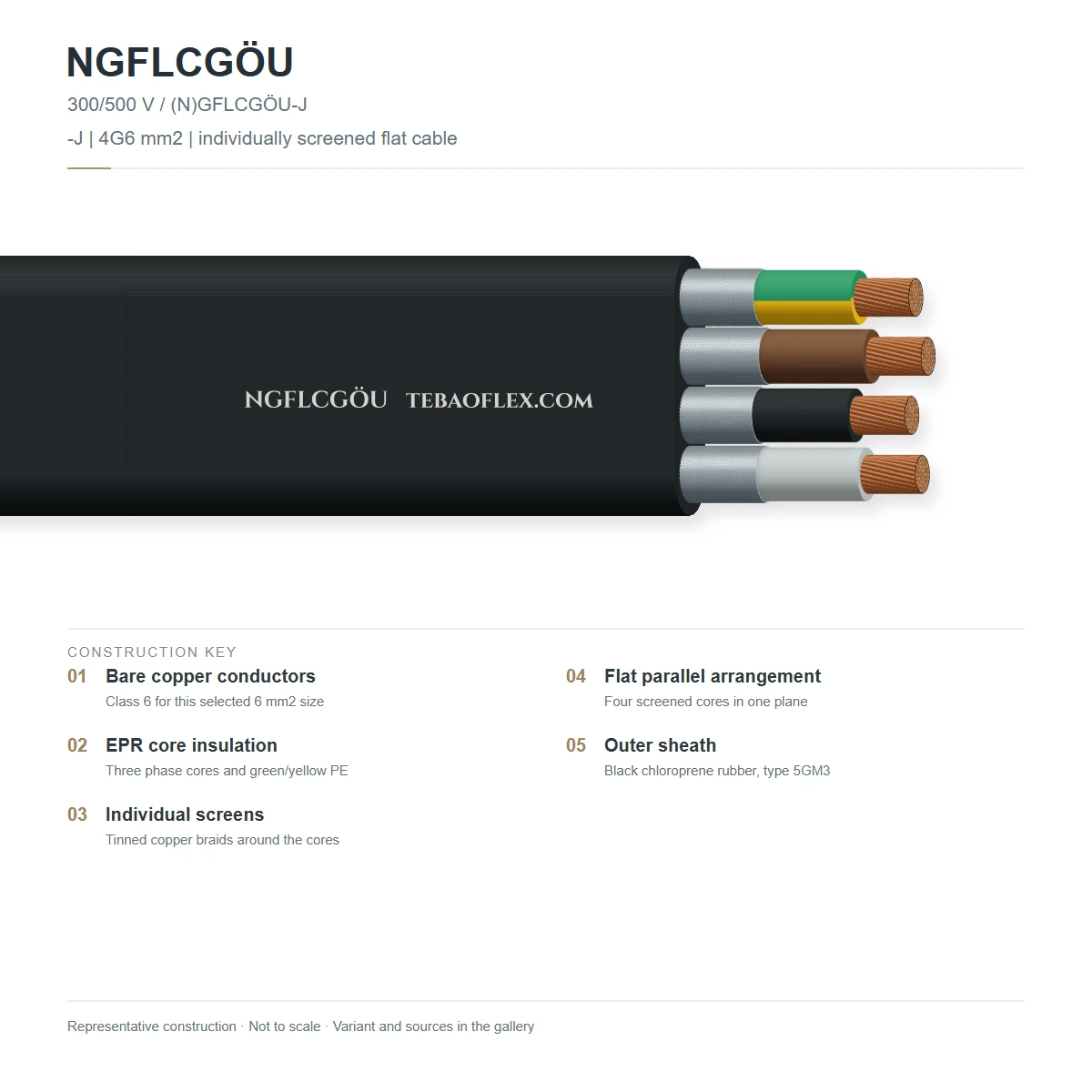

Shown: NGFLCGÖU-J 4G6(C) — four parallel cores with 3GI3 EPR insulation, individual tinned copper braid screens and a 5GM3 polychloroprene flat outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Bare copper, extra-fine Class 6 (≤ 25 mm²) / fine Class 5 (≥ 35 mm²)IEC 60228 / DIN VDE 0295
2	Core insulation	EPR / EPDM rubber compound 3GI3DIN VDE 0207-20 · Core identification DIN VDE 0293-308
3	Individual screen	Tinned copper wire braid over each core or twisted pair≈ 60 % coverage on screened cores · ≈ 80 % on shielded pairs · transfer impedance optimised at 30 MHz
4	Core arrangement	Screened cores or pairs laid parallel in one flat planeSingle-plane bending geometry
5	Outer sheath	Polychloroprene rubber compound 5GM3, blackDIN VDE 0207-21 · Oil-resistant EN 60811-404 · Flame-retardant IEC 60332-1-2

NGFLCGÖU-J 4G..(C)

Screened power cores + green-yellow protective conductor

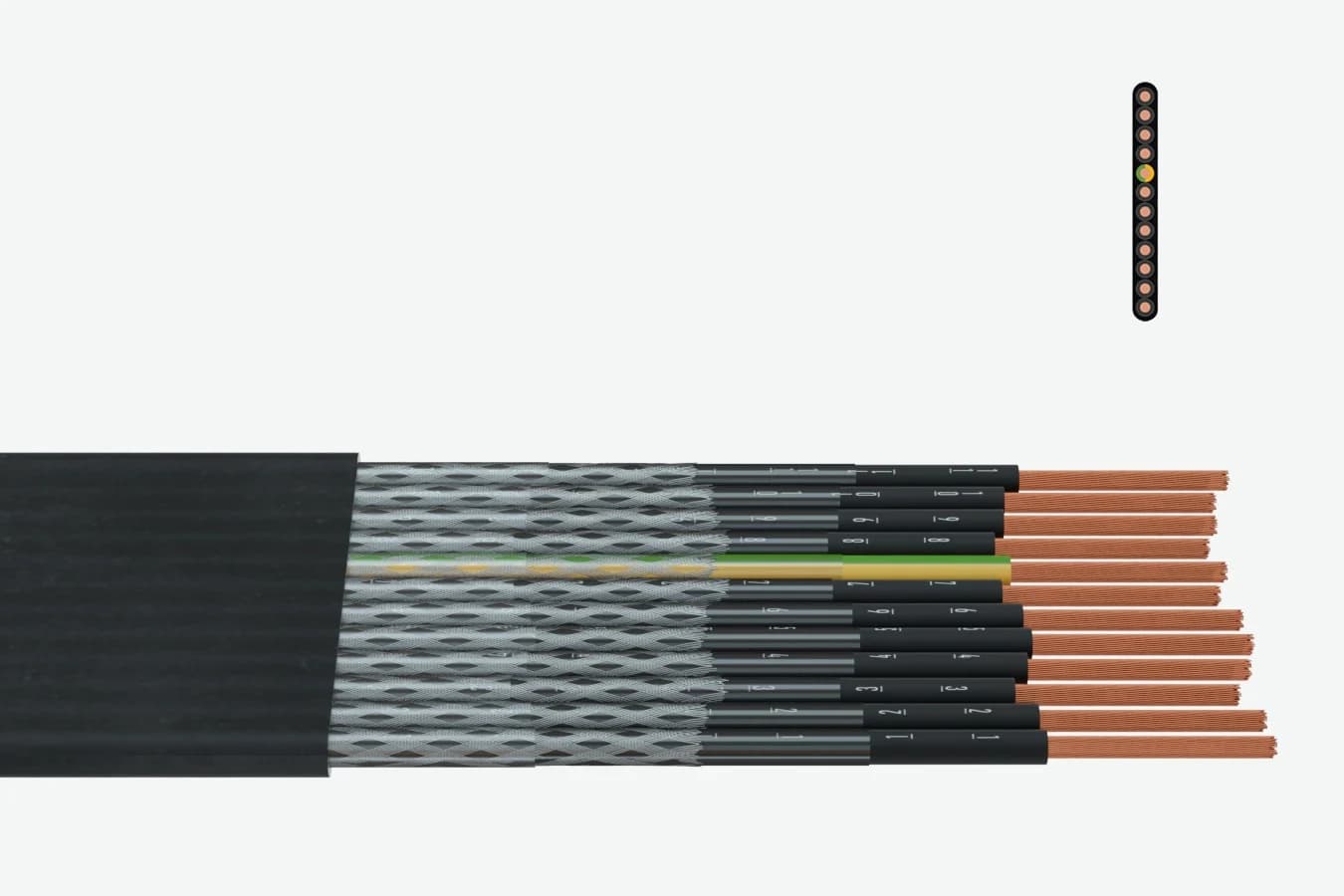

NGFLCGÖU-O ..×..(C)

Individually screened control cores (black numbered)

NGFLCGÖU-O ..×(2×..)C

Individually screened twisted pairs for bus & encoder signals

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-809. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V
Max. operating voltage AC: 0.7/1.2 kV
Max. operating voltage DC: 0.9/1.8 kV
AC test voltage: 2.5 kV
Current rating: DIN VDE 0298-4
Individual screen: Tinned copper braid (≈ 60 % cores, ≈ 80 % pairs), transfer impedance optimised at 30 MHz

Thermal

Temperature, flexing: −35 to +80 °C
Temperature, fixed: −50 to +80 °C
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Min. bending radius, moving: 3–5 × cable height (21–136 mm per size table, DIN VDE 0298-3)
Min. bending radius, fixed: 3 × H (≤ 12 mm), 4 × H (> 12 mm)
Max. travel speed: 180 m/min
Max. tensile load: 15 N/mm² of conductor cross-section
Torsional stress: Not permitted (bend in one plane only)

Resistance

Oil resistance: EN 60811-404
Flame retardance: IEC 60332-1-2
UV & ozone: Ozone, UV and moisture resistant
Locations: Indoors and outdoors, dry and wet conditions

Reference standards

Cable type: DIN VDE 0250-809
Conductor: IEC 60228 Class 6 (≤ 25 mm²) / Class 5 (≥ 35 mm²)
Compounds: 3GI3 insulation · 5GM3 sheath (DIN VDE 0207)
Core identification: DIN VDE 0293-308 / HD 308

Identification

Sheath colour: Black
Cores ≤ 5: Colour-coded (green-yellow earth in -J)
Cores > 5: Black with white numbers
Customs tariff (HS): 8544.49

Sizes

19 standard screened sizes

Typical values per DIN VDE 0250-809 for individually screened control cores, twisted pairs and 4-core VFD power.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Height max mm	Width max mm	Copper ≈ kg/km	Weight ≈ kg/km	Min. bend R mm	Max. pull N
Screened control cores
NGFLCGÖU-O 12×1(C)	12 × 1 (C)	18	7.1	51.3	136	660	21	180
NGFLCGÖU-J 4G1.5(C)	4 × 1.5 (C)	16	7.4	19.5	68	250	22	90
NGFLCGÖU-J 8G1.5(C)	8 × 1.5 (C)	16	7.4	35.1	136	510	22	180
NGFLCGÖU-J 12G1.5(C)	12 × 1.5 (C)	16	8.0	55.0	204	780	24	270
NGFLCGÖU-J 4G2.5(C)	4 × 2.5 (C)	14	8.2	23.0	113	350	25	150
NGFLCGÖU-J 8G2.5(C)	8 × 2.5 (C)	14	8.2	43.5	227	710	25	300
NGFLCGÖU-J 12G2.5(C)	12 × 2.5 (C)	14	9.0	64.0	340	1,080	27	450
Screened twisted-pair bus
NGFLCGÖU-O 4×(2×1)C	4 × (2 × 1) C	18	11.3	33.8	91	630	45	120
NGFLCGÖU-O 7×(2×1)C	7 × (2 × 1) C	18	11.3	56.0	159	1,090	45	210
NGFLCGÖU-O 6×(2×2.5)C	6 × (2 × 2.5) C	14	15.2	62.7	340	1,680	76	450
Screened 4-core VFD power
NGFLCGÖU-J 4G4(C)	4 × 4 (C)	12	10.2	29.3	181	550	41	240
NGFLCGÖU-J 4G6(C)	4 × 6 (C)	10	11.1	31.8	272	665	44	360
NGFLCGÖU-J 4G10(C)	4 × 10 (C)	8	13.3	39.0	453	1,060	67	600
NGFLCGÖU-J 4G16(C)	4 × 16 (C)	6	14.4	43.2	725	1,360	72	960
NGFLCGÖU-J 4G25(C)	4 × 25 (C)	4	16.8	50.3	1,133	1,980	84	1,500
NGFLCGÖU-J 4G35(C)	4 × 35 (C)	2	18.9	57.4	1,586	2,590	95	2,100
NGFLCGÖU-J 4G50(C)	4 × 50 (C)	1	21.5	66.0	2,266	3,590	108	3,000
NGFLCGÖU-J 4G70(C)	4 × 70 (C)	2/0	23.9	73.8	3,172	4,630	120	4,200
NGFLCGÖU-J 4G95(C)	4 × 95 (C)	3/0	27.2	83.7	4,305	5,950	136	5,700

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
(C) denotes tinned copper braided screens over individual cores or twisted pairs. Minimum bending radius applies in the flat bending plane.

Electrical & conductor data
Cross-section mm²	AWG ≈	Stranding IEC 60228	Max. conductor resistance 20 °C, Ω/km	Current rating in air 30 °C, A	Short-circuit 1 s kA	Used in
1	18	Class 6	19.5	19	0.14	12×1(C), 4×(2×1)C, 7×(2×1)C
1.5	16	Class 6	13.3	24	0.21	4×1.5(C), 8×1.5(C), 12×1.5(C)
2.5	14	Class 6	7.98	32	0.36	4×2.5(C), 8×2.5(C), 12×2.5(C), 6×(2×2.5)C
4	12	Class 6	4.95	43	0.57	4×4(C)
6	10	Class 6	3.3	56	0.86	4×6(C)
10	8	Class 6	1.91	78	1.43	4×10(C)
16	6	Class 6	1.21	104	2.29	4×16(C)
25	4	Class 6	0.78	138	3.58	4×25(C)
35	2	Class 5	0.55	170	5.01	4×35(C)
50	1	Class 5	0.39	212	7.15	4×50(C)
70	2/0	Class 5	0.27	263	10.01	4×70(C)
95	3/0	Class 5	0.21	316	13.59	4×95(C)

Current ratings per DIN VDE 0298-4 for one flat cable free in air at 30 °C; apply grouping derating when stacked on festoon saddles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 200 mm ≥ 112 mmBending radius OK (5 × OD 11.1 mm)

120 m/min ≤ 180 m/minWithin the rated travel speed

Minimum bending radius: 56 mm
Min. drum core diameter: ≈ 112 mm
Cable weight on drum: 39.9 kg
Copper content: 16.3 kg

Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV, 5 min	Every length
Conductor resistance	IEC 60228	Every length
Sample tests
Transfer impedance of screen	Optimised at 30 MHz (≈ 60 % cores / ≈ 80 % pairs optical coverage)	Design verification
Flame propagation	IEC 60332-1-2	Per batch
Oil resistance of sheath	EN 60811-404	Per compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-809CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NGFLCGÖU-J 4G6(C) 300/500 V DIN VDE 0250-809 · CE · [year] · [metre mark]

Standard packing: 500 m on wooden drums or cut-to-length festoon sets
Packaging: Export fumigated timber drums with sealed cable ends

Technical documents

Downloads

PDFNGFLCGÖU Screened Flat Rubber Festoon Cable – technical datasheet19 sizes · construction, technical data, approvals XLSXNGFLCGÖU spec data (Excel)All 19 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How is the screen constructed inside NGFLCGÖU?

Unlike round EMC cables that use a single overall braid under the outer jacket, NGFLCGÖU applies a tinned copper wire braid directly over each individual core (approx. 60 % optical coverage) or over each twisted pair in bus versions (approx. 80 % coverage), preserving the flexible flat bending profile while optimising transfer impedance at 30 MHz.

How should the individual core screens be earthed at the crane panels?

For variable-frequency drive (VFD) power and high-frequency encoder signals, bond the tinned copper braids across 360° at both the fixed junction box and the moving trolley cabinet using EMC clamping bars. Pigtail earthing adds inductance and degrades high-frequency attenuation above 1 MHz.

What is the difference between single-core screened (C) and pair-screened (2×..)C versions?

Single-core screened versions such as 12×1.5(C) or 4×16(C) place a tinned copper braid around each insulated core for VFD motor leads or individual control circuits. Pair-screened bus versions such as 4×(2×1)C or 7×(2×1)C twist two cores into a balanced pair before braiding, suppressing both crosstalk and common-mode noise on differential signals.

Does the copper braid screen increase the minimum bending radius?

Slightly. Because the tinned copper braid adds radial thickness over the 3GI3 insulation, a screened 4×16(C) cable has a maximum height of 14.4 mm and a minimum moving bend radius of 72 mm, compared with 12.9 mm height and 65 mm radius for unscreened 4×16.

Can NGFLCGÖU and unscreened NGFLGÖU run in the same festoon trolley saddle?

Yes. Both share the same DIN VDE 0250-809 3GI3/5GM3 elastomer compounds, −35 to +80 °C flexing temperature range and 180 m/min trolley speed rating, so screened VFD/signal flat cables and unscreened auxiliary flat cables stack cleanly on the same festoon saddle.
