Crane fiber-optic festoon & reeling cables24 Fibers (2 × 12)5GM5 Rubber Sheath2,000 N Reeling Duty

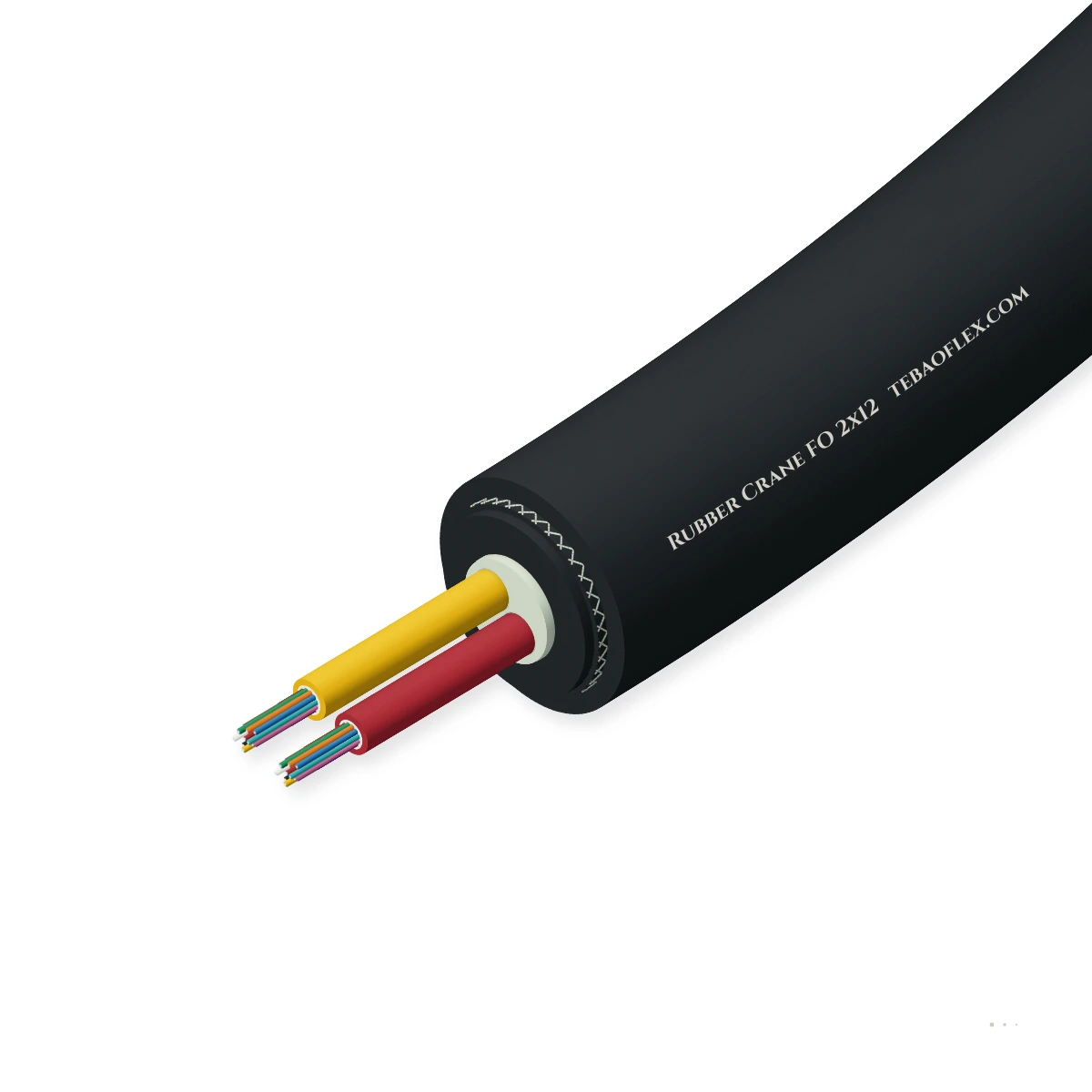

CRANE FO 2×12/125 Heavy-Duty 5GM5 Rubber Fiber-Optic Reeling Cable24-fiber (2 × 12) rubber crane reeling cable for motor & spring reels up to 120 m/min

Heavy-duty 24-fiber rubber crane reeling cable (CRANE FO 2×12/125) with a 5GM5 elastomer outer sheath (DIN VDE 0207-21) and multifilament braid rated to 1,500 N continuous / 2,000 N dynamic pull for motor and spring reels up to 120 m/min.

Anti-torsion braid
Flame-retardant
Oil-resistant
Outdoor & humid
Order designation
CRANE FO 2×12 E9/125
OD min
14.0 mm
OD max
16.0 mm
Weight ≈
210 kg/km
Dynamic pull
2,000 N
Check against my drumAll sizes (3)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Fiber count
24 (2 × 12)
2 buffer tubes × 12 fibers
Fiber options
E9 · G50 · G62.5
OS2 SM · OM2/OM3 · OM1 MM
Reeling speed
120 m/min
Motor & spring-driven reels
Tensile load
1,500 / 2,000 N
Continuous / dynamic pull
Min. bend R
250 mm
Reeling drum & guide sheaves
Outer sheath
5GM5 Rubber
DIN VDE 0207-21 heavy-duty

Typical values for this cable type, based on DIN VDE 0207-21 (5GM5) / ITU-T G.652.D — confirmed in the datasheet and quotation for your order.

Application fit

Is CRANE FO 2×12/125 right for your machine?

CRANE FO 2×12/125 combines a thick 5GM5 thermosetting rubber outer jacket with a high-tenacity multifilament anti-torsion braid (1,500 N continuous / 2,000 N dynamic pull) to protect 24 optical fibers on motorized and spring-driven crane cable reels.

Motorised monospiral reel

Suitable

Primary duty: horizontal motor-driven and spring-driven crane, gantry and stacker-reclaimer reels up to 120 m/min.

Cylindrical / multi-layer drum

Suitable

Suitable for monospiral and cylindrical reeling drums with ≥ 250 mm minimum bend radius.

Spreader gravity collector basket

Not suitable

Built for tensioned motorised reels; for free-coiling gravity baskets use a dedicated basket cable.

Use 3GSLTÖ Spreader Basket
Typical machinesRail-mounted gantry (RMG) & RTG cranesBulk terminal stacker-reclaimersShip-to-shore & harbor mobile cranesOpen-pit mining & conveyor networksSteelworks & heavy industrial reelsLong-distance mobile optical backbones

Construction

Layer by layer

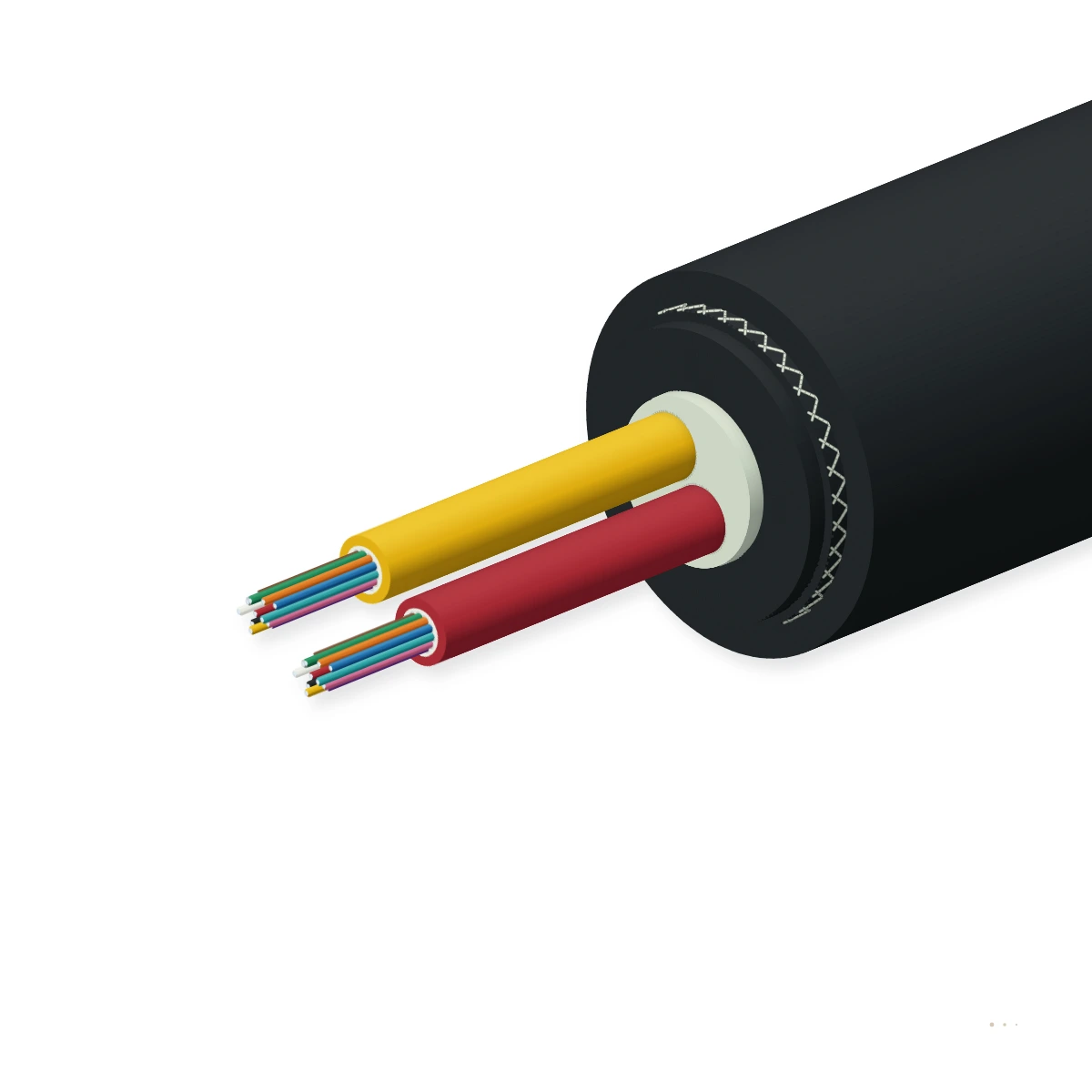

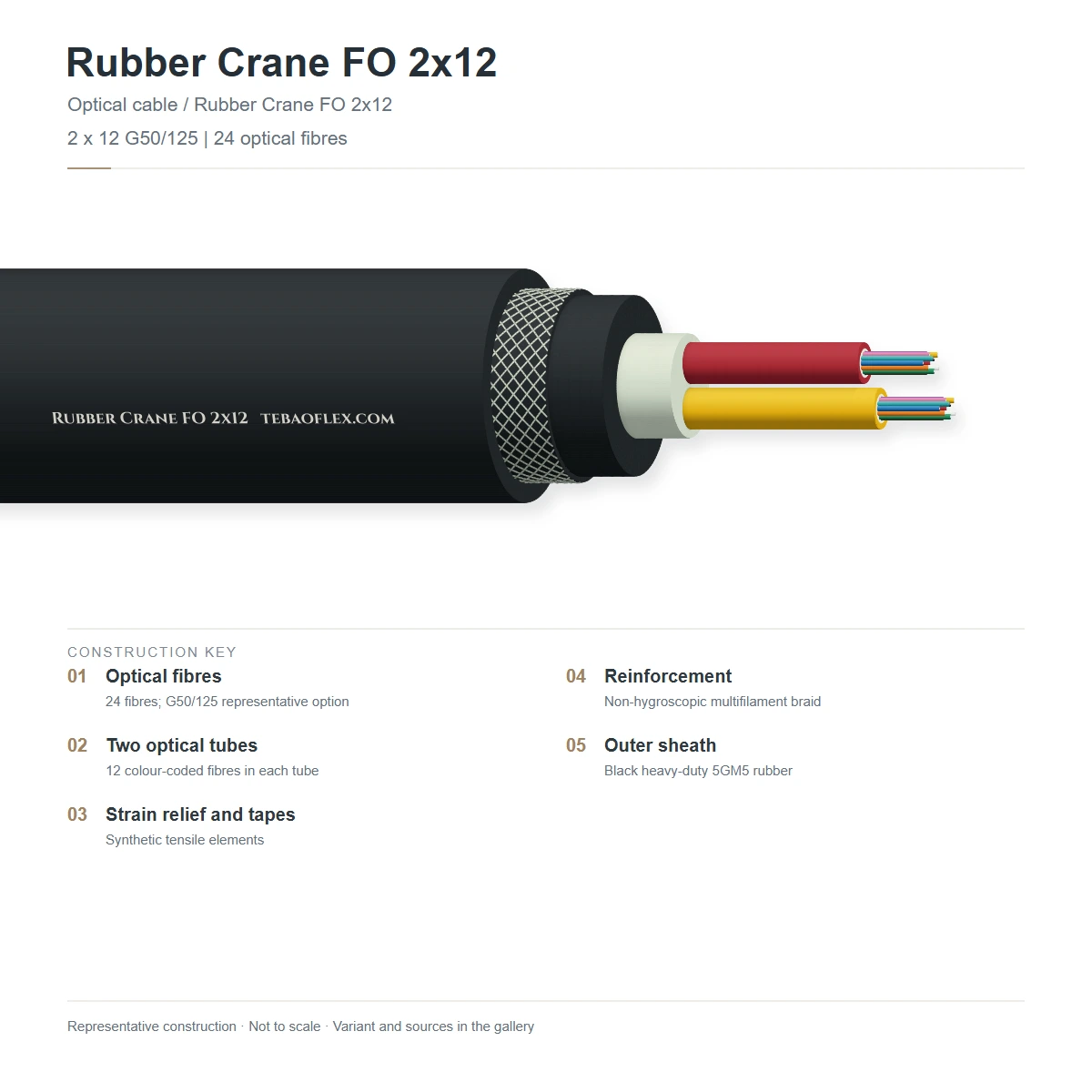

Shown: CRANE FO 2×12 E9/125 — two 12-fiber colour-coded buffer tubes stranded with synthetic strain-relief elements, separating tape, non-hygroscopic multifilament braid and black 5GM5 heavy-duty rubber outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Optical fibers (2 × 12)24 glass optical fibers (E9/125 OS2, G50/125 or G62.5/125 µm) colour-coded per ANSI/TIA/EIA-598-AITU-T G.652.D / IEC 60793-2-10 · 12 fibers per tube
2Loose buffer tubes & fillersTwo colour-coded buffer tubes stranded with synthetic strain-relief filler elementsIsolates fibers from radial drum pressure and axial strain
3Separating tapeNon-woven synthetic separating tape over the stranded optical coreAllows torsion-free flexing over reel sheaves
4Multifilament reinforcement braidHigh-tech non-hygroscopic, low-shrinkage synthetic multifilament braid1,500 N continuous / 2,000 N dynamic tensile load capacity
5Outer sheathHeavy-duty thermosetting rubber compound type 5GM5, black with inkjet markingDIN VDE 0207-21 · Oil-resistant IEC 60811-404 · Flame-retardant IEC 60332-1-2

CRANE FO 2×12 E9/125

24 × 9/125 µm OS2 single-mode fibers (ITU-T G.652.D) for long-travel gantry reels

CRANE FO 2×12 G50/125

24 × 50/125 µm multimode graded-index fibers for industrial Ethernet & PLC links

CRANE FO 2×12 G62.5/125

24 × 62.5/125 µm OM1 multimode graded-index fibers for legacy optical transceivers

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0207-21 (5GM5) / ITU-T G.652.D. Values for your order are confirmed in the datasheet and quotation.

Thermal

Ambient temperature — moving / reeling
-30 to +80 °C
Ambient temperature — fixed / storage
-40 to +80 °C

Mechanical

Max. reeling speed
Up to 120 m/min on motor-driven and spring-driven cable reels
Permissible tensile load
1,500 N max. continuous · 2,000 N max. dynamic
Min. bending radius
250 mm

Optical

Fiber count & buffer design
24 optical fibers in 2 × 12-fiber colour-coded loose buffer tubes (ANSI/TIA/EIA-598-A)
Available fiber grades
E9/125 µm single-mode (ITU-T G.652.D / OS2) · G50/125 µm multimode (OM2/OM3) · G62.5/125 µm multimode (OM1)

Reference standards

Optical & compound standards
ITU-T G.652.D · IEC 60793-2-10 · DIN VDE 0207-21 (5GM5) · ANSI/TIA/EIA-598-A
Outer sheath & environmental resistance
Heavy-duty rubber compound type 5GM5 (DIN VDE 0207-21) · Oil-resistant IEC 60811-404 · Flame-retardant IEC 60332-1-2

Sizes

Dimensions, tensile ratings & optical transmission data

3 fiber-grade configurations (E9/125 single-mode, G50/125 multimode and G62.5/125 multimode)

Dimensions & mechanical data
Order designationFiber layoutFiber specificationTube codingOD min
mm		OD max
mm		Weight ≈
kg/km		Min. bend R
mm		Cont. pull
N		Dynamic pull
N		Enquiry
All fiber types
Single-mode E9/125
CRANE FO 2×12 E9/1252 × 12 E9/125Single-mode OS2 (ITU-T G.652.D)1 yellow + 1 red14.016.02102501,5002,000
Multimode G50 / G62.5
CRANE FO 2×12 G50/1252 × 12 G50/125Multimode 50/125 µm (OM2/OM3)1 green + 1 red14.016.02102501,5002,000
CRANE FO 2×12 G62.5/1252 × 12 G62.5/125Multimode 62.5/125 µm (OM1)1 blue + 1 red14.016.02102501,5002,000
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All three variants feature a 14.0–16.0 mm 5GM5 rubber outer jacket and 2,000 N dynamic tensile strength for reeling service.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 500 mm ≥ 500 mmBending radius OK (15.6 × OD 16.0 mm)
90 m/min ≤ 120 m/minWithin the rated travel speed
1,000 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension
Minimum bending radius
250 mm
Min. drum core diameter
≈ 500 mm
Cable weight on drum
25.2 kg
Outer diameter
16.0 mm
Indicative only: based on the datasheet outer diameter and 15.6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
OTDR optical attenuation & continuity1310/1550 nm (E9) or 850/1300 nm (G50/G62.5)Every fiber, every length
Sample tests
Flame propagationIEC 60332-1-2Per batch
5GM5 rubber oil & mechanical testDIN VDE 0207-21 · IEC 60811-404Per compound batch
Dynamic reeling tensile test1,500 N continuous / 2,000 N peak · R ≥ 250 mmType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

24 Fibers (2 × 12)CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CRANE FO 2x12 E9/125 · 5GM5 · CE · [year] · [metre mark]
Standard packing
Wooden drums or pre-terminated reeling assemblies with rotary joint
HS code
8544.70

Technical documents

Downloads

PDFCRANE FO 2×12/125 Heavy-Duty 5GM5 Rubber Fiber-Optic Reeling Cable – technical datasheet3 sizes · construction, technical data, approvalsXLSXCRANE FO 2×12/125 spec data (Excel)All 3 sizes with dimensions and data, for your BOM or quotation
