Product

Crane fiber-optic festoon & reeling cables24 Fibers (2 × 12)E9 / G50 / G62.5240 m/min PUR Festoon

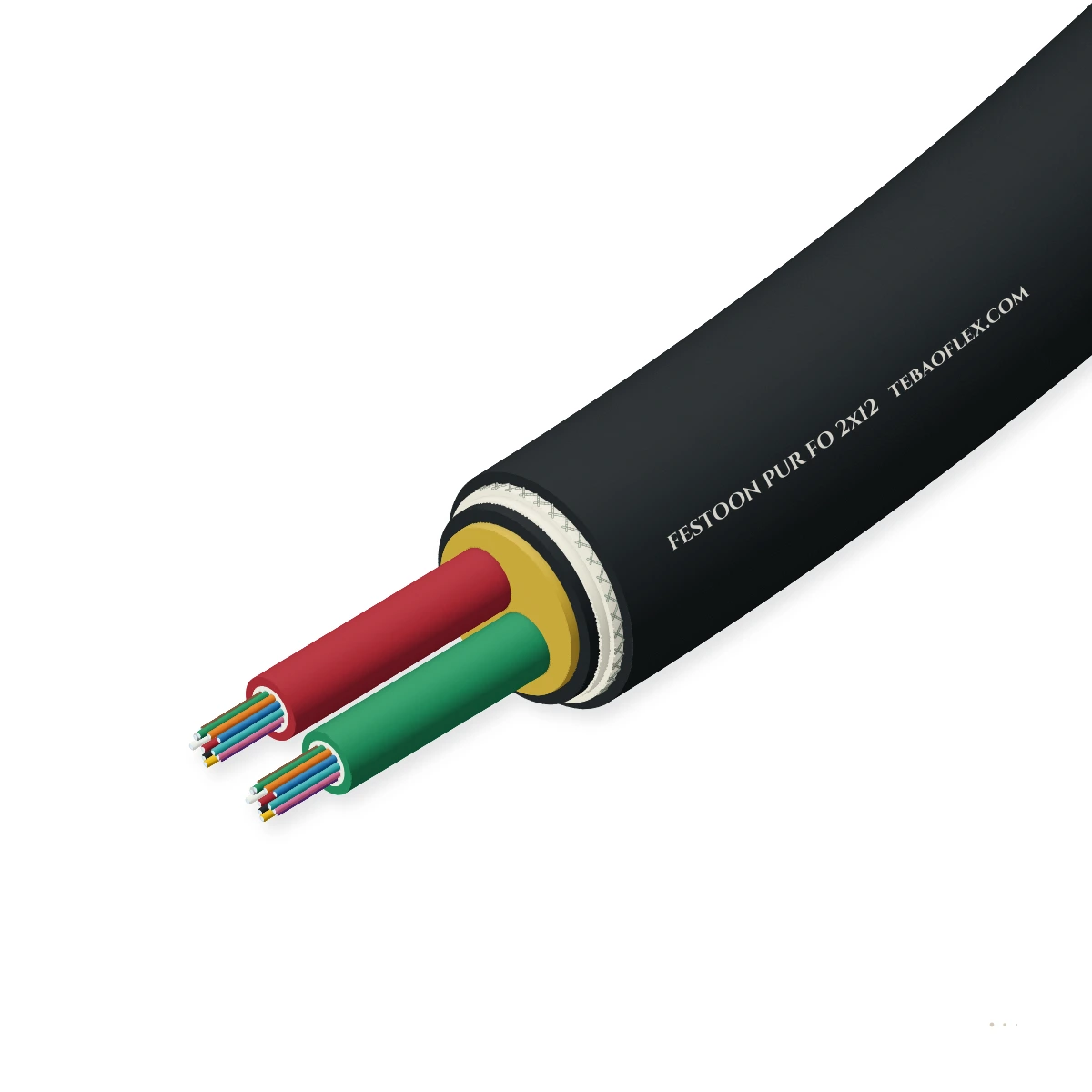

FESTOON PUR FO 2×12/125 Halogen-Free Crane Fiber-Optic Festoon Cable24-fiber (2 × 12) polyurethane crane festoon data cable for trolleys up to 240 m/min

Heavy-duty 24-fiber halogen-free PUR festoon cable (FESTOON PUR FO 2×12/125) for high-speed container cranes and automated gantries up to 240 m/min, available in E9/125, G50/125 and G62.5/125 with 1,500 N dynamic tensile strength.

Low-EMC design
Flame-retardant
Oil-resistant
Outdoor & humid
Order designation
FESTOON PUR FO 2×12 E9/125
OD min
13.0 mm
OD max
15.0 mm
Weight ≈
180 kg/km
Dynamic pull
1,500 N
Check against my drumAll sizes (3)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Fiber count
24 (2 × 12)
2 buffer tubes × 12 fibers
Fiber options
E9 · G50 · G62.5
OS2 SM · OM2/OM3 · OM1 MM
Travel speed
240 m/min
Motor-driven festoon trolleys
Tensile load
1,000 / 1,500 N
Continuous / dynamic rating
Min. bend R
150 mm
Dynamic festoon loop radius
Flexing temp.
-30 to +80 °C
Moving · -40 to +80 °C storage

Typical values for this cable type, based on ITU-T G.652.D / IEC 60793 — confirmed in the datasheet and quotation for your order.

Application fit

Is FESTOON PUR FO 2×12/125 right for your machine?

FESTOON PUR FO 2×12/125 houses two 12-fiber buffer tubes and dummy filler elements stranded in short lay inside a dielectric multifilament braid and black matt halogen-free PUR jacket, giving complete immunity to electromagnetic interference alongside HV/VFD crane feeders.

Festoon & line chain

Suitable

Primary duty: high-speed motorized STS, RMG and overhead crane festoon trolleys up to 240 m/min.

Energy chain / drag chain

Suitable

Suitable for crane and gantry energy chains at ≥ 150 mm bending radius.

Typical machinesShip-to-shore (STS) container cranesAutomated RMG / ASC stacking cranesPort & intermodal gantry festoonsSteelworks & automated ladle cranesBulk terminal ship loaders & stackersHigh-EMI VFD crane data backbones

Construction

Layer by layer

Shown: FESTOON PUR FO 2×12 E9/125 — two 12-fiber colour-coded buffer tubes (yellow and red) stranded with synthetic strain-relief fillers, separating tape, non-hygroscopic multifilament braid and black matt halogen-free PUR outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Optical fibers (2 × 12)24 glass optical fibers (E9/125 OS2, G50/125 or G62.5/125 µm) colour-coded per ANSI/TIA/EIA-598-AITU-T G.652.D / IEC 60793-2-10 · 12 fibers per tube
2Loose buffer tubes & fillersTwo gel-filled colour-coded buffer tubes stranded with synthetic strain-relief filler elementsDecouples optical fibers from bending and tensile strain
3Separating tapeSynthetic non-woven wrapping tape over the stranded optical corePrevents sheath adhesion to the buffer tubes
4Dielectric multifilament braidHigh-tech non-hygroscopic, low-shrinkage synthetic multifilament reinforcement braid1,000 N continuous / 1,500 N dynamic tensile rating
5Outer sheathHalogen-free thermoplastic polyurethane (PUR), black matt finishIEC 60332-1-2 flame-retardant · IEC 60811-404 oil-resistant · UV, ozone & moisture resistant

FESTOON PUR FO 2×12 E9/125

24 × 9/125 µm OS2 single-mode fibers (ITU-T G.652.D) in 1 yellow + 1 red tube

FESTOON PUR FO 2×12 G50/125

24 × 50/125 µm multimode graded-index fibers in 1 green + 1 red tube

FESTOON PUR FO 2×12 G62.5/125

24 × 62.5/125 µm OM1 multimode graded-index fibers in 1 blue + 1 red tube

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ITU-T G.652.D / IEC 60793. Values for your order are confirmed in the datasheet and quotation.

Thermal

Ambient temperature — moving / flexing
-30 to +80 °C
Ambient temperature — fixed / storage
-40 to +80 °C

Mechanical

Max. festoon travel speed
Up to 240 m/min on motor-driven crane festoon trolleys
Permissible tensile load
1,000 N max. continuous · 1,500 N max. dynamic
Min. bending radius
150 mm (~10 × outer diameter D)

Optical

Fiber count & buffer design
24 optical fibers in 2 × 12-fiber colour-coded loose buffer tubes (ANSI/TIA/EIA-598-A)
Available fiber grades
E9/125 µm single-mode (ITU-T G.652.D / OS2) · G50/125 µm multimode (OM2/OM3) · G62.5/125 µm multimode (OM1)

Reference standards

Optical & colour-coding standards
ITU-T G.652.D (OS2) · IEC 60793-2-10 · ANSI/TIA/EIA-598-A
Environmental & fire performance
Halogen-free PUR · Flame-retardant IEC 60332-1-2 · Oil-resistant IEC 60811-404 · UV, ozone & moisture resistant

Sizes

Dimensions, tensile ratings & optical transmission data

3 fiber-grade configurations (E9/125 single-mode, G50/125 multimode and G62.5/125 multimode)

Dimensions & mechanical data
Order designationFiber layoutFiber specificationTube codingOD min
mm		OD max
mm		Weight ≈
kg/km		Min. bend R
mm		Cont. pull
N		Dynamic pull
N		Enquiry
All fiber types
Single-mode E9/125
FESTOON PUR FO 2×12 E9/1252 × 12 E9/125Single-mode OS2 (ITU-T G.652.D)1 yellow + 1 red13.015.01801501,0001,500
Multimode G50 / G62.5
FESTOON PUR FO 2×12 G50/1252 × 12 G50/125Multimode 50/125 µm (OM2/OM3)1 green + 1 red13.015.01801501,0001,500
FESTOON PUR FO 2×12 G62.5/1252 × 12 G62.5/125Multimode 62.5/125 µm (OM1)1 blue + 1 red13.015.01801501,0001,500
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All three variants are 100 % dielectric (metal-free) and share the same 13.0–15.0 mm outer diameter and 180 kg/km nominal weight.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 300 mmBending radius OK (10 × OD 15.0 mm)
180 m/min ≤ 240 m/minWithin the rated travel speed
600 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension
Minimum bending radius
150 mm
Min. drum core diameter
≈ 300 mm
Cable weight on drum
14.4 kg
Outer diameter
15.0 mm
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
OTDR optical attenuation & continuity1310/1550 nm (E9) or 850/1300 nm (G50/G62.5)Every fiber, every length
Sample tests
Flame propagationIEC 60332-1-2Per batch
Oil resistance of PUR jacketIEC 60811-404Per compound batch
Dynamic tensile & flex cycling1,500 N dynamic load · R ≥ 150 mmType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

24 Fibers (2 × 12)CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FESTOON PUR FO 2x12 E9/125 · HALOGEN-FREE · CE · [year] · [metre mark]
Standard packing
Wooden drums or pre-terminated festoon assemblies on request
HS code
8544.70

Technical documents

Downloads

PDFFESTOON PUR FO 2×12/125 Halogen-Free Crane Fiber-Optic Festoon Cable – technical datasheet3 sizes · construction, technical data, approvalsXLSXFESTOON PUR FO 2×12/125 spec data (Excel)All 3 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How are the 24 optical fibers identified inside FESTOON PUR FO 2×12/125?
The 24 fibers are divided into two 12-fiber buffer tubes, with individual fibers inside each tube colour-coded 1 to 12 in accordance with ANSI/TIA/EIA-598-A (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).
Should I specify E9/125 single-mode or G50/125 multimode for a container crane festoon?
Specify E9/125 (ITU-T G.652.D / OS2 single-mode) for long-travel STS or RMG cranes, 10G/40G Ethernet rings and camera/LiDAR backbones. Specify G50/125 or G62.5/125 multimode when interfacing directly with existing legacy 850/1300 nm multimode PLC optical transceivers.
Is FESTOON PUR FO 2×12/125 completely metal-free?
Yes. Both the central strain-relief elements and the outer high-tenacity multifilament braid are dielectric synthetic yarns, making the cable 100 % metal-free and immune to ground loops or induced voltages when bundled next to MV or VFD power cables.
How does FESTOON PUR FO 2×12/125 differ from CRANE FO 2×12/125 Rubber?
FESTOON PUR FO 2×12/125 uses a lighter, thinner halogen-free PUR jacket (13–15 mm OD, 180 kg/km, 150 mm min. bend radius) optimized for high-speed festoon trolleys up to 240 m/min. CRANE FO 2×12/125 Rubber uses a thicker 5GM5 rubber jacket (14–16 mm OD, 210 kg/km, 2,000 N dynamic pull) built for motorized and spring-driven cable reels.

Request a quote

Get an engineering quote for FESTOON PUR FO 2×12/125

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

FESTOON PUR FO 2x12 PUR Fiber-Optic Festoon Cable for Cranes — FO 2x12 125

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
