DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-8133.6/6 kV · 6/10 kVWave-Screen CW · 5GM5

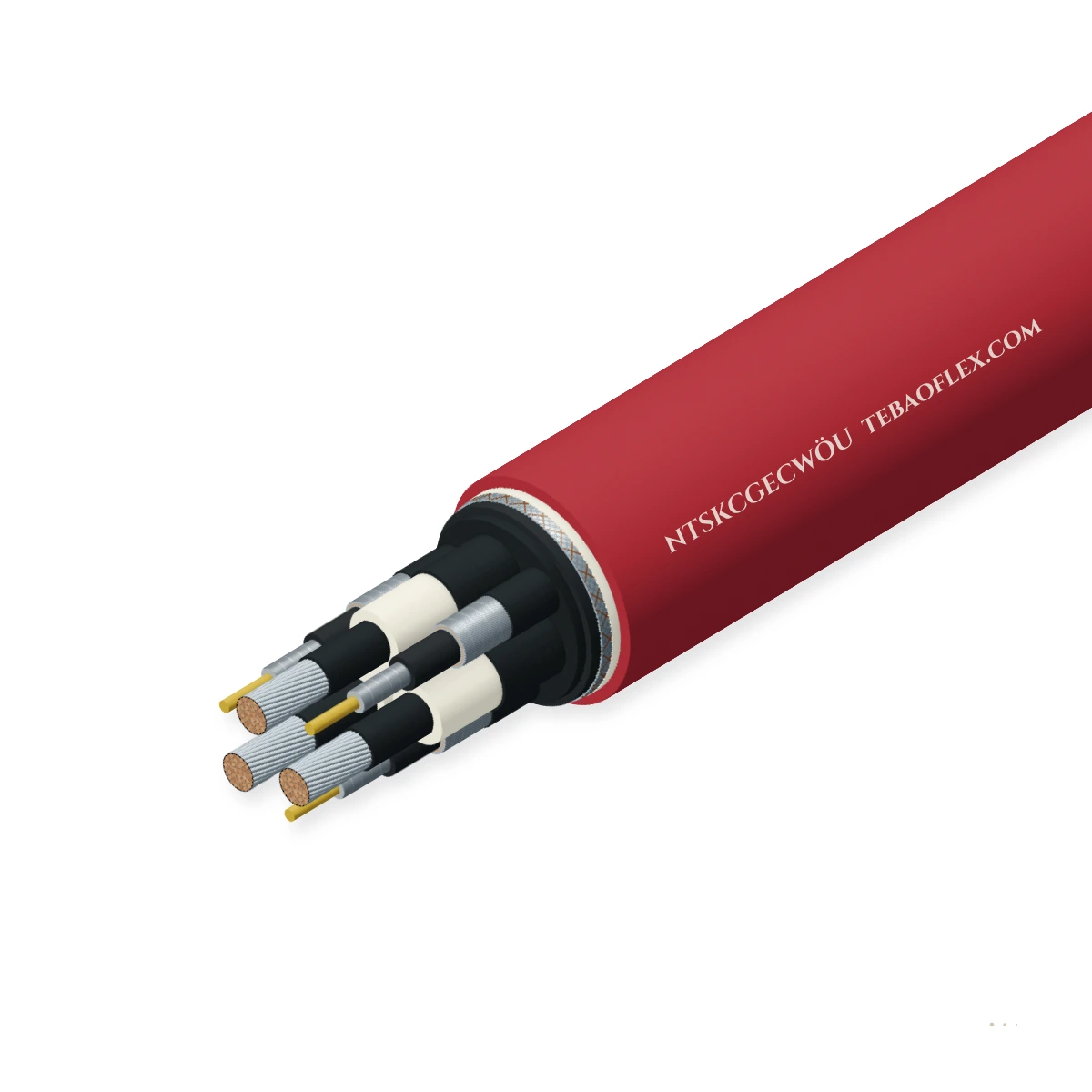

NTSKCGECWÖU Coal-Cutter and Underground Festoon CableDIN VDE 0250-813 3.6/6 kV & 6/10 kV wave-screened (CW) coal-cutter & underground festoon

NTSKCGECWÖU is a medium-voltage (3.6/6 kV and 6/10 kV) underground coal-cutter and monorail festoon trailing cable per DIN VDE 0250-813, combining pilot/control cores (K), semi-conductive EPR screening (CGE), and a wave-laid concentric copper/steel screen

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
NTSKCGECWÖU 3×70+4×2.5K+35CW 3.6/6 kV
Outer Ø ≈
56.5 mm
Copper weight
2,560 kg/km
Total weight ≈
4,820 kg/km
Min. bend R (fixed)
339 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6–6/10 kV
Umax 7.2 kV / 12 kV AC
Screen system
CGE + CW
Semicon + wave-laid concentric Cu
Control / pilot
K Pilot Pack
Integrated control & pilot cores
Insulation
3GI3 EPR
Triple-extruded MV EPR +90 °C
Outer sheath
5GM5 PCP
Flame-retardant tear-proof rubber
Min. bend radius
6×D / 10×D
Fixed 6×D · Bretby/festoon 10×D

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is NTSKCGECWÖU right for your machine?

Engineered for medium-voltage underground longwall coal shearers, Bretby cable handler chains, and overhead I-beam monorail festoon loops.

Longwall shearer & Bretby handler

Suitable

Wave-laid CW concentric screen flexes without wire kinking inside longwall Bretby drag chains.

Festoon & line chain

Suitable

Ideal for underground monorail trolley festoons feeding advancing longwall gate-end transformers.

Mine roadway & tunnel wall hangers

Suitable

CW concentric screen and 5GM5 jacket protect against roof spalling and coal-face abrasion.

Trailing & towing

Suitable

Integrated K pilot/control cores enable continuous earth-check and shearer remote control.

Motorised monospiral reel

With conditions

Suitable for slow take-up reels; for high-speed crane drums specify NTSCGEWÖU.

NTSCGEWÖU 3.6/6–18/30 kV
Typical machinesUnderground longwall coal miningMonorail gallery festoon systemsPotash & trona cutter-loadersSubsurface mobile substations

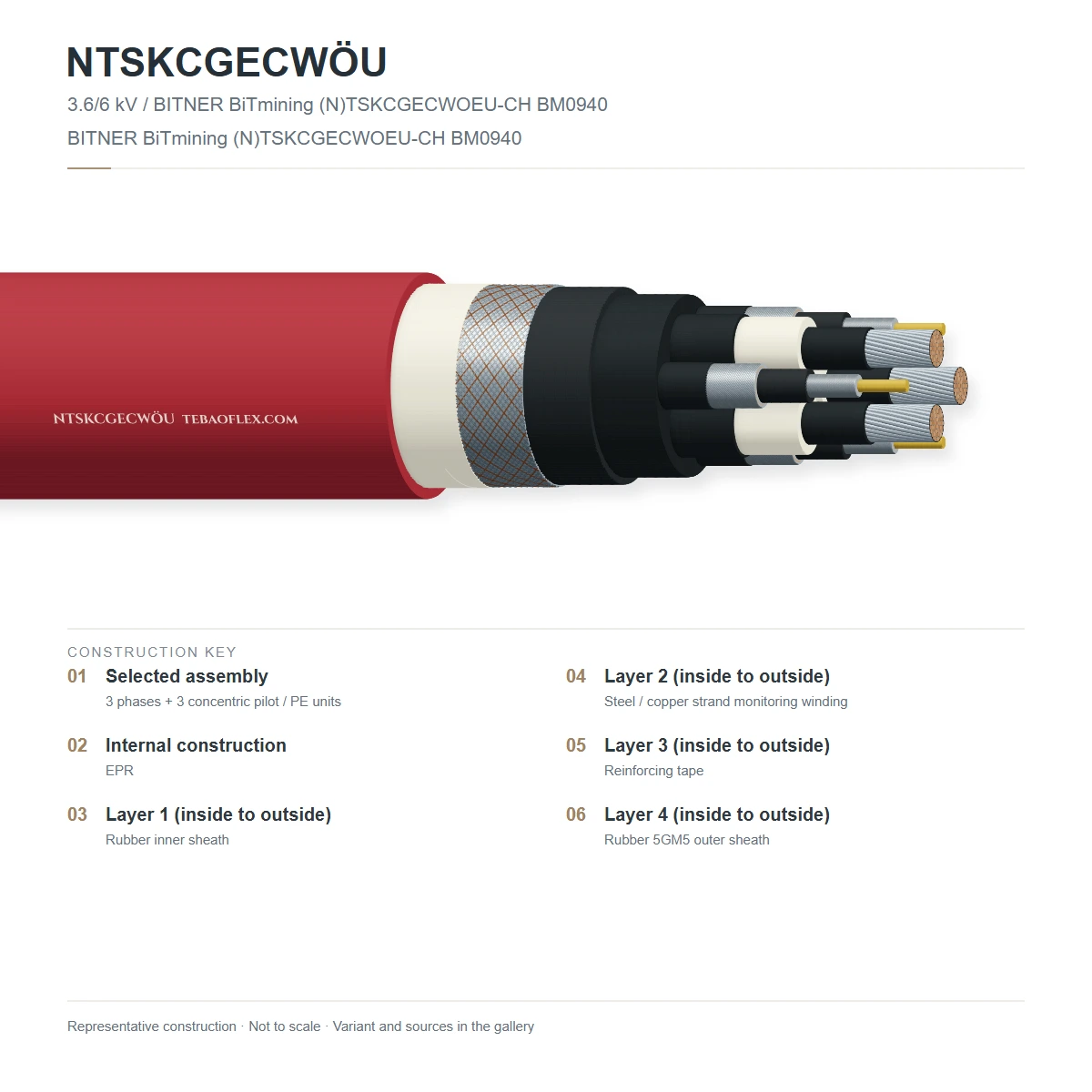

Construction

Layer by layer

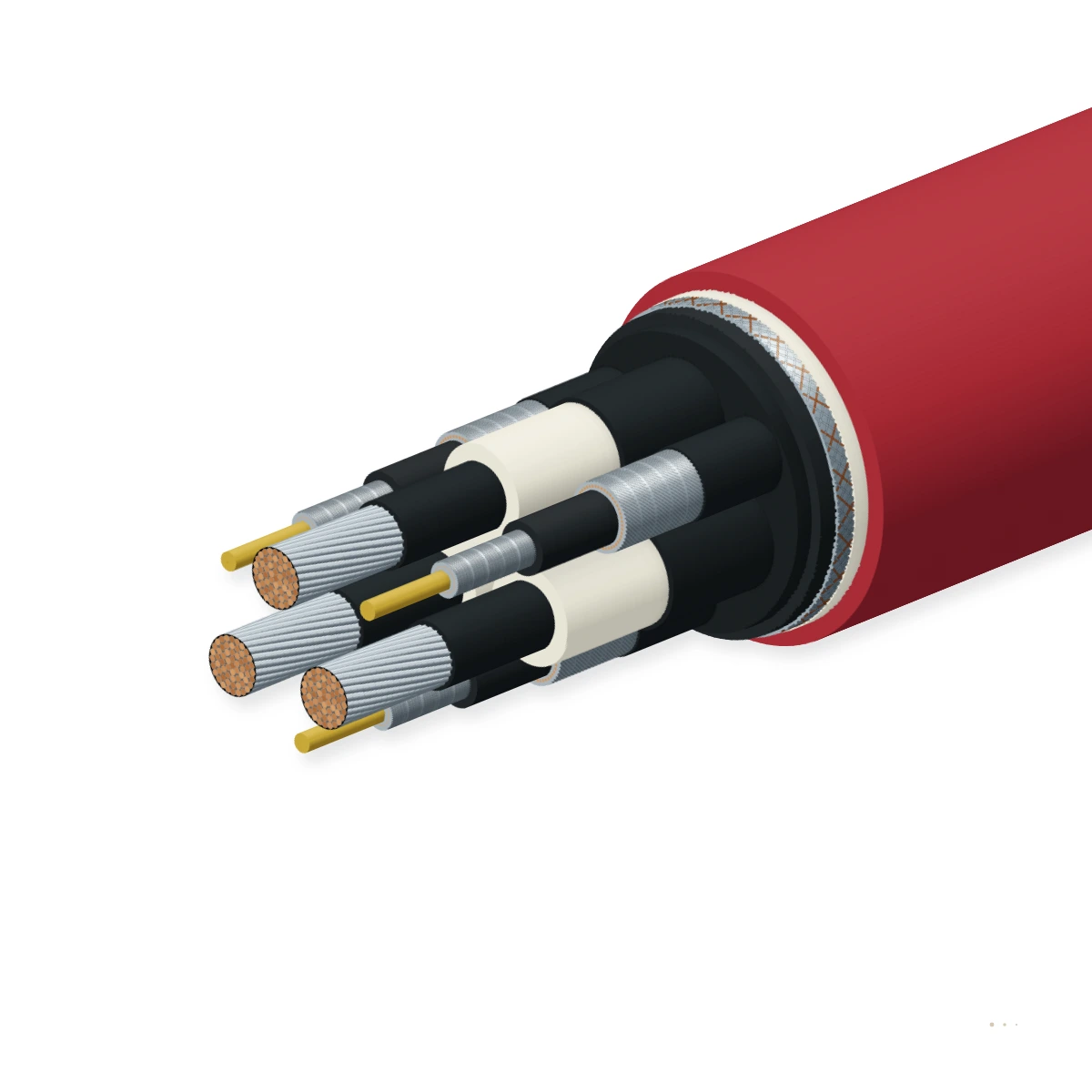

Three Class 5 tinned copper phase cores with triple-extruded 3GI3 EPR and CGE screens, K control/pilot core bundle, inner bedding

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & K pilot conductorsFinely stranded tinned copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Inner & outer semicon (GE)Vulcanised semi-conductive elastomeric stress-control layersDIN VDE 0250-813
3MV core insulation (3GI3)Cross-linked ethylene propylene rubber 3GI3 (3.6/6 kV or 6/10 kV)DIN VDE 0207-20
4Core & K-bundle lay-up3 screened phase cores + screened K control/pilot sub-assembly laid up in short pitchDIN VDE 0250-813
5Wave-laid concentric screen (CW)Sinusoidal wave-laid tinned copper wires & galvanized steel wires held by equalizing tapeDIN VDE 0250-813
6Outer sheath (5GM5)Heavy-duty flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

NTSKCGECWÖU 3.6/6 kV

3.6/6 kV (Umax 7.2 kV) longwall coal-shearer & monorail festoon cable.

NTSKCGECWÖU 6/10 kV

6/10 kV (Umax 12 kV) high-power longwall shearer & gallery monorail feeder.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
3.6/6 kV (Umax 7.2 kV) · 6/10 kV (Umax 12 kV)
AC routine test voltage
11 kV rms (3.6/6 kV) · 17 kV rms (6/10 kV)
Partial discharge level
≤ 20 pC at 2 U0
Control/pilot core rating
0.6/1 kV (AC test 2.5 kV)

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (max. 5 s)
Ambient temp. (flexing / festoon)
-25 °C to +60 °C
Ambient temp. (fixed)
-40 °C to +80 °C

Mechanical

Max. tensile load on copper
15 N/mm² (up to 20 N/mm² with CW screen)
Min. bending radius (fixed)
6 × cable outer diameter
Min. bending radius (Bretby/festoon)
10 × cable outer diameter
CW screen elongational compliance
Wave-laid geometry absorbs bending strain

Resistance

Oil & emulsion resistance
DIN EN 60811-404 hydraulic emulsion &
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Sheath tear & cut resistance
DIN VDE 0207-21 compound 5GM5

Reference standards

Primary specification
DIN VDE 0250-813
Conductor standard
DIN EN 60228 Class 5 tinned copper
Sheath standard
DIN VDE 0207-21 (5GM5)

Identification

Core identification
Phase cores numbered 1–3; K control bundle
Outer sheath colour
Red or Yellow with vulcanised designation

Sizes

10 standard configurations (NTSKCGECWÖU)

Nominal dimensions, copper weights and electrical parameters for NTSKCGECWÖU per DIN VDE 0250-813.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard NTSKCGECWÖU configurations
NTSKCGECWÖU 3×25+4×2.5K+25CW 3.6/6 kV3×25 + 4×2.5K + 25CW (3.6/6 kV)2544.51,1502,680267
NTSKCGECWÖU 3×35+4×2.5K+25CW 3.6/6 kV3×35 + 4×2.5K + 25CW (3.6/6 kV)3547.81,4403,150287
NTSKCGECWÖU 3×50+4×2.5K+25CW 3.6/6 kV3×50 + 4×2.5K + 25CW (3.6/6 kV)5052.01,8803,890312
NTSKCGECWÖU 3×70+4×2.5K+35CW 3.6/6 kV3×70 + 4×2.5K + 35CW (3.6/6 kV)7056.52,5604,820339
NTSKCGECWÖU 3×95+4×2.5K+50CW 3.6/6 kV3×95 + 4×2.5K + 50CW (3.6/6 kV)9561.83,4806,050371
NTSKCGECWÖU 3×120+4×2.5K+70CW 3.6/6 kV3×120 + 4×2.5K + 70CW (3.6/6 kV)12066.54,4207,320399
NTSKCGECWÖU 3×35+4×2.5K+25CW 6/10 kV3×35 + 4×2.5K + 25CW (6/10 kV)3551.01,4703,520306
NTSKCGECWÖU 3×50+4×2.5K+25CW 6/10 kV3×50 + 4×2.5K + 25CW (6/10 kV)5055.21,9104,280331
NTSKCGECWÖU 3×70+4×2.5K+35CW 6/10 kV3×70 + 4×2.5K + 35CW (6/10 kV)7059.82,5955,260359
NTSKCGECWÖU 3×95+4×2.5K+50CW 6/10 kV3×95 + 4×2.5K + 50CW (6/10 kV)9565.03,5206,540390
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-813.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
MV AC voltage withstand test11 kV (3.6/6 kV) or 17 kV (6/10 kV) for 5 min100 % of drums
Partial discharge test≤ 20 pC at 2 U0 per DIN VDE 0250-813100 % of drums
Sample tests
Bretby & monorail bending testCW wave-screen continuity after cyclic flexingPer production lot
Flame & oil resistanceDIN EN 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813DIN EN 60332-1-2LOBA / Underground Mining

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NTSKCGECWÖU 3.6/6 kV VDE 0250-813
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNTSKCGECWÖU Coal-Cutter and Underground Festoon Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXNTSKCGECWÖU spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the role of the CW wave-laid concentric screen in NTSKCGECWÖU?
In NTSKCGECWÖU, CW denotes a concentric protective screen whose copper and steel wires are applied in a sinusoidal wave (Wellenform) rather than a rigid helix. When the cable bends sharply in a Bretby drag chain or underground monorail festoon loop, the wave geometry opens and closes elastically without wire buckling or strand breakage.
What does the 'K' element in NTSKCGECWÖU contain?
The 'K' designates an integrated control and pilot-monitoring sub-assembly laid up alongside the three medium-voltage power cores. It carries low-voltage pilot circuits, emergency-stop loops, and shearer telemetry so a single trailing cable powers and controls the longwall coal cutter. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
When should I choose NTSKCGECWÖU versus NTSKCGERLÖU?
Choose NTSKCGECWÖU when the cable runs in overhead underground monorail festoon trolleys or enclosed Bretby cable handlers where lower weight and tight bending flexibility are primary. Choose NTSKCGERLÖU when exposed coal-face dragging demands heavy galvanized steel-strand RL armour against direct rock falls. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
What routine medium-voltage dielectric tests are performed before shipment?
Every production length undergoes a 5-minute AC withstand test at 11 kV rms (for 3.6/6 kV cables) or 17 kV rms (for 6/10 kV cables), partial discharge measurement verifying ≤ 20 pC at 2 U0, and semi-conductive screen resistance verification. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
