Product

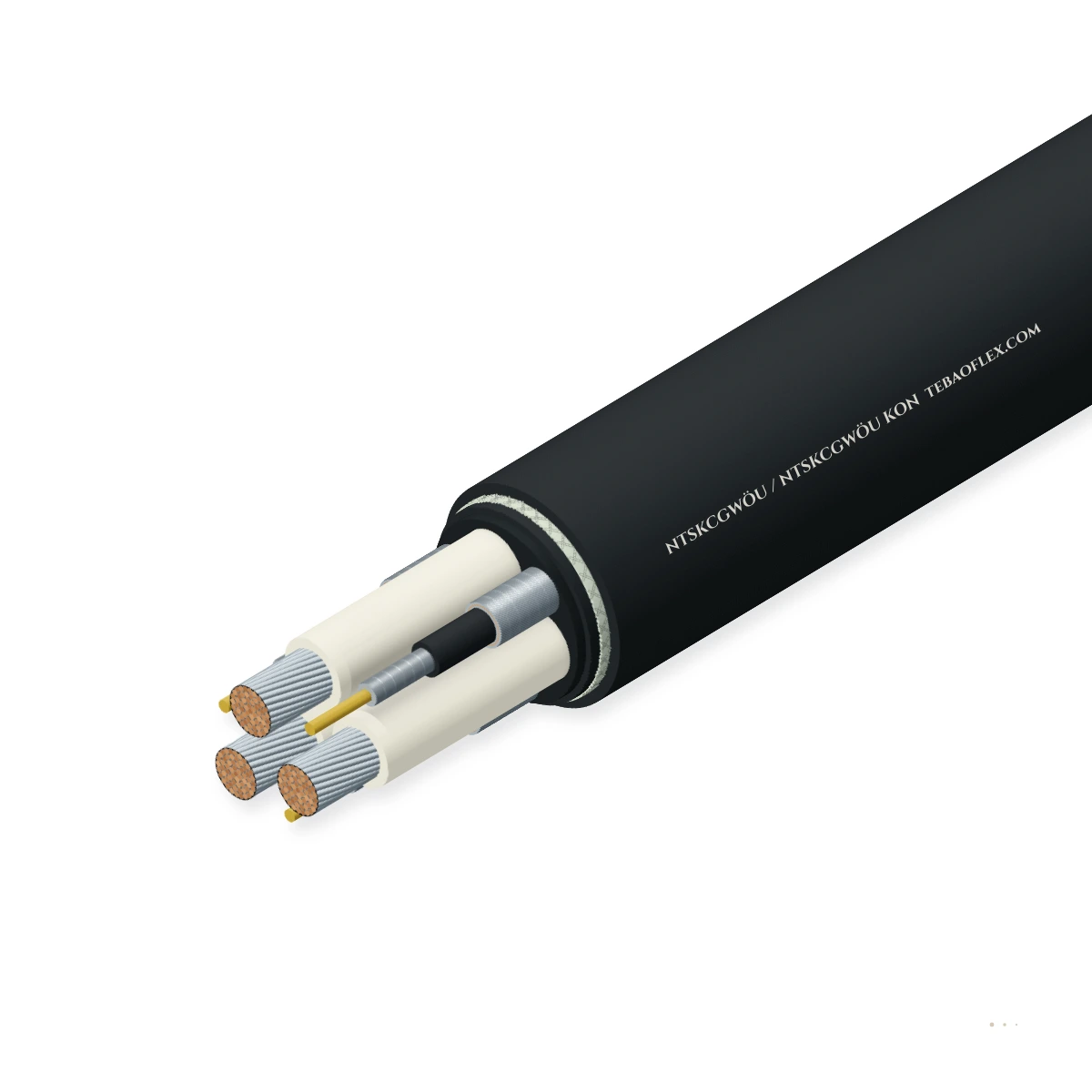

MV reeling cableDIN VDE 0250-813U0/U 3.6/6 & 6/10 kVLHD & Scooptram Reeling

NTSKCGWÖU / NTSKCGWÖU KON Loader CableMV 3.6/6 & 6/10 kV underground LHD scooptram reeling cable to DIN VDE 0250-813

Medium-voltage reeling cable based on DIN VDE 0250-813 for underground LHD loaders, scooptrams and drill jumbos, supplied in 3-earth + central pilot (NTSKCGWÖU) and concentric earth (NTSKCGWÖU KON) designs up to 120 m/min and 25–30 N/mm².

Anti-torsion braid

EMC screen

Oil-resistant

Flame-retardant

Configuration & cross-section

Order designation: NTSKCGWÖU 3×35+3×25/3+1×10 ST 3.6/6 kV
Outer Ø max: 44.6 mm
Weight ≈: 2,890 kg/km
Min. bend R: 535 mm
Dynamic pull: 3,150 N

Check against my drum All sizes (18)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 3.6/6 & 6/10 kV
Travel speed: 120 m/min
Tensile load: 25–30 N/mm²
Bending radius: 10–12 × OD
Temperature: −35…+90 °C
Sizes: 18

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is NTSKCGWÖU / NTSKCGWÖU KON right for your machine?

Engineered specifically for underground hard-rock and soft-rock mining loaders (LHD scooptrams), jumbo drill rigs and mobile scaling machines operating on high-tension drum reels.

Motorised monospiral reel

Suitable

Primary duty: horizontal level-wind and monospiral drum reeling on underground LHD loaders up to 120 m/min.

Cylindrical / multi-layer drum

Suitable

Multi-layer cylindrical drum winding under 25–30 N/mm² peak dynamic pull and ±100 °/m torsional stress.

Mine roadway & tunnel wall hangers

Suitable

Withstands dragging over blasted rock, sharp roadway corners and oil/emulsion exposure in underground drifts.

TBM gantry & advancing tunnel reel

Suitable

Feeds MV tunnel drill jumbos, roadheaders and bolting rigs requiring pilot continuity monitoring.

Vertical / spreader reel

Not suitable

Not intended for high-speed vertical port crane spreader baskets; use a dedicated crane reeling cable.

Use HVR / HVR-D MV Reeling Cable

Typical machinesUnderground LHD loaders & scooptramsTunnel drill jumbos & bolting rigsUnderground haulage & shuttle carsRoadheaders & continuous minersHard-rock & potash mining headings

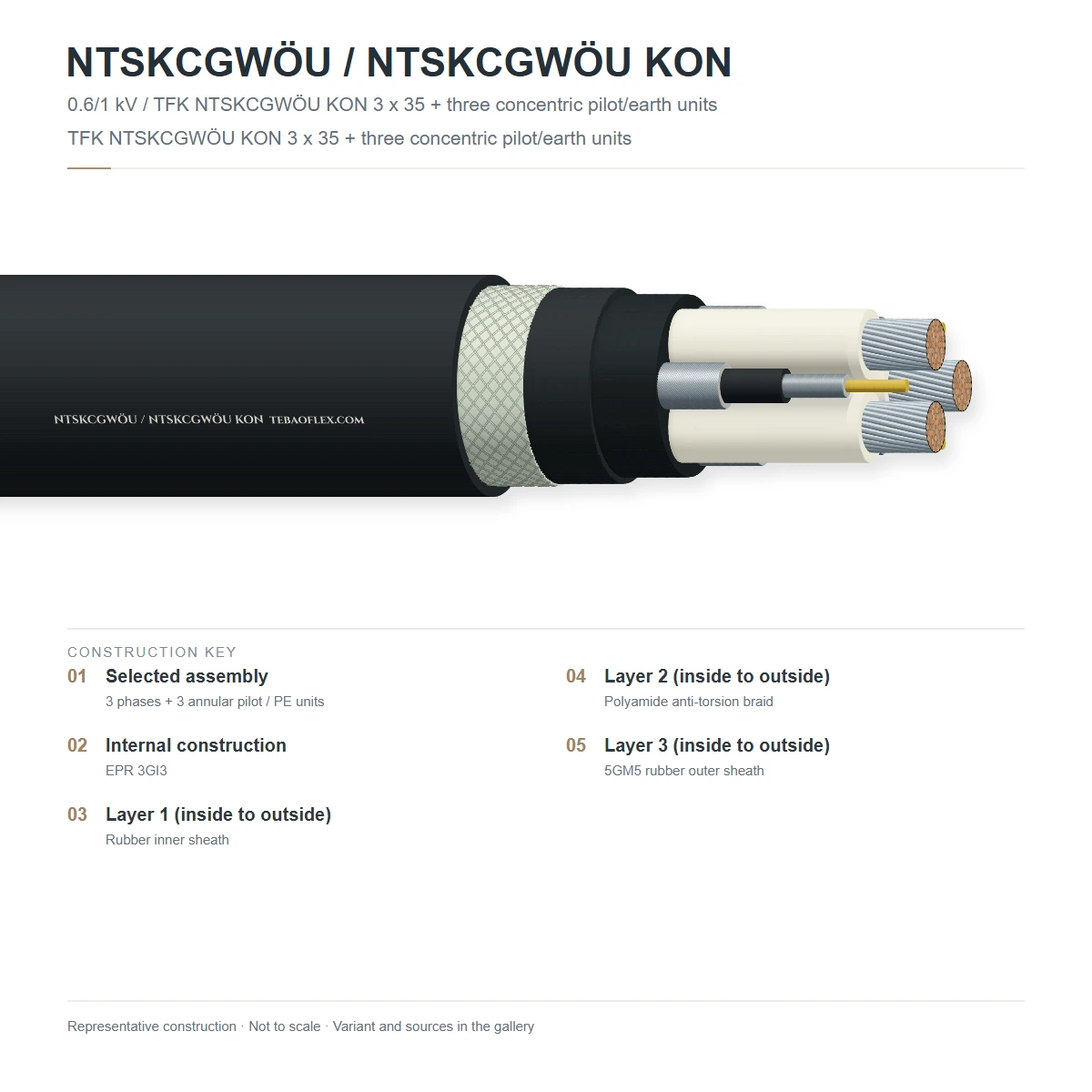

Construction

Layer by layer

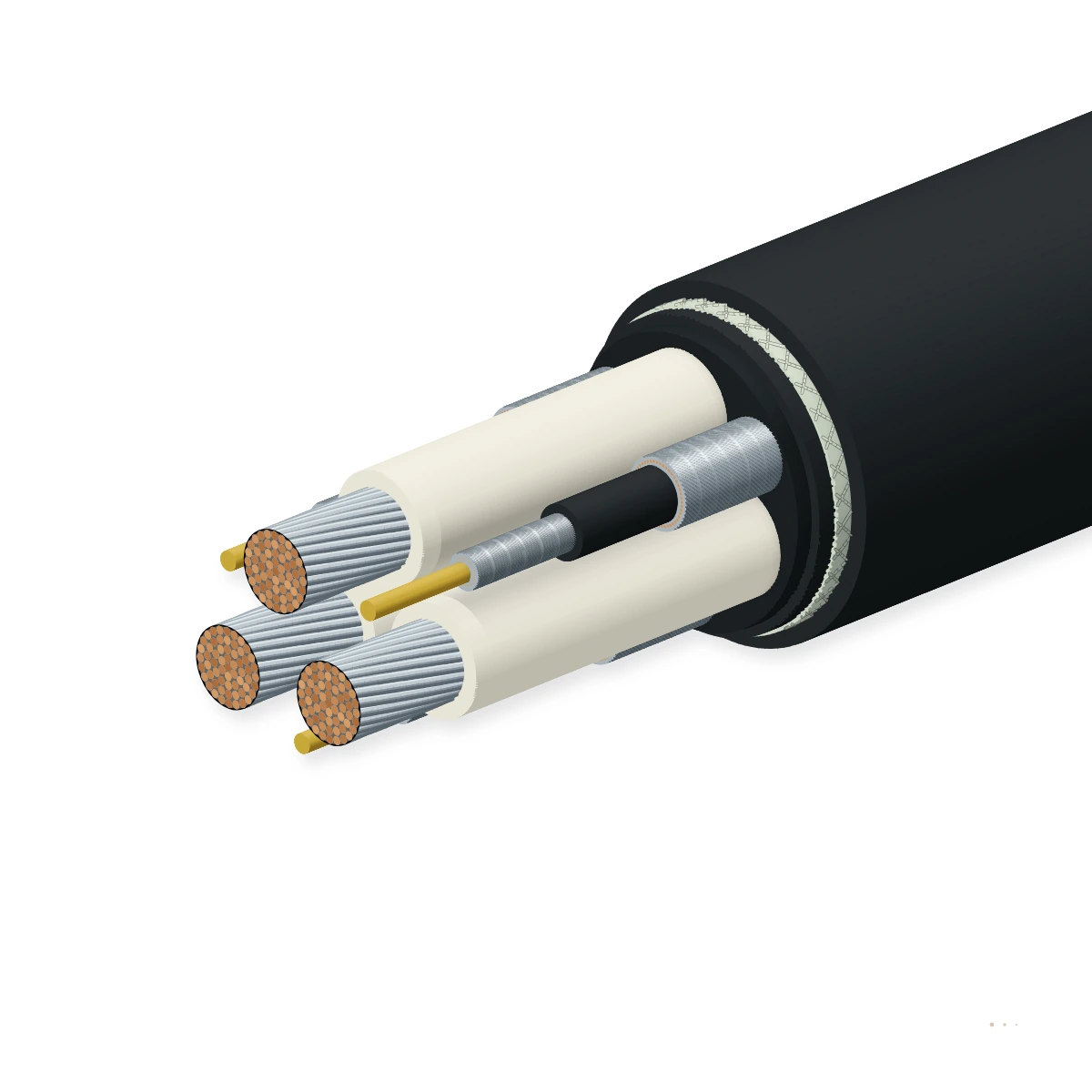

Shown: NTSKCGWÖU 3 × phase + 3 split interstitial earths + central extensible pilot core; also manufactured as NTSKCGWÖU KON with concentric protective earth screen over the core assembly.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase, earth & pilot conductors	Electrolytic tinned copper, extra-finely stranded Class 5IEC 60228 Class 5 / DIN VDE 0295
2	Inner conductor screen	Extruded semi-conductive EPR layer over each phase conductorDIN VDE 0250-813 radial field control
3	Core insulation	High-grade ethylene-propylene rubber (EPR) compound type 3GI3DIN VDE 0207-20 · 90 °C continuous / 250 °C short-circuit
4	Outer core screen	Cold-strippable semi-conductive NBR/EPR elastomer layer (≤ 200 Ω·m)Easy-strip field control screen for underground termination
5	Central pilot & earth arrangement	NTSKCGWÖU: central extensible pilot core (ST) + 3 interstitial split earths; NTSKCGWÖU KON: central pilot + concentric copper/textile earth screenSymmetrical short-lay core geometry for tight LHD reel drums
6	Inner sheath	Vulcanised heavy-duty elastomer compound type 5GM3 / PCPDIN VDE 0207-21 pressure-extruded bedding
7	Anti-torsion polyaramid reinforcement	High-tenacity polyaramid braid vulcanised between inner and outer sheathsAbsorbs ±100 °/m twist and 25–30 N/mm² dynamic loader pull
8	Outer sheath	Extra-heavy-duty tear- and abrasion-resistant 5GM5 / PCP / NBR compound, yellow or redDIN VDE 0207-21 · tear ≥ 30 N/mm · oil-resistant EN 60811-404 · flame-retardant IEC 60332-1-2

NTSKCGWÖU (3G + ST)

3 phase cores + 3 interstitial split earths + 1 central extensible pilot control core (3.6/6 & 6/10 kV)

NTSKCGWÖU KON

3 phase cores + central pilot core + concentric tinned copper/polyamide protective earth screen under outer sheath

Types in this range

3C + 3E + 1 Pilot · 3.6/6 kVNTSKCGWÖU · 3.6/6 kV

Split interstitial earths + central pilot core · 16–95 mm²

Underground LHD scooptrams & loaders

Datasheet

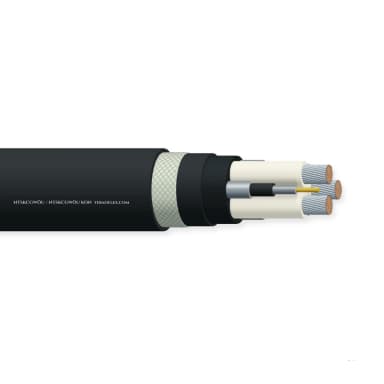

3C + 3E + 1 Pilot · 6/10 kVNTSKCGWÖU · 6/10 kV

Split interstitial earths + central pilot core · 16–95 mm²

High-power MV loaders & tunnel jumbos

Datasheet

Concentric Earth (KON) · 3.6/6–6/10 kVNTSKCGWÖU KON · 3.6/6 & 6/10 kV

Compact OD with concentric earth screen + central pilot · 16–70 mm²

Compact LHD drums needing maximum length capacity

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 3.6/6 kV and 6/10 kV
Max. operating voltage AC: 4.2/7.2 kV (3.6/6) · 6.9/12 kV (6/10)
Max. operating voltage DC: 5.4/10.8 kV (3.6/6) · 9.0/18 kV (6/10)
AC test voltage (5 min): 11 kV (3.6/6 kV) · 17 kV (6/10 kV)
Current rating basis: DIN VDE 0298-4 (30 °C in air)
Field control & earthing: Inner/outer semicon + 3G+ST or KON earth

Thermal

Temperature, flexing: −35 to +90 °C
Temperature, fixed: −40 to +90 °C
Max. conductor temperature: +90 °C
Short-circuit temperature (5 s): +250 °C

Mechanical

Min. bending radius, moving: 10 × OD free · 12 × OD forced reeling
Min. bending radius, fixed: 6 × OD
Max. reeling speed: 120 m/min
Max. tensile load: 20 N/mm² perm. · 25–30 N/mm² dynamic
Torsional stress: ± 100 °/m

Resistance

Oil & emulsion resistance: EN 60811-404 (mineral & hydraulic oil)
Flame retardance: IEC 60332-1-2
Tear & cut resistance: 5GM5 PCP/NBR compound (tear ≥ 30 N/mm)
Water & mine moisture: Submersible in mine water (HD 22.16)

Reference standards

Construction standard: Based on DIN VDE 0250-813
Conductor standard: IEC 60228 Class 5 / DIN VDE 0295
Compound standard: DIN VDE 0207-20 (3GI3) & 0207-21 (5GM3/5GM5)
Selection & installation: DIN VDE 0298-3 & DIN VDE 0298-4

Identification

Outer sheath colour: Yellow or red (high-visibility underground)
Core identification: Natural 3GI3 insulation + black semicon
Customs tariff (HS): 8544.60

Sizes

18 standard configurations (3.6/6 & 6/10 kV)

Typical engineering dimensions for NTSKCGWÖU (3G + central pilot) and NTSKCGWÖU KON (concentric earth + central pilot).

Dimensions & mechanical limits
Order designation	U0/U kV	Construction mm²	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Dynamic pull N
NTSKCGWÖU · 3.6/6 kV (3G + Pilot)
NTSKCGWÖU 3×16+3×16/3+1×10 ST 3.6/6 kV	3.6/6	3 × 16 + 3 × 16/3 + 1 × 10	38.5	710	1,980	462	1,440
NTSKCGWÖU 3×25+3×25/3+1×10 ST 3.6/6 kV	3.6/6	3 × 25 + 3 × 25/3 + 1 × 10	41.8	1,056	2,460	502	2,250
NTSKCGWÖU 3×35+3×25/3+1×10 ST 3.6/6 kV	3.6/6	3 × 35 + 3 × 25/3 + 1 × 10	44.6	1,344	2,890	535	3,150
NTSKCGWÖU 3×50+3×25/3+1×10 ST 3.6/6 kV	3.6/6	3 × 50 + 3 × 25/3 + 1 × 10	48.2	1,776	3,540	578	4,500
NTSKCGWÖU 3×70+3×35/3+1×10 ST 3.6/6 kV	3.6/6	3 × 70 + 3 × 35/3 + 1 × 10	53.0	2,448	4,520	636	6,300
NTSKCGWÖU 3×95+3×50/3+1×16 ST 3.6/6 kV	3.6/6	3 × 95 + 3 × 50/3 + 1 × 16	58.5	3,370	5,780	702	8,550
NTSKCGWÖU 3×120+3×70/3+1×16 ST 3.6/6 kV	3.6/6	3 × 120 + 3 × 70/3 + 1 × 16	63.2	4,282	6,980	758	10,800
NTSKCGWÖU · 6/10 kV (3G + Pilot)
NTSKCGWÖU 3×16+3×16/3+1×10 ST 6/10 kV	6/10	3 × 16 + 3 × 16/3 + 1 × 10	40.2	710	2,120	482	1,440
NTSKCGWÖU 3×25+3×25/3+1×10 ST 6/10 kV	6/10	3 × 25 + 3 × 25/3 + 1 × 10	43.2	1,056	2,590	518	2,250
NTSKCGWÖU 3×35+3×25/3+1×10 ST 6/10 kV	6/10	3 × 35 + 3 × 25/3 + 1 × 10	46.0	1,344	3,040	552	3,150
NTSKCGWÖU 3×50+3×25/3+1×10 ST 6/10 kV	6/10	3 × 50 + 3 × 25/3 + 1 × 10	49.8	1,776	3,710	598	4,500
NTSKCGWÖU 3×70+3×35/3+1×10 ST 6/10 kV	6/10	3 × 70 + 3 × 35/3 + 1 × 10	54.6	2,448	4,720	655	6,300
NTSKCGWÖU 3×95+3×50/3+1×16 ST 6/10 kV	6/10	3 × 95 + 3 × 50/3 + 1 × 16	60.2	3,370	5,990	722	8,550
NTSKCGWÖU KON · 3.6/6 & 6/10 kV
NTSKCGWÖU KON 3×16+1×10 ST +16 KON 3.6/6 kV	3.6/6	3 × 16 + 1 × 10 + 16 KON	36.8	730	1,840	442	1,440
NTSKCGWÖU KON 3×25+1×10 ST +25 KON 3.6/6 kV	3.6/6	3 × 25 + 1 × 10 + 25 KON	39.8	1,075	2,290	478	2,250
NTSKCGWÖU KON 3×35+1×10 ST +25 KON 3.6/6 kV	3.6/6	3 × 35 + 1 × 10 + 25 KON	42.5	1,365	2,710	510	3,150
NTSKCGWÖU KON 3×35+1×10 ST +25 KON 6/10 kV	6/10	3 × 35 + 1 × 10 + 25 KON	44.0	1,365	2,860	528	3,150
NTSKCGWÖU KON 3×50+1×10 ST +25 KON 6/10 kV	6/10	3 × 50 + 1 × 10 + 25 KON	47.6	1,795	3,490	571	4,500

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
ST = extensible central pilot control conductor for ground-check / earth-continuity monitoring.
KON = concentric protective earth conductor positioned around the laid-up cores for compact outer diameter.

Electrical & current data
Phase CSA mm²	Max. DC resistance 20 °C, Ω/km	Ampacity (in air, 30 °C) A	1 s short-circuit kA	Perm. pull (20 N/mm²) N	Dynamic pull (30 N/mm²) N
16	1.240	99	2.29	960	1,440
25	0.795	131	3.58	1,500	2,250
35	0.565	162	5.01	2,100	3,150
50	0.393	202	7.15	3,000	4,500
70	0.277	250	10.01	4,200	6,300
95	0.210	301	13.59	5,700	8,550
120	0.164	352	17.16	7,200	10,800

Apply DIN VDE 0298-4 derating factors for multi-layer cylindrical loader reels (typically 0.76 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 800 mm is below 1,070 mmUse a larger drum core or a smaller cable size

80 m/min ≤ 120 m/minWithin the rated travel speed

Minimum bending radius: 535 mm
Min. drum core diameter: ≈ 1,070 mm
Cable weight on drum: 578.0 kg
Copper content: 268.8 kg

Indicative only: based on the datasheet outer diameter and 12 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC high-voltage withstand test on phase cores	11 kV AC for 5 min (3.6/6 kV) · 17 kV AC for 5 min (6/10 kV)	Every manufactured length
Partial discharge test	≤ 40 pC at test voltage	Every manufactured length
Conductor DC resistance & semicon resistivity	IEC 60228 Class 5 · outer semicon ≤ 200 Ω·m	Every length
Sample tests
5GM5 outer sheath tear & oil immersion	Tear ≥ 30 N/mm · EN 60811-404 oil test (100 °C, 24 h)	Per batch
LHD reversed bending & torsional endurance	Multi-plane reeling flex under 25–30 N/mm² pull and ±100 °/m twist	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NTSKCGWÖU 3x35+3x25/3+1x10 ST 3.6/6 kV DIN VDE 0250-813 · [year] · [metre mark]

Delivery form: Heavy export timber or steel mining drums, cut-to-length
Packaging: ISPM-15 heat-treated lagged drums with sealed moisture-proof ends

Technical documents

Downloads

PDFNTSKCGWÖU / NTSKCGWÖU KON Loader Cable – technical datasheet18 sizes · construction, technical data, approvals XLSXNTSKCGWÖU / NTSKCGWÖU KON spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between NTSKCGWÖU and NTSKCGWÖU KON for underground loaders?

Standard NTSKCGWÖU places three split protective earth conductors in the outer core interstices around a central extensible pilot core (ST). NTSKCGWÖU KON replaces the split interstitial earths with a concentric tinned-copper and synthetic-yarn earth screen applied around the core bundle, reducing overall cable diameter so longer lengths fit onto compact LHD scooptram reels.

Why does an LHD loader cable need a central extensible pilot core (ST)?

During underground mucking and tramming, the loader reel subjects the cable to repeated acceleration peaks of 25–30 N/mm² and tight S-bends around guide rollers. Placing an extensible tinned-copper pilot core on the neutral central axis prevents premature pilot wire breakage and maintains continuous ground-check loop monitoring back to the gate-end box.

How is the electric field controlled at 3.6/6 kV and 6/10 kV?

Each phase core uses a triple-extruded dielectric: an inner semi-conductive EPR layer over the Class 5 tinned copper conductor, 3GI3 ethylene-propylene rubber insulation, and a cold-strippable outer semi-conductive NBR/EPR screen (resistivity ≤ 200 Ω·m) in continuous contact with the split interstitial earths or KON concentric earth screen.

What drum diameter and current derating apply on cylindrical LHD reels?

Maintain a minimum forced-reeling bending radius of 12 × OD (drum barrel diameter ≥ 24 × OD) and 10 × OD on free-moving loops. Because LHD cables wind in multiple layers on cylindrical drums, apply DIN VDE 0298-4 layer reduction factors (typically 0.76 for one layer, 0.61 for two layers, and 0.49 for three wound layers).
