Product

NSGAFCMÖU 1.8/3 kV screened rubber wireDIN VDE 0250-6021.8/3 (3.6) kV + CM ScreenMining & Rail Switchgear

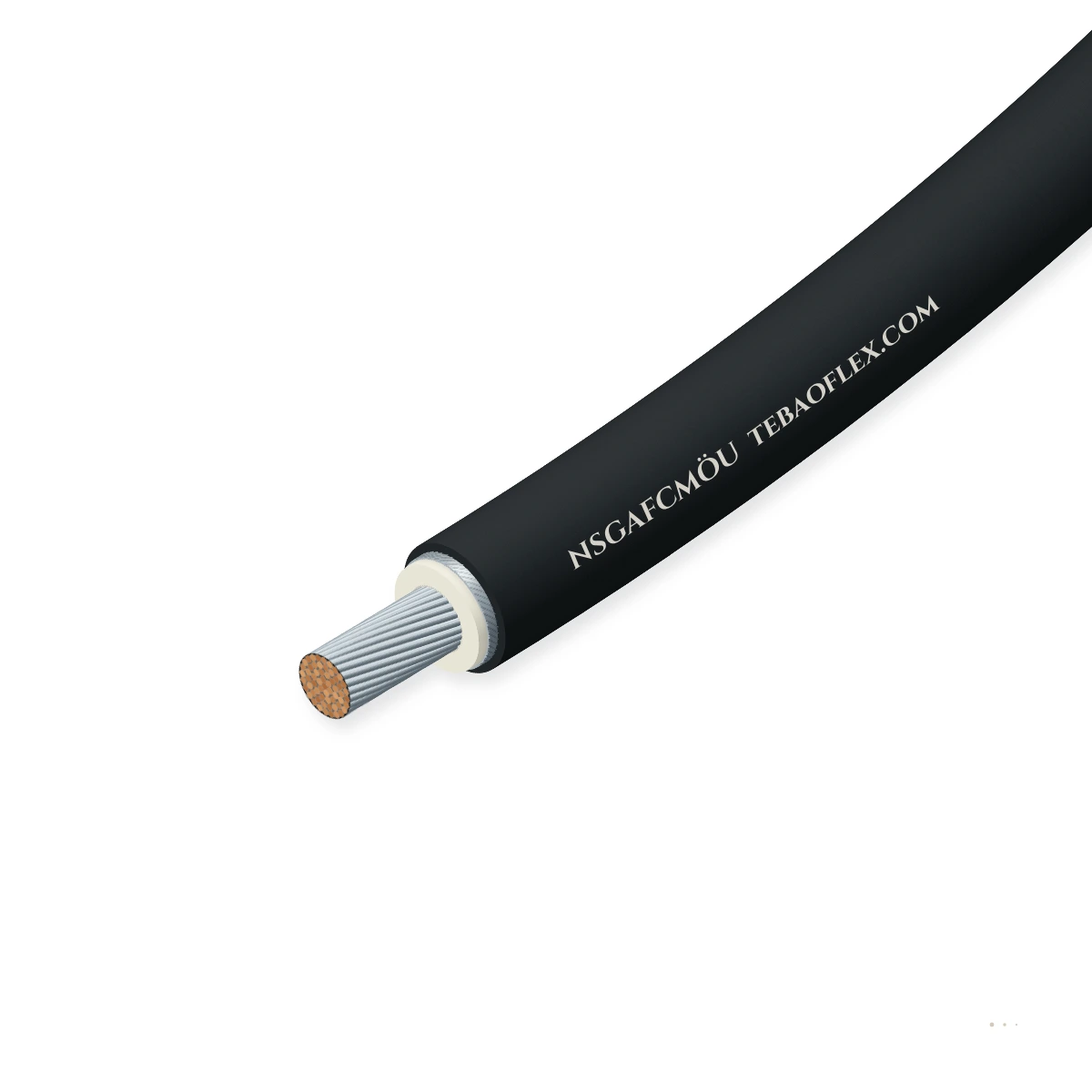

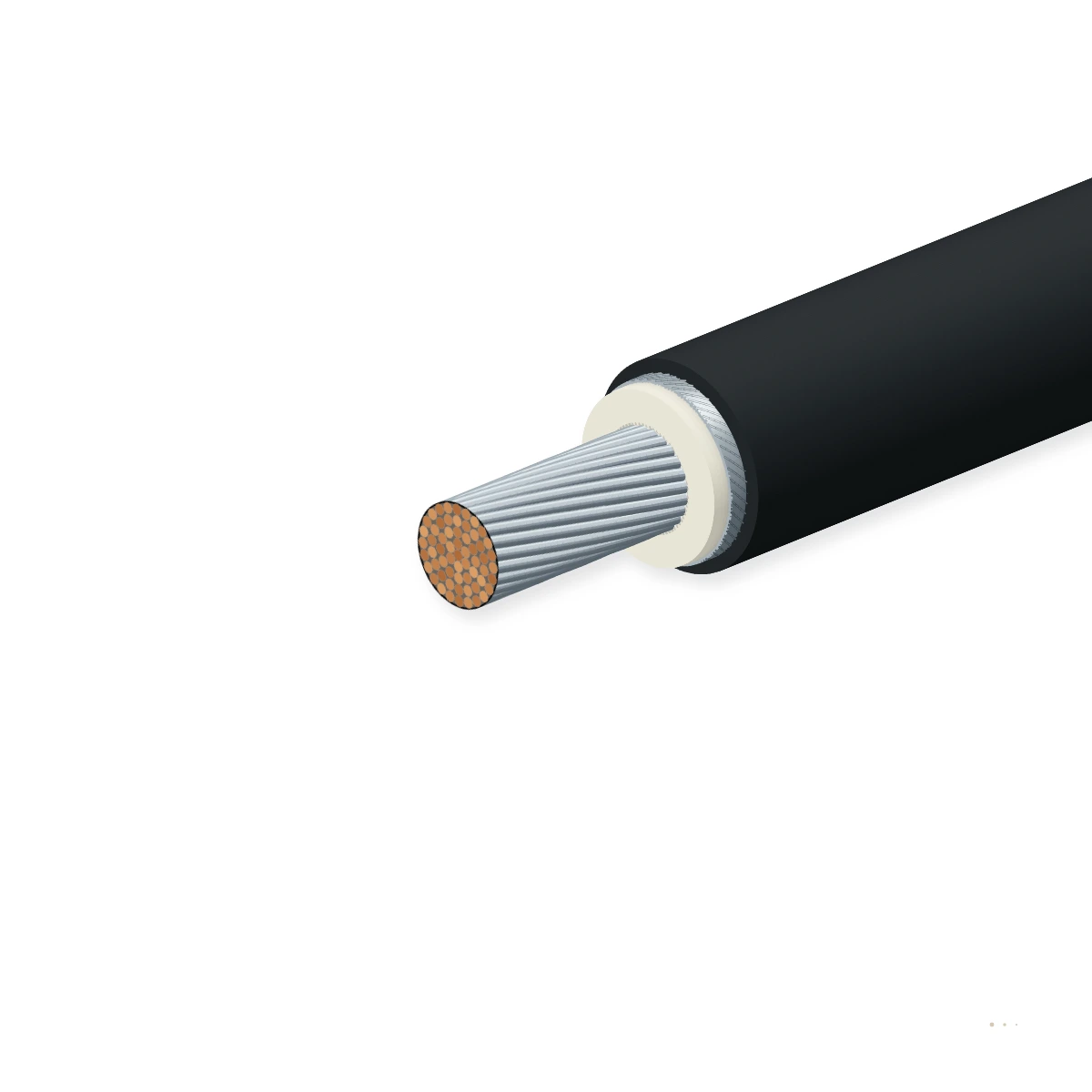

NSGAFCMÖU Screened Rubber-Insulated Single-Core WireDIN VDE 0250-602 1.8/3 (3.6) kV screened EPR/PCP short-circuit-proof single-core wire

Screened, inherently short-circuit-proof rubber-insulated single-core power and control wire (NSGAFCMÖU) to DIN VDE 0250-602 rated U0/U = 1.8/3 (3.6) kV, combining 3GI3 EPR dielectric, a concentric tinned copper screen (CM), and a 5GM2.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
NSGAFCMOEU-1X50/10
Phase / Screen
1 × 50 / 10 mm²
Overall OD
19.6 mm
Weight
810 kg/km
Ampacity (30°C)
276 A
All sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
VDE 0250-602
NSGAFCMÖU 1.8/3 (3.6) kV AC
DC voltage
Up to 5.4 kV DC
2.7/5.4 kV DC traction & mining
Concentric screen
Tinned Cu (CM)
Fault-current & EMC copper screen
Cross-section
1.5/1.5–240/35
Phase / screen mm² combinations
Insulation
3GI3 EPR (+90°C)
+250 °C short-circuit rating
Outer sheath
5GM2 Elastomer
Oil-resistant & flame-retardant

Typical values for this cable type, based on DIN VDE 0250-602 / VDE 0100-520 / VDE 0118 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSGAFCMÖU right for your machine?

Adds a concentric tinned copper earth/EMC screen (`CM`) around the 1.8/3 kV NSGAFÖU core for mining earth-leakage protection and VFD/traction EMC.

Mine roadway & tunnel wall hangers

Suitable

Concentric copper screen (`CM`) guarantees immediate earth-leakage relay tripping if the cable is crushed in underground mining switchgear.

VFD inverter to AC motor screened feeder

Suitable

360° tinned copper braid/wire screen suppresses high-frequency common-mode noise on 690–3,300 V VFD motor and inverter leads.

Switchgear & control cabinet wiring

Suitable

Certified short-circuit and earth-fault proof to VDE 0100-520 for busbar, transformer and rectifier cabinet interconnections.

Energy chain / drag chain

Not suitable

Designed for fixed and flexible switchgear/vehicle routing, not continuous high-speed drag chains.

Use M23 Servo Assembly
Typical machinesUnderground Coal & Hard-Rock Mining SwitchgearRailway Locomotives & Traction Converter Racks690 V / 1,000 V / 3.3 kV Frequency Inverter DrivesShort-Circuit-Proof Transformer & Rectifier LeadsOpen-Cast Excavator & Stacker-Reclaimer Cabinets

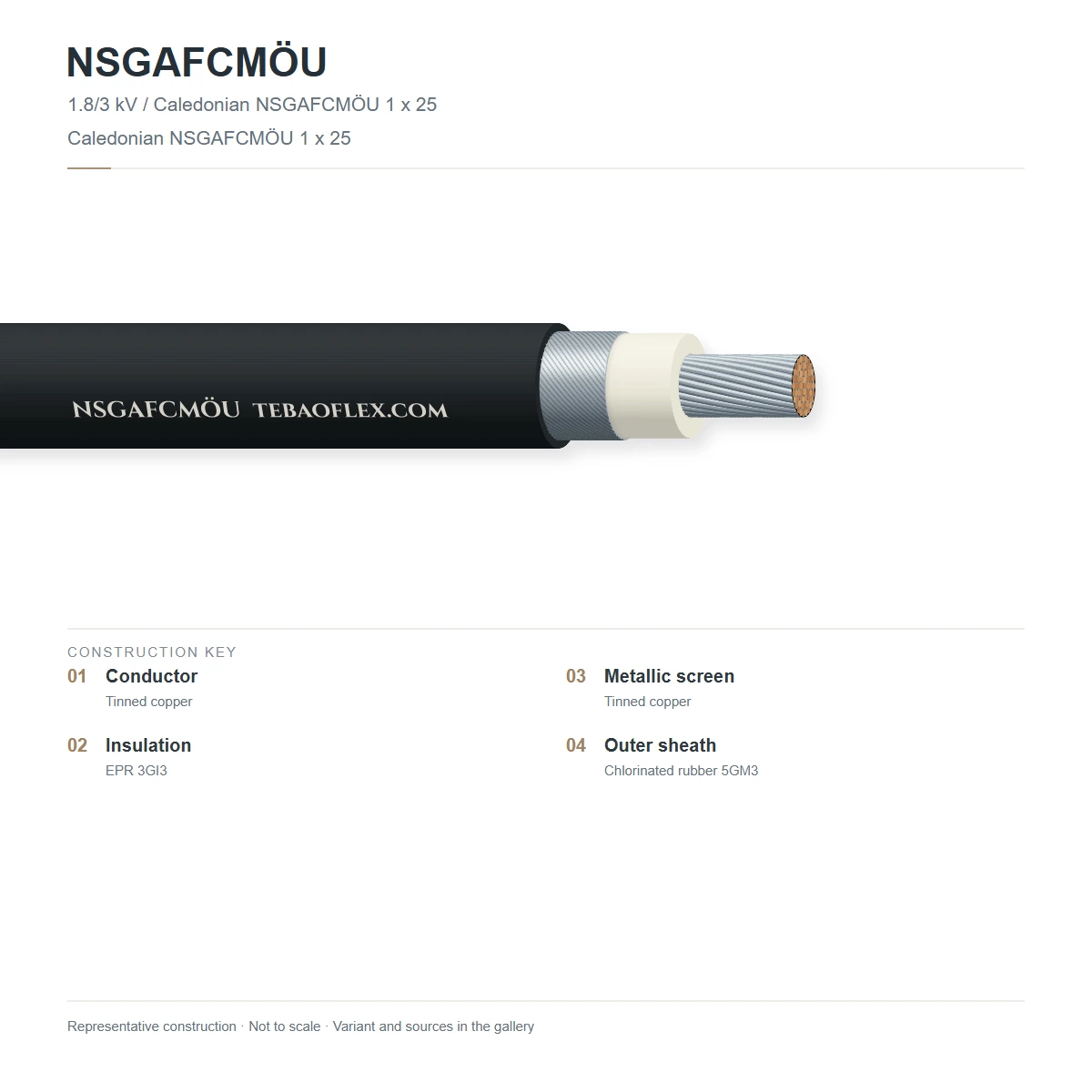

Construction

Layer by layer

VDE 0250-602 code breakdown: N (VDE standard) · SGA (special rubber core) · F (fine-stranded Class 5) · CM (concentric copper screen) · Ö (oil-resistant) · U (flame-retardant 5GM2 elastomer sheath).

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded Class 5 tinned copper phase conductorAnnealed tinned copper wires to DIN EN 60228 / VDE 0295 Class 5 (1.5 mm² to 240 mm²)Provides flexible cabinet routing and corrosion resistance
21.8/3 kV EPR (3GI3) dielectricCross-linked ethylene propylene rubber (EPR compound 3GI3 to DIN VDE 0207-20) rated +90 °C continuous and +250 °C short-circuitWithstands 6.0 kV AC test voltage and provides earth-fault-proof dielectric margin
3Inner elastomer bedding / semiconductive tapeThin inner rubber bedding or conductive tape layer over the EPR coreCushions the concentric copper screen and prevents wire indentation into the primary dielectric
4Concentric tinned copper screen (CM)Helically lapped or braided tinned copper wires (1.5 mm² to 35 mm² geometric screen cross-section, ≥ 85 % coverage)Provides touch-safe earthing, mining earth-fault detection and EMC screening
5Heavy-duty 5GM2 polychloroprene outer sheath (ÖU)Oil-resistant (`Ö`) and flame-retardant (`U`) black polychloroprene elastomer outer jacket (compound 5GM2 to DIN VDE 0207-21)Protects against hydraulic oil, diesel, mine water and mechanical abrasion

NSGAFCMÖU-CTRL (1.5/1.5 to 16/6 mm² Control & CT)

Screened 1.8/3 kV single-core wire for intrinsically safe / earth-monitored mining control panels and PT/CT secondary leads

NSGAFCMÖU-PWR (25/6 to 240/35 mm² Inverter & Bus)

Heavy screened single-core power leads for 690 V–3.3 kV VFD motor connections, traction converters and mining transformers

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-602 / VDE 0100-520 / VDE 0118. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal AC voltage (U0/U)
1.8/3 kV · Max operating Um = 3.6 kV AC
Max. operating DC voltage
2.7/5.4 kV DC
AC test voltage (core to screen)
6.0 kV AC rms for 5 min
AC test voltage (screen to water)
2.0 kV AC rms for 5 min
Max. conductor temperature
+90 °C continuous · +250 °C short-circuit

Thermal

Operating temperature (fixed)
−40 °C to +80 °C
Operating temperature (flexing)
−25 °C to +80 °C

Mechanical

Phase / screen sizes
1×1.5/1.5 mm² up to 1×240/35 mm²
Min. bend radius
5 × OD (fixed) · 10 × OD (flexible installation)

Resistance

Oil resistance (Ö)
DIN EN 60811-404 (IRM 902 oil at 100 °C)
Flame retardancy (U)
DIN EN 60332-1-2
Ozone & weather
DIN VDE 0250-602 ozone & moisture resistant

Reference standards

Primary specification
DIN VDE 0250-602
Installation rules
DIN VDE 0100-520 · DIN VDE 0118 (mining) ·DIN VDE 0298-4

Identification

Outer sheath colour
Black (Polychloroprene 5GM2)
Surface legend
TEBAOFLEX NSGAFCMÖU 1.8/3 kV [MM2/MM2] VDE 0250-602
Customs tariff (HS)
8544.60

Sizes

13 standard NSGAFCMÖU 1.8/3 kV screened rubber single-core wire sizes

Phase and concentric copper screen (`CM`) cross-sections, resistances, nominal OD, weight and ampacity at 30 °C.

Phase/screen sizes, OD, weight & ampacity
Order designationPhase / Screen
mm²		Phase R @20°C
Ω/km		EPR Core OD
mm		Overall OD
mm		Weight
kg/km		Ampacity
A (30°C)		Fixed R
mm		Enquiry
Screened Control & Auxiliary Feeder Sizes — 1×1.5/1.5 mm² to 1×25/6 mm²
NSGAFCMOEU-1X1.5/1.51 × 1.5 / 1.513.7005.09.21153046
NSGAFCMOEU-1X2.5/1.51 × 2.5 / 1.58.2105.59.81354149
NSGAFCMOEU-1X4/2.51 × 4.0 / 2.55.0906.010.61685553
NSGAFCMOEU-1X6/2.51 × 6.0 / 2.53.3906.511.21987056
NSGAFCMOEU-1X10/41 × 10 / 4.01.9507.512.62659863
NSGAFCMOEU-1X16/61 × 16 / 6.01.2408.814.235513271
NSGAFCMOEU-1X25/61 × 25 / 6.00.79510.516.047517680
Screened Switchgear, VFD & Traction Power Sizes — 1×35/6 mm² to 1×240/35 mm²
NSGAFCMOEU-1X35/61 × 35 / 6.00.56511.817.559521888
NSGAFCMOEU-1X50/101 × 50 / 100.39313.619.681027698
NSGAFCMOEU-1X70/101 × 70 / 100.27715.521.81,045347109
NSGAFCMOEU-1X95/161 × 95 / 160.21017.824.51,365416123
NSGAFCMOEU-1X120/161 × 120 / 160.16419.626.51,640488133
NSGAFCMOEU-1X185/251 × 185 / 250.10823.831.42,420644157
NSGAFCMOEU-1X240/351 × 240 / 350.08226.835.03,120764175
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • When installing single-core screened cables in 3-phase AC circuits, bond the concentric copper screens at one end (or via cross-bonding) if circulating sheath currents exceed thermal limits.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
6.0 kV AC core-to-screen & 2.0 kV AC screen-to-water test5-minute wet/dry AC dielectric withstand test on every length100 % of manufactured reels
Phase & concentric screen DC resistance testVerify Class 5 conductor and CM screen cross-sectional conductivity100 % of manufactured reels
Sample tests
5GM2 oil immersion & IEC 60332-1-2 flame propagationVerify oil-resistant (`Ö`) and flame-retardant (`U`) sheath complianceType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-602 NSGAFCMÖU 1.8/3 kV CompliantDIN VDE 0118 Mining & VDE 0100-520 Short-Circuit Proof

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSGAFCMÖU 1.8/3 kV [MM2/MM2] VDE 0250-602
Delivery form
100 m coils or 500 m / 1,000 m wooden drums
Accessories
EMC brass/stainless compression glands & screen earthing kits
Lead time
2–4 weeks ex-works

Technical documents

Downloads

PDFNSGAFCMÖU Screened Rubber-Insulated Single-Core Wire – technical datasheet14 sizes · construction, technical data, approvalsXLSXNSGAFCMÖU spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What do each of the letters in the VDE designation 'NSGAFCMÖU' stand for?
N = standard type to DIN VDE 0250; SGA = special rubber-insulated single-core wire (Sonder-Gummi-Aderleitung); F = fine-stranded flexible conductor (Class 5); C = concentric copper screen; M = elastomer outer sheath (Mantel); Ö = oil-resistant (Ölbeständig); U = flame-retardant (Flammwidrig).
Why is NSGAFCMÖU specified instead of unscreened NSGAFÖU / CGAU in underground mines and rail traction?
In underground mining switchgear (DIN VDE 0118) and rail traction converters, any mechanical crushing or insulation fault on a phase wire must be intercepted by a grounded metallic screen before it can arc to an adjacent phase or energise an enclosure. The concentric copper screen (`CM`) guarantees that any fault is immediately converted into a monitored earth fault, while also providing 360° EMC shielding for PWM inverters.
Can the concentric copper screen (`CM`) be used as the protective earth (PE) conductor?
The concentric copper screen is dimensioned (from 1.5 mm² up to 35 mm²) to carry earth-fault currents and trip protective relays, or to serve as the EMC shield. Whether it may serve as the sole PE conductor depends on the prospective fault current I²t of your circuit breaker per DIN VDE 0100-540.
What is the maximum operating voltage of a 1.8/3 kV NSGAFCMÖU cable in AC and DC systems?
Under DIN VDE 0250-602, the cable is rated U0/U = 1.8/3 kV with a maximum three-phase AC system voltage Um = 3.6 kV AC and a maximum DC operating voltage of 2.7/5.4 kV DC.
