DIN VDE 0266 Fire-Resistant Power Cables0.6/1 kVFE180 / E30–E90Concentric Cu

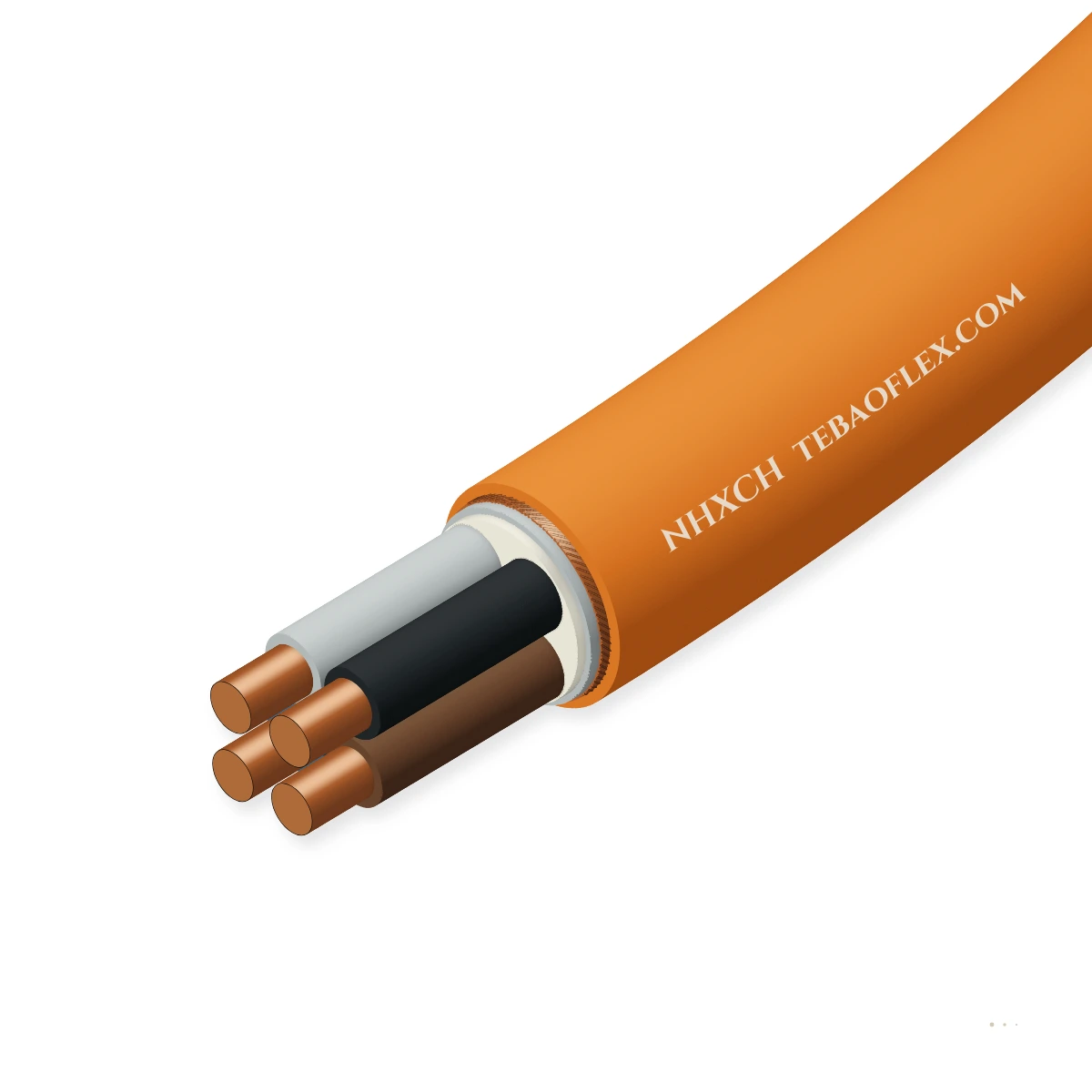

NHXCH Fire-Resistant Cable with Concentric Conductor0.6/1 kV halogen-free E30–E90 fire-resistant power cable with concentric Cu conductor

NHXCH (FE180/E30 and FE180/E90) is a DIN VDE 0266 0.6/1 kV halogen-free fire-safety power cable featuring a concentric copper wire and counter-helix tape conductor (Ceander/screen) for enhanced earth fault protection, EMC shielding and 30–90 minute circuit int

FE180 / E30–E90
Concentric Cu
DIN VDE 0266
Order designation
NHXCH 3×1.5/1.5 RE FE180/E90
Outer Ø ≈
13.0 mm
Copper weight
66 kg/km
Total weight ≈
245 kg/km
Min. bend R
156 mm
All sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U AC power distribution
Fire integrity
FE180 E30–E90
180 min insulation / 30–90 min system
Concentric screen
Cu wire + tape
Annealed copper wires + counter-helix
Operating temp
-30 to +90 °C
Fixed installation (+250 °C short-circui
Min. bend radius
12 × cable OD
Fixed routing on E30/E90 trays
Smoke & halogen
IEC 61034 / 6075
LSZH HM4 sheath, ≥60 % transmittance

Typical values for this cable type, based on DIN VDE 0266 / DIN 4102-12 — confirmed in the datasheet and quotation for your order.

Application fit

Is NHXCH right for your machine?

Specified for emergency power feeders, hospital surgical wings, metro substations and high-rise firefighting shafts requiring both DIN 4102-12 E30–E90 survival and a concentric metallic protective/neutral screen.

Fixed installation

Suitable

Approved for fixed installation on DIN 4102-12 fire-tested cable trays, ladders and ceiling clamps.

Switchgear & control cabinet wiring

Suitable

Ideal for main emergency distribution boards, UPS risers and smoke-extraction VFD feeders.

TBM gantry & advancing tunnel reel

Suitable

Concentric copper screen prevents radial touch voltage hazards in damp tunnels and shafts.

Motorised monospiral reel

Not suitable

Rigid Class 1/2 conductors and concentric copper helix are designed strictly for fixed installation.

S07HXCHX-F screened flex
Typical machinesHospitals & surgical centresMetro & rail infrastructureHigh-rise firefighting risersAirports & data centresPower generation plants

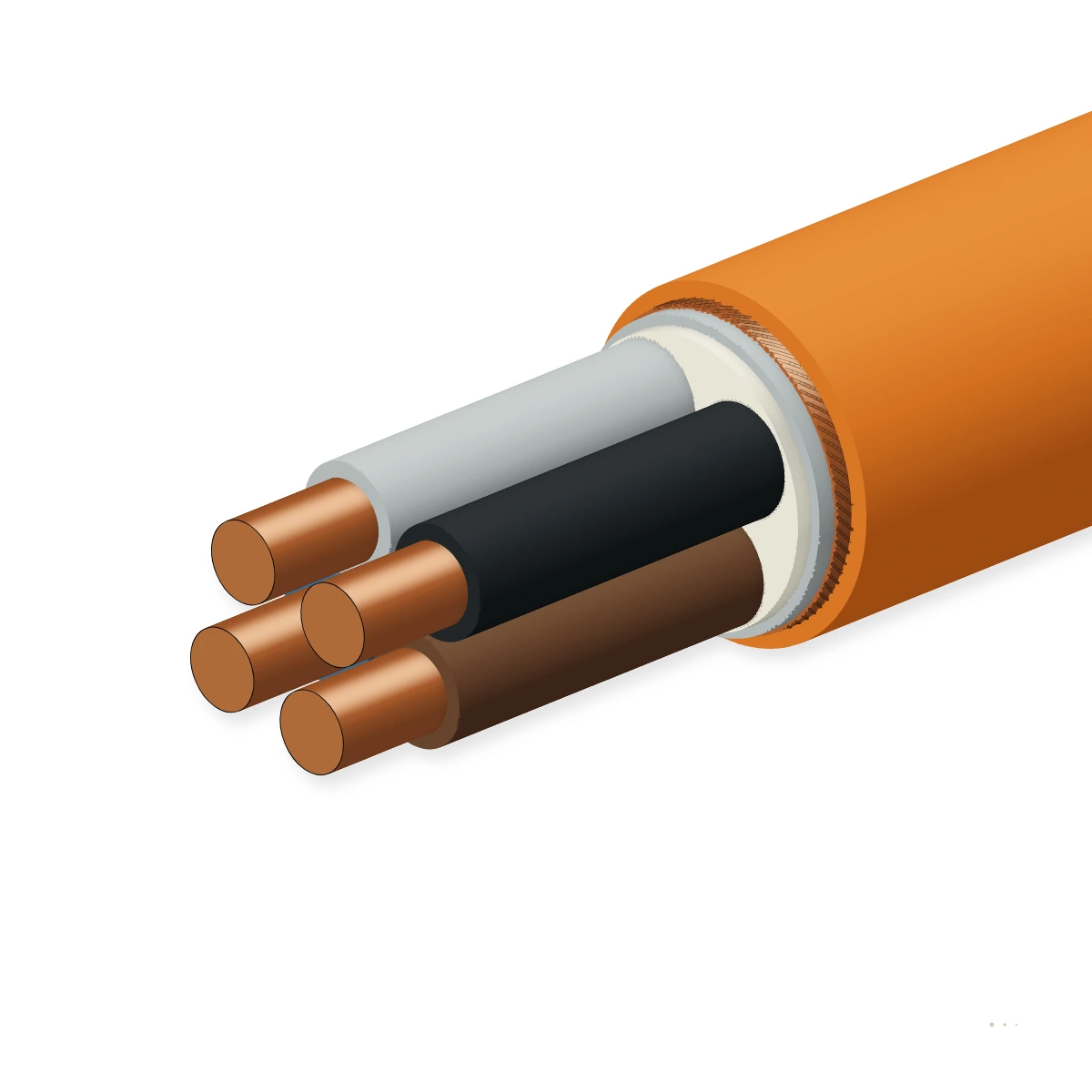

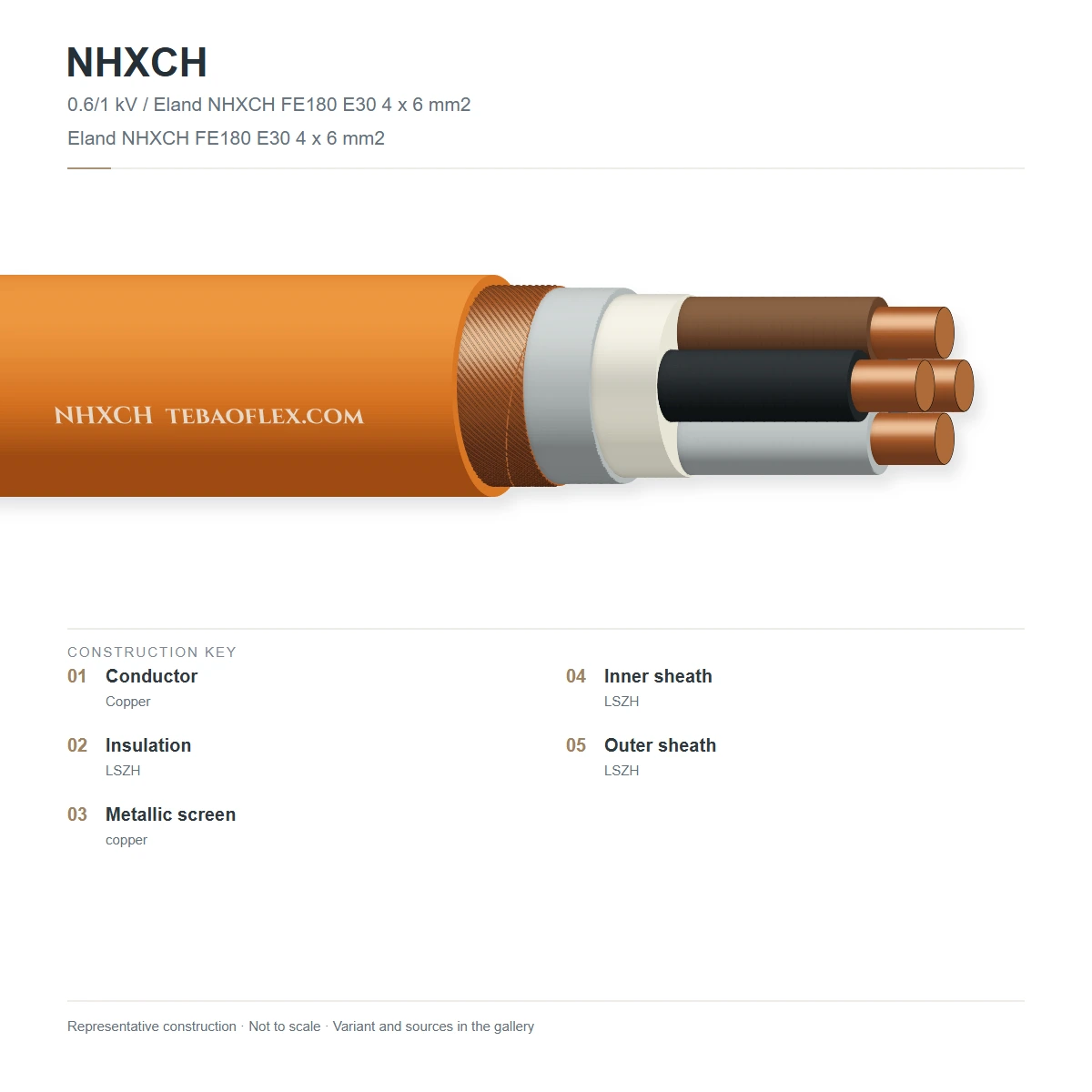

Construction

Layer by layer

Cu conductor + mica-glass fire barrier + cross-linked HX insulation + LSZH inner covering + concentric copper wire/tape conductor + orange HM4 LSZH sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Bare copper phase conductorSolid (RE, 1.5–16 mm²) or stranded (RM, 16–240 mm²) copper per IEC 60228IEC 60228
2Mica-glass fire barrierDouble helically lapped phlogopite mica tape over each conductor (FE180)IEC 60331-21
3Cross-linked LSZH insulationHalogen-free cross-linked polymer compound type HXDIN VDE 0266
4Inner halogen-free beddingFlame-retardant mineral-filled LSZH inner extruded jacketDIN VDE 0266
5Concentric copper conductorHelical layer of bare copper wires with copper counter-helix equalizer tapeDIN VDE 0266
6Outer LSZH safety sheathHalogen-free thermoplastic polyolefin compound HM4, orange (RAL 2003)DIN VDE 0266

NHXCH FE180/E30

Concentric copper conductor rated for 30-minute functional circuit integrity per DIN 4102-12.

NHXCH FE180/E90

Concentric copper conductor rated for 90-minute functional circuit integrity for fire pumps and lifts.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0266 / DIN 4102-12. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal voltage U0/U
0.6/1 kV
Routine AC test voltage
4.0 kV (50 Hz, 5 min)
Max. operating voltage AC
1.2 kV
Concentric screen conductance
Matches rated geometric cross-section per IEC 60228

Thermal

Continuous conductor temp.
+90 °C max.
Short-circuit conductor temp.
+250 °C (5 s)
Fixed operating temp.
-30 °C to +90 °C

Mechanical

Min. bending radius (fixed)
12 × cable OD
Max. pulling tension
50 N/mm² on phase conductors
Impact & radial protection
Concentric Cu screen provides automatic fault disconnection on penetration

Resistance

Insulation integrity
FE180 (180 min @ ≥750 °C per IEC 60331-21)
System circuit integrity
E30 / E90 per DIN 4102-12
Flame propagation
IEC 60332-3-24 Cat. C / EN 60332-1-2
Corrosivity & smoke
IEC 60754-2 (pH ≥4.3) & IEC 61034-2 (≥60 % light transmission)

Reference standards

Design standard
DIN VDE 0266
System fire endurance
DIN 4102-12

Identification

Core identification
HD 308 S2 without green/yellow (concentric screen serves as PE/PEN)
Outer sheath colour
Orange (RAL 2003)

Sizes

14 standard configurations (NHXCH)

Nominal dimensions, masses and electrical ratings for NHXCH according to DIN VDE 0266 / DIN 4102-12.

Dimensions & masses
DesignationCores × mm²Cross-sectionOuter Ø ≈
mm		Copper
kg/km		Total weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
NHXCH standard series
NHXCH 2×1.5/1.5 RE FE180/E902×1.5/1.51.5 mm²12.552220150
NHXCH 2×2.5/2.5 RE FE180/E902×2.5/2.52.5 mm²13.580265162
NHXCH 3×1.5/1.5 RE FE180/E903×1.5/1.51.5 mm²13.066245156
NHXCH 3×2.5/2.5 RE FE180/E903×2.5/2.52.5 mm²14.0104305168
NHXCH 4×1.5/1.5 RE FE180/E904×1.5/1.51.5 mm²13.881280166
NHXCH 4×2.5/2.5 RE FE180/E904×2.5/2.52.5 mm²15.0128355180
NHXCH 4×4/4 RE FE180/E904×4/44.0 mm²16.5200460198
NHXCH 4×6/6 RE FE180/E904×6/66.0 mm²18.0296590216
NHXCH 4×10/10 RE FE180/E904×10/1010 mm²20.2488825242
NHXCH 4×16/16 RM FE180/E904×16/1616 mm²23.27761,180278
NHXCH 4×25/16 RM FE180/E904×25/1625 mm²27.21,1361,690326
NHXCH 4×35/16 RM FE180/E904×35/1635 mm²30.01,5202,140360
NHXCH 4×50/25 RM FE180/E904×50/2550 mm²34.52,2002,920414
NHXCH 4×70/35 RM FE180/E904×70/3570 mm²39.03,0803,980468
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Nominal outer diameters and weights are subject to manufacturing tolerances per DIN VDE 0266 / DIN 4102-12.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
4.0 kV AC dielectric withstand test5 minutes between cores and concentric copper screen without breakdown100 % of drums
Phase & concentric conductor DC resistanceVerified at 20 °C per IEC 60228 / DIN VDE 0266100 % of drums
Sample tests
FE180 direct flame circuit integrity≥180 min at ≥750 °C per IEC 60331-21Type approval
DIN 4102-12 furnace survival E30–E9030–90 minutes complete system function up to 1000 °CType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0266DIN 4102-12 E30–E90IEC 60331-21 FE180IEC 60332-3-24 Cat. CIEC 60754-2 & IEC 61034-2

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NHXCH 4x16/16 RM FE180/E90 0.6/1 kV DIN VDE 0266 DIN 4102-12 CE [year] [meter mark]
Delivery form
Fumigated export wooden drums or shrink-wrapped coils
Standard drum lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNHXCH Fire-Resistant Cable with Concentric Conductor – technical datasheet14 sizes · construction, technical data, approvalsXLSXNHXCH spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the second cross-section number in NHXCH 4×25/16 mean?
In NHXCH 4×25/16, the first figure (4×25 mm²) specifies the four insulated phase/neutral conductors, while the second figure (/16 mm²) gives the effective geometrical copper cross-section of the concentric copper wire and counter-helix tape screen surrounding the core bundle.
How is the concentric conductor used in NHXCH installations?
The concentric copper conductor serves simultaneously as the protective earth (PE) or PEN conductor and as a 100 % radial metallic screen. If a nail or drill penetrates the cable, it contacts the earthed concentric copper layer first, tripping upstream protection immediately.
Why do NHXCH cores follow the -O colour code without a green/yellow core?
Because the concentric copper wire screen surrounding the inner bedding acts as the dedicated protective earth (PE) or PEN conductor, the insulated inner cores are used purely for phases and neutral (blue, brown, black, grey per HD 308 S2).
Can NHXCH feed variable-frequency drives (VFDs) for emergency smoke extraction fans?
Yes. The 360-degree concentric copper wire layer with counter-helix equalizing tape provides low transfer impedance and symmetrical return path geometry, making NHXCH ideal for VFD-driven E90 smoke extraction and pressurisation fans.
