Fixed installation
Certified for DIN 4102-12 tested support brackets, cable ladders and ceiling trays in dry or damp rooms.
Product

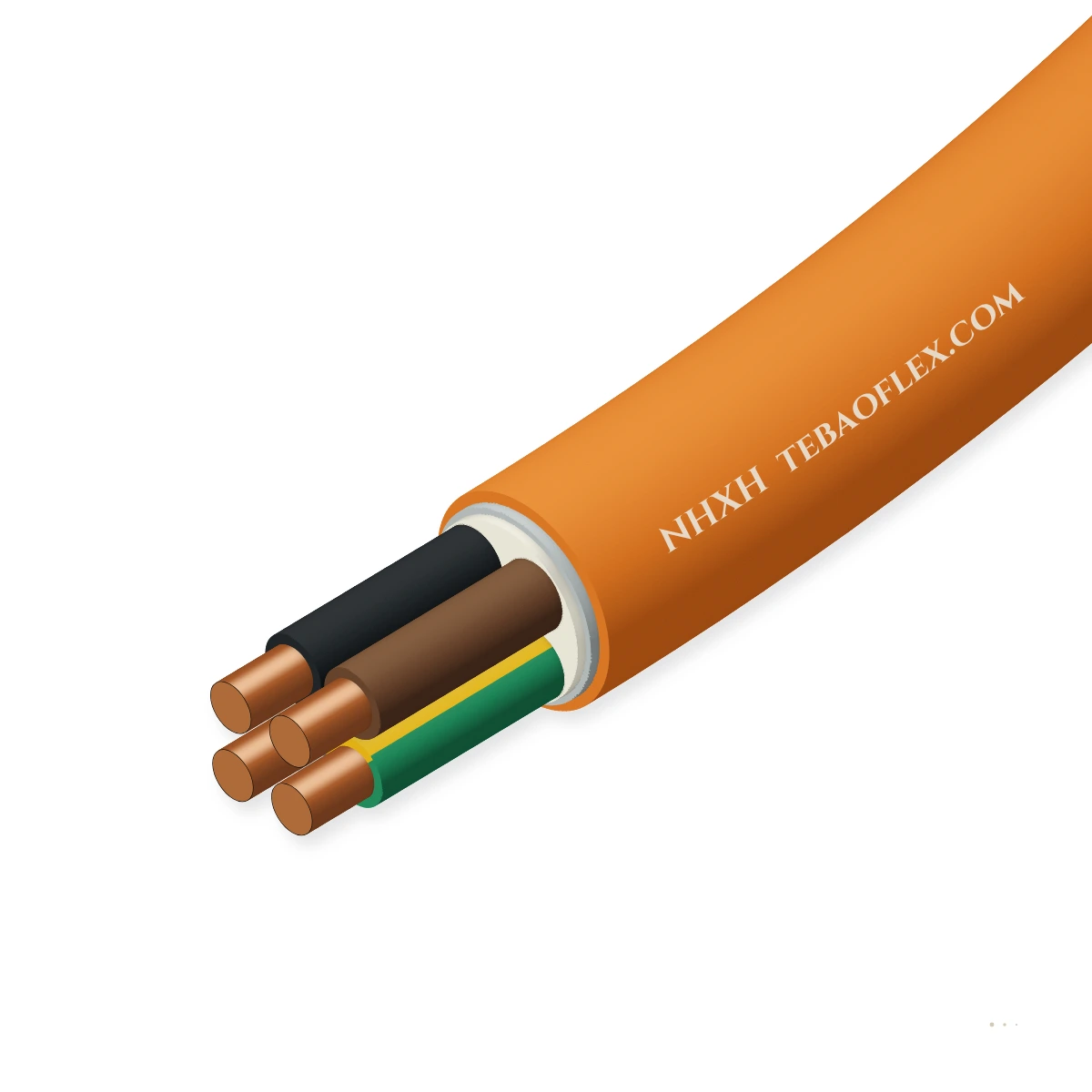

NHXH (FE180/E30 and FE180/E90) is a DIN VDE 0266 0.6/1 kV halogen-free safety power cable engineered to maintain electrical circuit integrity for 180 minutes in fire (IEC 60331) and system function for 30 to 90 minutes per DIN 4102-12.
Typical values for this cable type, based on DIN VDE 0266 / DIN 4102-12 — confirmed in the datasheet and quotation for your order.
Application fit
Designed for fixed installation in hospitals, airports, high-rise buildings, metro stations and industrial facilities where emergency life-safety loads must continue operating during fire.
Certified for DIN 4102-12 tested support brackets, cable ladders and ceiling trays in dry or damp rooms.
Suitable for emergency switchgear risers, smoke extraction panels and firefighter lift feeders.
Low-smoke zero-halogen HM4 sheath meets underground metro and road tunnel safety codes.
Solid/stranded Class 1/2 conductors and mica fire barrier are strictly for static routing.

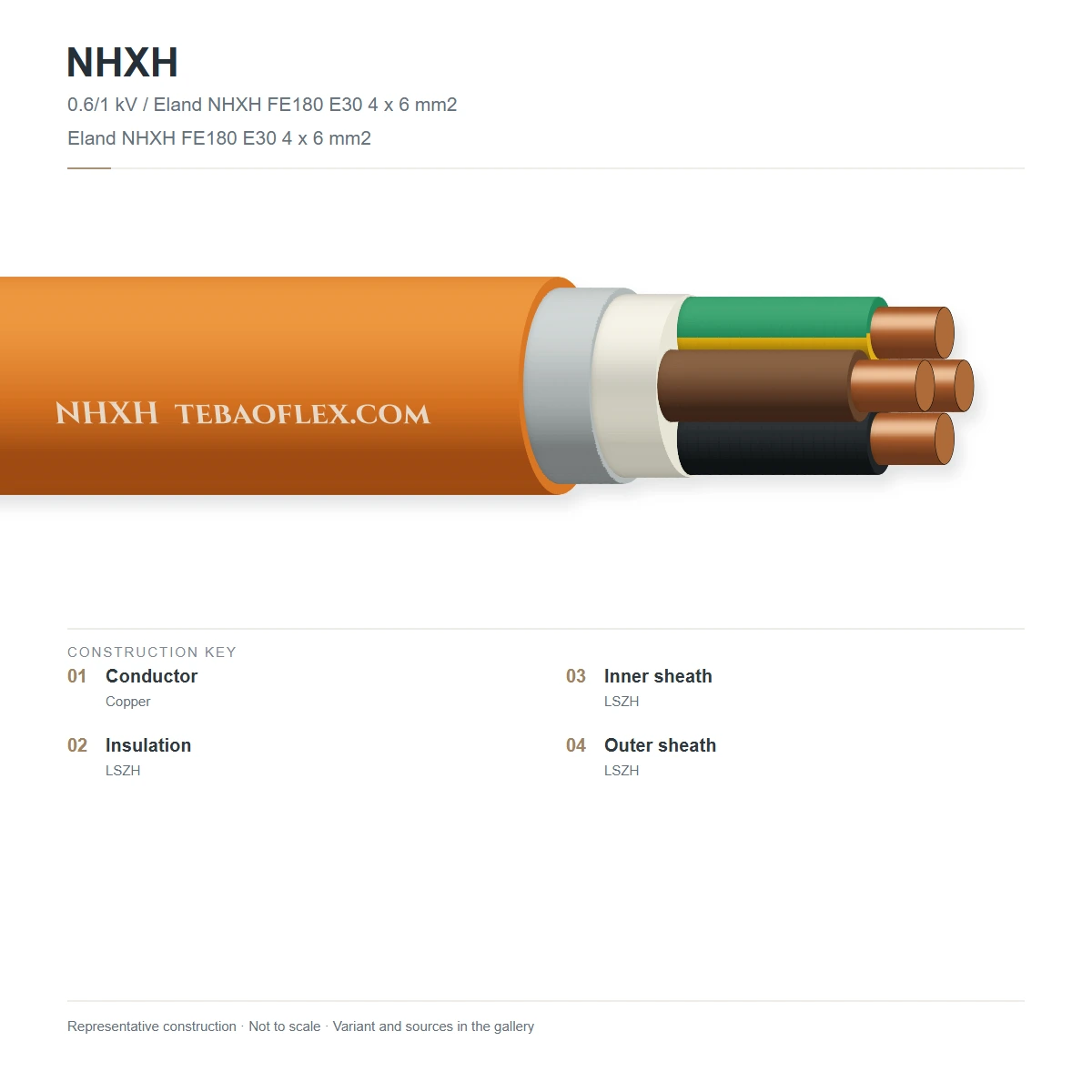

S07HXHX flexible LSZHConstruction

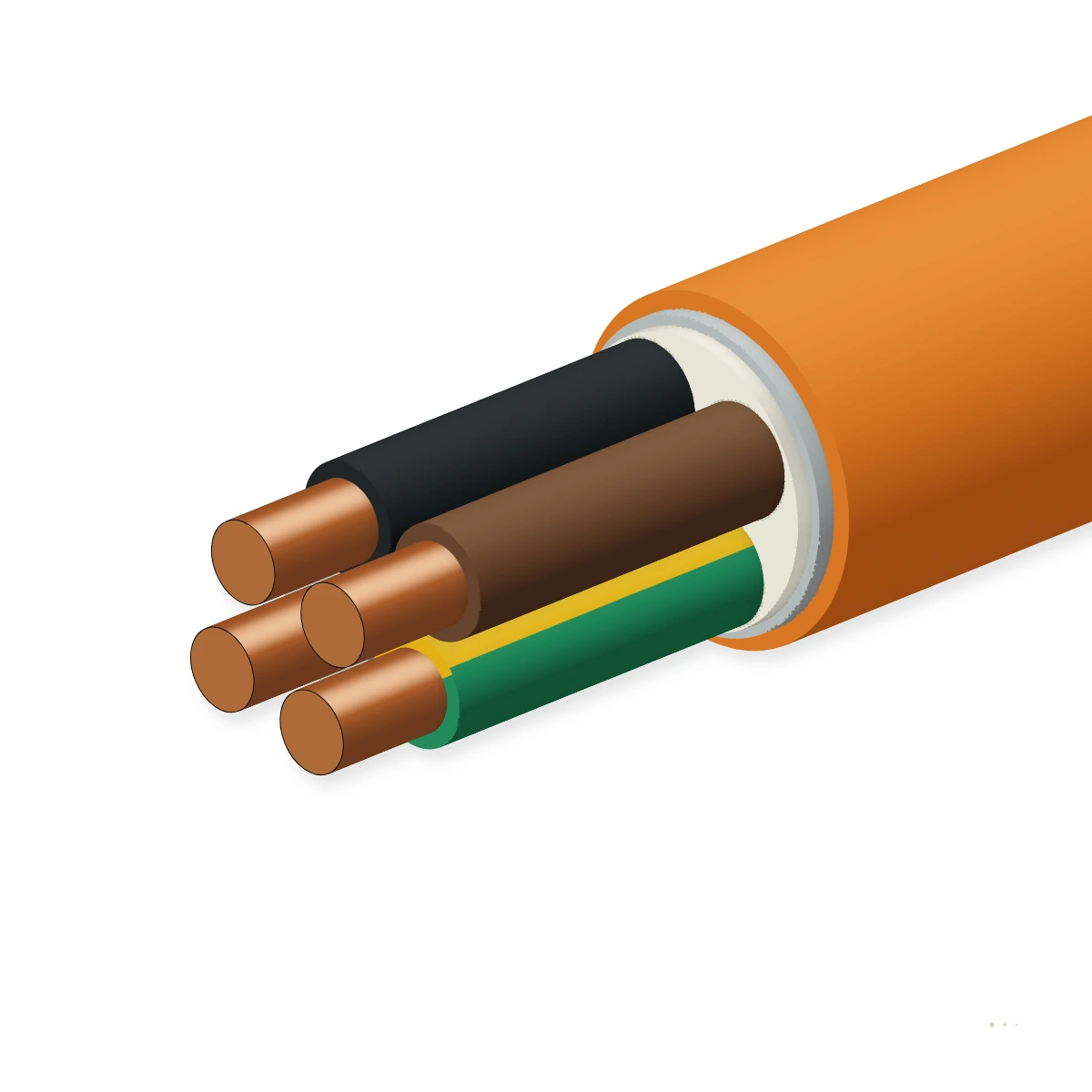

Glass-mica fire barrier tape + cross-linked halogen-free polymer insulation (HX) + halogen-free filling jacket + orange HM4 LSZH outer sheath.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Bare copper conductor | Solid (RE, 1.5–16 mm²) or stranded (RM, 16–240 mm²) annealed copper, Class 1/2IEC 60228 |
| 2 | Fire barrier lapped tape | Double phlogopite mica-glass flame barrier tape (FE180)IEC 60331-21 |
| 3 | Cross-linked LSZH insulation | Halogen-free cross-linked polymer compound (HX) or ceramifying siliconeDIN VDE 0266 |
| 4 | Halogen-free inner filling | Flame-retardant mineral-filled LSZH extruded inner beddingDIN VDE 0266 |
| 5 | Outer safety sheath | Thermoplastic halogen-free polyolefin compound type HM4, orange (RAL 2003)DIN VDE 0266 |
With green/yellow protective conductor, 30-minute system circuit integrity per DIN 4102-12.
With green/yellow protective conductor, 90-minute system circuit integrity for firefighting lifts and smoke vents.
Without green/yellow conductor for isolated IT safety power supplies and DC emergency battery feeders.
Technical data
Sizes
Nominal dimensions, masses and electrical ratings for NHXH according to DIN VDE 0266 / DIN 4102-12.
| Designation | Cores × mm² | Cross-section | Outer Ø ≈ mm | Copper kg/km | Total weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|
| NHXH standard series | |||||||
| NHXH-O 1×16 RM FE180/E90 | 1×16 RM | 16 mm² | 10.5 | 154 | 240 | 126 | |
| NHXH-O 1×35 RM FE180/E90 | 1×35 RM | 35 mm² | 13.0 | 336 | 445 | 156 | |
| NHXH-O 1×50 RM FE180/E90 | 1×50 RM | 50 mm² | 14.5 | 480 | 600 | 174 | |
| NHXH-O 1×95 RM FE180/E90 | 1×95 RM | 95 mm² | 18.2 | 912 | 1,080 | 218 | |
| NHXH-J 3×1.5 RE FE180/E90 | 3×1.5 RE | 1.5 mm² | 11.5 | 43 | 185 | 138 | |
| NHXH-J 3×2.5 RE FE180/E90 | 3×2.5 RE | 2.5 mm² | 12.5 | 72 | 230 | 150 | |
| NHXH-J 4×1.5 RE FE180/E90 | 4×1.5 RE | 1.5 mm² | 12.4 | 58 | 215 | 149 | |
| NHXH-J 4×2.5 RE FE180/E90 | 4×2.5 RE | 2.5 mm² | 13.5 | 96 | 275 | 162 | |
| NHXH-J 4×4 RE FE180/E90 | 4×4 RE | 4.0 mm² | 15.0 | 154 | 370 | 180 | |
| NHXH-J 4×6 RE FE180/E90 | 4×6 RE | 6.0 mm² | 16.5 | 230 | 485 | 198 | |
| NHXH-J 4×10 RE FE180/E90 | 4×10 RE | 10 mm² | 18.5 | 384 | 695 | 222 | |
| NHXH-J 4×16 RM FE180/E90 | 4×16 RM | 16 mm² | 21.5 | 614 | 990 | 258 | |
| NHXH-J 4×25 RM FE180/E90 | 4×25 RM | 25 mm² | 25.5 | 960 | 1,480 | 306 | |
| NHXH-J 4×35 RM FE180/E90 | 4×35 RM | 35 mm² | 28.2 | 1,344 | 1,920 | 338 | |
| NHXH-J 5×1.5 RE FE180/E90 | 5×1.5 RE | 1.5 mm² | 13.2 | 72 | 250 | 158 | |
| NHXH-J 5×2.5 RE FE180/E90 | 5×2.5 RE | 2.5 mm² | 14.5 | 120 | 325 | 174 | |
| Cores × mm² | Max. DC R @ 20 °C Ω/km | Current in air A | Current in duct/tray A |
|---|---|---|---|
| 1×16 RM | 1.150 | 98 | 84 |
| 1×35 RM | 0.524 | 158 | 136 |
| 1×50 RM | 0.387 | 192 | 165 |
| 1×95 RM | 0.193 | 292 | 251 |
| 3×1.5 RE | 12.100 | 23 | 20 |
| 3×2.5 RE | 7.410 | 31 | 27 |
| 4×1.5 RE | 12.100 | 21 | 18 |
| 4×2.5 RE | 7.410 | 28 | 24 |
| 4×4 RE | 4.610 | 37 | 32 |
| 4×6 RE | 3.080 | 48 | 41 |
| 4×10 RE | 1.830 | 66 | 57 |
| 4×16 RM | 1.150 | 88 | 76 |
| 4×25 RM | 0.727 | 117 | 101 |
| 4×35 RM | 0.524 | 144 | 124 |
| 5×1.5 RE | 12.100 | 21 | 18 |
| 5×2.5 RE | 7.410 | 28 | 24 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| Spark & 4.0 kV AC dielectric voltage test | No breakdown at 4.0 kV rms for 5 minutes | 100 % of manufacturing lengths |
| Conductor DC resistance verification | Conforms to IEC 60228 Class 1 / Class 2 limits at 20 °C | 100 % of drums |
| Sample tests | ||
| Insulation integrity under direct flame (FE180) | ≥180 min at ≥750 °C under rated voltage per IEC 60331-21 | Type qualification |
| System circuit integrity in furnace (E30 / E90) | 30 to 90 min up to 1000 °C per DIN 4102-12 on tested brackets | Type qualification |
