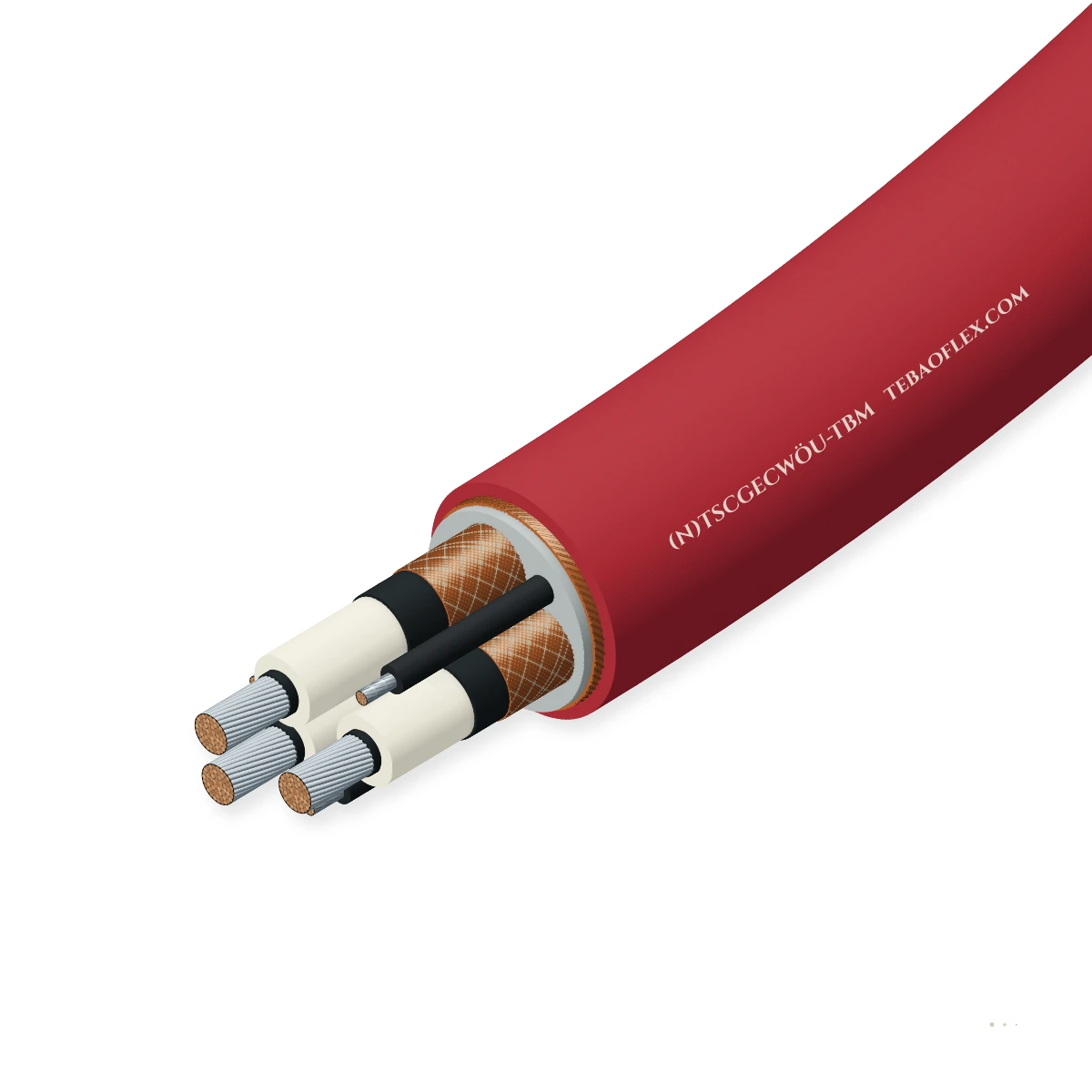

(N)TSCGECWOEU Medium Voltage TBM Reeling Cable

Application fit

Is (N)TSCGECWÖU TBM & Mining Cable (1.8/3–18/30 kV) right for your machine?

Medium-voltage (3.6/6 kV to 18/30 kV) anti-torsion TBM reeling cable with aramid strain element and reinforcement braid for tunnel boring machine backup gantries.

TBM gantry & advancing tunnel reel

Suitable

Primary duty — multi-layer pay-out and take-up on advancing TBM backup gantry reels in wet tunnels.

Cylindrical / multi-layer drum

Suitable

High-tension cylindrical drum winding with integrated aramid core and anti-torsion braid.

Mine roadway & tunnel wall hangers

Suitable

Hung onto segmental tunnel wall brackets behind the TBM as the bore advances.

Immersion & wet locations

Suitable

Tear-resistant polychloroprene outer sheath withstands bentonite slurry, groundwater and foaming agents.

Festoon & line chain

Not suitable

Large-OD anti-torsion MV TBM cable is not meant for tight C-rail festoon trolleys.

Use (N)TSFLCGEWÖU MV Flat

Typical machinesHard-rock, EPB & slurry tunnel boring machinesLong-distance hydropower & rail tunnel drivesUnderground longwall shearers & coal cuttersSubsurface mine roadway & shaft constructionHigh-voltage mobile mining substations

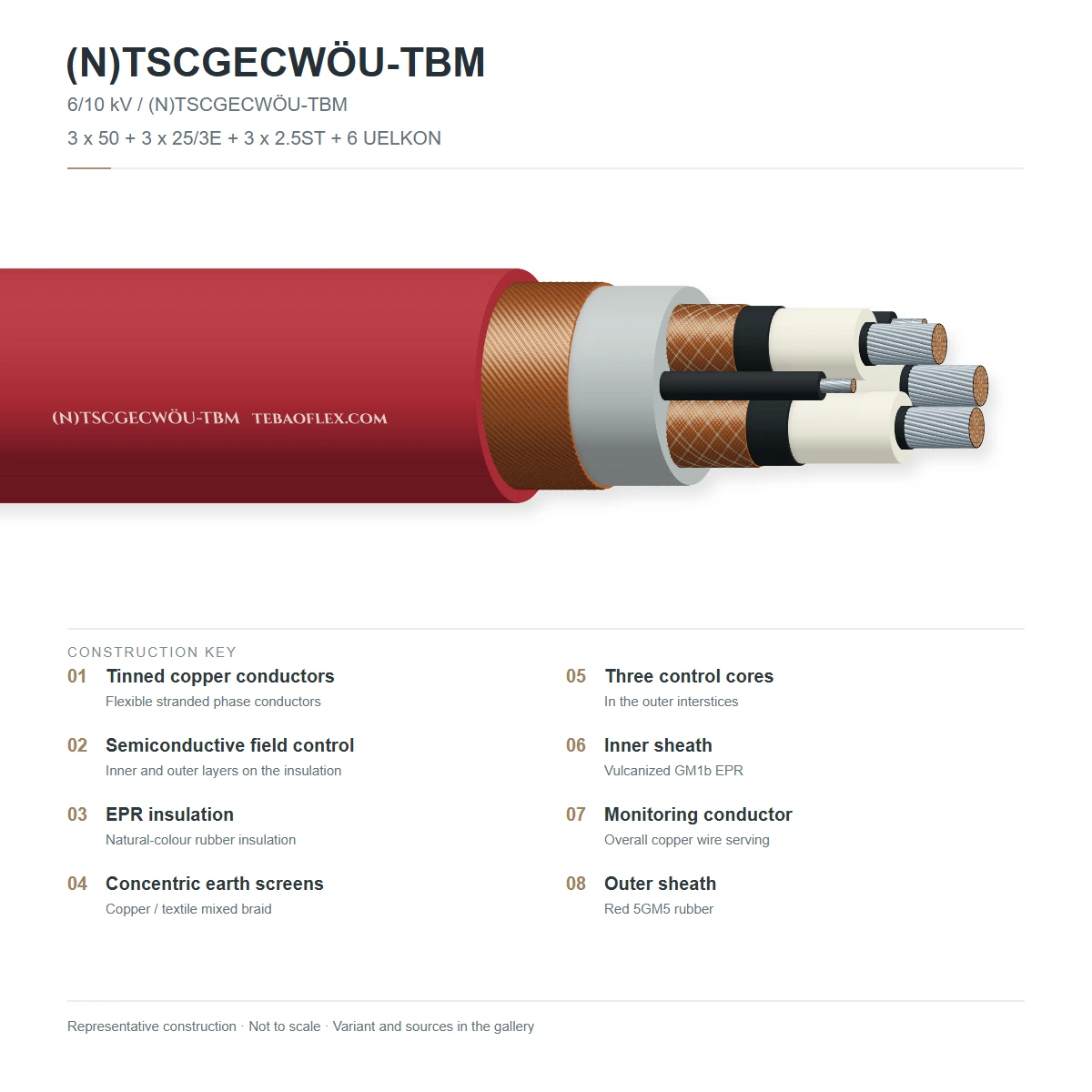

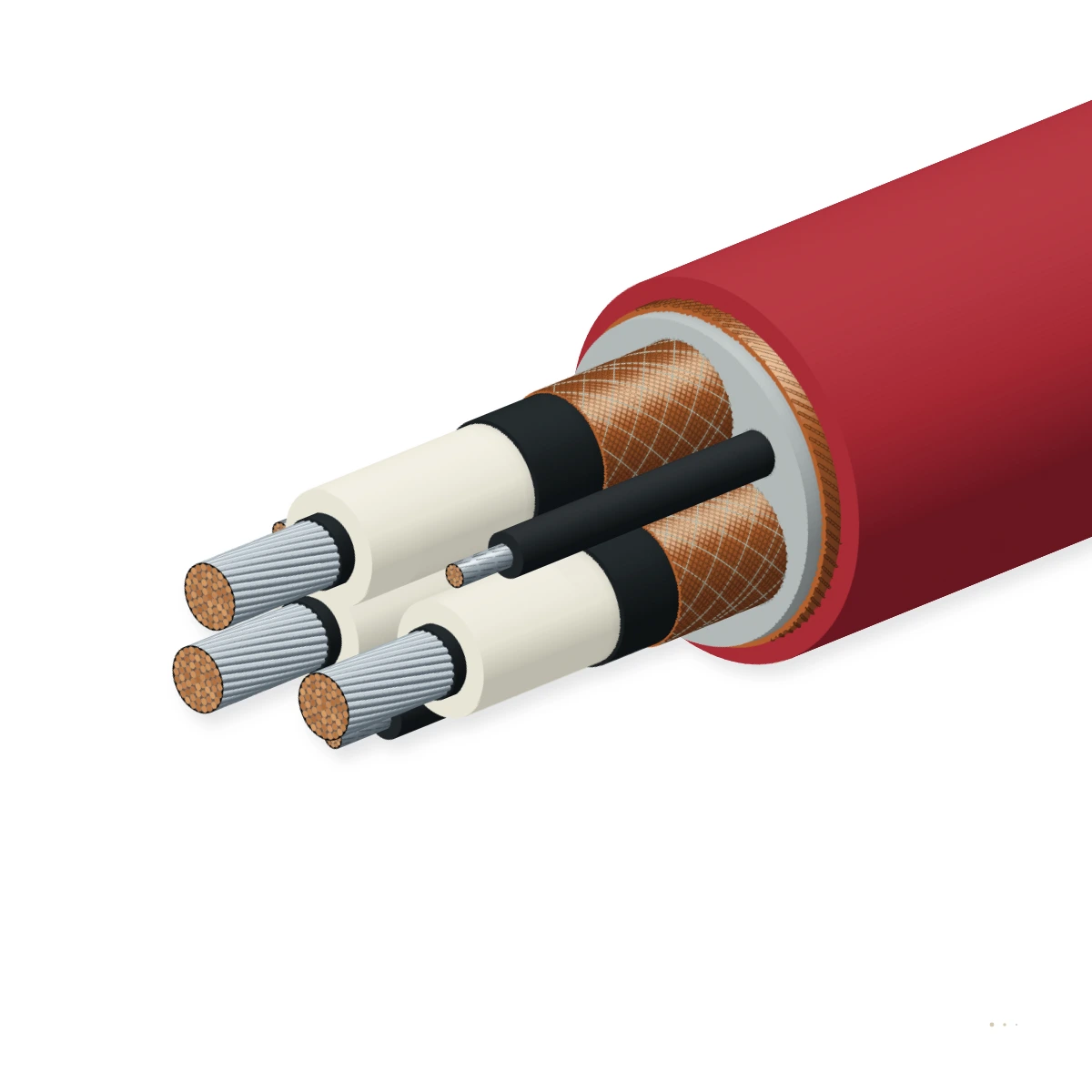

Construction

Layer by layer

Three Class 5 tinned copper phase conductors insulated with EPR between inner and outer semiconductive rubber layers and individually screened with a concentric copper/textile mixed braid (3E) are laid up with three interstitial control cores (or paired screened control cores on the 3.6/6 kV coal-cutter series), enclosed by a vulcanized Type GM1b inner sheath, an overall concentric copper wire monitoring screen (6ÜLKON), and a heavy-duty Type 5GM5 outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase conductor	Finely stranded Class 5 tinned copper conductor (25 to 240 mm²)DIN VDE 0295 · IEC 60228
2	Inner semiconductive layer	Extruded inner semiconductive rubber electrical field control layerDIN VDE 0250-813
3	Core insulation	EPR-based special rubber compound Type 3GI3 (1.8/3 kV to 18/30 kV)DIN VDE 0207-20
4	Outer semiconductive layer	Extruded black semiconductive rubber outer field control layerDIN VDE 0250-813
5	Protective earth screen (3E)	Single concentric copper/textile mixed braid over every phase core (16/3E to 120/3E)DIN VDE 0250-813
6	Control cores (ST)	Three 2.5 mm² EPR-insulated control cores laid in outer interstices (or 2×2×0.75ST on 3.6/6 kV cutter series)DIN VDE 0250-813
7	Inner sheath	Vulcanized EPR rubber compound Type GM1bDIN VDE 0207-21
8	Monitoring conductor (6ÜLKON)	Overall concentric lay of copper wire spinning over the GM1b inner sheathDIN VDE 0250-813
9	Outer sheath	Synthetic elastomer rubber compound Type 5GM5, red (TBM series) or yellow (coal-cutter series)DIN VDE 0207-21 · IEC 60811-404

TBM Reeling Series (3.6/6 to 18/30 kV)

25–240 mm² phase cores + 3×(16–120)/3E + 3×2.5ST + 6ÜLKON · Red 5GM5 outer sheath · 15 N/mm² reeling / 30 N/mm² TBM advance

Coal-Cutter Series (1.8/3 & 3.6/6 kV)

35–95 mm² phase cores + 3×2.5ST + ÜL (1.8/3 kV) or 2×(2×0.75ST) + 2×0.75ÜL (3.6/6 kV) · Yellow 5GM5 outer sheath

Technical data

Ratings & operating limits

Electrical

Rated voltage U0/U: 3.6/6, 6/10, 8.7/15, 12/20, 14/25 & 18/30 kV (TBM series) · 1.8/3 & 3.6/6 kV (Coal-cutter series)
Max. operating voltage AC / DC: Up to 20.8/36 kV AC and 27/54 kV DC on 18/30 kV series
Routine AC test voltage: 6 kV (1.8/3) · 11 kV (3.6/6) · 17 kV (6/10) · 24 kV (8.7/15) · 29 kV (12/20) · 36 kV (14/25) · 43 kV (18/30) · 2 kV on control cores

Thermal

Max. conductor temperature: +90 °C continuous operation · +250 °C short-circuit (1 s)
Ambient temperature range: Fixed −40 °C to +90 °C · Dynamic flexing −25 °C (or −20 °C) to +90 °C

Mechanical

Min. bending radius & S-bend: 6 × D fixed · 10 × D flexing (DIN VDE 0298-3) · Min. 20 × D between S-type direction changes
Tensile, torsion & travel speed: 15 N/mm² reeling duty · up to 30 N/mm² TBM advance duty · ±25 °/m torsion · max. 30 m/min travel speed

Resistance

Flame & oil resistance: Flame retardant to IEC 60332-1-2 · Oil resistant to IEC 60811-404 (Type 5GM5 elastomer outer sheath)
Weather, ozone & moisture: Vulcanized GM1b inner sheath and 5GM5 outer sheath resist tunnel seepage, ozone and outdoor UV exposure

Reference standards

Construction standard: Based on DIN VDE 0250-813 · DIN VDE 0295 / IEC 60228 · DIN VDE 0298-3 / 0298-4
Earth & monitoring screens: Concentric copper/textile mixed braid over every phase core (3E) + overall concentric copper spinning (6ÜLKON) over GM1b inner sheath

Identification

Core & sheath identification: Main cores natural with black semicon; control cores black · Red 5GM5 outer sheath (TBM) or Yellow 5GM5 outer sheath (coal-cutter)
Series variants: TBM Reeling Series (3.6/6–18/30 kV with 3×2.5ST + 6ÜLKON) · Coal-Cutter Series (1.8/3 & 3.6/6 kV with 3×2.5ST or 2×(2×0.75ST)+2×0.75ÜL)

Sizes

42 TBM reeling configurations (3.6/6 to 18/30 kV) & 7 coal-cutter configurations (1.8/3 & 3.6/6 kV)

Includes DC resistance at 20 °C, capacitance, inductance, surface current rating at 30 °C and 1 s short-circuit kA.

TBM Reeling Series (3.6/6 to 18/30 kV)
Designation (N)TSCGECWÖU	Voltage kV	Phase mm²	Earth mm²	Cond. Ø mm	Min. OD mm	Max. OD mm	Mass ≈ kg/km	Tensile 15N/mm² N	DC Res. 20°C Ω/km	Cap. µF/km	Ind. mH/km	Current 30°C A	1s Short-Cct kA
3.6/6 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	3.6/6	25	16/3E	6.4	42.1	45.1	2,860	1,125	0.795	0.36	0.32	131	3.58
3.6/6 kV · 3×35 + 3×16/3E + 3×2.5ST + 6ÜLKON	3.6/6	35	16/3E	7.6	44.5	47.5	3,310	1,575	0.565	0.41	0.30	162	5.01
3.6/6 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	3.6/6	50	25/3E	9.1	47.0	51.0	3,960	2,250	0.393	0.47	0.29	202	7.15
3.6/6 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	3.6/6	70	35/3E	10.9	53.5	57.5	5,260	3,150	0.277	0.54	0.28	250	10.01
3.6/6 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	3.6/6	95	50/3E	12.6	57.2	61.2	6,340	4,275	0.210	0.61	0.27	301	13.59
3.6/6 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	3.6/6	120	70/3E	14.2	61.0	65.0	7,510	5,400	0.164	0.67	0.26	352	17.16
6/10 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	6/10	25	16/3E	6.4	43.0	46.0	3,030	1,125	0.795	0.31	0.33	131	3.58
6/10 kV · 3×35 + 3×25/3E + 3×2.5ST + 6ÜLKON	6/10	35	25/3E	7.6	45.7	48.7	3,600	1,575	0.565	0.35	0.32	162	5.01
6/10 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	6/10	50	25/3E	9.1	47.9	51.9	4,190	2,250	0.393	0.40	0.30	202	7.15
6/10 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	6/10	70	35/3E	10.9	54.6	58.6	5,550	3,150	0.277	0.46	0.29	250	10.01
6/10 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	6/10	95	50/3E	12.6	58.3	62.3	6,630	4,275	0.210	0.52	0.27	301	13.59
6/10 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	6/10	120	70/3E	14.2	62.1	66.1	7,840	5,400	0.164	0.57	0.27	352	17.16
6/10 kV · 3×150 + 3×70/3E + 3×2.5ST + 6ÜLKON	6/10	150	70/3E	15.8	66.6	70.6	8,490	6,750	0.129	0.63	0.26	404	21.45
6/10 kV · 3×185 + 3×95/3E + 3×2.5ST + 6ÜLKON	6/10	185	95/3E	17.8	73.1	77.1	10,860	8,325	0.106	0.64	0.26	461	26.46
6/10 kV · 3×240 + 3×120/3E + 3×2.5ST + 6ÜLKON	6/10	240	120/3E	20.4	80.7	84.7	13,820	10,800	0.080	0.64	0.25	540	34.32
8.7/15 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	8.7/15	25	16/3E	6.4	46.4	49.4	3,210	1,125	0.795	0.24	0.36	139	3.58
8.7/15 kV · 3×35 + 3×25/3E + 3×2.5ST + 6ÜLKON	8.7/15	35	25/3E	7.6	48.7	52.7	3,730	1,575	0.565	0.27	0.34	172	5.01
8.7/15 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	8.7/15	50	25/3E	9.1	53.7	57.7	4,700	2,250	0.393	0.30	0.32	215	7.15
8.7/15 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	8.7/15	70	35/3E	10.9	58.0	62.0	5,990	3,150	0.277	0.34	0.31	265	10.01
8.7/15 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	8.7/15	95	50/3E	12.6	61.6	65.6	7,080	4,275	0.210	0.38	0.29	319	13.59
8.7/15 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	8.7/15	120	70/3E	14.2	67.2	71.2	8,490	5,400	0.164	0.42	0.29	371	17.16
12/20 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	12/20	25	16/3E	6.4	48.8	52.8	3,740	1,125	0.795	0.22	0.37	139	3.58
12/20 kV · 3×35 + 3×25/3E + 3×2.5ST + 6ÜLKON	12/20	35	25/3E	7.6	51.3	55.3	4,270	1,575	0.565	0.24	0.35	172	5.01
12/20 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	12/20	50	25/3E	9.1	56.7	60.7	5,270	2,250	0.393	0.27	0.33	215	7.15
12/20 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	12/20	70	35/3E	10.9	61.3	65.3	6,390	3,150	0.277	0.31	0.32	265	10.01
12/20 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	12/20	95	50/3E	12.6	66.4	70.4	7,770	4,275	0.210	0.34	0.30	319	13.59
12/20 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	12/20	120	70/3E	14.2	70.2	74.2	9,160	5,400	0.164	0.38	0.29	371	17.16
12/20 kV · 3×150 + 3×70/3E + 3×2.5ST + 6ÜLKON	12/20	150	70/3E	15.8	71.1	75.1	9,820	6,750	0.129	0.42	0.28	428	21.45
12/20 kV · 3×185 + 3×95/3E + 3×2.5ST + 6ÜLKON	12/20	185	95/3E	17.8	71.2	75.2	10,200	8,325	0.106	0.64	0.26	488	26.46
12/20 kV · 3×240 + 3×120/3E + 3×2.5ST + 6ÜLKON	12/20	240	120/3E	20.4	74.5	78.5	11,800	10,800	0.080	0.69	0.25	574	34.32
14/25 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	14/25	25	16/3E	6.4	54.6	58.6	4,100	1,125	0.795	0.19	0.40	139	3.58
14/25 kV · 3×35 + 3×25/3E + 3×2.5ST + 6ÜLKON	14/25	35	25/3E	7.6	57.1	61.1	4,640	1,575	0.565	0.21	0.37	172	5.01
14/25 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	14/25	50	25/3E	9.1	61.0	65.0	5,550	2,250	0.393	0.23	0.35	215	7.15
14/25 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	14/25	70	35/3E	10.9	66.6	70.6	6,860	3,150	0.277	0.26	0.33	265	10.01
14/25 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	14/25	95	50/3E	12.6	70.2	74.2	8,110	4,275	0.210	0.29	0.32	319	13.59
14/25 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	14/25	120	70/3E	14.2	73.9	77.9	9,450	5,400	0.164	0.32	0.31	371	17.16
18/30 kV · 3×25 + 3×16/3E + 3×2.5ST + 6ÜLKON	18/30	25	16/3E	6.4	58.0	62.0	4,490	1,125	0.795	0.17	0.42	139	3.58
18/30 kV · 3×35 + 3×25/3E + 3×2.5ST + 6ÜLKON	18/30	35	25/3E	7.6	60.7	64.7	5,060	1,575	0.565	0.18	0.39	172	5.01
18/30 kV · 3×50 + 3×25/3E + 3×2.5ST + 6ÜLKON	18/30	50	25/3E	9.1	66.1	70.1	6,220	2,250	0.393	0.20	0.37	215	7.15
18/30 kV · 3×70 + 3×35/3E + 3×2.5ST + 6ÜLKON	18/30	70	35/3E	10.9	70.0	74.0	7,330	3,150	0.277	0.23	0.35	265	10.01
18/30 kV · 3×95 + 3×50/3E + 3×2.5ST + 6ÜLKON	18/30	95	50/3E	12.6	73.9	77.9	8,660	4,275	0.210	0.25	0.33	319	13.59
18/30 kV · 3×120 + 3×70/3E + 3×2.5ST + 6ÜLKON	18/30	120	70/3E	14.2	78.6	83.6	10,250	5,400	0.164	0.27	0.32	371	17.16

Tabulated tensile values correspond to 15 N/mm² dynamic reeling duty; slow-speed TBM backup advance duty is rated up to 30 N/mm² (2× the tabulated N value).
Nominal current carrying capacity is stated for rubber cables laid on a surface at 30 °C ambient temperature.

Coal-Cutter & Cable-Chain Series (1.8/3 & 3.6/6 kV)
Designation NTSCGECWÖU	Voltage kV	Phase mm²	Earth mm²	Cond. Ø mm	Min. OD mm	Max. OD mm	Max. pull N	Mass ≈ kg/km	Current 30°C A
1.8/3 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL	1.8/3	50	25/3E	9.3	45.0	49.0	2,250	3,260	200
1.8/3 kV · 3×70 + 3×35/3E + 3×2.5ST + ÜL	1.8/3	70	35/3E	11.4	49.0	53.0	3,150	4,200	250
1.8/3 kV · 3×95 + 3×50/3E + 3×2.5ST + ÜL	1.8/3	95	50/3E	13.0	55.0	59.0	4,275	5,360	300
3.6/6 kV · 3×(35+35/3) + 2×(2×0.75ST) + 2×0.75ÜL	3.6/6	35	35/3E	8.1	47.0	50.0	1,575	3,660	160
3.6/6 kV · 3×(50+50/3) + 2×(2×0.75ST) + 2×0.75ÜL	3.6/6	50	50/3E	9.3	52.0	55.0	2,250	4,590	200
3.6/6 kV · 3×(70+70/3) + 2×(2×0.75ST) + 2×0.75ÜL	3.6/6	70	70/3E	11.4	56.0	60.0	3,150	5,780	250
3.6/6 kV · 3×(95+95/3) + 2×(2×0.75ST) + 2×0.75ÜL	3.6/6	95	95/3E	13.0	61.0	65.0	4,275	7,250	300

3.6/6 kV coal-cutter constructions use full-section split phase earth screens (35/3 to 95/3) and two screened control pairs 2×(2×0.75ST) + 2×0.75ÜL for longwall shearer cable handlers.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

mm

Cable length on drum (m)

m

Enter your drum core diameterMinimum for this size is about 1,038 mm

Minimum bending radius: 519 mm
Min. drum core diameter: ≈ 1,038 mm
Cable weight on drum: 419.0 kg
Outer diameter: 51.9 mm

Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Medium-voltage AC dielectric test (6 kV to 43 kV)	6 / 11 / 17 / 24 / 29 / 36 / 43 kV AC on phase cores according to voltage class plus 2 kV AC on control cores	Every shipping drum
Phase conductor, 3E braid & 6ÜLKON screen resistance	DC resistance at 20 °C verified on phase cores, concentric copper/textile phase braids and overall monitoring screen	Every shipping drum
Sample tests
IEC 60332-1-2 flame & IEC 60811-404 oil immersion test	Vertical flame propagation and hot oil immersion verified on Type 5GM5 outer elastomer sheath	Production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · (N)TSCGECWÖU · VDE 0250-813 · TBM

Delivery form: Export TBM reeling drums matched to 10 × D minimum bend radius
Lengths: Continuous tunnel drive lengths or custom cut lengths on request
Certificate: EN 10204 3.1 factory routine HV test report with every drum
Quote response: Engineering specification and quote within 2 business hours

Technical documents

Downloads

PDF(N)TSCGECWÖU Tunnel Boring Machine (TBM) Cable – technical datasheet42 sizes · construction, technical data, approvals XLSX(N)TSCGECWÖU TBM & Mining Cable (1.8/3–18/30 kV) spec data (Excel)All 42 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why are 12/20 kV, 14/25 kV and 18/30 kV ratings used on tunnel boring machines?

On long hard-rock, EPB and subsea TBM drives (5 to 15+ km), stepping the backup gantry supply up to 12/20 kV, 14/25 kV or 18/30 kV reduces phase current for a given cutterhead MVA rating. That allows a smaller copper cross-section (e.g., 50–120 mm²), lower cable mass and a manageable reeling drum diameter inside the tunnel cross-section.

What is the difference between the 15 N/mm² and 30 N/mm² tensile ratings stated on the datasheet?

15 N/mm² applies to dynamic motorized drum reeling with frequent coiling and uncoiling cycles. Up to 30 N/mm² is permissible when the cable is towed slowly behind an advancing TBM backup gantry using properly distributed cable grips and rollers.

How does the 6ÜLKON concentric monitoring screen protect the TBM cable?

The 6 mm² copper wire spinning (6ÜLKON) sits directly over the vulcanized GM1b inner sheath beneath the red 5GM5 outer sheath. Any radial rockfall impact or pinch that penetrates the outer jacket contacts the 6ÜLKON screen first, tripping the ground-fault/pilot relay before a phase core is damaged.

How does the 1.8/3 & 3.6/6 kV coal-cutter series differ from the TBM reeling series?

The coal-cutter series (NTSCGECWÖU) is tailored for underground longwall shearer cable chains (Bretby handlers) with a high-visibility yellow 5GM5 outer sheath and, on 3.6/6 kV sizes, full-rated split phase earth screens (35/3 to 95/3) plus two screened control pairs 2×(2×0.75ST) + 2×0.75ÜL.

Request a quote

Get an engineering quote for (N)TSCGECWÖU TBM & Mining Cable (1.8/3–18/30 kV)

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

(N)TSCGECWÖU-TBM (N)TSCGECWOEU Medium Voltage TBM Reeling Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
