Medium-voltage reeling & TBM cablesDIN VDE 0250-8133.6/6–12/20 kV · 25–150 mm²EC Screened Control + ÜL Monitor

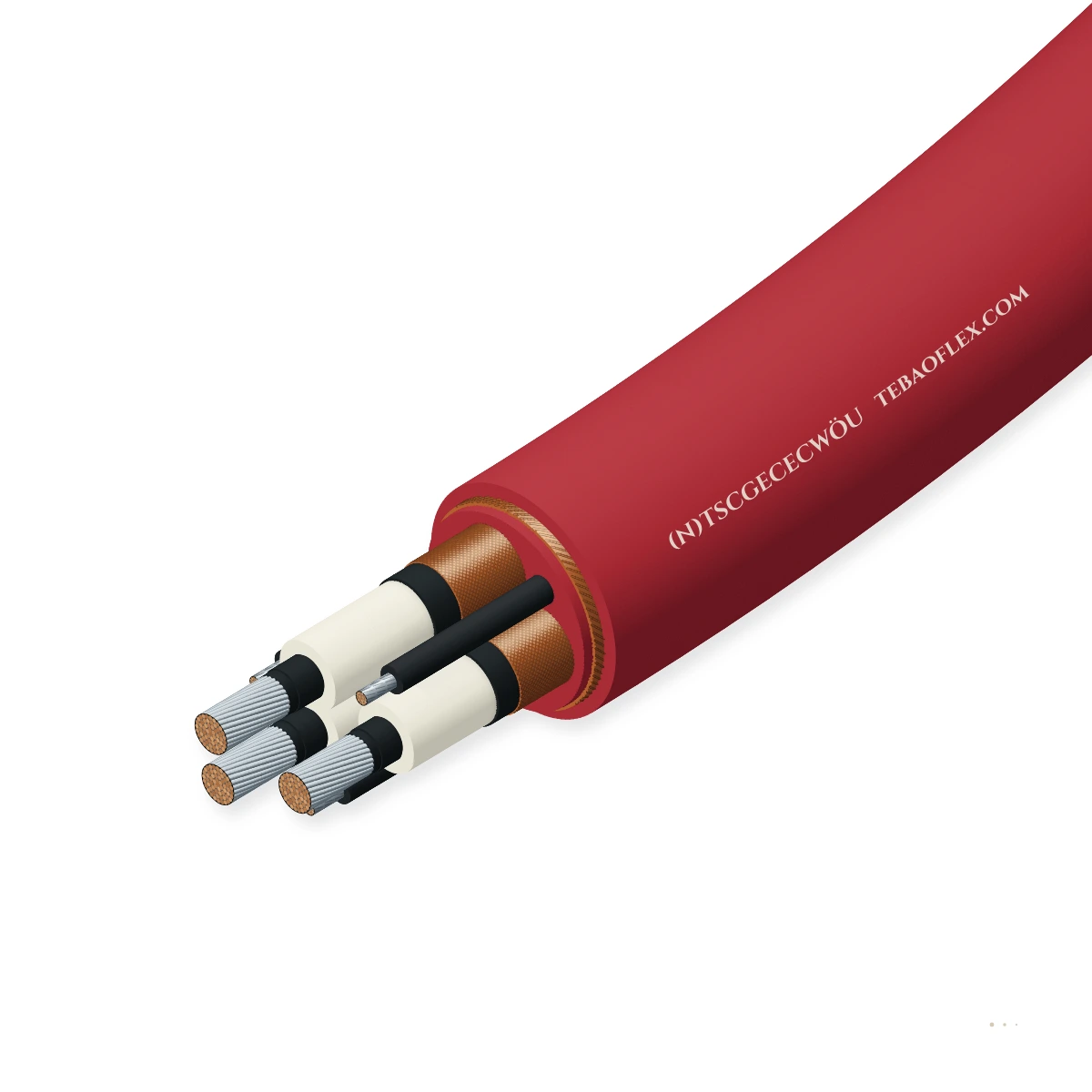

(N)TSCGECECWÖU MV TBM & Mining Reeling Cable3.6/6 to 12/20 kV TBM reeling cable with EC screened control cores & ÜL monitor

DIN VDE 0250-813 (N)TSCGECECWÖU medium-voltage reeling cable (3.6/6 to 12/20 kV, 25–150 mm²) for tunnel boring machines (TBMs) and mining drums, combining 3GI3 EPR phase cores, individually screened control cores (EC) and an overall ÜL monitoring screen.

EMC screen
Anti-torsion braid
Flame-retardant
Oil-resistant
Order designation
6/10 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL
Phase size
50 mm²
Max. OD
54.2 mm
Max. pull
2,250 N
Mass ≈
4,030 kg/km
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6–12/20 kV
Test 11 / 17 / 24 / 29 kV
Core arrangement
3P+3E+3EC+ÜL
3×2.5ST (EC) + ÜL screen
Phase size range
25–150 mm²
26 red + 22 ZH configs
Outer sheath
5GM5 / ZH PUR
Red 5GM5 or Black ZH PUR
Operating temp.
−25 to +90 °C
Fixed down to −40/−50 °C
Min. bend radius
10 × D flexed
6 × D fixed · ±25 °/m

Application fit

Is (N)TSCGECECWÖU (3.6/6–12/20 kV) right for your machine?

Double-screened / extra-reinforced medium-voltage rubber reeling and trailing cable for TBM gantries, open-cast bucket-wheel excavators and mobile crushers.

TBM gantry & advancing tunnel reel

Suitable

Heavy-duty MV supply on tunnel boring machines and advancing gallery reels.

Cylindrical / multi-layer drum

Suitable

Cylindrical and monospiral MV reeling drums under combined tensile and torsional stress.

Trailing & towing

Suitable

Open-pit trailing behind electric shovels, draglines and mobile crusher plants.

Motorised monospiral reel

Suitable

Long-travel rail-mounted stackers, reclaimers and ship loaders.

Vertical / spreader reel

Not suitable

Heavy MV construction is not intended for high-speed vertical container spreader baskets.

Use 3GSLTÖ Spreader Basket
Typical machinesTunnel boring machine (TBM) reeling drumsUnderground hard-rock & metro tunnellingSubsurface mine drift & ramp developmentMobile MV underground switchgear skidsHalogen-free urban infrastructure tunnels

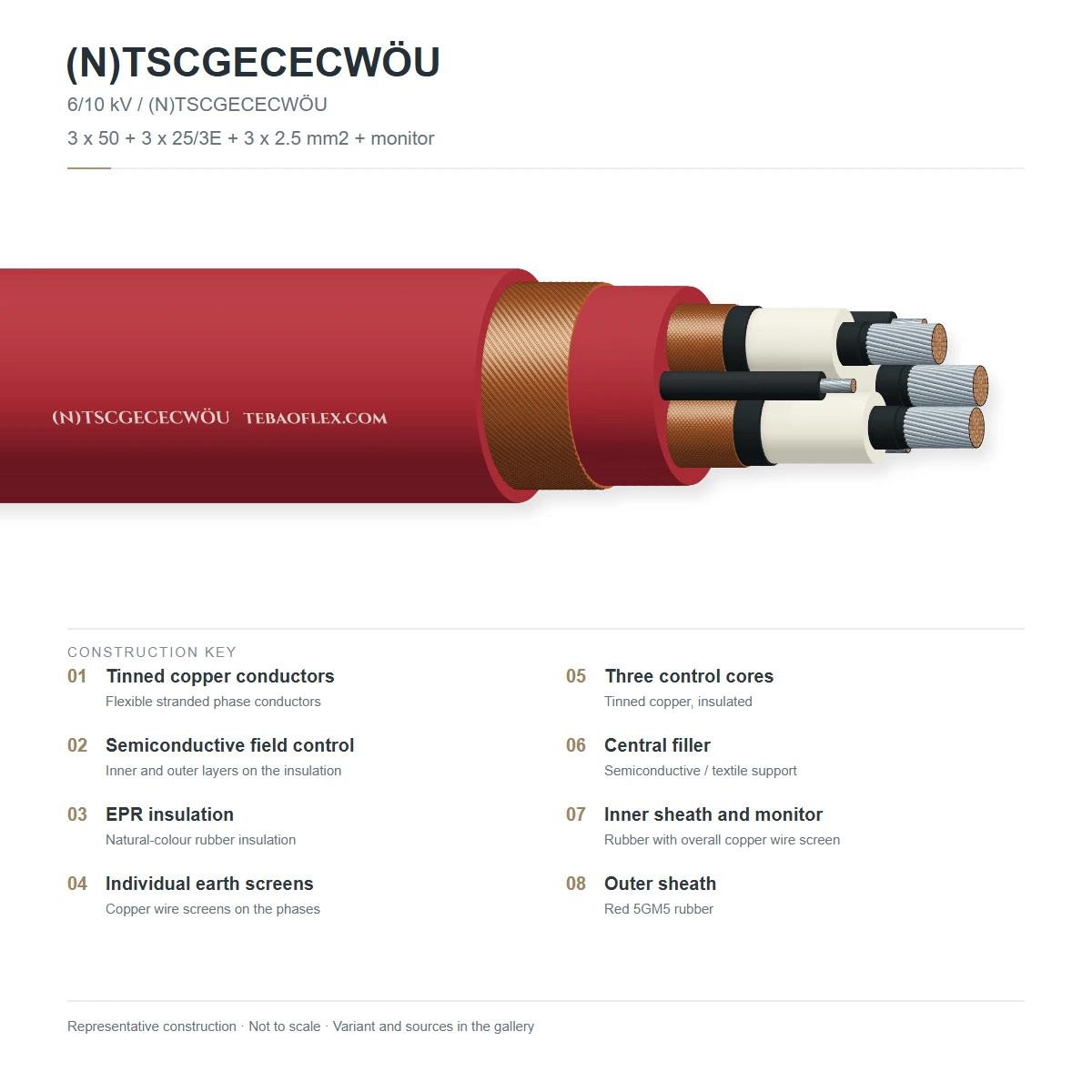

Construction

Layer by layer

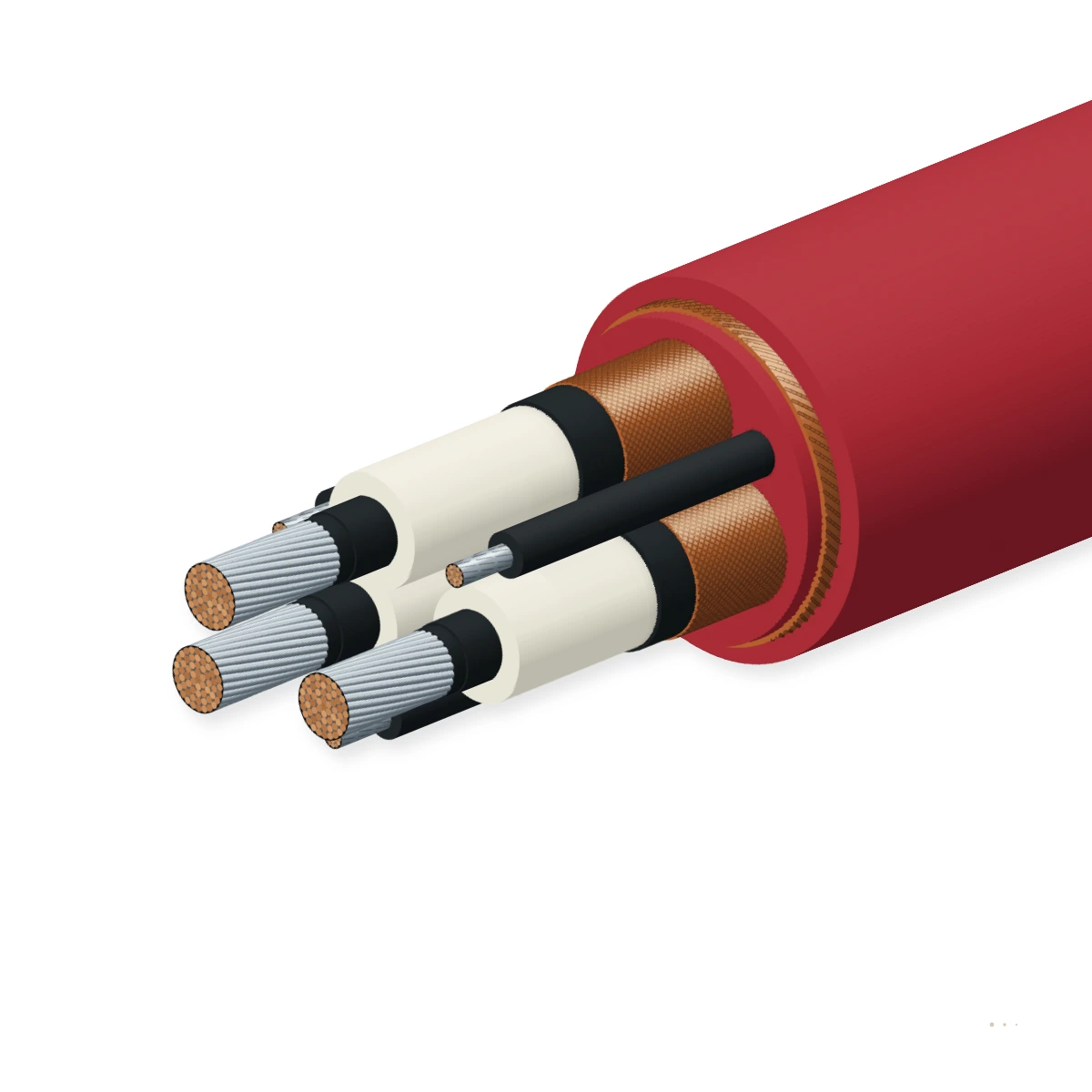

Three Class 5 tinned copper phase conductors insulated with Type 3GI3 EPR between semiconductive tape/rubber layers and individually screened with concentric copper wires (25/3E to 70/3E) are laid up around a semiconductive central filler on a polyester support together with three individually copper-screened 2.5 mm² control cores (EC), enclosed by an inner sheath, an overall concentric copper wire monitoring screen (ÜL), and either a red Type 5GM5 rubber outer sheath or a black halogen-free PUR outer sheath.

12345678910
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase conductorFinely stranded Class 5 tinned copper conductor (25 to 150 mm²)DIN VDE 0295 · EN 60228
2Inner semiconductive layerSemiconductive tape over conductor plus extruded inner semiconductive rubber layerDIN VDE 0250-813
3Core insulationEPR rubber compound Type 3GI3 (3.6/6 kV to 12/20 kV)DIN VDE 0207-20
4Outer semiconductive layerExtruded outer semiconductive rubber field-control layerDIN VDE 0250-813
5Phase protective earth screen (CE)Individual concentric copper wire screen over each phase core (25/3E to 70/3E)DIN VDE 0250-813
6Screened control cores (EC)Three 2.5 mm² Class 5 tinned copper control cores (2.5ST) with individual copper wire screensDIN VDE 0250-813
7Central cradle fillerSemiconductive compound on a textile polyester central supportDIN VDE 0250-813
8Inner sheathPolychloroprene rubber compound Type 5GM5 (or halogen-free compound on ZH variant)DIN VDE 0250-813
9Monitoring conductor (ÜL)Concentric copper wire screen applied over the inner sheathDIN VDE 0250-813
10Outer sheathRed heavy-duty rubber Type 5GM5 or black halogen-free polyurethane (ZH PUR, IEC/EN 60754-1/2)DIN VDE 0250-813

5GM5 Red Rubber Series (25–150 mm²)

Type 5GM5 inner and red outer elastomer sheaths · Fixed −40 to +90 °C, flexed −25 to +90 °C · 3.6/6 to 12/20 kV

ZH Halogen-Free PUR Series (25–120 mm²)

Halogen-free inner compound and black PUR outer sheath (IEC/EN 60754-1/2) · Fixed −50 to +90 °C, flexed −25 to +90 °C

Technical data

Ratings & operating limits

Electrical

Rated voltage U0/U
3.6/6 kV · 6/10 kV · 8.7/15 kV · 12/20 kV
AC test voltage
11 kV (3.6/6 kV) · 17 kV (6/10 kV) · 24 kV (8.7/15 kV) · 29 kV (12/20 kV)
Screened control & monitor
3 × 2.5 mm² individually Cu-screened control cores (EC) + concentric Cu monitoring screen (ÜL) over inner sheath

Thermal

Max. conductor temperature
+90 °C continuous · +250 °C short-circuit
Ambient temperature range
Flexed −25 to +90 °C · Fixed −40 to +90 °C (5GM5 red) or −50 to +90 °C (ZH PUR black)

Mechanical

Min. bending radius
6 × D fixed installation · 10 × D dynamic flexing & reeling
Max. tensile & torsional load
15 N/mm² phase copper load (1,125–6,750 N) · ±25 °/m max torsional stress

Resistance

Flame & halogen performance
Flame retardant to IEC/EN 60332-1-2 · ZH PUR variant halogen-free to IEC/EN 60754-1/2
Tunnel environment durability
Oil, ozone, moisture and rock-abrasion resistant for indoor and outdoor TBM reeling

Reference standards

Construction standard
DIN VDE 0250-813 · DIN VDE 0295 · EN 60228
Regulatory compliance
RoHS Directive & REACH EC compliant

Identification

Sheath colour coding
Red outer sheath on Type 5GM5 rubber series · Black outer sheath on halogen-free ZH PUR series
VDE designation breakdown
(N)TSCGECECWÖU: 3GI3 EPR cores + CE phase screens + EC control screens + ÜL overall monitor + torsion-resistant sheath

Sizes

26 standard 5GM5 Red configurations & 22 ZH Halogen-Free PUR configurations (3.6/6 to 12/20 kV)

Includes full multi-layer TBM drum current ratings (30 °C ambient) and power-factor 0.8 voltage drop.

5GM5 Red Rubber Series (25–150 mm²)
Designation
(N)TSCGECECWÖU
Voltage
kV
Phase
mm²
Earth
mm²
Cond. Ø
mm
Min. OD
mm
Max. OD
mm
Max. pull
N
Mass ≈
kg/km
Floor 30°C
A
Air 30°C
A
1-Layer
A
2-Layer
A
3-Layer
A
V-Drop PF 0.8
V/A·km
Enquiry
3.6/6 kV · 3×25 + 3×25/3E + 3×2.5ST + ÜL3.6/62525/3E6.845.448.81,1252,96013113810580641.45
3.6/6 kV · 3×35 + 3×25/3E + 3×2.5ST + ÜL3.6/63525/3E7.846.950.41,5753,34016217013099791.06
3.6/6 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL3.6/65025/3E9.450.053.62,2503,990202212162123990.77
3.6/6 kV · 3×70 + 3×35/3E + 3×2.5ST + ÜL3.6/67035/3E11.255.659.43,1505,1802502632001531230.56
3.6/6 kV · 3×95 + 3×50/3E + 3×2.5ST + ÜL3.6/69550/3E12.759.963.94,2756,3703013162411841470.45
3.6/6 kV · 3×120 + 3×70/3E + 3×2.5ST + ÜL3.6/612070/3E14.464.068.45,4007,7303523702822151720.36
3.6/6 kV · 3×150 + 3×70/3E + 3×2.5ST + ÜL3.6/615070/3E16.068.272.86,7508,9904044243232461970.32
6/10 kV · 3×25 + 3×25/3E + 3×2.5ST + ÜL6/102525/3E6.845.449.41,1253,00013113810580641.45
6/10 kV · 3×35 + 3×25/3E + 3×2.5ST + ÜL6/103525/3E7.846.951.01,5753,38016217013099791.06
6/10 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL6/105025/3E9.450.054.22,2504,030202212162123990.77
6/10 kV · 3×70 + 3×35/3E + 3×2.5ST + ÜL6/107035/3E11.255.660.03,1505,2202502632001531230.56
6/10 kV · 3×95 + 3×50/3E + 3×2.5ST + ÜL6/109550/3E12.759.964.54,2756,4103013162411841470.45
6/10 kV · 3×120 + 3×70/3E + 3×2.5ST + ÜL6/1012070/3E14.464.069.15,4007,7703523702822151720.36
6/10 kV · 3×150 + 3×70/3E + 3×2.5ST + ÜL6/1015070/3E16.068.273.56,7509,0304044243232461970.32
8.7/15 kV · 3×25 + 3×25/3E + 3×2.5ST + ÜL8.7/152525/3E6.848.051.51,1253,54013914611185681.45
8.7/15 kV · 3×35 + 3×25/3E + 3×2.5ST + ÜL8.7/153525/3E7.849.553.11,5753,930172181138105841.06
8.7/15 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL8.7/155025/3E9.454.458.22,2504,8102162271731321060.77
8.7/15 kV · 3×70 + 3×35/3E + 3×2.5ST + ÜL8.7/157035/3E11.258.262.23,1505,8802652782121621300.56
8.7/15 kV · 3×95 + 3×50/3E + 3×2.5ST + ÜL8.7/159550/3E12.761.465.74,2756,9503193352551951560.45
8.7/15 kV · 3×150 + 3×70/3E + 3×2.5ST + ÜL8.7/1515070/3E16.070.675.36,7509,6204284493422612090.32
12/20 kV · 3×25 + 3×25/3E + 3×2.5ST + ÜL12/202525/3E6.850.554.11,1253,80013914611185681.45
12/20 kV · 3×35 + 3×25/3E + 3×2.5ST + ÜL12/203525/3E7.852.356.01,5754,190172181138105841.06
12/20 kV · 3×50 + 3×25/3E + 3×2.5ST + ÜL12/205025/3E9.457.561.42,2505,1202162271731321060.77
12/20 kV · 3×70 + 3×35/3E + 3×2.5ST + ÜL12/207035/3E11.261.065.33,1506,2002652782121621300.56
12/20 kV · 3×95 + 3×50/3E + 3×2.5ST + ÜL12/209550/3E12.766.470.94,2757,5503193352551951560.45
12/20 kV · 3×150 + 3×70/3E + 3×2.5ST + ÜL12/2015070/3E16.073.278.06,75010,0504284493422612090.32
  • All rows include 3 × 2.5 mm² individually screened control cores (2.5ST) plus an overall concentric copper wire monitoring screen (ÜL) over the inner sheath.
  • For 4, 5, 6 and 7 drum layers on 3.6/6 & 6/10 kV: multiply 1-layer current by 0.52 (4L), 0.48 (5L) and 0.33 (6–7L). Ambient derating: 1.15 (10 °C), 1.08 (20 °C), 1.00 (30 °C), 0.91 (40 °C), 0.82 (50 °C), 0.71 (60 °C).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 1,084 mm
Minimum bending radius
542 mm
Min. drum core diameter
≈ 1,084 mm
Cable weight on drum
403.0 kg
Outer diameter
54.2 mm
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Medium-voltage AC dielectric test (11 to 29 kV)11 kV (3.6/6 kV), 17 kV (6/10 kV), 24 kV (8.7/15 kV) or 29 kV (12/20 kV) AC applied to phase cores per DIN VDE 0250-813Every shipping drum
Phase, CE screen, EC control screen & ÜL continuityDC resistance and screen isolation verified on all phase cores, 3×2.5ST screened control cores and overall ÜL monitorEvery shipping drum
Sample tests
Flame retardancy & halogen-free sheath verificationIEC/EN 60332-1-2 vertical flame test on all builds; IEC/EN 60754-1/2 zero-halogen gas test on ZH PUR seriesProduction batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · (N)TSCGECECWÖU · VDE 0250-813
Delivery form
Heavy-duty export wooden or steel TBM reels sized to 10 × D minimum bend radius
Lengths
Continuous TBM advance lengths or custom cut lengths on request
Certificate
EN 10204 3.1 factory routine HV test report with every drum
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the double 'EC' in (N)TSCGECECWÖU signify compared with (N)TSCGECWÖU?
In DIN VDE 0250-813 nomenclature, the first 'CE' denotes individual concentric copper screens over each 3GI3 EPR phase core, while the second 'EC' denotes individual copper wire screens over the three 2.5 mm² control cores (3×2.5ST) to protect TBM pilot and telemetry circuits from medium-voltage switching interference. Both cables include an overall copper monitoring screen (ÜL) between the inner and outer sheaths.
When should the black ZH PUR version be selected instead of the red 5GM5 rubber version?
Select the black halogen-free PUR (ZH) version (IEC/EN 60754-1/2) for urban metro tunnels requiring zero-halogen outer sheathing or where fixed portal temperatures drop to −50 °C. Select the red Type 5GM5 elastomer version when 150 mm² phase cross-sections or classic vulcanized rubber handling are required.
How do multi-layer TBM reeling drums affect the current carrying capacity?
Because inner cable layers on a cylindrical TBM drum cannot dissipate heat by free convection, DIN VDE 0298-4 / TEBAOFLEX drum derating factors apply: relative to the 1-layer drum rating at 30 °C, 2 layers carry ~76%, 3 layers ~61%, 4 layers ~52%, 5 layers ~48%, and 6–7 layers ~33–38%.
How is the maximum permissible pulling tension calculated?
Dynamic reeling tensile load is 15 N/mm² applied strictly to the three phase copper cross-sections (e.g., 3 × 50 mm² × 15 N/mm² = 2,250 N; 3 × 150 mm² × 15 N/mm² = 6,750 N). Earth screens, control cores and the ÜL monitoring screen do not carry rated axial tension.
