Flat festoon cablesDIN VDE 0250300/500 V & 450/750 VEMC Copper Braid

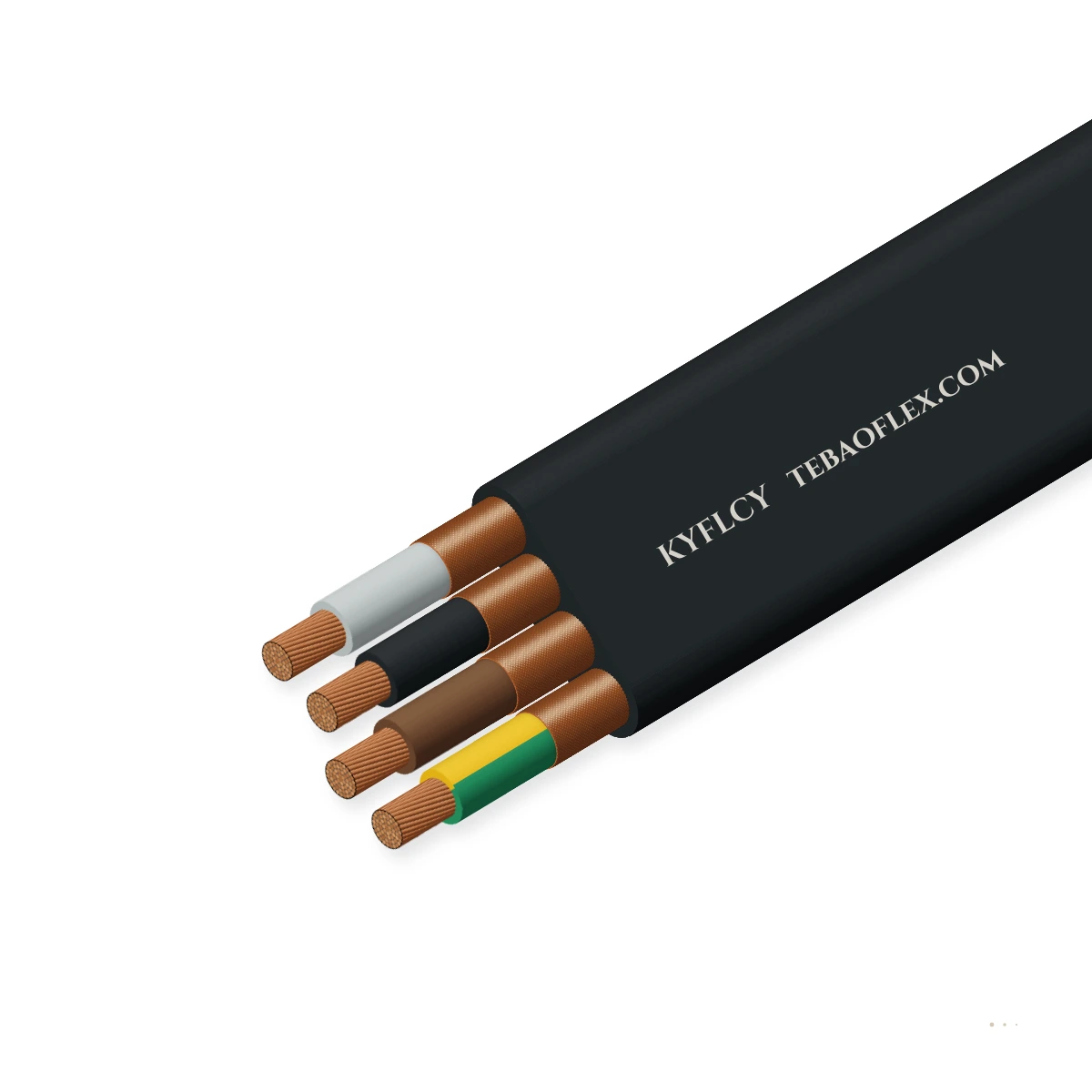

KYFLCY Flat EMC Screened PVC Festoon CableCold-flexible copper-screened EMC flat PVC power and control cable for cranes and hoists

EMC-screened cold-flexible PVC flat festoon cable (KYFLCY / KYCFLY / YFLCY based on DIN VDE 0250 and DIN EN 50214) with Class 5/6 bare copper conductors, 70–80 % copper braid screening and black oil-resistant PVC sheath.

Low-EMC design

Flame-retardant

Oil-resistant

Ozone, UV & moisture

Cores × cross-section

Versions

Order designation: KYFLCY-J 4G16
Height max: 10.8 mm
Width max: 36.7 mm
Weight ≈: 950 kg/km
Min. bend R: 108 mm

Check against my drum All sizes (20)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
EMC screen: Cu braid 70–80%
Bending radius: 10 × H
Flexing temp.: -30 to +70 °C
Max. conductor: +70 °C
Compliance: DIN VDE 0250

Typical values for this cable type, based on DIN VDE 0250 / EN 50214 — confirmed in the datasheet and quotation for your order.

Application fit

Is KYFLCY right for your machine?

KYFLCY (and KYCFLY) combines a compact single-plane flat PVC profile with copper braid EMC screening for inverter-fed crane motors, encoder feedback and control circuits.

Festoon & line chain

Suitable

Primary duty: C-rail and I-beam crane festoon trolleys in VFD-driven hoist, crane and high-bay stacker installations.

Energy chain / drag chain

With conditions

Suitable for single-plane linear guide channels maintaining ≥ 10 × H bending radius without edgewise bending.

Use PUR-C-HF for multi-axis drag chains

Free-hanging vertical run

Suitable

Free suspension heights up to 35 m within the 15 N/mm² static copper tensile limit.

Use KYFLTFCY for integrated strain relief

Motorised monospiral reel

Not suitable

Flat PVC cables must not be twisted or deflected laterally on motorized reeling drums.

Use Festoonflex C-PUR-HF round cable

Typical machinesVFD-driven bridge & gantry cranesHigh-bay rack feeder & stacker cranesHoist encoder & instrumentation loopsIndustrial camera & telemetry trolleysAutomated transfer & assembly linesContainer & warehouse crane bridges

Construction

Layer by layer

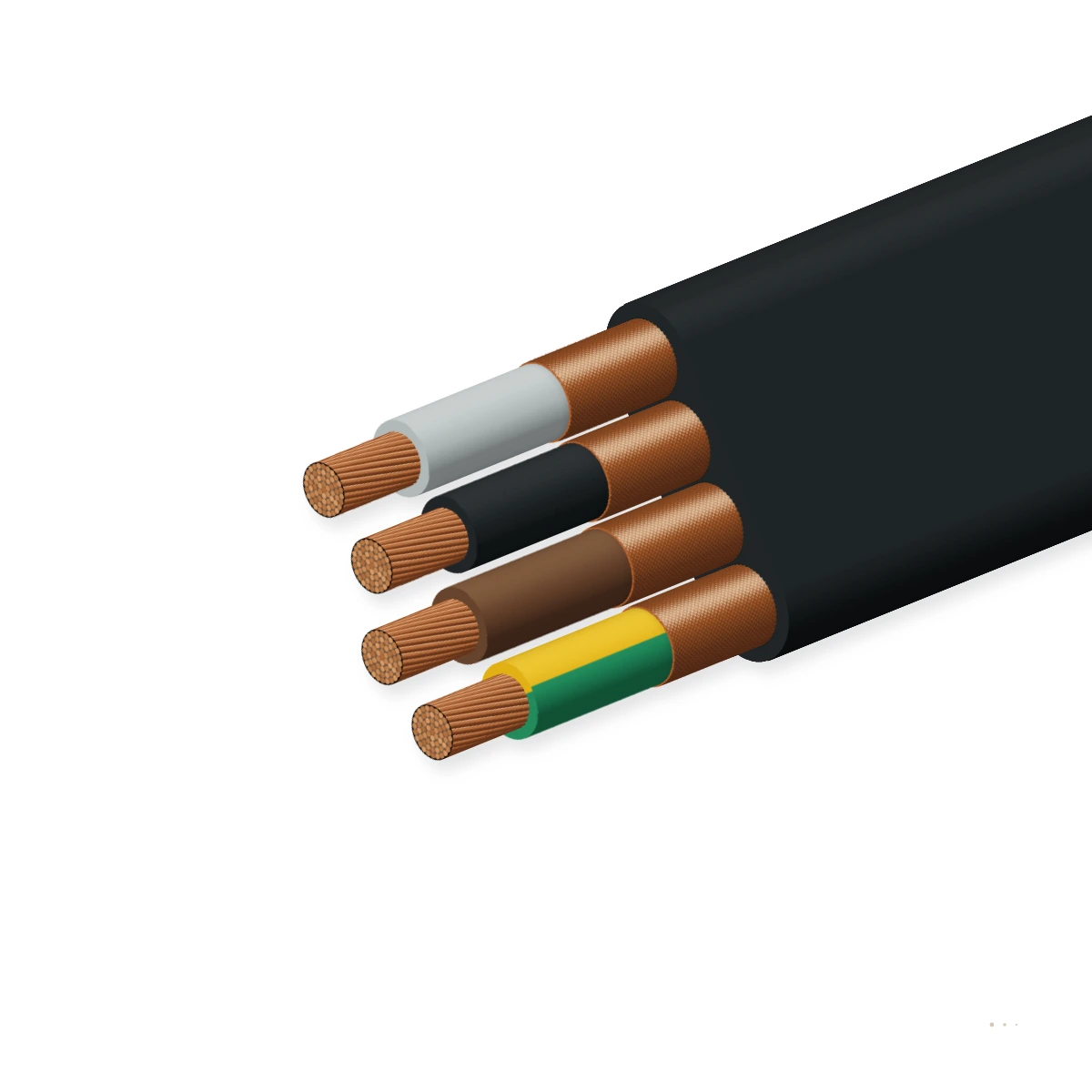

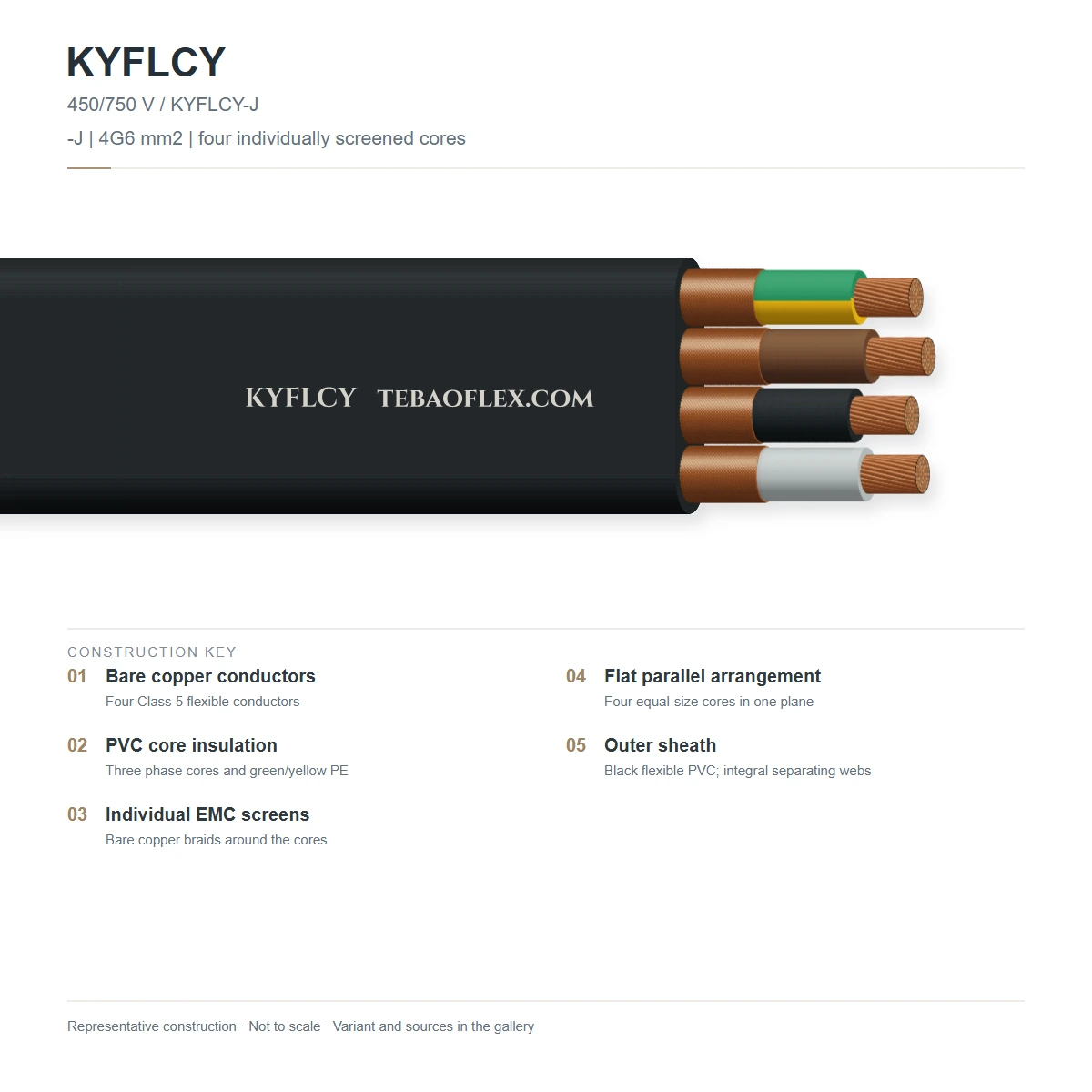

Shown: KYFLCY-J 4G16 — four parallel Class 5 bare copper cores with cold-flexible PVC insulation, copper braid EMC screening and a black oil-resistant PVC flat outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Bare copper strand, flexible Class 5 (or Class 6 in bundled BD types)IEC 60228 / DIN VDE 0295
2	Core insulation	Cold-flexible PVC compoundCore identification DIN VDE 0293-308 (≤ 5 cores coloured, ≥ 6 cores black with white numbers)
3	EMC copper screen	Bare or tinned copper wire braid / lapped screen over individual cores or core bundles (approx. 70–80 % coverage)Low transfer impedance for VFD & signal EMC protection
4	Core arrangement	Screened cores or bundles laid parallel side-by-side in one flat planeSingle-plane bending geometry
5	Outer sheath	Cold-resistant, oil-resistant and flame-retardant PVC compound, black (RAL 9005)IEC 60332-1-2 / IEC 60332-3-24 Cat. C · LABS- & silicone-free

KYFLCY-J / KYCFLY-J

Screened power/control cores + green-yellow protective conductor

KYFLCY-O / -OB

Screened cores without protective conductor

KYFLCY .. Bd

Screened multi-core bundles laid parallel for high-channel control

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250 / EN 50214. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300 V (0.5 mm²) · 300/500 V (> 1.0 mm²)
AC test voltage: 1.2 kV (0.5 mm²) · 2.0 kV (> 1.0 mm²)
EMC screening: Bare or tinned copper braid / lapped wire screen over cores or bundles, approx. 70–80 % optical coverage
Conductor resistance at 20 °C: IEC 60228 / DIN VDE 0295 Class 5/6 bare copper

Thermal

Max. conductor operating temperature: +70 °C
Max. short-circuit temperature (≤ 5 s): +150 °C
Ambient temperature — flexing / mobile: -30 to +70 °C (KYFLCY / KYCFLY) · -25 to +60 °C (YFLCY)
Ambient temperature — fixed installation: -40 to +70 °C

Mechanical

Max. travel speed (festoon / lift): 1.6 m/s (96 m/min)
Max. free suspension height: 35 m
Min. bending radius — flexing in flat plane: 10 × cable height H
Min. bending radius — fixed installation: 10 × cable height H

Reference standards

Reference standards: DIN VDE 0250 · DIN EN 50214 · IEC 60228 (DIN VDE 0295 Class 5/6)
Flame retardancy: IEC 60332-1-2 (self-extinguishing) · IEC 60332-3-24 Cat. C
Oil & chemical resistance: Oil-resistant PVC jacket; LABS-free and silicone-free; RoHS & CE compliant

Sizes

Dimensions, weights & electrical data

20 EMC-screened KYFLCY / KYCFLY flat PVC sizes (0.5 mm² to 95 mm²)

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Height max mm	Width max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Max. pull N
All sizes
Control 0.5 mm²
KYFLCY-JB 5G0.5	5 × 0.5	20	4.8	20.2	75	119	48	38
Bundled BD
KYFLCY 20G0.5 Bd	20 × 0.5 Bd	20	8.2	37.6	175	474	82	150
KYFLCY-J 7×4G0.5	7 × 4 × 0.5	20	10.3	50.0	222	745	103	210
KYFLCY 8×7G0.5	8 × 7 × 0.5	20	12.5	71.0	455	1,180	125	420
KYFLCY 4×4G1	4 × 4 × 1	18	11.5	35.5	315	625	115	240
KYFLCY-JZ 16G1 Bd	16 × 1 Bd	18	9.4	34.5	315	565	94	240
KYFLCY 7×3G1	7 × 3 × 1	18	10.4	54.3	392	755	104	315
1.5 mm²
KYFLCY-J 4G1.5	4 × 1.5	16	5.4	16.6	91	169	54	90
KYFLCY-J 8G1.5	8 × 1.5	16	5.4	31.2	220	382	54	180
KYFLCY-J 12G1.5	12 × 1.5	16	5.4	45.8	330	560	54	270
Power 2.5–95 mm²
KYFLCY-J 4G2.5	4 × 2.5	14	6.4	19.8	168	250	64	150
KYFLCY-J 8G2.5	8 × 2.5	14	7.4	44.0	325	560	74	300
KYFLCY-J 4G4	4 × 4	12	7.0	22.0	208	320	70	240
KYFLCY-J 4G6	4 × 6	10	7.8	25.2	325	480	78	360
KYFLCY-J 4G10	4 × 10	8	9.7	31.2	518	675	97	600
KYFLCY-J 4G16	4 × 16	6	10.8	36.7	720	950	108	960
KYFLCY-J 4G25	4 × 25	4	13.1	44.7	1,100	1,550	131	1,500
KYFLCY-JB 4G35	4 × 35	2	17.6	55.2	1,510	1,860	176	2,100
KYFLCY-J 4G50	4 × 50	1	22.0	62.0	2,519	2,850	220	3,000
KYFLCY-J 4G95	4 × 95	3/0	20.5	73.0	4,160	4,850	205	5,700

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Copper index (kg/km) includes both the phase/control conductors and the copper EMC braided screen.
Minimum dynamic bending radius is 10 × cable height H in the flat bending plane.

Electrical & conductor data
Cross-section mm²	AWG ≈	Stranding IEC 60228	Max. conductor resistance 20 °C, Ω/km	Current rating in air 30 °C, A	Short-circuit 1 s kA	Used in
0.5	20	Class 5 / 6	39	9	0.06	5×0.5, 20×0.5 Bd, 7×4×0.5, 8×7G0.5
1	18	Class 5 / 6	19.5	15	0.14	4×4G1, 16×1 Bd, 7×3G1
1.5	16	Class 5	13.3	18	0.21	4G1.5, 8G1.5, 12G1.5
2.5	14	Class 5	7.98	26	0.36	4G2.5, 8G2.5
4	12	Class 5	4.95	34	0.57	4G4
6	10	Class 5	3.3	44	0.86	4G6
10	8	Class 5	1.91	61	1.43	4G10
16	6	Class 5	1.21	82	2.29	4G16
25	4	Class 5	0.78	108	3.58	4G25
35	2	Class 5	0.554	135	5.01	4G35
50	1	Class 5	0.386	168	7.15	4G50
95	3/0	Class 5	0.206	250	13.59	4G95

Current ratings are for 3 loaded cores at 30 °C in free air per DIN VDE 0298-4; apply grouping reduction factors for multi-core control and bundled cables.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 150 mm is below 216 mmUse a larger drum core or a smaller cable size

60 m/min ≤ 96 m/minWithin the rated travel speed

Minimum bending radius: 108 mm
Min. drum core diameter: ≈ 216 mm
Cable weight on drum: 33.3 kg
Copper content: 25.2 kg

Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV (≤ 1.0 mm²) / 2.5 kV (≥ 1.5 mm²), 5 min	Every length
Conductor resistance	IEC 60228 / DIN VDE 0295 Class 5/6	Every length
Sample tests
Vertical bundle & single flame test	IEC 60332-3-24 Cat. C / IEC 60332-1-2	Per batch
Screen coverage & transfer impedance	70–80 % optical copper braid coverage	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KYFLCY-J 4G16 450/750 V EMC · CE · [year] · [metre mark]

Standard packing: 500 m on wooden drums or cut-to-length festoon sets
HS code: 8544.49

Technical documents

Downloads

PDFKYFLCY Flat EMC Screened PVC Festoon Cable – technical datasheet20 sizes · construction, technical data, approvals XLSXKYFLCY spec data (Excel)All 20 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
