Round PUR festoon cables0.6/1 kVD12YC11Y-J/O85% Cu Braid Screen

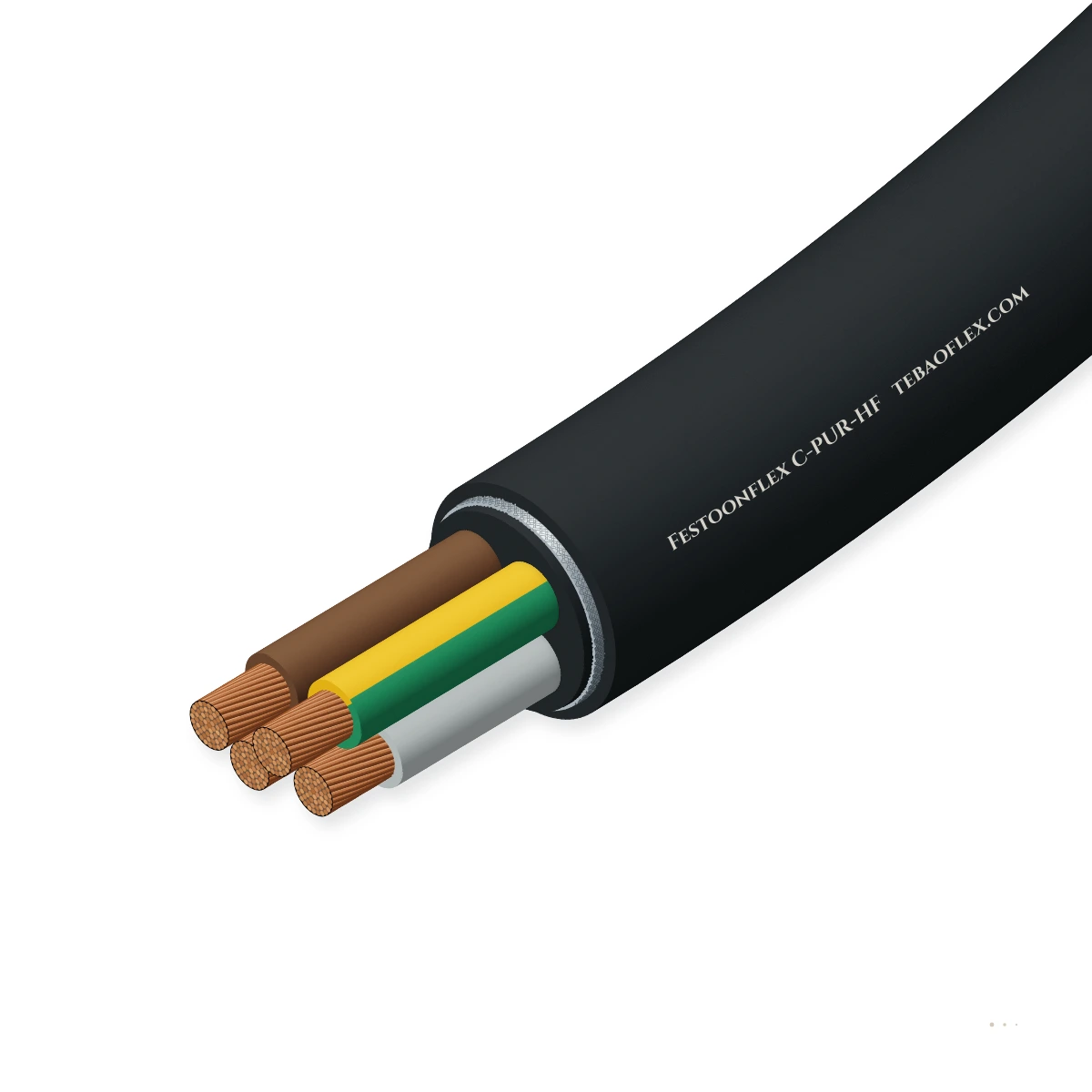

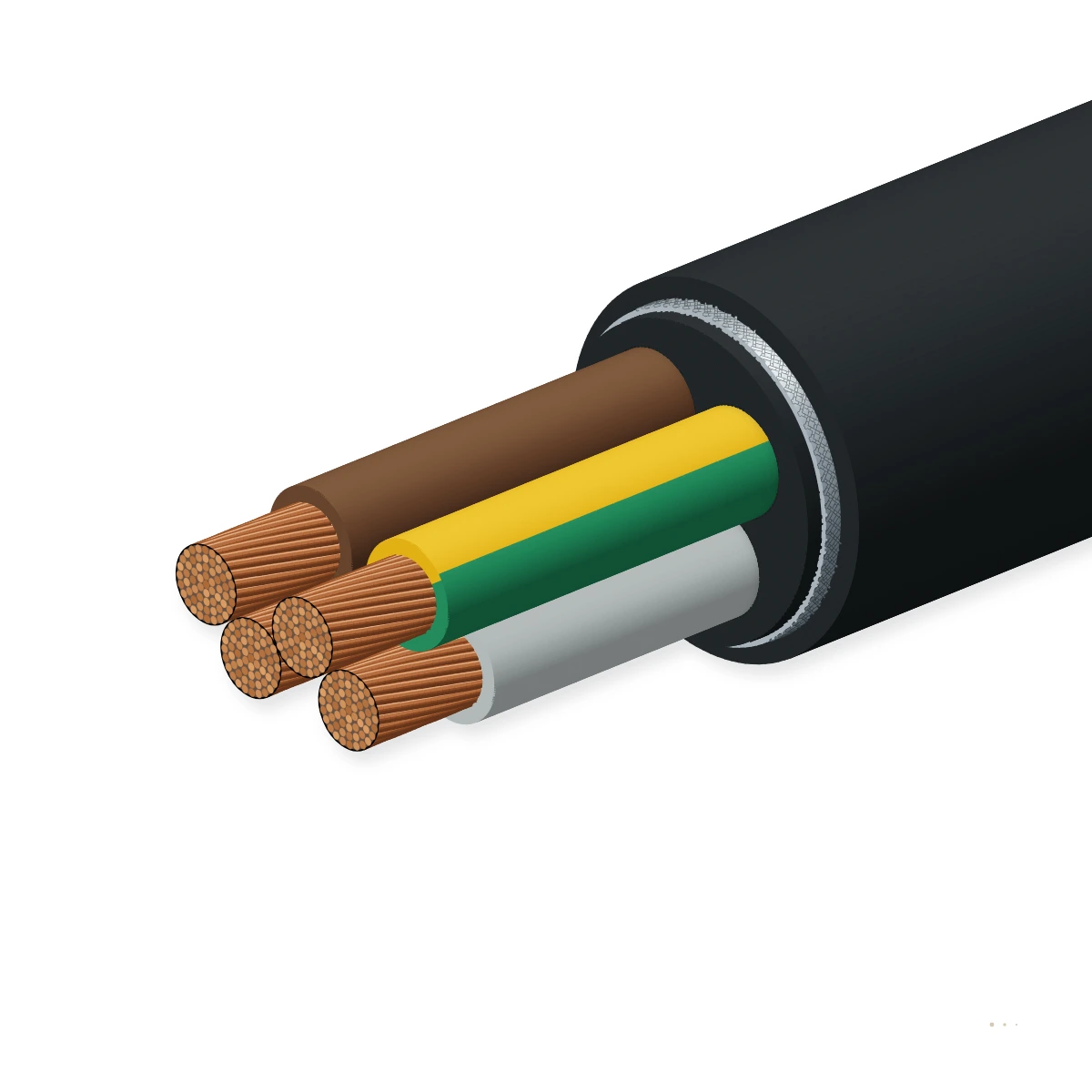

Festoonflex C-PUR-HF 0.6/1 kV Screened PUR Crane Festoon CableScreened halogen-free PUR crane festoon & drag-chain cable (single-core, power & pairs)

High-speed 0.6/1 kV screened halogen-free PUR festoon and drag-chain cable (FESTOONFLEX C-PUR-HF / D12YC11Y-J/O) with Class 5 copper conductors, polyester-based insulation, inner PUR sheath, tinned copper braid screen and hydrolysis-resistant PUR jacket.

Low-EMC design

Flame-retardant

Oil-resistant

Water-resistant

Cores × cross-section

Versions

Order designation: Festoonflex C-PUR-HF-J 4G16
OD min: 21.2 mm
OD max: 22.5 mm
Weight ≈: 940 kg/km
Min. bend R: 136 mm

Check against my drum All sizes (40)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Travel speed: 210 m/min
Bending radius: 6 × D
Flexing temp.: -40 to +80 °C
Max. conductor: +90 °C
Submersion: Up to 50 m

Typical values for this cable type, based on DIN VDE 0250-1 (D12YC11Y) — confirmed in the datasheet and quotation for your order.

Application fit

Is Festoonflex C-PUR-HF right for your machine?

Festoonflex C-PUR-HF (type D12YC11Y-J/O) covers the full container-crane and heavy automation spectrum: single-core screened VFD phase leads up to 300 mm², 4-core/5-core screened power, multi-core control, and individually screened twisted-pair telemetry.

Festoon & line chain

Suitable

Primary duty: high-speed container crane, ship-to-shore and RMG/RTG trolley festoons up to 210–240 m/min indoors and outdoors.

Energy chain / drag chain

Suitable

Heavy-duty power and control drag chains on machine tools, conveyors and gantry bridges up to 210 m/min at ≥ 6 × D bending radius.

Motorised monospiral reel

With conditions

Approved for simple / moderate reeling up to 60 m/min within 15 N/mm² conductor tensile load and ±25 °/m torsion.

Use (N)12YRDC11Y for heavy reeling

Immersion & wet locations

Suitable

Halogen-free polyurethane outer jacket is UV-, oil- and hydrolysis-resistant and rated for permanent submersion up to 50 m depth.

Spreader gravity collector basket

Not suitable

Optimised for festoon loops and drag chains, not high-speed gravity spreader collector baskets.

Use 3GSLTÖ Spreader Basket

Typical machinesShip-to-shore (STS) & RMG container cranesInverter-fed hoist & trolley power loopsHigh-speed drag-chain gantry systemsSteelworks, ports & bulk handlingSubmersible & wet-basin gantry bridgesEncoder, resolver & fieldbus crane loops

Construction

Layer by layer

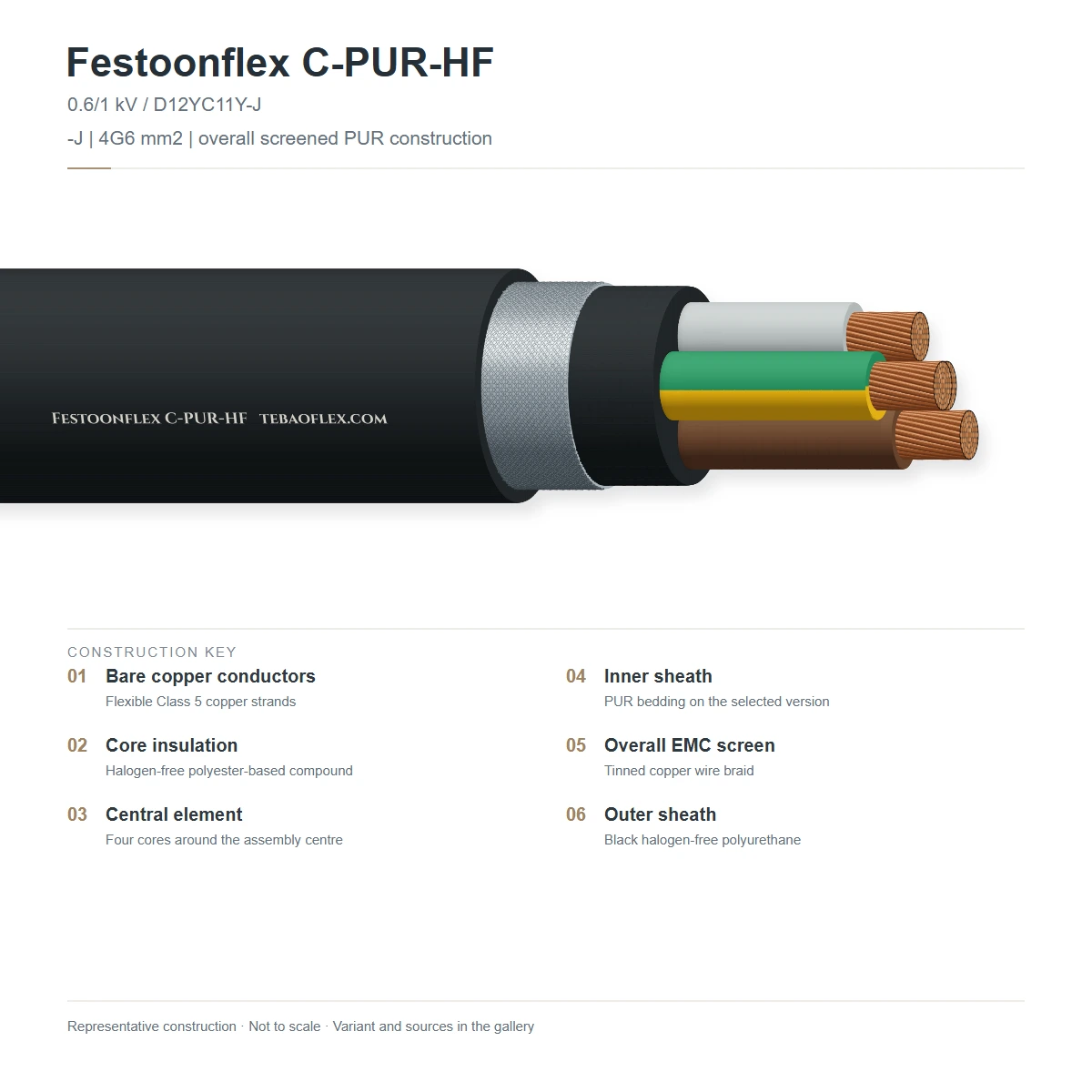

Shown: Festoonflex C-PUR-HF (D12YC11Y-J) 4G16 — four Class 5 copper cores with polyester-based HF insulation around a central textile carrier, PUR inner sheath, ~85 % tinned copper braid screen and black PUR outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Fine-stranded bare copper, Class 5DIN EN IEC 60228 / DIN VDE 0295 Class 5
2	Central textile carrier	Central high-tenacity textile self-supporting element (multi-core designs)Absorbs tensile stress and stabilises short-pitch concentric core lay
3	Core insulation	Halogen-free compound based on polyesterCore identification DIN VDE 0293-308 (≤ 5 cores coloured, ≥ 6 cores white with black numbers)
4	Inner sheath	Halogen-free polyurethane (PUR) with overlapped PETP separating foilApplied on 2–5 core power cables and twisted-pair constructions
5	Tinned copper braid screen	Tinned copper wire braid, approx. 85 % optical coverage (overall screen in C-PUR-HF; individual pair screen in ..×(2×..)C)Overlapped polyester fleece separating tape over braid
6	Outer sheath	Halogen-free, flame-retardant polyurethane (PUR-HF / 11Y), blackIEC 60332-1-2 · Oil-resistant EN 60811-404 / IEC 61892-4 D · UV & hydrolysis resistant

D12YC11Y-O (1×25–1×300)

Single-core screened VFD phase & earthing power leads

D12YC11Y-J (4G1.5–4G70)

Overall-screened multi-core power & control cables with green-yellow PE

D12Y11Y-O ..×(2×..)C

Individually screened twisted pairs for crane encoder, resolver & bus lines

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-1 (D12YC11Y). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (max. AC 0.7/1.2 kV · DC 0.9/1.8 kV)
AC test voltage: 2.5 kV (5 min)
EMC screen construction: Braid of tinned copper wires over inner sheath (overall or individually screened pairs)
Current rating basis: DIN VDE 0298-4 at 30 °C ambient in free air

Thermal

Max. conductor operating temperature: +90 °C
Max. short-circuit temperature (≤ 5 s): +250 °C
Ambient temperature — flexing / mobile: -40 to +80 °C
Ambient temperature — fixed installation: -50 to +80 °C

Mechanical

Max. travel speed: Festoon up to 210–240 m/min · Drag chain up to 210 m/min · Reeling up to 60 m/min
Max. tensile load on conductor: 15 N/mm²
Max. torsional stress: ± 25 °/m
Min. bending radius: 6 × D fixed · 6 × D (up to 8 × D) flexing

Reference standards

Reference standards: DIN VDE 0250-1 (D12YC11Y-J/O) · DIN EN IEC 60228 (VDE 0295 Class 5) · DIN VDE 0293-308
Flame & halogen-free performance: Flame-retardant IEC 60332-1-2 · Halogen-free EN 60754
Oil, UV & water immersion resistance: Oil-resistant EN 60811-404 / IEC 61892-4 D · UV & weather resistant · Permanent water submersion up to 50 m

Sizes

Dimensions, weights & electrical data

40 screened Festoonflex C-PUR-HF (D12YC11Y) single-core, power, control and twisted-pair sizes

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	OD min mm	OD max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Max. pull N
All sizes
Single-core 25–300 mm²
Festoonflex C-PUR-HF 1G25	1 × 25	4	10.3	11.5	310	330	69	370
Festoonflex C-PUR-HF 1G35	1 × 35	2	12.3	13.5	406	430	81	520
Festoonflex C-PUR-HF 1G50	1 × 50	1	15.4	16.6	550	610	100	750
Festoonflex C-PUR-HF 1G70	1 × 70	2/0	17.0	18.3	747	810	110	1,050
Festoonflex C-PUR-HF 1G95	1 × 95	3/0	18.9	20.1	1,012	1,030	121	1,420
Festoonflex C-PUR-HF 1G120	1 × 120	4/0	21.4	22.8	1,306	1,320	137	1,800
Festoonflex C-PUR-HF 1G150	1 × 150	300 kcmil	23.1	24.5	1,613	1,650	147	2,250
Festoonflex C-PUR-HF 1G185	1 × 185	350 kcmil	25.5	27.2	1,903	2,000	163	2,770
Festoonflex C-PUR-HF 1G240	1 × 240	500 kcmil	28.5	30.1	2,440	2,490	181	3,600
Festoonflex C-PUR-HF 1G300	1 × 300	600 kcmil	31.6	33.6	3,040	3,200	202	4,500
Control 1.5–2.5 mm²
Festoonflex C-PUR-HF 2G1.5	2 × 1.5	16	9.4	11.4	74	140	68	45
Festoonflex C-PUR-HF-J 4G1.5	4 × 1.5	16	10.8	12.0	118	240	72	90
Festoonflex C-PUR-HF-J 5G1.5	5 × 1.5	16	10.9	12.1	132	250	73	110
Festoonflex C-PUR-HF-J 7G1.5	7 × 1.5	16	10.9	12.1	192	220	73	150
Festoonflex C-PUR-HF-J 12G1.5	12 × 1.5	16	15.0	16.2	250	360	97	270
Festoonflex C-PUR-HF-J 18G1.5	18 × 1.5	16	15.0	16.2	341	420	97	400
Festoonflex C-PUR-HF-J 4G2.5	4 × 2.5	14	12.1	13.2	157	250	80	150
Festoonflex C-PUR-HF-J 5G2.5	5 × 2.5	14	12.8	14.0	190	280	84	180
Festoonflex C-PUR-HF-J 12G2.5	12 × 2.5	14	17.4	18.6	370	530	112	450
Festoonflex C-PUR-HF-J 18G2.5	18 × 2.5	14	17.5	18.8	621	650	113	670
Power 4–70 mm²
Festoonflex C-PUR-HF-J 4G4	4 × 4	12	13.6	14.7	221	330	89	240
Festoonflex C-PUR-HF-J 5G4	5 × 4	12	13.8	15.0	277	345	90	300
Festoonflex C-PUR-HF-J 4G6	4 × 6	10	15.1	16.3	300	420	98	360
Festoonflex C-PUR-HF-J 4G10	4 × 10	8	18.4	19.6	454	640	118	600
Festoonflex C-PUR-HF-J 4G16	4 × 16	6	21.2	22.5	694	940	136	960
Festoonflex C-PUR-HF-J 5G16	5 × 16	6	22.6	25.6	864	1,149	154	1,200
Festoonflex C-PUR-HF-J 4G25	4 × 25	4	24.5	26.2	1,050	1,360	157	1,500
Festoonflex C-PUR-HF-J 4G35	4 × 35	2	29.6	31.6	1,444	1,870	190	2,100
Festoonflex C-PUR-HF-J 4G50	4 × 50	1	35.1	37.6	2,124	2,560	226	3,000
Festoonflex C-PUR-HF-J 4G70	4 × 70	2/0	41.8	44.5	2,910	3,070	267	4,200
Overall-screened pairs
Festoonflex C-PUR-HF 4×(2×1)	4 × (2 × 1)	18	15.3	16.5	140	310	99	120
Festoonflex C-PUR-HF 3×(2×1.5)	3 × (2 × 1.5)	16	16.5	17.8	153	350	107	130
Festoonflex C-PUR-HF 4×(2×1.5)	4 × (2 × 1.5)	16	17.2	18.5	237	385	111	180
Individually screened pairs (C)
Festoonflex PUR-HF 4×(2×1)C	4 × (2 × 1)C	18	15.9	17.1	206	350	103	120
Festoonflex PUR-HF 6×(2×1)C	6 × (2 × 1)C	18	19.0	20.3	265	480	122	180
Festoonflex PUR-HF 9×(2×1)C	9 × (2 × 1)C	18	23.6	25.0	398	721	150	270
Festoonflex PUR-HF 2×(2×1.5)C	2 × (2 × 1.5)C	16	15.2	16.4	193	280	98	90
Festoonflex PUR-HF 3×(2×1.5)C	3 × (2 × 1.5)C	16	17.2	18.5	221	350	111	130
Festoonflex PUR-HF 2×(2×2.5)C	2 × (2 × 2.5)C	14	17.2	18.5	215	340	111	150
Festoonflex PUR-HF 3×(2×2.5)C	3 × (2 × 2.5)C	14	17.5	18.8	245	390	113	220

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Min. bend R (mm) is stated at 6 × D for free-moving festoon and drag-chain operation; Max. pull (N) is permanent tensile force Fzp at 15 N/mm².

Electrical & conductor data
Cross-section mm²	AWG ≈	Stranding IEC 60228	Max. conductor resistance 20 °C, Ω/km	Current rating in air 30 °C, A	Short-circuit 1 s kA	Used in
1	18	Class 5	19.5	19	0.14	4×(2×1), 4–9×(2×1)C
1.5	16	Class 5	13.3	24	0.21	2×1.5–18G1.5, 2–4×(2×1.5)
2.5	14	Class 5	7.98	32	0.36	4G2.5–18G2.5, 2–3×(2×2.5)C
4	12	Class 5	4.95	43	0.57	4G4, 5G4
6	10	Class 5	3.3	56	0.86	4G6
10	8	Class 5	1.91	78	1.43	4G10
16	6	Class 5	1.21	104	2.29	4G16, 5G16
25	4	Class 5	0.784	138	3.58	1×25, 4G25
35	2	Class 5	0.554	170	5.01	1×35, 4G35
50	1	Class 5	0.386	212	7.15	1×50, 4G50
70	2/0	Class 5	0.272	263	10.01	1×70, 4G70
95	3/0	Class 5	0.206	316	13.59	1×95
120	4/0	Class 5	0.161	370	17.16	1×120
150	300 kcmil	Class 5	0.129	424	21.45	1×150
185	350 kcmil	Class 5	0.106	484	26.46	1×185
240	500 kcmil	Class 5	0.08	567	34.32	1×240
300	600 kcmil	Class 5	0.064	649	42.9	1×300

Current ratings are for rubber/PUR cables installed free in air at 30 °C ambient temperature per DIN VDE 0298-4.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 220 mm is below 270 mmUse a larger drum core or a smaller cable size

180 m/min ≤ 210 m/minWithin the rated travel speed

Minimum bending radius: 135 mm
Min. drum core diameter: ≈ 270 mm
Cable weight on drum: 65.8 kg
Copper content: 48.6 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV, 5 min (4.0 kV per Faber sheet)	Every length
Conductor resistance	DIN EN IEC 60228 (VDE 0295 Class 5)	Every length
Sample tests
Flame & halogen-free test	IEC 60332-1-2 · EN 60754	Per batch
Oil resistance & 50 m water immersion	EN 60811-404 / IEC 61892-4 D · 50 m water depth	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FESTOONFLEX C-PUR-HF (D12YC11Y-J) 4G16 0.6/1 kV · CE · [year] · [metre mark]

Standard packing: 500 m on wooden drums or custom cut crane festoon sets
HS code: 8544.49

Technical documents

Downloads

PDFFestoonflex C-PUR-HF 0.6/1 kV Screened PUR Crane Festoon Cable – technical datasheet40 sizes · construction, technical data, approvals XLSXFestoonflex C-PUR-HF spec data (Excel)All 40 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When are single-core Festoonflex C-PUR-HF cables (1×25 to 1×300 mm²) used on cranes?

High-power ship-to-shore (STS) and RMG container cranes require phase currents from 138 A up to 649 A where a 4-core cable would be too thick and stiff for the festoon trolley saddle. Running single-core D12YC11Y-O phase leads with individual 85 % tinned copper braid screens keeps bending radius down to 6 × D while maintaining full VFD EMC containment.

What is the difference between overall-screened pairs (4×(2×1.5)) and individually screened pairs (3×(2×1.5)C)?

Overall-screened pair constructions (D12YC11Y-O) place a single tinned copper braid around the entire twisted-pair bundle under the outer PUR sheath, whereas individually screened pair constructions (D12Y11Y-O ..×(2×..)C) wrap a dedicated tinned copper screen around each twisted pair to prevent pair-to-pair crosstalk between encoder, resolver and analogue channels.

Does Festoonflex C-PUR-HF use bare or tinned copper conductors?

Across DIN VDE 0250-1 factory specifications for individually screened twisted-pair festoon cables, 12×(2×0.5)C spans 16.5 mm minimum to 21.0 mm maximum outer diameter depending on central filler geometry and pair screen lay.

Can Festoonflex C-PUR-HF operate permanently underwater?

Yes. The crosslinked/thermoplastic polyurethane (PUR-HF) outer jacket is hydrolysis- and microbe-resistant and is rated for permanent immersion in non-drinking water up to 50 m depth as well as outdoor UV exposure.

Request a quote

Get an engineering quote for Festoonflex C-PUR-HF

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

Screened Halogen-Free PUR Festoon Cable Festoonflex C-PUR-HF

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

Festoonflex C-PUR-HF 0.6/1 kV Screened PUR Crane Festoon CableScreened halogen-free PUR crane festoon & drag-chain cable (single-core, power & pairs)

Festoon & line chain

Energy chain / drag chain

Motorised monospiral reel

Immersion & wet locations

Spreader gravity collector basket

D12YC11Y-O (1×25–1×300)

D12YC11Y-J (4G1.5–4G70)

D12Y11Y-O ..×(2×..)C

Electrical

Thermal

Mechanical

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

PUR-C-HF

PUR-HF

(N)12YRDC11Y-J/O

NGFLCGÖU
