Flat festoon cablesDIN EN 50214300/500 V & 450/750 VCold-flexible PVC

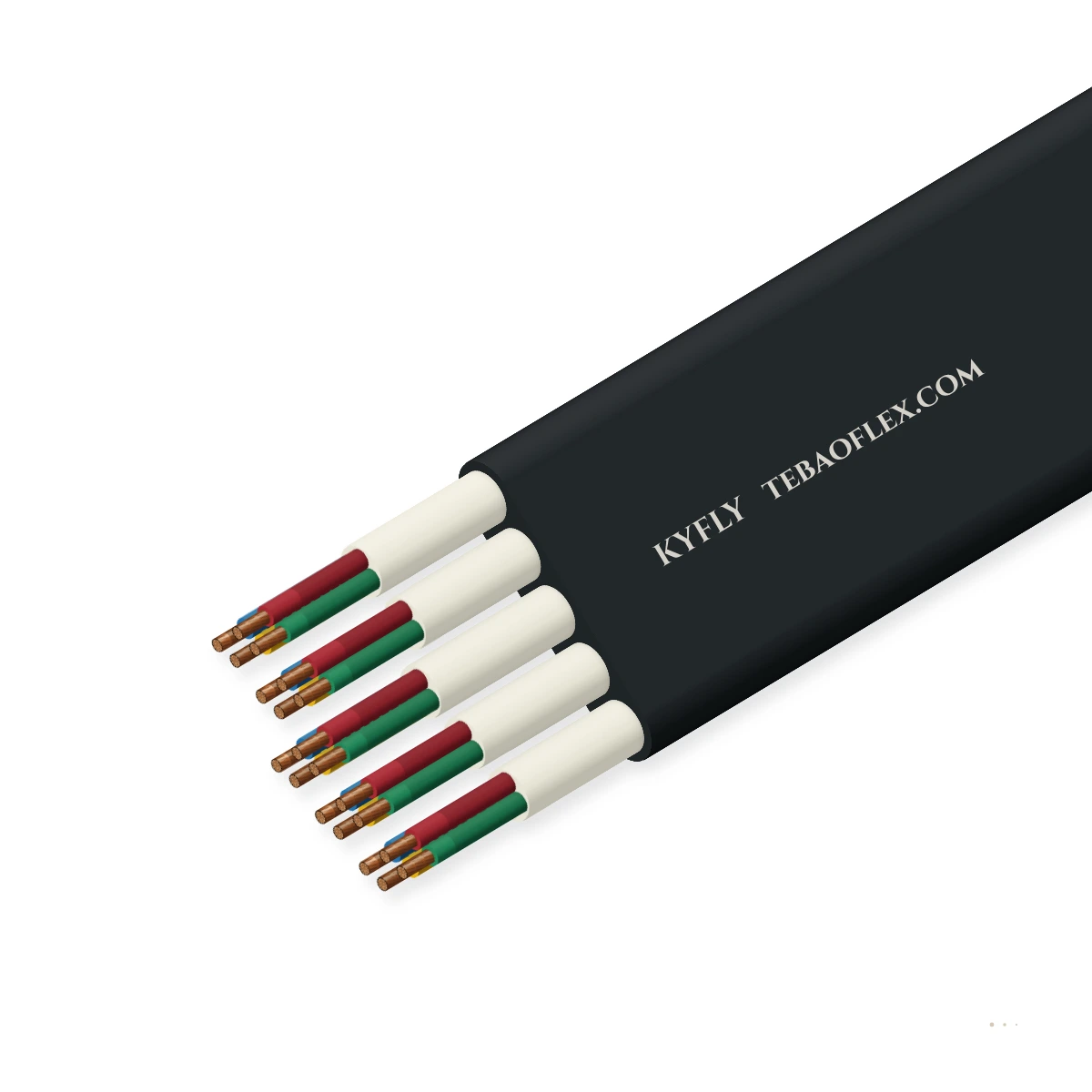

KYFLY Flat PVC Festoon Cable for Cranes & HoistsCold-flexible PVC flat festoon power and control cable for cranes, hoists and trolleys

Cold-flexible PVC flat festoon cable (KYFLY / H05VVH6-F / H07VVH6-F to DIN EN 50214 and DIN VDE 0281-403) with Class 5/6 bare copper conductors and black TM2 PVC jacket for single-plane bending down to -30 °C.

Flame-retardant
Oil-resistant
Ozone, UV & moisture
Versions
Order designation
KYFLY-J 4G16
Height max
11.0 mm
Width max
37.0 mm
Weight ≈
990 kg/km
Min. bend R
110 mm
Check against my drumAll sizes (50)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
300/500 V (≤ 1 mm²) · 450/750 V
Travel speed
96 m/min
Max. 1.6 m/s on crane & lift trolleys
Bending radius
10 × H
Single-plane flexing across height H
Flexing temp.
-30 to +70 °C
Flexing · -40 to +70 °C fixed (KYFLY)
Max. conductor
+70 °C
150–160 °C short-circuit (≤ 5 s)
Compliance
DIN EN 50214
DIN VDE 0281-403 · IEC 60332-1-2

Typical values for this cable type, based on DIN EN 50214 / VDE 0281-403 — confirmed in the datasheet and quotation for your order.

Application fit

Is KYFLY right for your machine?

KYFLY (and harmonised H05VVH6-F / H07VVH6-F) is engineered for single-plane bending on indoor and sheltered crane festoon trolleys, hoist loops, and high-bay storage lifts.

Festoon & line chain

Suitable

Primary duty: C-rail and I-beam crane festoon trolleys up to 96 m/min (1.6 m/s) in dry, humid and wet indoor halls.

Energy chain / drag chain

With conditions

Suitable for linear single-plane carrier guides where bending radius ≥ 10 × H and zero axial torsion is maintained.

Free-hanging vertical run

Suitable

Free suspension heights up to 35 m (H07VVH6-F / KYFLY) or 45 m (H05VVH6-F) within the 15 N/mm² static copper tensile limit.

Use KYFLTFCY for up to 80 m drop
Typical machinesIndoor overhead bridge cranesElectric wire-rope & chain hoistsHigh-bay warehouse stacker cranesElevator & lift travelling loopsSurface treatment & dip transfer linesMachine tool & gantry carriers

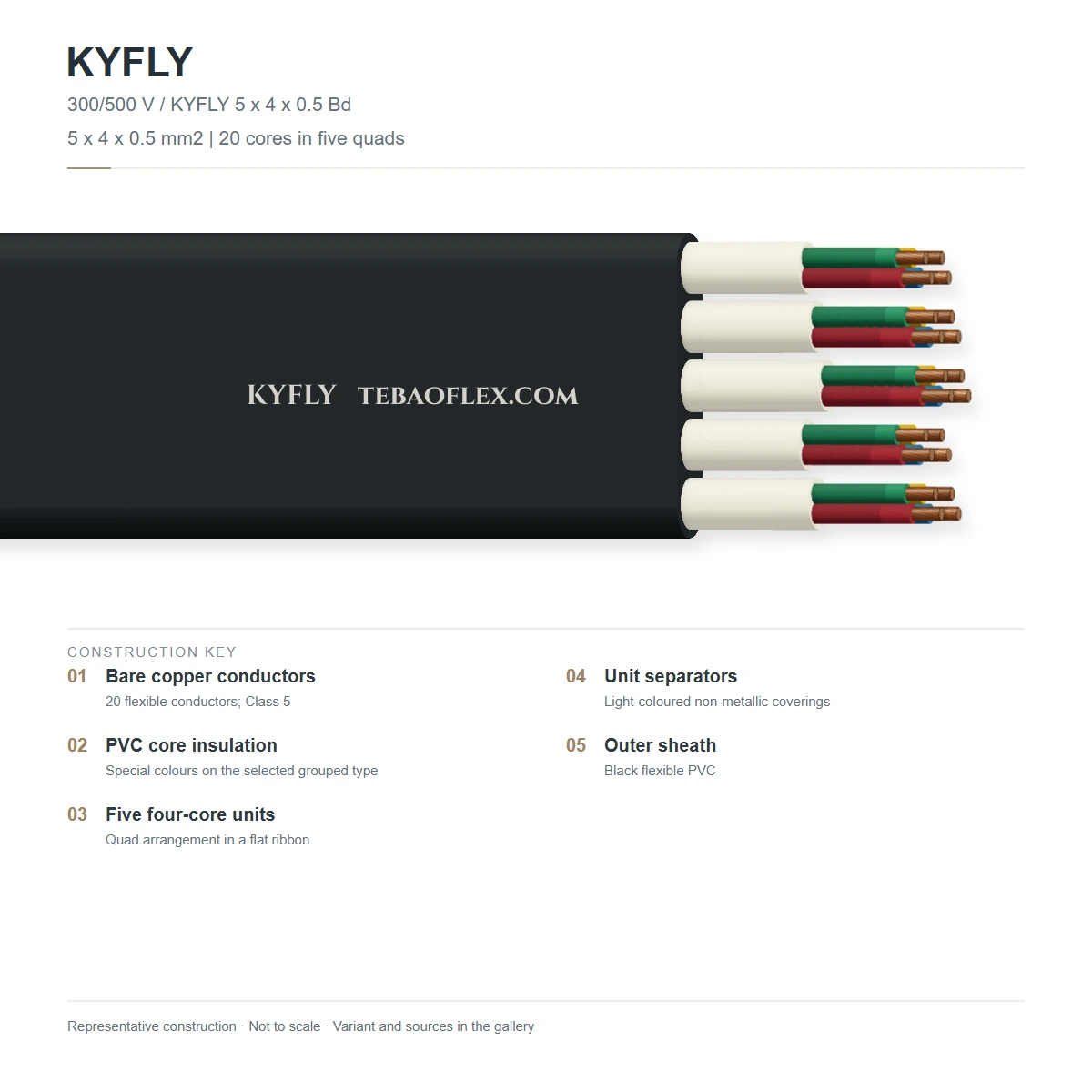

Construction

Layer by layer

Shown: KYFLY-J / H07VVH6-F 4G16 — four parallel Class 5 bare copper cores with cold-flexible TI2 PVC insulation in a black TM2 PVC flat outer sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorBare copper strand, flexible Class 5 (or Class 6 in bundled BD types)IEC 60228 / DIN VDE 0295
2Core insulationCold-flexible PVC compound TI2DIN EN 50363-3 · Core identification DIN VDE 0293-308 (HD 308 S2)
3Core arrangementCores (or twisted bundles in BD versions) laid parallel side-by-side in one flat planeSingle-plane bending geometry · ≥ 6 cores grouped with web stays
4Outer sheathCold-resistant flexible PVC compound TM2, black (RAL 9005)DIN EN 50363-4-1 · Flame-retardant IEC 60332-1-2 · LABS- & silicone-free

KYFLY-J / H07VVH6-F (G)

With green-yellow protective conductor (colour-coded ≤ 5 cores)

KYFLY-O (-OZ)

Without protective conductor

≥ 6 cores / BD bundles

Black cores with white numbers + green-yellow (or colour-coded bundles)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN EN 50214 / VDE 0281-403. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V (≤ 1.0 mm² & KYFLY bundles) · 450/750 V (≥ 1.5 mm² H07VVH6-F)
AC test voltage
2.0 kV (300/500 V) · 2.5 kV (450/750 V)
Conductor resistance at 20 °C
IEC 60228 / DIN VDE 0295 Class 5/6 bare copper
Current rating basis
DIN EN 50565-1 / DIN VDE 0298-4 at 30 °C in air

Thermal

Max. conductor operating temperature
+70 °C
Max. short-circuit temperature (≤ 5 s)
+150 °C
Ambient temperature — flexing / mobile
-30 to +70 °C (KYFLY) · -25 to +60 °C (H07VVH6-F)
Ambient temperature — fixed installation
-40 to +70 °C (KYFLY) · -35 to +60 °C (H07VVH6-F)

Mechanical

Max. travel speed (festoon / lift)
1.6 m/s (96 m/min)
Max. free suspension height
35 m (H07VVH6-F / KYFLY) · 45 m (H05VVH6-F)
Max. tensile load on copper conductor
15 N/mm² static · 30 N/mm² dynamic
Min. bending radius — flexing in flat plane
10 × cable height H
Min. bending radius — fixed installation
10 × cable height H (or 4–5 × H per DIN EN 50565-1)

Reference standards

Reference standards
DIN EN 50214 (VDE 0283-2) · DIN VDE 0281-403 / 0281-404 · DIN VDE 0250
Flame retardancy
IEC 60332-1-2 / EN 60332-1-2
Chemical & surface properties
LABS-free and silicone-free (during production); RoHS & CE compliant

Sizes

Dimensions, weights & electrical data

50 unscreened KYFLY, H05VVH6-F and H07VVH6-F flat PVC sizes (0.5 mm² to 95 mm²)

Dimensions & weights
Order designationCores × mm²AWG ≈Height max
mm		Width max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Max. pull
N		Enquiry
All sizes
Bundled BD

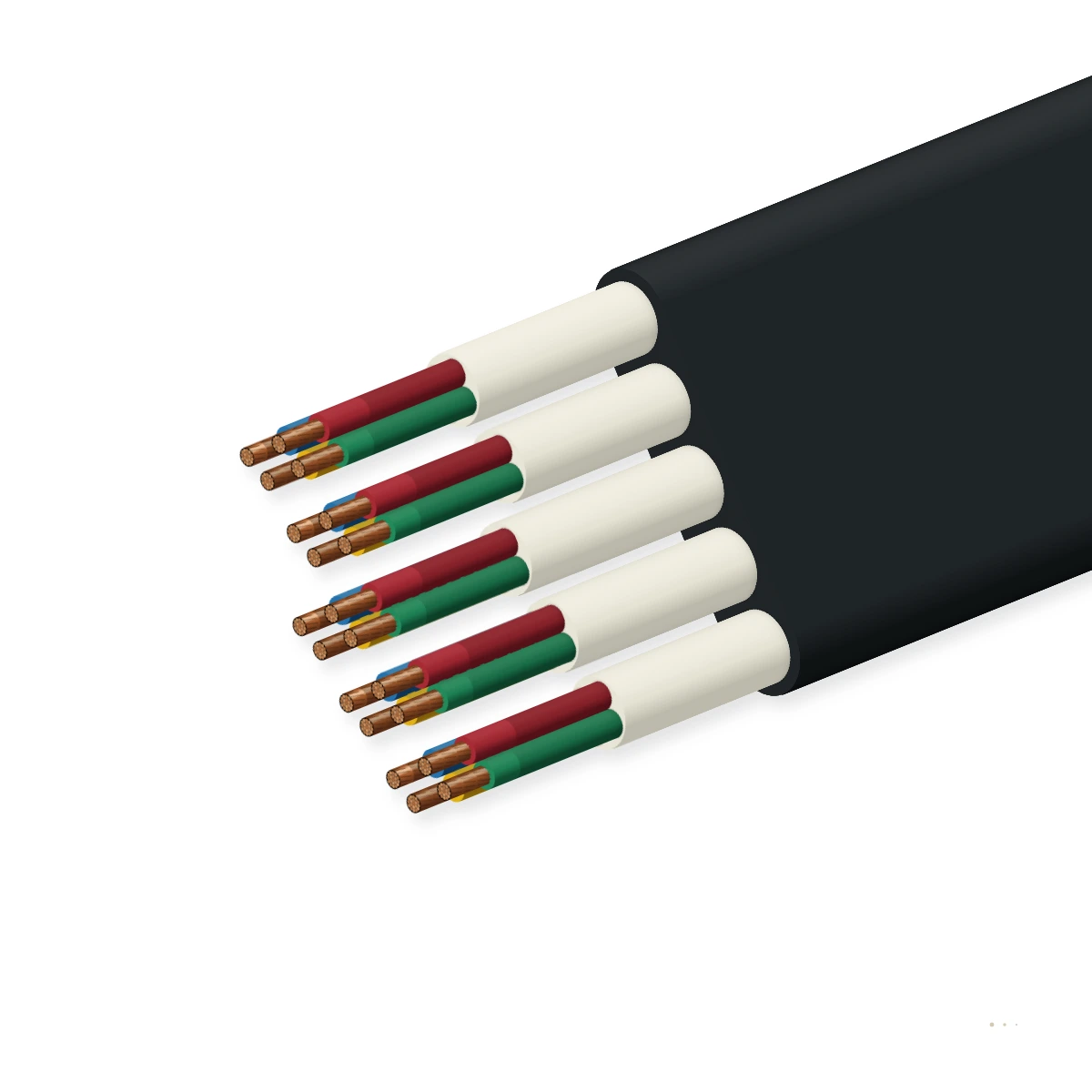

KYFLY 5×4×0.5 BD5 × 4 × 0.5208.137.19640281150
KYFLY 8×7G0.58 × 7 × 0.52012.268.02861,020122420
KYFLY 3×(4G1)3 × (4 × 1)188.419.411630084180
KYFLY 4×(4G1)4 × (4 × 1)188.425.315440084240
KYFLY 7×3G17 × 3 × 11810.350.0202710103315
KYFLY 6×7G1.56 × 7 × 1.51616.073.06051,750160945
0.75 mm²
KYFLY-J 4G0.754 × 0.75194.111.529954145
KYFLY-J 6G0.756 × 0.75195.019.0431305068
KYFLY-J 12G0.7512 × 0.75194.632.88626046135
KYFLY-J 18G0.7518 × 0.75194.648.513040046202
KYFLY-J 20G0.7520 × 0.75194.653.014443046225
KYFLY-J 24G0.7524 × 0.75194.663.217349046270
1 mm²
KYFLY-J 4G14 × 1185.614.1391155660
KYFLY-J 5G15 × 1185.616.6481355675
KYFLY-J 8G18 × 1185.625.67722056120
KYFLY-J 12G112 × 1185.635.211631056180
KYFLY-J 18G118 × 1185.653.417345056270
KYFLY-J 24G124 × 1185.668.123059056360
1.5 mm²
KYFLY-J 4G1.54 × 1.5165.815.6581505890
KYFLY-J 5G1.55 × 1.5165.818.67218058112
KYFLY-J 7G1.57 × 1.5165.826.010126058158
KYFLY-J 8G1.58 × 1.5165.828.311530058180
KYFLY-J 10G1.510 × 1.5165.835.014436058225
KYFLY-J 12G1.512 × 1.5165.841.417342058270
KYFLY-J 14G1.514 × 1.5165.850.820249058315
KYFLY-J 16G1.516 × 1.5165.854.023056058360
KYFLY-J 18G1.518 × 1.5165.860.225962058405
KYFLY-J 24G1.524 × 1.5165.883.034679058540
2.5 mm²
KYFLY-J 4G2.54 × 2.5146.018.29621060150
KYFLY-J 5G2.55 × 2.5146.023.212026060188
KYFLY-J 7G2.57 × 2.5146.032.416838060262
KYFLY-J 8G2.58 × 2.5146.034.819240560300
KYFLY-J 12G2.512 × 2.5146.050.828862060450
KYFLY-J 24G2.524 × 2.5146.098.75761,16060900
Power 4–95 mm²
KYFLY-J 4G44 × 4126.920.015430069240
KYFLY-J 5G45 × 4127.026.019238070300
KYFLY-J 7G47 × 4127.038.026955070420
KYFLY-J 12G412 × 4127.058.546288070720
KYFLY-J 4G64 × 6107.222.823039072360
KYFLY-J 5G65 × 6107.226.629048072450
KYFLY-J 7G67 × 6108.542.540370085630
KYFLY-J 4G104 × 10810.529.0384620105600
KYFLY-J 5G105 × 10810.538.3480780105750
KYFLY-J 4G164 × 16611.037.0614990110960
KYFLY-J 5G165 × 16611.043.07701,2001101,200
KYFLY-J 4G254 × 25413.546.09601,5501351,500
KYFLY-J 4G354 × 35214.851.01,3442,0301482,100
KYFLY-J 4G504 × 50117.057.01,9202,6501703,000
KYFLY-J 4G704 × 702/018.564.02,7003,6501854,200
KYFLY-J 4G954 × 953/021.074.03,6504,5502105,700
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Height max (H) and Width max (W) represent upper nominal profile dimensions; min. dynamic bending radius is 10 × H in the flat bending plane.
  • Max. pull (N) is calculated at 15 N/mm² static copper tensile stress across all load-bearing cores.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 150 mm is below 220 mmUse a larger drum core or a smaller cable size
60 m/min ≤ 96 m/minWithin the rated travel speed
Minimum bending radius
110 mm
Min. drum core diameter
≈ 220 mm
Cable weight on drum
34.7 kg
Copper content
21.5 kg
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test2.0 kV (300/500 V) / 2.5 kV (450/750 V), 5 minEvery length
Conductor resistanceIEC 60228 / DIN VDE 0295 Class 5/6Every length
Sample tests
Flame propagationIEC 60332-1-2 / EN 60332-1-2Per batch
Cold bending & impactDIN EN 50214 / DIN VDE 0281-403 (-30 °C flexing / -40 °C fixed)Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN EN 50214CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KYFLY / H07VVH6-F 4G16 450/750 V DIN EN 50214 · CE · [year] · [metre mark]
Standard packing
500 m on wooden drums or cut-to-length festoon sets
HS code
8544.49

Technical documents

Downloads

PDFKYFLY Flat PVC Festoon Cable for Cranes & Hoists – technical datasheet50 sizes · construction, technical data, approvalsXLSXKYFLY spec data (Excel)All 50 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does KYFLY differ from standard H05VVH6-F and H07VVH6-F flat PVC cables?
Standard H05VVH6-F (300/500 V) and H07VVH6-F (450/750 V) to DIN EN 50214 are rated down to -5 °C or -25 °C in flexing service, whereas KYFLY uses a cold-flexible PVC formulation rated down to -30 °C flexing (-40 °C fixed) and includes multi-core bundled control constructions such as 5×4×0.5 BD and 8×7G0.5.
How is the minimum bending radius determined for KYFLY?
Flat festoon cables bend across their thin dimension (height H) in a single plane. The minimum flexing bending radius is 10 × H (for example, 110 mm for a 4G16 cable with H = 11.0 mm). Never bend a flat cable edgewise across its width W.
Can several KYFLY flat cables be stacked on the same festoon trolley saddle?
Yes. Flat PVC cables are commonly stacked in multi-layer packs on contoured trolley saddles. Place power cables on the outer layer for heat dissipation, apply DIN VDE 0298-4 grouping factors, and size the saddle radius to the thickest cable.
When should I upgrade from KYFLY to KYFLCY or NGFLGÖU?
Specify KYFLCY if the festoon pack runs near variable-frequency drive (VFD) motor leads or carries sensitive encoder/control signals requiring a copper braid EMC screen. Specify NGFLGÖU rubber flat cable for outdoor UV exposure, conductor temperatures up to +90 °C, or travel speeds above 120 m/min.
