Product

Basket spreader cableBased on DIN VDE 0250U0/U 0.6/1 kV18–48 × 2.5 + 6–18 FO

BSKT XPRT SYSLTOE FO Fiber-Optic Basket Spreader Cable0.6/1 kV PUR collector-basket spreader cable with 18–48 × 2.5 mm² & 6–18 FO

Hybrid 0.6/1 kV power, control and fibre-optic spreader cable for gravity-fed collector baskets (up to 160 m/min and 50 m vertical suspension), pairing Class FS 2.5 mm² copper cores with 6–18 optical fibres, lead-ballast aramid support and black PUR sheath.

Oil-resistant
Outdoor & humid
Water-resistant
Order designation
SYSLTOE-J FO 36 × 2.5 + 12 E9/125
Outer Ø ≈
39.8 mm
Net weight ≈
3,520 kg/km
Min. bend R
199 mm
Min. basket Ø
1,194 mm
All sizes (24)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
max 1.2 kV AC · 3.5 kV test
Hoist speed
≤ 160 m/min
gravity-fed collector basket
Suspension
≤ 50 m (SF 5)
central aramid/lead ballast
Temperature
−40…+80 °C flex
−50…+80 °C fixed · +90 °C cond.
Optical fibres
6, 12 or 18 FO
E9/125 · G50/125 · G62.5/125
Sizes
24
18 × 2.5 to 48 × 2.5 mm² + FO

Typical values for this cable type, based on DIN VDE 0250 — confirmed in the datasheet and quotation for your order.

Application fit

Is BSKT XPRT SYSLTOE FO right for your machine?

Hybrid power, control and optical-fibre gravity collector basket cable for high-speed STS ship-to-shore container crane spreaders.

Spreader gravity collector basket

Suitable

Primary duty — central aramid strain member and anti-kink sheath coil smoothly into STS spreader baskets up to 160 m/min.

Free-hanging vertical run

Suitable

Self-supporting vertical suspension from trolley funnel to spreader headblock over long hoist drops.

Vertical / spreader reel

Not suitable

Designed for free-coiling gravity baskets, not motorised spring or torque spreader reels.

Use XTRM N-SHT11Y Spreader

Festoon & line chain

Not suitable

Basket-optimised lay length and optical core buffer are not intended for festoon trolleys.

Use FESTOON-PUR-FO

Energy chain / drag chain

Not suitable

Not rated for repetitive tight-radius bending inside drag chains.

Use (N)12YRD11Y PUR Chain
Typical machinesShip-to-shore (STS) container crane gravity collector basketsAutomated stacking cranes (ASC), RMG & RTG spreadersCamera-, LiDAR- and PLC-equipped twin-lift spreadersHarbour & intermodal container terminals (down to −40 °C)

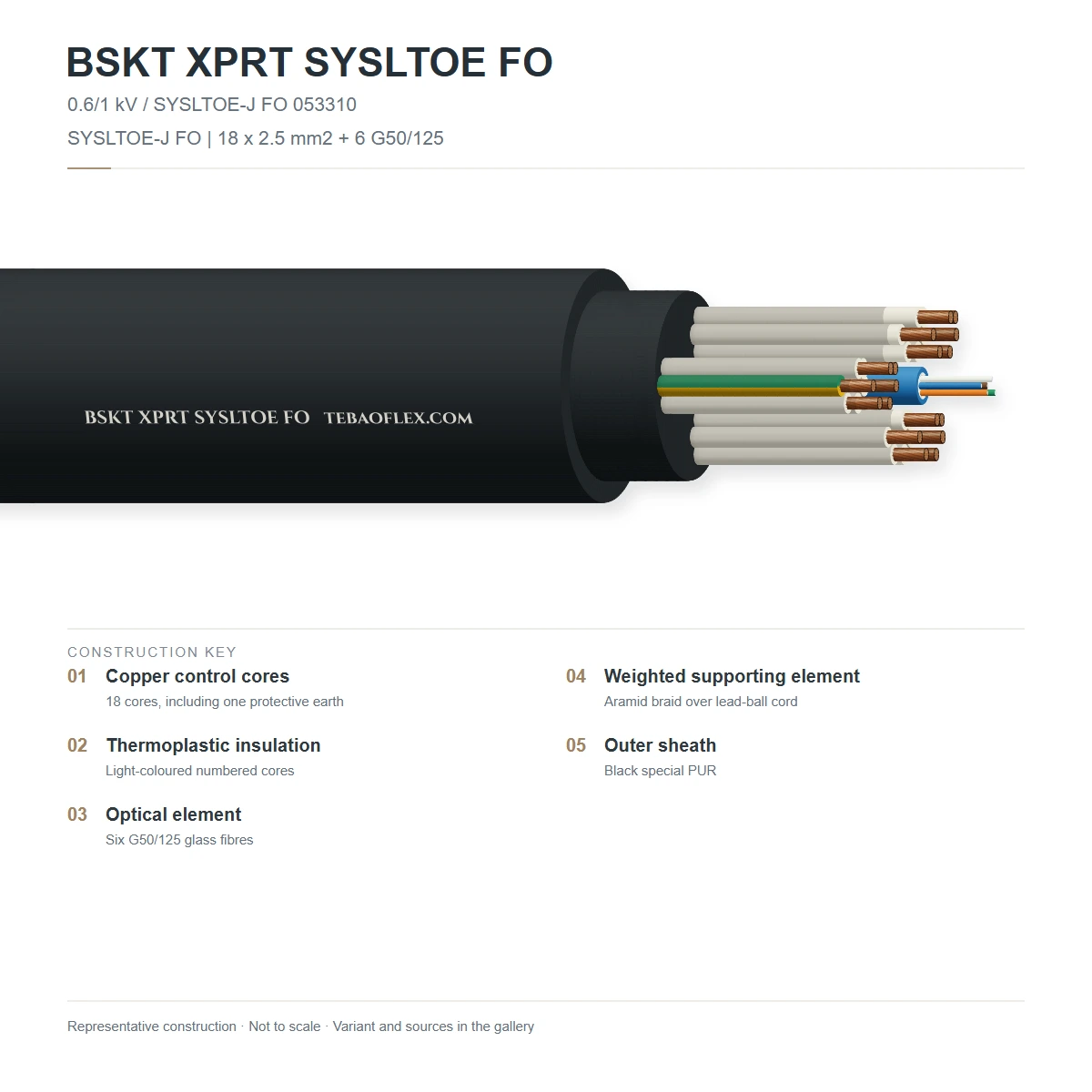

Construction

Layer by layer

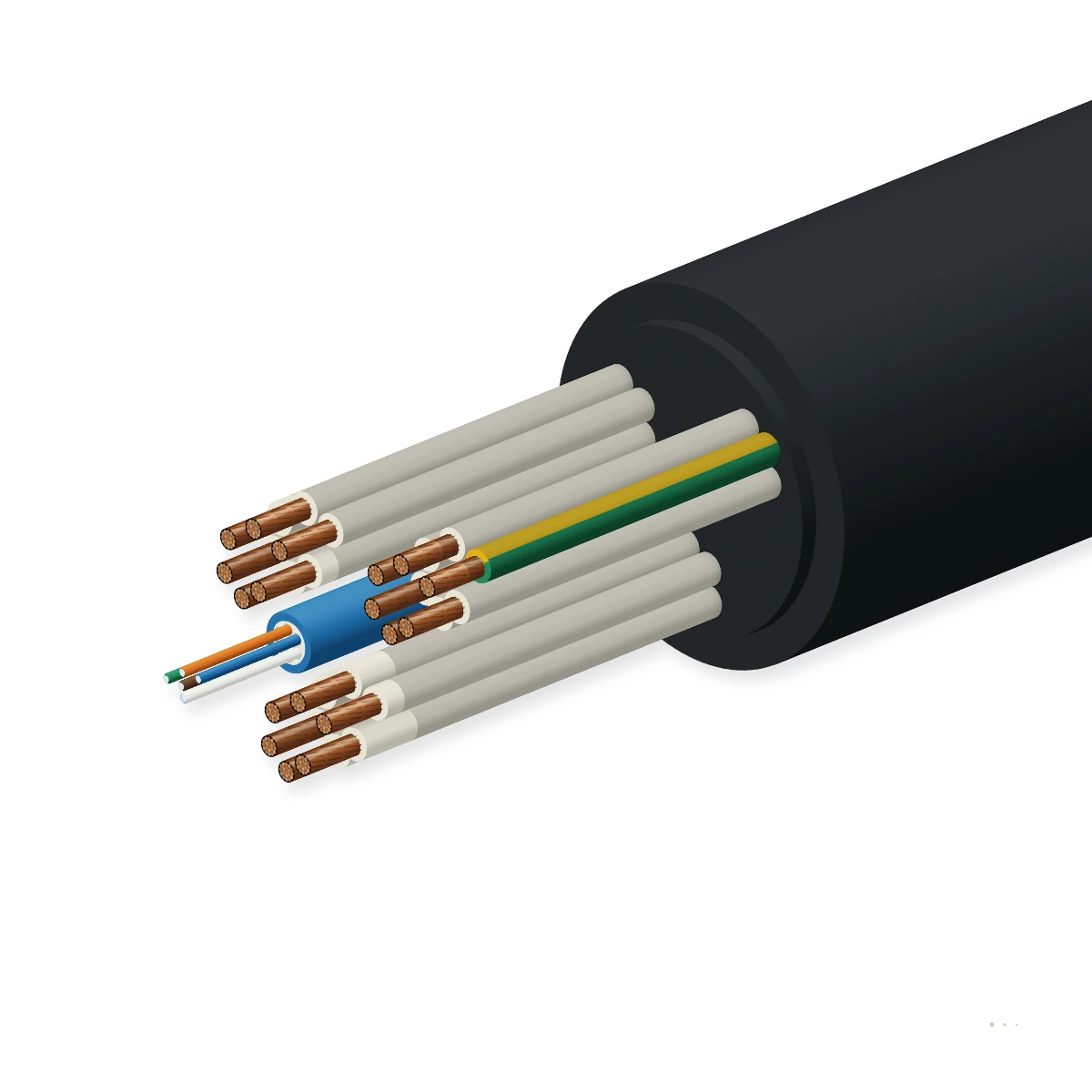

Shown: BSKT XPRT SYSLTOE FO hybrid collector-basket construction with Class FS 2.5 mm² bare copper cores, thermoplastic core insulation, buffered E9/125 or G50/G62.5 optical fibre elements, central aramid-braided lead-ball ballast cord and black PUR outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Extra-fine flexible power conductorBare electrolytic copper, exceptionally finely stranded Class FS (2.5 mm²)DIN VDE 0295 / IEC 60228 extra-fine stranding · R20 ≤ 7.98 Ω/km
2Core insulationHigh-strength cold-flexible thermoplastic / elastomer compoundBlack cores with printed white numbers + 1 green/yellow PE conductor (-J)
3Integrated optical fibre elements6, 12 or 18 buffered optical fibres (E9/125 µm SM, G50/125 µm MM or G62.5/125 µm MM) in protective tubesLaid into the bundle assembly for EMI-immune camera, telemetry and PLC optical links
4Central ballast & aramid suspension coreAramid-fibre braid woven around lead ball cords (aramid-reinforced filler on 48 × 2.5 mm²)Supports up to 50 m vertical hanging weight (safety factor 5) and ensures clean counter-clockwise basket coiling
5Outer sheathHeavy-duty polyurethane (PUR), blackEN 60811-404 oil-resistant · UV, ozone, moisture and abrasion resistant

SYSLTOE-J FO + E9/125 (Single-Mode)

18, 24, 30, 36, 42 or 48 × 2.5 mm² power cores + 6, 12 or 18 × E9/125 µm OS2 single-mode fibres

SYSLTOE-J FO + G50/125 (Multimode 50 µm)

18, 24, 30, 36, 42 or 48 × 2.5 mm² power cores + 6, 12 or 18 × G50/125 µm graded-index multimode fibres

SYSLTOE-J FO + G62.5/125 (Multimode 62.5 µm)

18, 24, 30, 36, 42 or 48 × 2.5 mm² power cores + 6, 12 or 18 × G62.5/125 µm graded-index multimode fibres

Types in this range

9/125 µm Single-Mode · 6–18 FO · 0.6/1 kVSYSLTOE-J FO · E9/125 Single-Mode

18 to 48 × 2.5 mm² Class FS power/control cores + 6, 12 or 18 single-mode 9/125 µm optical fibres

Long-reach Gigabit Ethernet, HD video and spreader telemetry in STS crane collector baskets

Datasheet
50/125 µm Multimode · 6–18 FO · 0.6/1 kVSYSLTOE-J FO · G50/125 Multimode

18 to 48 × 2.5 mm² Class FS power/control cores + 6, 12 or 18 graded-index 50/125 µm multimode fibres

High-bandwidth industrial Ethernet and Profinet optical links on automated container spreaders

Datasheet
62.5/125 µm Multimode · 6–18 FO · 0.6/1 kVSYSLTOE-J FO · G62.5/125 Multimode

18 to 48 × 2.5 mm² Class FS power/control cores + 6, 12 or 18 graded-index 62.5/125 µm multimode fibres

OM1 multimode optical fieldbus and legacy crane spreader automation networks

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV
Max. operating voltage
1.2 kV AC in three-phase systems (0.7/1.2 kV AC · 0.9/1.8 kV DC)
AC test voltage
3.5 kV AC (5 min)
Power core electrical data (2.5 mm²)
R20 ≤ 7.98 Ω/km · Ampacity 30 A at 30 °C (VDE 0298-4) · 1 s Isc 0.36 kA
Integrated optical fibre options
6, 12 or 18 fibres: E9/125 µm single-mode (OS2), G50/125 µm multimode (OM2/OM3) or G62.5/125 µm multimode (OM1)

Thermal

Ambient temperature, flexing
−40 to +80 °C
Ambient temperature, fixed
−50 to +80 °C
Max. conductor temperature
+90 °C continuous · +250 °C short-circuit

Mechanical

Self-supporting ballast element
Aramid-fibre braid woven around central lead ball cords (safety factor 5 at up to 50 m vertical suspension)
Operating speed & conductor tensile limit
Up to 160 m/min hoist speed · max. 15 N/mm² at copper conductors
Collector basket & bending geometry
Free-moving bend radius 161–243 mm (~5 × D per DIN VDE 0298-3); min. basket Ø 30 × D, basket height ≈ 45 × D, CCW lay

Resistance

Oil resistance
DIN EN 60811-404
Weather, UV & ozone
Resistant to ozone, UV radiation and moisture for indoor and outdoor port cranes
Low-temperature operation
Cold-resistant down to −40 °C in dynamic basket operation and −50 °C fixed

Reference standards

Cable design & operation
Based on DIN VDE 0250 · DIN VDE 0298-3 (bending) · DIN VDE 0298-4 (ampacity) · EN 60811-404
Conductor & compounds
Class FS extra-fine bare Cu · Thermoplastic/TPE-E core insulation · Black PUR outer sheath

Identification

Core identification
Black numbered cores + green/yellow protective-earth core (-J)
Sheath colour
Black
Customs tariff (HS)
8544.49

Sizes

24 hybrid power + fibre-optic configurations

Filter by optical fibre type (E9/125 Single-Mode, G50/125 Multimode, or G62.5/125 Multimode). All power cores are 2.5 mm² Class FS (R20 = 7.98 Ω/km, Ibl = 30 A, Ik = 0.36 kA).

Configurations, dimensions & weights
ConfigurationPower cores
n × mm²		Optical fibres
count × type		Outer Ø ≈
mm		Min. bend R
mm (~5×D)		Min. basket Ø
mm (30×D)		Copper wt
kg/km		Net weight ≈
kg/km		Current
A (30 °C)		Enquiry
E9/125 Single-Mode · 6–18 FO
SYSLTOE-J FO 18 × 2.5 + 6 E9/12518 × 2.56 × E9/125 (SM)32.11619634321,70030
SYSLTOE-J FO 24 × 2.5 + 12 E9/12524 × 2.512 × E9/125 (SM)34.11711,0235762,17530
SYSLTOE-J FO 30 × 2.5 + 6 E9/12530 × 2.56 × E9/125 (SM)37.51881,1257202,72430
SYSLTOE-J FO 36 × 2.5 + 6 E9/12536 × 2.56 × E9/125 (SM)39.81991,1948643,51930
SYSLTOE-J FO 36 × 2.5 + 12 E9/12536 × 2.512 × E9/125 (SM)39.81991,1948643,52030
SYSLTOE-J FO 42 × 2.5 + 12 E9/12542 × 2.512 × E9/125 (SM)44.32221,3291,0084,08730
SYSLTOE-J FO 48 × 2.5 + 12 E9/12548 × 2.512 × E9/125 (SM)48.52431,4551,1523,93730
SYSLTOE-J FO 48 × 2.5 + 18 E9/12548 × 2.518 × E9/125 (SM)48.52431,4551,1523,93830
G50/125 Multimode · 6–18 FO
SYSLTOE-J FO 18 × 2.5 + 6 G50/12518 × 2.56 × G50/125 (MM)32.11619634321,67330
SYSLTOE-J FO 24 × 2.5 + 12 G50/12524 × 2.512 × G50/125 (MM)34.11711,0235762,17530
SYSLTOE-J FO 30 × 2.5 + 6 G50/12530 × 2.56 × G50/125 (MM)37.51881,1257202,72430
SYSLTOE-J FO 36 × 2.5 + 6 G50/12536 × 2.56 × G50/125 (MM)39.81991,1948643,51930
SYSLTOE-J FO 36 × 2.5 + 12 G50/12536 × 2.512 × G50/125 (MM)39.81991,1948643,52030
SYSLTOE-J FO 42 × 2.5 + 12 G50/12542 × 2.512 × G50/125 (MM)44.32221,3291,0084,08730
SYSLTOE-J FO 48 × 2.5 + 12 G50/12548 × 2.512 × G50/125 (MM)48.52431,4551,1523,93730
SYSLTOE-J FO 48 × 2.5 + 18 G50/12548 × 2.518 × G50/125 (MM)48.52431,4551,1523,93830
G62.5/125 Multimode · 6–18 FO
SYSLTOE-J FO 18 × 2.5 + 6 G62.5/12518 × 2.56 × G62.5/125 (MM)32.11619634321,70030
SYSLTOE-J FO 24 × 2.5 + 12 G62.5/12524 × 2.512 × G62.5/125 (MM)34.11711,0235762,17530
SYSLTOE-J FO 30 × 2.5 + 6 G62.5/12530 × 2.56 × G62.5/125 (MM)37.51881,1257202,72430
SYSLTOE-J FO 36 × 2.5 + 6 G62.5/12536 × 2.56 × G62.5/125 (MM)39.81991,1948643,51930
SYSLTOE-J FO 36 × 2.5 + 12 G62.5/12536 × 2.512 × G62.5/125 (MM)39.81991,1948643,52030
SYSLTOE-J FO 42 × 2.5 + 12 G62.5/12542 × 2.512 × G62.5/125 (MM)44.32221,3291,0084,08730
SYSLTOE-J FO 48 × 2.5 + 12 G62.5/12548 × 2.512 × G62.5/125 (MM)48.52431,4551,1523,93730
SYSLTOE-J FO 48 × 2.5 + 18 G62.5/12548 × 2.518 × G62.5/125 (MM)48.52431,4551,1523,93830
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All 24 configurations carry 2.5 mm² Class FS bare copper power/control cores with max. DC resistance R20 = 7.98 Ω/km, nominal single-circuit current rating 30 A in air at 30 °C (DIN VDE 0298-4; apply multicore grouping conversion factor for simultaneously loaded cores), and 1 s short-circuit rating 0.36 kA.
  • Free-moving cable bend radius rmin is ~5 × D (161–243 mm per DIN VDE 0298-3); minimum collector-basket diameter is 30 × D (963–1,455 mm) and approximate basket height is 45 × D.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test3.5 kV AC for 5 minutesEvery manufactured length
Conductor DC resistance & OTDR optical continuityR20 ≤ 7.98 Ω/km (2.5 mm²) + optical attenuation verification on all 6–18 fibresEvery manufactured length
Sample tests
PUR outer sheath mineral oil resistanceDIN EN 60811-404Compound qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Based on DIN VDE 0250CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BSKT XPRT SYSLTOE-J FO [cores × 2.5 + fibres] 0.6/1 kV · [year] · [metre mark]
Delivery form
Custom spreader cut lengths (up to 50 m vertical drop + routing allowance) or bulk drums
Packaging
Heat-treated seaworthy timber drums with waterproof end caps

Technical documents

Downloads

PDFBSKT XPRT SYSLTOE FO Fiber-Optic Basket Spreader Cable – technical datasheet24 sizes · construction, technical data, approvalsXLSXBSKT XPRT SYSLTOE FO spec data (Excel)All 24 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do I choose between E9/125, G50/125 and G62.5/125 optical fibres in BSKT XPRT SYSLTOE FO?
All six power-core counts (18×2.5, 24×2.5, 30×2.5, 36×2.5, 42×2.5 and 48×2.5 mm²) are available with three optical fibre types: E9/125 is 9/125 µm single-mode fibre (OS2, 1310/1550 nm) for long-reach Gigabit Ethernet, HD video and high-bandwidth crane-to-shore telemetry; G50/125 is 50/125 µm graded-index multimode fibre (OM2/OM3, 850/1300 nm) for high-speed industrial Ethernet and Profinet optical switches; and G62.5/125 is 62.5/125 µm graded-index multimode fibre (OM1) for legacy optical fieldbus modules.
Why does the summary sheet list '45 × D' under moving bending radius, and what are the actual basket dimensions?
In the underlying SPREADERFLEX collector-basket engineering specification, 45 × D is the recommended collector-basket height (with a minimum basket diameter of 30 × D), whereas the cable's free-moving minimum bending radius per DIN VDE 0298-3 is ~5 × D (161 mm for 18×2.5 up to 243 mm for 48×2.5). Adistributor summary sheet mistranscribed the 45 × D basket-height figure onto the moving bend radius line. Design your collector basket for Ø ≥ 30 × D, height ≈ 45 × D, counter-clockwise coiling, and deflector/entry bell radii ≥ 5 × D (or ≥ 10 × D for guided deflection).
Why does 48 × 2.5 mm² weigh slightly less (3,937 kg/km) than 42 × 2.5 mm² (4,087 kg/km)?
Sizes from 18 × 2.5 mm² to 42 × 2.5 mm² incorporate a central lead-ball ballast cord wrapped with aramid threads so the cable has enough linear mass to drop and coil cleanly into the gravity-fed basket at up to 160 m/min. At 48 × 2.5 mm² (1,152 kg/km of copper alone), the copper bundle provides sufficient self-weight for gravity coiling, so the central element switches from lead ball cords to a lighter aramid-reinforced elastomer filler.
Is BSKT XPRT SYSLTOE FO electrically screened like 3GSLTOE?
No. BSKT XPRT SYSLTOE FO uses unscreened 2.5 mm² power/control cores (plus a green/yellow protective-earth core) and relies on its 6, 12 or 18 dielectric optical fibres for completely EMI-immune data, camera and PLC communication. If your spreader also requires tinned-copper braid EMC screening over copper control cores or copper fieldbus pairs, select 3GSLTOE.
