Mining trailing & reeling cablesICEA S-75-381 / CSA C22.2 No. 96600–2,000 V · 2P+G+CtrlMast Loop & Power Track

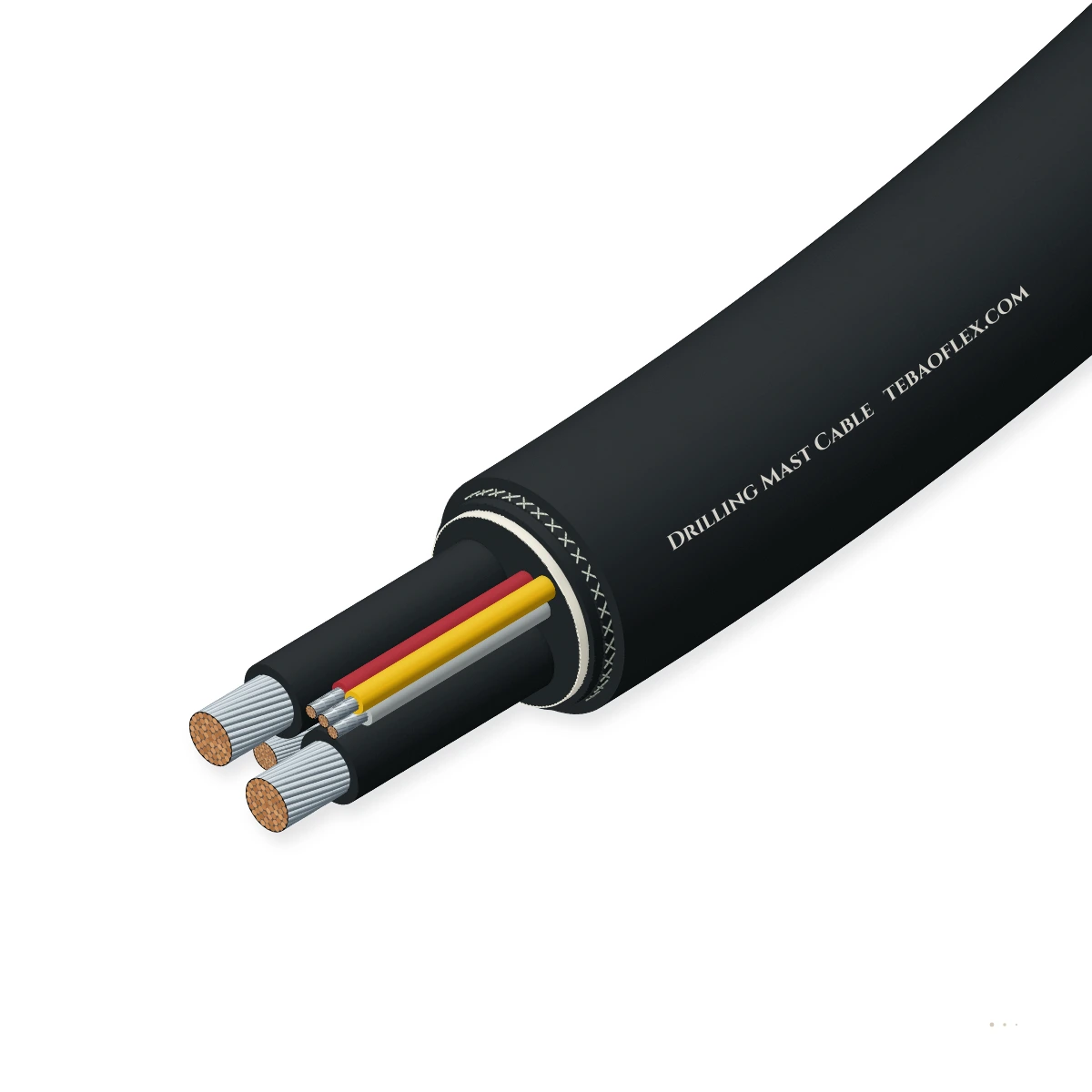

Drilling Mast Cable (600–2,000 V · 2/C + Control + Ground)Two-conductor 600–2,000 V EPR/CPE hybrid power & control cable for blasthole drill masts

Heavy-duty 600–2,000 V two-conductor drilling mast cable to ICEA S-75-381 & CSA C22.2 No. 96 with rope-lay tinned copper power cores (1/0 AWG–500 kcmil), custom control bundle, ground wire and braid-reinforced jacket.

Flame-retardant
Oil-resistant
Water-resistant
Order designation
Drilling Mast · 2 × 4/0 AWG
Strands / core
532 strands
Nominal OD
48.8 mm
Mass ≈
5,176 kg/km
Ampacity (40 °C)
328 A
Check against my drumAll sizes (7)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600–2,000 V
DC or AC rotary drill drives
Core arrangement
2P + G + Ctrl
2 power + ground + control
Power sizes
1/0–500 kcmil
7 sizes · 266–1,221 strands
Ampacity (40 °C)
217–524 A
90 °C EPR in free air
Max. conductor T
+90 °C
−40 °C arctic cold-bend
Min. bend radius
6 × OD
Mast loops & power tracks

Typical values for this cable type, based on ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96 — confirmed in the datasheet and quotation for your order.

Application fit

Is Drilling Mast 600–2000 V right for your machine?

Cold-flexible, oil- and mud-resistant top-drive service loop and rotary mast cable for onshore/offshore oilfield drilling derricks and blast-hole drills.

Drilling jumbo & rotary mast feed

Suitable

Primary duty — vertical service loop travelling with the top-drive carriage along the drilling derrick mast.

Free-hanging vertical run

Suitable

Supports long suspended loop lengths under continuous wind, vibration and mud spray.

Energy chain / drag chain

Suitable

Compatible with mast-mounted drag chains and guided catenary loops on modern rigs.

Festoon & line chain

Suitable

Rig floor to substructure festoon and cantilever loop systems.

Motorised monospiral reel

Not suitable

Optimised for mast service loops and catenaries, not high-speed rail gantry reels.

Use (N)SHTÖU Reeling
Typical machinesRotary blasthole drill mastsTop-head drive vertical loopsDrill mast cable carriers & tracksDragline & shovel boom festoonsMobile crusher & stacker loopsArctic & open-pit surface mines

Construction

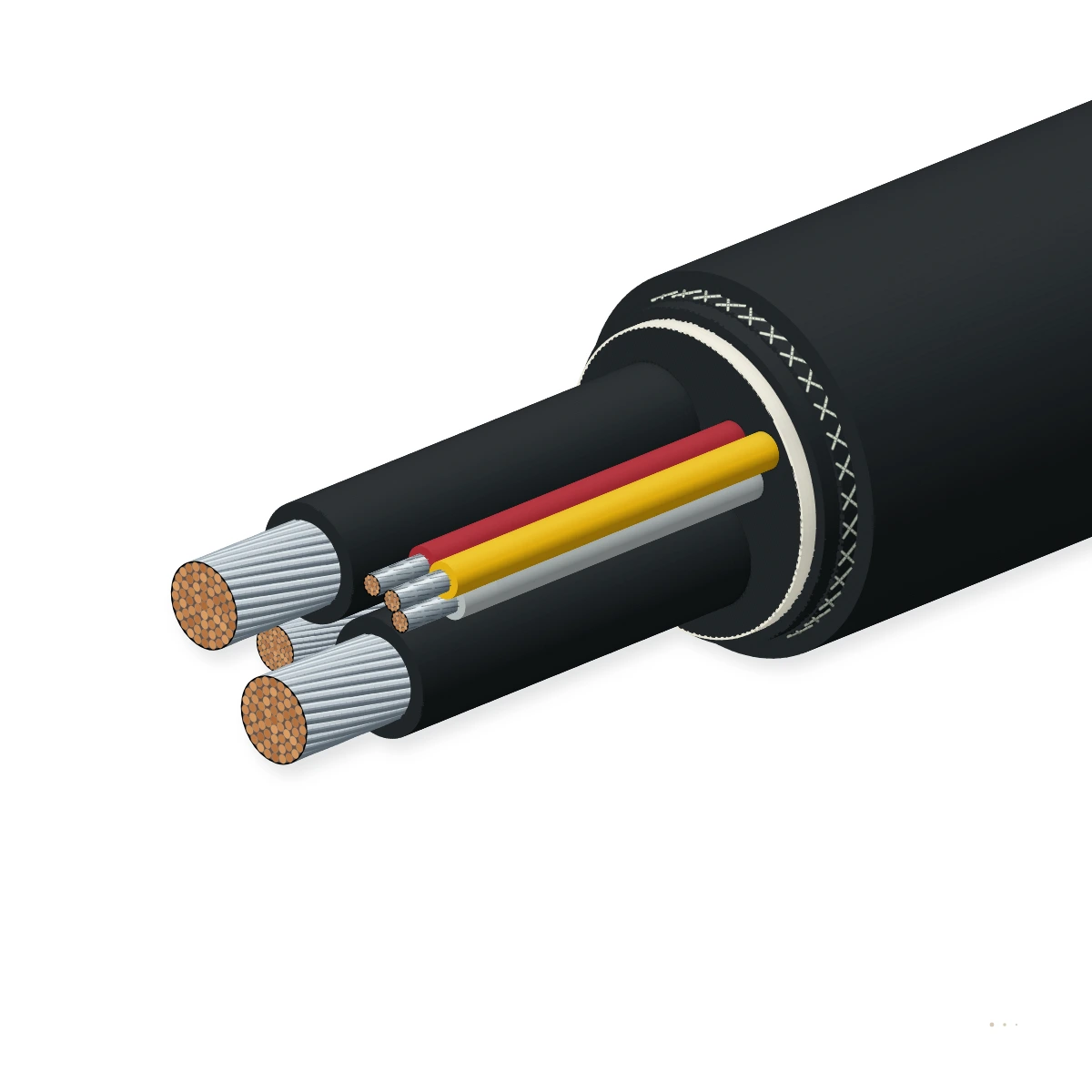

Layer by layer

Two rope-lay tinned copper power conductors (1/0 AWG to 500 kcmil, Black and White 90 °C EPR insulation) are cabled together with a flexible tinned copper grounding conductor and a customer-specified control-wire group in the interstices, wrapped in non-conducting tape, reinforced by an open-weave polypropylene braid and vulcanized inside a two-layer thermoset jacket.

123456

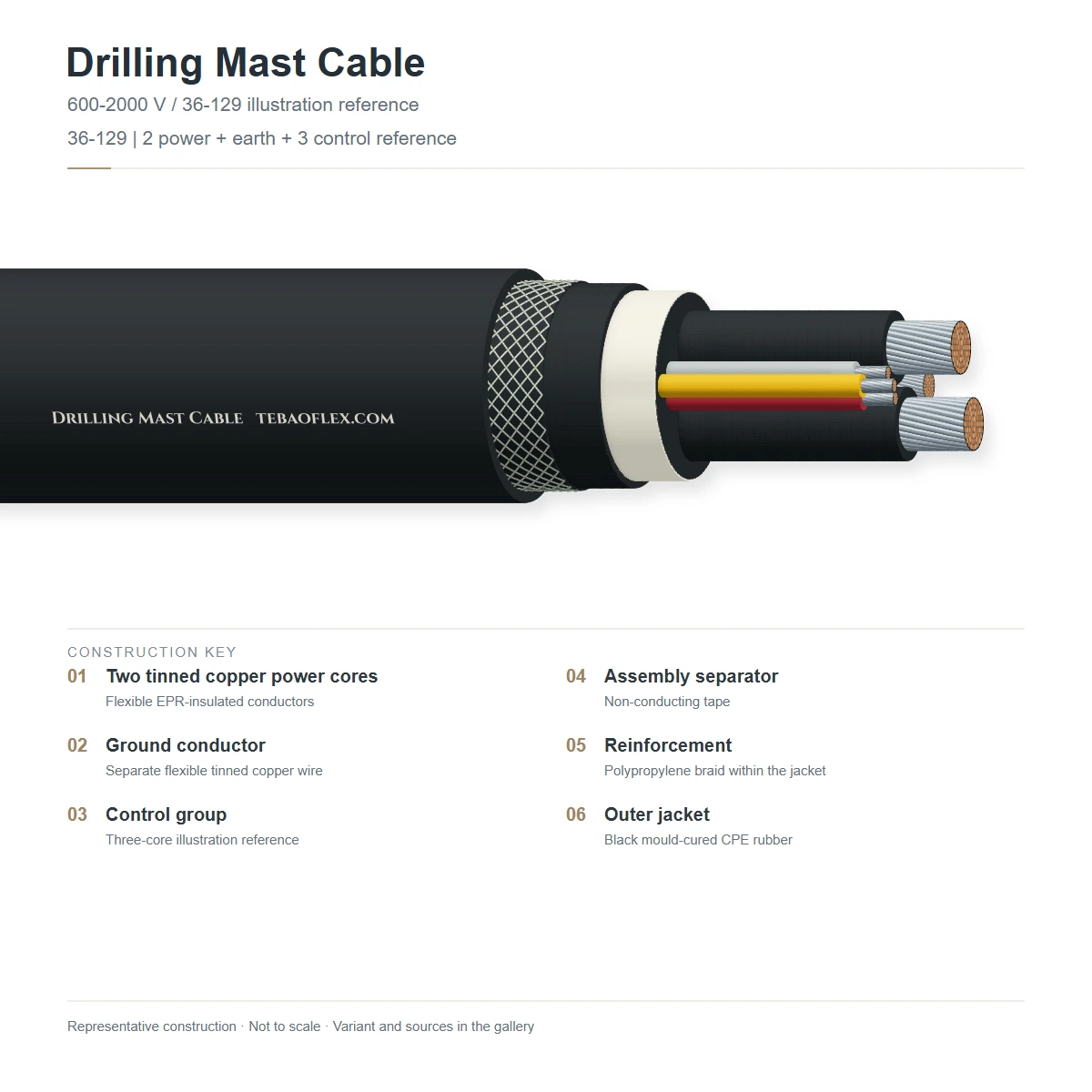

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Power conductors (2)Extra-flexible rope-lay stranded annealed tinned copper per ASTM B172 & B33 (266 to 1,221 strands)ASTM B172 & ASTM B33
2Power core insulation90 °C Ethylene Propylene Rubber (EPR), 2,000 V grade (2.03 mm to 2.41 mm wall), Black & WhiteICEA S-75-381 / CSA C22.2 No. 96
3Grounding & custom control groupFlexible stranded tinned copper ground conductor + customer-specified multi-core EPR control bundle in intersticesHybrid power + control
4Core binder tapeNon-conducting separator tape over cabled power, ground and control assemblyCore geometry stabilization
5Anti-stretch reinforcing braidHigh-strength open-weave polypropylene reinforcing braid embedded between inner and outer jacket layersVertical mast suspension lock
6Reinforced outer jacketTwo-layer mold-cured thermoset chlorinated polyethylene (CPE) / heavy-duty rubber jacket, blackMSHA · ICEA S-75-381 · CSA FT4

2 Power + Ground + Custom Control Bundle

2 × (1/0 AWG to 500 kcmil) power cores + 1 ground + user-specified control core count/gauge (e.g., 4 to 12 × 14/16 AWG)

2 Power + Ground Only (No Control Cores)

Dedicated 2-conductor + ground mast power feeder when encoder and control lines run in a separate carrier compartment

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V to 2,000 V AC/DC (rotary drill DC/VFD top-head drives, pulldown hoists and mast power loops)
Ampacity range (40 °C)
217 to 524 A (90 °C conductor temperature, 40 °C ambient in free air)
Hybrid control & ground cores
2 power cores + 1 flexible tinned copper ground + customer-specified control wire bundle

Thermal

Max. continuous conductor temp.
+90 °C (EPR thermoset insulation)
Ambient operating range
−40 °C to +90 °C (arctic surface-mine cold-bend rated)
Emergency overload & short-circuit
+130 °C overload · +250 °C short-circuit (ICEA EPR rating)

Mechanical

Min. bending radius
6 × OD (continuous mast flexing, hanging loops and power tracks)
Conductor stranding
Extra-flexible rope-lay stranded annealed tinned copper (266 to 1,221 strands) per ASTM B172 & B33
Reinforcement & outer jacket
Non-conducting tape + polypropylene reinforcing braid + reinforced mold-cured thermoset CPE/rubber jacket

Resistance

Flame retardance
MSHA 30 CFR Part 7 flame resistance · CSA C22.2 No. 96 FT4
Vibration, whip & rock impact
Reinforced two-layer thermoset jacket with internal polypropylene braid prevents jacket creep on vertical drill masts
Oil, sunlight & drill cuttings
Resistant to hydraulic oil, rock-drill thread grease, UV sunlight, ozone and wet drill cuttings

Reference standards

Construction standard
ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96
Conductor standard
ASTM B172 & ASTM B33 extra-flexible tinned copper
Manufacturing tolerance
±5 % on nominal outside diameter

Identification

Power core colours
Power (2): Black, White · Ground: Green or uninsulated tinned · Control cores: colour/number coded
Outer jacket
Black reinforced mold-cured thermoset CPE/rubber (high-visibility colours optional)

Sizes

7 standard power sizes from 1/0 AWG to 500 kcmil (600–2,000 V · 2/C + Ground + Control)

Dimensions, strand counts, weights and 40 °C free-air ampacities per ICEA S-75-381 / NEMA WC 58 and TEBAOFLEX datasheet.

Sizes & dimensions · 2/C Drilling Mast
Power cores
2 × AWG/kcmil		Power stranding
No. strands		Control & ground
configuration		Insul. wall
in		Insul. wall
mm		Nominal OD
in		Nominal OD
mm		Weight ≈
lb/kft		Mass ≈
kg/km		Ampacity
A (40 °C)		Enquiry
Drilling Mast · 2 × 1/0 AWG266Custom + 1G0.0802.031.5238.61,7802,649217
Drilling Mast · 2 × 2/0 AWG323Custom + 1G0.0802.031.6541.92,4253,609250
Drilling Mast · 2 × 3/0 AWG418Custom + 1G0.0802.031.7745.02,8724,274286
Drilling Mast · 2 × 4/0 AWG532Custom + 1G0.0802.031.9248.83,4785,176328
Drilling Mast · 2 × 250 kcmil627Custom + 1G0.0952.412.1053.34,1556,183363
Drilling Mast · 2 × 350 kcmil888Custom + 1G0.0952.412.3659.95,4838,160436
Drilling Mast · 2 × 500 kcmil1,221Custom + 1G0.0952.412.7068.67,24910,788524
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Ampacity based on 90 °C conductor temperature and 40 °C ambient air per ICEA S-75-381.
  • Number and AWG size of interstitial control wires are built to customer specification to match the rotary drill mast junction box.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 586 mm
Minimum bending radius
293 mm
Min. drum core diameter
≈ 586 mm
Cable weight on drum
517.6 kg
Outer diameter
48.8 mm
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
In-line spark & high-voltage AC dielectric test100 % spark test and routine AC withstand test for 2,000 V class per ICEA S-75-381 and CSA C22.2 No. 96Every shipping length
Power, ground & control core continuity / DC resistanceVerified on both power cores, grounding conductor and all customer-specified control wiresEvery shipping length
Sample tests
Vertical flame & cold-bend testFlame resistance per MSHA 30 CFR Part 7 / CSA FT4 and −40 °C cold-bend flexibilityProduction batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ICEA S-75-381 / CSA C22.2 No. 96CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · DRILLING MAST CABLE · 600-2000V · 90C · 2/C [SIZE] + G + CTRL · EPR/CPE · ICEA S-75-381 · CSA · P-MSHA
Delivery form
Export wooden reels or cut-to-length mast loop assemblies
Custom control group
Control wire count and AWG size manufactured to match OEM drill mast schematic
Certificate
EN 10204 3.1 factory inspection certificate per reel
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

PDFDrilling Mast Cable (600–2,000 V · 2/C + Control + Ground) – technical datasheet7 sizes · construction, technical data, approvalsXLSXDrilling Mast 600–2000 V spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does Drilling Mast Cable use two power conductors plus a custom control bundle?
Surface mining blasthole drills and rotary top-head drives often use DC motors or two-pole high-current feeders along the vertical mast, while also requiring limit-switch, tachometer and solenoid control signals. Combining the two power conductors, ground wire and control bundle into one round braid-reinforced cable eliminates tangled multi-cable festoons on the mast.
How does the internal polypropylene braid prevent failure in vertical mast loops?
In a suspended mast loop or vertical power track, gravity and continuous up-and-down carriage travel pull downward on the outer sheath. The open-weave polypropylene reinforcing braid vulcanized between the inner and outer jacket layers locks the sheath mechanically to prevent jacket creep and corkscrewing.
Why is the insulation rated for 600–2,000 V?
A full 2,000 V 90 °C EPR insulation wall (0.080 in / 2.03 mm on 1/0–4/0 AWG and 0.095 in / 2.41 mm on 250–500 kcmil) provides extra dielectric margin against DC thyristor or IGBT drive voltage spikes and heavy mechanical pinch loads inside mast carriers.
How do I specify the control wires when ordering?
State the power conductor size (1/0 AWG to 500 kcmil) and the required number and AWG gauge of interstitial control conductors (for example, 4 × 14 AWG or 8 × 16 AWG) or provide the OEM drill model and mast harness drawing.

Request a quote

Get an engineering quote for Drilling Mast 600–2000 V

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

Drilling Mast Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
Send via WhatsApp
