Thermoset Cross-Linked Elastomer Portable CordsUL 62 / CSA C22.2600 VWeather & Oil 'W/OW'

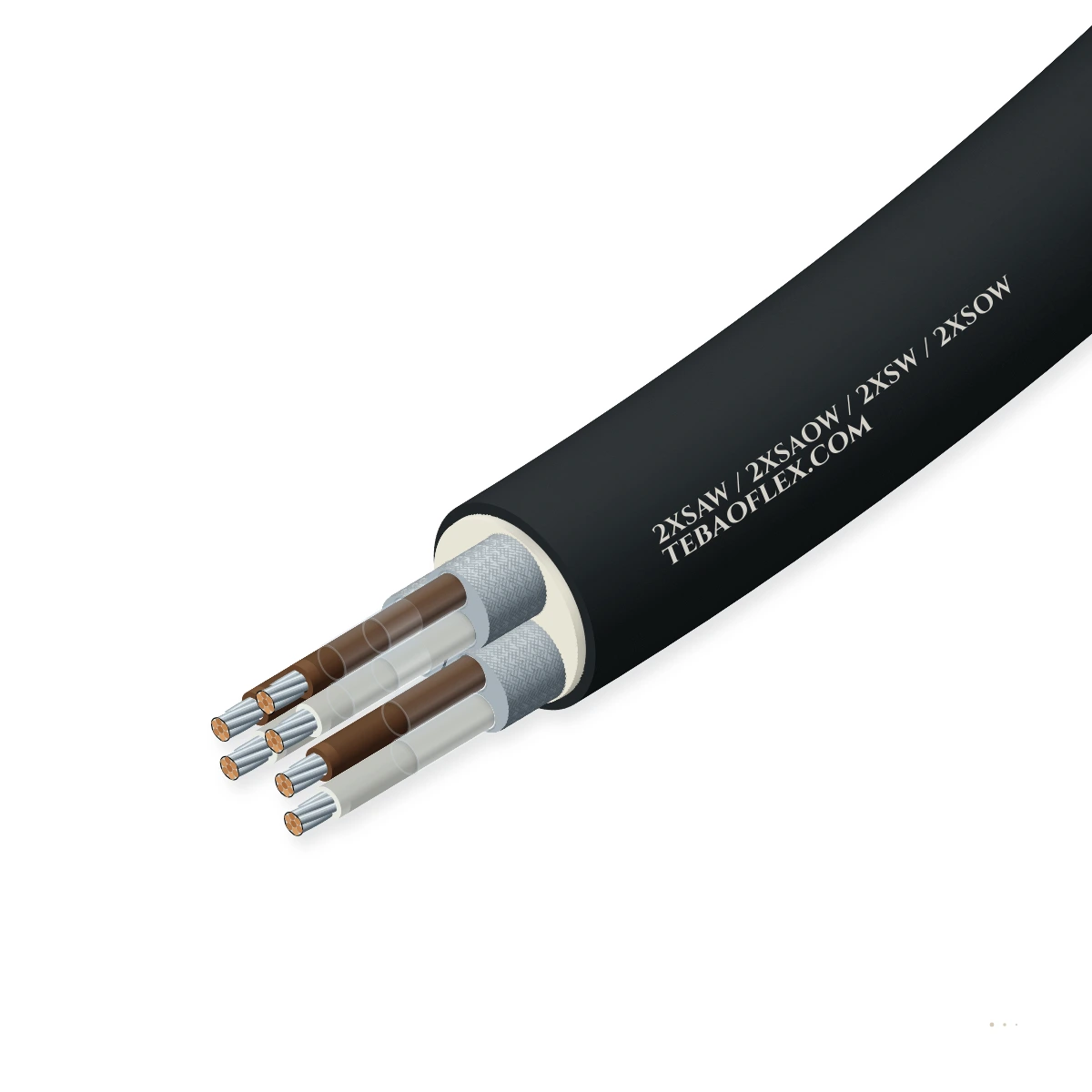

2XSAW / 2XSAOW / 2XSW / 2XSOW Heavy-Duty Portable CordUL 62 / CSA C22.2 No. 49 · 600 V · +90 °C XL-EPR · Weather/water ('W') & oil ('O')

2XSAW, 2XSAOW, 2XSW, and 2XSOW are 600 V heavy-duty outdoor and industrial portable cords built with +90 °C cross-linked elastomer ('XS') insulation and weather/water-resistant ('W') thermoset jacketing. The 'O' variants (2XSAOW, 2XSOW) add oil-resistant

Oil-resistant
Ozone, UV & moisture
Water-resistant
Flame-retardant
Order designation
2XSOW 4×4.0 (12 AWG)
Outer Ø ≈
16.8 mm
Copper weight
154 kg/km
Total weight ≈
384 kg/km
Min. bend R (fixed)
84 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V AC
Outdoor & wet industrial cord
Conductor max.
+90 °C
Wet or dry continuous operation
Cold-flex rating
-40 / -50 °C
-40 °C (2XSOW) · -50 °C (2XSAOW)
Min. bend R
5 × D / 8 × D
Fixed installation / mobile flexing
Weather & water
UL/CSA 'W' rated
Sunlight, rain & wet immersion
Oil resistance
'O' / 'AO' grade
Oil-resistant jacket & insulation

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / ICEA S-75-381 — confirmed in the datasheet and quotation for your order.

Application fit

Is 2XSAW / 2XSAOW / 2XSW / 2XSOW right for your machine?

Engineered for outdoor construction equipment, industrial washdown bays, portable pumps, crane festoons, and cold-climate oilfield and mining service cords.

Trailing & towing

Suitable

Durable outdoor trailing cord for mobile compressors, generators, and washdown equipment.

Motorised monospiral reel

Suitable

High recovery elasticity for outdoor spring-driven and motorized industrial cord reels.

Festoon & line chain

Suitable

Suitable for C-track and I-beam crane festoon loops in indoor and outdoor yards.

Immersion & wet locations

Suitable

UL/CSA 'W' weather and water rating allows continuous wet-location and sump operation.

Self-supporting pendant & push-button drop

Suitable

Arctic 2XSAW / 2XSAOW grades stay supple down to -50 °C on outdoor crane pendants.

Typical machinesOutdoor Construction & Rental PowerOilfield & Cold-Climate Rig ServiceFood & Beverage Washdown PlantsPort & Shipyard Portable ToolsMobile Dewatering & Sump Pumps

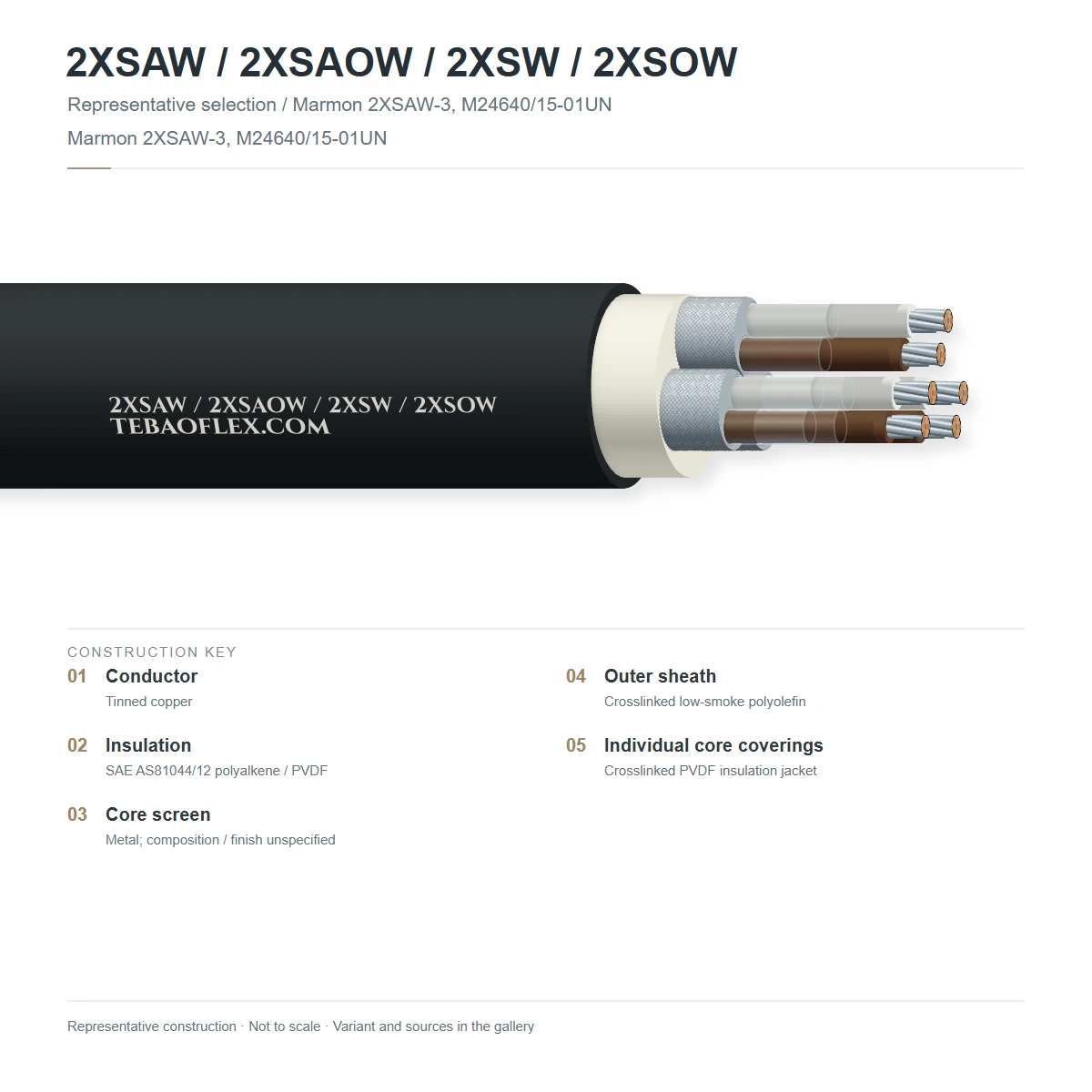

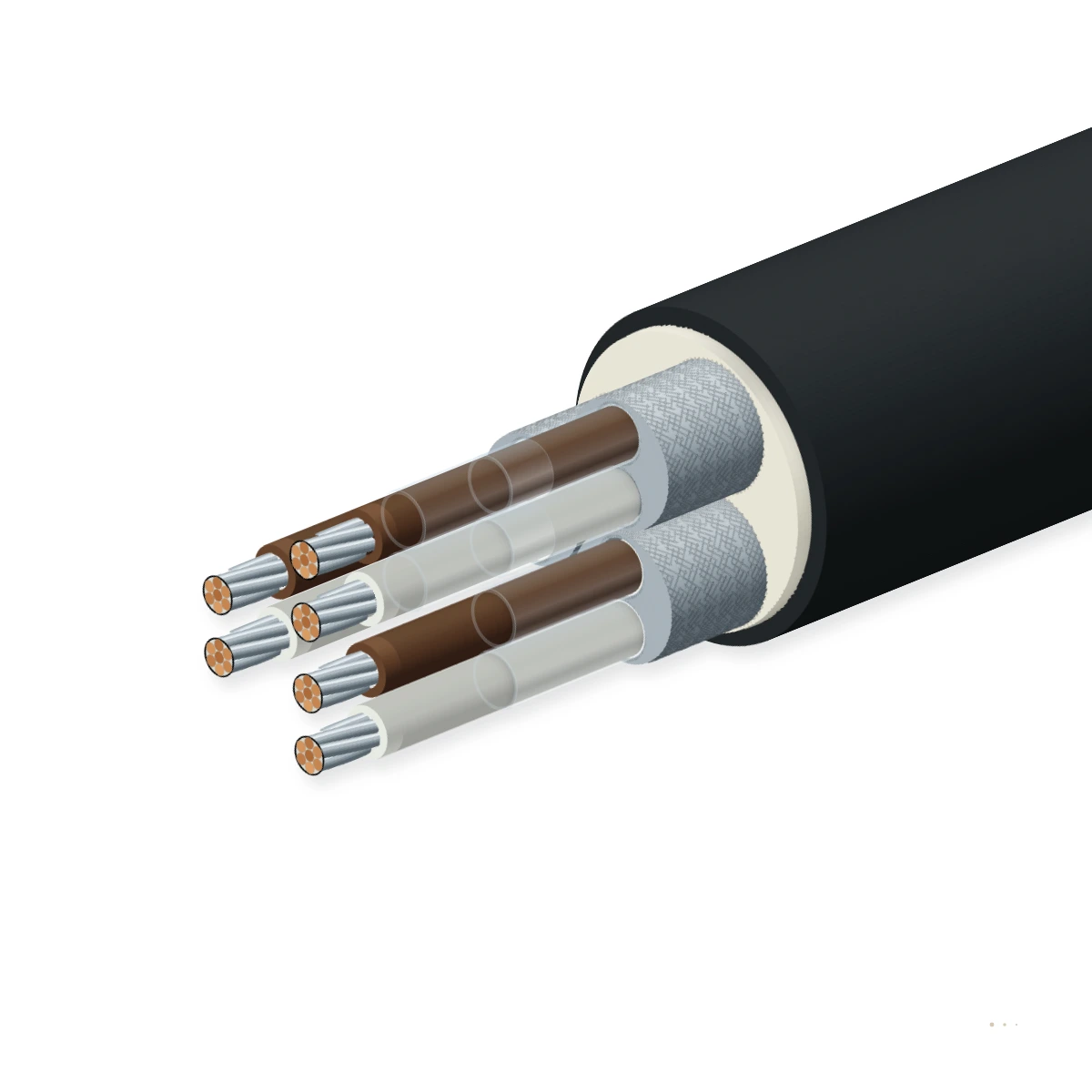

Construction

Layer by layer

Fine-stranded copper conductors, +90 °C cross-linked elastomer ('XS' or 'XSA' arctic/oil) insulation, non-wicking fillers, and 'W'/'OW'

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible bunched/rope-lay copperSoft annealed bare or tinned copper wire (ASTM Class K / IEC 60228 Class 5)UL 62 / IEC 60228 Class 5
2Cross-linked elastomer insulationWet/dry +90 °C cross-linked EPR/EPDM dielectric (arctic -50 °C & oil-resistant on 'A'UL 62 / CSA C22.2 No. 49
3Non-wicking core lay-upCores cabled with moisture-resistant polypropylene/elastomeric fillers and separator tapeUL 62
4Weather & oil-resistant jacket ('W' Cross-linked chlorinated polyethylene (CPE) or polychloroprene (PCP) sunlight-, waterUL 62 / CSA C22.2 No. 49

2XSW / 2XSOW

Weather- and water-resistant ('W') 600 V cross-linked elastomer cord, with oil-resistant outer jacket on

2XSAW / 2XSAOW

Arctic ('A') -50 °C all-weather cross-linked elastomer cord with oil- and weather-resistant jacket for

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / ICEA S-75-381. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V AC (RMS)
Dielectric withstand test
2.5 kV AC for 5 minutes
Wet insulation resistance
Stable at +90 °C water immersion
Operating frequency
50 / 60 Hz & DC
Conductor stranding
ASTM Class K / IEC Class 5
Ampacity reference
NEC Table 400.5(A)(1) / CEC

Thermal

Max. conductor operating temp.
+90 °C wet or dry
Max. short-circuit temperature
+250 °C (max. 5 s)
Cold-bend rating (2XSW / 2XSOW)
-40 °C
Cold-bend rating (2XSAW / 2XSAOW)
-50 °C arctic grade
Recommended mobile ambient
-40 / -50 °C to +80 °C
Heat shock resistance
+150 °C / 1 h

Mechanical

Min. bend radius (fixed)
5 × overall diameter (D)
Min. bend radius (flexing)
8 × overall diameter (D)
Max. pulling tension
15 N/mm² total copper area
Jacket tensile strength
≥ 12.0 MPa unaged
Crush & impact resistance
Heavy-duty Class 2 portable cord
Abrasion resistance
High-tear cross-linked CPE/PCP

Resistance

Weather & UV sunlight ('W')
720 h carbon-arc / xenon-arc UV test
Water immersion ('W')
UL 62 wet-location & submersion rated
Oil & chemical resistance ('O')
IRM 902 / ASTM No. 2 oil immersion
Flame retardance
UL/CSA FT2 & IEC 60332-1-2
Ozone stability
Ozone-inert XL-EPR & CPE/PCP
RoHS / REACH status
RoHS 3 compliant

Reference standards

Primary cord standard
UL 62 / CSA C22.2 No. 49
NEMA / ICEA standard
ICEA S-75-381 (NEMA WC 58)
Conductor standard
ASTM B174 / IEC 60228 Class 5
Flame test standard
CSA FT1/FT2 & IEC 60332-1-2
Outdoor suitability
NEC Article 400 wet/outdoor
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification (2–5 cores)
Black, white, green/yellow, red, orange
Core identification (≥ 6 cores)
Numbered cores + green/yellow
Outer jacket colour
Black or high-visibility yellow
Surface legend
TEBAOFLEX 2XSOW / 2XSAOW 600V 90C W
Length marking
Sequential foot / metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (2XSAW / 2XSAOW / 2XSW / 2XSOW)

Nominal dimensions, copper weights and electrical parameters for 2XSAW / 2XSAOW / 2XSW / 2XSOW per UL 62 / CSA C22.2 No. 49 / ICEA S-75-381.

Dimensions & weights
Order designationType & Core ConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
2XSW / 2XSOW — Weather-, water- and oil-resistant (-40 to +90 °C)
2XSOW 3×1.5 (16 AWG)3G1.5 (16 AWG)1.510.24313651
2XSOW 3×2.5 (14 AWG)3G2.5 (14 AWG)2.513.67222868
2XSOW 4×2.5 (14 AWG)4G2.5 (14 AWG)2.514.89628074
2XSOW 4×4.0 (12 AWG)4G4.0 (12 AWG)4.016.815438484
2XSOW 4×6.0 (10 AWG)4G6.0 (10 AWG)6.018.823051094
2XSOW 4×10 (8 AWG)4G10 (8 AWG)1023.8384830119
2XSAW / 2XSAOW — All-weather arctic & oil-resistant (-50 to +90 °C)
2XSAOW 3×2.5 (14 AWG)3G2.5 (14 AWG)2.513.87223569
2XSAOW 4×2.5 (14 AWG)4G2.5 (14 AWG)2.515.09628875
2XSAOW 4×4.0 (12 AWG)4G4.0 (12 AWG)4.017.015439585
2XSAOW 4×6.0 (10 AWG)4G6.0 (10 AWG)6.019.023052495
2XSAOW 4×16 (6 AWG)4G16 (6 AWG)1627.26141,180136
2XSAOW 4×25 (4 AWG)4G25 (4 AWG)2531.69601,720158
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per UL 62 / CSA C22.2 No. 49 / ICEA S-75-381.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.5 kV rms for 5 minutes without breakdownEvery reel
Conductor DC resistanceComplies with UL 62 / IEC 60228 Class 5 at 20 °CEvery reel
Sample tests
Cold-bend (-40 / -50 °C) & oil immersionNo cracking at sub-zero bend; retains ≥ 60 % properties in oilPer batch
720 h UV weatherometer & wet IR stabilityPasses UL 62 'W' sunlight and +90 °C water immersion testType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 62 / CSA C22.2 No. 49FT2 / IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 2XSAOW 600V [n×AWG/mm²] 90C
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF2XSAW / 2XSAOW / 2XSW / 2XSOW Heavy-Duty Portable Cord – technical datasheet12 sizes · construction, technical data, approvalsXLSX2XSAW / 2XSAOW / 2XSW / 2XSOW spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between 2XSW, 2XSOW, 2XSAW, and 2XSAOW?
All four are 600 V weather- and water-resistant ('W') cross-linked elastomer cords: 2XSW has a weather-resistant jacket, 2XSOW adds an oil-resistant ('O') jacket, 2XSAW adds arctic ('A') -50 °C cold-flex compounds, and 2XSAOW combines arctic -50 °C flexibility with full oil and water resistance.
Can 2XSOW and 2XSAOW be used outdoors in direct sunlight and standing water?
Yes, the 'W' suffix certifies that the cross-linked elastomer jacket has passed 720-hour UV weatherometer testing and long-term +90 °C water insulation-resistance stability testing for year-round outdoor and wet-location duty. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How do 2XSOW and 2XSAOW compare with standard SOOW portable cord?
Both are 600 V +90 °C oil- and weather-resistant thermoset cords, with 2XSOW and 2XSAOW specifically emphasizing cross-linked synthetic elastomer ('XS') formulations that resist thermal compression set and maintain elasticity down to -40 °C or -50 °C. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
When should 3XSW / 3XSOW be chosen over 2XSW / 2XSOW?
Choose 3XSW or 3XSOW for extra-hard usage environments such as heavy construction sites, shipyards, dockside cranes, and quarry generators where a thicker Class 3 outer sheath is needed to resist severe crushing and abrasion. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
