Locomotive & traction cablesAAR RP-585 / UL 442 kV RHH/RHW-214 AWG–1111 kcmil

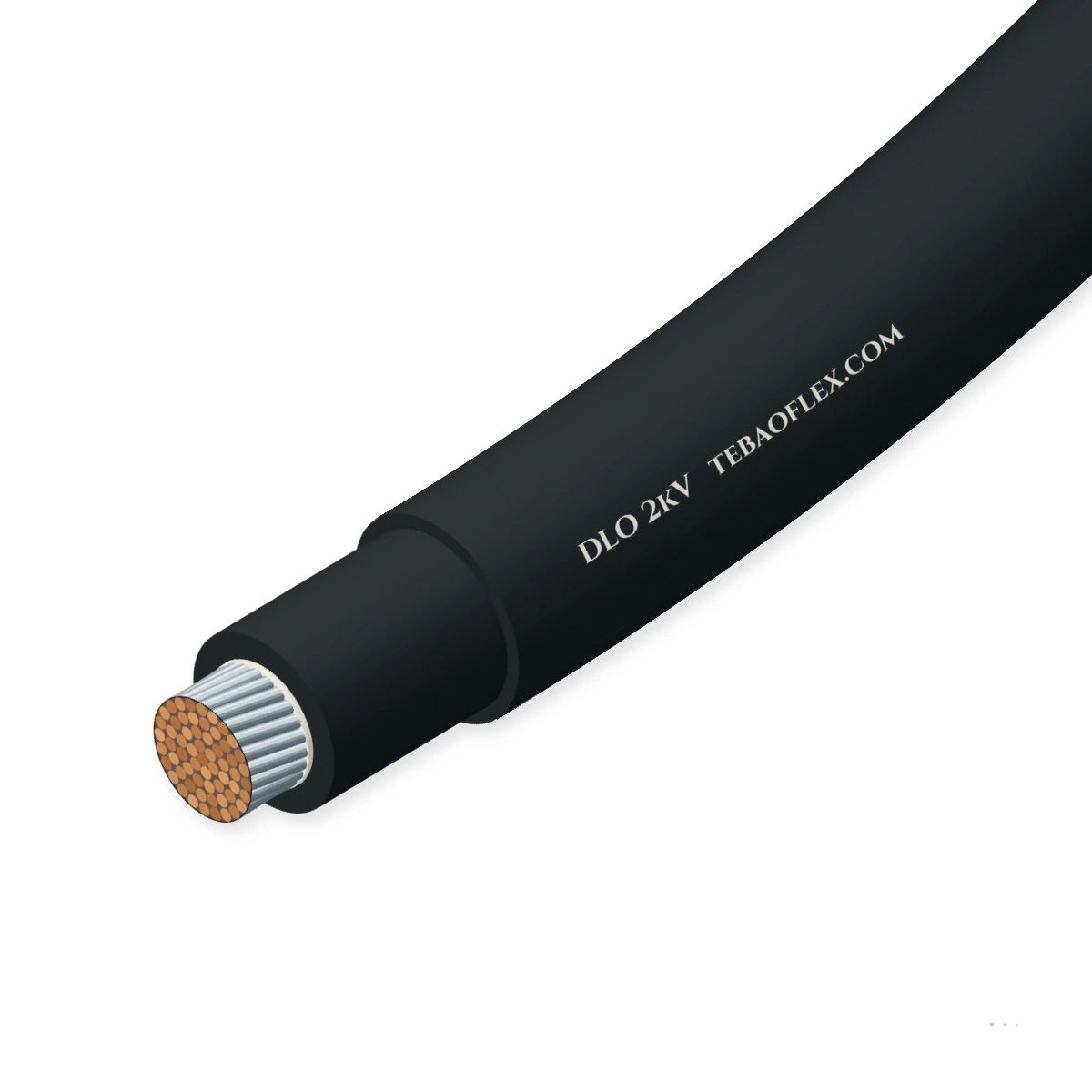

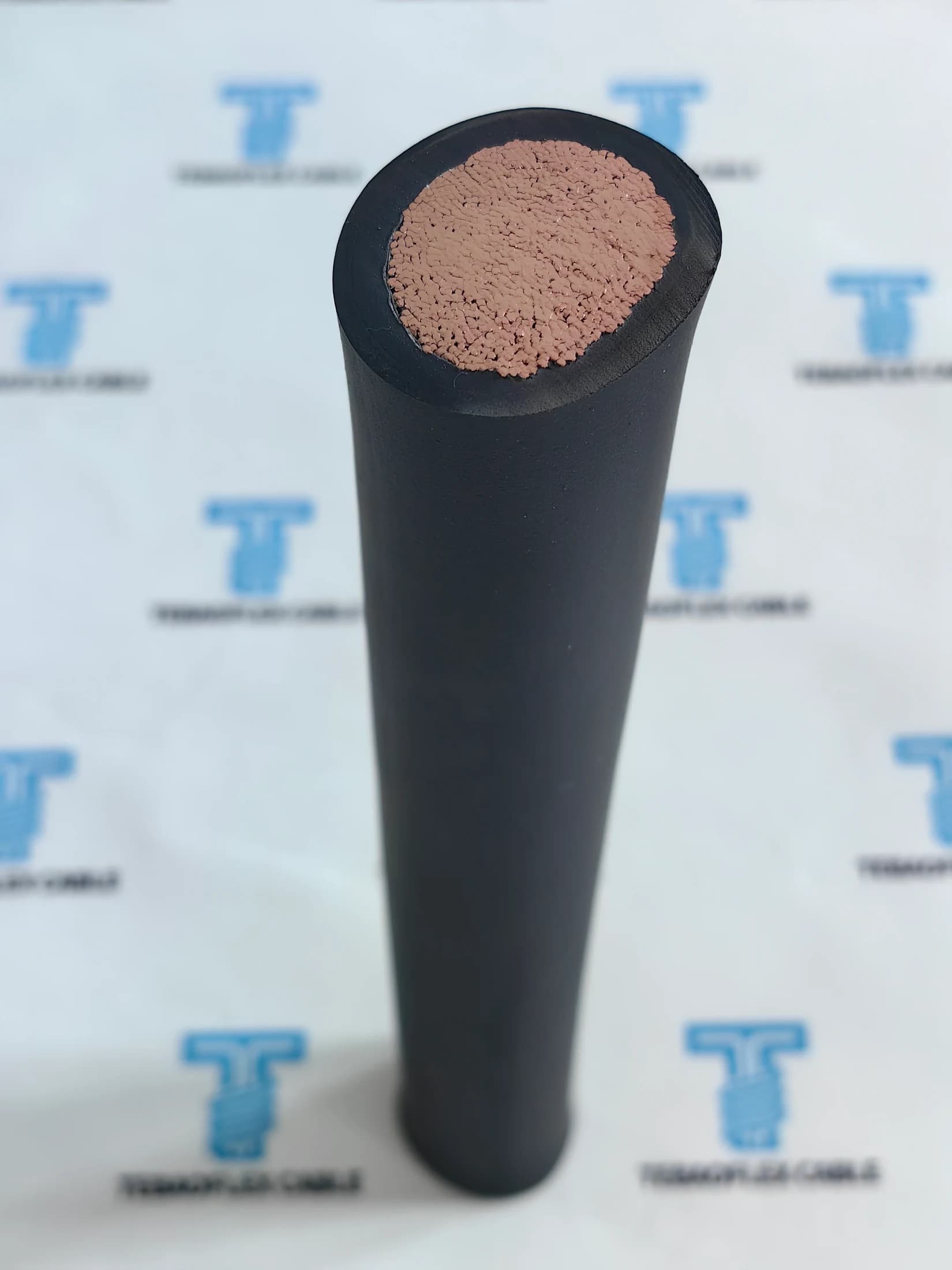

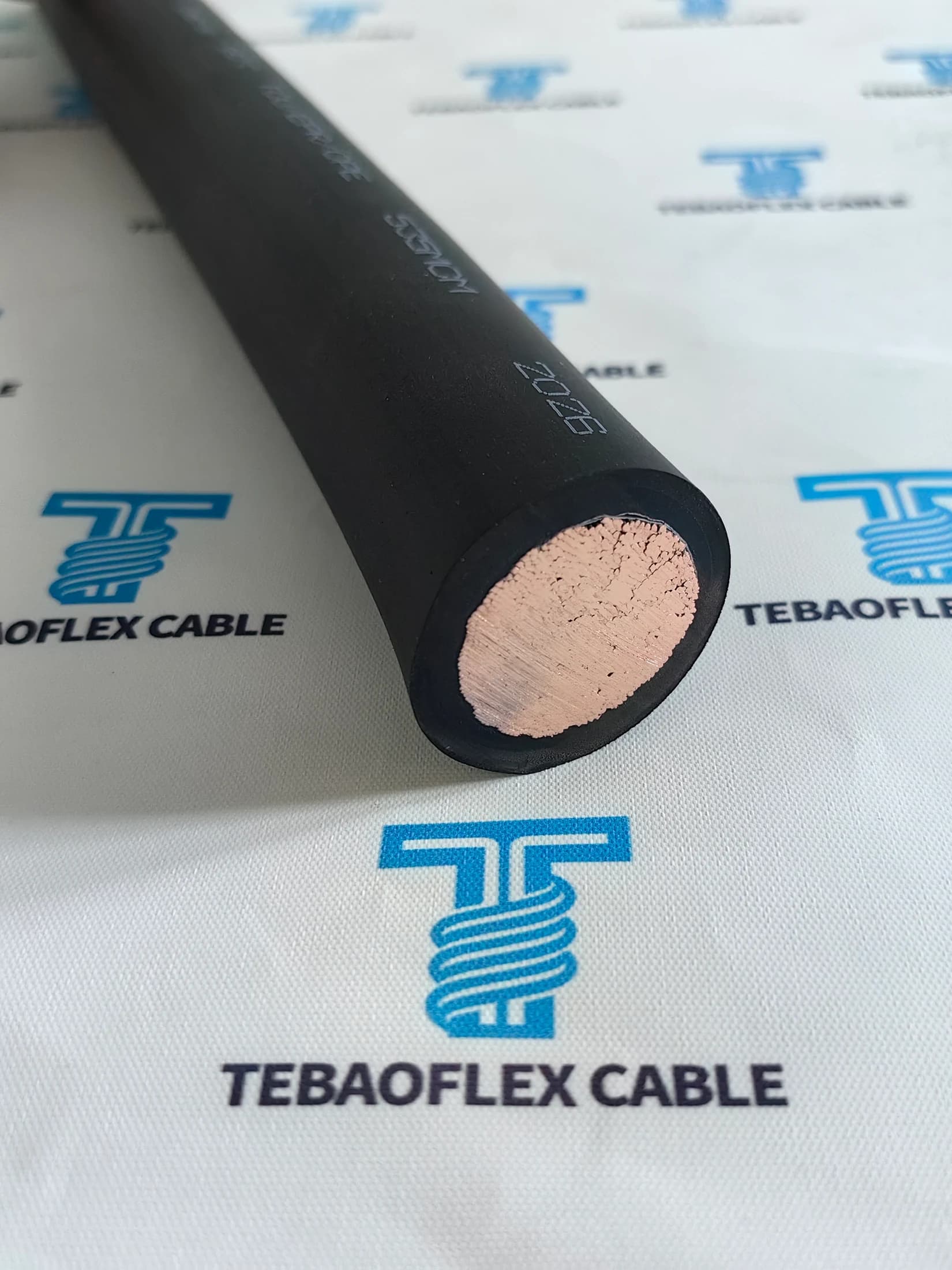

DLO 2 kV Diesel Locomotive & Traction Power CableExtra-flexible tinned copper, EPR/XL-CPE single-core power cable

Extra-flexible 2,000 V single-conductor power lead with rope-lay tinned copper stranding, thermoset EPR insulation and a heavy-duty XL-CPE sheath for diesel-electric locomotives, mining haul trucks, drilling rigs and traction drives.

Oil-resistant

Flame-retardant

Outdoor & humid

Approved

Select conductor size

Order designation: DLO 1×4/0 AWG (107.2 mm²)
Stranding: 550/24
Nominal OD: 21.3 mm
Copper mass: 1,024 kg/km
Total mass: 1,280 kg/km

All sizes (21)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage: 2,000 V
Conductor temp.: +90 °C
Cold bend: −40 °C
Conductor: Class I / K
Min. bend radius: 6 × D
Size range: 14 AWG–1111

Typical values for this cable type, based on AAR RP-585 / ICEA S-95-658 / UL 44 Type RHH/RHW-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is DLO 2 kV right for your machine?

Heavy-duty EPR/CPE 2 kV single-core Diesel Locomotive Cable (UL RHW-2 / CSA RW90) for traction motor leads, drilling rigs, shipyards and battery/inverter banks.

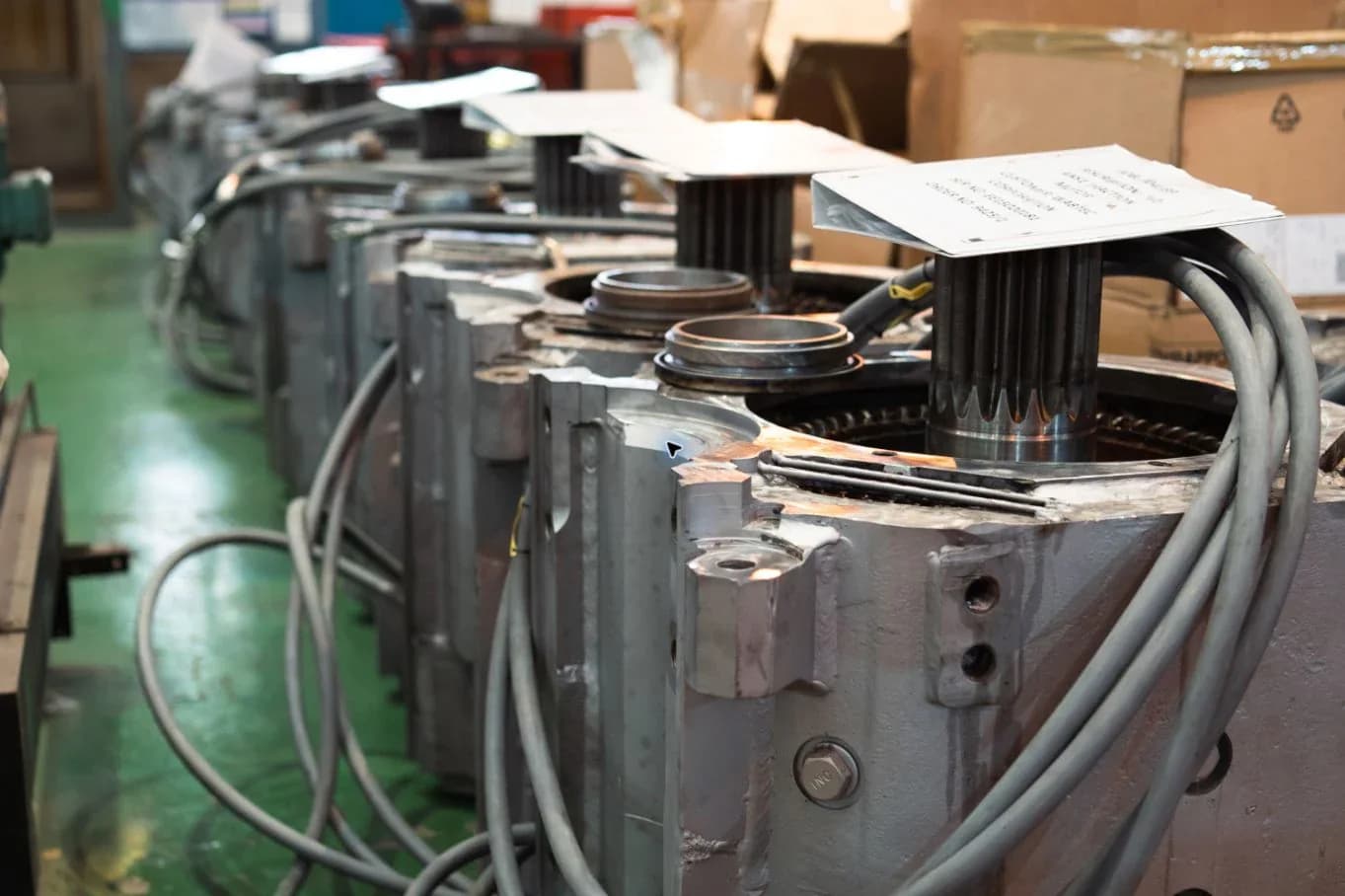

Motor stator, traction & converter leads

Suitable

Primary duty — high-ampacity flexible leads for diesel-electric traction motors, generators and VFD cabinets.

Drilling jumbo & rotary mast feed

Suitable

Standard power jumper and mud-pump / draw-works feeder on onshore and offshore drilling rigs.

Switchgear & control cabinet wiring

Suitable

Tight-radius Class I fine-stranded power bus wiring in switchgear, UPS battery banks and inverters.

Fixed installation

Suitable

UL RHW-2 rated for wet or dry cable trays, conduits and raceways up to +90 °C.

Motorised monospiral reel

Not suitable

Single-core power lead without anti-torsion braid — not for multi-core crane reels.

Use Magnet Crane Type W 2kV

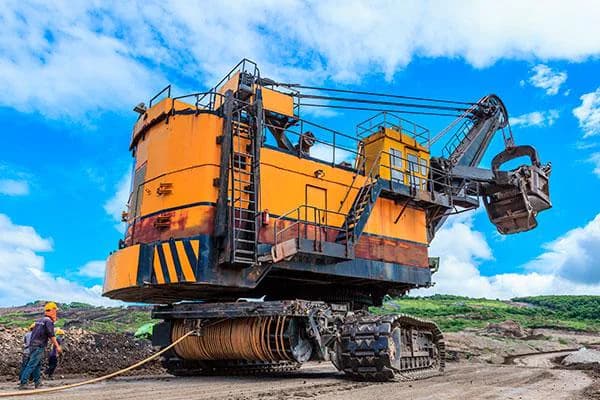

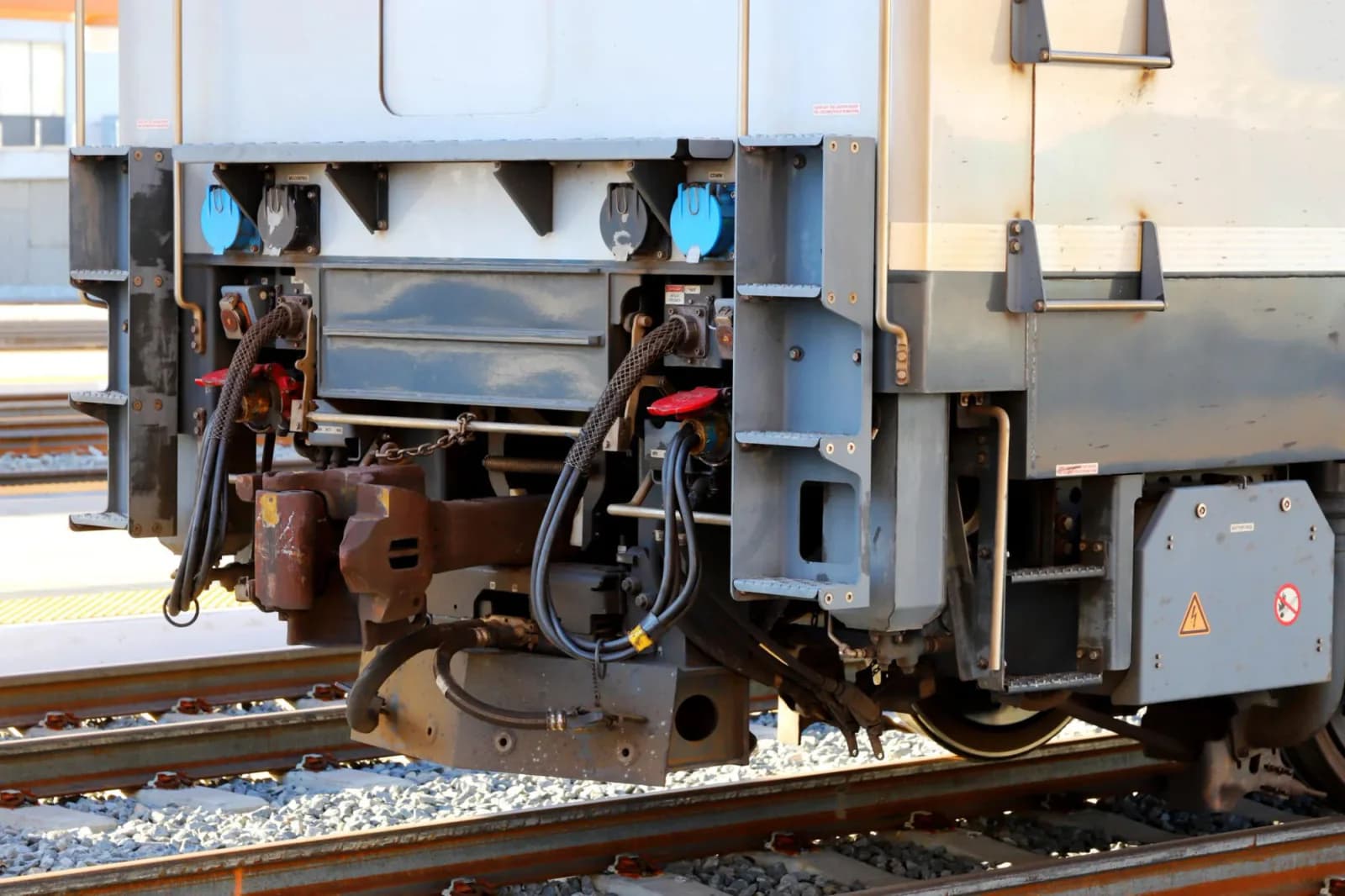

Typical machinesDiesel-electric locomotivesMining haul trucksOil & gas drilling rigsBattery energy storageShipyard & marine powerTraction & VFD switchgear

Construction

Layer by layer

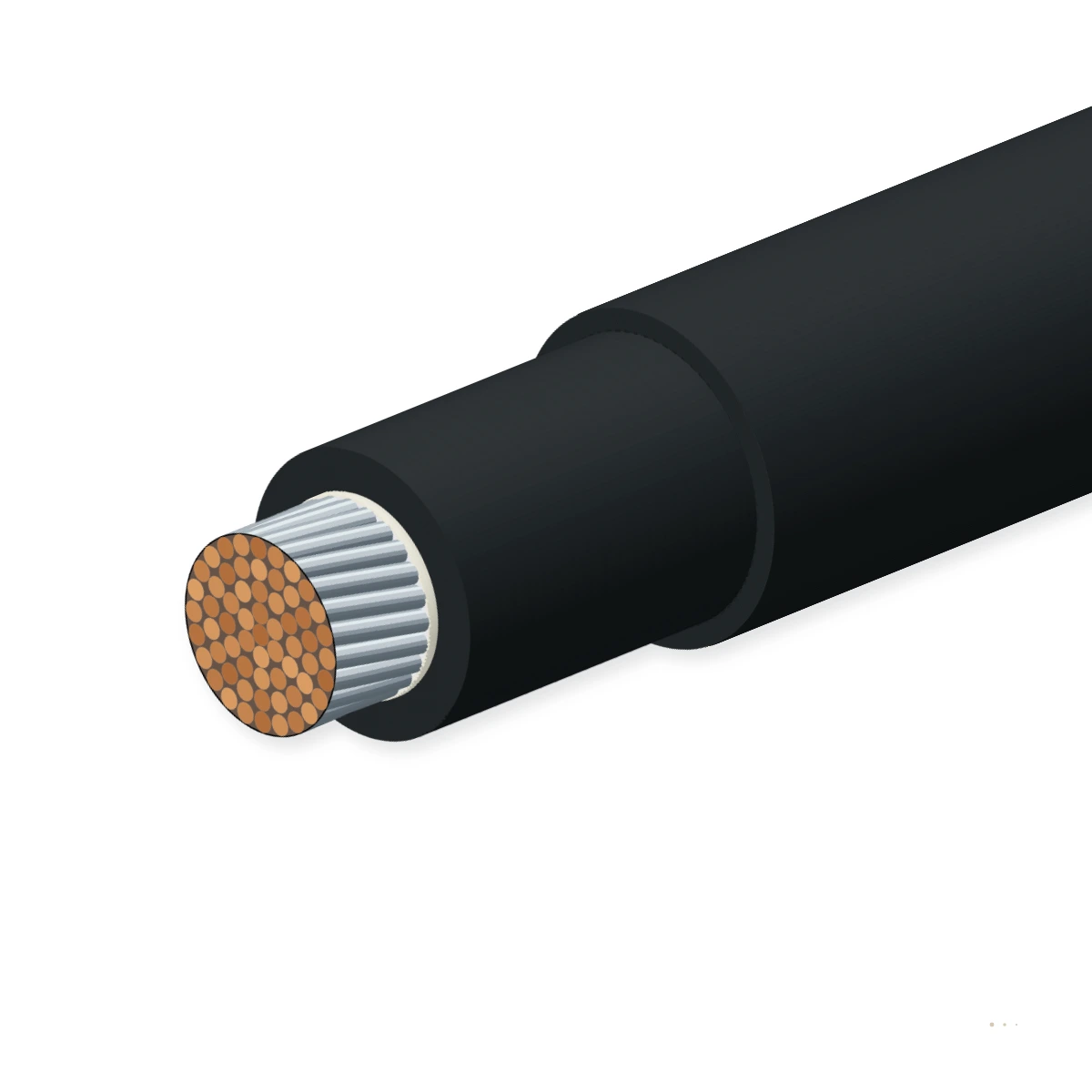

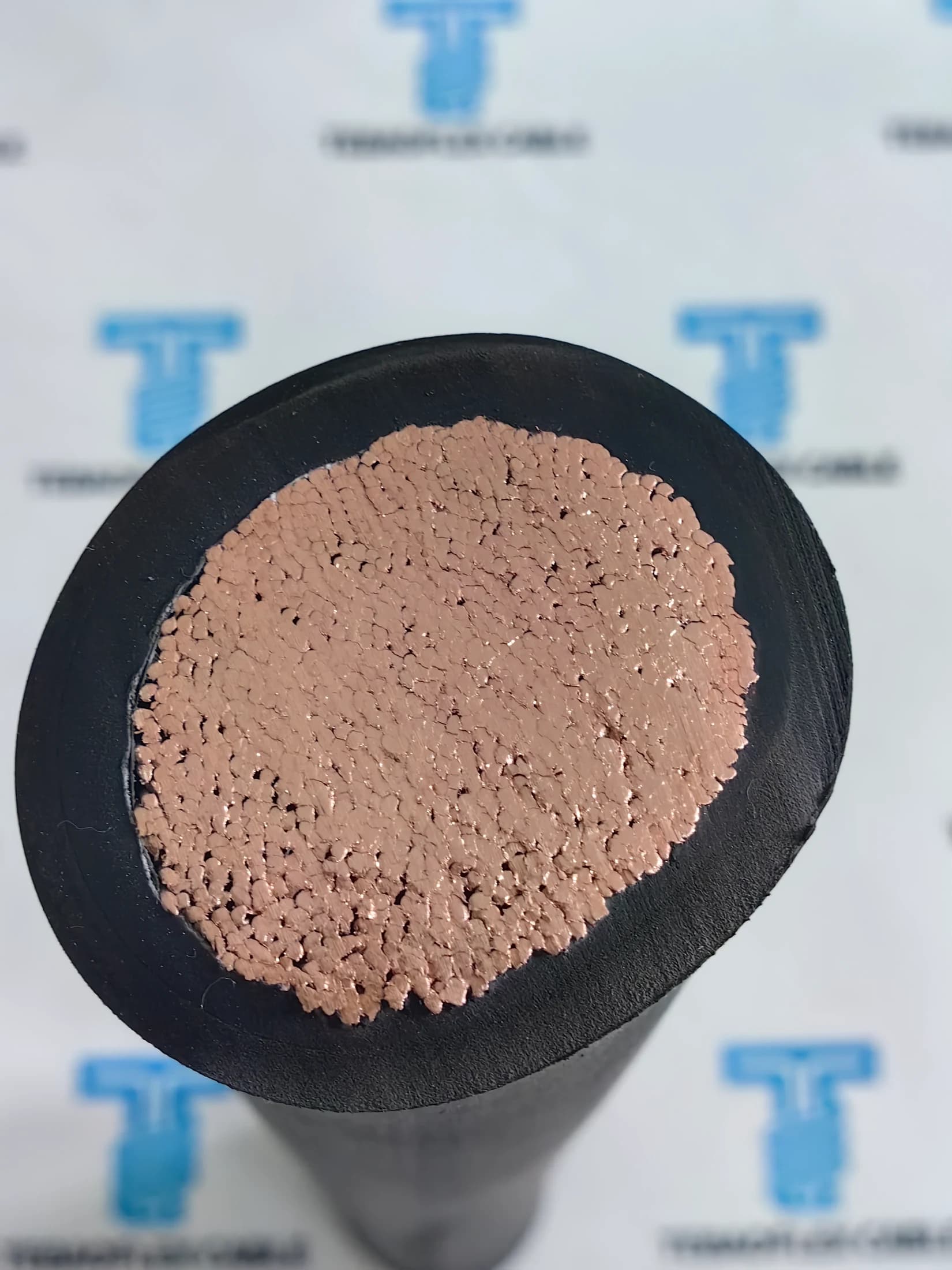

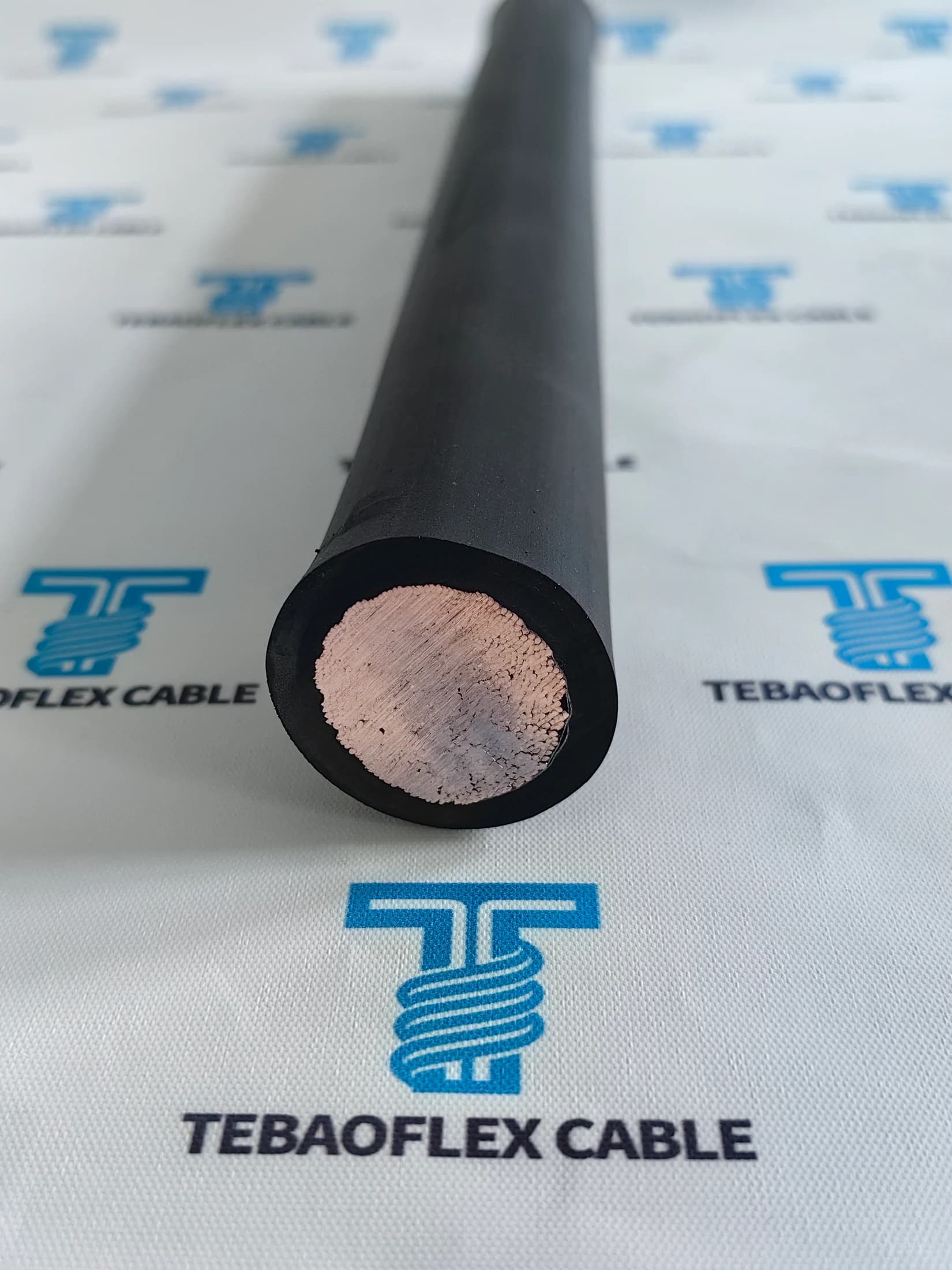

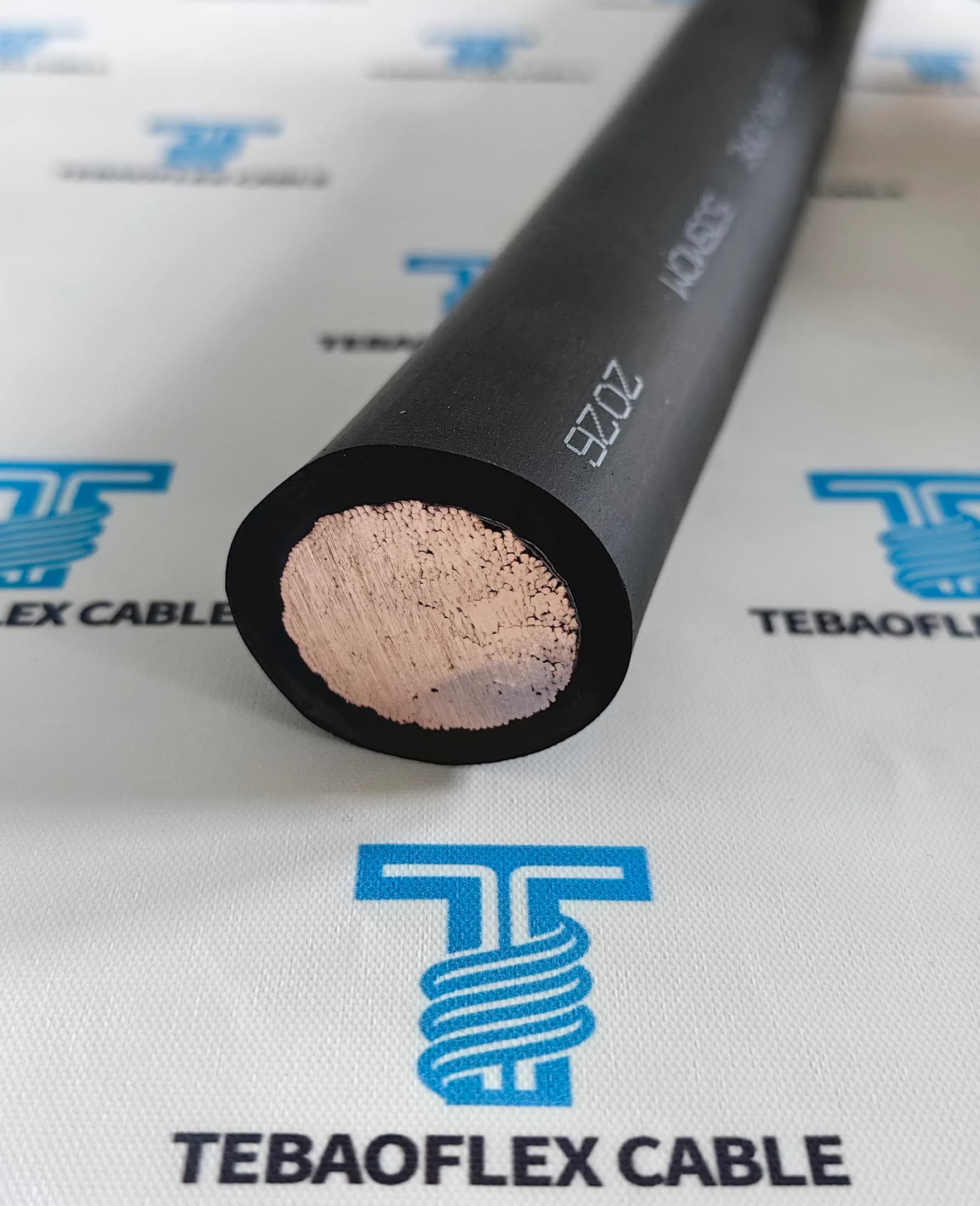

Single-core extra-flexible 2,000 V construction combining rope-lay 24 AWG tinned copper stranding with a two-layer thermoset EPR / XL-CPE insulation and jacket system.

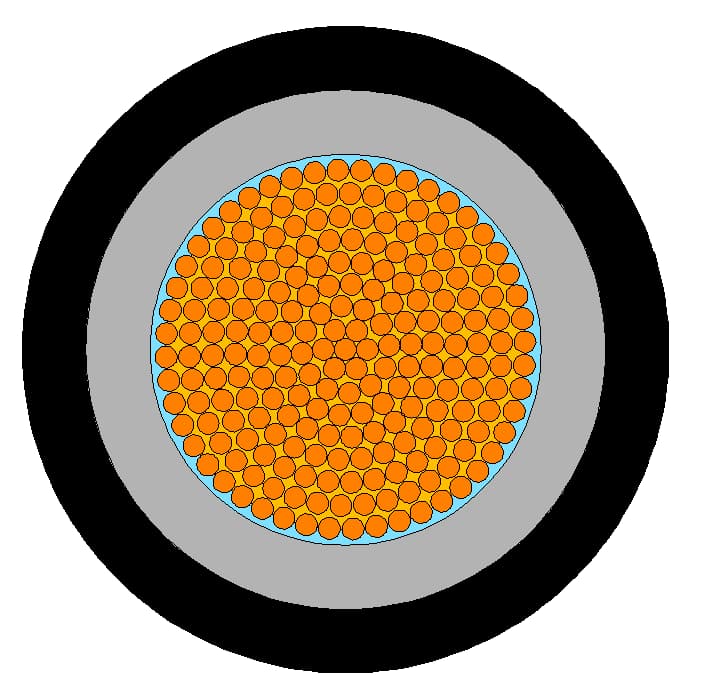

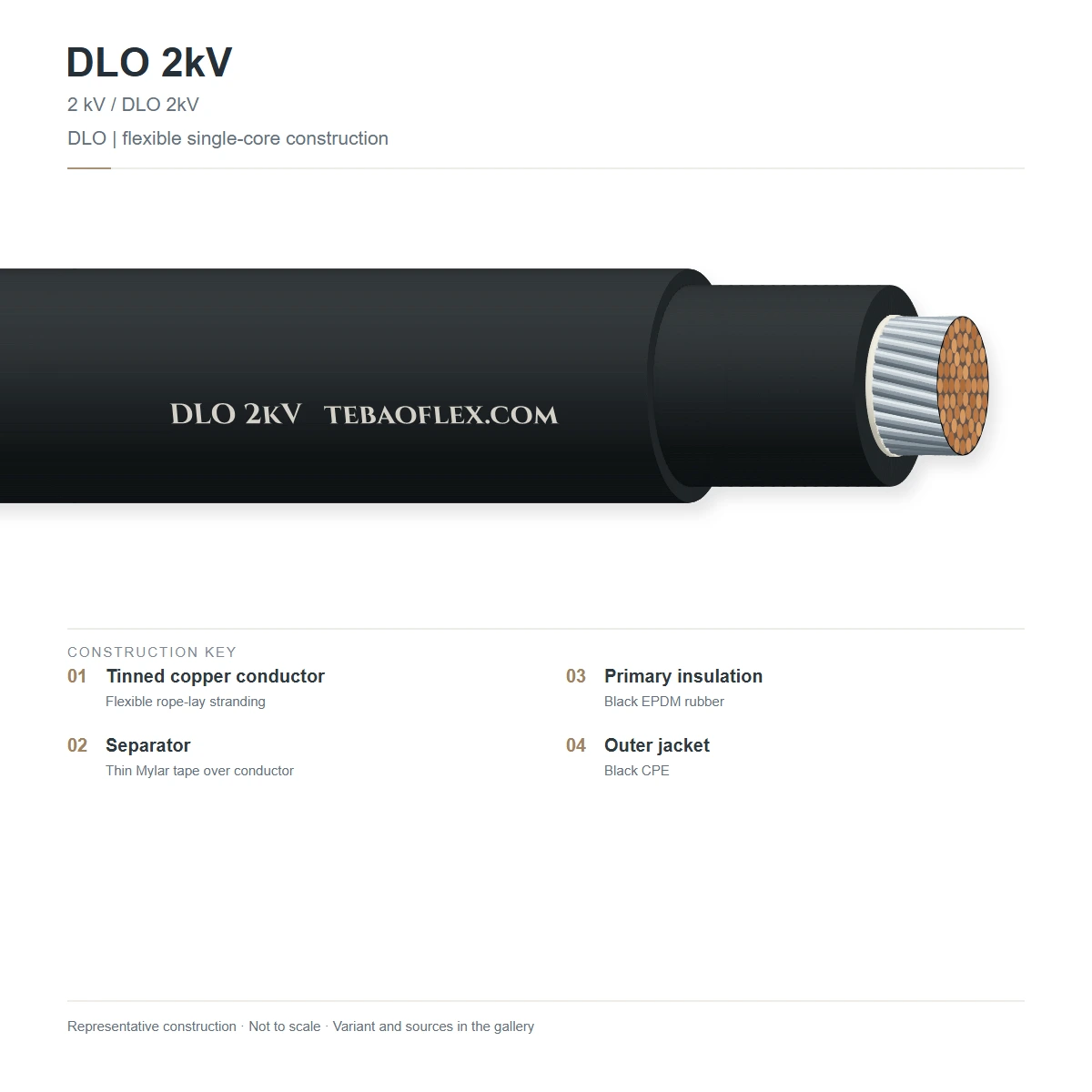

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Extra-flexible tinned copper conductor	Annealed tinned copper, bunch or rope-lay stranded (24 AWG / 0.51 mm wires) per ASTM B33 and ASTM B172 Class I / Class KASTM B33 / ASTM B172
2	Conductor separator tape	Non-hygroscopic polyester or paper separator tape promoting clean strip and strand flexingICEA S-95-658
3	Thermoset EPR insulation	Flame-retardant ethylene propylene rubber (EPR), 90 °C wet/dry, meeting UL 44 Type RHH/RHW-2 and CSA RW90UL 44 / CSA C22.2 No. 38
4	Heavy-duty XL-CPE outer jacket	Cross-linked chlorinated polyethylene (XL-CPE), black, thermoset, oil-, sunlight-, abrasion- and flame-resistantICEA S-95-658 / NEMA WC70

DLO 2 kV Standard (EPR / XL-CPE)

Two-layer extruded thermoset EPR insulation with a separate heavy-duty black XL-CPE outer sheath and separator tape for clean lug stripping.

DLO 2 kV CT Rated (1/0 AWG – 1111 kcmil)

Marked 'For CT Use' and IEEE 1202 / FT4 vertical tray flame rated for open ladder and ventilated industrial cable trays.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on AAR RP-585 / ICEA S-95-658 / UL 44 Type RHH/RHW-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 2,000 V (UL RHH/RHW-2 600 V / 2 kV)
CSA voltage rating: 1,000 V (CSA C22.2 No. 38 Type RW90)
AC test voltage (5 min): 6.0–13.5 kV AC by conductor size
Spark test voltage: 7.5–15.0 kV AC RMS in-line

Thermal

Continuous conductor temp.: +90 °C wet or dry
Emergency overload temp.: +130 °C
Short-circuit temperature: +250 °C (5 s maximum)
Cold bend temperature: −40 °C (UL 44 cold bend & impact)

Mechanical

Conductor stranding: 24 AWG (0.51 mm) tinned copper, Class I/K
Min. bend radius (fixed): 6 × cable overall diameter
Min. bend radius (flexing): 8 × cable overall diameter

Resistance

Flame retardance: UL 1581 VW-1; IEEE 1202 / FT4 (≥ 1/0 AWG)
Mine flame acceptance: MSHA 30 CFR Part 7 flame resistance
Oil & fluid resistance: UL 44 Oil Resistant I & II (60 °C / 75 °C)
Sunlight & weather: UL 44 720-hour carbon-arc / xenon-arc UV

Reference standards

Locomotive & power: AAR RP-585 / S-501; ICEA S-95-658 (NEMA WC70)
North American listings: UL 44 Type RHH/RHW-2; CSA C22.2 No. 38 RW90
Conductor specification: ASTM B33 (tinned); ASTM B172 Class I / K

Identification

Outer sheath colour: Black heavy-duty XL-CPE (custom colours on request)
Cable tray & sunlight mark: For CT Use (≥ 1/0 AWG) · Sunlight Resistant
Surface legend: Hot-foil or white inkjet print at 2 ft intervals

Sizes

21 standard sizes · 14 AWG to 1111.1 kcmil

Single-conductor DLO 2,000 V constructions per ICEA S-95-658 and UL 44 Type RHH/RHW-2. Select a size to view stranding, nominal dimensions, mass and ampacity.

Dimensions & mass (21)
AWG / kcmil	Designation	Cross-section (mm²)	Stranding (No./AWG)	Conductor OD (mm)	EPR wall (mm)	XL-CPE wall (mm)	Nominal OD (in)	Nominal OD (mm)	Copper mass (kg/km)	Total mass (lb/kft)	Total mass (kg/km)
14 AWG	DLO 1×14 AWG (2.1 mm²)	2.1	19/27	1.8	1.14	0.76	0.20	5.1	20	32	48
12 AWG	DLO 1×12 AWG (3.3 mm²)	3.3	19/25	2.3	1.14	0.76	0.22	5.6	32	39	58
10 AWG	DLO 1×10 AWG (5.3 mm²)	5.3	27/24	3.0	1.14	0.76	0.25	6.4	50	53	79
8 AWG	DLO 1×8 AWG (8.4 mm²)	8.4	37/24	3.7	1.52	0.76	0.31	7.9	80	78	116
6 AWG	DLO 1×6 AWG (13.3 mm²)	13.3	61/24	4.8	1.52	1.14	0.39	9.9	127	135	201
4 AWG	DLO 1×4 AWG (21.2 mm²)	21.2	105/24	6.4	1.52	1.14	0.45	11.4	202	195	290
2 AWG	DLO 1×2 AWG (33.6 mm²)	33.6	154/24	7.9	1.52	1.14	0.51	13.0	321	275	409
1 AWG	DLO 1×1 AWG (42.4 mm²)	42.4	224/24	9.5	2.03	1.14	0.62	15.7	405	390	580
1/0 AWG	DLO 1×1/0 AWG (53.5 mm²)	53.5	275/24	10.6	2.03	1.14	0.66	16.8	511	465	692
2/0 AWG	DLO 1×2/0 AWG (67.4 mm²)	67.4	325/24	11.6	2.03	1.14	0.70	17.8	644	540	804
3/0 AWG	DLO 1×3/0 AWG (85.0 mm²)	85.0	450/24	13.5	2.03	1.14	0.78	19.8	812	715	1,064
4/0 AWG	DLO 1×4/0 AWG (107.2 mm²)	107.2	550/24	15.0	2.03	1.14	0.84	21.3	1,024	860	1,280
262.6 kcmil	DLO 1×262.6 kcmil (133 mm²)	133.1	650/24	16.5	2.41	1.65	0.97	24.6	1,271	1,090	1,622
313.1 kcmil	DLO 1×313.1 kcmil (159 mm²)	158.6	775/24	18.0	2.41	1.65	1.03	26.2	1,515	1,285	1,912
373.7 kcmil	DLO 1×373.7 kcmil (189 mm²)	189.4	925/24	19.6	2.41	1.65	1.09	27.7	1,809	1,505	2,240
444.4 kcmil	DLO 1×444.4 kcmil (225 mm²)	225.2	1100/24	21.4	2.41	1.65	1.16	29.5	2,151	1,770	2,634
535.3 kcmil	DLO 1×535.3 kcmil (271 mm²)	271.2	1325/24	23.6	2.79	1.65	1.28	32.5	2,590	2,120	3,155
646.4 kcmil	DLO 1×646.4 kcmil (328 mm²)	327.5	1600/24	26.0	2.79	1.65	1.37	34.8	3,128	2,545	3,787
777.7 kcmil	DLO 1×777.7 kcmil (394 mm²)	394.1	1925/24	28.4	2.79	2.03	1.50	38.1	3,764	3,070	4,569
929.9 kcmil	DLO 1×929.9 kcmil (471 mm²)	471.2	2300/24	31.2	2.79	2.03	1.61	40.9	4,500	3,620	5,387
1111.1 kcmil	DLO 1×1111.1 kcmil (563 mm²)	563.0	2750/24	34.2	2.79	2.03	1.73	43.9	5,377	4,320	6,429

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and masses are nominal production values per TEBAOFLEX datasheet TBF-DS-DLO-2KV-01 Rev 1.0 and ICEA S-95-658.
Sizes 1/0 AWG and larger are rated and marked 'For CT Use' (Cable Tray) and pass IEEE 1202 / FT4 (70,000 BTU/hr) vertical tray flame testing.

Ampacity & test voltage (21)
AWG / kcmil	Designation	Cross-section (mm²)	75 °C raceway (A)	90 °C raceway (A)	90 °C free air (A)	5-min AC test (kV)
14 AWG	DLO 1×14 AWG (2.1 mm²)	2.1	20	25	35	6.0
12 AWG	DLO 1×12 AWG (3.3 mm²)	3.3	25	30	40	6.0
10 AWG	DLO 1×10 AWG (5.3 mm²)	5.3	35	40	55	6.0
8 AWG	DLO 1×8 AWG (8.4 mm²)	8.4	50	55	80	7.5
6 AWG	DLO 1×6 AWG (13.3 mm²)	13.3	65	75	105	7.5
4 AWG	DLO 1×4 AWG (21.2 mm²)	21.2	85	95	140	7.5
2 AWG	DLO 1×2 AWG (33.6 mm²)	33.6	115	130	190	7.5
1 AWG	DLO 1×1 AWG (42.4 mm²)	42.4	130	145	220	9.0
1/0 AWG	DLO 1×1/0 AWG (53.5 mm²)	53.5	150	170	260	9.0
2/0 AWG	DLO 1×2/0 AWG (67.4 mm²)	67.4	175	195	300	9.0
3/0 AWG	DLO 1×3/0 AWG (85.0 mm²)	85.0	200	225	350	9.0
4/0 AWG	DLO 1×4/0 AWG (107.2 mm²)	107.2	230	260	405	9.0
262.6 kcmil	DLO 1×262.6 kcmil (133 mm²)	133.1	275	310	485	11.0
313.1 kcmil	DLO 1×313.1 kcmil (159 mm²)	158.6	305	345	540	11.0
373.7 kcmil	DLO 1×373.7 kcmil (189 mm²)	189.4	340	385	600	11.0
444.4 kcmil	DLO 1×444.4 kcmil (225 mm²)	225.2	375	425	670	11.0
535.3 kcmil	DLO 1×535.3 kcmil (271 mm²)	271.2	420	475	760	11.0
646.4 kcmil	DLO 1×646.4 kcmil (328 mm²)	327.5	465	525	850	13.5
777.7 kcmil	DLO 1×777.7 kcmil (394 mm²)	394.1	510	575	960	13.5
929.9 kcmil	DLO 1×929.9 kcmil (471 mm²)	471.2	545	615	1,045	13.5
1111.1 kcmil	DLO 1×1111.1 kcmil (563 mm²)	563.0	570	648	1,119	13.5

Raceway ampacities are based on NEC (NFPA 70) Table 310.16 for not more than three current-carrying conductors in raceway, cable or earth at 30 °C ambient.
Free-air ampacities are based on single-conductor installation in free air at 30 °C ambient and 90 °C conductor temperature per NEC Table 310.17 / ICEA P-54-440.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Conductor DC resistance & stranding verification	100 % reel verification at 20 °C per ASTM B33 / ASTM B172 Class I & K	Every production length
In-line AC spark & 5-minute dielectric withstand test	Spark test at 7.5–15.0 kV RMS; 5-min AC water-tank withstand at 6.0–13.5 kV by size per ICEA S-95-658	Every production length
Insulation resistance measurement	IR ≥ K × log10(D/d) with K ≥ 10,000 MΩ·1000 ft at 15.6 °C after AC voltage test	Every production length
Sample tests
Flame propagation (VW-1, IEEE 1202 / FT4 & MSHA)	UL 1581 VW-1 vertical flame, IEEE 1202 / FT4 70,000 BTU/hr vertical tray (≥ 1/0 AWG) and MSHA 30 CFR Part 7	Type approval & periodic audit
Hot oil immersion & −40 °C cold bend / impact	UL 44 Oil Resistant I & II (60 d at 75 °C) and crack-free cold bend / impact at −40 °C	Type approval & periodic sample

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 44 Listed Type RHH / RHW-2 (600 V / 2,000 V, 90 °C wet/dry)CSA C22.2 No. 38 Certified Type RW90 (1,000 V, −40 °C, FT4)AAR RP-585 / S-501 & ICEA S-95-658 / NEMA WC70MSHA 30 CFR Part 7 Flame-Resistant Acceptance

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

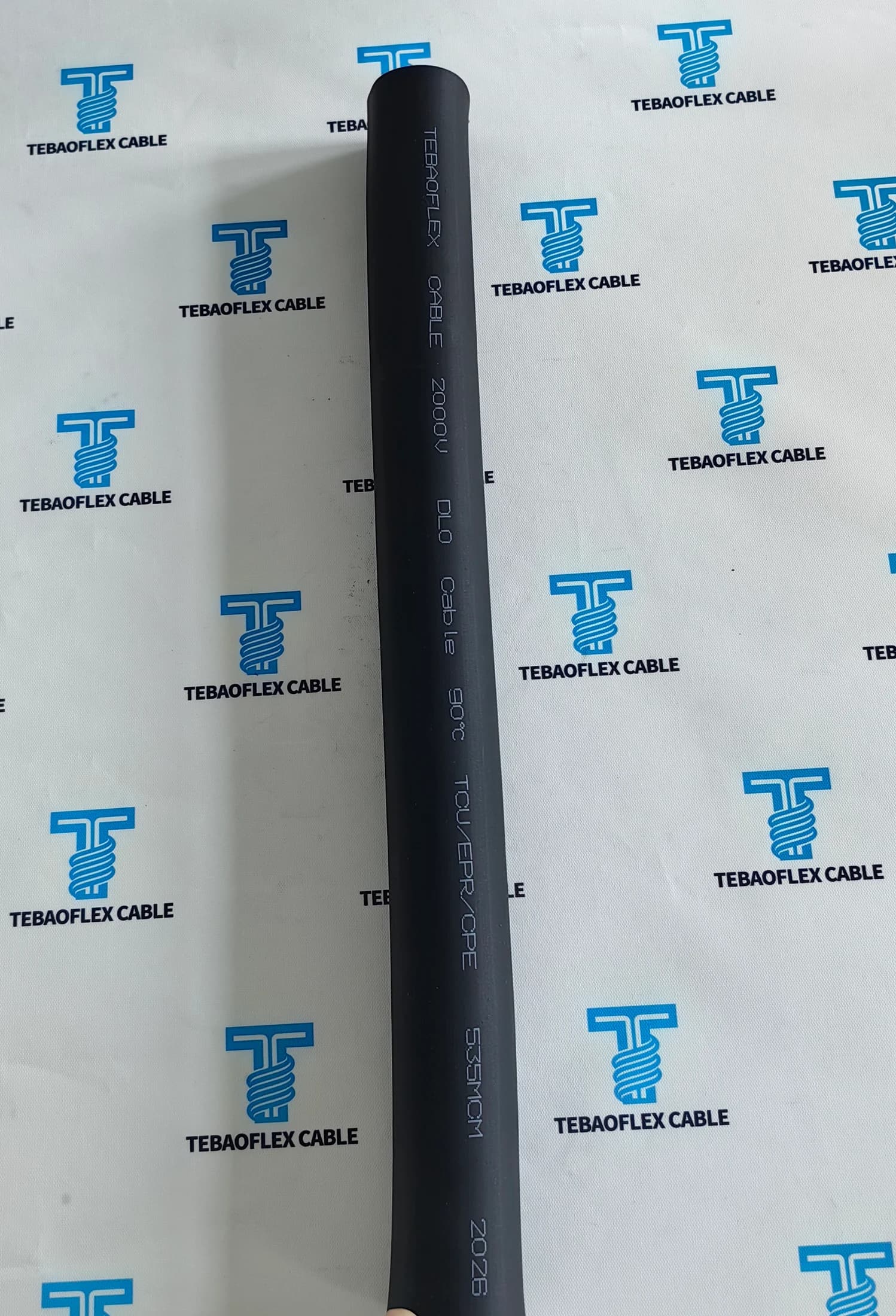

Sheath marking

TEBAOFLEX — DLO <AWG/kcmil> — 2000V — EPR/XL-CPE — 90C WET/DRY — (UL) RHH/RHW-2 — CSA RW90 1000V FT4 -40C — FOR CT USE — SUN RES — P-07-KA140001-MSHA

Standard packing: 1,000 ft (305 m) or 2,500 ft (762 m) non-returnable wooden reels
Custom cut lengths: Project-cut lengths and factory-crimped tinned copper lugs available
Outer jacket colour: Black standard; red, blue, orange or grey to order
Export tariff code: HS 8544.49 (insulated electric conductors > 1,000 V)

Technical documents

Downloads

PDFDLO 2 kV Diesel Locomotive & Traction Power Cable – technical datasheet21 sizes · construction, technical data, approvals XLSXDLO 2 kV spec data (Excel)All 21 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why is DLO cable dual-rated as UL Type RHH/RHW-2 as well as locomotive cable?

Originally developed under AAR RP-585 for diesel-electric locomotives, modern DLO 2 kV is dual-listed to UL 44 Type RHH/RHW-2 (600 V / 2,000 V, 90 °C wet or dry) and CSA RW90. This allows the same extra-flexible cable to be installed in NEC-compliant industrial raceways, cable trays (1/0 AWG and larger), battery energy storage racks and VFD cabinets without requiring separate building wire transitions.

Can standard compression lugs for Class B building wire be used on DLO 2 kV conductors?

No. DLO uses extra-flexible Class I / Class K rope-lay stranding made from fine 24 AWG (0.51 mm) tinned copper wires, resulting in a slightly larger compacted conductor diameter and much softer bundle than 7- or 19-strand Class B copper. Always use flared-barrel compression lugs and dies specifically UL-listed for flex / DLO stranding to prevent strand cutting or high-resistance hot spots.

Which sizes of DLO 2 kV are permitted in open industrial cable trays?

Under NEC Article 392, single-conductor cables installed in open ladder or ventilated trough cable trays must be 1/0 AWG (53.5 mm²) or larger and carry the surface marking 'For CT Use'. TEBAOFLEX DLO sizes from 1/0 AWG through 1111.1 kcmil pass the IEEE 1202 / FT4 (70,000 BTU/hr) vertical tray flame test and carry the CT rating.

How does the two-layer EPR / XL-CPE construction perform in diesel oil and sub-zero cold?

The inner thermoset EPR layer provides high dielectric strength, corona resistance and a +90 °C continuous (+130 °C overload, +250 °C short-circuit) thermal profile, while the outer cross-linked chlorinated polyethylene (XL-CPE) sheath resists hot diesel fuel, hydraulic oils (UL Oil Resistant I & II), abrasion and UV sunlight while remaining flexible down to −40 °C.
