IEC 60335-2-76 20kV fence lead-out cableIEC 60335-2-76 & SANS 10222-315–20 kV Pulse · Double-InsulatedAH-UC1.6 (Ø 1.6mm) & AH-UC2.5 (Ø 2.5mm)

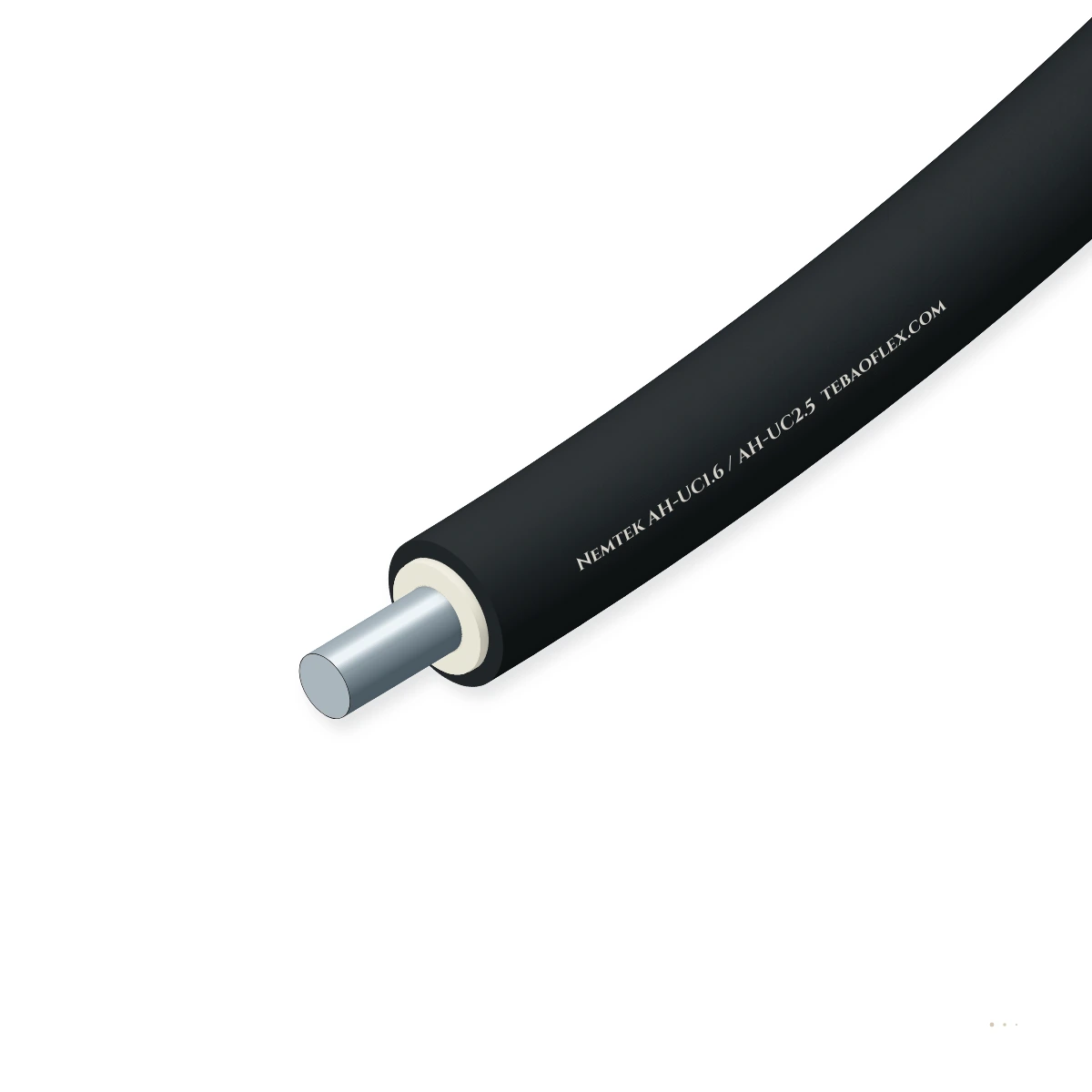

Nemtek AH-UC1.6 / AH-UC2.5 Double-Insulated High-Voltage15–20 kV peak pulse double-insulated PE/HDPE underground electric fence lead-out cable

High-voltage double-insulated underground lead-out and under-gate cable (Nemtek AH-UC1.6 / AH-UC2.5) engineered to IEC 60335-2-76 and SANS 10222-3 with a solid Ø 1.6 mm or Ø 2.5 mm galvanized steel (or low-resistance aluminum/tinned-copper) conductor.

Outdoor & humid
Ozone, UV & moisture
Water-resistant
Approved
Order designation
AH-UC2.5 (Ø 2.5 mm Galv. Steel)
Outer Ø ≈
7.8 mm
Resistance
35 Ω/km
Weight ≈
82 kg/km
Min. bend R
78 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Pulse voltage
15 to 20 kV pk
unidirectional 50–300 µs pulse
Conductor Ø
1.6 or 2.5 mm
2.01 mm² or 4.91 mm² solid core
Inner insul.
Virgin HV LDPE
high-dielectric low-density PE
Outer jacket
UV-HDPE (Black)
high-density polyethylene
Loop resist.
7 to 85 Ω/km
85 Ω/km (1.6 Fe) · 35 Ω/km (2.5 Fe)
Min. bend R
10 × OD
conduit bends & gate crossings

Typical values for this cable type, based on IEC 60335-2-76 / EN 60335-2-76 / SANS 10222-3 / AS/NZS 3014 — confirmed in the datasheet and quotation for your order.

Application fit

Is Nemtek AH-UC1.6 / AH-UC2.5 right for your machine?

Specially designed to carry 8 kV to 15 kV high-energy security and agricultural electric fence pulses from the indoor/outdoor energizer out to the fence line, under vehicle gateways, between fence zones and to the earth-stake array without capacitive pulse leakage to ground.

TBM gantry & advancing tunnel reel

Suitable

Direct-buried or pulled through heavy-duty underground conduit under vehicle driveways, livestock gates and concrete walls.

Offshore platform & shipboard deck trays

Suitable

Carbon-black UV-stabilised HDPE outer sheath withstands African/Australian solar UV exposure along fence posts and walls.

Fixed installation

Suitable

Connects high-voltage energizer output terminals and lightning diverters to multi-wire perimeter security fences.

Typical machinesHigh-Security Industrial & Prison Perimeter FencesAgricultural Livestock & Wildlife Game FencingUnder-Gate Driveway & Roadway HV JumpersSolar & Substation Perimeter Intrusion Detection

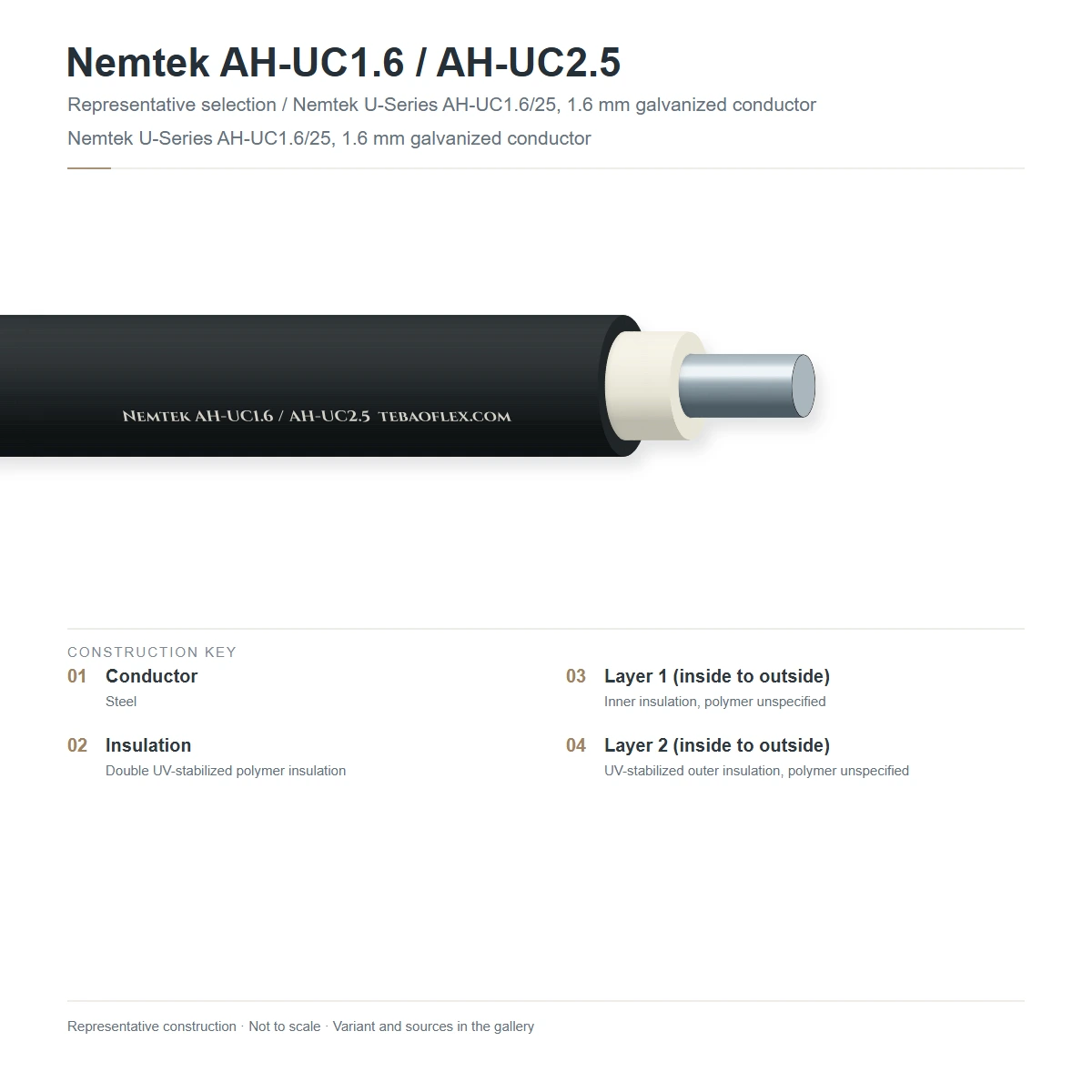

Construction

Layer by layer

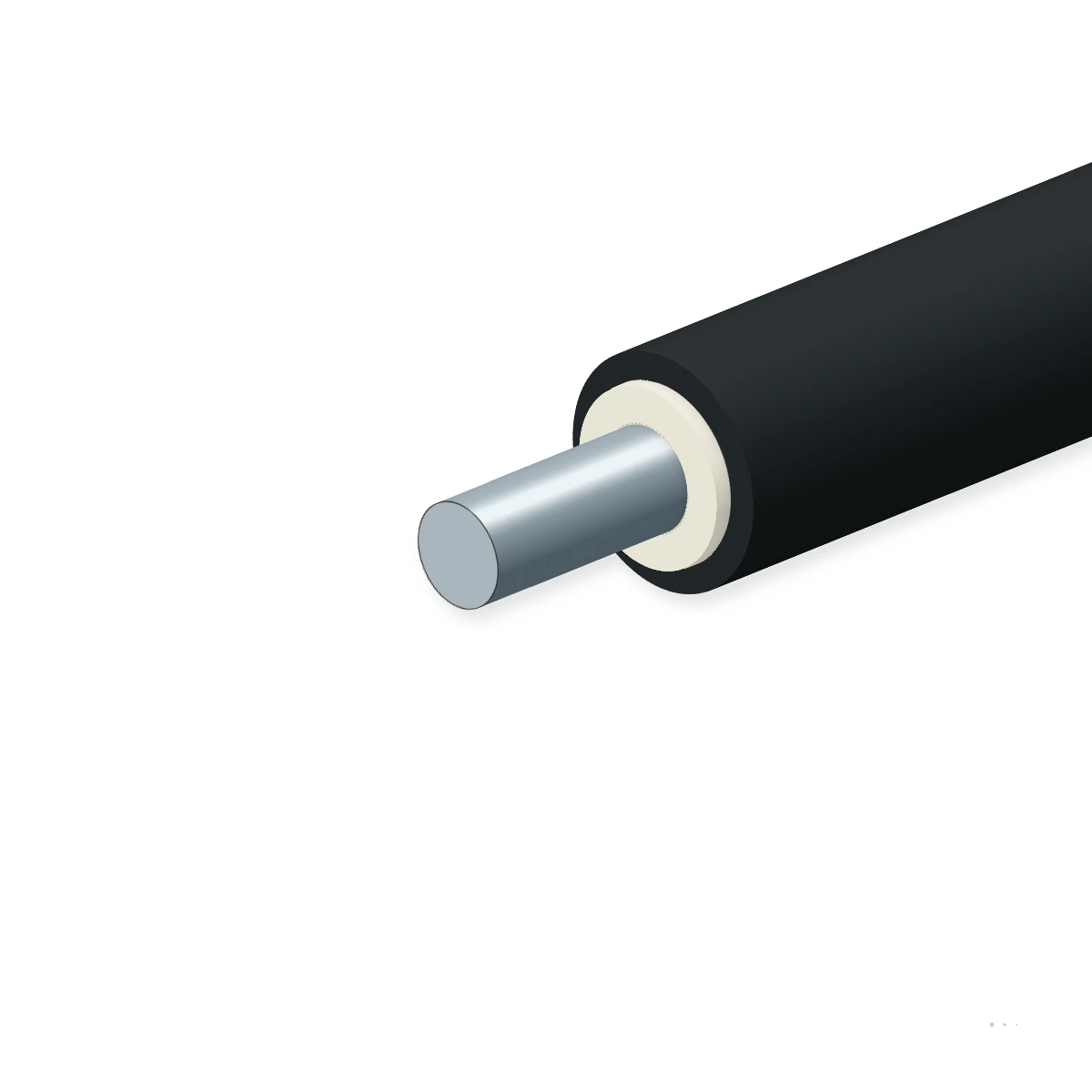

Shown: AH-UC2.5 (Ø 2.5 mm · 4.91 mm²) 20 kV double-insulated lead-out cable with solid hot-dip galvanized steel conductor, thick-wall natural virgin LDPE high-voltage inner dielectric and black UV-stabilised High-Density Polyethylene (HDPE) outer mechanical jacket.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Solid hot-dip galvanized steel (or Alu-alloy / TinnedØ 1.6 mm (2.01 mm², ~85 Ω/km) or Ø 2.5 mm (4.91 mm², ~35 Ω/km) galvanized steel wire (orMatches fence wire metallurgy to prevent galvanic bimetallic corrosion at line clamps
2High-voltage virgin Low-Density Polyethylene (LDPE)Thick concentric natural LDPE primary dielectric (dielectric strength > 25 kV/mm, ε_r =Prevents 10–15 kV impulse tracking, corona discharge and parasitic capacitance to wet soil
3Heavy-duty UV-stabilised High-Density PolyethyleneAbrasion-, moisture- and termite-resistant black (or white/red) HDPE outer sheathProtects the inner HV dielectric against rock cuts, gate conduit friction and sunlight

AH-UC1.6 (Ø 1.6 mm · 2.01 mm²)

Standard 15–20 kV lead-out cable for residential security fences and short (< 100 m) under-gate runs

AH-UC2.5 (Ø 2.5 mm · 4.91 mm²)

Low-resistance heavy-duty 20 kV lead-out cable for long runs (> 100 m) and high-joule livestock/game energizers

AH-UC2.5-AL / TCu (Ultra-Low Resistance)

Aluminum-alloy (7 Ω/km) or Tinned Copper (5 Ω/km) core for multi-kilometre perimeter feeds

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60335-2-76 / EN 60335-2-76 / SANS 10222-3 / AS/NZS 3014. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated impulse withstand voltage
15 kV to 20 kV peak unidirectional pulse (1,000 V continuous AC rms)
Conductor DC resistance @ 20 °C
≈ 85 Ω/km (AH-UC1.6 steel) · ≈ 35 Ω/km (AH-UC2.5 steel) · ≈ 7 Ω/km (Alu)
Dielectric constant & capacitance
ε_r ≈ 2.25 (ultra-low capacitance prevents pulse voltage sag in wet

Thermal

Operating ambient temperature
−30 °C to +70 °C (fixed underground or outdoor UV exposed)
Thermal cycling & overload stability
Verified thermal ageing and short-circuit withstand per standard

Mechanical

Nominal outer diameter
6.2 mm (AH-UC1.6) · 7.8 mm (AH-UC2.5)
Minimum bending radius
10 × OD (62 mm for UC1.6 · 78 mm for UC2.5)

Resistance

Soil moisture, alkali & UV resistance
Carbon-black UV-stabilised HDPE outer sheath; zero water absorption
Environmental & chemical durability
Resistant to moisture, industrial fluids and service ageing

Reference standards

Electric fence safety standards
IEC 60335-2-76, EN 60335-2-76, SANS 10222-3 & AS/NZS 3014
Factory QA & material compliance
EN 10204 3.1 routine test certificate · RoHS 2 & REACH compliant

Identification

Standard roll & drum packaging
50 m, 100 m, 200 m, 500 m and 1,000 m spools
Customs tariff (HS)
8544.49

Sizes

6 standard 20 kV double-insulated electric fence lead-out cable variants

Galvanized steel (AH-UC1.6 / AH-UC2.5), aluminum-alloy and tinned-copper conductor options.

Conductor size, outer diameter & resistance (Ω/km)
Order designationConductor Ø / AreaPulse ratingOuter Ø ≈
mm		Resistance
Ω/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
Galvanized High-Tensile Steel Core Lead-Out Cables (AH-UC1.6 / AH-UC2.5)
AH-UC1.6 (Ø 1.6 mm Galv. Steel)1×Ø 1.6 mm (2.01 mm²)20 kV Pulse6.2854262
AH-UC2.0 (Ø 2.0 mm Galv. Steel)1×Ø 2.0 mm (3.14 mm²)20 kV Pulse7.0555870
AH-UC2.5 (Ø 2.5 mm Galv. Steel)1×Ø 2.5 mm (4.91 mm²)20 kV Pulse7.8358278
Ultra-Low-Resistance Aluminum-Alloy & Tinned-Copper Lead-Out Cables
AH-UC1.6-AL (Ø 1.6 mm Alu-Alloy)1×Ø 1.6 mm (2.01 mm²)20 kV Pulse6.2162862
AH-UC2.5-AL (Ø 2.5 mm Alu-Alloy)1×Ø 2.5 mm (4.91 mm²)20 kV Pulse7.874678
AH-UC2.5-TCu (1×4.0 mm² Tinned Cu)1×4.0 mm² Stranded TCu20 kV Pulse8.057665
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Never use ordinary 600/1000 V PVC house wire for electric fence lead-outs; 10 kV pulses punch through PVC in days.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
25 kV DC / 20 kV impulse spark & water-immersion dielectric testZero breakdown or corona tracking across the double PE/HDPE wallEvery spool
Sample tests
Conductor DC resistance, zinc coating & UV weathering testMeets rated Ω/km and SANS 10222-3 outdoor UV durabilityBatch audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60335-2-76 & EN 60335-2-76 CompliantSANS 10222-3 & AS/NZS 3014 Perimeter Compliant20 kV Peak Impulse Tested

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX AH-UC1.6 / AH-UC2.5 DOUBLE INSULATED 20KV HIGH VOLTAGE LEAD-OUT CABLE
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFNemtek AH-UC1.6 / AH-UC2.5 Double-Insulated High-Voltage – technical datasheet6 sizes · construction, technical data, approvalsXLSXNemtek AH-UC1.6 / AH-UC2.5 spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why can't standard 600/1000 V PVC electrical wire be used as an underground electric fence lead-out cable?
Electric fence energizers deliver 8,000 V to 15,000 V pulses. Standard PVC insulation has a high dielectric constant (ε_r ≈ 6–8) that capacitively drains the short 100 µs pulse to wet soil, and 10 kV impulses rapidly carbon-track and puncture 0.8 mm PVC walls, grounding out the entire fence.
When should I choose AH-UC2.5 (Ø 2.5 mm) over AH-UC1.6 (Ø 1.6 mm)?
AH-UC1.6 (2.01 mm² galvanized steel, ~85 Ω/km) is suitable for short domestic security lead-outs under 50–100 m. For longer lead-out runs (> 100 m), multiple under-gate jumpers in series, or high-joule livestock/game energizers, AH-UC2.5 (4.91 mm², ~35 Ω/km) or aluminum-core AH-UC2.5-AL (~7 Ω/km) reduces pulse voltage drop by more than 60 %.
Why is a galvanized steel or aluminum conductor often preferred over bare copper on electric fences?
Fence line wires are predominantly galvanized steel or aluminum alloy. Clamping bare copper directly to galvanized steel in wet outdoor air creates an electrolytic cell that rapidly corrodes the zinc and causes high-resistance arcing joints that generate radio interference.
What factory routine tests and certificates are supplied with Nemtek AH-UC1.6 / AH-UC2.5?
Every production drum of Nemtek AH-UC1.6 / AH-UC2.5 undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per IEC 60335-2-76 / EN 60335-2-76 / SANS 10222-3 / AS/NZS 3014, supplied with an EN 10204 3.1 inspection certificate.
