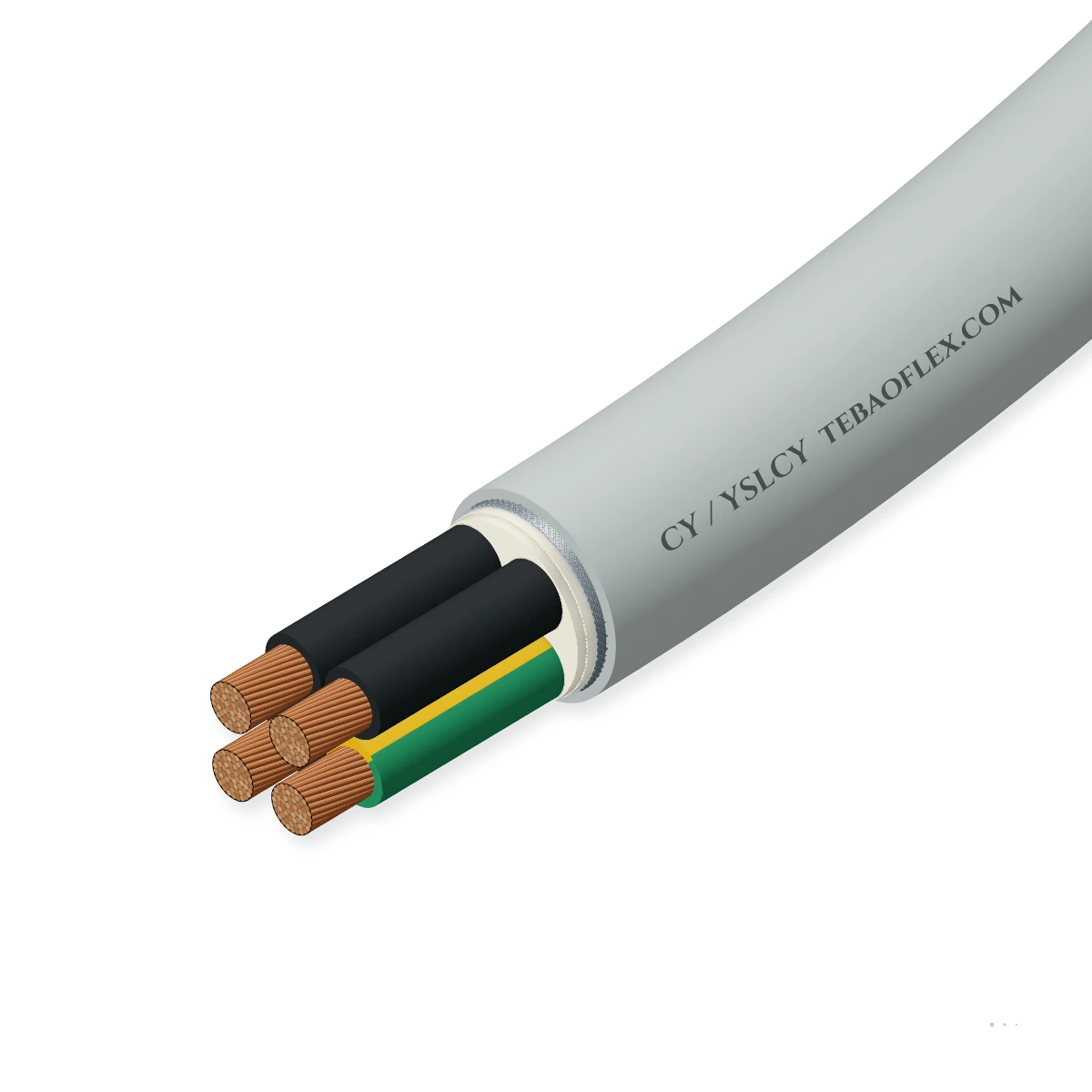

CY / YSLCY Screened Control Cable300/500 V tinned-copper braid screened EMC flexible PVC control cable (JZ / OZ)

EMC-screened 300/500 V flexible PVC control cable (CY / YSLCY) with Class 5 copper conductors, numbered TI2 PVC cores, polyester separator tape, ≥80 % tinned-copper wire braid screen and grey or transparent TM2 PVC outer sheath for noise-free automation.

Low-EMC design
EMC screen
Flame-retardant
Oil-resistant
Order designation
YSLCY-JZ 7G1.5
Outer Ø min
8.8 mm
Outer Ø max
9.6 mm
Weight ≈
206 kg/km
Min. bend R
58 mm
Check against my drumAll sizes (23)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U · 4.0 kV AC test voltage
EMC screening
≥ 80 % Cu braid
Tinned copper wire braid (C)
Temp. flexing
−5…+70 °C
−40…+80 °C fixed installation
Bending radius
6–10 × OD
6 × OD fixed · 10 × OD flexing
Flame test
IEC 60332-1-2
Self-extinguishing PVC · CPR Eca
Size range
0.5–35 mm²
2 to 34 cores · JZ or OZ coding

Typical values for this cable type, based on DIN VDE 0285 / BS EN 50525-2-51 — confirmed in the datasheet and quotation for your order.

Application fit

Is CY / YSLCY right for your machine?

CY / YSLCY adds a high-density tinned-copper wire braid screen over the laid-up cores to suppress electromagnetic interference (EMI) between PLC control circuits, analog sensors and adjacent VFD motor drives.

Fixed installation

Suitable

PLC cabinets, CNC machine tools, process instrumentation, weighbridges and VFD-adjacent cable trays.

Trailing & towing

With conditions

Suitable for occasional free movement; for abrasive or coolant-flooded trailing, use JZ-602-C-PUR.

Use JZ-602-C-PUR

Energy chain / drag chain

Not suitable

Not intended for high-speed continuous drag chains; specify PUR screened control cables.

Use JZ-35400 CP PUR

VFD inverter to AC motor screened feeder

With conditions

Ideal for 300/500 V screened control and small servo leads; use 0.6/1 kV 2YSLCY-J for main VFD motors.

Use H05VVC4V5-K
Typical machinesCNC machine tools & robotics cellsPLC, SCADA & cabinet interconnectProcess measurement & weighing linesPackaging, printing & textile linesHVAC & building management systems

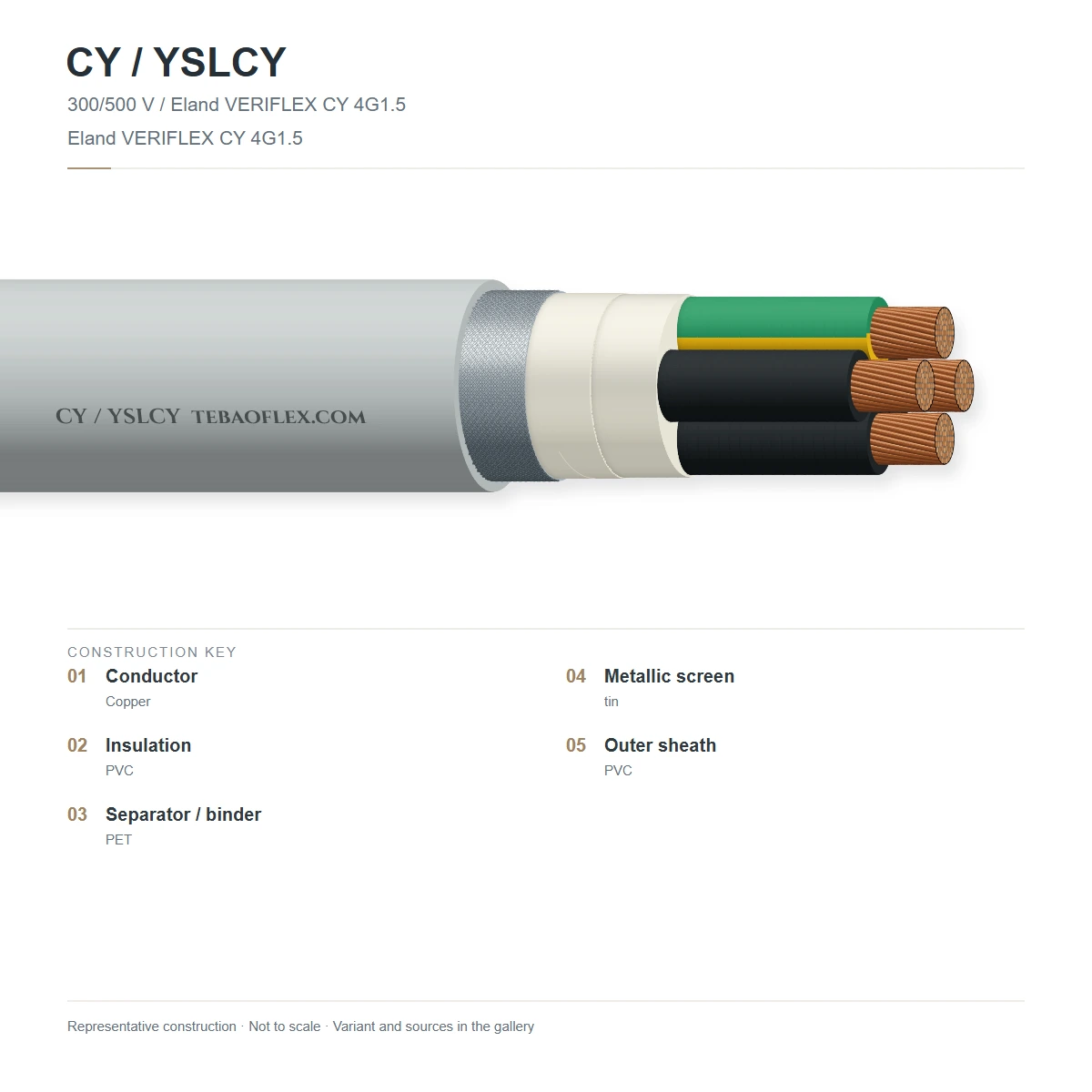

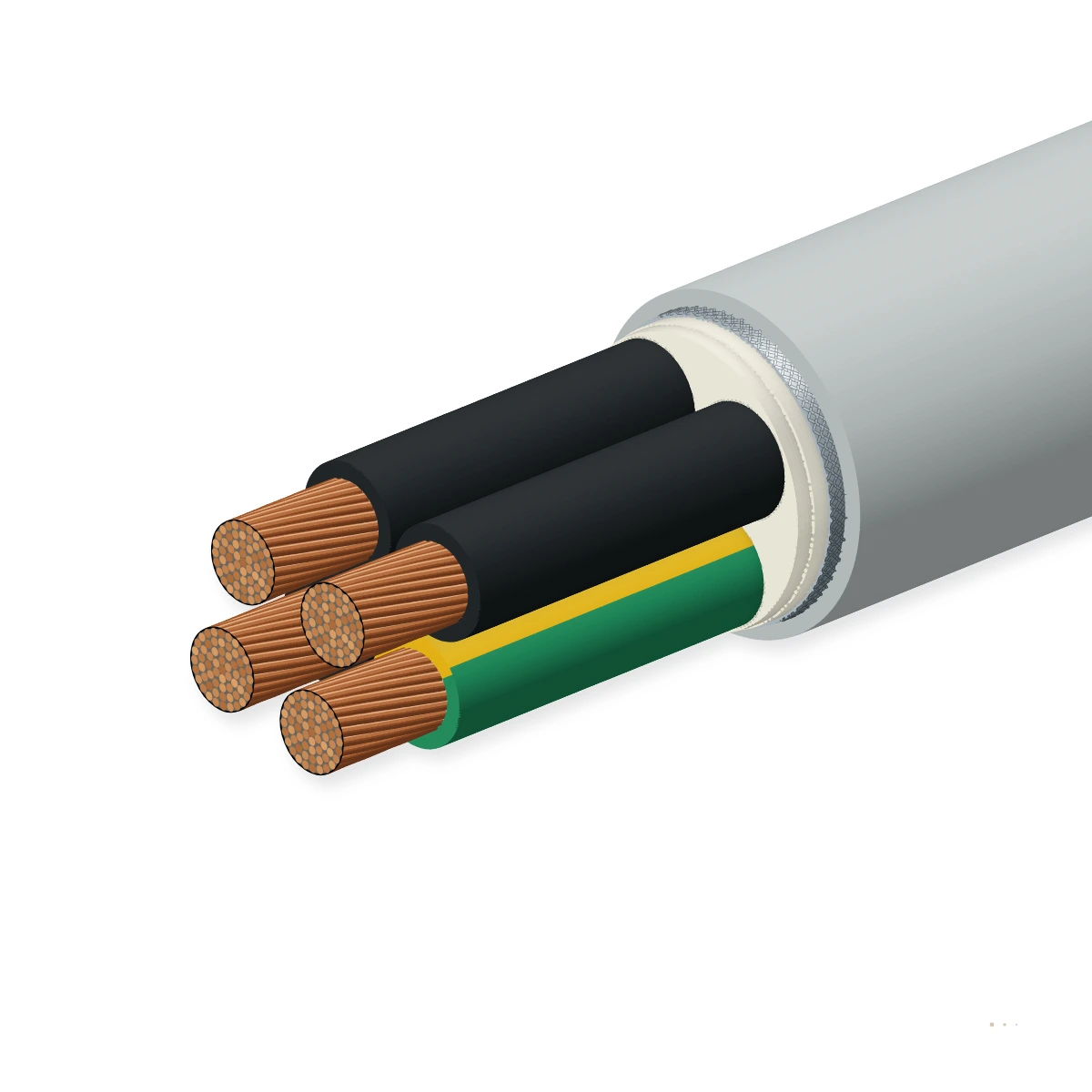

Construction

Layer by layer

Shown: CY / YSLCY-JZ 7G1.5 — Class 5 bare copper conductors, white-numbered black PVC cores + green-yellow earth, polyester wrapping tape, tinned-copper wire braid screen and grey RAL 7001 PVC outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductorFine-stranded bare copper wire to IEC 60228 / DIN VDE 0295 Class 5IEC 60228 Class 5
2PVC core insulationSpecial polyvinyl chloride compound Type TI2 with sequential white numbersEN 50363-3 TI2 · EN 50334
3Separator wrapping tapeNon-hygroscopic polyester (PET) foil tape over the stranded core bundleClean stripping & core bedding
4Tinned copper braid screen (C)Close-woven tinned copper wire braid (≥ 80–85 % optical coverage) for low transfer impedanceEMC / EMI shielding
5PVC outer sheathFlame-retardant polyvinyl chloride compound Type TM2, silver-grey RAL 7001 or transparentEN 50363-4-1 TM2 · IEC 60332-1-2

YSLCY-JZ / CY-JZ (3G–34G)

Black white-numbered PVC cores + 1 green-yellow earth conductor under tinned-copper braid screen

YSLCY-OZ / CY-OZ (2×–7×)

Black white-numbered PVC cores without green-yellow earth conductor under tinned-copper braid screen

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285 / BS EN 50525-2-51. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V AC
AC test voltage
4000 V AC core/core · 2000 V AC core/screen
Mutual capacitance
Approx. 120 nF/km (core/core) · 160 nF/km (core/screen)
Transfer impedance
≤ 250 mΩ/m at 30 MHz (tinned Cu braid ≥ 80 % coverage)
Insulation resistance
≥ 20 MΩ·km at +20 °C

Thermal

Temperature, flexing
−5 °C to +70 °C
Temperature, fixed
−40 °C to +80 °C
Max. conductor temperature
+70 °C (+80 °C fixed) continuous operation
Short-circuit temperature
+160 °C max. (up to 5 s)

Mechanical

Min. bending radius, fixed
6 × overall diameter
Min. bending radius, flexing
10 × overall diameter (occasional free movement)
Max. tensile load
15 N/mm² of total copper cross-section
Screen termination
360° EMC gland clamping on the tinned-copper braid recommended

Resistance

Flame retardance
IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
Oil resistance
Resistant to standard industrial machine oils and greases
EMC compliance
Meets EU EMC Directive 2014/30/EU shielding requirements

Reference standards

Construction basis
DIN VDE 0285-525-2-51 / BS EN 50525-2-51 / VDE 0245
Conductor standard
IEC 60228 / EN 60228 Class 5
Core identification
DIN VDE 0293-308 / EN 50334
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Silver-grey (RAL 7001) or transparent PVC over copper braid
Core identification
Black cores with white numbers + GN/YE (JZ) or without GN/YE (OZ)
Sheath marking
TEBAOFLEX CY / YSLCY-JZ [Size] 300/500V EMC SCREENED CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

23 standard CY / YSLCY configurations

Typical DIN VDE 0285 / BS EN 50525-2-51 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.75 mm² Screened Control Configurations (2 to 12 cores)
YSLCY-OZ 2×0.752×0.75185.45.9355435
YSLCY-JZ 3G0.753G0.75185.76.2456637
YSLCY-JZ 4G0.754G0.75186.26.7568140
YSLCY-JZ 5G0.755G0.75186.77.3689744
YSLCY-JZ 7G0.757G0.75187.37.98912547
YSLCY-JZ 12G0.7512G0.75189.510.314220262
1.0 mm² Screened Control Configurations (3 to 12 cores)
YSLCY-JZ 3G1.03G1.0176.06.5547839
YSLCY-JZ 4G1.04G1.0176.47.0689642
YSLCY-JZ 5G1.05G1.0177.17.78411646
YSLCY-JZ 7G1.07G1.0177.98.611215252
YSLCY-JZ 12G1.012G1.01710.010.917824565
1.5 mm² Screened Control Configurations (3 to 18 cores)
YSLCY-JZ 3G1.53G1.5166.77.37510444
YSLCY-JZ 4G1.54G1.5167.37.99412847
YSLCY-JZ 5G1.55G1.5168.18.811615853
YSLCY-JZ 7G1.57G1.5168.89.615420658
YSLCY-JZ 12G1.512G1.51611.512.524833275
YSLCY-JZ 18G1.518G1.51613.514.735547588
2.5–10 mm² Screened Control & Drive Configurations
YSLCY-JZ 3G2.53G2.5148.18.811515853
YSLCY-JZ 4G2.54G2.5148.89.614819858
YSLCY-JZ 5G2.55G2.5149.810.718224464
YSLCY-JZ 4G44G41210.511.422430268
YSLCY-JZ 4G64G61012.113.231842579
YSLCY-JZ 4G104G10815.316.6512685100
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per DIN VDE 0285 / BS EN 50525-2-51. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 116 mmBending radius OK (6 × OD 9.6 mm)
Minimum bending radius
58 mm
Min. drum core diameter
≈ 116 mm
Cable weight on drum
10.3 kg
Copper content
7.7 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test4.0 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / DIN VDE 0285 / BS EN 50525-2-51 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesDIN VDE 0285 / BS EN 50525-2-51Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0285 / BS EN 50525-2-51CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CY / YSLCY-JZ [Size] 300/500 V EMC SCREENED CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFCY / YSLCY Screened Control Cable – technical datasheet23 sizes · construction, technical data, approvalsXLSXCY / YSLCY spec data (Excel)All 23 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the 'C' in CY / YSLCY signify?
In German VDE and European control cable nomenclature, 'C' denotes a concentric tinned-copper wire braid screen (Kupfergeflecht) applied over the laid-up core bundle. With ≥ 80–85 % optical coverage, it provides low high-frequency transfer impedance to shield sensitive control and encoder signals against electromagnetic interference.
How does CY / YSLCY differ from LiYCY?
CY / YSLCY is a 300/500 V industrial control and power-interconnection cable (typically 0.5 mm² to 35 mm²) with numbered black cores (+ GN/YE) per EN 50334. LiYCY is a low-voltage electronic signal cable (0.14 mm² to 1.5 mm²) built to DIN VDE 0812 with DIN 47100 colour-coded cores.
How does CY differ from H05VVC4V5-K?
CY / YSLCY uses a single-sheath construction with a PET separator tape under the copper braid and standard TM2 PVC jacket. H05VVC4V5-K is the harmonised EN 50525-2-51 dual-sheath cable featuring an extruded inner PVC sheath, tinned-copper braid ('C4') and an EN 60811-404 oil-resistant TM5 outer sheath ('V5') for aggressive cutting fluids.
How should the copper braid screen on CY cable be earthed?
For effective high-frequency EMI attenuation (from kHz inverter switching harmonics up to MHz radio noise), terminate the tinned-copper braid across 360° inside a metallic EMC cable gland or earth clamp bar at the cabinet entry rather than twisting it into a long pigtail.
