Control & signal cablesEN 50525-2-51 <HAR>Tinned-Cu Braid (C4)TM5 Oil-Resistant PVC (V5)

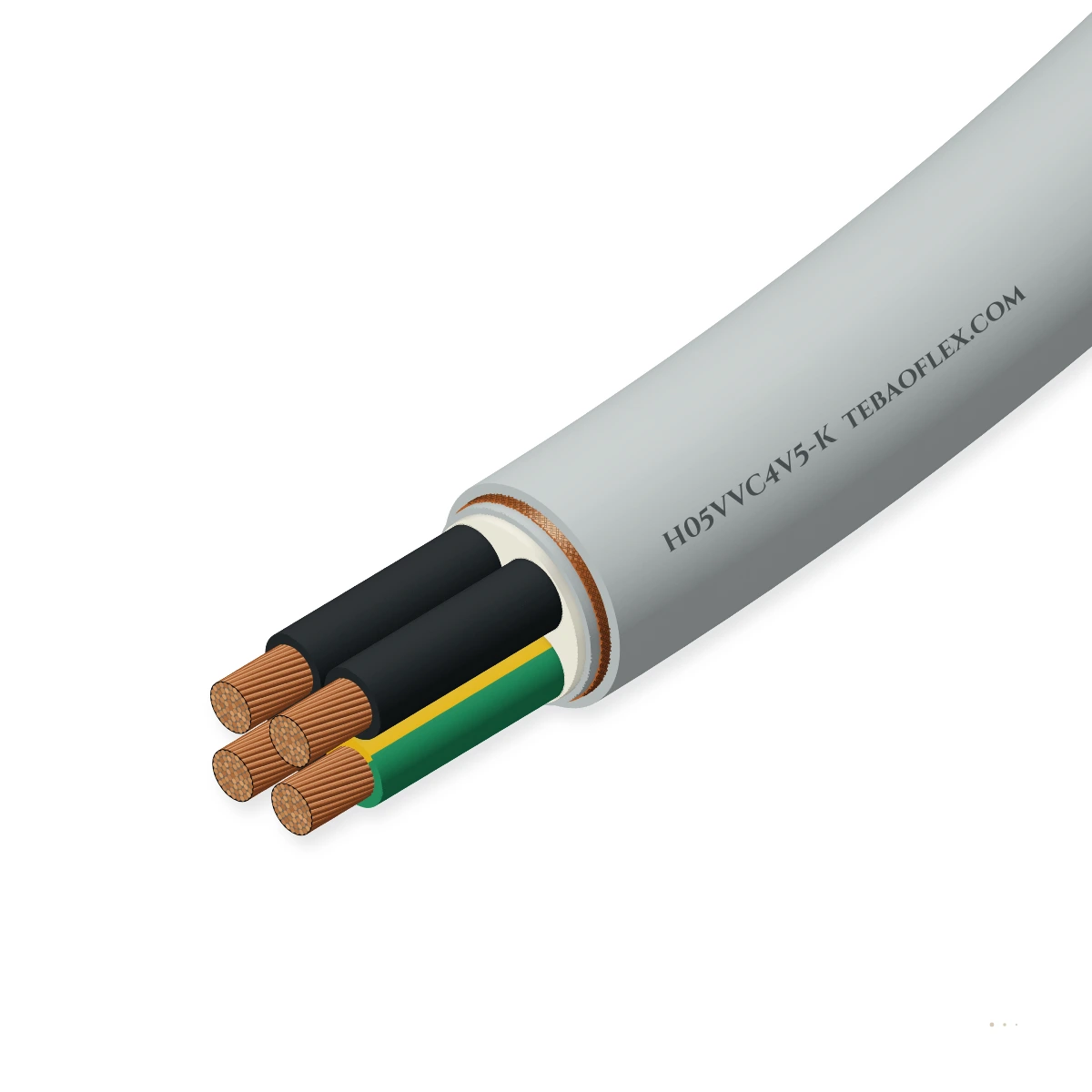

H05VVC4V5-K Screened Oil-Resistant Control CableHarmonised EN 50525-2-51 300/500 V copper-screened oil-resistant TM5 PVC control cable

Harmonised European 300/500 V EMC-screened and oil-resistant control cable to EN 50525-2-51 (`H05VVC4V5-K`, `<HAR>`) with Class 5 copper conductors (0.5–2.5 mm²), numbered TI2 PVC cores, extruded inner sheath, tinned-copper braid (`C4`) and TM5 outer sheath.

Oil-resistant

Flame-retardant

Approved

Cores × cross-section

Order designation: H05VVC4V5-K 7G1.5
Outer Ø min: 11.9 mm
Outer Ø max: 12.9 mm
Weight ≈: 286 kg/km
Min. bend R: 77 mm

Check against my drum All sizes (32)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage rating: 300/500 V
Test voltage: 2000 V AC
EMC screen: C4 CuSn braid
Oil resistance: EN 60811-404
Bending radius: 6–20 × OD
Size range: 0.5–2.5 mm²

Typical values for this cable type, based on EN 50525-2-51 (DIN VDE 0285-525-2-51) — confirmed in the datasheet and quotation for your order.

Application fit

Is H05VVC4V5-K right for your machine?

H05VVC4V5-K combines an extruded PVC inner bedding (`V`), a high-coverage tinned-copper wire braid screen (`C4`) and an EN 60811-404 oil-resistant TM5 outer sheath (`V5`), making it the CENELEC `<HAR>` standard for EMC-critical CNC machine tools and hydraulic transfer lines.

Fixed installation

Suitable

EMC-screened CNC machine tools, servo control cabinets, wet-machining centres and transfer lines.

VFD inverter to AC motor screened feeder

Suitable

Tinned-copper braid ('C4') over an extruded inner sheath suppresses high-frequency drive and contactor interference.

Trailing & towing

With conditions

Suitable for occasional flexing without tensile load in oily machine tools.

Use JZ-602-C-PUR

Energy chain / drag chain

Not suitable

Not designed for continuous high-cycle drag chains; select PUR-sheathed JZ-602-C-PUR.

Use JZ-602-C-PUR

Typical machinesCNC machining centres & multi-axis lathesAutomotive engine & transmission machining linesHydraulic presses & metalforming automationIndustrial washing, cooling & filtration unitsEN 60204-1 machinery OEM export equipment

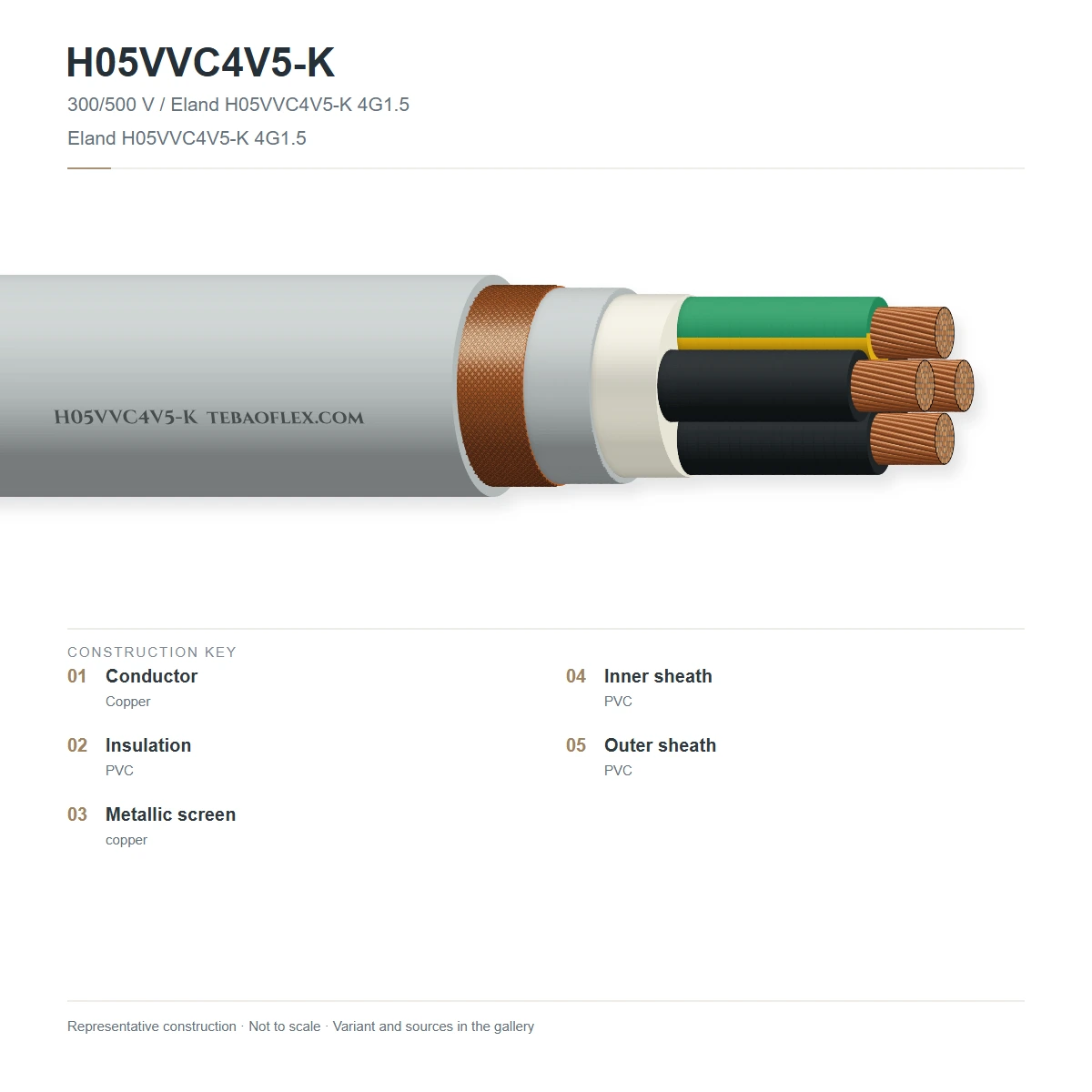

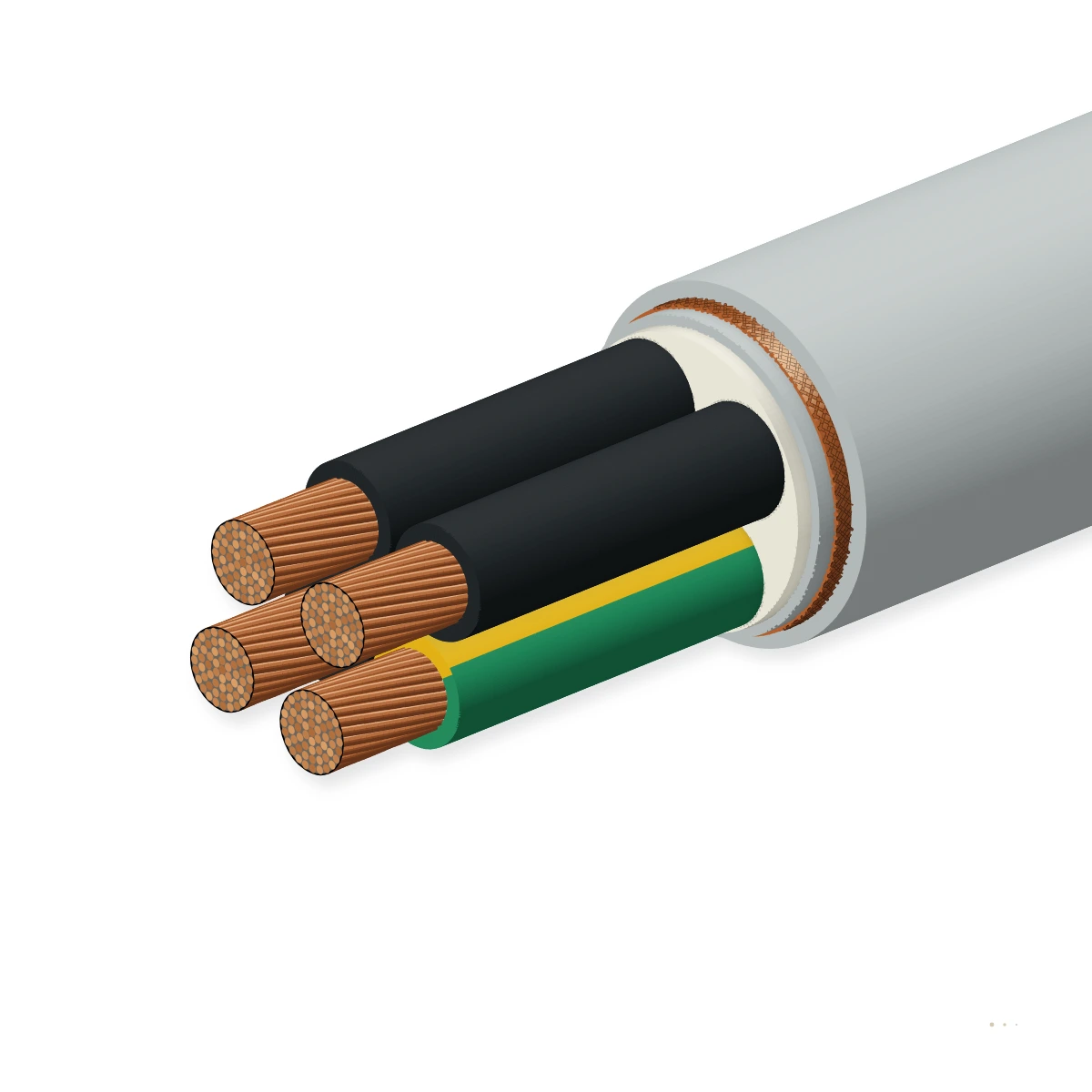

Construction

Layer by layer

Shown: H05VVC4V5-K 7G1.5 — Class 5 flexible bare copper conductors, TI2 PVC core insulation ('V', numbered + GN/YE), extruded TM2 PVC inner sheath ('V'), tinned-copper wire braid screen ('C4', ≥ 80 % optical coverage) and grey RAL 7001 TM5 oil-resistant PVC outer sheath ('V5').

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Class 5 flexible copper conductor	Fine-stranded annealed bare copper to EN 60228 / IEC 60228 Class 5 ('-K')EN 60228 Class 5
2	TI2 PVC core insulation (V)	Thermoplastic PVC compound Type TI2 (EN 50363-3) with printed sequential numbers + GN/YE coreEN 50363-3 TI2 · EN 50334
3	Extruded PVC inner sheath (V)	Extruded TM2 PVC inner bedding that locks the cores in a circular profile beneath the copper braidEN 50525-2-51
4	Tinned-copper braid screen (C4)	Close-woven tinned annealed copper wire braid with ≥ 80 % optical coverage for EMC immunityEN 50525-2-51 · EN 55011 EMC
5	TM5 oil-resistant PVC sheath (V5)	Special oil-, coolant- and emulsion-resistant PVC compound Type TM5 (EN 50363-4-1), grey RAL 7001EN 50363-4-1 TM5 · EN 60811-404

H05VVC4V5-K (G — with Green/Yellow Earth Core)

Harmonised 3G to 36G EMC-screened oil-resistant control cables (0.5–2.5 mm²)

H05VVC4V5-K (X — without Earth Core)

2X to 25X numbered-only screened oil-resistant control configurations

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-51 (DIN VDE 0285-525-2-51). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V AC
AC test voltage (50 Hz): 2000 V AC (core/core) · 2000 V AC (core/screen)
Transfer impedance (30 MHz): ≤ 250 mΩ/m via tinned-copper braid (C4)
Insulation resistance (20 °C): ≥ 20 MΩ·km

Thermal

Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −40 °C to +70 °C
Max. conductor temperature: +70 °C continuous · +150 °C short-circuit

Mechanical

Min. bending radius, fixed: 6 × overall diameter
Min. bending radius, flexing: 20 × overall diameter
Extruded inner sheath: Second 'V' is a full extruded PVC inner sheath (not just a plastic tape) for superior roundness in EMC glands

Resistance

Mineral oil resistance: EN 60811-404 immersion test in IRM 902 oil (TM5 outer sheath)
Flame retardance: EN 60332-1-2 / IEC 60332-1-2 vertical flame retardant · CPR Eca
EMC compliance: Meets EN 55011 / CISPR 11 & EN 61000-6-2 industrial noise immunity

Reference standards

Harmonised standard: EN 50525-2-51 (formerly HD 21.13 S1) / DIN VDE 0285-525-2-51
CENELEC HAR code: H05 = 300/500 V · V = TI2 core · V = PVC inner sheath · C4 = Cu braid screen · V5 = TM5 oil-res. outer sheath · -K = Cl. 5 flexible
Core identification: EN 50334 sequential numbers + green-yellow earth ('G')
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Silver-grey (RAL 7001)
Core identification: Black (or white) cores with sequential numbers + green-yellow earth core
Sheath marking: TEBAOFLEX H05VVC4V5-K <HAR> [Size] 300/500V EN 50525-2-51 OIL RES EMC CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

32 standard H05VVC4V5-K configurations

Typical EN 50525-2-51 (DIN VDE 0285-525-2-51) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
0.50 mm² H05VVC4V5-K Screened Oil-Resistant Control
H05VVC4V5-K 3G0.5	3×0.5	20	7.0	7.6	36	88	46
H05VVC4V5-K 4G0.5	4×0.5	20	7.5	8.2	43	104	49
H05VVC4V5-K 7G0.5	7×0.5	20	9.0	9.8	65	152	59
H05VVC4V5-K 12G0.5	12×0.5	20	11.2	12.2	99	234	73
H05VVC4V5-K 18G0.5	18×0.5	20	13.0	14.1	138	322	85
H05VVC4V5-K 25G0.5	25×0.5	20	15.5	16.8	188	438	101
0.75 mm² H05VVC4V5-K Screened Oil-Resistant Control
H05VVC4V5-K 3G0.75	3×0.75	18	7.5	8.1	45	102	49
H05VVC4V5-K 4G0.75	4×0.75	18	8.0	8.7	55	122	52
H05VVC4V5-K 5G0.75	5×0.75	18	8.7	9.5	66	145	57
H05VVC4V5-K 7G0.75	7×0.75	18	9.9	10.8	86	188	65
H05VVC4V5-K 12G0.75	12×0.75	18	12.2	13.3	136	290	80
H05VVC4V5-K 18G0.75	18×0.75	18	14.3	15.5	194	405	93
H05VVC4V5-K 25G0.75	25×0.75	18	16.7	18.2	260	545	109
1.00 mm² H05VVC4V5-K Screened Oil-Resistant Control
H05VVC4V5-K 3G1.0	3×1.0	17	7.8	8.5	53	116	51
H05VVC4V5-K 4G1.0	4×1.0	17	8.5	9.2	66	140	55
H05VVC4V5-K 5G1.0	5×1.0	17	9.2	10.0	79	168	60
H05VVC4V5-K 7G1.0	7×1.0	17	10.5	11.4	106	218	68
H05VVC4V5-K 12G1.0	12×1.0	17	13.0	14.1	168	340	85
H05VVC4V5-K 18G1.0	18×1.0	17	15.2	16.5	240	478	99
H05VVC4V5-K 25G1.0	25×1.0	17	17.9	19.5	326	645	117
1.50 mm² H05VVC4V5-K Screened Oil-Resistant Control
H05VVC4V5-K 3G1.5	3×1.5	16	8.7	9.5	70	148	57
H05VVC4V5-K 4G1.5	4×1.5	16	9.5	10.3	89	180	62
H05VVC4V5-K 5G1.5	5×1.5	16	10.4	11.3	108	216	68
H05VVC4V5-K 7G1.5	7×1.5	16	11.9	12.9	146	286	77
H05VVC4V5-K 12G1.5	12×1.5	16	14.8	16.1	238	452	97
H05VVC4V5-K 18G1.5	18×1.5	16	17.3	18.8	342	635	113
H05VVC4V5-K 25G1.5	25×1.5	16	20.5	22.3	462	860	134
2.50 mm² H05VVC4V5-K Screened Oil-Resistant Control
H05VVC4V5-K 3G2.5	3×2.5	14	10.2	11.1	105	208	67
H05VVC4V5-K 4G2.5	4×2.5	14	11.1	12.1	134	256	73
H05VVC4V5-K 5G2.5	5×2.5	14	12.3	13.4	166	312	80
H05VVC4V5-K 7G2.5	7×2.5	14	14.1	15.3	226	415	92
H05VVC4V5-K 12G2.5	12×2.5	14	17.7	19.2	368	662	115

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-2-51 (DIN VDE 0285-525-2-51). Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0
1.5	16	13.3	23.0	18.0
2.5	14	7.98	30.0	25.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 154 mmBending radius OK (6 × OD 12.9 mm)

Minimum bending radius: 77 mm
Min. drum core diameter: ≈ 154 mm
Cable weight on drum: 14.3 kg
Copper content: 7.3 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / EN 50525-2-51 (DIN VDE 0285-525-2-51) (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	EN 50525-2-51 (DIN VDE 0285-525-2-51)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-51 (DIN VDE 0285-525-2-51)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H05VVC4V5-K <HAR> [Size] 300/500V EN 50525-2-51 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFH05VVC4V5-K Screened Oil-Resistant Control Cable – technical datasheet32 sizes · construction, technical data, approvals XLSXH05VVC4V5-K spec data (Excel)All 32 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
