industrial data rf cable series78 Ω ± 3 Ω TwinaxialDH+ & Remote I/O ('Blue Hose')1×2×20 AWG · 66% VoP

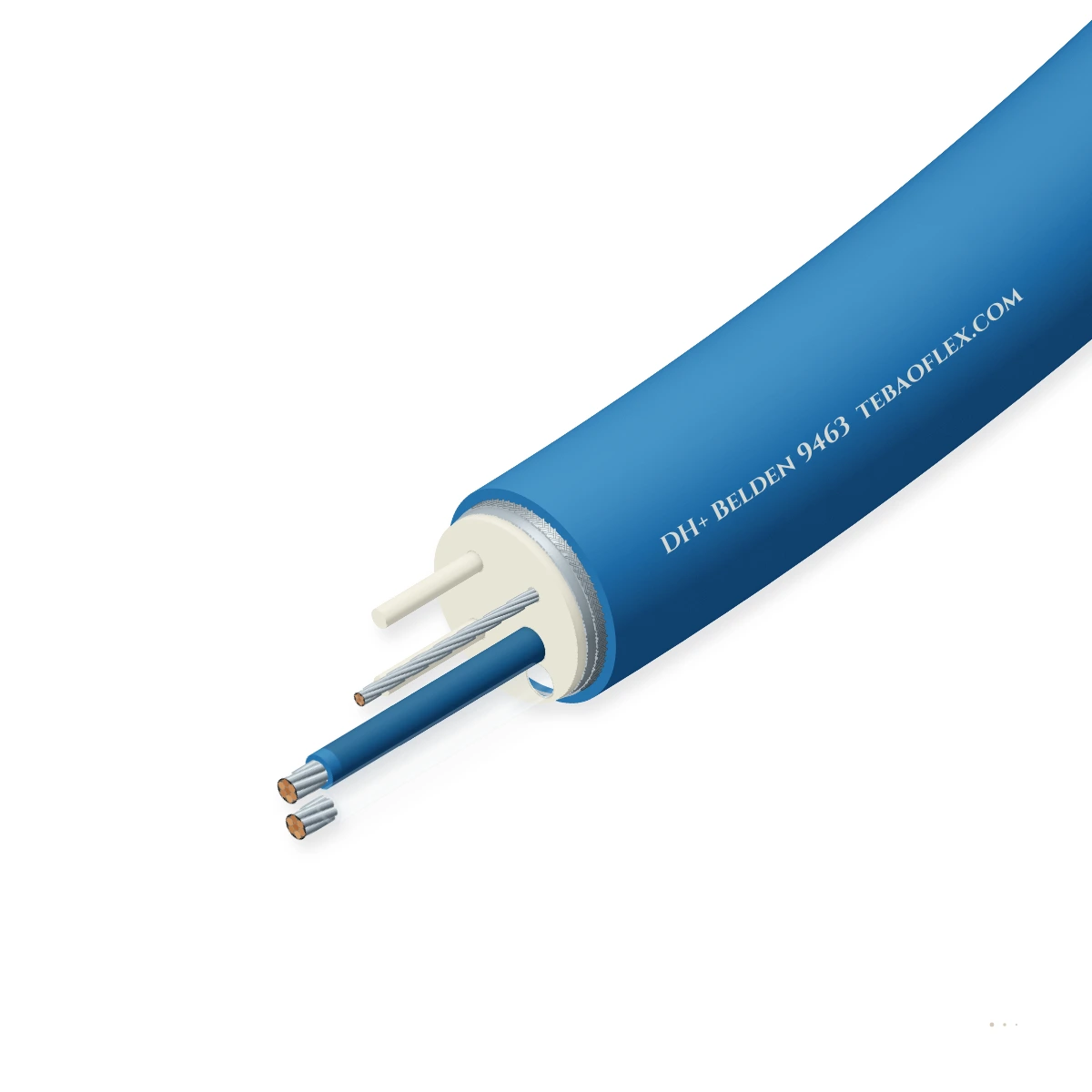

Data Highway Plus (DH+) 78 Ω Twinaxial Industrial Bus Cable78 Ω ± 3 Ω 1×2×20 AWG foil+braid screened 'Blue Hose' DH+ & Remote I/O twinaxial cable

78 Ω 'Blue Hose' twinaxial industrial bus cable (9463) for Allen-Bradley Data Highway Plus (DH+) and Remote I/O (57.6–230.4 kbps) with 1×2×20 AWG tinned copper cores (clear/blue PE), 20 AWG drain wire, 100 % foil plus 55 % tinned braid, and 300 V PVC jacket.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
9463 Blue Hose PVC
Outer Ø ≈
6.05 mm
Wall thickness
0.89 mm
Total weight ≈
54.0 kg/km
Min. bend R (fixed)
60 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance
78 Ω ± 3 Ω
Balanced twinaxial PLC bus
Conductors
1×2×20 AWG
7×28 AWG tinned Cu (blue/clear)
Capacitance
64.6 pF/m
19.7 pF/ft · 66 % VoP PE core
Shielding
Foil + 55% braid
100% Al/PET + Sn-Cu braid + drain
Bus distance
Up to 3,048 m
At 57.6 kbps (10,000 ft trunk)
Voltage / temp
300 V · 80 °C
-40 °C to +80 °C UL CM/CL2

Typical values for this cable type, based on UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial) — confirmed in the datasheet and quotation for your order.

Application fit

Is DH+ 78 Ω Twinax right for your machine?

Specify DH+ 9463 ('Blue Hose') for Allen-Bradley Data Highway Plus (DH+), Universal Remote I/O (RIO), PLC-5, SLC 5/04, and ControlLogix DHRIO bridge networks.

Fixed installation

Suitable

Low 64.6 pF/m capacitance and 31.2 Ω/km resistance enable 3,048 m (10,000 ft) trunks at 57.6 kbps and 762 m at 230.4 kbps.

VFD inverter to AC motor screened feeder

Suitable

100 % aluminum-polyester foil plus 55 % tinned copper braid and 20 AWG tinned drain wire reject common-mode drive noise.

Switchgear & control cabinet wiring

Suitable

6.05 mm outer diameter and colour-coded blue/clear PE cores with separate drain wire simplify 3-pin Phoenix combicon PLC termination.

Energy chain / drag chain

Not suitable

Standard 7×28 AWG PVC trunk cable is designed for fixed trays and conduits; select 9463F flexing version for moving arms.

Use UNITRONIC BUS IBS FD P
Typical machinesPLC-5 & SLC 500 Brownfield MigrationsAutomotive Stamping & Assembly PlantsPulp, Paper & Converting LinesFood, Beverage & Bottling PlantsWater & Municipal Pumping Stations

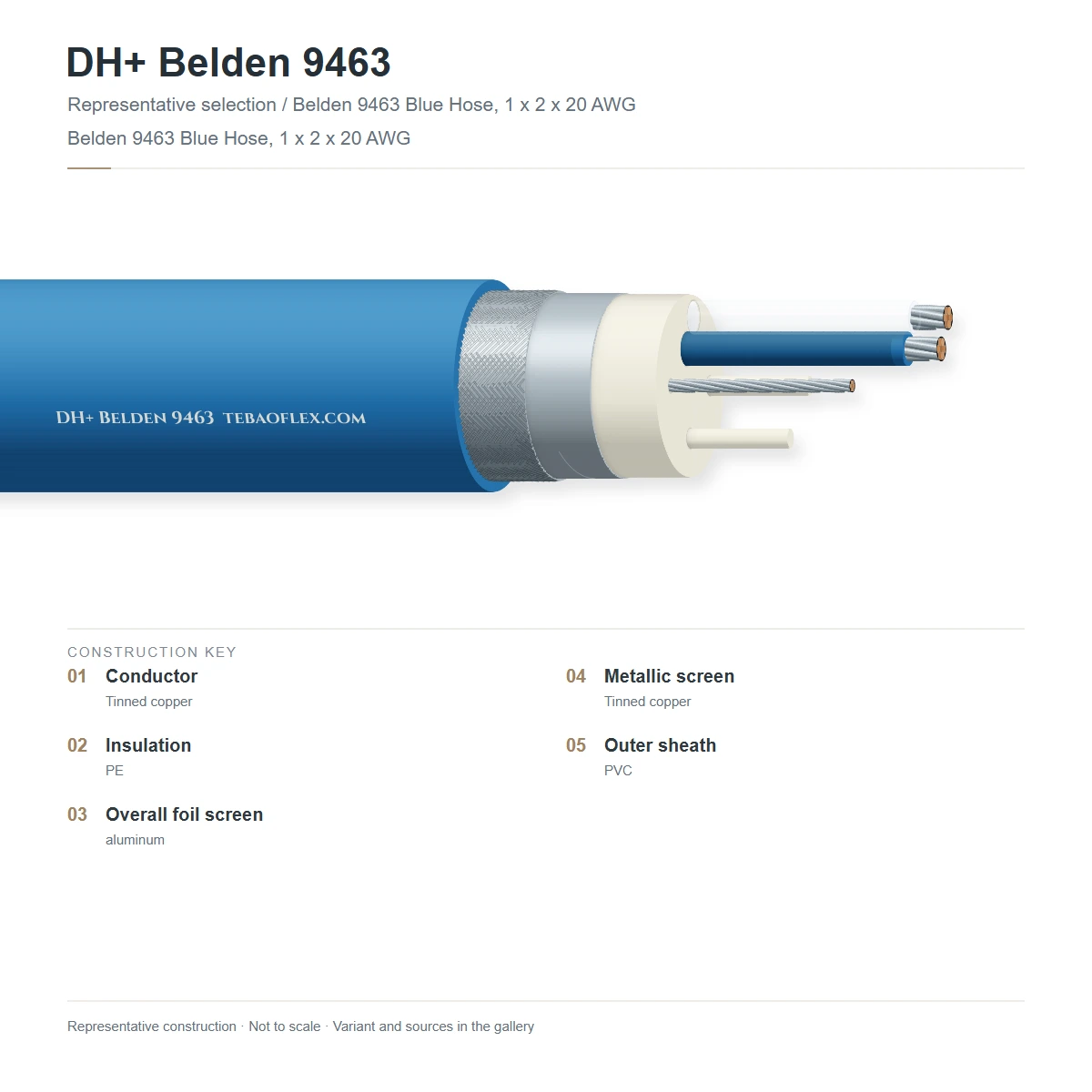

Construction

Layer by layer

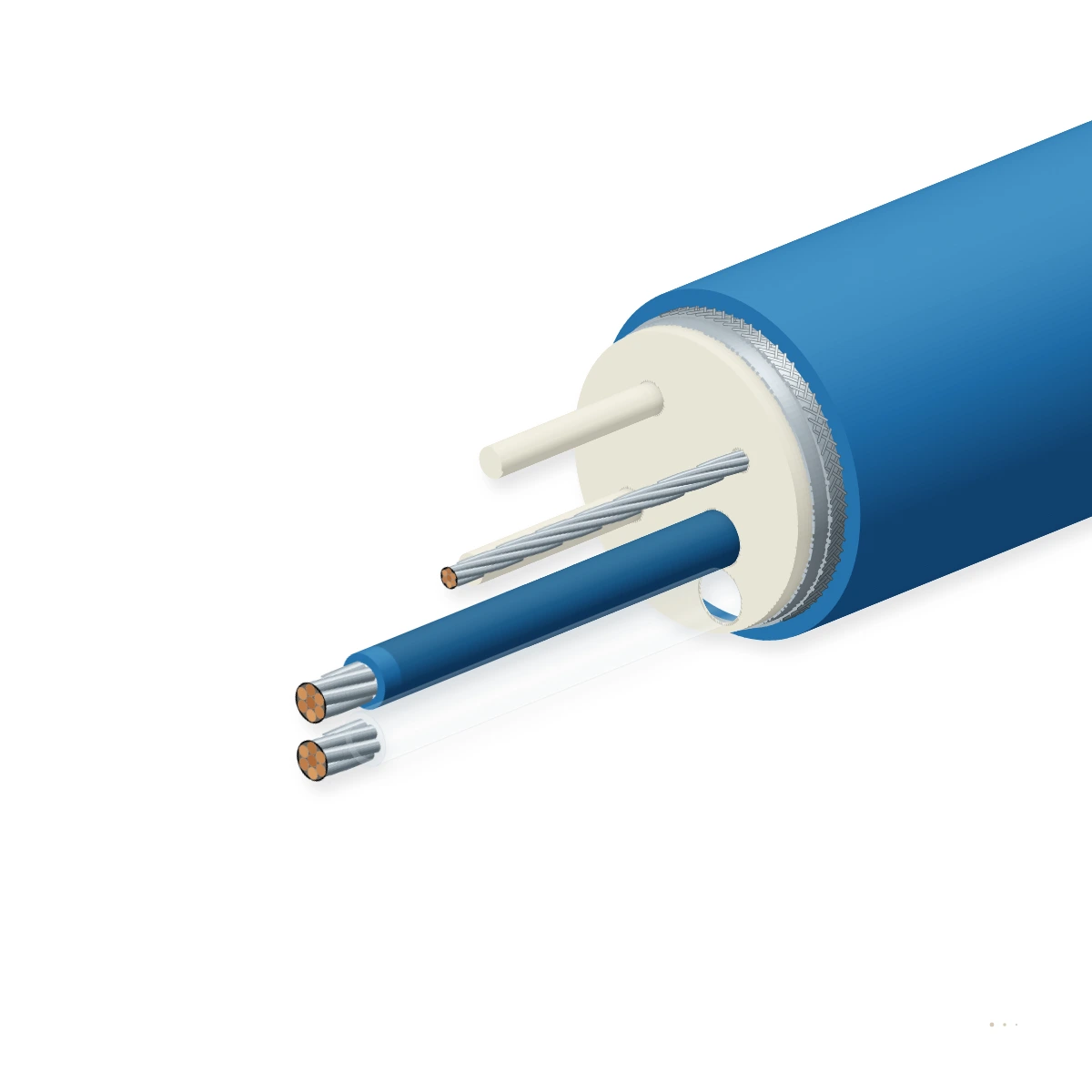

78 Ω twinaxial 'Blue Hose' build: 1×2×20 AWG (7×28) tinned copper pair with blue & clear PE insulation, 20 AWG drain wire, 100 % Al/PET tape, 55 % Sn-Cu braid, and blue PVC jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
120 AWG stranded tinned copper twinaxial pairTwo 20 AWG (7×28 AWG, 0.52 mm²) stranded ASTM B33 tinned copper conductorsCorrosion-free screw-terminal clamping and low 31.2 Ω/km loop resistance
2Solid polyethylene (PE) core insulationLow-loss solid polyethylene (1 × blue, 1 × clear/natural, 66 % VoP)Maintains stable 78 Ω ± 3 Ω differential impedance and 64.6 pF/m capacitance
3100 % aluminum/polyester foil + 20 AWG drain wire100 % coverage bonded aluminum/polyester tape with 20 AWG (7×28) tinned copper drain wireHigh-frequency electrostatic shielding and rapid 3-pin combicon shield grounding
4Tinned copper wire braid screenTinned copper wire braid (55 % nominal coverage)Low-frequency magnetic interference rejection in heavy industrial trays
5Blue industrial PVC outer jacket ('Blue Hose')Sunlight- and oil-resistant UL CM / CL2 / FT4 blue PVC compound (Ø 6.05 mm)Instant visual identification of Data Highway Plus and Remote I/O trunks

9463 Standard ('Blue Hose')

Blue PVC UL CM/CL2 trunk cable (1×2×20 AWG) for indoor trays and conduits

9463F / 89463 / 129463

High-flex stranded (9463F), FEP plenum +200 °C (89463), or armored (129463) versions

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
78 Ω ± 3 Ω
Mutual capacitance (core/core)
64.6 pF/m (19.7 pF/ft) @ 1 kHz
Capacitance (core to shield)
118.1 pF/m (36.0 pF/ft) @ 1 kHz
Velocity of propagation
66 % nominal (inductance 0.39 µH/m)
Conductor / shield DC resistance
31.2 Ω/km (20 AWG) · 13.8 Ω/km shield
Attenuation @ 1 / 10 / 50 MHz
1.97 / 6.89 / 16.4 dB/100m

Thermal

Operating temperature range
-40 °C to +80 °C (PVC)
Plenum FEP version (89463)
-70 °C to +200 °C (UL CMP)
UL voltage rating
300 V RMS (UL CM / CL2 / AWM 2464)

Mechanical

Conductor stranding
1×2×20 AWG (7×28 AWG, 0.52 mm²) Sn-Cu
Overall diameter
6.05 mm (0.238 in) nominal
Min. bending radius
60 mm (10 × OD) fixed
Max. pulling tension
200 N (45 lbf)

Resistance

Flame retardancy
UL 1685 FT4 / CEC CMG FT4 / IEC 60332-1-2
Sunlight & oil resistance
UL Sunlight Resistant & Oil Res I
Termination resistor match
150 Ω (57.6/115.2 kbps) or 82 Ω (230.4 kbps)

Reference standards

Approvals
NEC CM, CL2 · UL AWM Style 2464 · CEC CMG FT4
Protocol compatibility
Allen-Bradley DH+, Remote I/O (RIO), Modbus+
RoHS & REACH
RoHS 3 (2015/863/EU) & REACH compliant

Identification

Core / jacket colours
1 blue + 1 clear core · Blue outer PVC jacket
Surface legend
TEBAOFLEX 9463 1PR20 SHIELDED 78 OHM TWINAX DH+ CM CL2 FT4
Customs tariff (HS)
8544.49

Sizes

8 standard configurations (DH+ 9463)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for DH+ 9463 per UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard DH+ 9463 configurations
9463 Blue Hose PVC78 Ω · 1×2×20 AWG7×28 Sn-Cu + PE + Foil/Braid0.896.0524.554.060
9463F High-Flex78 Ω · 1×2×20 AWG Flex19×32 Sn-Cu + PE + Foil/Braid0.906.1525.556.046
89463 Plenum FEP78 Ω · 1×2×20 AWG FEP7×28 Sn-Cu + FEP + Foil/Braid0.555.2824.548.053
9463DB Direct Burial78 Ω · 1×2×20 AWG HDPE7×28 Sn-Cu + Flooded HDPE1.106.8024.564.068
9463NH LSZH78 Ω · 1×2×20 AWG LSZH7×28 Sn-Cu + PE + LSZH0.926.1024.557.061
129463 Al-Armored78 Ω · 1×2×20 AWG AIA7×28 Sn-Cu + Interlocked Al1.3511.4048.0138.0114
9463-PUR Oil/Flex78 Ω · 1×2×20 AWG PUR19×32 Sn-Cu + PE + PUR0.956.2025.555.046
9272 Compact 78 Ω78 Ω · 1×2×20 AWG7×28 Sn-Cu + PE + 93% Braid0.855.9526.053.060
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for DH+ 9463 subject to standard manufacturing tolerances per UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 444 / NEC CM-CL2 (78 Ω Data Highway Plus & Remote I/O Twinaxial)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 9463 1PR20 78 OHM TWINAX DATA HIGHWAY PLUS CM CL2 FT4
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFData Highway Plus (DH+) 78 Ω Twinaxial Industrial Bus Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXDH+ 78 Ω Twinax spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why is 9463 universally known as 'Blue Hose' in industrial automation?
Its signature bright blue PVC jacket and 78 Ω twinaxial construction (1 blue core, 1 clear core, plus a separate 20 AWG tinned drain wire) were standardized by Rockwell Automation / Allen-Bradley for Data Highway Plus (DH+) and Universal Remote I/O (RIO) networks.
What are the maximum trunk lengths and termination resistors for DH+ and Remote I/O?
At 57.6 kbps, 9463 supports 3,048 m (10,000 ft) with 150 Ω termination resistors; at 115.2 kbps, 1,524 m (5,000 ft) with 150 Ω resistors; and at 230.4 kbps, 762 m (2,500 ft) using 82 Ω termination resistors.
Can standard 100 Ω Ethernet or 120 Ω RS-485 cable substitute for 78 Ω 9463?
No. DH+ and Remote I/O transformer-coupled transceivers are tuned to 78 Ω ± 3 Ω and 64.6 pF/m; substituting 100 Ω or 120 Ω cable causes impedance reflections and communication drops on trunks over a few hundred meters.
Is there an avionics 78 Ω twinaxial counterpart to 9463?
Yes. While 9463 is the 20 AWG PVC industrial bus cable, MIL-STD-1553B (M17/176-00002) is the fluoropolymer 78 Ω twinaxial cable qualified for -55 °C to +200 °C airborne command/response data buses.
