Control & signal cables600 V UL/CSA & VDETinned-Cu Braid ≥ 85 %TMPU Polyurethane Sheath

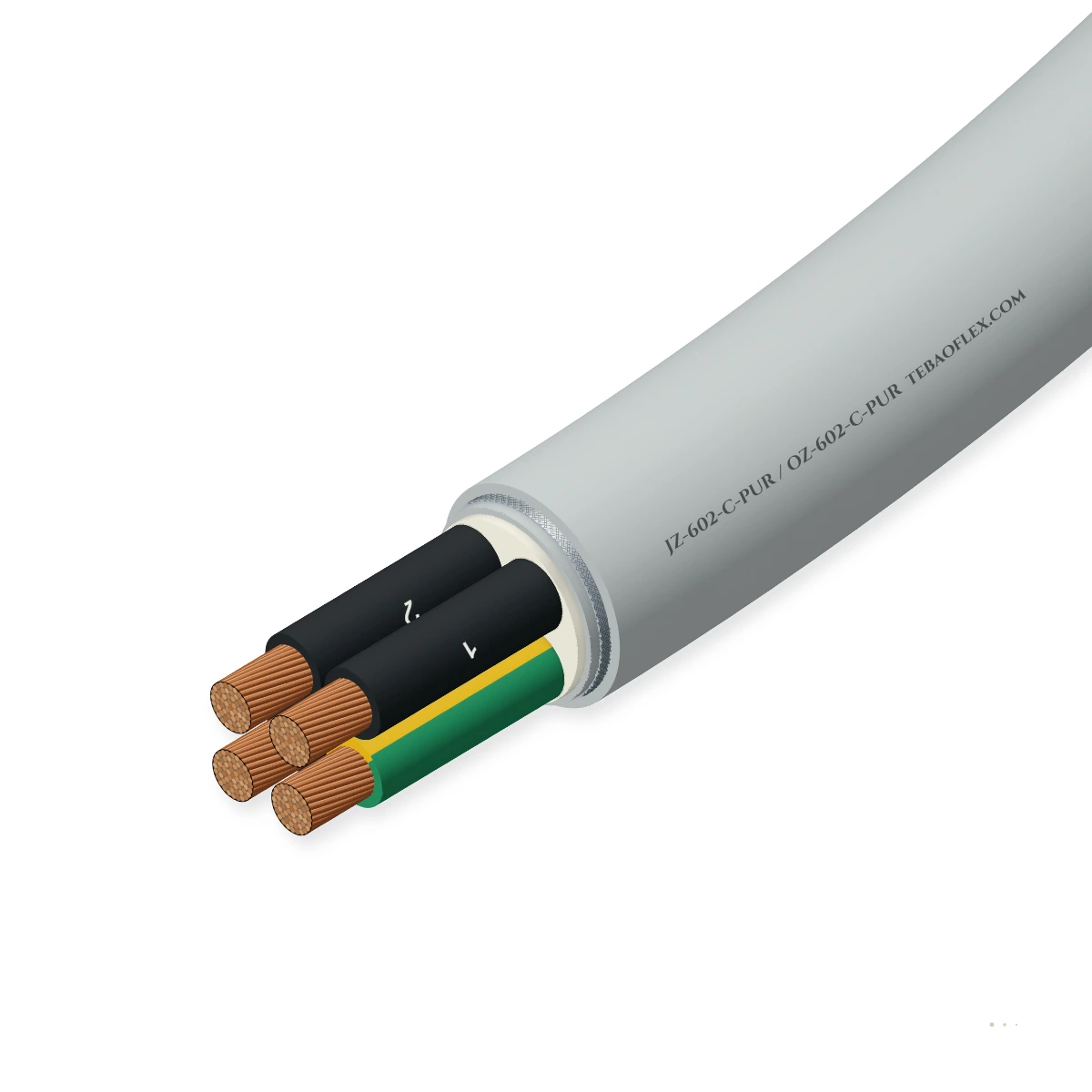

JZ-602-C-PUR / OZ-602-C-PUR 600 V Screened PUR-Sheathed Control600 V UL/VDE tinned-copper braid screened TMPU polyurethane control cable

Dual-market 600 V (UL/CSA AWM) and 300/500 V (VDE) EMC-screened control cable (`JZ-602-C-PUR / OZ-602-C-PUR`) with Class 5 copper conductors (0.5–16 mm²), numbered PVC cores, ≥85 % tinned-copper wire braid screen (`C`) and TMPU (`PUR`) outer sheath.

Oil-resistant

Outdoor & humid

Water-resistant

Ozone, UV & moisture

Cores × cross-section

Order designation: JZ-602-C-PUR 7G1.5
Outer Ø min: 9.8 mm
Outer Ø max: 10.6 mm
Weight ≈: 214 kg/km
Min. bend R: 64 mm

Check against my drum All sizes (35)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage rating: 600 V (UL/CSA)
EMC screen: ≥ 85 % CuSn
Outer sheath: TMPU (11Y)
Temp. flexing: −15…+80 °C
Bending radius: 6–15 × OD
Size range: 0.5–16 mm²

Typical values for this cable type, based on DIN VDE 0285 / UL AWM 600 V · TMPU EMC — confirmed in the datasheet and quotation for your order.

Application fit

Is JZ-602-C-PUR / OZ-602-C-PUR right for your machine?

JZ-602-C-PUR / OZ-602-C-PUR is engineered for export machinery builders needing a single EMC-screened, cut- and coolant-resistant PUR control cable that satisfies both European VDE (`300/500 V`) and North American UL/CSA AWM (`600 V`, `+80 °C`, Oil Res) panel and field inspections.

Fixed installation

Suitable

Export CNC machine tools, servo axis interconnects, robotic welding cells and wet-sump transfer lines.

VFD inverter to AC motor screened feeder

Suitable

≥ 85 % tinned-copper wire braid screen suppresses high-frequency PWM drive and servo interference.

Trailing & towing

Suitable

Tough TMPU polyurethane outer jacket resists sharp metal swarf, synthetic coolants and floor abrasion.

Energy chain / drag chain

With conditions

Suitable for occasional flexing and medium-duty linear guides; for 300/500 V inner-sheathed CP, see JZ-35400 CP.

Use JZ-35400 CP

Typical machinesExport CNC machine tools (EU & North America)Automotive body-in-white & powertrain plantsServo drives, proportional valves & encodersFood, beverage & chemical washdown equipmentWoodworking, stone & metal-cutting machinery

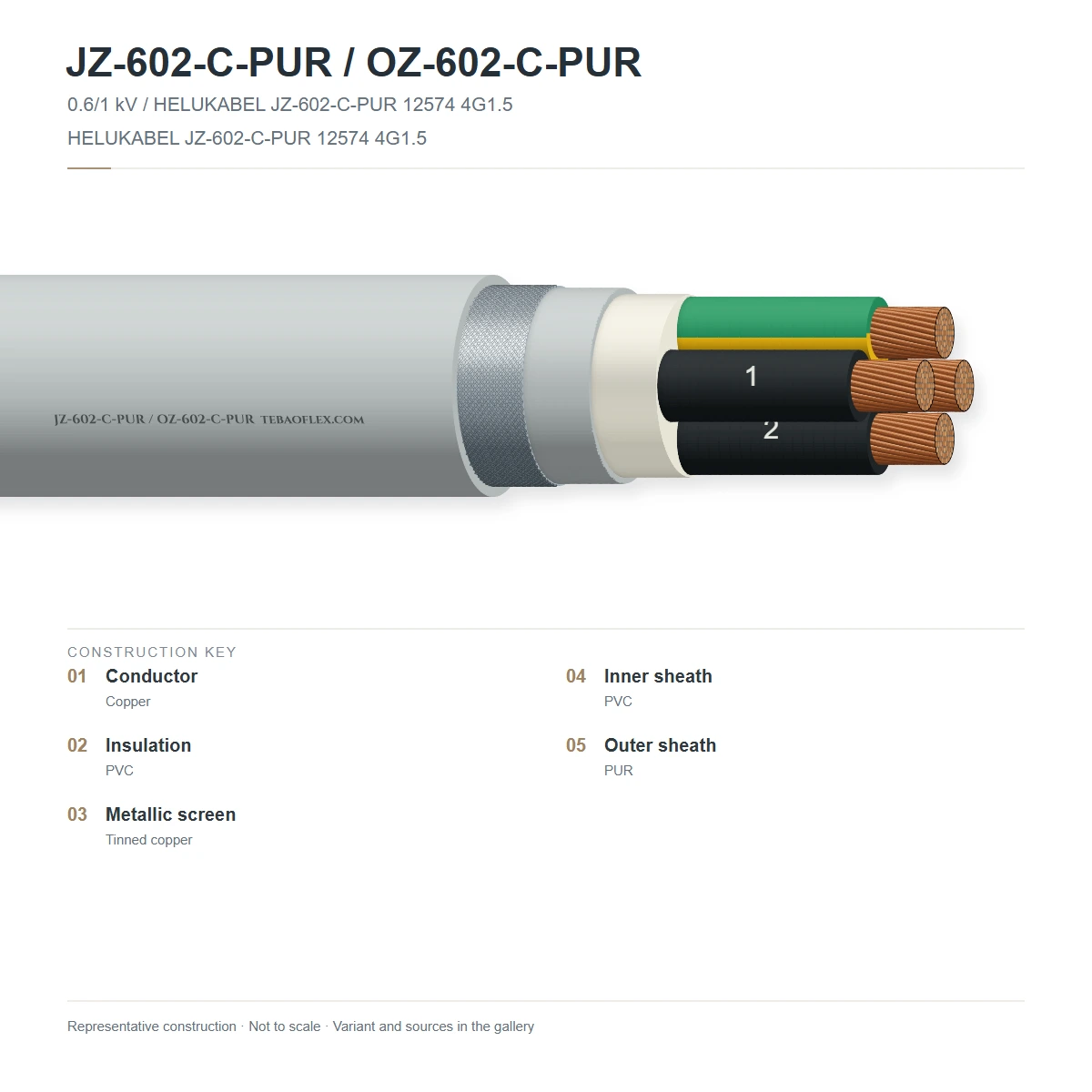

Construction

Layer by layer

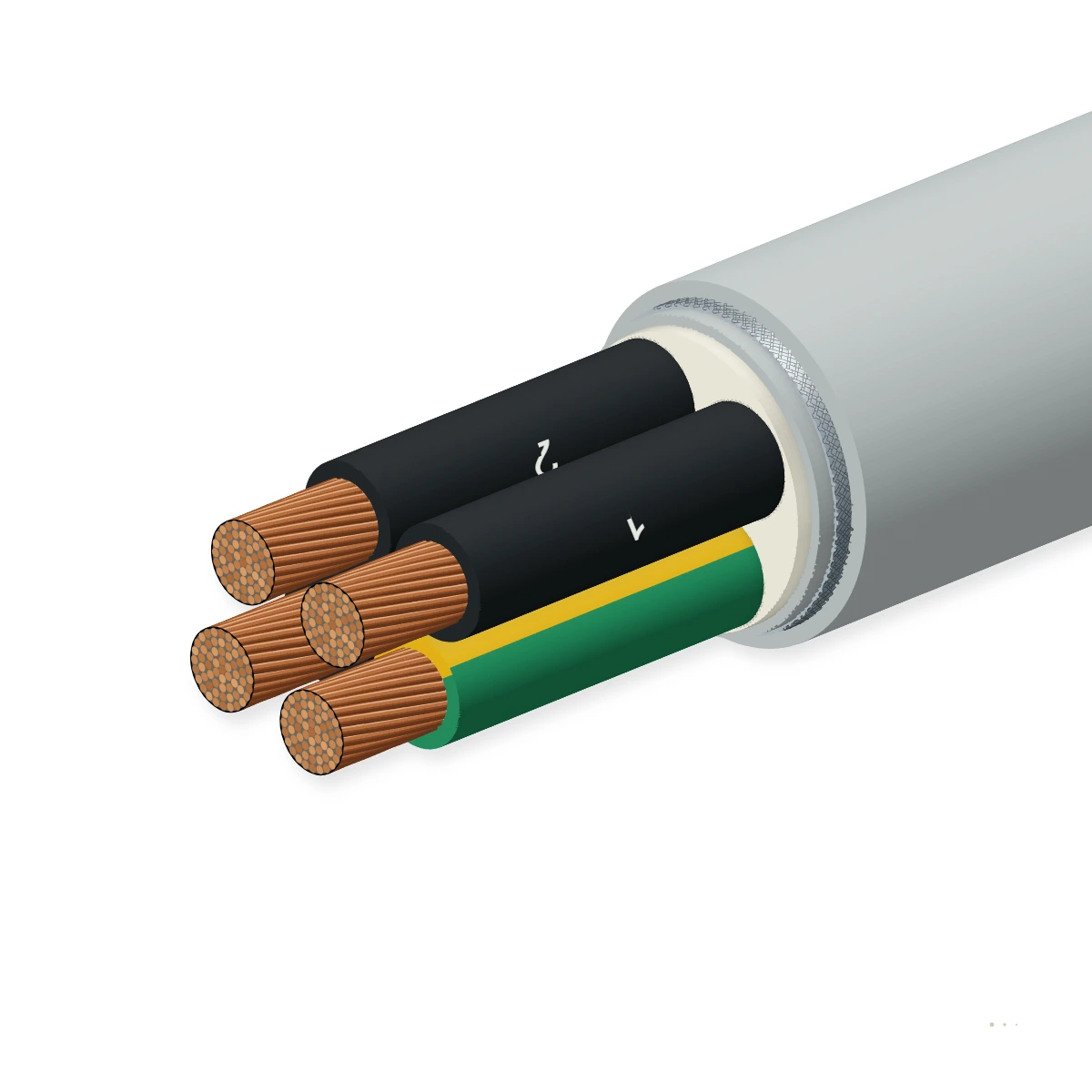

Shown: JZ-602-C-PUR 7G1.5 — Class 5 flexible bare copper conductors, special PVC/TI2 core insulation (numbered + GN/YE), fleece/PET separator, ≥85 % tinned-copper wire braid screen ('C') and silver-grey RAL 7001 EN 50363-10-2 TMPU polyurethane outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Class 5 flexible copper conductor	Fine-stranded annealed bare copper to DIN VDE 0295 / IEC 60228 Class 5IEC 60228 Class 5
2	600 V special PVC core insulation	Heat- and oil-resistant PVC compound (VDE TI2 / UL 80 °C) with sequential white numbers + GN/YEDIN VDE 0285 · UL 758
3	Non-woven fleece / PET separator	Low-friction wrapping tape over the cabled core bundle for torsional reliefDIN VDE 0285
4	Tinned-copper braid screen (C)	Close-woven tinned annealed copper wire braid with ≥ 85 % optical coverage for low transfer impedanceDIN VDE 0285 · EN 55011 EMC
5	TMPU polyurethane outer sheath (PUR)	Oil-, coolant-, hydrolysis-, UV- and abrasion-resistant polyurethane compound Type TMPU (11YM1), grey RAL 7001EN 50363-10-2 TMPU · UL Oil Res

JZ-602-C-PUR (G — with Green/Yellow Earth Core)

3G to 25G 600 V UL/VDE EMC-screened PUR control cables from 0.5 to 16 mm²

OZ-602-C-PUR (X — without Earth Core)

2X to 12X 600 V UL/VDE numbered-only screened PUR control configurations

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285 / UL AWM 600 V · TMPU EMC. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 600 V (UL/CSA AWM) · 300/500 V (DIN VDE 0285)
AC test voltage (50 Hz): 4000 V AC (core/core) · 2000 V AC (core/screen)
Transfer impedance (30 MHz): ≤ 250 mΩ/m via ≥ 85 % tinned-copper braid
Insulation resistance (20 °C): ≥ 20 MΩ·km

Thermal

Temperature, flexing: −15 °C to +80 °C
Temperature, fixed: −40 °C to +80 °C (VDE & UL/CSA +80 °C)
Short-circuit temperature: +150 °C max.

Mechanical

Min. bending radius, fixed: 6 × overall diameter
Min. bending radius, flexing: 12.5–15 × overall diameter
Screen coverage: ≥ 85 % optical coverage tinned-copper wire braid

Resistance

Oil & coolant resistance: EN 60811-404 & UL Oil Res 80 °C resistant to cutting emulsions and hydraulic oils
Hydrolysis, UV & microbes: Polyether TMPU jacket resists water immersion, UV sunlight and microbial attack
Flame test: UL VW-1 / CSA FT1 & IEC 60332-1-2 flame retardant

Reference standards

VDE / European basis: DIN VDE 0285-525-2-51 & EN 50363-10-2 (TMPU)
North American AWM: UL 758 AWM Style (600 V, 80 °C) & CSA AWM I/II A/B FT1
Core identification: DIN VDE 0293-334 / EN 50334 sequential numbers (JZ with GN/YE, OZ without)
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Silver-grey (RAL 7001)
Core identification: Black cores with white sequential numbers + green-yellow earth core (JZ)
Sheath marking: TEBAOFLEX JZ-602-C-PUR [Size] 600V 80C UL/CSA AWM VW-1 FT1 EMC TMPU CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

35 standard JZ-602-C-PUR / OZ-602-C-PUR configurations

Typical DIN VDE 0285 / UL AWM 600 V · TMPU EMC outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
0.50 mm² JZ-602-C-PUR / OZ-602-C-PUR Screened (600 V)
OZ-602-C-PUR 2×0.5	2×0.5	20	5.3	5.8	25	48	35
JZ-602-C-PUR 3G0.5	3×0.5	20	5.6	6.1	31	56	37
JZ-602-C-PUR 4G0.5	4×0.5	20	6.1	6.6	38	68	40
JZ-602-C-PUR 7G0.5	7×0.5	20	7.4	8.0	59	104	48
JZ-602-C-PUR 12G0.5	12×0.5	20	9.3	10.1	94	168	61
JZ-602-C-PUR 18G0.5	18×0.5	20	10.9	11.8	134	236	71
0.75 mm² JZ-602-C-PUR / OZ-602-C-PUR Screened (600 V)
JZ-602-C-PUR 3G0.75	3×0.75	18	6.0	6.5	40	68	39
JZ-602-C-PUR 4G0.75	4×0.75	18	6.5	7.1	50	84	43
JZ-602-C-PUR 5G0.75	5×0.75	18	7.2	7.8	60	102	47
JZ-602-C-PUR 7G0.75	7×0.75	18	8.1	8.8	80	134	53
JZ-602-C-PUR 12G0.75	12×0.75	18	10.2	11.1	130	214	67
JZ-602-C-PUR 18G0.75	18×0.75	18	12.0	13.0	186	304	78
JZ-602-C-PUR 25G0.75	25×0.75	18	14.1	15.3	250	412	92
1.00 mm² JZ-602-C-PUR / OZ-602-C-PUR Screened (600 V)
JZ-602-C-PUR 3G1.0	3×1.0	17	6.3	6.9	49	80	41
JZ-602-C-PUR 4G1.0	4×1.0	17	6.9	7.5	61	99	45
JZ-602-C-PUR 5G1.0	5×1.0	17	7.6	8.3	74	120	50
JZ-602-C-PUR 7G1.0	7×1.0	17	8.6	9.4	99	158	56
JZ-602-C-PUR 12G1.0	12×1.0	17	10.9	11.9	162	258	71
JZ-602-C-PUR 18G1.0	18×1.0	17	12.9	14.0	232	368	84
JZ-602-C-PUR 25G1.0	25×1.0	17	15.2	16.5	315	498	99
1.50 mm² JZ-602-C-PUR / OZ-602-C-PUR Screened (600 V)
JZ-602-C-PUR 3G1.5	3×1.5	16	7.1	7.7	66	105	46
JZ-602-C-PUR 4G1.5	4×1.5	16	7.8	8.5	84	132	51
JZ-602-C-PUR 5G1.5	5×1.5	16	8.6	9.3	102	160	56
JZ-602-C-PUR 7G1.5	7×1.5	16	9.8	10.6	138	214	64
JZ-602-C-PUR 12G1.5	12×1.5	16	12.4	13.5	228	348	81
JZ-602-C-PUR 18G1.5	18×1.5	16	14.6	15.9	328	495	95
JZ-602-C-PUR 25G1.5	25×1.5	16	17.3	18.8	445	672	113
2.5–16 mm² JZ-602-C-PUR Screened Control & Servo Feeders
JZ-602-C-PUR 3G2.5	3×2.5	14	8.5	9.2	100	155	55
JZ-602-C-PUR 4G2.5	4×2.5	14	9.4	10.2	128	198	61
JZ-602-C-PUR 5G2.5	5×2.5	14	10.4	11.3	158	242	68
JZ-602-C-PUR 7G2.5	7×2.5	14	11.8	12.8	216	328	77
JZ-602-C-PUR 4G4	4×4	12	11.0	12.0	198	294	72
JZ-602-C-PUR 4G6	4×6	10	12.8	13.9	286	418	83
JZ-602-C-PUR 4G10	4×10	8	16.0	17.4	462	668	104
JZ-602-C-PUR 4G16	4×16	6	19.2	20.9	715	1,015	125

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0285 / UL AWM 600 V · TMPU EMC. Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0
1.5	16	13.3	23.0	18.0
2.5	14	7.98	30.0	25.0
4	12	4.95	41.0	34.0
6	10	3.3	53.0	44.0
10	8	1.91	74.0	61.0
16	6	1.21	99.0	82.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 128 mmBending radius OK (6 × OD 10.6 mm)

Minimum bending radius: 64 mm
Min. drum core diameter: ≈ 128 mm
Cable weight on drum: 10.7 kg
Copper content: 6.9 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	4.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0285 / UL AWM 600 V · TMPU EMC (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0285 / UL AWM 600 V · TMPU EMC	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0285 / UL AWM 600 V · TMPU EMCCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JZ-602-C-PUR [Size] 600V 80C UL/CSA AWM EMC TMPU CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFJZ-602-C-PUR / OZ-602-C-PUR 600 V Screened PUR-Sheathed Control – technical datasheet35 sizes · construction, technical data, approvals XLSXJZ-602-C-PUR / OZ-602-C-PUR spec data (Excel)All 35 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
