VFD inverter to AC motor screened feeder
Low-permittivity XLPE cores and dual foil+braid screen limit PWM capacitive charging spikes and bearing currents.
Product
Double-screened 0.6/1 kV VFD motor supply cable with low-capacitance XLPE (2X) insulation (+90 °C), 100 % Al/PET foil plus ≥ 85 % tinned-copper braid screen, and UV/direct-burial black PVC sheath (K) in 4G and symmetric 3+3G designs.
Typical values for this cable type, based on DIN VDE 0276-603 · IEC 60502-1 · EN 61800-3 — confirmed in the datasheet and quotation for your order.
Application fit
Select 2XSLCYK-J for fixed or occasionally flexed inverter-fed AC motor circuits requiring +90 °C XLPE ampacity and EN 61800-3 EMC compliance.
Low-permittivity XLPE cores and dual foil+braid screen limit PWM capacitive charging spikes and bearing currents.
Symmetrical 3+3G construction balances phase impedance and provides 360° EMC gland earthing on large drives.
Reinforced black K-grade PVC jacket permits indoor cable trays, outdoor racks, and direct burial in ducts.
Suitable only for occasional flexing (15 × D); use PUR drag-chain servo cables for continuous carrier cycles.
Use Festoonflex C PUR-HFPVC outer sheath and foil screen are not designed for continuous motorised drum reeling under tension.
Use (N)SSHCÖU VFDConstruction

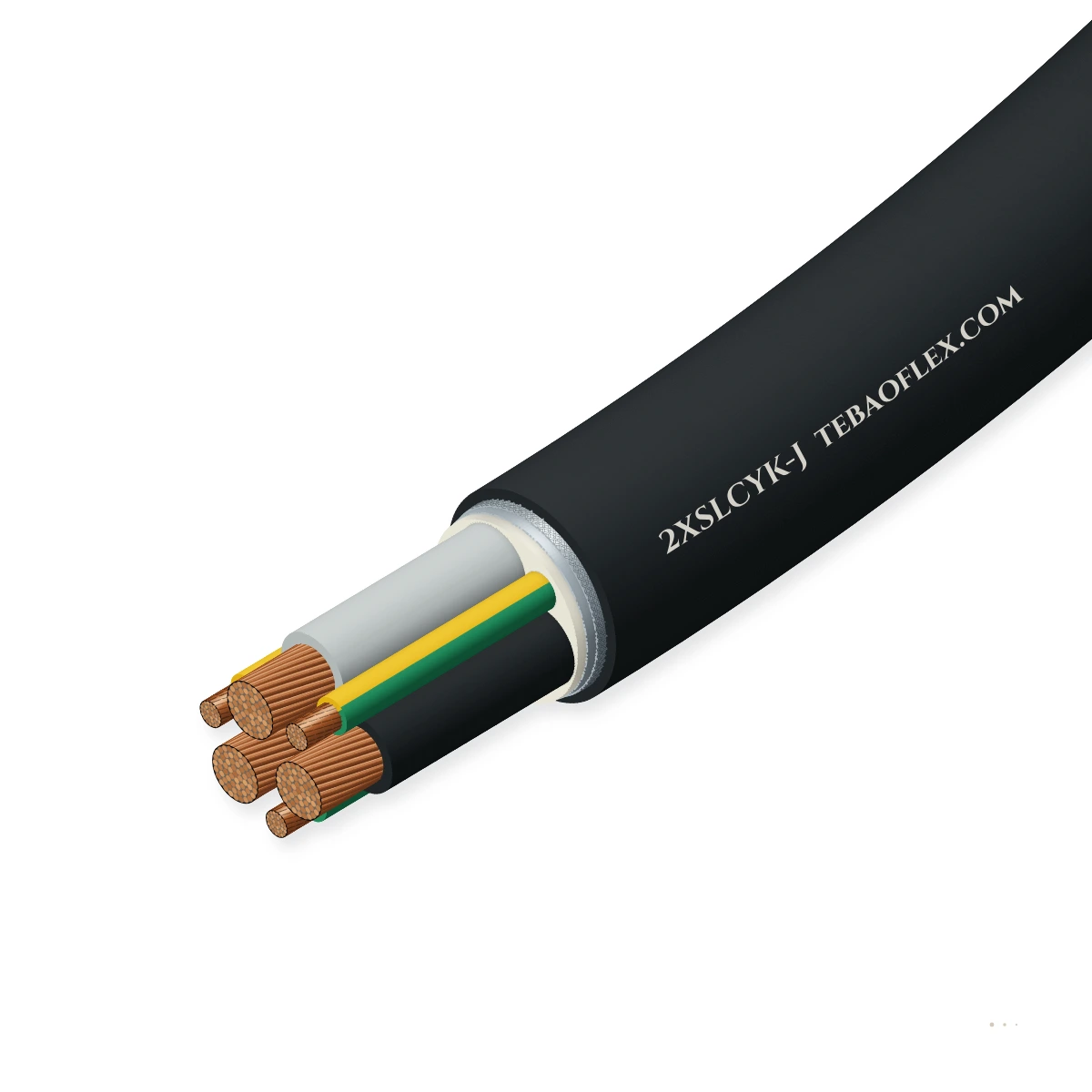

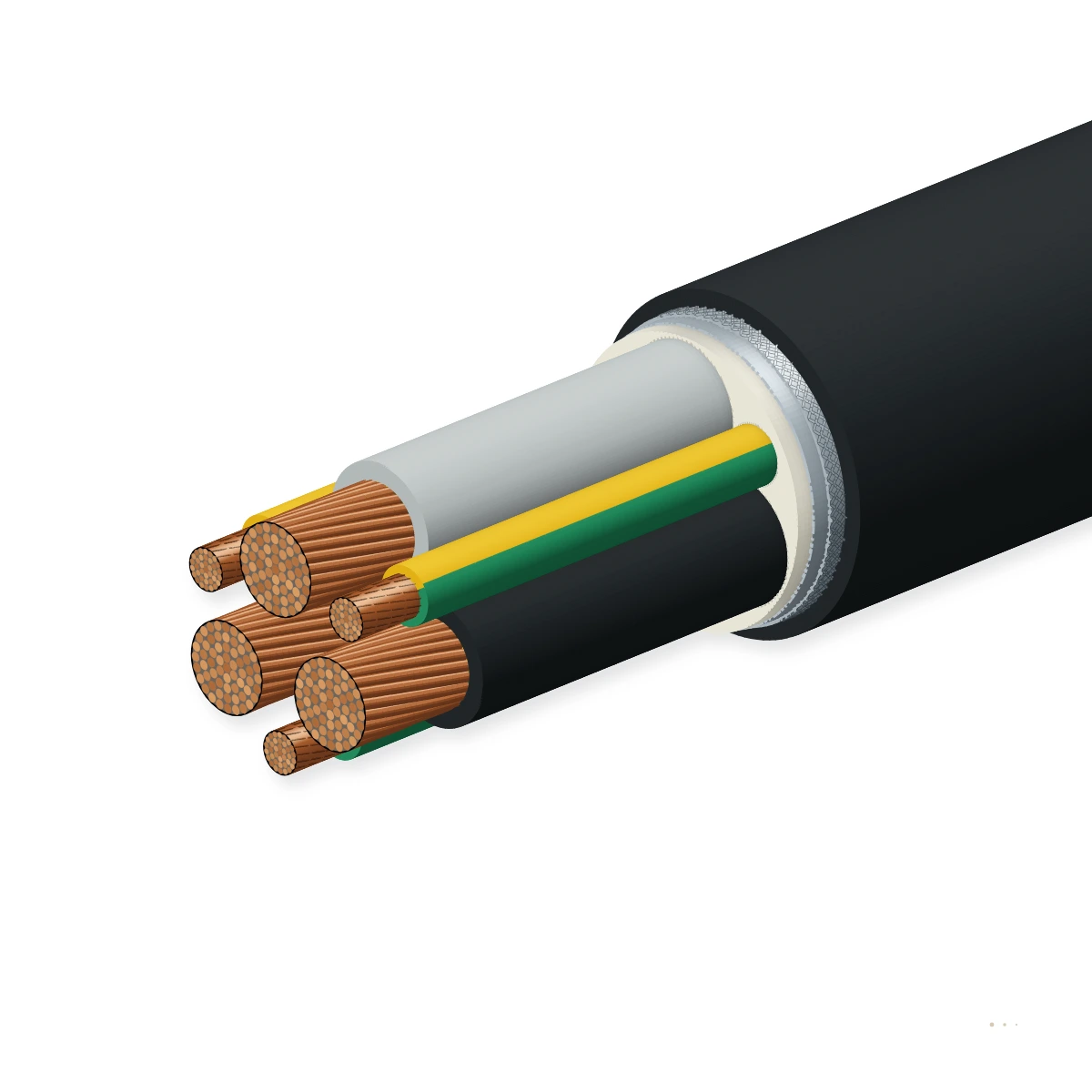

Shown: 2XSLCYK-J 3×50+3G10 — three phase cores and three symmetrical split green-yellow earth conductors.

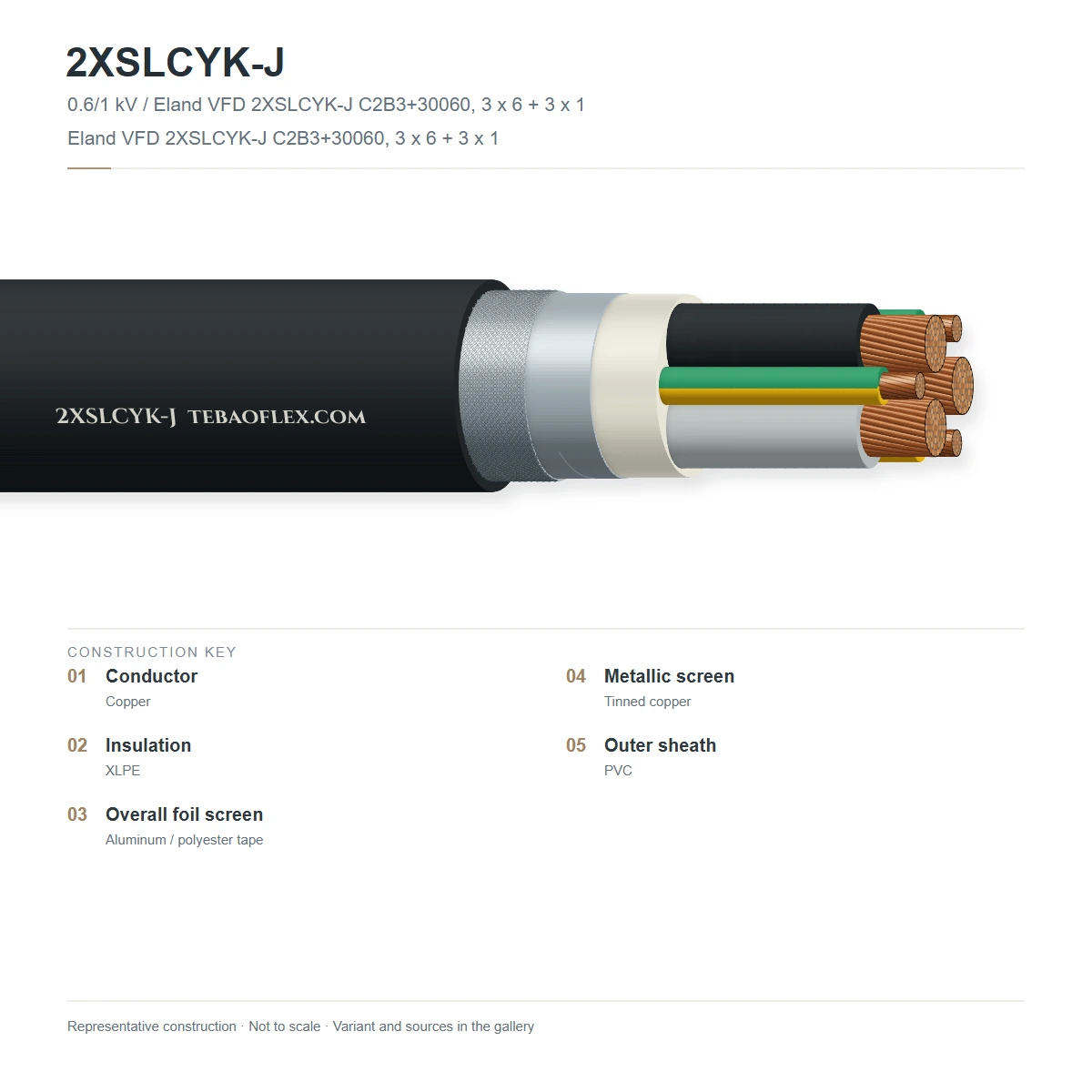

| # | Layer | Material & reference |
|---|---|---|
| 1 | Conductor | Bare copper, finely stranded Class 5IEC 60228 / DIN EN 60228 Class 5 |
| 2 | Core insulation | Cross-linked polyethylene (XLPE, 2XI1), low capacitanceDIN VDE 0276-603 (+90 °C) |
| 3 | Binding tape | Non-hygroscopic polyester wrapping tape over laid-up coresLow-capacitance concentric lay-up |
| 4 | First EMC screen (foil) | Aluminium-laminated polyester tape (100 % coverage)High-frequency PWM emission barrier |
| 5 | Second EMC screen (braid) | Tinned copper wire braid (optical coverage ≥ 85 %)Low transfer impedance ≤ 25 mΩ/m @ 30 MHz |
| 6 | Outer sheath | Special black PVC compound (DMV6 / YMvK grade), UV & oil resistantDIN VDE 0276-603 · direct burial capable |
Four concentric cores (1.5–16 mm²) with one green-yellow protective conductor
Three phase cores plus three symmetrical interstitial earth cores (16–240 mm²)
Technical data
Sizes
Typical dimensions and electrical characteristics for 2XSLCYK-J 0.6/1 kV (+90 °C XLPE).
| Order designation | Cores × mm² | AWG ≈ | Outer Ø ≈ mm | Copper kg/km | Weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|
| 4G concentric (3 phase + 1 GNYE earth) | |||||||
| 2XSLCYK-J 4G1.5 | 4G1.5 | 16 | 10.6 | 95 | 165 | 42 | |
| 2XSLCYK-J 4G2.5 | 4G2.5 | 14 | 12.2 | 150 | 230 | 49 | |
| 2XSLCYK-J 4G4 | 4G4 | 12 | 13.9 | 235 | 325 | 56 | |
| 2XSLCYK-J 4G6 | 4G6 | 10 | 15.6 | 320 | 435 | 62 | |
| 2XSLCYK-J 4G10 | 4G10 | 8 | 19.2 | 533 | 685 | 77 | |
| 2XSLCYK-J 4G16 | 4G16 | 6 | 22.8 | 789 | 1,010 | 91 | |
| Symmetrical 3+3G (3 phase + 3 split GNYE earths) | |||||||
| 2XSLCYK-J 3×16 + 3G2.5 | 3×16 + 3G2.5 | 6 | 21.4 | 662 | 895 | 86 | |
| 2XSLCYK-J 3×25 + 3G4 | 3×25 + 3G4 | 4 | 25.2 | 1,025 | 1,310 | 101 | |
| 2XSLCYK-J 3×35 + 3G6 | 3×35 + 3G6 | 2 | 28.4 | 1,410 | 1,740 | 114 | |
| 2XSLCYK-J 3×50 + 3G10 | 3×50 + 3G10 | 1/0 | 32.8 | 2,015 | 2,430 | 131 | |
| 2XSLCYK-J 3×70 + 3G10 | 3×70 + 3G10 | 2/0 | 37.2 | 2,690 | 3,180 | 149 | |
| 2XSLCYK-J 3×95 + 3G16 | 3×95 + 3G16 | 3/0 | 42.6 | 3,685 | 4,290 | 170 | |
| 2XSLCYK-J 3×120 + 3G16 | 3×120 + 3G16 | 4/0 | 46.8 | 4,510 | 5,180 | 187 | |
| 2XSLCYK-J 3×150 + 3G25 | 3×150 + 3G25 | 300 kcmil | 51.9 | 5,680 | 6,490 | 208 | |
| 2XSLCYK-J 3×185 + 3G35 | 3×185 + 3G35 | 350 kcmil | 57.4 | 7,090 | 8,050 | 230 | |
| 2XSLCYK-J 3×240 + 3G50 | 3×240 + 3G50 | 500 kcmil | 64.2 | 9,320 | 10,480 | 257 | |
| Phase conductor mm² | Max. DC R @ 20 °C Ω/km | C (core/core) pF/m ≈ | C (core/screen) pF/m ≈ | Inductance mH/km ≈ | Current rating +90 °C XLPE (A) |
|---|---|---|---|---|---|
| 1.5 | 13.300 | 70 | 120 | 0.34 | 23 |
| 2.5 | 7.980 | 78 | 135 | 0.31 | 32 |
| 4 | 4.950 | 85 | 148 | 0.29 | 42 |
| 6 | 3.300 | 94 | 162 | 0.28 | 54 |
| 10 | 1.910 | 105 | 182 | 0.26 | 75 |
| 16 | 1.210 | 118 | 205 | 0.25 | 100 |
| 25 | 0.780 | 132 | 230 | 0.24 | 127 |
| 35 | 0.554 | 145 | 252 | 0.23 | 158 |
| 50 | 0.386 | 160 | 278 | 0.23 | 192 |
| 70 | 0.272 | 175 | 305 | 0.22 | 246 |
| 95 | 0.206 | 192 | 334 | 0.22 | 298 |
| 120 | 0.161 | 205 | 358 | 0.21 | 346 |
| 150 | 0.129 | 220 | 382 | 0.21 | 399 |
| 185 | 0.106 | 235 | 410 | 0.21 | 456 |
| 240 | 0.080 | 252 | 440 | 0.20 | 538 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| AC high-voltage dielectric test | 4000 V AC for 5 min | Every manufactured drum length |
| Conductor DC resistance check | Per IEC 60228 Class 5 limits at 20 °C | Every drum length |
| Sample tests | ||
| Mutual capacitance & transfer impedance | Low pF/m & Zt ≤ 25 mΩ/m @ 30 MHz | Per production lot |
| Vertical flame propagation | Self-extinguishing per IEC 60332-1-2 | Type approval |
