Medium-voltage armoured tunnel & mining cables6/10 kV (Um 12 kV)2X XLPE + Cu ScreenGSWB Armour ≥ 90%

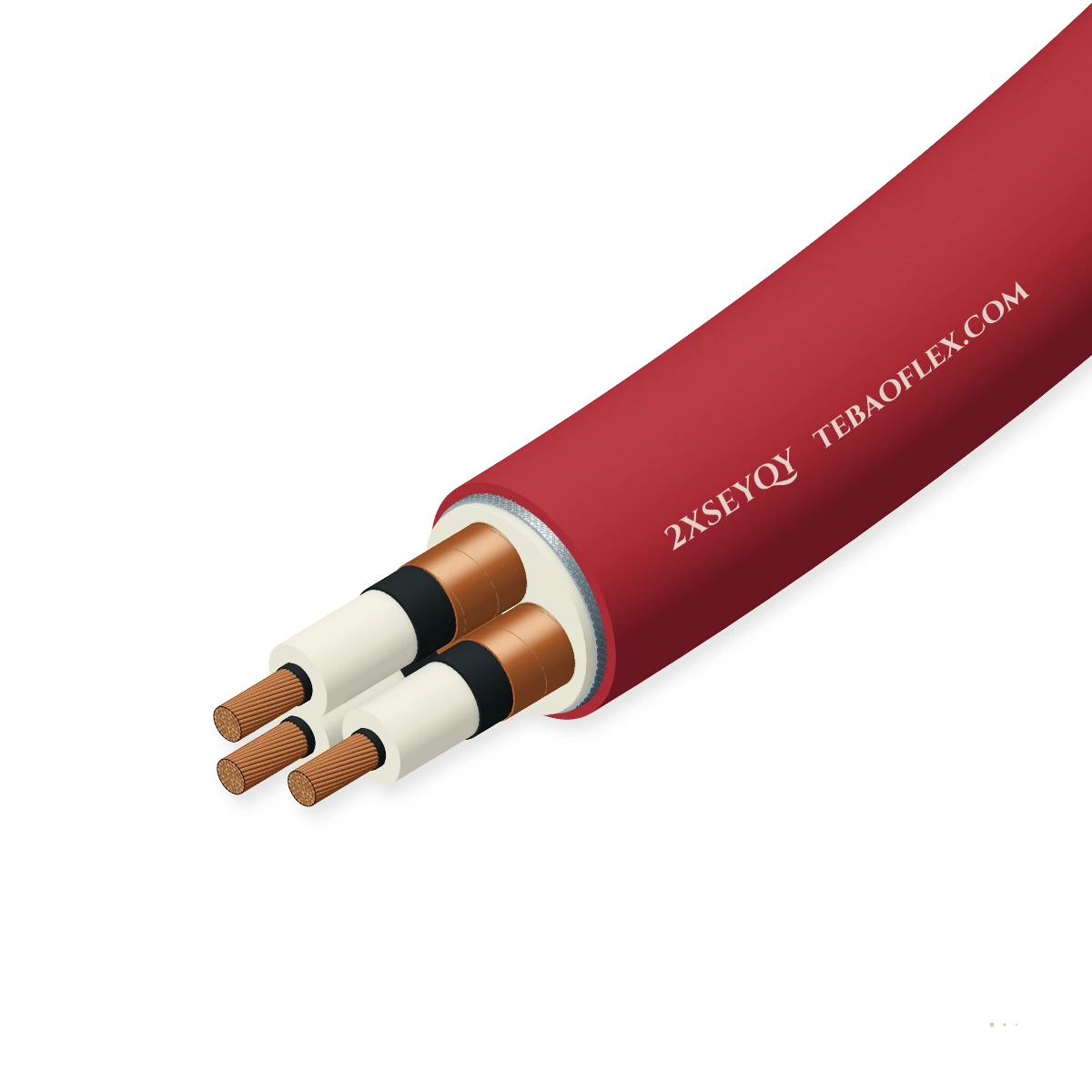

2XSEYQY 6/10 kV XLPE-Insulated Steel-Braid Armoured Tunnel CableCompact XLPE 6/10 kV tunnel feeder with 16 mm² copper screens & ≥ 90 % steel braid

Medium-voltage 6/10 kV (Um = 12 kV) screened and armoured tunnel power cable (2XSEYQY) to DIN VDE 0250-605 and IEC 60502-2, with Class 2 copper cores, XLPE (2X) insulation, 16 mm² copper screens, ≥ 90 % steel wire braid armour, and red outer sheath.

Low-EMC design
Flame-retardant
Oil-resistant
Outdoor & humid
Order designation
2XSEYQY 3 × 70/16
OD min
54.5 mm
OD max
60.2 mm
Weight ≈
6,030 kg/km
Max. pull
3,150 N
Check against my drumAll sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
6/10 kV
Um = 12 kV · 17 kV AC test
Core insulation
2X (XLPE)
Compact low-loss XLPE (+90 °C)
Armour & screen
Cu + GSWB ≥ 90%
16 mm² Cu + steel braid
Tensile load
15 N/mm²
1,125 N to 5,400 N pull
Torsion stress
±25 °/m
Semi-mobile relocation
Outer sheath
Red 5GM5 / FR
High-visibility MV red

Typical values for this cable type, based on DIN VDE 0250-605 / IEC 60502-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is 2XSEYQY 6/10 kV right for your machine?

Pliable steel-wire-armoured XLPE-insulated MV tunnel and mining feeder cable (XSEYQY 6/10 kV to 12/20 kV) for long-distance tunnel power distribution.

Mine roadway & tunnel wall hangers

Suitable

Primary duty — low-loss XLPE MV feeder hung on tunnel wall brackets over multi-kilometre drives.

Fixed installation

Suitable

Fixed and semi-permanent HV/MV supply in hydro caverns, rail tunnels and mine roadways.

Trailing & towing

With conditions

Pliable wire armour allows occasional relocation between blasting and excavation phases.

TBM gantry & advancing tunnel reel

Not suitable

Do not wind armoured XSEYQY onto the active TBM gantry reel.

Use (N)TSCGECWÖU TBM Reel

Motorised monospiral reel

Not suitable

XLPE insulation + wire armour is not for continuous dynamic reeling.

Use (N)TSCGEWÖU MV Reel
Typical machinesTunnel boring machine (TBM) 6/10 kV feedersUnderground coal & hard-rock mine galleriesSkid-mounted mobile MV mine transformersMetro, rail & hydro tunnel construction gridsQuarry & overland conveyor substationsTemporary MV site & shaft power distribution

Construction

Layer by layer

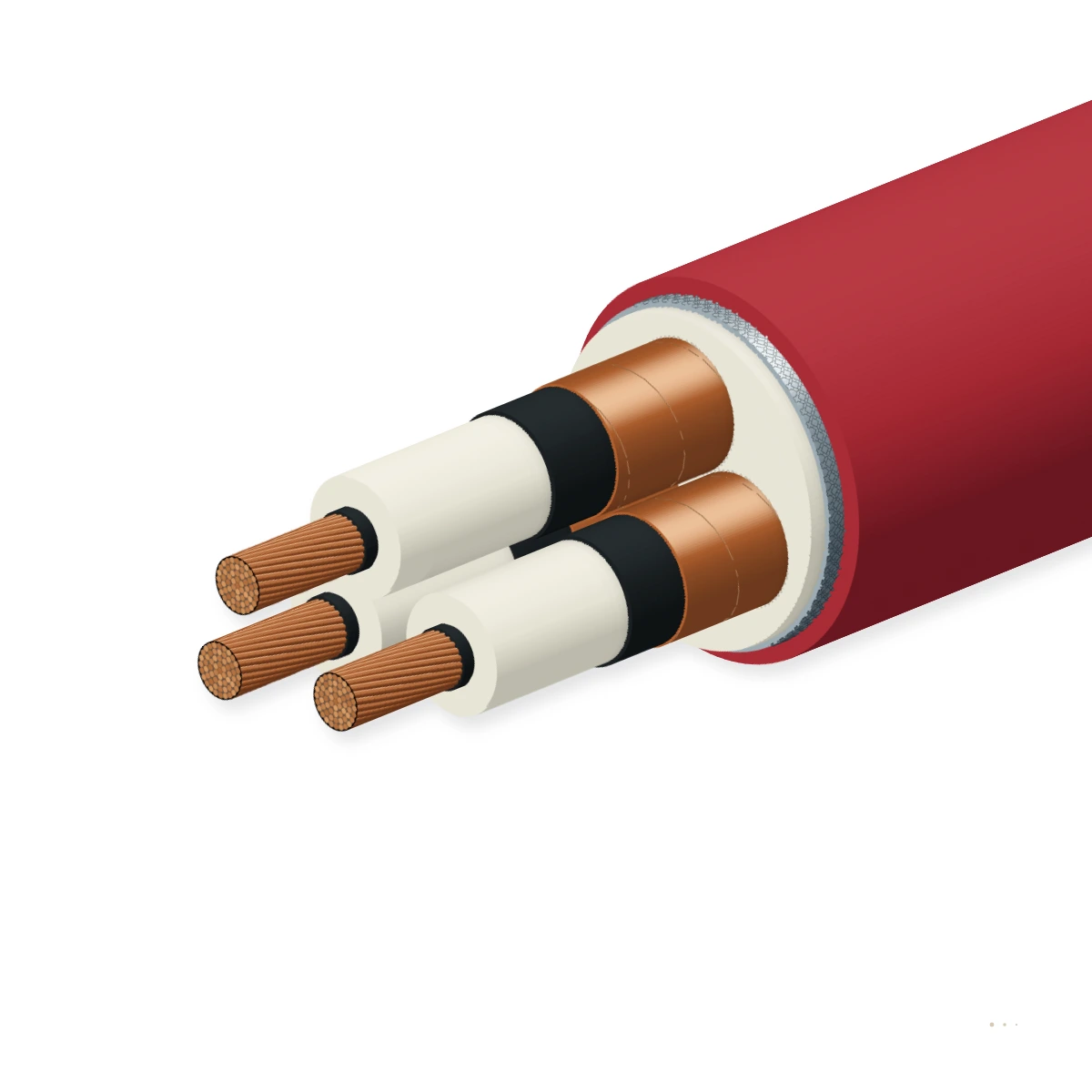

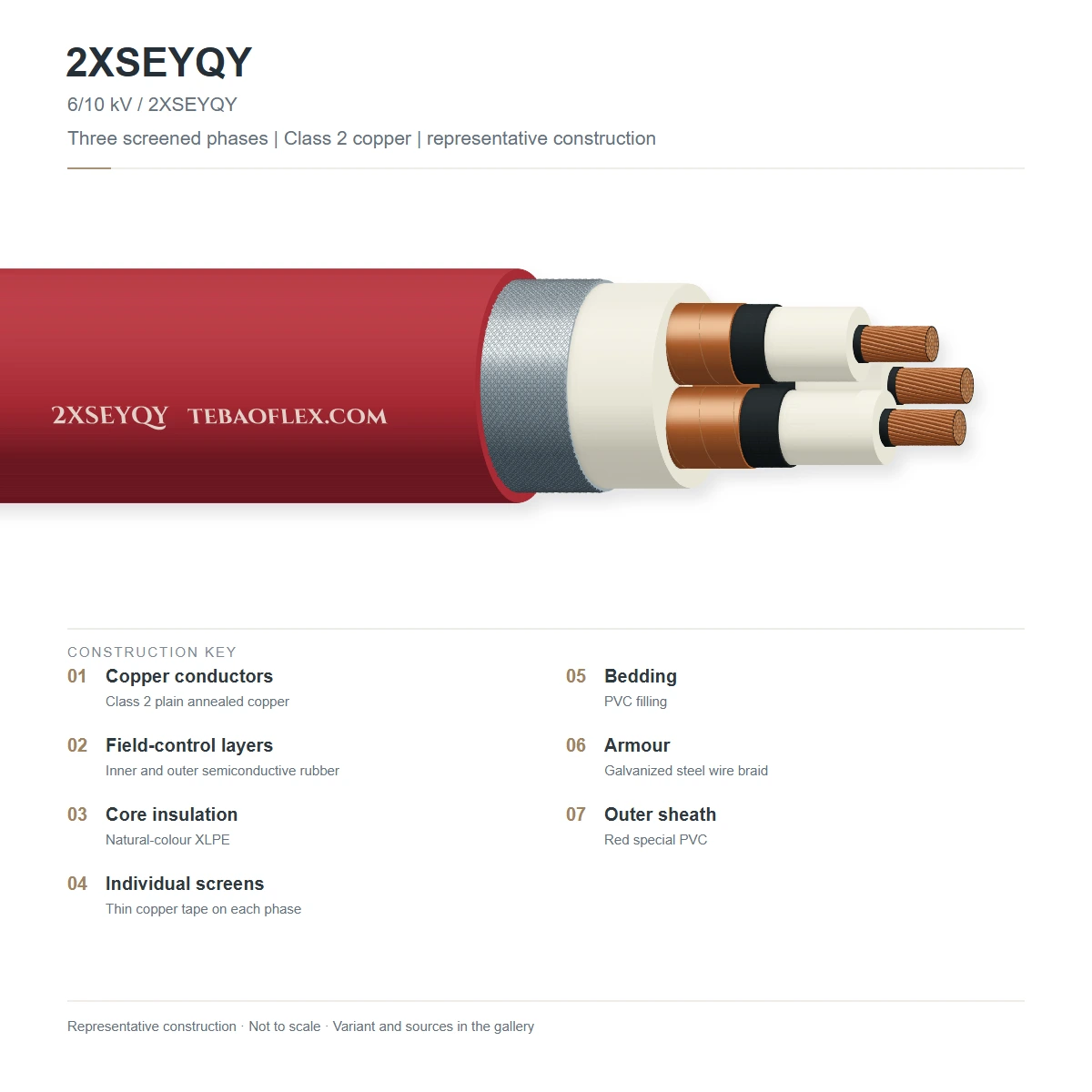

Shown: 2XSEYQY 3 × 70/16 mm² 6/10 kV — Class 2 stranded bare copper conductors, inner semi-conductive layer, 2X (XLPE) insulation, outer semi-conductive layer, 16 mm² copper tape screen over each core, extruded PVC bedding, ≥ 90 % galvanized steel wire braid armour and red outer sheath.

12345678
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorsCircular stranded bare copper, Class 2 per DIN VDE 0295 / IEC 602283 × 25 mm² to 3 × 120 mm² phase conductors
2Inner semi-conductive screenExtruded semi-conductive cross-linked layer over each copper conductorSmooths conductor surface field at 6/10 kV
3Core insulation (2X)Cross-linked polyethylene (XLPE / 2XI1) dielectric compound6/10 kV (Um = 12 kV) · +90 °C continuous / +250 °C short-circuit
4Outer semi-conductive screenExtruded semi-conductive layer over the XLPE core insulationBonds Electrostatic screen over each phase core
5Individual metallic core screen (SE)Helically lapped bare copper tape screen over each phase core (16 mm² collective earth cross-section)Carries capacitive charging and earth-fault currents
6Inner bedding sheath (Y)Extruded PVC filler bedding over the three screened phase coresProvides firm circular bedding under the steel braid
7Galvanized steel wire braid armour (Q)Braided galvanized steel wires with ≥ 90 % optical coverageProtects against rockfall impact, crushing and abrasion
8Outer sheath (Y)Heavy-duty flame-retardant special PVC / 5GM5 compound, high-visibility redIEC 60332-1-2 flame-retardant · Oil, abrasion & moisture resistant

2XSEYQY 6/10 kV (3×25/16 – 3×120/16)

XLPE-insulated 6/10 kV (Um = 12 kV) 3-core tunnel feeder with 16 mm² copper screen and ≥ 90 % steel wire braid

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-605 / IEC 60502-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U (Um)
6/10 kV (Um = 12 kV) per IEC 60502-2 / DIN VDE 0250-605
AC test voltage
17 kV AC routine dielectric test

Thermal

Ambient operating temperature
-25 to +60 °C flexible / relocation · -40 to +80 °C fixed installation
Max. conductor temperature
+90 °C continuous operation · +250 °C short-circuit (max. 5 s)

Mechanical

Permissible tensile & torsional load
15 N/mm² tensile load (1,125 N to 5,400 N) · ±25 °/m max. torsional stress
Min. bending radius
15 × D during pulling / relocation · 10 × D fixed installation (DIN VDE 0298-3)

Reference standards

Reference standards
DIN VDE 0250-605 · IEC 60502-2 · DIN VDE 0295 / IEC 60228 Class 2 · DIN VDE 0207 (2XI1 XLPE)
Fire & environmental performance
Flame-retardant IEC 60332-1-2 · Oil-resistant IEC 60811-404 · Impact & crush resistant steel wire braid (≥ 90%)

Sizes

Dimensions, weights, conductor resistance & current ratings

6 medium-voltage 6/10 kV configurations from 3 × 25/16 mm² to 3 × 120/16 mm²

Dimensions & mechanical data
Order designationCores × mm²OD min
mm		OD max
mm		Total weight ≈
kg/km		Min. bend R (fixed)
mm		Max. pull (15 N/mm²)
N		Enquiry
2XSEYQY 3 × 25/163 × 25/1645.049.63,6504961,125
2XSEYQY 3 × 35/163 × 35/1647.752.84,2005281,575
2XSEYQY 3 × 50/163 × 50/1650.656.04,9605602,250
2XSEYQY 3 × 70/163 × 70/1654.560.26,0306023,150
2XSEYQY 3 × 95/163 × 95/1658.865.07,3006504,275
2XSEYQY 3 × 120/163 × 120/1662.068.58,4106855,400
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All sizes incorporate a 16 mm² copper tape screen over each core plus a ≥ 90 % coverage galvanized steel wire braid armour.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 800 mm is below 1,204 mmUse a larger drum core or a smaller cable size
10 m/min ≤ 15 m/minWithin the rated travel speed
2,500 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension
Minimum bending radius
602 mm
Min. drum core diameter
≈ 1,204 mm
Cable weight on drum
904.5 kg
Outer diameter
60.2 mm
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
High-voltage AC dielectric test17 kV ACEvery drum length
Partial discharge testIEC 60502-2 / DIN VDE 0250-605Every drum length
Conductor & screen DC resistance at 20 °CIEC 60228 Class 2Every drum length
Sample tests
Flame propagationIEC 60332-1-2Per production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

6/10 kV (Um 12 kV)CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 2XSEYQY 6/10 kV [3×mm²/16] · DIN VDE 0250-605 · CE · [year] · [metre mark]
Standard packing
Heavy-duty steel or reinforced wooden drums for tunnel & mine transport
HS code
8544.60

Technical documents

Downloads

PDF2XSEYQY 6/10 kV XLPE-Insulated Steel-Braid Armoured Tunnel Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSX2XSEYQY 6/10 kV spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the VDE type designation 2XSEYQY mean?
'2X' denotes cross-linked polyethylene (XLPE) core insulation; 'SE' denotes individual semi-conductive and 16 mm² copper screens over each phase core; 'Y' denotes the extruded PVC inner bedding; 'Q' denotes the ≥ 90 % galvanized steel wire braid armour; and the final 'Y' denotes the red flame-retardant outer sheath.
Why is 2XSEYQY significantly lighter and smaller in diameter than 3GSEYQY?
Because 2XSEYQY operates at 6/10 kV (Um = 12 kV) with high-dielectric-strength XLPE ('2X') insulation rather than 18/30 kV EPR ('3G'), its radial insulation wall is thinner. For example, 3×70/16 mm² is 54.5–60.2 mm OD and 6,030 kg/km in 2XSEYQY (6/10 kV), compared with 74.5–82.4 mm OD and 9,760 kg/km in 3GSEYQY (18/30 kV).
Is 2XSEYQY suitable for semi-mobile tunnel substation relocation?
Yes. While it uses Class 2 stranded copper conductors and is not a reeling drum cable, its braided galvanized steel wire armour ('Q'), individual copper tape core screens ('SE') and 15 N/mm² / ±25 °/m mechanical ratings allow repeated unhanging, pulling forward and re-hanging as tunnel boring or mine faces advance.
What cable should I use if my 6/10 kV tunnel machine has a motorized reeling drum?
For motorized reeling drums on TBMs, scooptrams, roadheaders or excavators at 6/10 kV, specify Class 5 flexible rubber reeling cable NTSCGEWÖU 6/10 kV or (N)TSCGEWÖU-TL.
