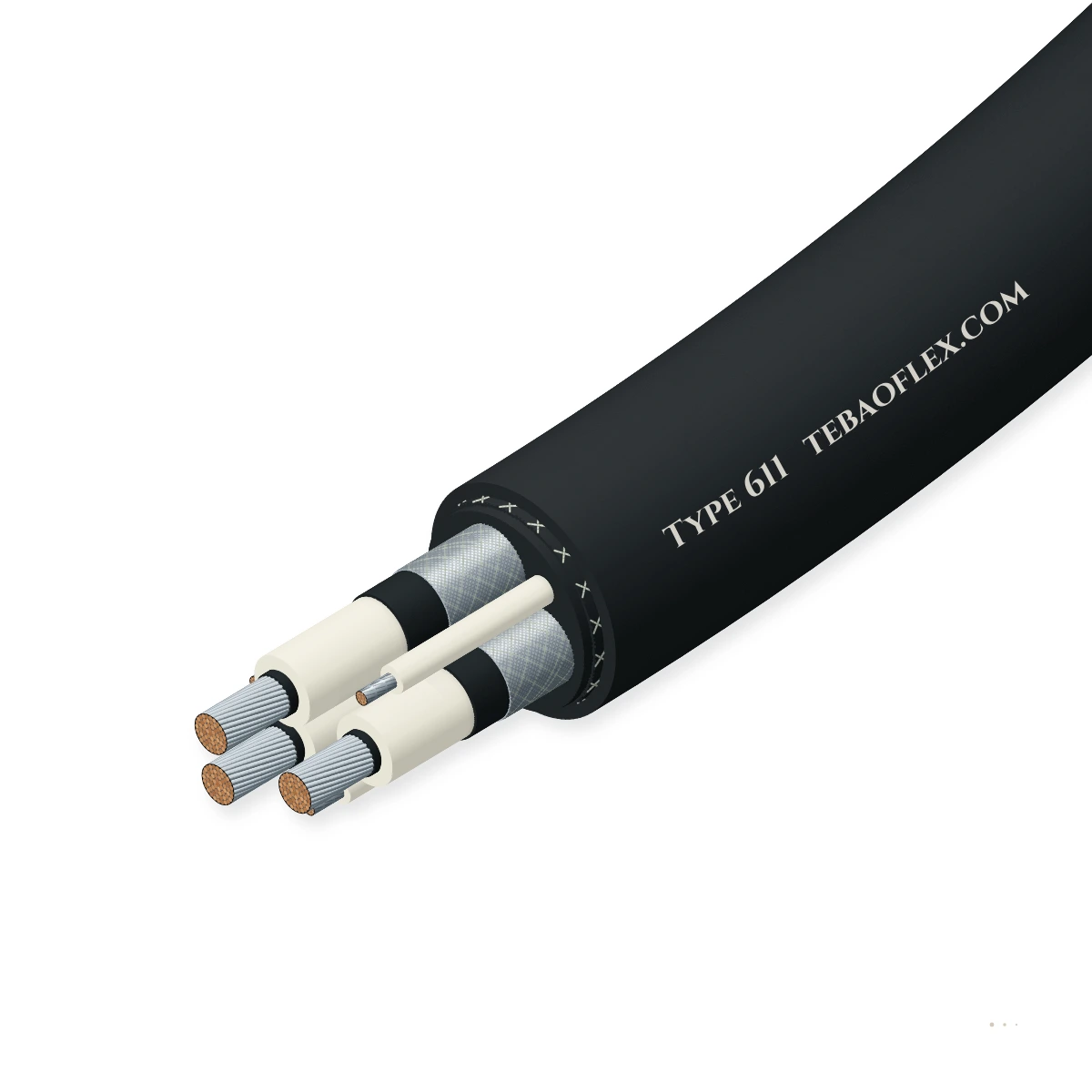

SANS 1520-2 Type 611 / 611-ECC 6.35/11 kV Mining CableMedium-voltage 6.35/11 kV screened reeling, dragline & section-feeder cable (25–240 mm²)

South African SANS 1520-2 Type 611 and Type 611-ECC medium-voltage screened reeling and trailing cable (6.35/11 kV, 25–240 mm²) with three braid-screened EPR power cores, EPM pilots (or tinned ECC) and twin CR sheaths.

EMC screen
Flame-retardant
Oil-resistant
Water-resistant
Order designation
Type 611 / 611-ECC · 3 × 70 mm²
Power size
70 mm²
ECC size (-ECC)
35 mm²
Nominal OD
60.4 mm
Mass (Type 611)
6,500 kg/km
Check against my drumAll sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
6.35/11 kV
SANS 1520-2 MV mining
Core arrangement
3P + 3P / ECC
Type 611 or 611-ECC
Size range
25–240 mm²
9 standard sizes
Ampacity (30 °C)
105–400 A
Laid out straight
Operating temp.
−25 to +90 °C
EPR / twin CR rubber
Min. bend radius
9 × OD
Reeling & trailing duty

Typical values for this cable type, based on SANS 1520-2 · SANS 1411-1 & -3 — confirmed in the datasheet and quotation for your order.

Application fit

Is SANS Type 611 / 611-ECC (6.35/11 kV) right for your machine?

Designed for 6.35/11 kV open-cast and underground mining machinery—including walking draglines, electric rope shovels, rotary blast-hole drills, mobile stacker-reclaimers and hazardous-area section feeders—requiring SANS 1520-2 screened power cores and selectable 3-pilot (Type 611) or high-earth-fault ECC (Type 611-ECC) protection.

Trailing & towing

Suitable

Primary 6.35/11 kV trailing and section-feeder cable for open-cast shovels, medium-sized draglines, drills and movable substations.

Motorised monospiral reel

Suitable

Rated for motorized cable-reel operation on mobile mining machines when drum barrel diameter respects 9 × OD.

Cylindrical / multi-layer drum

Suitable

16-string open nylon reinforcement braid vulcanized between inner and outer CR sheaths resists reeling torsion and pull (1.1 to 10.8 kN).

Immersion & wet locations

Suitable

UV-, sunlight- and oil-resistant twin polychloroprene (CR) sheaths withstand flooded pit benches and harsh solar exposure.

Free-hanging vertical run

Not suitable

Flexible unarmoured trailing construction — do not suspend in deep vertical mine shafts without support.

Use BS 6708 Type 20/21 Armoured
Typical machinesOpen-cast 6.35/11 kV shovels & draglinesRotary blast-hole drillsHazardous-area 6.35/11 kV section feedersMobile in-pit crushers & conveyorsStacker-reclaimers & port reelsMobile Pit Substations / skids

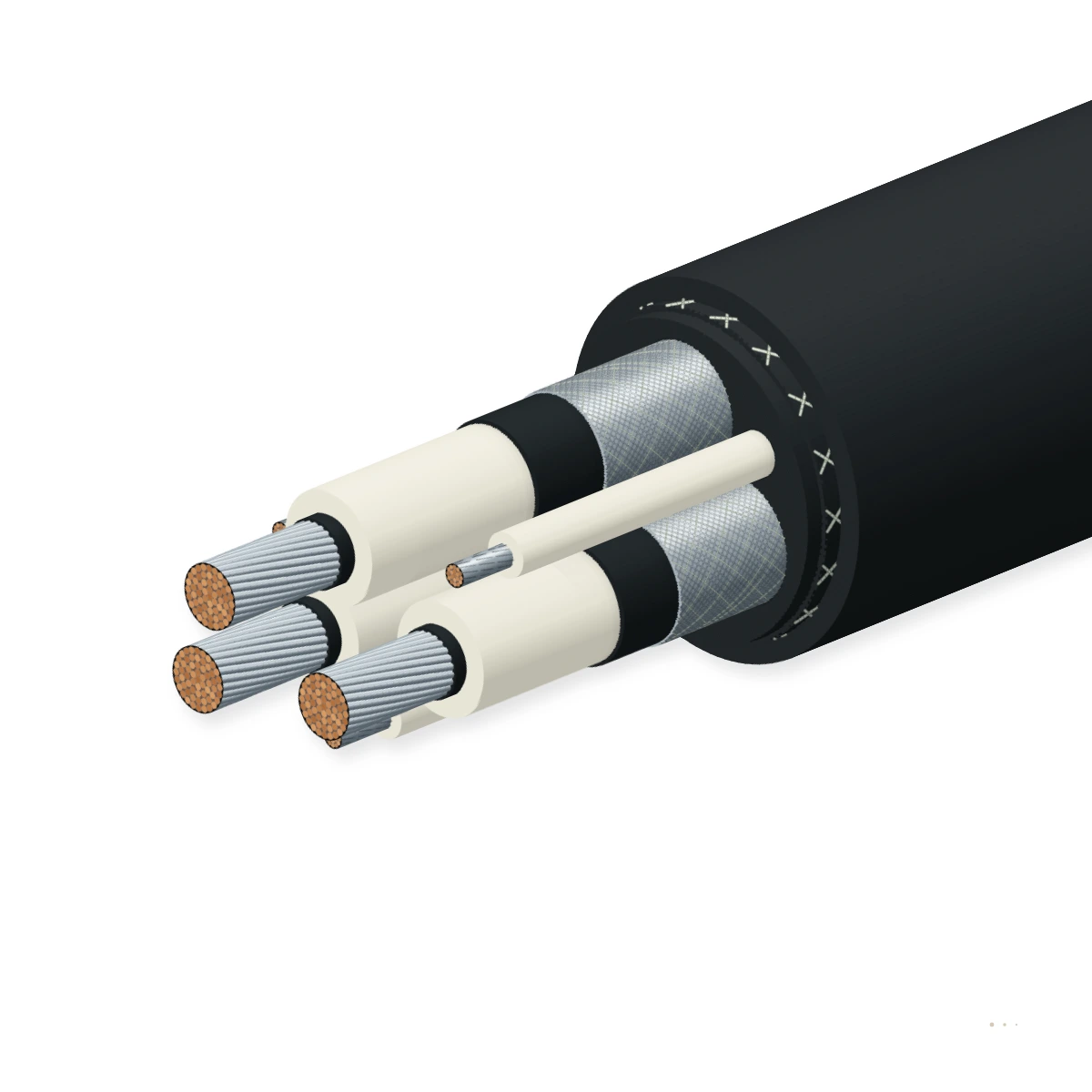

Construction

Layer by layer

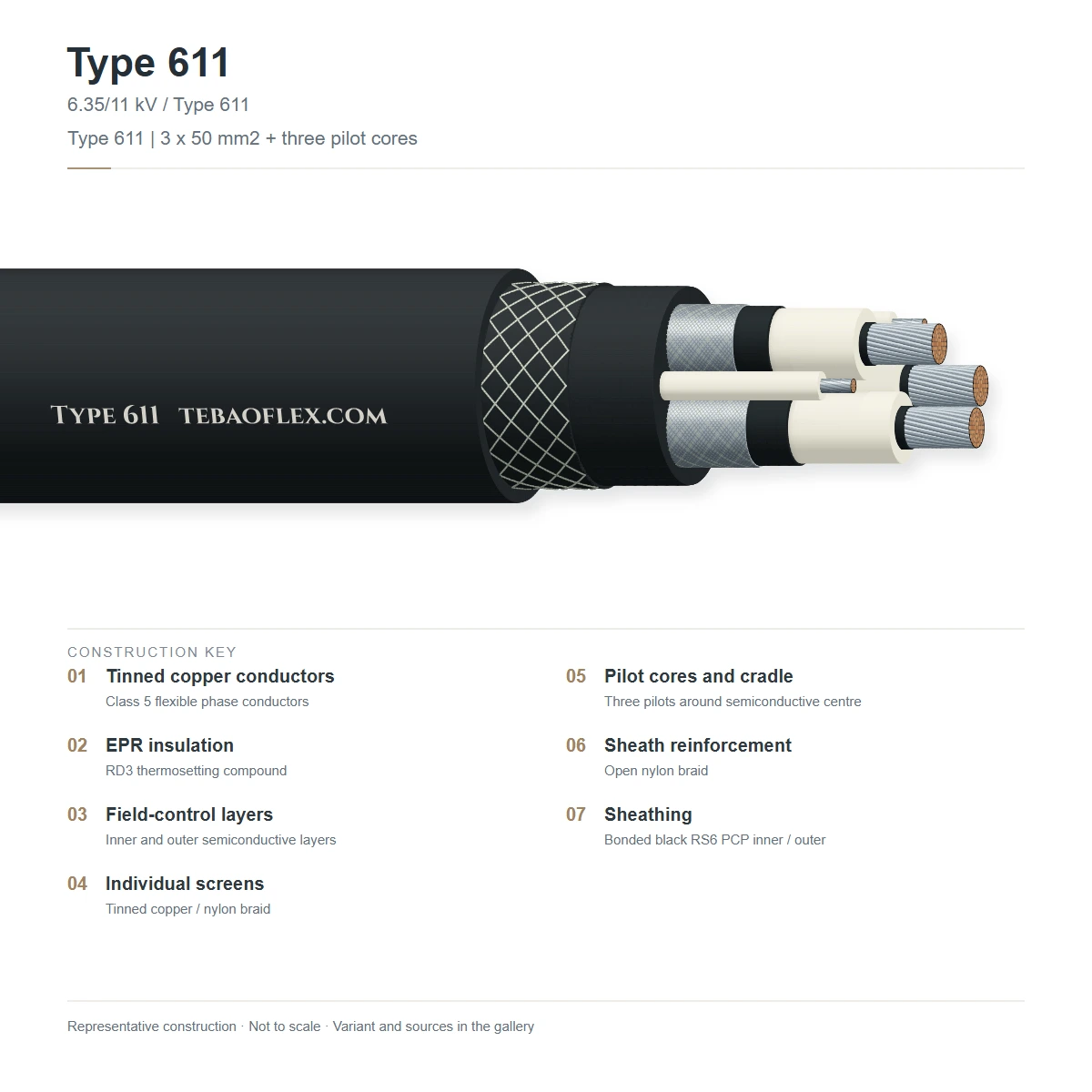

Three Class 5 tinned copper power conductors insulated with 6.35/11 kV EPR (with strippable semi-conducting core screen) are individually screened with a tinned-copper/nylon braid and laid up with three EPM-insulated pilot cores in Type 611 (or two EPM pilots plus one bare tinned copper earth-continuity conductor in Type 611-ECC), bedded in an inner CR sheath, reinforced by a 16-string open nylon braid and oversheathed in black CR rubber.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Power conductors (3)Class 5 flexible stranded tinned annealed copper (25–240 mm²)SANS 1411-1
2Power core insulationTriple-extruded EPR thermosetting compound with strippable semi-conducting core screen (6.35/11 kV grade)SANS 1411-3 · SANS 1520-2
3Individual phase screens (3)Composite tinned copper (0.31 mm wires) and nylon textile braid over each power core1.6–4.1 kA 1s screen fault
4Pilots (3) or 2 Pilots + ECC (611-ECC)Three EPM-insulated pilot cores (10 to 25 mm²), or one pilot replaced by a tinned copper ECC (16 to 120 mm²)Up to 17 kA 1s earth fault
5Inner sheathPolychloroprene (CR) thermosetting elastomer inner sheathSANS 1411-3
6Reinforcement braidOpen-weave nylon reinforcement braid (minimum 16 strings)SANS 1520-2
7Outer sheathBlack UV-, sunlight- and oil-resistant polychloroprene (CR) rubber outer sheathSANS 1520-2 · SANS 1411-3

SANS Type 611 (3 Insulated EPM Pilot Cores)

3 individually screened 6.35/11 kV power cores + 3 EPM-insulated interstitial pilot cores (10 to 25 mm²)

SANS Type 611-ECC (2 Pilots + 1 Tinned Copper ECC)

Replaces one pilot core with a 16 to 120 mm² tinned copper earth-continuity conductor to raise 1s earth-fault capacity to 3.6 to 17.0 kA

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SANS 1520-2 · SANS 1411-1 & -3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
6.35/11 kV AC (SANS 1520-2 Type 611 and Type 611-ECC)
Current rating (30 °C)
105–400 A at 30 °C ambient air and 90 °C conductor temperature
Phase screening & stress control
Triple-extruded EPR with strippable semi-conducting core screen + composite tinned copper / nylon braid (29–52 mm²)
Pilot & ECC variants
Type 611: 3 × EPM-insulated pilots · Type 611-ECC: 2 × pilots + 1 × bare tinned copper ECC (16 to 120 mm²)

Thermal

Operating temperature range
−25 °C to +90 °C
Short-circuit & earth-fault rating (1 s)
Phase S/C: 3.1–29.3 kA (1 s) · Earth fault: 1.6–4.1 kA (Type 611 screens) or 3.6–17.0 kA (Type 611-ECC)

Mechanical

Min. bending radius
9 × OD (reeling, dragline trailing and section-feeder service)
Max. tensile load
1.1 to 10.8 kN
Twin CR sheaths & reinforcement
CR polychloroprene inner sheath + 16-string open nylon braid + black CR polychloroprene outer sheath

Resistance

UV, sunlight & oil resistance
UV resistant, sunlight resistant, oil resistant and flame retardant per SANS 1520-2 / SANS 1411-3
Open-cast & underground abrasion
Heavy-duty polychloroprene (CR) twin sheath resists pit-bench rock drag, shovel reeling and moisture

Reference standards

Construction standard
SANS 1520-2 · SANS 1411-1 · SANS 1411-3
Conductor class
Class 5 flexible stranded tinned annealed copper per SANS 1411-1

Identification

Outer sheath colour
Black polychloroprene (CR)
Type designation
SANS 1520-2 Type 611 (3 pilots) & Type 611-ECC (2 pilots + 1 ECC), 6.35/11 kV

Sizes

9 standard sizes (25–240 mm²) · SANS 1520-2 Type 611 & Type 611-ECC (6.35/11 kV)

Compare Type 611 (3 pilots) and Type 611-ECC (2 pilots + ECC) dimensions, weights, resistance, 30 °C ampacity and 1s fault ratings.

Dimensions · Type 611 & 611-ECC
Designation
Power cores		Power
mm²		Power Ø
mm		Screen
mm²		Pilot
mm²		ECC size
mm² (-ECC)		Max. tension
kN		Nominal OD
mm		Mass (Std)
kg/100m		Mass (Type 611)
kg/km		Mass (611-ECC)
kg/km		Enquiry
Type 611 / 611-ECC · 3 × 25 mm²256.82910161.150.74104,1004,200
Type 611 / 611-ECC · 3 × 35 mm²358.53110251.652.24504,5004,600
Type 611 / 611-ECC · 3 × 50 mm²5010.33410252.359.45305,3005,400
Type 611 / 611-ECC · 3 × 70 mm²7011.93716353.260.46506,5006,700
Type 611 / 611-ECC · 3 × 95 mm²9513.54116504.365.28008,0008,200
Type 611 / 611-ECC · 3 × 120 mm²12015.54316705.471.39809,80010,200
Type 611 / 611-ECC · 3 × 150 mm²15017.34625956.875.01,07010,70010,900
Type 611 / 611-ECC · 3 × 185 mm²18520.24925958.385.11,34013,40013,900
Type 611 / 611-ECC · 3 × 240 mm²24022.9522512010.885.61,47014,70015,000
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Type 611 incorporates 3 EPM-insulated pilot cores; Type 611-ECC replaces one pilot core with a tinned copper earth-continuity conductor (ECC) of the size shown.
  • Both variants share the same nominal overall diameter (OD) and maximum tensile load.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 1,088 mm
Minimum bending radius
544 mm
Min. drum core diameter
≈ 1,088 mm
Cable weight on drum
650.0 kg
Outer diameter
60.4 mm
Indicative only: based on the datasheet outer diameter and 9 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Medium-voltage AC withstand & partial-discharge testRoutine AC high-voltage and partial-discharge test on 6.35/11 kV EPR cores per SANS 1520-2Every shipping drum
Conductor, screen & ECC DC resistance testVerified against maximum conductor resistance and minimum screen / ECC resistance limitsEvery shipping drum
Sample tests
CR sheath UV, oil, flame & mechanical testInner and outer polychloroprene sheaths tested to SANS 1411-3 and SANS 1520-2Production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SANS 1520-2 Type 611CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · SANS 1520-2 · TYPE 611 / 611-ECC · 6.35/11kV · 3 x [mm²] · EPR/CR
Delivery form
Export seaworthy wooden or steel drums matched to 9 × OD minimum bend radius
Variants
Available in standard Type 611 (3 pilots) or Type 611-ECC (2 pilots + 1 tinned copper ECC)
Certificate
EN 10204 3.1 factory routine test certificate with every drum
Quote response
Engineering specification and quote within 2 business hours

Technical documents
