Low-voltage polyurethane (PUR) reeling cables0.6/1 kV12YRDT11YHHalogen-Free PUR

RP / RP-D Halogen-Free PUR Reeling Cable (0.6/1 kV)Compact halogen-free double-PUR reeling cable (12YRDT11YH) for reels up to 80 m/min

Compact 0.6/1 kV halogen-free PUR reeling cable (12YRDT11Y / 12YRDT11YH) with Class 5/6 plain copper cores, thin-wall 12Y/XLPE insulation, and double PUR sheath with anti-torsion braid across 25 RP power/control and 4 RP-D data/PROFINET sizes.

Anti-torsion braid

Oil-resistant

Flame-retardant

Ozone, UV & moisture

Series & configuration

Order designation: RP 4 G 16
Outer Ø max: 23.8 mm
Weight ≈: 935 kg/km
Permitted pull: 960 N
Reel R min (8×D): 190 mm

Check against my drum All sizes (29)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Reeling speed: 80 m/min
Min. bend radius: 8 × D
Flexing temp.: −20…+70 °C
Tensile rating: 15 N/mm²
Configurations: 29 configs

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is RP / RP-D 12YRDT11YH right for your machine?

RP and RP-D are compact, lightweight halogen-free polyurethane reeling cables designed for random-winding and monospiral spring or motorized reels up to 80 m/min with end-feed arrangements, industrial handling systems, and small-to-medium hoisting gear.

Motorised monospiral reel

Suitable

Primary duty on spring and motorized monospiral reels up to 80 m/min (> 80 m/min on request) with end feed.

Cylindrical / multi-layer drum

Suitable

Well suited to random-winding and cylindrical drums thanks to thin-wall 12Y insulation and small outer diameter.

Vertical / spreader reel

With conditions

Suitable for small-to-medium hoisting heights; for heavy vertical spreader reeling up to 200 m/min select TRA-RF.

TRA-RF Vertical Reeling PUR Cable

Festoon & line chain

Suitable

Guide pulley routing requires ≥ 8 × D bend radius and ≥ 20 × D between reverse (S-curve) direction changes.

Immersion & wet locations

Not suitable

Resistant to outdoor humidity and wet rooms, but not rated for continuous water submersion.

RXG / RXG-D (rated up to 50 m water depth)

Typical machinesIndustrial Cranes & HoistsAutomated Handling SystemsIntralogistics & Transfer CarsIndoor/Outdoor Halogen-Free Plant

Construction

Layer by layer

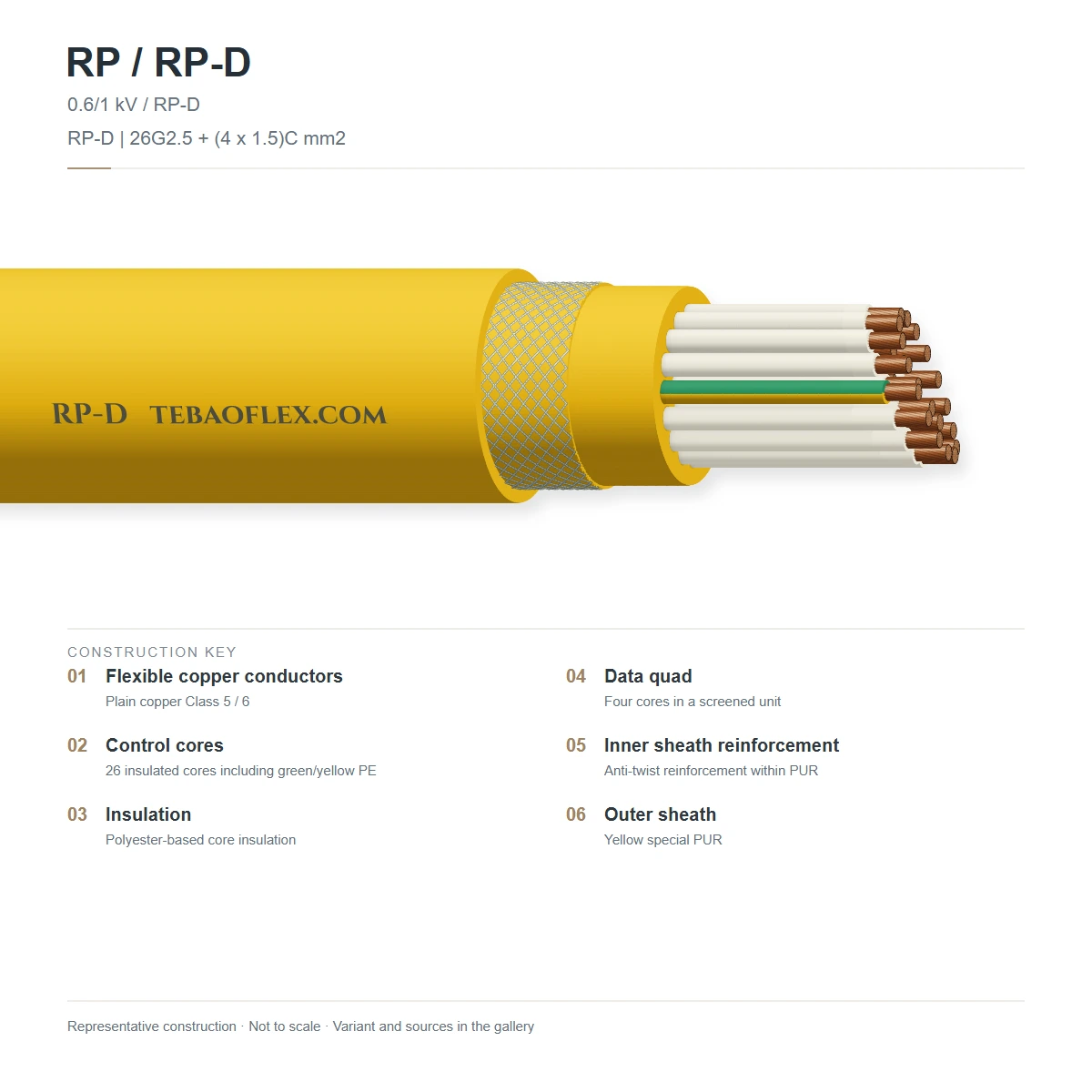

Shown: RP / RP-D (12YRDT11Y / 12YRDT11YH) compact reeling construction with Class 5/6 bare copper conductors, thin-wall polyester/XLPE core insulation, screened C or PROFINET data elements in RP-D, PUR inner sheath, embedded anti-torsion braid, and yellow or black halogen-free PUR outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible plain copper conductor	Plain electrolytic copper, finely stranded Class 5 or extra-fine Class 6 per DIN VDE 0295 / IEC 60228Short length of lay in maximum 3 concentric layers for high flexing resilience
2	Thin-wall core insulation (12Y / XLPE)	Polyester elastomer compound (12Y) or XLPE/PE with optimized wall thicknessDIN VDE 0293-308 colour code; > 7 cores white with black numbers + green/yellow earth
3	Screened control or PROFINET element (RP-D)	Copper-screened (4 × 1.5)C or (4 × 2.5)C control bundle, or 2 × (2 × AWG22) PN PROFINET data elementIntegrates EMI-shielded bus/Ethernet or auxiliary control cores into the RP-D composite series
4	Inner sheath (11Y)	Special halogen-free polyurethane (PUR, 11Y) inner compoundStabilizes the short-lay core bundle into a compact circular cross-section
5	Embedded anti-torsion reinforcement (RDT)	High-strength anti-twist textile braid embedded between inner and outer PUR layersPrevents corkscrewing on random-winding and monospiral reels
6	Outer sheath (11YH)	Highly abrasion-, tear- and oil-resistant halogen-free polyurethane (PUR), yellow or blackHalogen-free · UV, ozone, oil & moisture resistant · low flammability per IEC 60332-1

RP Control & Power · 0.6/1 kV (25 sizes)

7 × 1.5 to 36 × 2.5 mm² control cables and 4 G 4 to 3 × 185 + 3 G 35 mm² power cables with compact thin-wall 12Y insulation and double PUR jacket

RP-D Control + Screened Data / PROFINET / Power · 0.6/1 kV (4 sizes)

26 G 2.5 + (4 × 1.5)C, 26 G 2.5 + (4 × 2.5)C, 26 G 2.5 + 2 × (2 × AWG22) PN PROFINET, and 4 G 25 + 2 × 4 × 2.5 power+control

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (0.3/0.5 kV for special design code 12YRDT11YH)
Max. operating voltage AC: 0.7/1.2 kV
Max. operating voltage DC: 0.9/1.8 kV
AC test voltage: 3.5 kV AC (power cores) / 2.5 kV AC (control cores)
Current rating (DIN VDE 0298-4): Per DIN VDE 0298-4 at 30 °C ambient (reel layer factors: 0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers)

Thermal

Temperature, flexing: −20 °C to +70 °C (overview text notes up to +80 °C; consult below −25 °C)
Temperature, fixed installation: −30 °C to +70 °C (overview text notes up to +80 °C)
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Max. travel speed: Up to 80 m/min horizontal (> 80 m/min on request)
Max. tensile load (dynamic): 15 N/mm² (150–8,325 N across 29 sizes)
Min. bending radius: 8 × D continuous reeling (6 × D on request) · 6 × D fixed installation
S-bend distance: ≥ 20 × D minimum distance between two changes of bending direction

Resistance

Halogen-free & silicone-free: Halogen-free polyurethane (11YH) inner and outer sheaths; LBS-free / silicone-free
Oil, UV & ozone resistance: Oil, ozone, UV, humidity and moisture resistant
Flame retardance: Low flammability per IEC 60332-1-2

Reference standards

Design codes: Design codes 12YRDT11Y / 12YRDT11YH (TPE-E/XLPE core insulation, double PUR sheath with anti-torsion braid)
Conductor standard: Plain copper, finely stranded Class 5 or extra-fine Class 6 per DIN VDE 0295 / IEC 60228
Core identification: DIN VDE 0293-308 (> 7 conductors white with black numbers + green/yellow earth)

Sizes

29 configurations (RP Control, RP Power & RP-D Screened Data / PROFINET)

Filter by RP 1.5–2.5 mm² control cables (12 sizes), RP 4–185 mm² power cables (13 sizes), or RP-D composite control + screened data / PROFINET / power cables (4 sizes). Reeling bend radius r_reel = 8 × D_max.

Dimensions & mechanical loads
Designation	Cores × mm²	Outer Ø min	Outer Ø max	Cu number	Weight ≈	Permitted pull	Reel R min (8×D)
RP Control Cable (1.5 – 2.5 mm²)
RP 7 × 1.5	7 × 1.5	11.5	13.2	105	245	158	106
RP 12 × 1.5	12 × 1.5	16.5	18.5	180	337	270	148
RP 18 × 1.5	18 × 1.5	16.5	18.6	270	525	405	149
RP 24 × 1.5	24 × 1.5	19	21.5	360	660	540	172
RP 36 × 1.5	36 × 1.5	27	29.5	540	950	810	236
RP 4 G 2.5	4 G 2.5	11.4	12	100	205	150	96
RP 5 G 2.5	5 G 2.5	12.4	13	122	260	188	104
RP 7 × 2.5	7 × 2.5	12.5	14.8	176	320	263	118
RP 12 × 2.5	12 × 2.5	18.5	20.5	332	530	450	164
RP 18 × 2.5	18 × 2.5	19	21.5	454	725	675	172
RP 24 × 2.5	24 × 2.5	22.5	24.9	656	990	900	199
RP 36 × 2.5	36 × 2.5	25.5	28.3	900	1,410	1,350	226
RP Power Cable (4 – 185 mm²)
RP 4 G 4	4 G 4	11.3	12.8	160	270	240	102
RP 4 G 6	4 G 6	14.7	16.9	240	405	360	135
RP 4 G 10	4 G 10	16.8	19.8	400	630	600	158
RP 4 G 16	4 G 16	20	23.8	640	935	960	190
RP 4 G 25	4 G 25	26	27.9	1,000	1,483	1,500	223
RP 3 × 25 + 3 G 6	3 × 25 + 3 G 6	23.5	25.5	893	1,240	1,125	204
RP 3 × 35 + 3 G 6	3 × 35 + 3 G 6	27	29.5	1,181	1,640	1,575	236
RP 3 × 50 + 3 G 10	3 × 50 + 3 G 10	30	32.5	1,728	2,240	2,250	260
RP 3 × 70 + 3 G 16	3 × 70 + 3 G 16	35	37.5	2,477	3,100	3,150	300
RP 3 × 95 + 3 G 16	3 × 95 + 3 G 16	39	42	3,197	3,890	4,275	336
RP 3 × 120 + 3 G 25	3 × 120 + 3 G 25	44	47	4,176	5,080	5,400	376
RP 3 × 150 + 3 G 25	3 × 150 + 3 G 25	49	53	5,040	6,160	6,750	424
RP 3 × 185 + 3 G 35	3 × 185 + 3 G 35	54.5	59	6,048	7,680	8,325	472
RP-D Composite Data / PROFINET / Power
RP-D 26 G 2.5 + (4 × 1.5) C	26 G 2.5 + (4 × 1.5) C	24.5	27	683	933	975	216
RP-D 26 G 2.5 + (4 × 2.5) C	26 G 2.5 + (4 × 2.5) C	24.5	27	720	1,012	1,270	216
RP-D 26 G 2.5 + 2 × (2 × AWG22) PN	26 G 2.5 + 2 × (2 × AWG22) PN	24.5	27	663	1,060	975	216
RP-D 4 G 25 + 2 × 4 × 2.5	4 G 25 + 2 × 4 × 2.5	31	33	1,152	1,590	1,500	264

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
All 29 configurations verified against the reference reeling cable catalog.
In RP-D configurations, '(4 × 1.5)C' and '(4 × 2.5)C' denote copper-screened 4-core bundles, and '2 × (2 × AWG22) PN' denotes two screened PROFINET data pairs.
Permitted dynamic tensile load is calculated at 15 N/mm² of active copper cross-section (up to 8,325 N on 3 × 185 + 3 G 35).

Electrical reference data
Designation	Rated U0/U	Max. DC R (20 °C)	Ref. Ampacity (30 °C)	AC Test Voltage
RP Control Cable (1.5 – 2.5 mm²)
RP 7 × 1.5	0.6/1 kV (0.3/0.5 kV signal)	19.5	18	3.5 kV (power) / 2.5 kV (ctrl)
RP 12 × 1.5	0.6/1 kV (0.3/0.5 kV signal)	19.5	18	3.5 kV (power) / 2.5 kV (ctrl)
RP 18 × 1.5	0.6/1 kV (0.3/0.5 kV signal)	19.5	18	3.5 kV (power) / 2.5 kV (ctrl)
RP 24 × 1.5	0.6/1 kV (0.3/0.5 kV signal)	19.5	18	3.5 kV (power) / 2.5 kV (ctrl)
RP 36 × 1.5	0.6/1 kV (0.3/0.5 kV signal)	19.5	18	3.5 kV (power) / 2.5 kV (ctrl)
RP 4 G 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 5 G 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 7 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 12 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 18 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 24 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP 36 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP Power Cable (4 – 185 mm²)
RP 4 G 4	0.6/1 kV (0.3/0.5 kV signal)	4.95	34	3.5 kV (power) / 2.5 kV (ctrl)
RP 4 G 6	0.6/1 kV (0.3/0.5 kV signal)	3.30	44	3.5 kV (power) / 2.5 kV (ctrl)
RP 4 G 10	0.6/1 kV (0.3/0.5 kV signal)	1.91	61	3.5 kV (power) / 2.5 kV (ctrl)
RP 4 G 16	0.6/1 kV (0.3/0.5 kV signal)	1.21	82	3.5 kV (power) / 2.5 kV (ctrl)
RP 4 G 25	0.6/1 kV (0.3/0.5 kV signal)	0.780	108	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 25 + 3 G 6	0.6/1 kV (0.3/0.5 kV signal)	0.780	108	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 35 + 3 G 6	0.6/1 kV (0.3/0.5 kV signal)	0.554	135	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 50 + 3 G 10	0.6/1 kV (0.3/0.5 kV signal)	0.386	168	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 70 + 3 G 16	0.6/1 kV (0.3/0.5 kV signal)	0.272	207	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 95 + 3 G 16	0.6/1 kV (0.3/0.5 kV signal)	0.206	250	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 120 + 3 G 25	0.6/1 kV (0.3/0.5 kV signal)	0.161	292	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 150 + 3 G 25	0.6/1 kV (0.3/0.5 kV signal)	0.129	335	3.5 kV (power) / 2.5 kV (ctrl)
RP 3 × 185 + 3 G 35	0.6/1 kV (0.3/0.5 kV signal)	0.106	382	3.5 kV (power) / 2.5 kV (ctrl)
RP-D Composite Data / PROFINET / Power
RP-D 26 G 2.5 + (4 × 1.5) C	0.6/1 kV (0.3/0.5 kV signal)	7.98 / 19.5	26 / 18	3.5 kV (power) / 2.5 kV (ctrl)
RP-D 26 G 2.5 + (4 × 2.5) C	0.6/1 kV (0.3/0.5 kV signal)	7.98	26	3.5 kV (power) / 2.5 kV (ctrl)
RP-D 26 G 2.5 + 2 × (2 × AWG22) PN	0.6/1 kV (0.3/0.5 kV signal)	7.98 / 55.0	26 / —	3.5 kV (power) / 2.5 kV (ctrl)
RP-D 4 G 25 + 2 × 4 × 2.5	0.6/1 kV (0.3/0.5 kV signal)	0.780 / 7.98	108 / 26	3.5 kV (power) / 2.5 kV (ctrl)

Maximum DC conductor resistance at 20 °C per IEC 60228 Table 3 for Class 5 plain copper conductors.
Free-air reference ampacity at 30 °C ambient per DIN VDE 0298-4; apply reel layer factor (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 400 mm ≥ 380 mmBending radius OK (8 × OD 23.8 mm)

60 m/min ≤ 80 m/minWithin the rated travel speed

Minimum bending radius: 190 mm
Min. drum core diameter: ≈ 380 mm
Cable weight on drum: 74.8 kg
Copper content: 51.2 kg

Indicative only: based on the datasheet outer diameter and 8 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC dielectric voltage test	3.5 kV AC (power cores) / 2.5 kV AC (control cores)	Every manufactured length
Sample tests
Vertical flame propagation	Self-extinguishing per IEC 60332-1-2	Type qualification
Halogen-free & oil-resistant PUR jacket	Halogen-free 11YH polyurethane outer sheath resistant to oil, ozone, and UV	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RP / RP-D 12YRDT11YH [configuration] 0.6/1 kV · [year] · [metre mark]

Delivery form: Custom reel cut lengths or bulk drums (yellow or black PUR outer jacket)
Minimum order: 300–500 m on marked non-stock sizes; standard control and power sizes from stock
Customs HS code: 8544.49

Technical documents

Downloads

PDFRP / RP-D Halogen-Free PUR Reeling Cable (0.6/1 kV) – technical datasheet29 sizes · construction, technical data, approvals XLSXRP / RP-D 12YRDT11YH spec data (Excel)All 29 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What do the design codes 12YRDT11Y and 12YRDT11YH mean on RP / RP-D cables?

In the German thermoplastic cable designation system, '12Y' denotes thin-wall polyester elastomer (TPE-E) core insulation, 'RDT' indicates a round reeling cable with an embedded anti-torsion braid, '11Y' specifies polyurethane (PUR) inner and outer sheaths, and 'H' confirms a halogen-free outer jacket formulation.

Why is RP / RP-D significantly smaller and lighter than rubber (N)SHTOEU-J reeling cables?

RP / RP-D uses high-dielectric-strength thin-wall polyester/XLPE core insulation and a high-modulus polyurethane double sheath instead of thick EPR/PCP rubber walls. For example, RP 4 G 16 has a maximum outer diameter of 23.8 mm and weighs 935 kg/km, compared with 27.6 mm and 1,310 kg/km for RG 4 G 16.

What data and fieldbus elements are integrated into the RP-D series?

The RP-D series provides four composite constructions: 26 G 2.5 + (4 × 1.5)C and 26 G 2.5 + (4 × 2.5)C with copper-braid-screened 4-core auxiliary control groups, 26 G 2.5 + 2 × (2 × AWG22) PN with two screened PROFINET industrial Ethernet pairs, and 4 G 25 + 2 × 4 × 2.5 combining 25 mm² power with 8 control cores.

When should I step up from RP / RP-D to RXP / RXP-D or TRA?

RP / RP-D is optimized for cost-effective random-winding and monospiral reels up to 80 m/min with end feed and 15 N/mm² tensile load. For center-feed reels with S-curve deflection rollers, cold environments down to −40 °C, 25 N/mm² tensile load, and speeds up to 180 m/min, select RXP / RXP-D; for portal cranes up to 200 m/min and 30 N/mm², select TRA.

Request a quote

Get an engineering quote for RP / RP-D 12YRDT11YH

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

PUR Reeling Cable with Data Cores – RP / RP-D

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

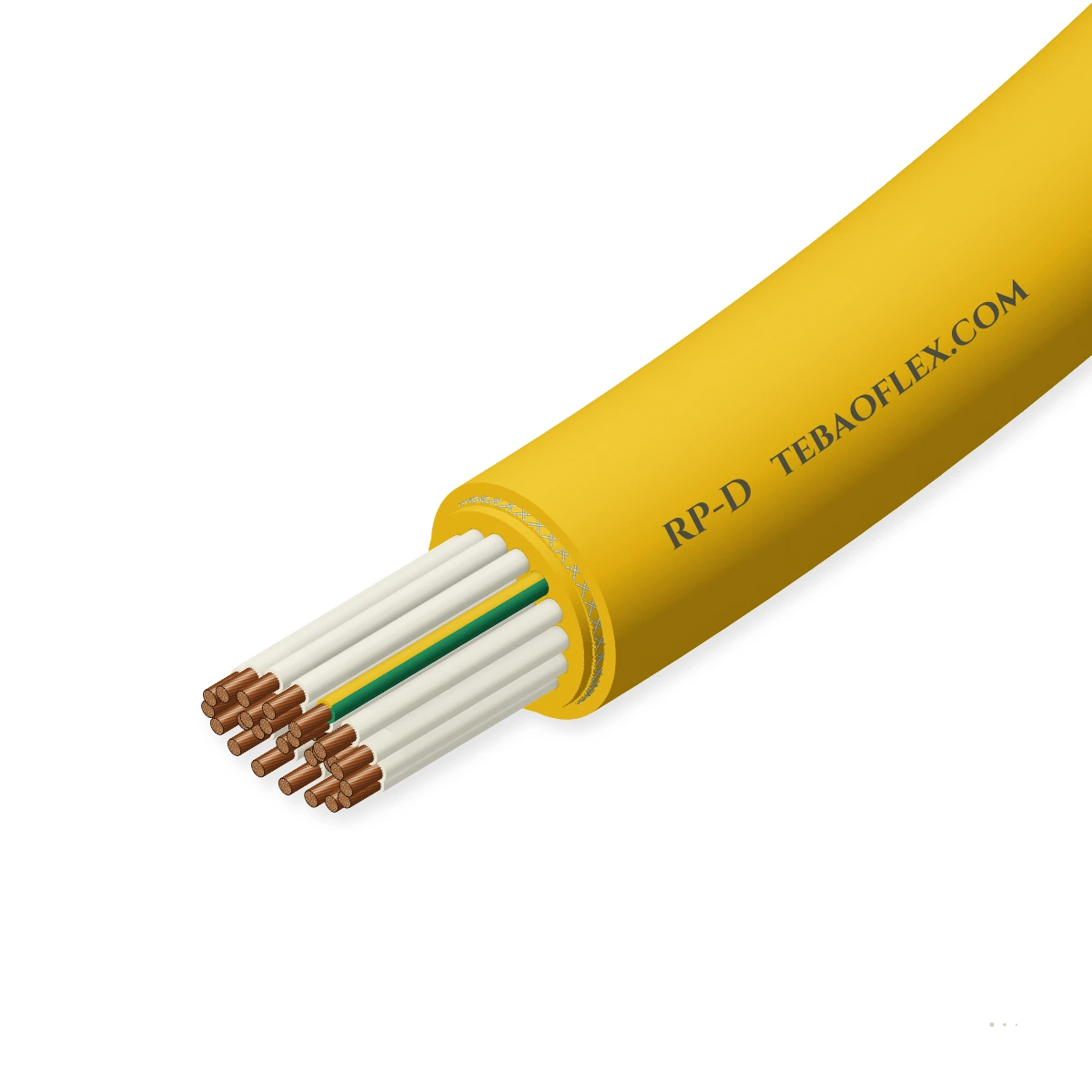

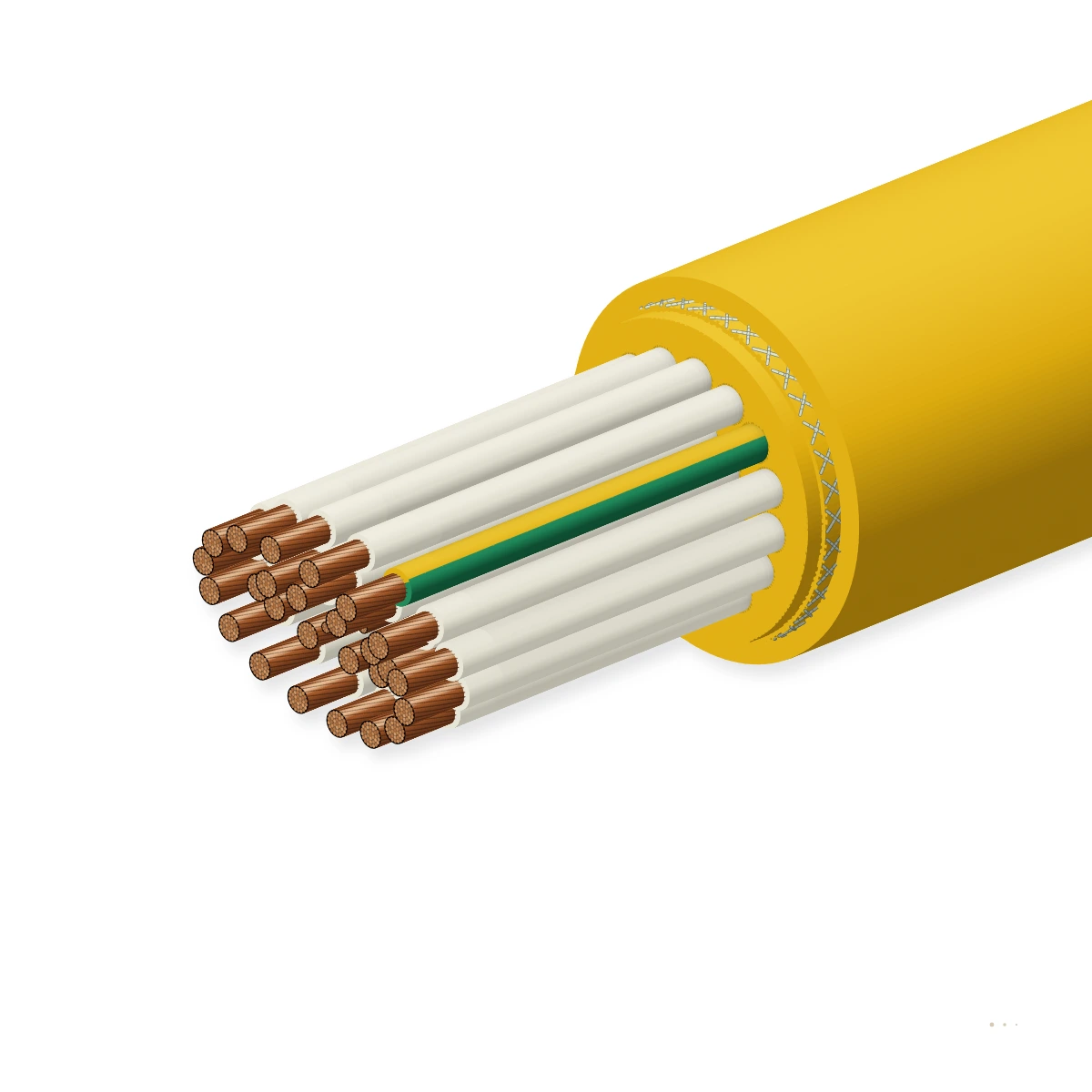

RP / RP-D Halogen-Free PUR Reeling Cable (0.6/1 kV)Compact halogen-free double-PUR reeling cable (12YRDT11YH) for reels up to 80 m/min

Motorised monospiral reel

Cylindrical / multi-layer drum

Vertical / spreader reel

Festoon & line chain

Immersion & wet locations

RP Control & Power · 0.6/1 kV (25 sizes)

RP-D Control + Screened Data / PROFINET / Power · 0.6/1 kV (4 sizes)

Electrical

Thermal

Mechanical

Resistance

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

RXP / RXP-D

TRA

RG / RG-D

TRA-RF
