Product

EMC screened drag-chain cableVDE 0285-525-2-51300/500 V EMC≥ 85 % Cu Braid

PVC Shielded Drag Chain Control CableInner-sheathed, tinned-copper-braided Class 6 PVC drag-chain cable

EMC-screened continuous-flex control cable featuring IEC 60228 Class 6 copper conductors, extruded PVC inner bedding, ≥ 85 % optical coverage tinned copper braid and oil-resistant TM5 PVC outer jacket for electrically noisy machine-tool carriers.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
PVC-FD-810-CY 12G0.75
Outer Ø ≈
11.5 mm
Total copper
135 kg/km
Total weight ≈
214 kg/km
Min. bend R (chain)
86 mm
Check against my drumAll sizes (19)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U · UL/CSA 600 V AWM
EMC screen
≥ 85 % Cu braid
tinned copper over inner sheath
Bend radius
7.5 × OD
moving in chain · 4 × OD fixed
Travel speed
3.0 m/s
gliding · 4.5 m/s unsupported
Temperature
−5…+70 °C
flexing · −40…+80 °C fixed
Conductor class
IEC 60228 Cl. 6
superfine bare copper strands

Typical values for this cable type, based on DIN VDE 0285-525-2-51 / UL AWM 2570 — confirmed in the datasheet and quotation for your order.

Application fit

Is PVC Shielded Drag Chain Control Cable right for your machine?

Engineered for linear energy chains where PLC analogue/digital control lines run alongside VFD motor leads and require 360° EMC screening.

Energy chain / drag chain

Suitable

Extruded inner PVC bedding supports the tinned copper braid against wire breakage over 5 million carrier cycles.

Fixed installation

Suitable

Direct routing on machine frames and inside cabinets with 360° EMC gland termination.

Festoon & line chain

Suitable

Suitable for indoor C-rail festoons requiring shielded control and interlock circuits.

VFD inverter to AC motor screened feeder

With conditions

Suitable for auxiliary small AC drives up to 2.5 mm²; use low-capacitance PP/PUR cable for main servo motors.

Use Shielded Servo Motor Power Cable

Motorised monospiral reel

Not suitable

Not intended for high-tension outdoor crane drums; use screened rubber reeling cable.

Use NSHTÖU Reeling Cable
Typical machinesCNC Machining CentresAutomated Assembly & Test CellsGantry Loaders & Transfer LinesPrinting & Converting MachineryPLC & Sensor Carrier Harnesses

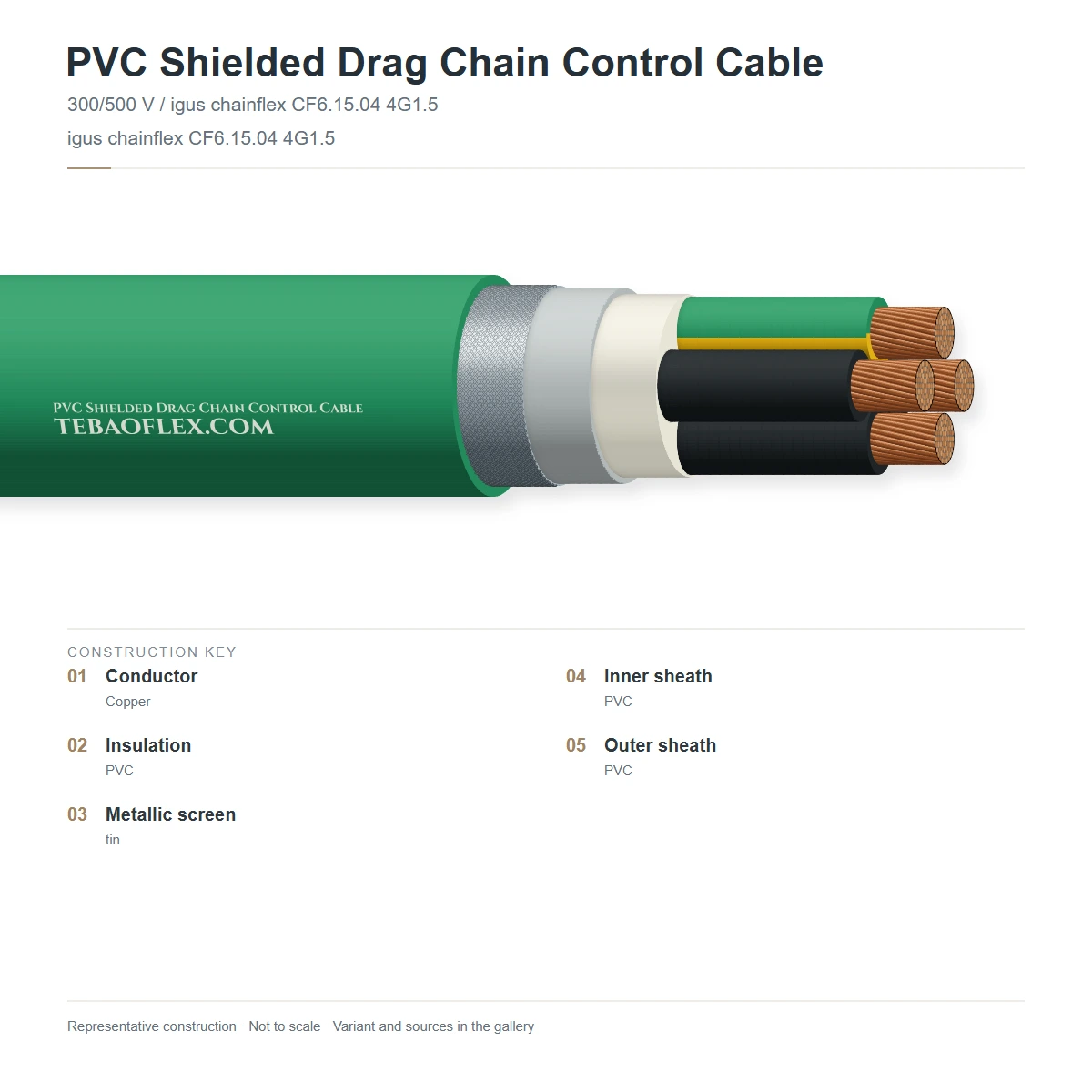

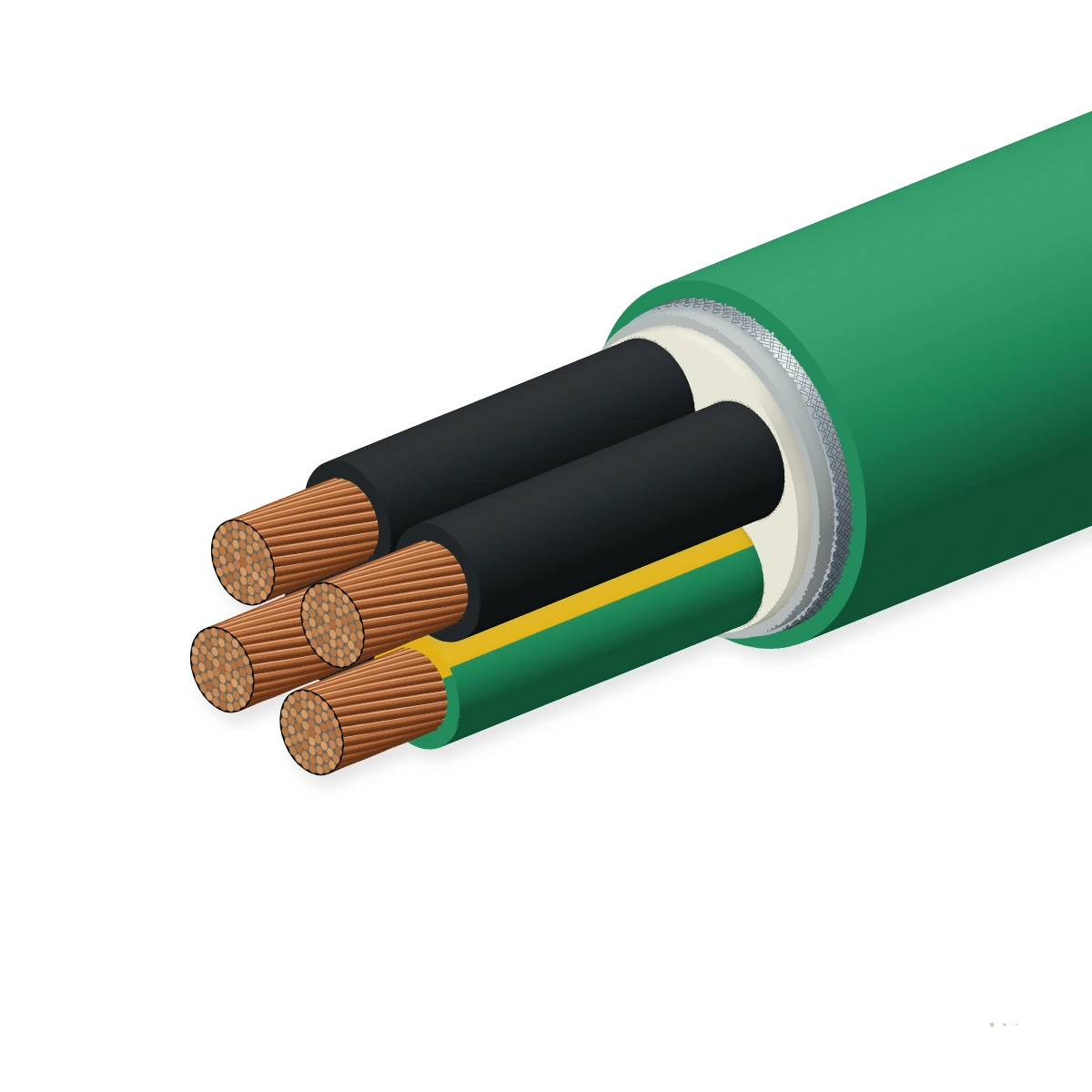

Construction

Layer by layer

Shown: 12G0.75 CY screened drag-chain control cable with extruded inner PVC bedding under the ≥ 85 % tinned copper braid screen.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine copper conductorBare copper, extra-fine wire strands (IEC 60228 Class 6)IEC 60228 Class 6
2Core insulationSpecial high-flex PVC compound (TI2), black cores with white numbers + GNYEDIN EN 50363-3 · EN 50334
3Core bundle sliding wrapNon-woven fleece tape over short-pitch concentric core layPrevents core adhesion during tight bending
4Extruded inner sheathPressure-extruded flexible PVC inner bedding over core bundleStabilises core bundle and supports copper braid
5EMC overall braid screenTinned copper wire braid with optimised short braid angle (≥ 85 % optical coverage)Transfer impedance ≤ 250 mΩ/m at 30 MHz
6Outer drag-chain sheathOil-resistant high-flex PVC compound (TM5), silver-grey RAL 7001DIN EN 50363-4-1 · IEC 60332-1-2

CY-G (with PE)

Numbered black cores + green-yellow protective conductor with overall tinned copper braid

CY-X (without PE)

All numbered black cores without GNYE for isolated 24 V DC PLC and valve control buses

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285-525-2-51 / UL AWM 2570. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V (UL/CSA 600 V)
AC test voltage
4000 V AC core/core · 2000 V AC core/screen
Screen / Field control
Tinned copper braid ≥ 85 % optical coverage
Mutual capacitance
≈ 120 pF/m (core/core) · ≈ 160 pF/m (core/screen)
Specific insulation resistance
> 20 GΩ·cm at 20 °C

Thermal

Temperature, flexing
−5 °C to +70 °C (UL +80 °C)
Temperature, fixed installation
−40 °C to +80 °C
Max. conductor temperature
+70 °C (+80 °C UL AWM)
Short-circuit temperature
+160 °C (max. 5 s)

Mechanical

Min. bending radius, moving
7.5 × OD (≤ 12 mm) · 10 × OD (> 12 mm)
Min. bending radius, fixed
4 × OD
Max. travel speed
3 m/s gliding · 4.5 m/s unsupported
Max. acceleration
10 m/s²
Max. tensile load (dynamic)
15 N/mm² of power/control copper area

Resistance

Oil resistance
DIN EN 50363-4-1 TM5 (industrial oils)
Flame retardance
IEC 60332-1-2 · UL VW-1 · CSA FT1
EMC coupling resistance
≤ 250 mΩ/m up to 30 MHz
Silicone & LABS
Silicone-free and paint-shop safe (VW PV 3.10.7)

Reference standards

Cable type (construction standard)
Based on DIN EN 50525-2-51 (CY execution)
Conductor
IEC 60228 / DIN EN 60228 Class 6
Product approvals
UL AWM Style 2570 / 20886 · CSA AWM
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Silver-grey (RAL 7001)
Core identification
Black cores with white numbers + GNYE (EN 50334)
Marking
TEBAOFLEX PVC-FD-810-CY <size> 300/500V EMC CE
Customs tariff (HS)
8544.49

Sizes

19 standard EMC-screened configurations

Includes extruded PVC inner sheath and ≥ 85 % tinned copper braid screen. Copper weight includes conductor + braid.

Dimensions & weights
Order designationCores × mm²Cross-sectionOuter Ø ≈
mm		Total Cu
kg/km		Weight ≈
kg/km		Min. bend R
chain mm		Enquiry
0.5 mm² EMC screened
PVC-FD-810-CY 3G0.53G0.50.5 mm²6.5356449
PVC-FD-810-CY 4G0.54G0.50.5 mm²7.0437652
PVC-FD-810-CY 7G0.57G0.50.5 mm²8.46511263
PVC-FD-810-CY 12G0.512G0.50.5 mm²10.59816879
PVC-FD-810-CY 18G0.518G0.50.5 mm²12.313823292
PVC-FD-810-CY 25G0.525G0.50.5 mm²14.6186318110
0.75 mm² EMC screened
PVC-FD-810-CY 3G0.753G0.750.75 mm²7.0457952
PVC-FD-810-CY 4G0.754G0.750.75 mm²7.5559456
PVC-FD-810-CY 7G0.757G0.750.75 mm²9.18614168
PVC-FD-810-CY 12G0.7512G0.750.75 mm²11.513521486
PVC-FD-810-CY 18G0.7518G0.750.75 mm²13.6192302102
PVC-FD-810-CY 25G0.7525G0.750.75 mm²16.2260412122
1.0 mm² EMC screened
PVC-FD-810-CY 4G1.04G1.01.0 mm²8.06811260
PVC-FD-810-CY 7G1.07G1.01.0 mm²9.710816973
PVC-FD-810-CY 12G1.012G1.01.0 mm²12.417426293
1.5 mm² EMC screened
PVC-FD-810-CY 4G1.54G1.51.5 mm²9.09514668
PVC-FD-810-CY 7G1.57G1.51.5 mm²11.014922482
PVC-FD-810-CY 12G1.512G1.51.5 mm²14.2242356106
2.5 mm² EMC screened
PVC-FD-810-CY 4G2.54G2.52.5 mm²10.814821881
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Total copper weight (kg/km) includes both the Class 6 phase/control cores and the tinned copper braid screen.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 120 mm is below 172 mmUse a larger drum core or a smaller cable size
120 m/min ≤ 180 m/minWithin the rated travel speed
Minimum bending radius
86 mm
Min. drum core diameter
≈ 172 mm
Cable weight on drum
3.2 kg
Copper content
2.0 kg
Indicative only: based on the datasheet outer diameter and 7.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric test (core/core & core/screen)4000 V AC core/core · 2000 V AC core/screen for 5 minEvery manufactured length
Conductor & braid DC continuityIEC 60228 Class 6 limit + ≥ 85 % optical braid coverage checkEvery drum length
Sample tests
Triaxial transfer impedance testZt ≤ 250 mΩ/m at 30 MHz before and after 5M carrier cyclesQualification & lot sample
Flame retardance testPass IEC 60332-1-2 & UL 1581 VW-1Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU LVD & 2014/30/EU EMC)UL AWM Style 2570 / 20886 (80 °C 600 V)RoHS 2 (2011/65/EU) & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX PVC-FD-810-CY <size> 300/500V EMC SCREENED CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFPVC Shielded Drag Chain Control Cable – technical datasheet19 sizes · construction, technical data, approvalsXLSXPVC Shielded Drag Chain Control Cable spec data (Excel)All 19 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does PVC Shielded Drag Chain Control Cable include an extruded inner PVC sheath under the copper braid?
Static CY control cables apply a thin polyester tape directly under the copper braid, which quickly cuts into core insulation when flexed in a drag chain. Our drag-chain CY construction extrudes a continuous, pressure-filled inner PVC bedding over the core bundle so the tinned copper braid rides on a smooth cylindrical cushion without abrading the cores.
How is the tinned copper braid engineered to prevent wire breakage during millions of bending cycles?
Standard braids use a steep braid angle optimised only for static pulling. For energy-chain service, the tinned copper wires are woven at a precisely calibrated flat pitch angle over a sliding fleece layer, allowing the braid geometry to expand and contract elastically around 7.5 × OD bends while keeping optical coverage above 85 %.
Can this shielded PVC control cable be installed alongside servo power cables in the same energy chain?
Yes, the ≥ 85 % tinned copper braid suppresses capacitive and inductive coupling from adjacent PWM motor cables. For best EMC performance inside the carrier, separate control and power cables with a vertical divider bar and bond the copper braid across 360° at both ends using metallic EMC glands.
When should I upgrade from PVC Shielded Drag Chain Cable to a PUR-sheathed screened drag-chain cable?
Upgrade to our screened PUR drag-chain cable (such as S 368 C or SABclean SD 780 C) when the cable carrier operates in sub-zero cold stores below −5 °C, requires halogen-free LSZH fire safety, or faces direct spray from synthetic ester metalworking coolants and cutting oils.
